Installation Instructions
for Dryers
Dimensions........................................................................ 3
Before You Start................................................................ 4
Installing the Dryer............................................................ 5
Installer Checklist.............................................. Back Cover
Date Purchased _____________________
Model Number _____________________
Serial Number _____________________
Part No. 510953R5
January 2009
Inside........................................

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510953
2
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the
dryer user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above
must be posted in a prominent location near the dryer for customer use.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
W052
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING
• Installation of unit must be performed by a qualified installer.
• Install clothes dryer according to manufacturer’s instructions and local codes.
• DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil
type) duct is installed, it must be of a specific type identified by the appliance manufacturer
as suitable for use with clothes dryers. Refer to section on connecting exhaust system.
Flexible venting materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct clothes dryer airflow and increase the risk of fire.
W729R1
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
W053
© Copyright 2009, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
510953

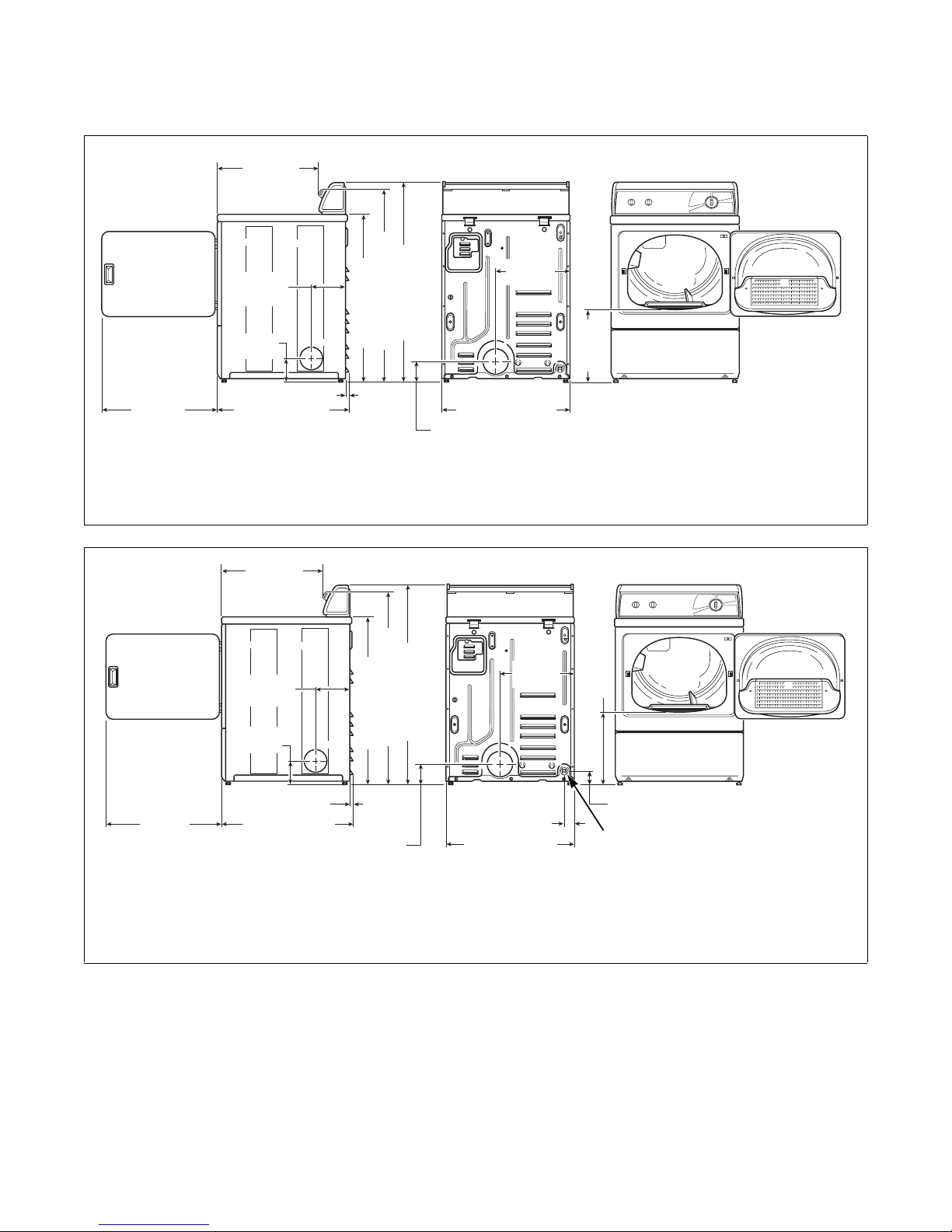

Dimensions
DRY2258N
* With leveling legs turned into base.
DRY2258N
59.7 cm
(23.5 in.) 71.1 cm (28 in.)
1.1 cm
(0.4 in.)
20.3 cm
(8.0m in.)
*11.4 cm
(4.5 in.)
*91.4cm(36in.)
*109.2 cm (43 in.)
*10.2 cm
(4.0 in.)
39.1 cm
(15.4 in.)
68.3cm(26.9in.)
ELECTRIC DRYERS
56.85 cm
(22.38 in.)
*102.24 cm (40.25 in.)
*39.2 cm
(15.44 in.)
DRY2259N
*With leveling legs turned into base.
13/8 in. NPT Gas Connection
DRY2259N
59.7 cm
(23.5 in.) 71.1 cm (28 in.)
1.1 cm
(0.4 in.)
*11.4 cm
(4.5 in.)
20.3 cm
(8.0 in.)
*91.4 cm (36 in.)
*109.2 cm (43 in.)
*10.2 cm
(4.0 in.)
39.1 cm
(15.4 in.)
68.3 cm (26.9 in.)
*7 cm (2.8 in.)
6cm
(2.3 in.) 1
GAS DRYERS
56.85 cm
(22.38 in.)
*102.24 cm (40.25 in.)
*39.2 cm (15.44 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510953
4
Before You Start
Supplies
For most installations, the basic supplies you will need
are:
Figure 1
DRY911N
1Wrench
2Screwdriver
3Level
4Duct Tape
5Teflon Tape (Gas Models)
61/4 in. Driver
DRY911N
12
6
3
5
4
Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W299
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
510953
Installing the Dryer
Step 1: Position and Level the Dryer
Install dryer before washer. This allows room for
attaching exhaust duct.
Select a location with a solid floor. Dryers installed in
residential garages must be elevated 46 cm (18 inches)
above the floor.
No other fuel burning appliance should be installed in
the same closet with the dryer.
The dryer must not be installed or stored in an area
where it will be exposed to water and/or weather.
The dryers needs sufficient clearance and an adequate
air supply for proper operation and ventilation, and for
easier installation and servicing. (Minimum clearances
are shown below).

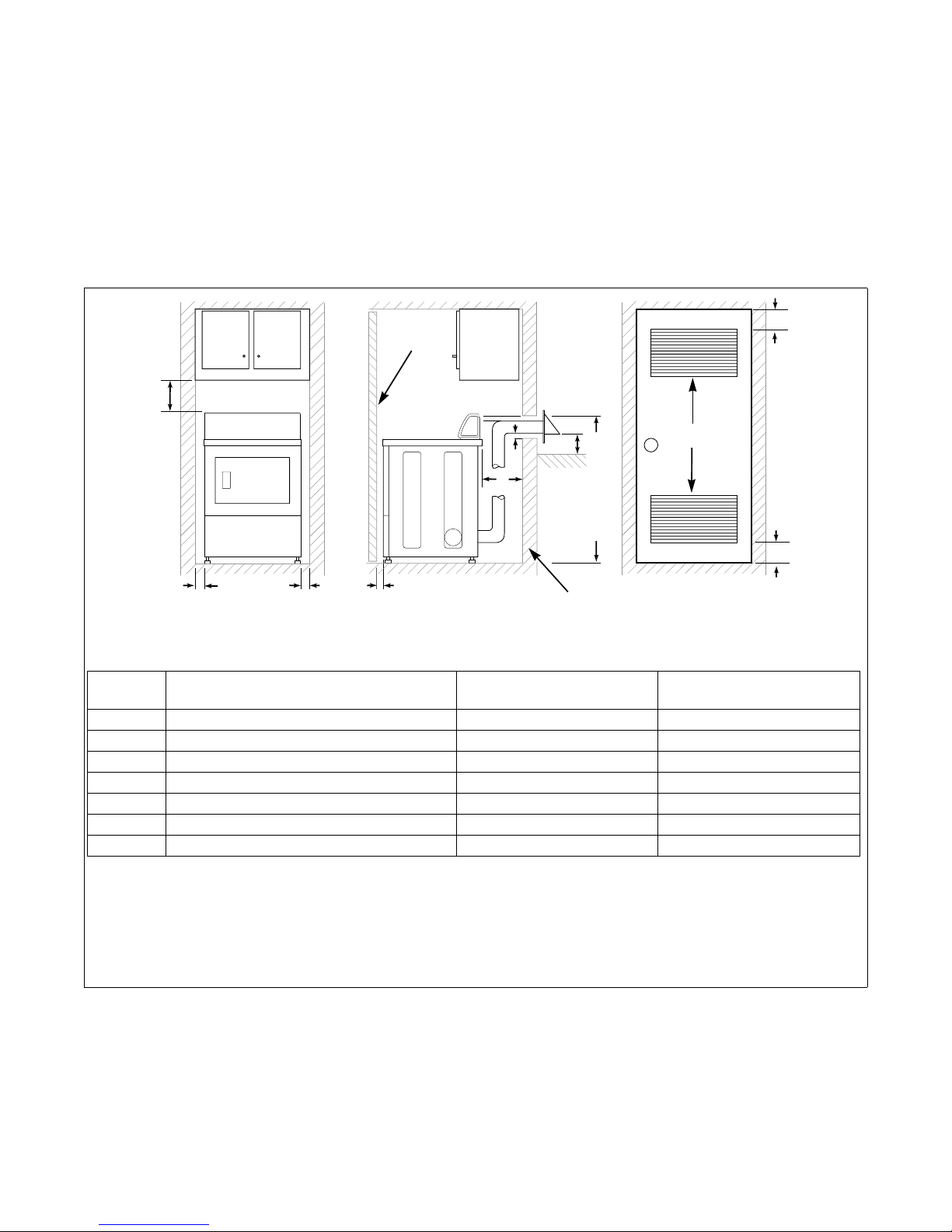

Figure 2
D823I
1Closet Door
2Centered Air Openings (G) (2 Openings minimum)
3Outer Wall of Enclosure
**NOTE: For new installations, locate top of wall vent 106.7 cm (42 in.) above floor to make venting easier
to connect.
1
2 (G)
3
A
E
**106.7 cm (42 in.)
F
F
B
AAC
FRONT VIEW
(w/o Closet Door)
SIDE VIEW
(Closet Door)
FRONT VIEW
(Closet Door)
D
Area Description Free Standing/Alcove
Installation Closet Installation
ADryer sides and rear clearance 0 cm (0 in.) 0 cm (0 in.)
BDryer top clearance 30.5 cm (12 in.) 30.5 cm (12 in.)
CDryer front clearance Not Applicable 5.1 cm (2 in.)
DExhaust duct clearance to combustible material 5.1 cm (2 in.) 5.1 cm (2 in.)
EWeather hood to ground clearance 30.5 cm (12 in.) 30.5 cm (12 in.)
FDistance from floor or ceiling to hole edge Not Applicable 7.6 cm (3 in.)
G* Area of centered air openings in closet door Not Applicable 260 sq. cm (40 sq. in.) open
*Louvered door with equivalent air openings is acceptable. (Minimum clearances are shown.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510953
6
Place the dryer in position, and adjust the legs until the
dryer is level from side to side and front to back. The
dryer must not rock.
Leveling legs can be adjusted from inside the dryer
with a 1/4 inch driver. All four legs must rest firmly on
the floor so the weight of the dryer is evenly
distributed. The dryer must not rock.
Figure 3
IMPORTANT: In mobile home installations, gas
dryers MUST be permanently attached to the floor
at the time of installation. Order No. 526P3 Dryer
Installation Kit (available at extra cost) for a
manufactured (mobile) home installation. Follow
the instructions supplied with the kit.
Step 2: Connect Dryer Exhaust System
•DO NOT use plastic or thin foil ducting. Rigid
metal duct is recommended.
•Locate dryer so exhaust duct is as short as
possible.
•Be certain old ducts are cleaned before installing
your new dryer.
•Use 102 mm (4 inches) diameter rigid or flexible
metal duct.
•The male end of each section of duct must point
away from the dryer.
•Use as few elbows as possible.
•Use duct tape or pop-rivets on all duct joints. DO
NOT use sheet metal screws or fasteners on
exhaust pipe joints which extend into the duct
and catch lint.
D669I
1Dryer Base
2Level
3Leveling Leg
D669I
D259I
1
2
3
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W604
To reduce the risk of fire and the
accumulation of combustion gases, DO NOT
exhaust dryer air into a window well, gas
vent, chimney or enclosed, unventilated
area, such as an attic, wall, ceiling, crawl
space under a building or concealed space
of a building.
W045
WARNING
DRY1915N
Figure 4
This gas appliance contains or produces a
chemical or chemicals which can cause
death or serious illness and which are
known to the State of California to cause
cancer, birth defects, or other reproductive
harm. To reduce the risk from substances in
the fuel or from fuel combustion, make sure
this appliance is installed, operated, and
maintained according to the instructions in
this manual.
W115
To reduce the risk of fire, DO NOT use
plastic or thin foil ducting to exhaust the
dryer.
W354
WARNING
DRY1915N
DON’TDO

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7
510953
•Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
•Install backdraft dampers in multi-dryer
installations.
•In mobile home installations, dryer exhaust duct
must be secured to mobile home structure.
•Dryer exhaust duct MUST NOT terminate under
mobile home.
•Dryer exhausts 220 cfm for 60 Hertz and 180 cfm
for 50 Hertz (measured at back of dryer).
•DO NOT install flexible duct in concealed
spaces, such as a wall or ceiling.
•Static pressure in exhaust duct should not be
greater than 1.5 cm (.6 inches) water column for
60 Hertz or 1.02 cm (.4 inches) water column
pressure (1.0 cm) for 50 Hertz measured with
manometer placed on exhaust duct 61 cm (2 feet)
from dryer (check with dryer running and no
load).
•Exhausting dryer in hard-to-reach locations can
be done by installing 521P3 Flexible Metal Vent
Kit (available as optional equipment at extra
cost).
•Sufficient make-up air must be supplied to
replace the air exhausted by the dryer. The free
area of any opening for outside air must be at
least 260 cm2(40 in.2).
•Energy efficient buildings with low air
infiltration rates should be equipped with an air
exchanger that can accommodate on demand
make-up air needs in the laundry room. These
devices can be obtained through your building
contractor or building material suppliers.
•Do not draw make-up air from a room containing
a gas fired water heater, a dry cleaner or a hair
salon.
•Failure to exhaust dryer properly will void
warranty.
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
Exhaust Direction
The dryer can be exhausted to the outdoors through the
back, left, right or bottom of the dryer. EXCEPTION:
Gas dryers cannot be vented out the left side
because of the burner housing.
Dryer is shipped from factory ready for rear exhaust.
Exhausting the dryer through sides or bottom can be
accomplished by installing a Directional Exhaust Kit,
528P3, available as optional equipment at extra cost.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510953
8
Exhaust System
For best drying results, recommended maximum
length of exhaust system is shown in Table 1.
To prevent backdraft when dryer is not in operation,
outer end of exhaust pipe must have a weather hood
with hinged dampers (obtain locally).
NOTE: Weather hood should be installed at least
30.5 cm (12 inches) above the ground. Larger
clearances may be necessary for installations where
heavy snowfall can occur.

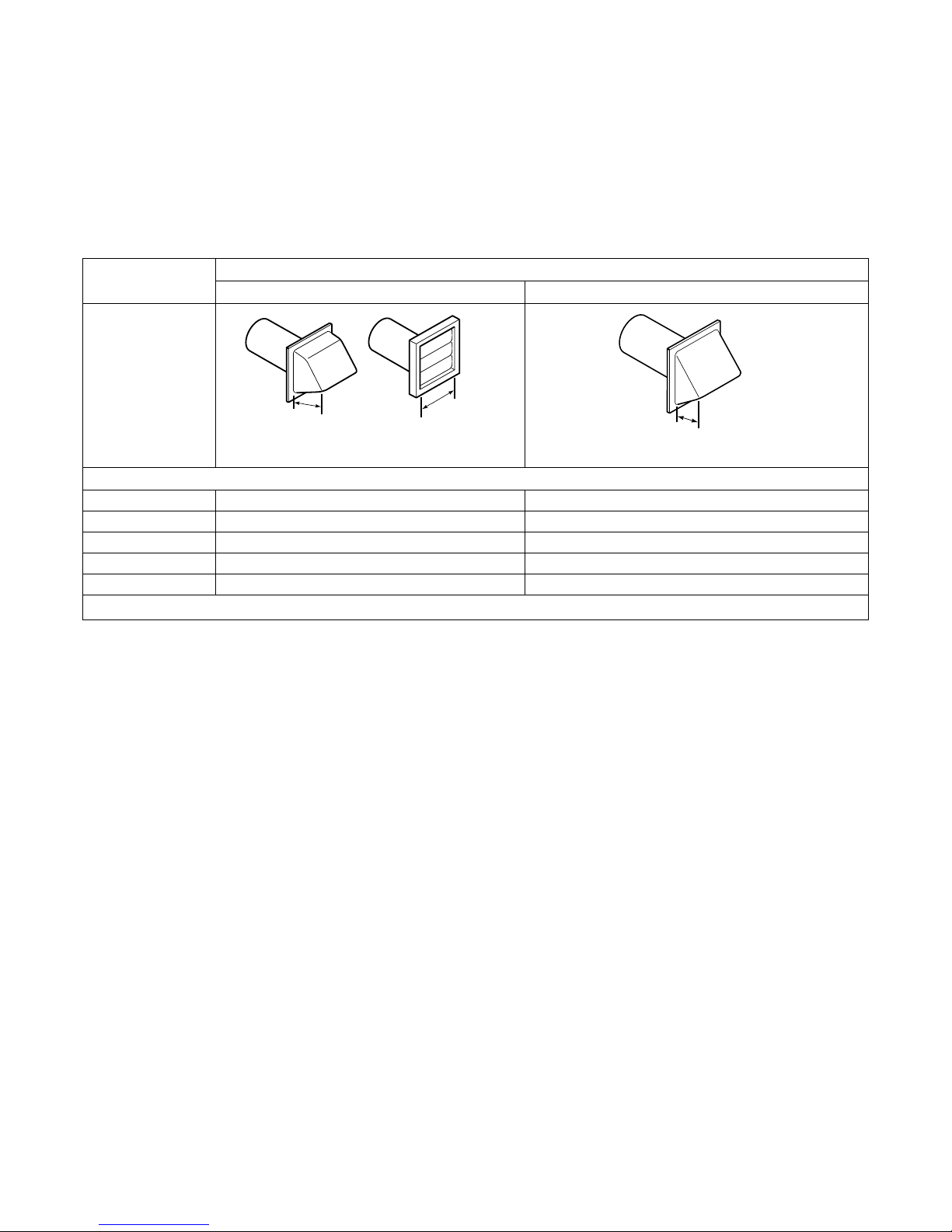

Table 1
NOTE: The maximum length of a 10.2 cm (4 in.)
diameter flexible metal duct must not exceed 2.4 m
(7.87 ft.), as required to meet UL2158, clause
7.3.2A.
Number of
90° Elbows
Weather Hood Type
Recommended Use Only for Short Run installations
Maximum length of 10.2 cm (4 in.) diameter rigid metal duct.
0 19.8 m (65 ft.) 16.8 m (55 ft.)
1 16.8 m (55 ft.) 14.3 m (47 ft.)
2 14.3 m (47 ft.) 12.5 m (41 ft.)
3 11.0 m (36 ft.) 9.1 m (30 ft.)
4 8.5 m (28 ft.) 6.7 m (22 ft.)
NOTE: Deduct 1.8 m (6 ft.) for each additional elbow.
10.2 cm
(4 in.)
10.2 cm
(4 in.)
D673I D802I
6.35 cm
(2-1/2 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9
510953
Step 3: (Gas Dryer Only) Connect Gas
Supply Pipe
1. Make certain your dryer is equipped for use with
the type of gas in your laundry room. Dryer is
equipped at the factory for Natural Gas with a
3/8 inch NPT gas connection.
NOTE: The gas service to a gas dryer must
conform with the local codes and ordinances, or in
the absence of local codes and ordinances, with the
latest edition of the National Fuel Gas Code ANSI
Z223.1/NFPA 54 or the CAN/CSA-B149.1, Natural
Gas and Propane Installation Code.
Natural Gas, 37.3 MJ/m3(1000 Btu/ft3) service must
be supplied at minimum 12.7 cm (5.0 inch) water
column pressure to maximum 26.67 cm (10.5 inch)
water column pressure.
For proper operation at altitudes above 760 m
(2500 feet) the natural gas valve spud orifice size must
be reduced to ensure complete combustion. Refer to
Table 2.
2. Remove the shipping cap from the gas
connection at the rear of the dryer. Make sure you
do not damage the pipe threads when removing
the cap.
3. Connect to gas supply pipe.
NOTE: When connecting to a gas line, an
equipment shut-off valve must be installed within
1.8 m (6 feet) of the dryer. An 1/8 inch NPT pipe
plug must be installed as shown for checking inlet
pressure. Refer to Figure 5.
To reduce the risk of gas leaks, fire or
explosion:
• The dryer must be connected to the type
of gas as shown on nameplate located in
the door recess.
• Use a new flexible stainless steel
connector.
• Use pipe joint compound insoluble in L.P.
(Liquefied Petroleum) Gas, or Teflon tape,
on all pipe threads.
• Purge air and sediment from gas supply
line before connecting it to the dryer.
Before tightening the connection, purge
remaining air from gas line to dryer until
odor of gas is detected. This step is
required to prevent gas valve
contamination.
• Do not use an open flame to check for gas
leaks. Use a non-corrosive leak detection
fluid.
• Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W316
WARNING
Natural Gas Altitude Adjustments
Altitude Orifice Size Part No.
m feet No. mm inches
760 2500 45 2.08 0.0820 503779
1370 4500 46 2.06 0.0810 503780
1830 6000 47 1.99 0.0785 503781
2290 7500 48 1.93 0.0760 503782
2900 9500 49 1.85 0.0730 503783
3355 11,000 50 1.78 0.0700 503784
Table 2
D233I
1New stainless steel flexible connector -
(Use design CSA certified connector)
Use only if allowed by local codes
21/8 in. NPT Pipe Plug
3Equipment Shut-Off Valve
4Black Iron Pipe
Shorter than 6.1 m (20 ft) -
Use 9.5 mm (3/8 in.) pipe
Longer than 6.1 m (20 ft.) -
Use 12.7 mm (1/2 in.) pipe
53/8 in. NPT Gas Connection
Figure 5
D233I
1
3
2
4
5

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510953
10
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal & external)
for gas leaks with a non-corrosive leak detection
fluid.
NOTE: The dryer and its appliance main gas valve
must be disconnected from the gas supply piping
system during any pressure testing of that system
at test pressures in excess of 3.45 kPa (1/2 psi.)
Refer to Step 9 (Check Heat Source).
L.P. (Liquefied Petroleum) Gas, 93.1 MJ/m3
(2500 Btu/ft3) service must be supplied at 10 ± 1.5
inch water column pressure.
For proper operation at altitudes above 915 m (3000 feet)
the L.P. gas valve spud orifice size must be reduced to
ensure complete combustion. Refer to Table 3.
NOTE: DO NOT connect the dryer to L.P. Gas
Service without converting the gas valve. Install
L.P. Gas Conversion Kit 401P3, available at extra
cost.
Step 4: (Electrical Dryer Only) Connect
Electrical Cord
Models without Power Cords
240 Volt, 50 Hertz, 2 Wire
Plus Grounded (Earth) Wire Installation
This dryer is designed to be operated on a two-wire
plus grounded (earth) wire, 240 Volt, 50 or 60 Hertz,
single phase supply circuit. It is designed to be fused at
10 Amperes for gas dryers, 15 Amperes for model
LES17A*F4500, and 30 Amperes for all other
models without power cords. Consult nameplate for
model and electrical ratings.
NOTE: Branch circuit wire size requirements to
laundry room dryer outlet are shown in Table 4.
Use U.L. (Underwriters Laboratories) listed wire.
Allow sufficient slack in wiring so dryer can be moved
from its normal location when necessary.
1. Remove the screw and terminal block access
cover from the rear of dryer cabinet.
2. Insert ends of direct wire through power supply
hole (containing proper strain relief) in rear of
dryer cabinet. Connect the power cord, or direct
wiring, to the two outer terminal block
terminals using the two wire-binding (10-32 x
3/8 inch) screws from the accessories pack in the
envelope shipped inside the dryer cylinder.
IMPORTANT: Use only a U.L. listed No. 10
(copper wire only) two conductor power supply
cord kit rated 240 Volts (minimum) 30 Amperes for
electric dryers or 10 Amperes for gas dryers, and
labeled as suitable for use in a clothes dryer.
3. Tighten these wire-binding screws firmly.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
4. Attach ground (earth) wire to rear bulkhead as
shown in Figure 9 with grounding screw (obtain
locally).
5. Secure the strain relief to the power cord, or
wires, where they enter the dryer cabinet.
6. Reinstall access cover and screw.
L.P. Altitude Adjustments
Altitude Orifice Size Part No.
m feet No. mm inches
1370 4500 56 1.2 0.0465 503786
3000 9500 57 1.1 0.043 60941
Table 3
To reduce the risk of fire, electric shock,
serious injury or death, the electrical
installation should conform to the National
Electrical Code, ANSI/NFPA 70, and such
local regulations as might apply.
W155
WARNING
Wire Length Electric Dryer Gas Dryer
Less than
4.5 m (15 ft.)
Listed 10 AWG
Copper Wire Only
Listed 14 AWG
Copper Wire Only
Longer than
4.5 m (15 ft.)
Listed 8 AWG
Copper Wire Only
Listed 12 AWG
Copper Wire Only
Table 4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 11
510953
Figure 6
Step 5: Reverse Door, if Desired
The door on this dryer is completely reversible. To
reverse door proceed as follows:
1. Remove four hinge attaching screws.
2. Remove all nine screws.
3. Pull bottom of door liner out, then pull down,
removing door liner from door panel.
4. Rotate door panel 180 degrees as shown.
D703I
1“L” Terminal
2Terminal Block
3Hex Head Screws (Slotted)
4Power Cord Wiring
5Direct Wiring
6Strain Relief (Not supplied with dryer)
7Power Cord or Direct Wire (Not supplied with
dryer)
8Access Cover (Refer to warning on this
page)
9Earth (Ground) Wire from Power Cord
10 Earth (Ground) Screw (Not supplied with
dryer)
11 “N” Terminal
12 Earth (Ground) Wire (Green)
D703I
1
4
7
8
9
10
11
12
6
2
3
5
WIRE
CONNECTION
DETAIL
To reduce the risk of electric shock, serious
injury or death, earth (ground) the dryer as
shown above.
W308
WARNING
Dryer is shown with the access cover
removed for illustration purposes only. To
reduce the risk of an electric shock, serious
injury or death, NEVER operate the dryer
with the access cover removed.
W157
WARNING
D675I
D675I
D272P
DRY1916N
B
A
DRY1916N
D273P

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510953
12
5. Remove door strike from door liner and reinstall
on opposite side.
6. Insert liner under flange on bottom of door, then
push top of door liner into place.
7. Reinstall nine screws removed in Step 2.
8. Using screwdriver, remove two door plugs, and
reinstall on opposite side of door opening.
9. Reinstall four hinge attaching screws, removed in
Step 1.
Step 6: Wipe Out Inside of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
DRY1917N
DRY1917N
DRY1918N
B
A
DRY1918N
DRY1919N
DRY1919N
D620I
D620I
D623I
D618I
Figure 7
D623I
D618I

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 13
510953
Step 7: Connect Dryer to Electrical Power
If the supply cord is damaged it must be replaced by a
special cord or assembly available from the
manufacturer or service agent.
Models LES33A*F4562, LGS17A*F3020 and
LEZ37A*F3000.
NOTE: The wiring diagram is located inside the
control hood.
If your home’s electrical supply does not meet the
specifications for your dryer and/or you are not sure
your home has an effective earth, have a qualified
electrician or your local electrical utility company
check it and correct any problems.
Model LGS17A*F3020
This dryer is designed to be operated on a two-wire
plus earth, 240 Volt, 50 Hertz, single phase circuit,
fused at 10 Amperes.
Insert the dryer’s lead-in cord plug into an earthing
wall receptacle on a separate circuit. DO NOT
OPERATE OTHER APPLIANCES ON THE SAME
CIRCUIT WHEN THE DRYER IS OPERATING.
Earthing Instructions
The dryer must be earthed. In the event of malfunction
or breakdown, earthing will reduce the risk of electric
shock by providing a path of least resistance for
electric current. The dryer is equipped with a cord
having an equipment-earthing conductor. The plug
must be plugged into an appropriate outlet that is
properly installed and earthed in accordance with local
codes and ordinances.
Do not modify the plug provided with the dryer – if it
will not fit the outlet, have a proper outlet installed by
a qualified electrician.
Figure 8
To reduce the risk of fire, electric shock,
serious injury or death, the electrical
installation should conform to the National
Electrical Code, ANSI/NFPA 70, and such
local regulations as might apply.
W155
WARNING
Improper connection of the equipment-
earthing conductor can result in a risk of
electric shock. Check with a qualified
electrician or serviceman if you are in doubt
as to whether the dryer is properly earthed.
W159
WARNING
D693I
1Lead-In Cord
2Lead-In Cord Plug
3Earth
D693I
2
MODEL LGS17A*F3020
1
3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510953
14
Model LES33A*F4562
This dryer is designed to be operated on a two-wire
plus earth, 240 Volt, 50 Hertz, single phase circuit,
fused at 15 Amperes.
Insert the dryer’s lead-in cord plug into an earthing
wall receptacle on a separate circuit. DO NOT
OPERATE OTHER APPLIANCES ON THE SAME
CIRCUIT WHEN THE DRYER IS OPERATING.
Figure 9
Model LEZ37A*F3000
This dryer is designed to be operated on a two-wire
plus earth, 240 Volt, 50 Hertz, single phase circuit
fused at 30 Amperes.
D694I
1Lead-In Cord
2Lead-In Cord Plug
3Earth
D694I
MODEL LES33A*F4562
1
2
3
To reduce the risk of fire, electric shock,
severe personal injury or death, all wiring
and earthing MUST abide with local
electrical codes. It is the customer’s
responsibility to have the wiring and fuses
installed by a qualified electrician to make
sure adequate electrical power is available
to the dryer.
W531
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 15
510953
Earthing and Wiring Instructions
The unit must be connected to an earthed metal,
permanent wiring system; or an equipment-earthing
conductor must be run with the circuit conductors and
connected to the equipment-earthing terminal or lead
on the unit.
The unit has its own terminal block that must be
connected to a separate branch, 50 Hertz, single phase
circuit, fused to handle requirments on serial plate.
All other Models
Connect the dryer to an electrical power source. Refer
to Step 4 for information on connecting power cord.
Step 8: Recheck Steps 1-7
Refer to Installer Checklist on the back cover of this
manual and make sure that dryer is installed correctly.
D724I D725I
NOTE: Electrical receptacle must be located so that it is easily accessible with machine in place. If
machine is hard wired, an intermediate shut-off box with a 3.5 mm (.14 in.) gap is required (Standard IEC
60335-1, clause [22.2]).
Figure 10
D724I
D725I
HARDWIREPOWER CORD

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510953
16
Step 9: Check Heat Source
Electric Dryers
Close the loading door and start the dryer in a heat
setting (refer to the Operating Instructions supplied
with the dryer). After the dryer has operated for three
minutes, the exhaust air or exhaust pipe should be
warm.
Gas Dryers
IMPORTANT: This operation to be conducted by
qualified personnel only.
To view the burner flame, remove the lower front
panel of the dryer.
Close the loading door, start the dryer in a heat setting
(refer to the Operating Instructions supplied with the
dryer); the dryer will start, the igniter will glow red
and the main burner will ignite.
IMPORTANT: If igniter is not lit, make sure gas is
turned on.
IMPORTANT: If all air is not purged out of gas
line, gas igniter may go off before gas is ignited. If
this happens, after approximately two minutes
igniter will again attempt gas ignition.
After the dryer has operated for approximately five
minutes, observe burner flame through lower front
panel. Adjust the air shutter to obtain a soft, uniform
blue flame. (A lazy, yellow-tipped flame indicates lack
of air. A harsh, roaring, very blue flame indicates too
much air.) Adjust the air shutter as follows:
1. Loosen the air shutter lockscrew.
2. Turn the air shutter to the left to get a luminous
yellow-tipped flame, then turn it back slowly to
the right to obtain a steady, soft blue flame.
3. After the air shutter is adjusted for proper flame,
tighten the air shutter lockscrew securely.
4. Reinstall the lower front panel.
After the dryer has operated for approximately three
minutes, exhaust air or exhaust pipe should be warm.
Figure 11
For personal safety, lower front panel must
be in place during normal operation.
W046
WARNING
D700I
1Closed Position 53.1 mm (1/8 in.) Pipe Plug
2Shut-Off Valve Handle (for checking manifold presure)
3Air Shutter Lockscrew 6Open Position
4Air Shutter
12
3
4
6
5

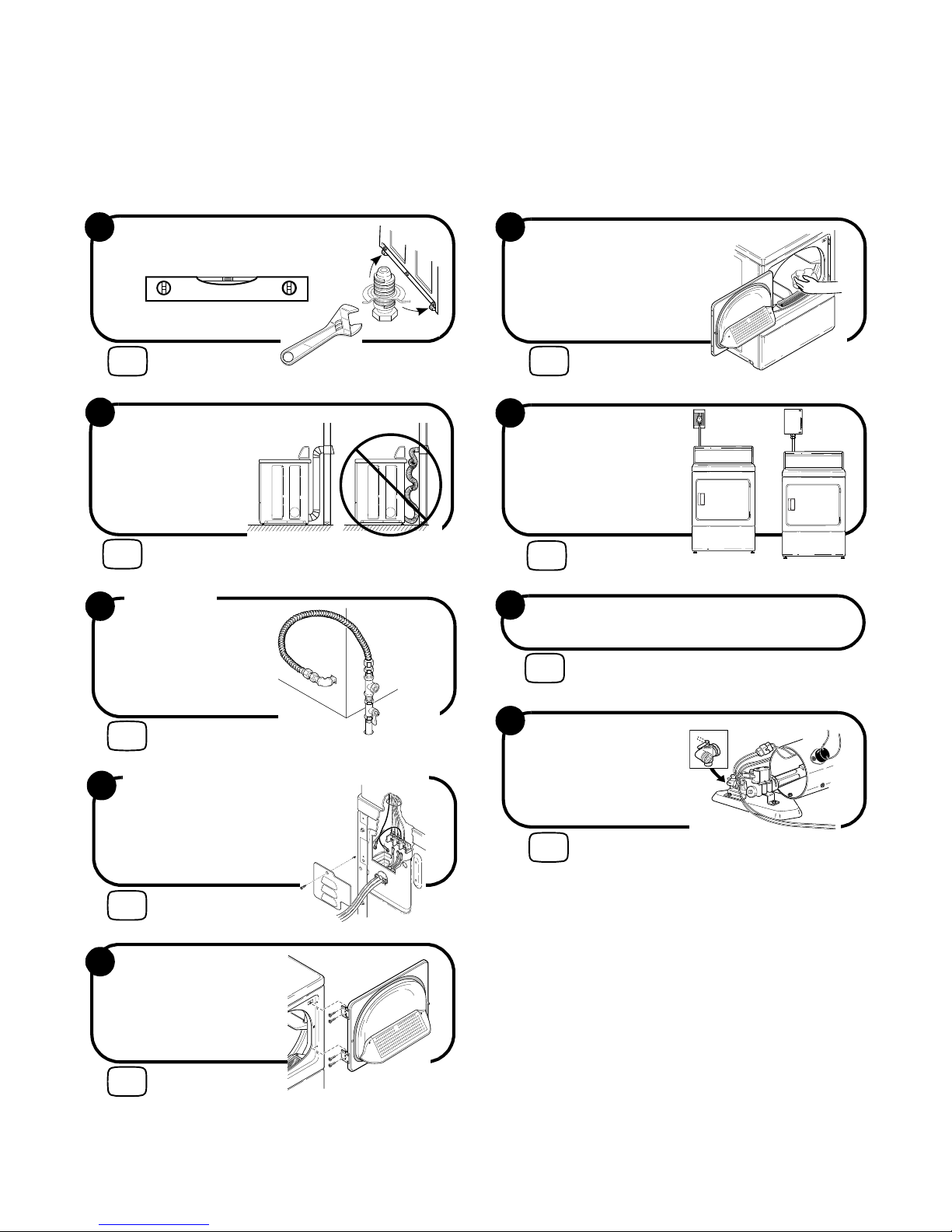

Installer Checklist
Fast Track for Installing the Dryer
(Refer to the manual for more detailed information)
LEVEL
D255I
• Position and
Level the Dryer.
1
D256I
CHECK D259I
D255I
2
DRY1915N
DRY1915N
• Connect Dryer
Exhaust System.
CHECK
3GAS ONLY
D258I
CHECK
• Connect Gas
Supply Pipe.
• Check for Gas
Leaks.
4
D699I
W315IE0A
• Connect Electrical
Cord.
CHECK
MODELS WITHOUT POWER CORDS
• Reverse Door,
if Desired.
5
D675I W675I
CHECK
6
D618I
• Wipe Out Inside of
Dryer.
D618I
CHECK
7
D724I
D725I
D724I D725I
CHECK
Electric Gas • ConnectDryer
to Electrical
Power
• Recheck Steps 1-7.
8
CHECK
9
CHECK D700I
D700I
•CheckHeat
Source.
