Alliance Laundry Systems Drying Tumbler 70278501R5EN Owner's manual

Installation/Operation Supplement
www.comlaundry.com
Drying Tumblers
50 Pound Capacity
75 Pound Capacity
Refer to page 3 for Model Identification
Part No. 70278501R5EN
December 2007
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

Installation/Operation Supplement
70278501 (EN) 1 © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation must conform with local codes.
IMPORTANT: Information must be obtained from
a local gas supplier on instructions to be followed if
the user smells gas. These instructions must be
posted in a prominent location. Step-by-step
instructions of the above safety information must
be posted in a prominent location near the tumbler
for customer use.
FOR YOUR SAFETY, the information in
this manual must be followed to minimize
the risk of fire or explosion or to prevent
property damage, personal injury or
death.
W033
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Clear the room, building or area of all
occupants.
– Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
W052
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
W053
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using the tumbler unit, follow these basic
precautions:
• Read all instructions before using
tumbler.
• DO NOT tamper with controls.
• DO NOT bypass any safety devices.
• Always follow the fabric care
instructions supplied by the garment
manufacturer.
• Remove laundry immediately after the
tumbler stops.
• DO NOT reach into tumbler if cylinder is
revolving.
To avoid creating any flammable vapors
which may explode, ignite or cause
corrosive damage, DO NOT dry the
following materials:
• Articles that have been cleaned in,
soaked in, washed in or spotted with
gasoline, dry-cleaning solvents or other
flammable/explosive substances.
• Plastics or articles containing foam
rubber or similarly textured rubberlike
materials.
• Articles that have traces of flammable
substances like cooking oil, machine
oil, flammable chemicals or thinner.
• Articles containing wax or cleaning
chemicals.
• Fiberglass curtains or draperies (unless
the label says it can be done).
W440R1
WARNING

© Published by permission of the copyright owner.
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
Installation/Operation Supplement
270278501 (EN)© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Table of
Contents
Introduction......................................................................................... 3
Model Identification ............................................................................. 3
Wiring Diagram .................................................................................... 3
Serial Plate Location............................................................................. 4
Safety Information.............................................................................. 5
Important Safety Instructions ............................................................... 5
Installation........................................................................................... 7
Specifications and Dimensions............................................................. 7
Cabinet Dimensions ......................................................................... 8

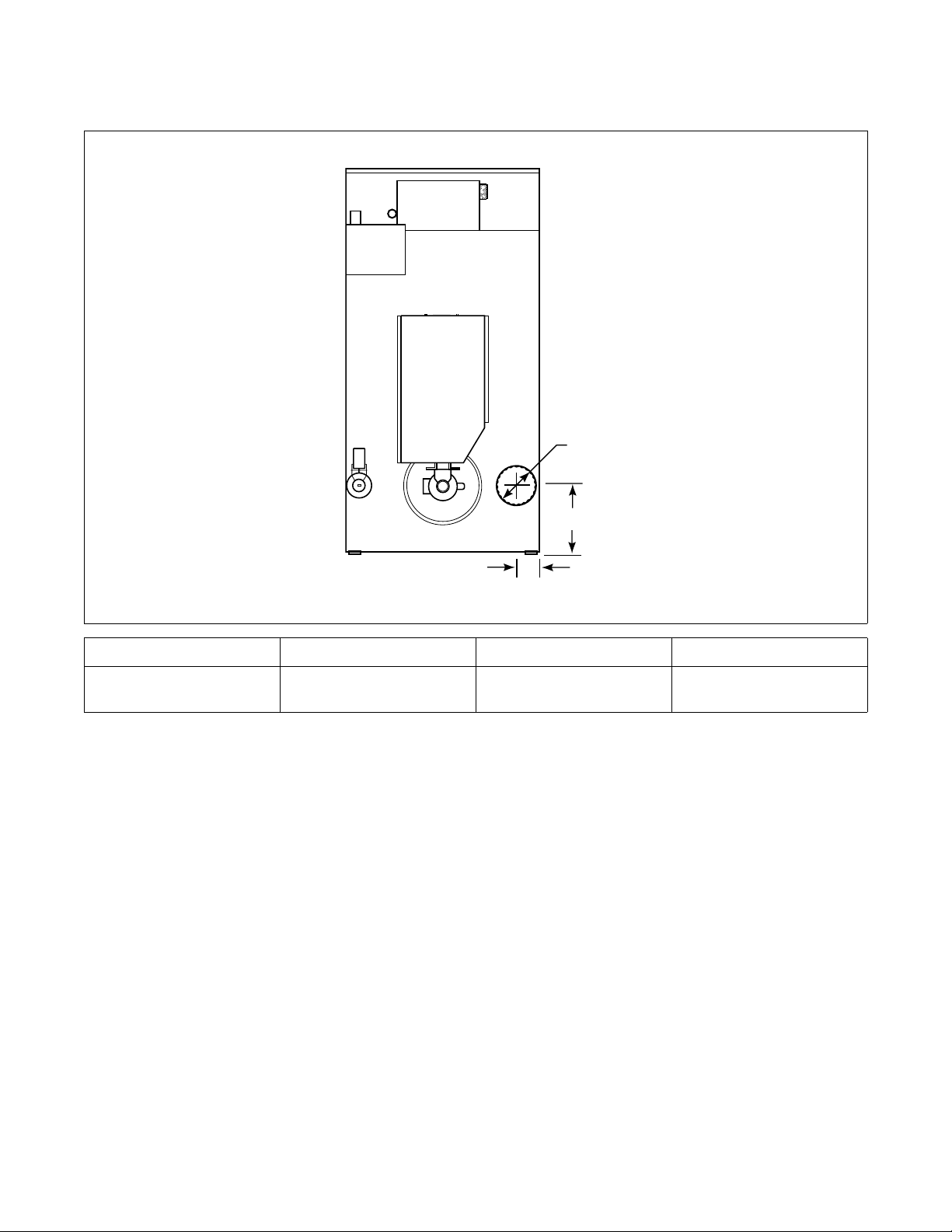

Horizontal Exhaust Outlet Locations............................................... 9

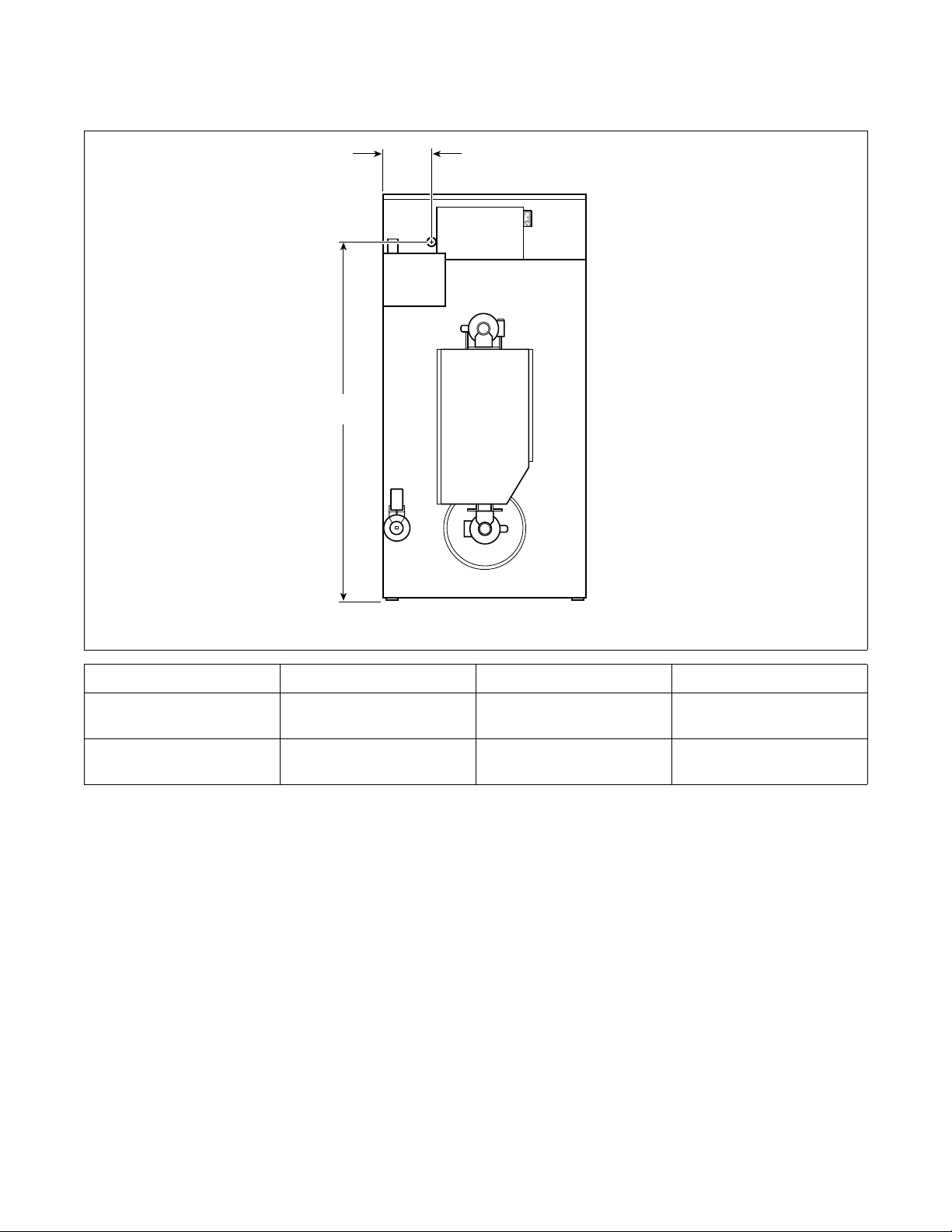

Gas Connection Locations ............................................................... 10
Electrical Connection Locations ...................................................... 11

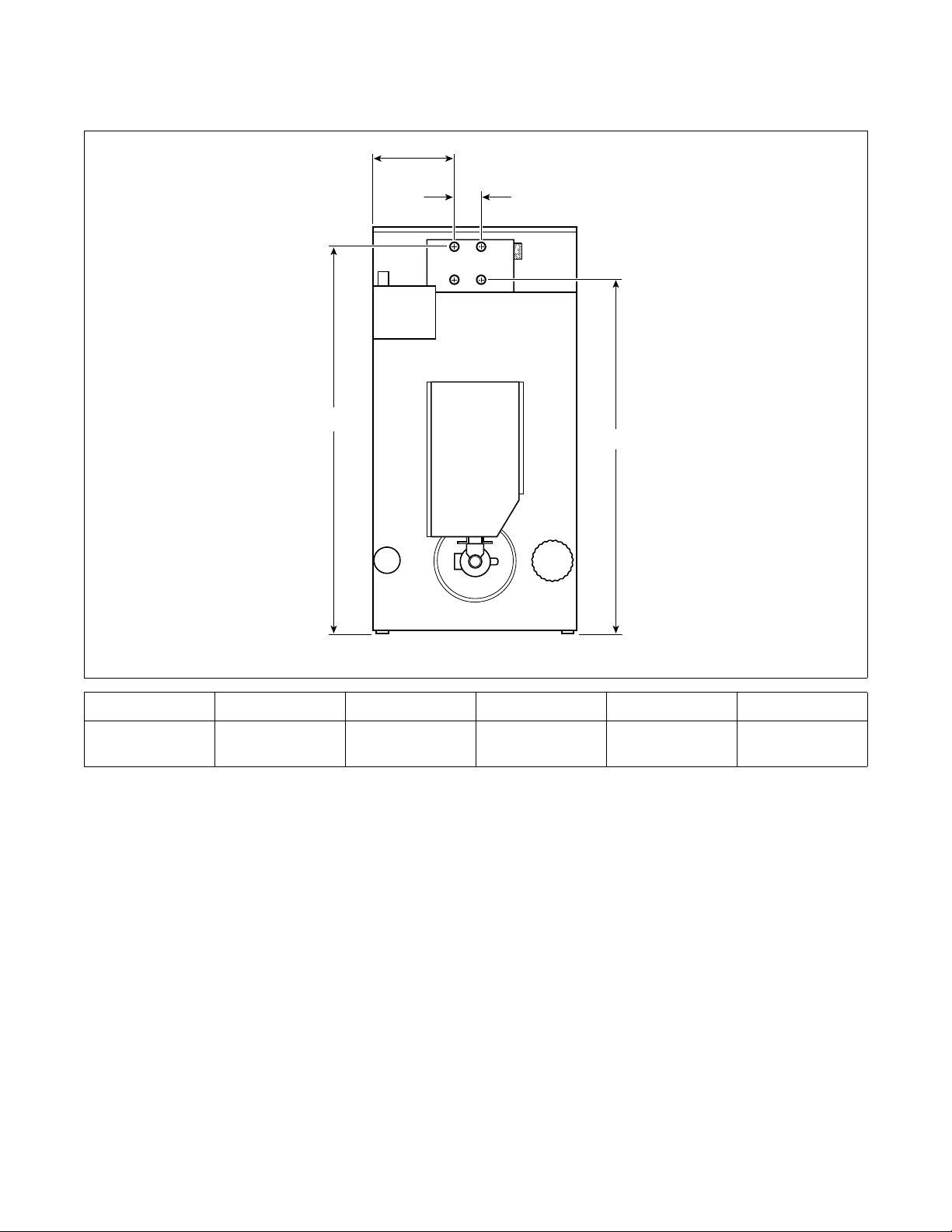

Steam Connection Locations ........................................................... 12
Position and Level the Tumbler............................................................ 13
Fire Suppression System....................................................................... 14
Water Requirements......................................................................... 14
Water Connections........................................................................... 14
Electrical Requirements ................................................................... 14
Auxiliary Alarm ............................................................................... 14
Gas Requirements................................................................................. 15
Natural Gas and Liquefied Petroleum.............................................. 15
European Gas ................................................................................... 16
Exhaust Requirements .......................................................................... 18
Make-Up Air.................................................................................... 18
Venting............................................................................................. 18
Electrical Requirements........................................................................ 19
Grounding Instructions .................................................................... 19
Steam Requirements ............................................................................. 20
Thermal Oil Prep .................................................................................. 20
Operation............................................................................................. 22
Emergency Stop Button on CE Models................................................ 22
Operating Instructions .......................................................................... 22
Step 1: Clean Lint Screen/Compartment ......................................... 22
Step 2: Load Laundry....................................................................... 22
Step 3: Determine Control Type and Temperature Setting ............. 22
Step 4: Remove Laundry ................................................................. 22
Control Instructions .............................................................................. 23
Electromechanical Coin Control...................................................... 23
Manual Timer Control ..................................................................... 24
Dual Digital Timer Control.............................................................. 25
Single Drop Control......................................................................... 26
DMP OPL Control ........................................................................... 27
DMP Coin Control........................................................................... 28
Ignition Control Operation ................................................................... 29
Disposal of Unit ................................................................................... 30

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 3
70278501 (EN)
Installation/Operation Supplement
Introduction
Model Identification
Information in this manual is applicable to these models:
Includes models with the following control suffixes:
Wiring Diagram
The wiring diagram is located in the junction or
contactor box.
Gas Steam/Thermal Oil Electric
50 Pound
CHD50G2-CU050L
CHD50G2-CU050N
DR50G2-BU050L
DR50G2-BU050N
BU050T
CHD50S2-CU050S
CU050T
DR50S2-BU050S
CHD50E2-CU050E
DR50E2-BU050E
75 Pound
CHD75G2-CU075L
CHD75G2-CU075N
DR75G2-BU075L
DR75G2-BU075N
BU075T
CHD75S2-CU075S
CU075T
DR75S2-BU075S
CHD75E2-CU075E
DR75E2-BU075E
3O – DX4 OPL
3V – DX4 vended
3X – DX4 prep for coin
CD – rotary coin drop
CX – prep for coin
DO – DMP OPL
DV – DMP vended
DX – DMP prep for coin
MT– manual timer
QT – dual digital timer
R3 – reversing DX4 OPL
RD – reversing DMP OPL
RQ – reversing dual digital timer
RT – reversing manual timer
SD – single drop
SX – single drop, prep for coin

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70278501 (EN)
4

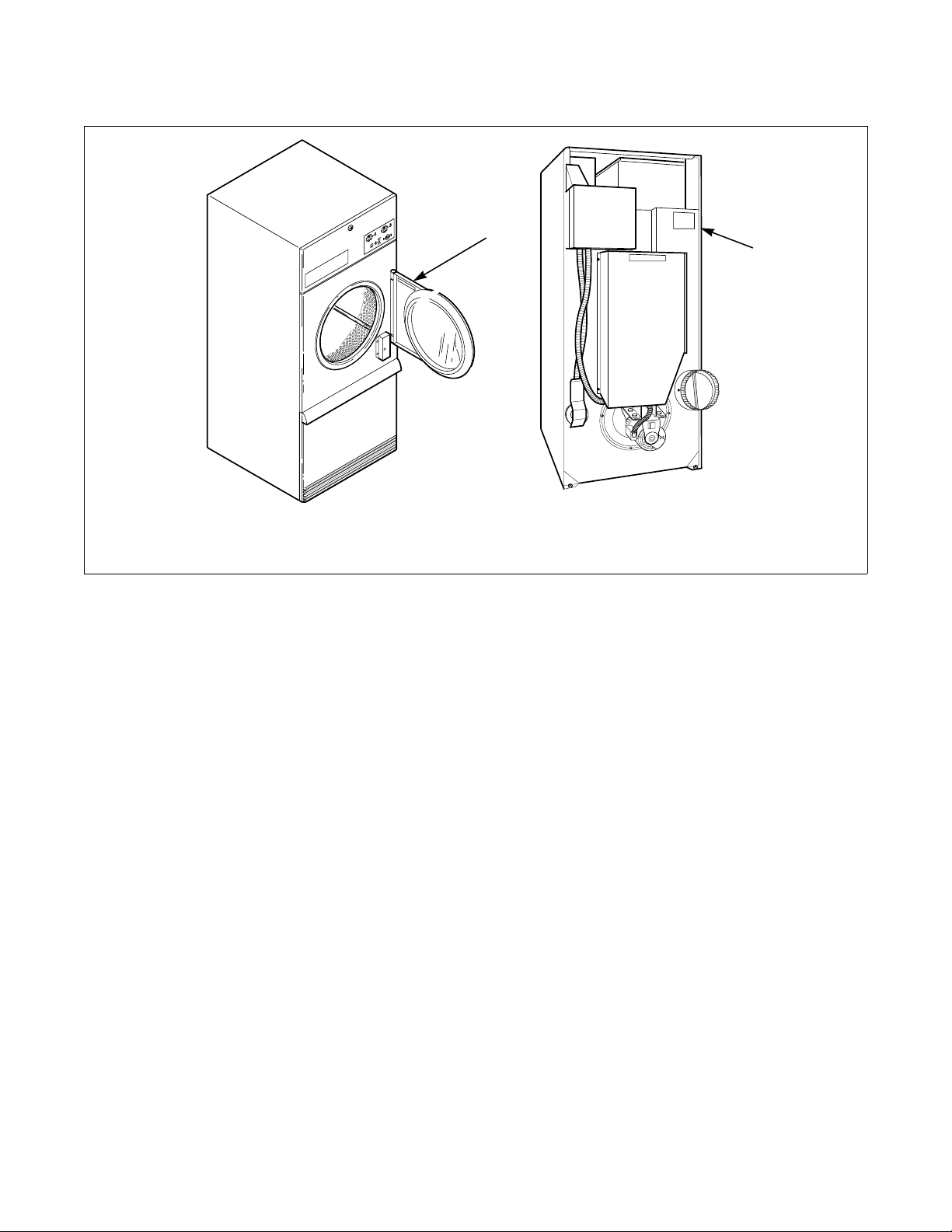

Serial Plate Location
TMB803N
1Serial Plate
TMB803N
10
20
4030
50
60
0
10
5
PUSH
TO
START
HEAT COOL
DOWN
HIGH
TEMPERATURE
LOW
15
0
1
1

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 5
70278501 (EN)
Installation/Operation Supplement
Safety Information
Save These Instructions
Important Safety Instructions
1. Read all instructions before using the tumbler.
2. Refer to the GROUNDING INSTRUCTIONS
for the proper grounding of the tumbler.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
4. Do not allow children to play on or in the
tumbler. This appliance is not intended for use by
young children or infirm persons without
supervision. Young children should be
supervised to ensure that they do not play with
the appliance.
5. Before the tumbler is removed from service or
discarded, remove the door to the drying
compartment and the door to the lint
compartment.
6. Do not reach into the tumbler if the cylinder is
revolving.
7. Do not install or store the tumbler where it will
be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumbler,
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Always clean the lint filter daily.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the tumbler and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Tumbler will not operate with the loading door
open. DO NOT bypass the door safety switch to
permit the tumbler to operate with the door open.
The tumbler will stop tumbling when the door is
opened. Do not use the tumbler if it does not stop
tumbling when the door is opened or starts
tumbling without pressing or turning the START
mechanism. Remove the tumbler from use and
call for service.
17. Tumbler will not operate with lint panel open.
DO NOT bypass lint panel safety switch to
permit the tumbler to operate with the lint panel
open.
18. Do not put articles soiled with vegetable or cooking
oil in the tumbler, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
19. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the tumbler.
20. Use the tumbler only for its intended purpose,
drying fabrics.
21. ALWAYS disconnect and lockout the electrical
power to the tumbler before servicing.
Disconnect power by shutting off appropriate
breaker or fuse.
Hazardous Voltage. Can cause shock, burn
or cause death. Allow machine power to
remain off for two minutes prior to working
in and around AC inverter drive.
W359
WARNING

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70278501 (EN)
6
22. Install this tumbler according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding, and
gas supply must comply with local codes and be
made by licensed personnel when required.
23. Remove laundry immediately after tumbler stops.
24. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
25. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
26. Always follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the tumbler with any guards and/or
panels removed.
28. DO NOT operate the tumbler if it is smoking,
grinding, has missing or broken parts.
29. DO NOT bypass any safety devices.
30. Solvent vapors from dry-cleaning machines
create acids when drawn through the heater of the
drying unit. These acids are corrosive to the
tumbler as well as to the laundry load being
dried. Be sure make-up air is free of solvent
vapors.
31. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
WARNING
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers.
W055

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 7
70278501 (EN)
Installation/Operation Supplement
Installation
Specifications and Dimensions
Specifications 50 Pound 75 Pound
Noise level measured during operation at
operator position of 1 meter (3.3 feet) in front
of machine and 1.6 meters (5.2 feet) from
floor.
63 dBA 69 dBA
Net Weight (approximate):
kg (lbs.)
247
(545)
279
(615)
Cylinder Size:
mm (in.)
940 x 762
(37 x 30)
940 x 914
(37 x 36)
Cylinder Capacity (dry weight):
kg (lbs.)
22.7
(50)
34
(75)
Air Outlet Diameter:
mm (in.)
203
(8)
203
(8)
Maximum Static Back Pressure:
mbar (W.C.I.)
1.3
(0.5)
1.3
(0.5)
Maximum Airflow:
L/sec. (C.F.M.)
354
(750)
Gas/Steam 50 Hz 354 (750)
Gas/Steam 60 Hz 434 (920)
Electric 354 (750)
Motor Horsepower:
Nonreversing
Reversing
Fan
Cylinder
1/2
1/3
1/3
3/4
1/3
1/3
Gas Models
Gas Connection 1/2 in. NPT 1/2 in. NPT
Gas Burner Rating:
Mj/hr (Btu/hr)
126.6
(120,000)
174.1
(165,000)
Electric Models
Heating Elements Rating:
Kilowatts (kW)
21 kW (240 V/50 Hertz)
30 kW (other voltages)
30 kW
Steam Models
Steam Connection 3/4 in. NPT 3/4 in. NPT
Steam Coil Rating:
Btu/hr (Boiler Horsepower)
5.1
(177,500)
6.1
(210,300)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70278501 (EN)
8
Cabinet Dimensions
TMB2213N
TMB2213N
C
B
E
D
A
GF
ModelsABCDEFG
050
Gas and
Electric
781 mm
(30.75 in.)
717 mm
(28.25 in.)
1194 mm
(47 in.)
1946 mm
(76.625 in.)
981 mm
(38.625 in.)
838 mm
(33 in.)
749 mm
(29.5 in.)
050
Steam
781 mm
(30.75 in.)
717 mm
(28.25 in.)
1194 mm
(47 in.)
2032 mm
(80 in.)
981 mm
(38.625 in.)
838 mm
(33 in.)
749 mm
(29.5 in.)
075
Gas and
Electric
781 mm
(30.75 in.)
717 mm
(28.25 in.)
1346 mm
(53 in.)
1946 mm
(76.625 in.)
981 mm
(38.625 in.)
838 mm
(33 in.)
902 mm
(35.5 in.)
075
Steam
781 mm
(30.75 in.)
717 mm
(28.25 in.)
1346 mm
(53 in.)
2032 mm
(80 in.)
981 mm
(38.625 in.)
838 mm
(33 in.)
902 mm
(35.5 in.)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
9
70278501 (EN)
Horizontal Exhaust Outlet Locations
TMB811N
TMB811N
A
B
C
ModelsABC
050/075 137 mm
(5.375 in.)
203 mm
(8 in.)
340 mm
(13.375 in.)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70278501 (EN)
10
Gas Connection Locations
TMB812N
TMB812N
A
B
Models Diameter A B
050 1/2 in. NPT 394 mm
(15.5 in.)
1670 mm
(65.75 in.)
075 1/2 in. NPT 400 mm
(15.75 in.)
1670 mm
(65.75 in.)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
11
70278501 (EN)

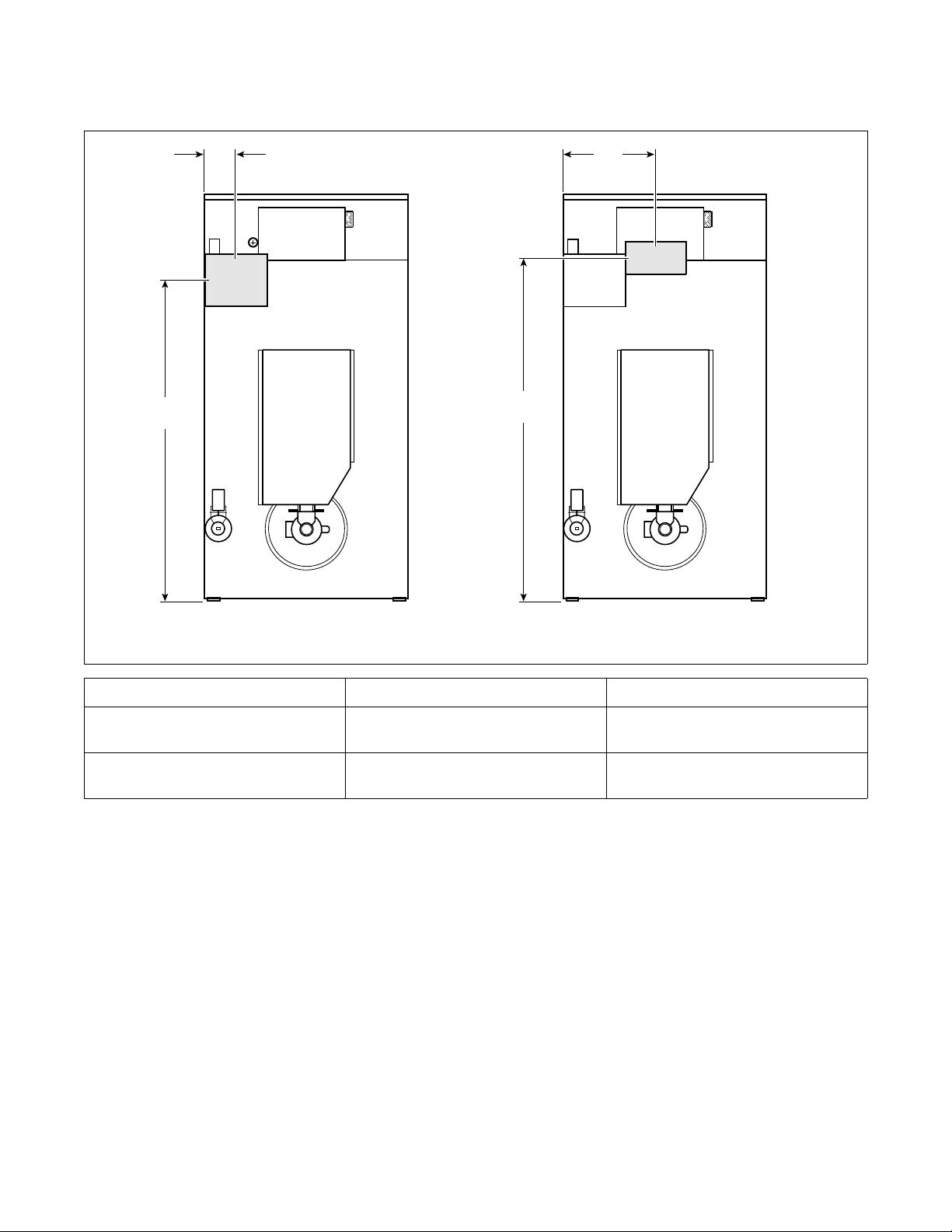

Electrical Connection Locations
NOTE: These figures are approximate dimensions only.
TMB813N
TMB813N
GAS AND STEAM ELECTRIC
A
BB
A
Models A B
Gas and Steam 241 mm
(9.5 in.)
1613 mm
(63.5 in.)
Electric 483 mm
(19 in.)
1626 mm
(64 in.)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70278501 (EN)
12
Steam Connection Locations
TMB814N
TMB814N
C
A
B
D
ModelsDiameterABCD
050/075 3/4 in. NPT 387 mm
(15.25 in.)
1848 mm
(72.75 in.)
190 mm
(7.5 in.)
1645 mm
(64.75 in.)

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
13
70278501 (EN)

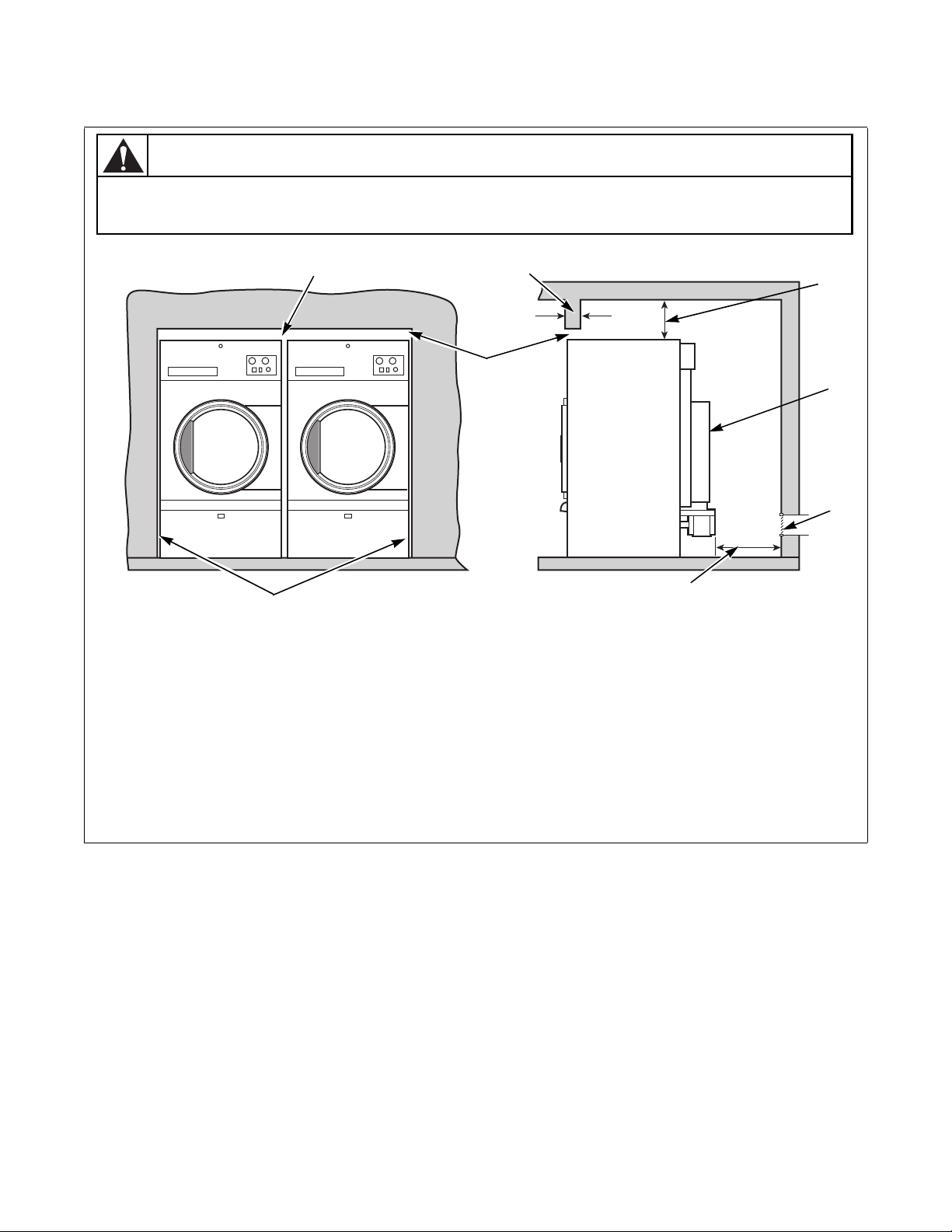

Position and Level the Tumbler
Figure 1
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
TMB2138N
NOTE: Shaded areas indicate adjacent structure.
113 mm (0.5 in.) recommended between machines for removal or installation
2Allow 51-102 mm (2-4 in.) opening at top of machine to aid in removal or installation. A removable trim piece may
be used to conceal the opening; zero clearance allowed for trim.
3102 mm (4 in.) maximum header thickness
4305 mm (12 in.) minimum clearance permitted for remainder
5Guard
6Provision for make-up air
7610 mm (24 in.) minimum, 914 mm (36 in.) recommended for maintenance purposes
86 mm (0.25 in.) recommended for removal or installation purposes, zero clearance allowed
TMB2138N
To reduce the risk of severe injury, clearance of tumbler cabinet from combustible
construction must conform to the minimum clearances.
W056
WARNING
3
14
5
6
7
2
8

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70278501 (EN)
14
Fire Suppression System
Water Requirements
IMPORTANT: Water must be supplied to the fire
suppression system, or the fire suppression system
will not operate as intended.
Connection point to the electric water solenoid valve is
a 19 mm (3/4 inch) hose. The fire suppression system
equipped tumbler must be supplied with a minimum
water pipe size of 12.7 mm (1/2 inch)and be provided
with a minimum of 138 kPa (20 psi) and a maximum
of 827 kPa (120 psi) of pressure at all times. Flowrate
must be no less than, but approximately 57 liter
(15 gallons) per minute.
NOTE: Water pressure under 138 kPa (20 psi) will
cause low flow and water leakage at water solenoid
valve.
IMPORTANT: Temperature of the water supply
must be kept between 4.4° and 48.9°C (40° and
120°F). If water in the supply line or water solenoid
valve freezes, the fire suppression system will not
operate.
IMPORTANT: If temperature sensors inside the
tumbler register a temperature below 4.4°C (40°F),
the fire suppression system control will lock out.
This feature protects against operation of the
tumbler with a possible frozen water supply. Only
when the temperature sensors register a
temperature above 4.4°C (40°F) will the machine
reset for operation.
IMPORTANT: Flexible supply line/coupling must
be used. Solenoid valve failure due to hard
plumbing connections will void the warranty. It is
recommended that a filter or strainer be installed
in the water supply line.

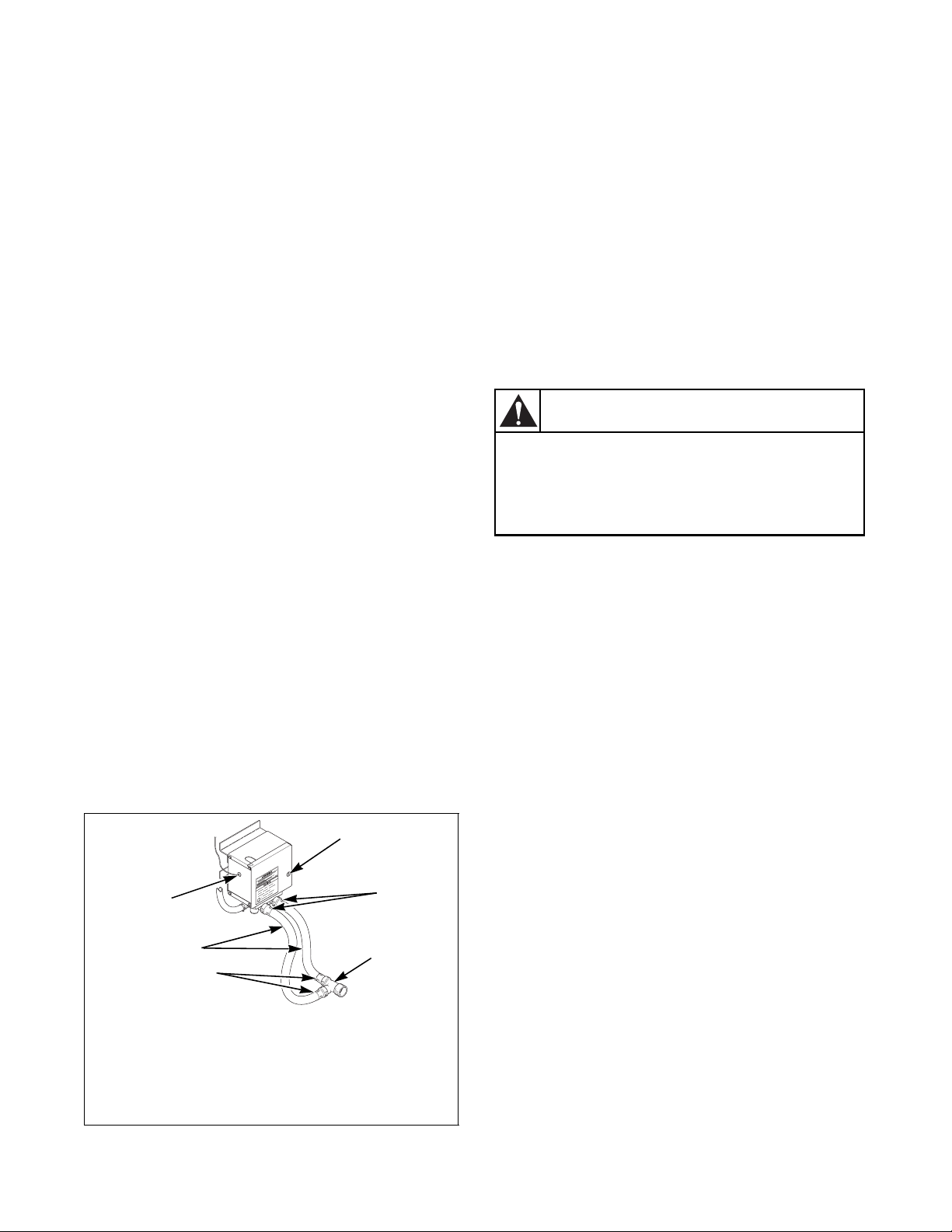

Water Connections
Figure 2
IMPORTANT: Thread hose couplings onto valve
connections finger tight, then turn 1/4 turn with
pliers. Do not cross thread or overtighten
couplings.
IMPORTANT: Replace all hoses every five years.
NOTE: Longer inlet hoses are available (as
optional equipment at extra cost) if the hoses
supplied with the tumbler are not long enough for
installation. Order hoses as follows:
Part No. 20617 Inlet hose 2.44 m (8 feet)
Part No. 20618 Inlet hose 3.05 m (10 feet)
Electrical Requirements
No independent external power source or supply
connection is necessary. Power to operate the 24 Volt
fire suppression system is from the rear junction/
contactor box.
Auxiliary Alarm
During tumbler installation, you have the option to
connect a separate alarm system to this auxiliary
output. Use of the auxiliary output is not required for
the fire suppression system to operate, but may be used
for additional protection.
NOTE: The auxiliary output is activated during
fire suppression system maintenance test sequence.
Consider this fact prior to your system test every
three months. (Example: If the external system uses
the auxiliary output to call the fire department,
inform the fire department before and after the fire
suppression system maintenance test.)
TMB2008N
1Lock
2Hose Couplings
3Y Valve
4Inlet Hoses
5Opening for Auxiliary Alarm Cable
1
2
3
2
4
5
Electrical power must be provided to
tumbler at all times. The fire suppression
system will be inoperative if the main
electrical power supply is disconnected.
W690
WARNING

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
15
70278501 (EN)
Gas Requirements
Natural Gas and Liquefied Petroleum
IMPORTANT: Any product revisions or
conversions must be made by the Manufacturer’s
Authorized Dealers, Distributors, or local service
personnel.
IMPORTANT: The tumbler must be isolated from
the gas supply piping system by closing its
individual manual shut-off valve during any
pressure testing of the gas supply piping system at
test pressure equal to or less than 3.45 kPa,
34.5 mbar (0.5 psi).
IMPORTANT: The tumbler and its manually
operated appliance gas valve must be disconnected
from the gas supply piping system during any
pressure testing of that system at test pressures in
excess of 3.45 kPa, 34.5 mbar (0.5 psi).
IMPORTANT: The installation must comply with
local codes.
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
To reduce the risk of fire or explosion, DO
NOT CONNECT THE GAS LINE TO THE
TUMBLER IF THE GAS SERVICE IS NOT
THE SAME AS THAT SPECIFIED ON THE
TUMBLER SERIAL PLATE! It will first be
necessary to convert the gas burner
orifice and gas valve. Appropriate
conversion kits are available.
W060
WARNING
To reduce the risk of fire or explosion, if
the tumbler is to be connected to
Liquefied Petroleum (L.P.) gas, a vent to
the outdoors must be provided in the room
where the tumbler is installed.
W062
WARNING

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70278501 (EN)
16
European Gas
General Information
This information is to be used when installing gas
tumblers in countries, and/or on gases, different than
the machine’s factory configuration. Tumblers are
supplied from the factory for operation on Natural Gas
or L.P. Gas in the countries of GB/IE/PT/ES/IT/GR/
LU/CH. To install machines in any other country, or
on any other gas, requires some level of modification.
Models are built in two different configurations:
●Natural Gas – regulated/governor
●Liquefied Petroleum (L.P.) Gas – not regulated/
no governor
Machines configured for Natural Gas (regulator/
governor) may be converted to L.P. Gas (not regulated/
no governor) with block-open kit, Part No. M400763.
Serial plates are configured for GB/IE/PT/ES/IT/GR/
LU/CH.
WARNING
To reduce the risk of electric shock, fire,
explosion, serious injury or death:
• Disconnect electric power to the
tumbler before servicing.
• Close gas shut-off valve to gas tumbler
before servicing.
• Close steam valve to steam tumbler
before servicing.
• Never start the tumbler with any guards/
panels removed.
• Whenever ground wires are removed
during servicing, these ground wires
must be reconnected to ensure that the
tumbler is properly grounded.
W002

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
17
70278501 (EN)
Gases and Configurations
Burner orifice information at 0-600 meters (0-2000 feet) altitude.
N/A = Part no longer available.
* For Natural Gas, Group E+ applications, convert using L.P.
Gas model and replace burner orifices.
** For L.P. Gas, Group B/P with 50 mbar supply pressure,
convert using Natural Gas model, M411334 L.P. Conversion Kit.
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
Country
Code Gas Type Group
Supply
Pressure,
mbar
Burner
Orifice
Pressure,
mbar
Capacity/
Model
Diameter,
mm Quantity
Burner
Orifice
Part No.
DK/NO/
SE/FI/CZ/
EE/LV/LT/
SI/SK
Natural Gas H 20 8.9 050
075
3.7
3.6
2
3
M401000
M401014
L.P. Gas B/P 30 No Governor 050
075
2.1
2.0
2
3
M401003
M400999
DE**
Natural Gas E 20 8.9 050
075
3.7
3.6
2
3
M401000
M401014
LL 25 12.6 050
075
3.7
3.6
2
3
M401000
M401014
L.P. Gas B/P 30 No Governor 050
075
2.1
2.0
2
3
M401003
M400999
B/P 50 28.5 050
075
2.1
2.0
2
3
M401003
M400999
NL
Natural Gas L 25 12.6 050
075
3.7
3.6
2
3
M401000
M401014
L.P. Gas B/P 30 No Governor 050
075
2.1
2.0
2
3
M401003
M400999
BE/FR*
Natural Gas E+ 20/25 No Governor 050
075
3.0
2.9
2
3
M401017
N/A
L.P. Gas + 28/37 No Governor 050
075
2.1
2.0
2
3
M401003
M400999
GB/IE/PT/
ES/IT/GR/
LU/CH
Natural Gas H 20 8.9 050
075
3.7
3.6
2
3
M401000
M401014
L.P. Gas + 28/37 No Governor 050
075
2.1
2.0
2
3
M401003
M400999
AT**
Natural Gas H 20 8.9 050
075
3.7
3.6
2
3
M401000
M401014
L.P. Gas B/P 50 28.5 050
075
2.1
2.0
2
3
M401003
M400999
CY/IS/MT L.P. Gas B/P 30 No Governor 050
075
2.1
2.0
2
3
M401003
M400999
HU
Natural Gas H 25 8.9 050
075
3.7
3.6
2
3
M401000
M401014
L.P. Gas B/P 30 No Governor 050
075
2.1
2.0
2
3
M401003
M400999
PL
Natural Gas H 20 8.9 050
075
3.7
3.6
2
3
M401000
M401014
L.P. Gas 3P 37 No Governor 050
075
2.1
2.0
2
3
M401003
M400999
Ta b le 1

© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
70278501 (EN)
18
Exhaust Requirements
Make-Up Air
IMPORTANT: Do not obstruct the flow of
combustion and ventilation air.
A tumbler is forced air exhausted and requires
provisions for make-up air to replace the air exhausted
by the tumbler.
The required make-up air opening to the outside for
each tumbler is:
928 sq. cm (144 sq. in.) for 50 pound tumbler
models
1258 sq. cm (195 sq. in.) for 75 pound tumbler
models
Make-up air openings with louvers will restrict
airflow. The opening must be increased to compensate
for area taken up by louvers.
If it is necessary to duct make-up air to the tumbler(s),
increase the area of the ductwork by 25% to
compensate for any restriction in air movement.
Venting
Proper sized exhaust ducts are essential for proper
operation. All elbows should be sweep type. Exhaust
ducts must be assembled so the interior surfaces are
smooth to prevent the accumulation of lint.
DO NOT use plastic or thin foil flexible ducts. Use
exhaust ducts made of sheet metal or other
noncombustible material. Use duct tape or pop rivets
on all seams and joints.
Verify that old ducts are thoroughly cleaned out before
installing new tumbler.
NOTE: The ducts must be equivalent in strength
and corrosion resistance to ducts made of
galvanized sheet steel not less than 0.495 mm
(0.0195 inches) thick.
IMPORTANT: For best performance, provide an
individual exhaust duct for each tumbler. Do not
install a hot water heater in a room containing
tumblers. It is better to have the water heater in a
separate room with a separate air inlet.
NOTE: This manual is only a supplement. Refer to
installation/operation manual for full instructions.
A drying tumbler produces combustible
lint. To reduce the risk of fire, the tumbler
must be exhausted to the outdoors.
W057
To reduce the risk of fire and accumulation
of combustible gases, DO NOT exhaust
tumbler air into a window well, gas vent,
chimney or enclosed, unventilated area
such as an attic wall, ceiling, crawl space
under a building, or concealed space of a
building.
W059
WARNING
