Alliance Laundry Systems D715I User manual

Installation
www.comlaundry.com
Automatic Clothes
Dryers
Electric and Gas Models
D715I
Part No. 510963R5
June 2007
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT510963 1
The following information applies to the state of Massachusetts, USA.
●This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.
●This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.
●A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.
●This appliance must not be installed in a bedroom or bathroom.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the
gas supplier. W052
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage, personal injury or death. W033
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2510963
Notes

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
510963 3
Table of
Contents
Replacement Parts .............................................................................. 5
Installation........................................................................................... 7
Dimensions and Specifications............................................................. 7
Before You Start ................................................................................... 8
Tools ................................................................................................ 8
Exhaust............................................................................................. 8
Electrical .......................................................................................... 8
Gas ................................................................................................... 8
Location ........................................................................................... 8
Installing the Dryer ............................................................................... 9
Step 1: Position and Level the Dryer ............................................... 9
Step 2: Connect Dryer Exhaust System ........................................... 9
Step 3: (Gas Dryer Only) Connect Gas Supply Pipe ....................... 10
Step 4: (Electric Dryer Only) Connect Electrical Plug.................... 11
Step 5: Wipe Out Inside of Dryer .................................................... 12
Step 6: Plug In the Dryer ................................................................. 13
Step 7: Check Installation ................................................................ 13
Heat Source Check ............................................................................... 14
Electric Dryers ................................................................................. 14
Gas Dryers ....................................................................................... 14
Reversing Door Procedure.................................................................... 15
Manufactured (Mobile) Home Installation........................................... 16
Electrical Requirements........................................................................ 17
Electric Dryers ................................................................................. 17
Gas Dryers ....................................................................................... 21
Gas Requirements................................................................................. 23
Location Requirements......................................................................... 25
Dryer Exhaust Requirements................................................................ 26
Exhaust System Materials................................................................ 26
Make-Up Air Requirements............................................................. 26
Exhaust System................................................................................ 27
Exhaust Direction............................................................................. 27
Exhaust System Maintenance .......................................................... 28
Dryer Airflow................................................................................... 28
Maintenance ........................................................................................ 29
User-Maintenance Instructions............................................................. 29
Lubrication....................................................................................... 29
Care of Your Dryer .......................................................................... 29
Exhaust System................................................................................ 29
Information for Handy Reference......................................................... 30
Installer Checklist................................................................. Back Cover

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
4510963
Notes

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
510963
Replacement Parts
If replacement parts are required, contact the source
where you purchased your dryer, or contact:
Alliance Laundry Systems LLC
Shepard Street
P.O . B ox 99 0
Ripon, WI 54971-0990
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510963
6
Notes

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7
510963
Installation

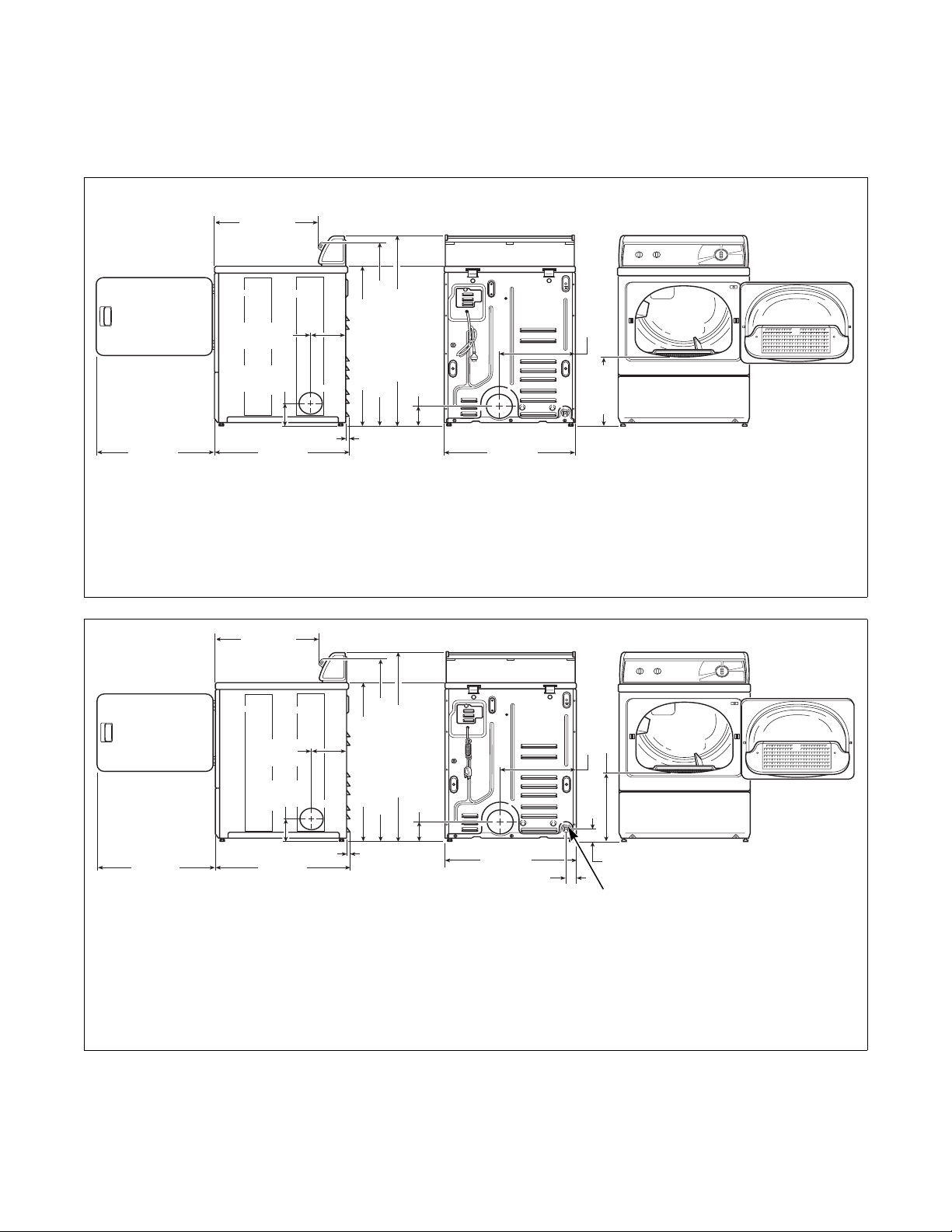

Dimensions and Specifications
DRY2208N
* With leveling legs turned into base.
DRY2208N
23.5 in.
(59.7 cm) 28 in.
(71.1 cm)
0.4 in.
(1.1 cm)
8.0 in.
(20.3 cm)
*4.5 in.
(11.4 cm)
*36 in. (91.4 cm)
*43 in. (109.2 cm)
*4.0 in. (10.2 cm)
*15.44 in. (39.2 cm)
26.9 in.
(68.3 cm)
ELECTRIC DRYERS
22.38 in.
(56.85 cm)
*40.25 in. (102.24 cm)
15.4 in. (39.1 cm)
DRY2209N
*With leveling legs turned into base.
13/8 in. NPT Gas Connection
DRY2209N
23.5 in.
(59.7 cm) 28 in.
(71.1 cm)
0.4 in.
(1.1 cm)
*4.5 in.
(11.4 cm)
8.0 in.
(20.3 cm)
*36in.(91.4cm)
*43 in. (109.2 cm)
*4.0 in. (10.2 cm)
*15.44 in. (39.2 cm)
26.9 in.
(68.3 cm) *2.8 in.
(7 cm)
2.3 in.
(6 cm) 1
GAS DRYERS
22.38 in.
(56.85 cm)
*40.25 in. (102.24 cm)
15.4 in. (39.1 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
510963
8
Before You Start
Tools
For most installations, the basic tools you will need are:
Figure 1
Exhaust
Use rigid metal duct and exhaust the dryer to the
outside by the shortest route possible.
Figure 2
NOTE: For more detailed information, refer to
Section on Dryer Exhaust Requirements.
Electrical
●ELECTRIC DRYER
Dryer needs a 3 or 4 wire 120/240 or
120/208 Volt, 30 Amp, 60 Hertz, 1 phase
electrical supply.
●GAS DRYER
Dryer needs a 120 Volt, 15 Amp, 60 Hertz,
polarized 3-slot effectively grounded receptacle.
NOTE: For more detailed information, refer to
Section on Electrical Requirements.
If the supply cord is damaged, it must be replaced by a
special cord or assembly available from the
manufacturer or its service agent and is to be replaced
by a qualified service person.
Gas
Dryer is equipped for Natural Gas with a 3/8 inch NPT
gas supply connection. For more detailed information,
refer to Section on Gas Requirements.
Location
Place the dryer on a solid floor with an adequate air
supply. For more detailed information, refer to Section
on Location Requirements.
D818I
1Wrench
2Screwdrivers
3Level
4Te f l o n Ta p e
5Duct Tape
D314I
12
3
4
5
Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person. W299
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9
510963
Installing the Dryer
Step 1: Position and Level the Dryer
For further assistance refer to Section on Location
Requirements.
Install dryer before washer. This allows room for
attaching exhaust duct.
Place the dryer in position, and adjust the legs until the
dryer is level from side to side and front to back.
Figure 3
Step 2: Connect Dryer Exhaust System
For further assistance refer to Sections on Location
Requirements and Dryer Exhaust Requirements.
●DO NOT use plastic or thin foil ducting.
●Locate dryer so exhaust duct is as short as
possible.
●Be certain old ducts are cleaned before installing
your new dryer.
●Use 4 inch (102 mm) diameter rigid or flexible
metal duct.
●The male end of each section of duct must point
away from the dryer.
●Use as few elbows as possible.
●Use duct tape or pop-rivets on all duct joints.
●Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
●Failure to exhaust dryer properly will void
warranty.
Figure 4
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
D699I
1Dryer Base
2Level
3Leveling Leg
D669I
D259I
12
3
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors. W116
WARNING
DRY1915N
DRY1915N
DON’TDO

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
510963
10
Step 3: (Gas Dryer Only) Connect Gas
Supply Pipe
For further assistance, refer to Section on Gas
Requirements.
1. Make certain your dryer is equipped for use with
the type of gas in your laundry room. Dryer is
equipped at the factory for Natural Gas with a
3/8 inch NPT gas connection.
2. Remove the shipping cap from the gas
connection at the rear of the dryer. Make sure you
do not damage the pipe threads when removing
the cap.
3. Connect to gas supply pipe.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal & external)
for gas leaks with a non-corrosive leak detection
fluid.
5. For L.P. (propane) gas connection, refer to
Section on Gas Requirements.
Figure 5
D233I
1New Stainless Steel Flexible Connector –
Use only if allowed by local codes
(Use Design CSA Certified Connector)
4Black Iron Pipe
Shorter than 20 ft. (6.1 m) – Use 3/8 in.
(9.5 mm) pipe
Longer than 20 ft. (6.1 m) – Use 1/2 in.
(12.7 mm) pipe
21/8 in. NPT Pipe Plug (For checking inlet gas
pressure)
3Equipment Shut-Off Valve – Install within
6 ft. (1.8 m) of dryer
53/8 in. NPT Gas Connection
D233I
1
2
3
4
5

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
11
510963
Step 4: (Electric Dryer Only) Connect
Electrical Plug
For further assistance, refer to Section on Electrical
Requirements.
IMPORTANT: Use only a new U.L. listed No. 10
(copper wire only) three conductor power supply
cord kit rated 240 Volts (minimum) 30 Amperes
and labeled as suitable for use in a clothes dryer.
Figure 6
Figure 7
NOTE: For more detailed information on
connecting three-wire or four-wire plugs, refer to
Section on Electrical Plug Connection.
NOTE: Four-wire cord is required for mobile
homes or where codes do not permit grounding
through neutral.
Figure 8
D275I
1Typical Three-Wire Receptable
2Power Cord (Three-Wire)
3Strain Relief Nut
4Strain Relief
D006I
1Typical Four-Wire Receptacle
2Power Cord (Four-Wire)
3Strain Relief Nut
4Strain Relief
12
3
4
THREE WIRE
1
3
4
2
FOUR WIRE
D679I
1Ground to Neutral Wire
2Neutral Terminal
3“L2” Terminal
4Center Wire (Neutral)
5Strain Relief (Not supplied with dryer)
6Ground Screw
7“L1” Terminal
8Ground Wire
NOTE: Dryer is shown with access cover removed for
illustration purposes only. NEVER operate dryer with
access cover removed.
D679I
12
3
6
THREE-WIRE CONNECTION
4
5
7
8

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
510963
12
Figure 9
Step 5: Wipe Out Inside of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
Figure 10
D680I
1“L1” Terminal
2Neutral Terminal
3“L2” Terminal
4Black Wire
5White Wire (Neutral)
6Strain Relief (Not supplied with dryer)
7Red Wire
8Ground Wire
9Ground Screw
NOTE: Dryer is shown with access cover removed for
illustration purposes only. NEVER operate dryer with
access cover removed.
D680I
1
3
2
FOUR-WIRE CONNECTION
4
5
6
7
8
8
9
D618I
D618I

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
13
510963

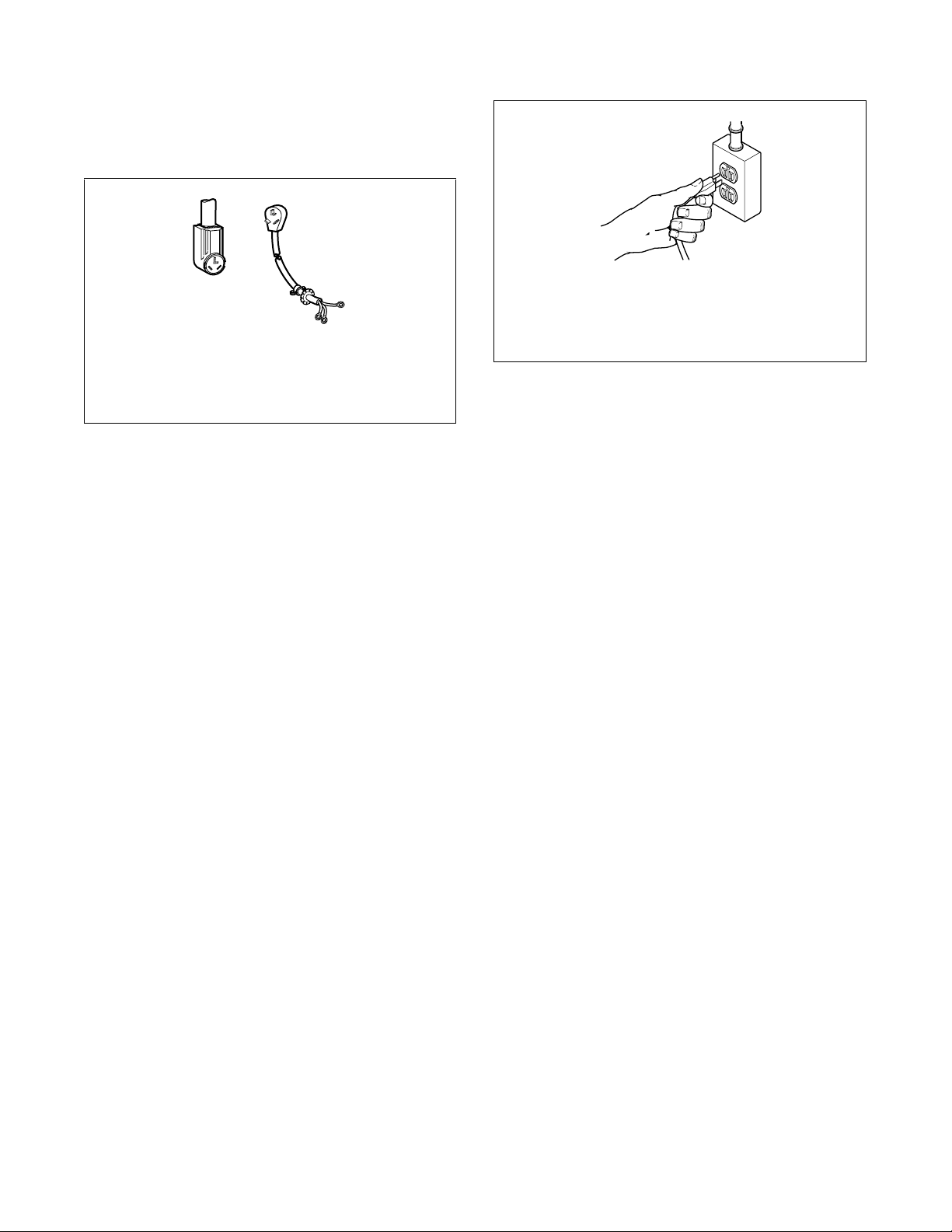

Step 6: Plug In the Dryer
Refer to Section on Electrical Requirements, and
connect the dryer to an electrical power source.
Figure 11
Figure 12
Step 7: Check Installation
Refer to Installer Checklist on the back cover of this
manual and make sure that dryer is installed correctly.
D275I
ELECTRIC DRYER
Connect to 30 Amp circuit.
D254I
D254I
Plug cord into separately fused
15 Amp circuit.
GAS DRYER

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
510963
14
Heat Source Check
Electric Dryers
Close the loading door and start the dryer in a heat
setting (refer to the Operating Instructions supplied
with the dryer). After the dryer has operated for three
minutes, the exhaust air or exhaust pipe should be
warm.
Gas Dryers
To view the burner flame, remove the lower front
panel of the dryer.
Close the loading door, start the dryer in a heat setting
(refer to the Operating Instructions supplied with the
dryer); the dryer will start, the igniter will glow red
and the main burner will ignite.
IMPORTANT: If all air is not purged out of gas
line, gas igniter may go off before gas is ignited. If
this happens, after approximately two minutes
igniter will again attempt gas ignition.
After the dryer has operated for approximately five
minutes, observe burner flame through lower front
panel. Adjust the air shutter to obtain a soft, uniform
blue flame. (A lazy, yellow-tipped flame indicates lack
of air. A harsh, roaring, very blue flame indicates too
much air.) Adjust the air shutter as follows:
1. Loosen the air shutter lockscrew.
2. Turn the air shutter to the left to get a luminous
yellow-tipped flame, then turn it back slowly to
the right to obtain a steady, soft blue flame.
3. After the air shutter is adjusted for proper flame,
tighten the air shutter lockscrew securely.
4. Reinstall the lower front panel.
After the dryer has operated for approximately three
minutes, exhaust air or exhaust pipe should be warm.
Figure 13
For personal safety, lower front panel must
be in place during normal operation. W046
WARNING
D702I
1Air Shutter Lockscrew 3Air Shutter
2Appliance Main Gas Valve 41/8 in. (3.1 mm) Pipe Plug
(For checking manifold pressure)
D702I
1
2
3
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
15
510963

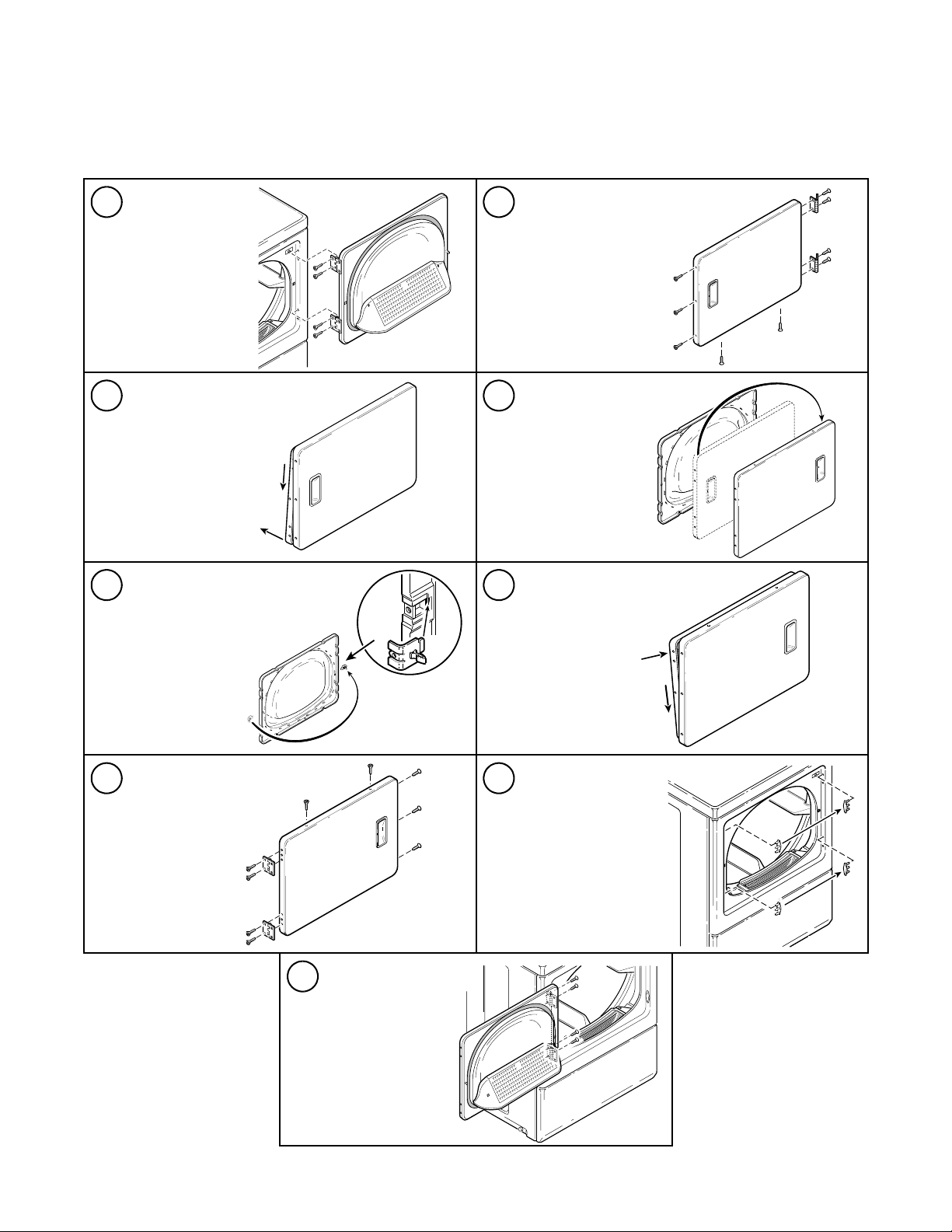

Reversing Door Procedure
The door on this dryer is completely reversible. To
reverse door proceed as follows:
D675I
1
Remove four hinge
attaching screws.
D675I
2
Remove all nine
screws.
D272P
DRY1916N
B
A
3
Pull bottom of door
liner out, then pull
down, removing
door liner from
door panel.
DRY1916N
4
Rotate door panel
180 degrees as
shown.
D273P
DRY1917N
5
Remove door strike
from door liner and
reinstall on opposite
side.
DRY1917N
DRY1918N
B
A
6
Insert liner under
flange on bottom of
door, then push top
of door liner into
place.
DRY1918N
DRY1919N
7
Reinstall nine
screws removed in
Step 2.
DRY1919N
D620I
8
Using the screwdriver,
remove two door
plugs, and reinstall on
opposite side of door
opening.
D620I
D623I
9
Reinstall four hinge
attaching screws.
removed in Step 1.
D623I

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
510963
16
Manufactured (Mobile) Home
Installation
The dryer can be installed in a manufactured (mobile)
home by following these instructions:
1. IMPORTANT: Gas dryers MUST be
permanently attached to the floor at the time
of installation. Order No. 526P3 Dryer
Installation Kit for a manufactured (mobile)
home installation. Follow the instructions
supplied with the kit.
2. Electrical Connections (Electric Dryer Only)
must be a 4-wire connection, refer to page 19.
3. Venting – Dryer MUST be exhausted to the
outdoors.
●The dryer can be exhausted to the outdoors
through the back, left, right or bottom panel. Gas
dryers cannot be exhausted out the left side
because of the burner housing.
●The dryer exhaust duct must be secured to the
mobile home structure.
●Exhaust ducts MUST NOT be connected with
sheet metal screws or fasteners which extend into
the duct.
●Exhaust duct must not be connected to any other
duct, vent or chimney.
●Dryer exhaust duct MUST NOT terminate under
the mobile home.
●For proper operation, it is important that the dryer
has an ample amount of outside make-up air. The
free area of any opening for the introduction of
outside air must be at least 25 in2(163 cm2).
●When exhausting the dryer to the outdoors, the
dryer can be installed with “0” inch clearance at
the sides and rear. Clearance of the duct from
combustible construction must be a minimum of
2 inches (5.08 cm).
●Venting materials are not supplied with the dryer
(obtain locally).
IMPORTANT: Installation must conform to
the Manufactured Home Construction and
Safety Standards, Title 24 CFR, Part 32-80
or Standard CAN/CSA-Z240 MH.
To reduce the risk of fire and combustion
gas accumulation, the dryer MUST BE
EXHAUSTED TO THE OUTDOORS. Refer to
Section on Dryer Exhaust Requirements. W047
WARNING To reduce the risk of fire, the exhaust duct
and weather hood MUST be fabricated of a
material that will not support combustion.
Rigid or flexible metal pipe is recommended
for a clothes dryer. W048
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
17
510963
Electrical Requirements
Electric Dryers
(120/240 Volt, 60 Hertz, 3-Wire Installation)
(120/208 Volt, 60 Hertz, 3-Wire Installation)
NOTE: The wiring diagram is located inside the
control hood.
Grounding Instructions
●This dryer must be connected to a grounded
metal, permanent wiring system; or an
equipment-grounding conductor must be run
with the circuit conductors and connected to the
equipment-grounding terminal or lead on the
dryer.
●The dryer has its own terminal block that must be
connected to a separate branch, 60 Hertz, single
phase circuit, AC (alternating current) circuit,
fused at 30 Amperes (the circuit must be fused
on both sides of the line). ELECTRICAL
SERVICE FOR THE DRYER SHOULD BE
OF MAXIMUM RATED VOLTAGE LISTED
ON THE NAMEPLATE. DO NOT
CONNECT DRYER TO 110, 115, OR
120 VOLT CIRCUIT. Heating elements are
available for field installation in dryers which are
to be connected to electrical service of different
voltage than that listed on nameplate, such as
208 Volt.
●If branch circuit to dryer is fifteen feet (4.50 m)
or less in length, use U.L. (Underwriters
Laboratories) listed No. 10 AWG wire (copper
wire only), or as required by local codes. If over
fifteen feet (4.50 m), use U.L. (Underwriters
Laboratories) listed No. 8 AWG wire (copper
wire only), or as required by local codes. Allow
sufficient slack in wiring so dryer can be moved
from its normal location when necessary.
●The power cord (pigtail) connection between
wall receptacle and dryer terminal block IS NOT
supplied with dryer. Type of pigtail and gauge
of wire must conform to local codes and with
instructions mentioned on the following pages.
●The method of wiring the dryer is optional and
subject to local code requirements. Refer to
examples on next page.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses checked by a qualified electrician
to make sure your home has adequate
electrical power to operate the dryer. W113
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
510963
18
Electrical Plug Connection
Three-Wire Plug
Figure 14
1. Remove access cover from rear of dryer.
Figure 15
2. Use a strain relief and insert end of power cord
through power supply hole.
Figure 16
D816I
13 Wire Grounded Neutral 120/240 Volt, 60 Hertz
AC 1 Phase Service Entrance Switch Box
(Refer to NOTE above)
4Metallic or Non-Metallic Sheathed Cable
(Copper Wire Only)
5Pigtail to Dryer (Refer to NOTE above)
230 Ampere Fuses or Circuit Breaker 6Neutral
3Neutral Wire 7Terminal Block in Dryer
NOTE: The power cord (pigtail) is NOT supplied with
the electric dryer. Type of pigtail and gauge of wire
must conform to local codes and instructions.
The method of wiring the dryer is optional and subject
to local code requirements.
NOTE: Connect the dryer to the power supply with the
MAXIMUM RATED VOLTAGE listed on the nameplate.
1
3
5
6
7
4
2
PIGTAIL CONNECTION DIRECT CONNECTION
L1 L2 L1 L2
INTERMEDIATE
SHUT-OFF BOX
(may or may not
be fused)
POWER SUPPLYPOWER SUPPLY
INTERMEDIATE
FUSE BOX (may
be omitted if
service entrance
box is fused)
WALL
RECEPTACLE
A typical
30-Amp
Three-Wire
Receptacle
NEMAType
10-30R
120 ± 12
V.A.C.
120 ± 12
V.A.C.
240 ± 12
V.A.C.
NOTE: Use COPPER WIREonly.
Shorter than 15 ft. (4.5 m) – use 10 AWG
Longer than 15 ft. (4.5 m) – use 8 AWG
D695I
D696I
