Alliance Laundry Systems DRYING TUMBLERS 70269501R3 Operating instructions

Operation/Maintenance
www.comlaundry.com
NOTA: Para bajar una
copia de estas
instrucciones en
español, visite
www.comlaundry.com.
Part No. 70269501R3
August 2006
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Drying Tumblers
25 Pound Capacity
30 Pound Capacity
35 Pound Capacity
Stacked 30 Pound Capacity
Through Serial No. 0602004143
Refer to Page 5 for Model Numbers

70269501 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation must conform with local codes or in the absence of local codes with:
In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/
NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”
In Canada, installation must comply with Standards CSA-B149.1 or Natural Gas and Propane Code CSA
C22.1, latest edition, Canadian Electric Code, Part I.
In Australia, installation must comply with the Australian Gas Association Installation Code for Gas
Burning Appliances and Equipment.
IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the
user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the
above safety information must be posted in a prominent location near the tumbler for customer use.
FOR YOUR SAFETY, the information in this
manual must be followed to minimize the
risk of fire or explosion or to prevent
property damage, personal injury or death.
W033
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Clear the room, building or area of all
occupants.
– Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
W052
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
W053
WARNING
POUR VOTRE SÉCURITÉ, veillez à bien
respecter les indications de ce manuel afin
de minimiser les risques d’incendie ou
d’explosion ou d’écarter les dangers de
dommages matériels, corporel ou de mort.
W033FR
• Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
• QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ :
– Ne pas tenter d’allumer d’apareil.
– Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment où vous vous
trouvez.
– Évacuez la pièce, le bâtiment ou la
zone.
– Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
– Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
• L’installation et l’entretien doivent être
assurés par un installateur ou un service
d’entretien qualifié ou par le fournisseur
de gaz.
W052Q
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence ou
autres gaz et liquides inflammables au
voisinage de cet appareil ou de tout autre.
W053FR
MISE EN GARDE

270269501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

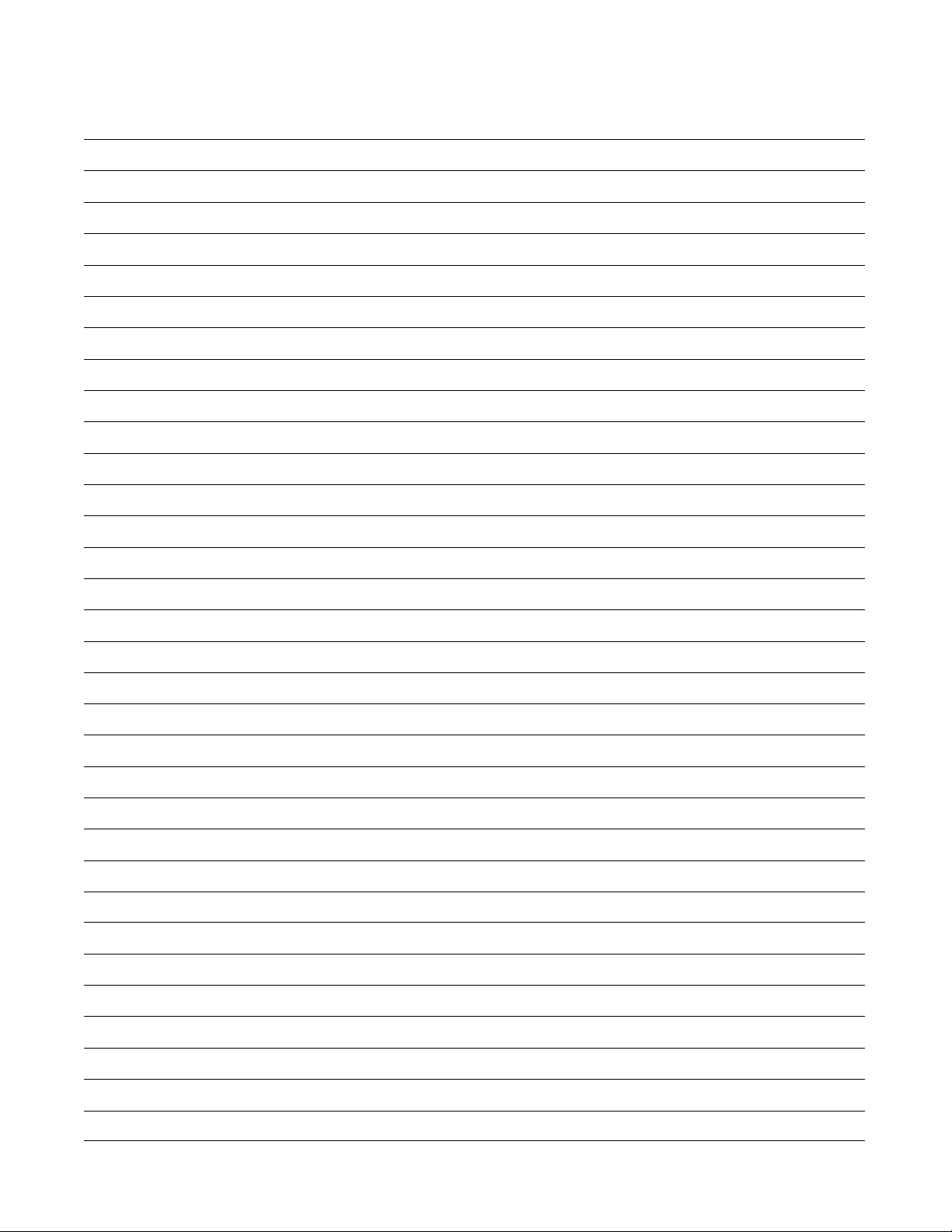

Notes

70269501 3
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2006, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
Table of
Contents
Introduction......................................................................................... 5
Model Identification ............................................................................. 5
Customer Service.................................................................................. 6
Wiring Diagram .................................................................................... 6
Serial Plate Location............................................................................. 6
Safety Information.............................................................................. 7
Explanation of Safety Messages........................................................... 7
Important Safety Instructions ............................................................... 8
Operating Instructions ....................................................................... 11
Emergency Stop Button on CE Models................................................ 11
Operating Instructions .......................................................................... 11
Step 1: Clean Lint Screen/Compartment ......................................... 11
Step 2: Load Laundry....................................................................... 11
Step 3: Determine Control Type and Temperature Setting ............. 11
Step 4: Remove Laundry ................................................................. 11
Electromechanical Coin Control...................................................... 12
Electronic Coin Control ................................................................... 13
Manual Timer................................................................................... 14
Electronic OPL Control ................................................................... 15
MDC Coin Control .......................................................................... 16
MDC Card Control .......................................................................... 17
NetMaster Coin Control................................................................... 18
NetMaster Card Control................................................................... 19
Maintenance ........................................................................................ 21
Daily ..................................................................................................... 21
Monthly................................................................................................. 23
Quarterly ............................................................................................... 23
Bi-Annually .......................................................................................... 23
Before You Call for Service ............................................................... 27
Customer Service.................................................................................. 27

470269501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Notes

5
70269501 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
Model Identification
Information in this manual is applicable to these models.
Includes models with control suffixes:
Gas Steam Electric
25 Pound
HA025L SA025N UT025L HT025S UT025S HT025E UT025E
HA025N ST025L UT025N HU025S UU025S HU025E UU025E
HT025L ST025N UU025L ST025S YT025S ST025E YT025E
HT025N SU025L UU025N SU025S SU025E
HU025L SU025N YT025L
HU025N UA025L YT025N
SA025L UA025N
30 Pound
HA030L SA030L UA030N HT030S UT030S HT030E UT030E
HA030N SA030N UT030L HU030S UU030S HU030E UU030E
HT030D ST030L UT030N ST030S YT030S ST030E YT030E
HT030L ST030N UU030L SU030S SU030E
HT030N SU030L UU030N
HU030L SU030N YT030L
HU030N UA030L YT030N
T30
HAT30L HUT30L SAT30N HTT30S STT30S HTT30E STT30E
HAT30N HUT30N STT30L HUT30S SUT30S HUT30E SUT30E
HTT30D MTT30N STT30N
HTT30L NTT30N SUT30L
HTT30N SAT30L SUT30N
35 Pound
AT035L SA035L UT035L AT035S UT035S HT035E UT035E
AT035N SA035N UT035N HT035S UU035S HU035E UU035E
HA035L ST035L UU035L HU035S YT035S ST035E YT035E
HA035N ST035N UU035N ST035S YU035S SU035E YU035E
HT035L SU035L YT035L SU035S
HT035N SU035N YT035N
HU035L UA035L
HU035N UA035N
BC – basic electronic, coin EC – EDC electronic coin NY – NetMaster, prep for card
BL – basic electronic, central pay EX – EDC coin ready OM – OPL micro
BX – basic electronic, prep for coin EY – EDC card ready ZC – NetMaster network coin
BY – basic electronic, prep for card MT – manual timer ZR – NetMaster network card
CD – rotary coin drop NC – NetMaster coin ZX – NetMaster network, prep for coin
CX – prep for coin NR – NetMaster card ZY – NetMaster network, prep for card
CY – prep for card NX – NetMaster, prep for coin

Introduction
70269501
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Customer Service
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call [phone].
Wiring Diagram
The wiring diagram is located in the junction or
contactor box.
Models starting Serial No. 0309_____ or later will
have the wiring diagram part number in the lower
portion of the electrical data on the serial plate.

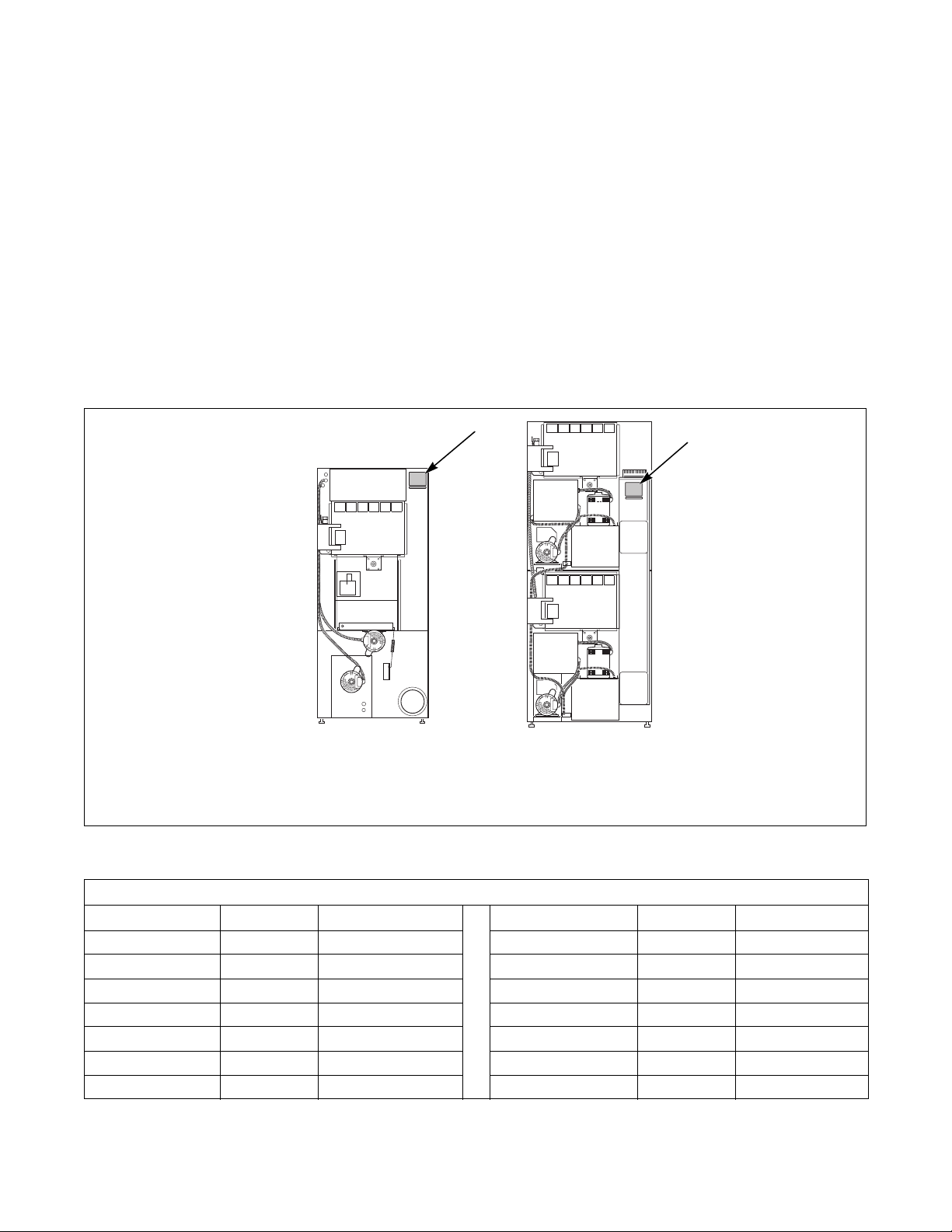

Serial Plate Location
When calling or writing for information about your
product, be sure to mention model and serial numbers.
Model and serial numbers are found on serial plate on
rear of machine, and inside door hinge. Refer to
Figure 1.
Figure 1
TMB2025N
1Serial plate
TMB2025N
25, 30 AND 35 POUND TUMBLERS T30
11
Conversion Table
Multiply By To Obtain Multiply By To Obtain
Btu 0.252 kCal Pounds/sq. inch 0.06895 Bars
Btu 1055 Joules Pounds/sq. inch 0.070 kg/sq. cm
Inch 25.4 Millimeters Pounds (lbs.) 0.454 Kilograms
Inches W.C. 0.036 Pounds/sq. inch Boiler Horsepower 33,479 Btu/hr.
Inches W.C. 0.249 kPa Boiler Horsepower 34.5 lbs. steam/hr.
lb/inch2(psi) 6.895 kPa CFM 0.471 liters/second
ft328.32 Liters kW 3414 Btu/hr.

7
70269501 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
IMPORTANT: Warranty is void unless tumbler
is installed according to instructions in the
Installation Manual. Compliance with minimum
specifications and requirements detailed herein,
and with applicable local gas fitting regulations,
municipal building codes, water supply regulations,
electrical wiring regulations, and any other
relevant statutory regulations. Because of varied
requirements, applicable local codes should be
thoroughly understood and all pre-installation
work arranged for accordingly.
NOTE: The WARNING and IMPORTANT
instructions appearing in this manual are not
meant to cover all possible conditions and
situations that may occur. It must be understood
that common sense, caution and carefulness are
factors which CANNOT be built into this tumbler.
These factors MUST BE supplied by the person(s)
installing, maintaining or operating the tumbler.
Always contact your dealer, distributor, service agent
or the manufacturer on any problems or conditions you
do not understand.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
Failure to install, maintain, and/or operate
this machine according to manufacturer’s
instructions may result in conditions which
can produce serious injury, death and/or
property damage.
W051R1
WARNING

Safety Information
70269501
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the tumbler.
2. Refer to the GROUNDING INSTRUCTIONS
for the proper grounding of the tumbler.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children on or in the tumbler. This
appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
5. Before the tumbler is removed from service or
discarded, remove the door to the drying
compartment and the door to the lint
compartment.
6. Do not reach into the tumbler if the cylinder is
revolving.
7. Do not install or store the tumbler where it will
be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumbler,
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Always clean the lint filter daily.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the tumbler and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Tumbler will not operate with the loading door
open. DO NOT bypass the door safety switch to
permit the tumbler to operate with the door open.
The tumbler will stop tumbling when the door is
opened. Do not use the tumbler if it does not stop
tumbling when the door is opened or starts
tumbling without pressing or turning the START
mechanism. Remove the tumbler from use and
call for service.
17. Tumbler will not operate with lint panel open.
DO NOT bypass lint panel safety switch to
permit the tumbler to operate with the lint panel
open.
18. Do not put articles soiled with vegetable or cooking
oil in the tumbler, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
19. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the tumbler.
20. Use the tumbler only for its intended purpose,
drying fabrics.
21. ALWAYS disconnect and lockout the electrical
power to the tumbler before servicing. Disconnect
power by shutting off appropriate breaker or fuse.
22. Install this tumbler according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding, and
gas supply must comply with local codes and be
made by licensed personnel when required.
Hazardous Voltage. Can cause shock, burn
or cause death. Allow machine power to
remain off for two minutes prior to working
in and around AC inverter drive.
W359
WARNING
