Alliance Laundry Systems D0582 User manual

Installation
Part No. D0582
September 2007
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Drying Tumblers
110 Pound Capacity

i
Addendum A
Information in this manual is applicable to these models:
HD110
D0582

Page 1
For optimumefficiency andsafety, werecommend thatyou readthe manual beforeoperating theequipment. Storethis manualin afile
orbinder andkeep forfuture reference.
WARNING: For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury, or death.
- Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or
any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliances.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow thegas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
WARNING: In the event the user smells gas odor, instructions on what to do must be posted in a
prominent location. This information can be obtained from the local gas supplier.
WARNING: Wear safety shoes to prevent injuries.
WARNING: Purchaser must post the following notice in a prominent location:
FOR YOURSAFETY
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING: A clothes dryer produces combustible lint and should be exhausted outside the
building. The dryer and the area around the dryer should be kept free of lint.
WARNING: Be safe, before servicing machine, the main power should be shut off.
WARNING: Purchaser must post the following notice in a prominent location:
IMPORTANT NOTES - PLEASE READ

Page 2
WARNING: To avoid fire hazard, do not dry articles containing foam rubber or similar texture materials.
Do not put into this dryer flammable items such as baby bed mattresses, throw rugs, undergarments
(brassieres, etc.) and other items which use rubber as padding or backing. Rubber easily oxidizes causing
excessive heat and possible fire. These items should be air dried.
WARNING: Synthetic solvent fumes from drycleaning machines create acids when drawn through the
dryer. These fumes cause rusting of painted parts, pitting of bright or plated parts, and completely
removes the zinc from galvanized parts, such as the tumbler basket. If drycleaning machines are in the
same area as the tumbler, the tumbler's make-up air must come from a source free of solvent fumes.
WARNING: Do not operate without guards in place.
WARNING: Check the lint trap often and clean as needed but at least a minimum of once per day.
WARNING: Alterations to equipment may not be carried out without consulting with the factory and
only by a qualified engineer or technician. Only Manufacturer’s parts may be used.
WARNING: Remove clothes from dryer as soon as it stops. This keeps wrinkles from setting in and
reduces the possibility of spontaneous combustion.
WARNING: Be safe - shut main electrical power and gas supply off externally before attempting
service.
WARNING: Never use drycleaning solvents, gasoline, kerosene, or other flammable liquids in the dryer.
FIREANDEXPLOSION WILLOCCUR. NEVERPUT FABRICSTREATEDWITH THESELIQUIDS
INTOTHEDRYER.NEVERUSETHESELIQUIDSNEARTHEDRYER.
WARNING: Do not place items exposed to cooking oils in your dryer. Items contaminated
with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
WARNING: Never let children play near or operate the dryer. Serious injury could occur if a child
should crawl inside and the dryer is turned on.
WARNING: Never tumble fiberglass materials in the dryer unless the labels say they are machine
dryable. Glass fibers break and can remain in the dryer. These fibers cause skin irritation if they
become mixed with other fabrics.
WARNING: Before operating gas ignition system - purge air from natural gas or propane gas lines
per manufacturer’s instructions.
WARNING: To reduce the risk of electric shock, disconnect this appliance from the power supply
before attempting any user maintenance other than cleaning the lint trap. Turning the controls to the
OFF position does not disconnect this appliance from the power supply.
IMPORTANT NOTES - PLEASE READ

Page 3
AVERTISSEMENT. Assurez-vousdebien
suivre les instructions donnees dans cette
notice pour reduire au minimum le risque
d’incendie ou d’explosion ou pour eviter tuot
dommage materiel, toute blessure ou la mort.
__ Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
apparell.
__ QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
•Ne pas tenter d’allumer d’apparell.
• Ne touchez a aucun interrupteur. Ne pas
vous servir des telephones se trouvant dans
le batiment ou vous vous trouvez.
• Evacuez la piece, le batiment ou la zone.
•Appelez immediatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
•Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incendies.
__ l’installation et l’entretien doivent etre assures
par un installateur ou un service d’entretien
qualifie ou par le fournisseur de gaz.
ATTENTION:L’ACHETEUR DOIT PLACER L’AVERTISSEMENT
SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE:
ATTENTION:L’ACHETEUR DOIT PLACER L’AVERTISSEMENT
SUIVANT DANS UN ENDROIT CLAIR ET VISIBLE:
POUR VOTRE SECURITE
Ne pas entreposer ni utiliser d’ essence
ni d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
IMPORTANT NOTES - PLEASE READ

Page 4
PAGE
ImportantNotices..............................................................................................................1-3
TableofContents ................................................................................................................. 4
CustomerService ................................................................................................................. 5
Warnings, Symbols ...........................................................................................................6-7
Unpacking/GeneralInstallation .............................................................................................. 8
GeneralDimensions .........................................................................................................9-11
DryerSpecifications.......................................................................................................12-13
ElectricalConnections......................................................................................................... 14
GasPiping .....................................................................................................................15-16
GasPipeSizeChart............................................................................................................ 17
GasPipingInstallation ......................................................................................................... 18
SteamPipingInstallation ................................................................................................19-20
ExhaustInstallation-MultipleExhaust ............................................................................21-23
DryerMake-upAirRequirements ....................................................................................... 24
ExhaustInstallation-SeparateExhaust................................................................................ 25
DryerAirFlowInstallation .................................................................................................. 26
TABLE OF CONTENTS
(C)CopyrightAllianceLaundrySystemsLLC
Allrightsreserved.Nopartofthecontentsofthisbookmaybereproducedortransmittedinanyformorbyanymeans
withouttheexpressedwrittenconsentofthepublisher.

Page 5
CUSTOMERSERVICE Ifliteratureorreplacementpartsarerequired,contactthesourcefromwhich
themachinewaspurchasedorcontactAllianceLaundrySystemsat(920)748-
3950forthenameandaddressofthenearestauthorizedpartsdistributor.
Fortechnicalassistance,call(920)748-3121.

Page 6
Thefollowingsymbolsareusedinthismanualand/oronthemachine.
Symbol Description
NOTE!
on
marche
Ein
conectado
off
arrêt
Aus
desconectado
Hot! DoNotTouch
Heiß! NichtBeruhren
Hautetemperature!Nepas
toucher
Caliente! notocar
start
demarrage
Start
arranquedeunmovimiento
emission of heat in general
êmissiondechaleuren
general
Warmeabgabeallgemein
emisióndecalor
cooling
refroidissement
Kühlen
enfriamiento
dangerousvoltage
tensiondangereuse
Gefährlicheelektrische
Spannung
tension peligrosa
SYMBOLS

Page 7

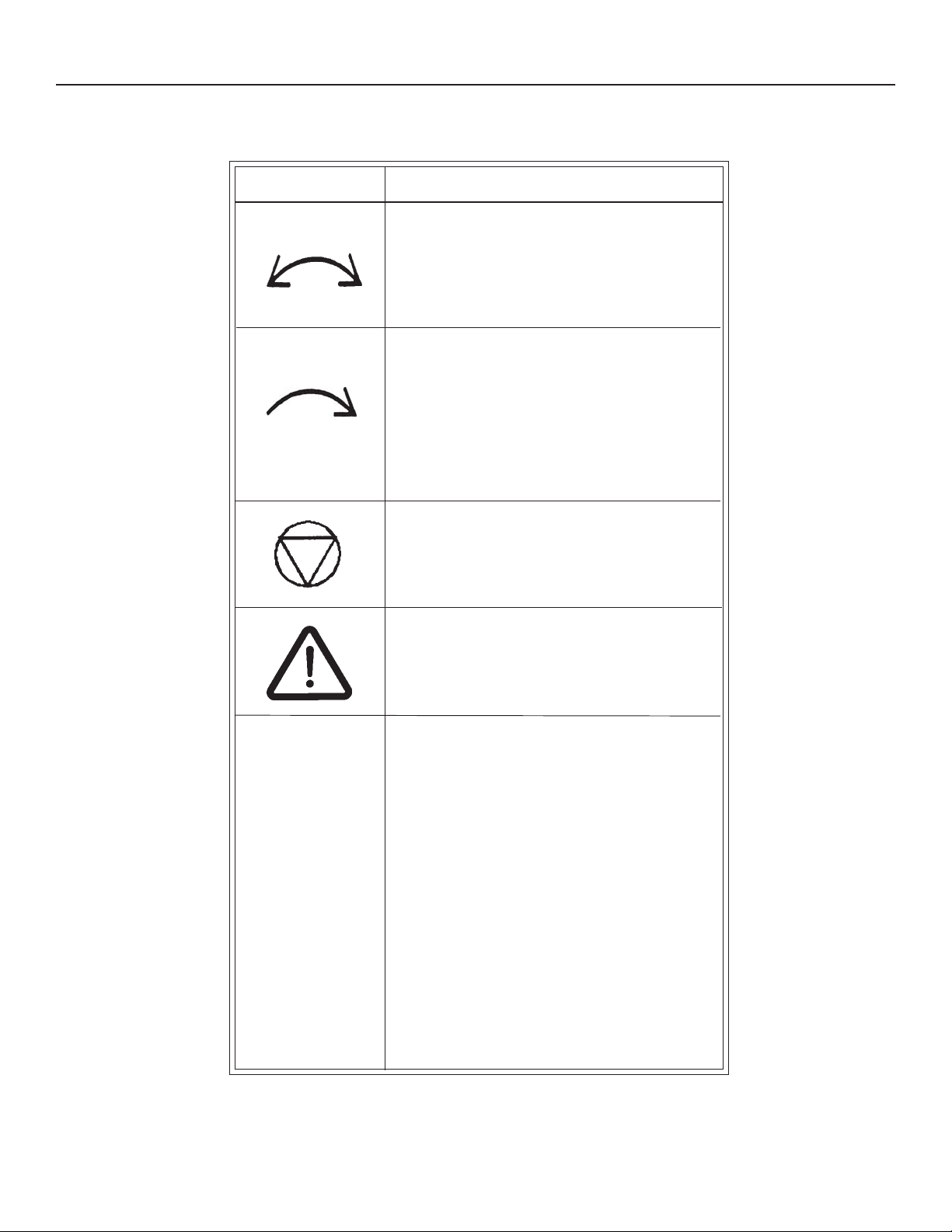

rotationintwodirections
rotationdanslesdeuxsens
DrehbewigunginzweiRichtungen
movimientorotativoenlosdos
sentidos
End of Cycle
caution
attention
Achtung
atencion;precaucion
directionofrotation
sensdemouvementcontinuderotation
DrehbewegunginPfeilrichtung
movimientogiratorioorotatorio
en el sentido de la flecha
Symbol Description
SYMBOLS

Page 8
UNPACKING/GENERAL INSTALLATION (ALL DRYERS)
UNPACKING
GENERAL
INSTALLATION
(ALLDRYERS)
This dryer is packed in a large wooden crate.
Upon arrival of the equipment, any damage in shipment should be reported to
the carrier immediately.
Upon locating permanent location of a unit, care should be taken in movement
and placement of equipment.
See outline clearance diagrams for correct dimensions.
Remove all packing material such as: tape, manuals, skid, etc.
Leveling: Use spirit level on top of dryer. The use of shims are acceptable for
this procedure.
Check voltage and amperes on rating plate before installing the dryer.
On gear reducer models, remove screw and insert red vent attached to reducer.
The construction of the dryers permits installation side-by-side to save space
or to provide a wall arrangement. Position dryer for the least amount of exhaust
piping and elbows, and allow free access to the rear of dryer for future
servicing of belts, pulleys and motors. Installation clearance from all
combustable material is 12” (305 mm) ceiling clearance, 24” (610 mm) rear
clearance, and 0” side clearance.
Before operating dryer, open basket door and remove blocking between front
panel and basket. Read the instruction tags, owner's manual, warnings, etc.
IMPORTANT
Opening the clothes loading door deactivates the door switch to shut off
the motors, fan, gas, steam, or electric element. To restart the dryer,
close the door and press in the push to start button for approximately 2
seconds.
IMPORTANT
This dryer is designed for a capacity maximum load. Overloading it will
result in long drying times and damp spots on some clothes.
IMPORTANT
Maximum operating efficiency is dependent upon proper air circulation.
The lint screen must be kept clean daily to insure proper air circulation
throughout the dryer.
IMPORTANT
Provide adequate clearance for air opening into the combustion chamber.

Page 9
GENERAL DIMENSIONS - GAS DRYERS
ALLDIMENSIONSARE
+/- 1/4” (6.4 MM)AND
ARESUBJECTTO
CHANGEWITHOUT
NOTICE

Page 10
DRYER DIMENSIONS - STEAM MODEL
ALLDIMENSIONSARE
+/- 1/4” (6.4 MM)AND
ARESUBJECTTO
CHANGEWITHOUT
NOTICE

Page 11
DRYER DIMENSIONS - ELECTRIC MODEL
ALLDIMENSIONSARE
+/- 1/4” (6.4 MM)AND
ARESUBJECTTO
CHANGEWITHOUT
NOTICE

Page 12
Floor Space
Gas .........................................................67” Deep x 47” W x 89-1/8” H
(1702 mm x 1194 mm x 2264 mm)
Steam ......................................................67” Deep x 47” W x 93-3/4” H
(1702 mm x 1194 mm x 2382 mm)
Door Opening............................................31-1/4” diameter (794 mm)
Basket Size ................................................44” diameter x 42” Deep
(1118 mm x 1067 mm)
Basket Load Capacity ...............................110 lbs. (50 kg) dryweight
Basket Motor ............................................1 hp (.75 kW)
Fan Motor..................................................1-1/2 hp (1.12 kW)
Basket RPM
Reversing ................................................28 (3.2 reversals per minute)
Non-Reversing .......................................34
Exhaust Duct .............................................12” diameter (305 mm)
Maximum Air Displacement
Steam ......................................................2000 cfm (3400 m3/h)
Gas .........................................................2000 cfm (3400 m3/h))
Recommended Operating Range ..............1800-2000 cfm
(3060-3400 m3/h)
Net Weight (approximate)
Steam.....................................................1,614 lb. (733 kg)
Gas.........................................................1,515 lb. (688 kg)
Shipping Weight
Steam - 1 crate (approx.).....................1,764 lb. (801 kg)
Gas - 1 crate (approx.) ........................1,665 lb. (756 kg)
ExportShippingDimensions .....................93”Lx53”Wx78”H-232.7cu.ft.
(2363 mm x 1347 mm x 1982 mm - 6.59 m³
BTUInputRating.......................................250,000 Btu/h (63,000 kcal/h) (nat.,
mixed and mfg.gases)250,000 Btu/h
(63,000 kcal/h) (propane and butane
gases)
Gas Supply.................................................3/4” (DN20) pipe connection
Electric Ignition ........................................Direct Spark Ignition System
Manifold Gas Pressure .............................3.5” w.c. (8.8 mbar) Max. (Nat. Gas);
11” w.c. (27.4 mbar) (LP Gas)
Drying Time (dry weight) .........................110 lb. (49.9 kg) (Indian Head)
(Approximate - testing
in laboratory) ........................................70% water retention - 25 min.
50% water retention - 22 min.
SPECIFICATIONS
GENERAL
SPECIFICATIONSFOR
110 lb. DRYERS

Page 13
ELECTRICLAUNDRY
DRYER (see Electric Bonnet
Sheet)
Drying Time
(Dry Weight)
80 kW .....................................................110 lb. (49.9 kg) Indian Head cloth
(Approx. - teasting in lab.)
80 kW .....................................................70% water retention - 31 min.
50% water retention - 23 min.
STEAMHEATEDDRYERS
ONLY Operating Steam Pressure ........................100 PSIG (6.9 bar) Max.
Boiler HP (w/normal ld.) (14FPI) ...........10.4 (7.76 kW)
(4-Coil) .....................................................7.87 (5.88 kW)
(6-Coil) .....................................................9.5 (5.88 kW)
Steam Coils ...............................................(2) 40-1/2”L x 15-3/4”H x 6”W
(2) (1029 mm x 401 mm x 153 mm)
Traps for Steam Heating Coils .................3/4” (20 mm) (DN20) (2)
Steam Supply Line ....................................3/4” (20 mm) (DN20)
Steam Return Line ....................................3/4” (20 mm) (DN20)
SPECIFICATIONS
tupnIretaeHdetaR
,spmAretaeH ,spmArotoM ,spmAlortnoC serepmAlatoT egatloVdetaRta
ZH .
eziSmuminiM eriWylppuS C°
57nodesaB )F761( detalusnI reppoC rotcudnoC
hcnarB tiucriC mumixaM .eziSesuF
.hP3/V802@Wk06spmA47106MCM000002
.hP3/
V042@Wk06spmA25106MCM00571
.hP3/V514-083@Wk06spmA9805GWA2011
.hP3/V084@Wk06spmA7706GWA309
.hP3/V575@Wk06spmA3606GWA408

Page 14
ELECTRICAL CONNECTIONS (WITH GROUNDING INSTRUCTIONS
ELECTRICAL
CONNECTIONS
FORALLDRYERS
Dryers must be electrically grounded by a separate #14 or larger
greenwirefromthegroundingterminalwithintheserviceconnection
box, to a cold water pipe. In all cases, the grounding method must
comply with local electrical code requirements; or in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70 or
the Canadian Electrical Code, CA C22.1—Latest Edition.
See wiring diagram furnished with dryer. Your dryer is completely
wired at the factory and it is only necessary for the electrician to
connect the power leads to the wire connectors within the service
connection box on the rear of the dryer. Do notchange wiring
without consulting the factory, as you may void the factory
warranty.DONOTCONNECTTHEDRYERTOANY
VOLTAGEORCURRENTOTHERTHANTHATSPECIFIED
ONTHE DRYERRATING PLATE. (Wiring diagram is located on
rear wall of dryer.)
All panels must be in position before operation of dryer.
«Attention. Lors des opérations d’entretien
des commandes, ètiqueter tous les fils avant
de les dèconnecter. Toute erreur de câblage
peut être une source de danger et de panne»

Page 15
The size of the gas service pipe is dependant upon many variables,
such as tees, lengths, etc. Specific pipe size should be obtained from
the gas supplier. Refer to the Gas Pipe Size Chart in this manual for
general gas pipe size information.
CAUTION
GaslooppipingmustbeinstalledasshowninIllustration,to
maintainequalgaspressureforalldryersconnectedtoasingle
gas service.
Other gas using appliances should be connected upstream
fromtheloop.
WARNING
(LIQUIFIEDPETROLEUMGASESONLY)
A Gas Pressure Regulator for Liquified Petroleum Gases is
notfurnishedonGasHeatedClothesDryers.Thisregulator
is normally furnished by the installer. In accordance with
AmericanGasAssociation(AGA)standards,agaspressure
regulator, when installed indoors, must be equipped with a
vent limiter, or a vent line must be installed from the gas
pressure regulator vent to the outdoors.
GAS PIPING
GASSERVICE
INSTALLATION
INFORMATION

Page 16
GAS PIPING

Page 17
GAS PIPE SIZE CHART
TOTAL BTU/HR
(for LP Gas correct
total BTU/HR below by
multiplying by .6)
TOTAL
KCAL
HOUR
GAS PIPE SIZE FOR 1000 BTU (250 KCAL) NATURAL GAS
AT 7” W.C. (17.5 MBAR) PRESSURE
In figuring total length of pipe, make allowance for tees and elbows. (150 ft.)
45,72 m
(125 ft.)
38,1 m
(100 ft.)
30,48 m
(75 ft.)
22,86 m
(50 ft.)
15,24 m
(25 ft.)
7,62 m
60,000
80,000
100,000
120,000
140,000
160,000
180,000
200,000
300,000
400,000
500,000
600,000
700,000
800,000
900,000
1,000,000
1,100,000
1,200,000
1,300,000
1,400,000
1,500,000
1,600,000
1,700,000
1,800,000
1,900,000
2,000,000
2,200,000
2,400,000
2,600,000
2,800,000
3,000,000
3,200,000
3,400,000
3,600,000
3,800,000
4,000,000
15000
20000
25200
30200
35200
40300
45300
50400
75600
100800
126000
151200
176400
202000
230000
250000
270000
300000
330000
350000
380000
400000
430000
450000
480000
504000
550000
605000
650000
705000
750000
806000
850000
907000
960000
1000000
3/4
3/4
3/4
3/4
3/4
3/4
1
1
1
1 1/4
1 1/4
1 1/2
1 1/2
1 1/2
2
2
2
2
2
2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3/4
3/4
3/4
1
1
1
1
1
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3/4
3/4
1
1
1
1
1
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
3/4
1
1
1
1
1 1/4
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
4
4
3/4
1
1
1
1
1 1/4
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
4
4
4
4
3/4
1
1
1
1 1/4
1 1/4
1 1/4
1 1/2
1 1/2
2
2
2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
2 1/2
3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
4
4
4
4
4
4
