Installation Instructions
Home Laundry Automatic Dryers
(Electric and Gas Models)
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the dryer changes ownership,
be sure this manual accompanies the dryer.)
NOTA: El manual en español aparece
después del manual en inglés.

504607 1
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
W052
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING
©Copyright 1998, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without
the expressed written consent of the publisher.

2504607
Replacement Parts . . .
If replacement parts are required, contact the source
where you purchased your dryer, or contact
Alliance Laundry Systems LLC
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
Phone:
[phone]
for the name and address of the nearest authorized parts
distributor.
Table of
Contents
Replacement Parts ............................................................................... 2
Roughing In Dimensions ..................................................................... 3
Before You Start
Tools ................................................................................................ 4
Exhaust ............................................................................................. 4
Electrical........................................................................................... 4
Gas.................................................................................................... 4
Location............................................................................................ 4
Installing the Dryer
STEP 1 (Position and Level the Dryer) ...........................................5
STEP 2 (Connect Dryer Exhaust System)........................................ 5
STEP 3 (Connect Gas Supply Pipe) ................................................. 6
STEP 4 (Connect Electrical Plug) .................................................... 7
STEP 5 (Wipe Out Inside of Dryer) ................................................. 8
STEP 6 (Plug in the Dryer) .............................................................. 8
STEP 7 (Check Installation)............................................................. 8
Heat Source Check ............................................................................... 9
Reversing Door Procedure ................................................................ 10
Manufactured (Mobile) Home Installation ...................................... 11
Electrical Requirements (Electric Dryers) ....................................... 12
Electrical Plug Connection ................................................................ 13
Electrical Requirements (Gas Dryers) ............................................. 15
Gas Requirements ............................................................................. 16
Location Requirements ..................................................................... 17
Dryer Exhaust Requirements
Exhaust System Materials .............................................................. 18
Make Up Air Requirements............................................................ 18
Exhaust System .............................................................................. 19
Exhaust Direction ........................................................................... 19
Exhaust System Maintenance......................................................... 20
Dryer Airflow ................................................................................. 20
Reduced Clearance Elbow.............................................................. 20
User-Maintenance Instructions
Lubrication ..................................................................................... 21
Care of Your Dryer ......................................................................... 21
Exhaust System .............................................................................. 21
Information for Handy Reference .................................................... 22
Installer Check .................................................................... Back Cover

504607 3
Roughing In Dimensions . . .
ELECTRIC DRYERS
7.7"
(19.6 cm)
4.0"
(10.2 cm)
23.5"
(59.7 cm)
28"
(71.1 cm)
.4"
(1.1 cm) 26.9"
(68.3 cm)
4.0"
(10.2 cm)
15.4"
(39.1 cm)
*36" (91.4 cm)
*43" (109.2 cm)
* WITH LEVELING LEGS TURNED INTO BASE D312IE3A
GAS DRYERS
7.7"
(19.6 cm)
4.0"
(10.2 cm)
23.5"
(59.7 cm)
28"
(71.1 cm)
.4"
(1.1 cm)
4.0"
(10.2 cm)
15.4"
(39.1 cm)
*36" (91.4 cm)
*43" (109.2 cm)
* WITH LEVELING LEGS TURNED INTO BASE D313IE3A
26.9"
(68.3 cm)
2.8"
(7 cm)
2.3" (6 cm)
3/8"NPT
GAS CONNECTION

4504607
Before You Start . . .

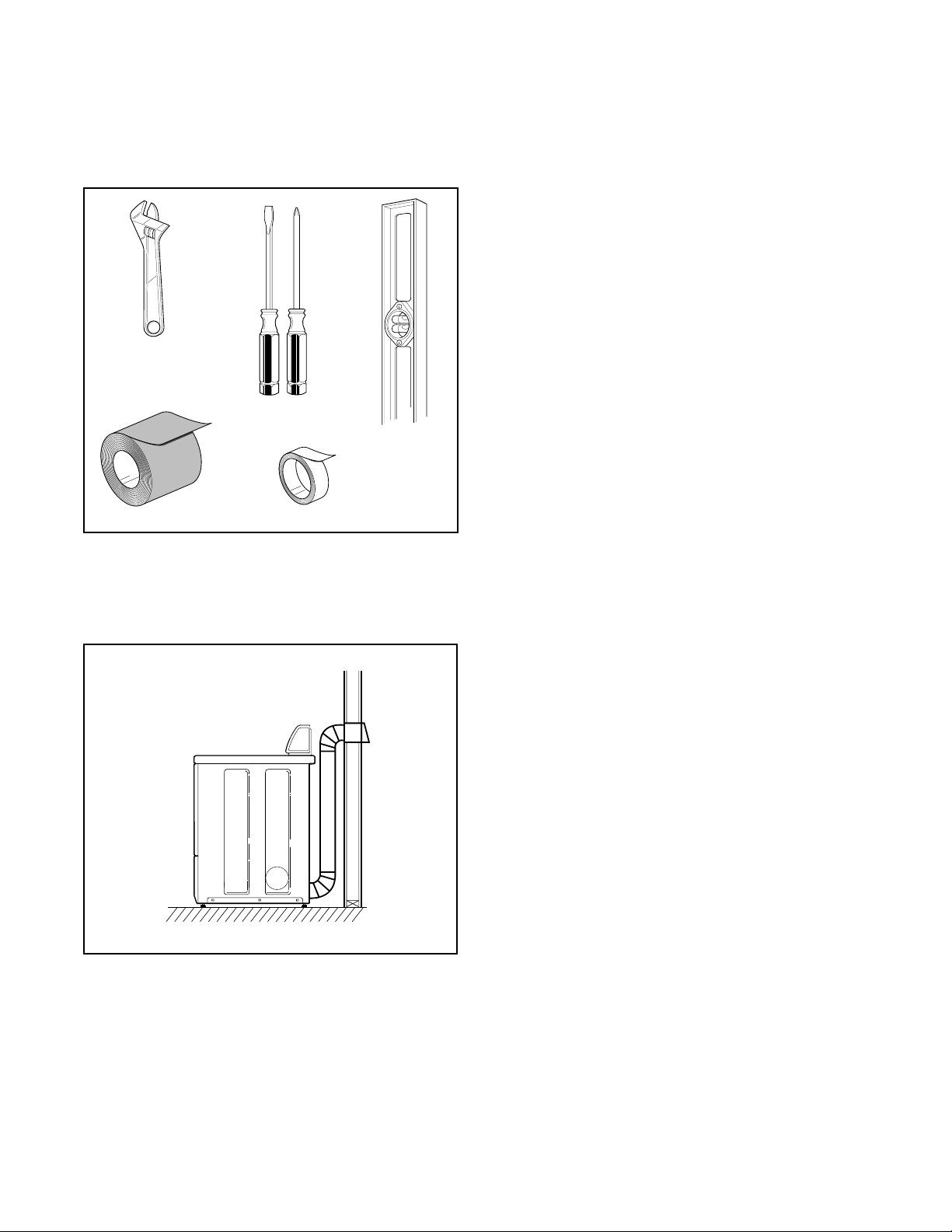

Tools
For most installations, the basic tools you will need are:
Exhaust
Use rigid metal duct and exhaust the dryer to the
outside by the shortest route possible.
NOTE: For more detailed information, refer to
Section on Dryer Exhaust Requirements.
Electrical
•ELECTRIC DRYER
Dryer needs a 3 or 4 wire 120/240 Volt, 30 Amp, 60
Hertz, 1 Phase electrical supply.
•GAS DRYER
Dryer needs a 120 Volt, 15 Amp, 60 Hertz, polarized
3-slot effectively grounded receptacle.
NOTE: For more detailed information, refer to
Section on Electrical Requirements.
Gas
Dryer is equipped for Natural Gas with a 3/8" NPT gas
supply connection. For more detailed information,
refer to Section on Gas Requirements.
Location
Place the dryer on a solid floor with an adequate air
supply. For more detailed information, refer to Section
on Location Requirements.
D074IE1F
DUCT TAPE TEFLON TAPE
WRENCH
LEVEL
SCREWDRIVERS
D314IE0A

504607 5
Installing the Dryer . . .
Step 1:
Position and Level
the Dryer
For further assistance refer to Section on Location
Requirements.
Install dryer before washer. This allows room for
attaching exhaust duct.
Place the dryer in position, and adjust the legs until the
dryer is level.

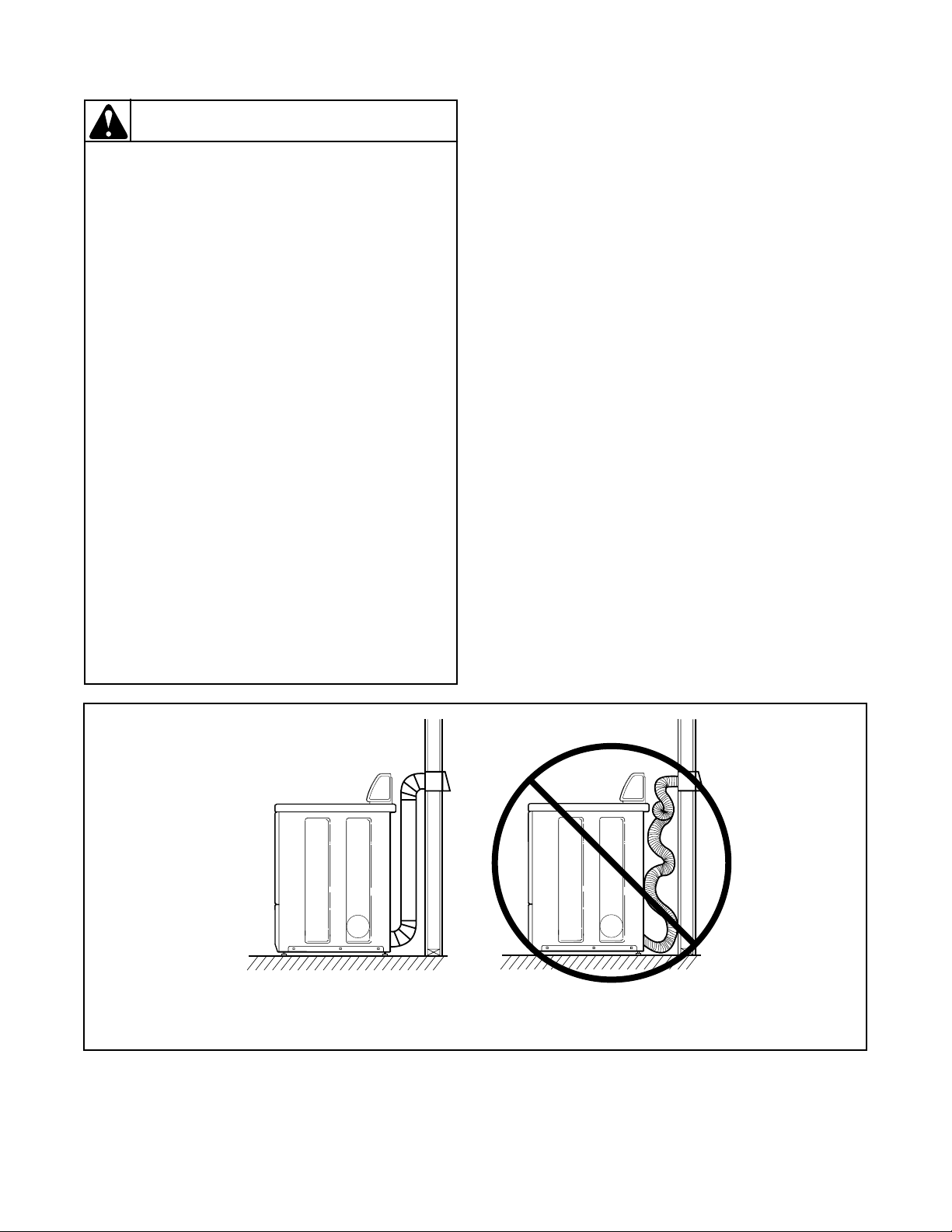

Step 2:
Connect Dryer Exhaust System
For further assistance refer to Sections on Location
Requirements and Dryer Exhaust Requirements.

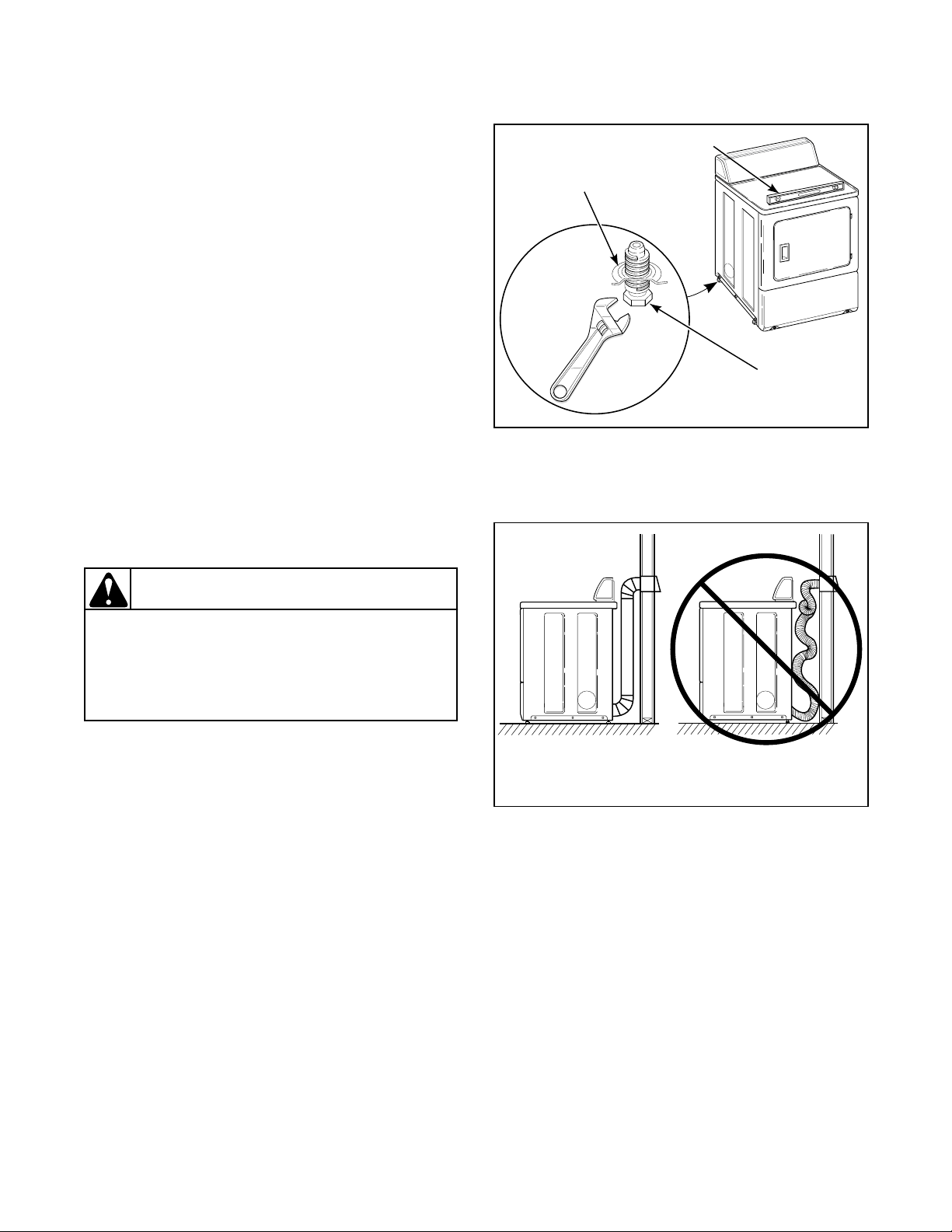

•DO NOT use plastic or thin foil flexible ducting.
•Locate dryer so exhaust duct is as short as possible.
•Be certain old ducts are cleaned before installing
your new dryer.
•Use 4" (10.2 cm) diameter rigid or flexible metal
duct.
•Use as few elbows as possible.
•Use duct tape on all joints.
•Failure to exhaust dryer properly will void
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
D298IE1A
DRYER
BASE
LEVELING
LEG
LEVEL
D259I
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W116
WARNING
DO
D314IE0C
DON'T
D315IE0C

6504607

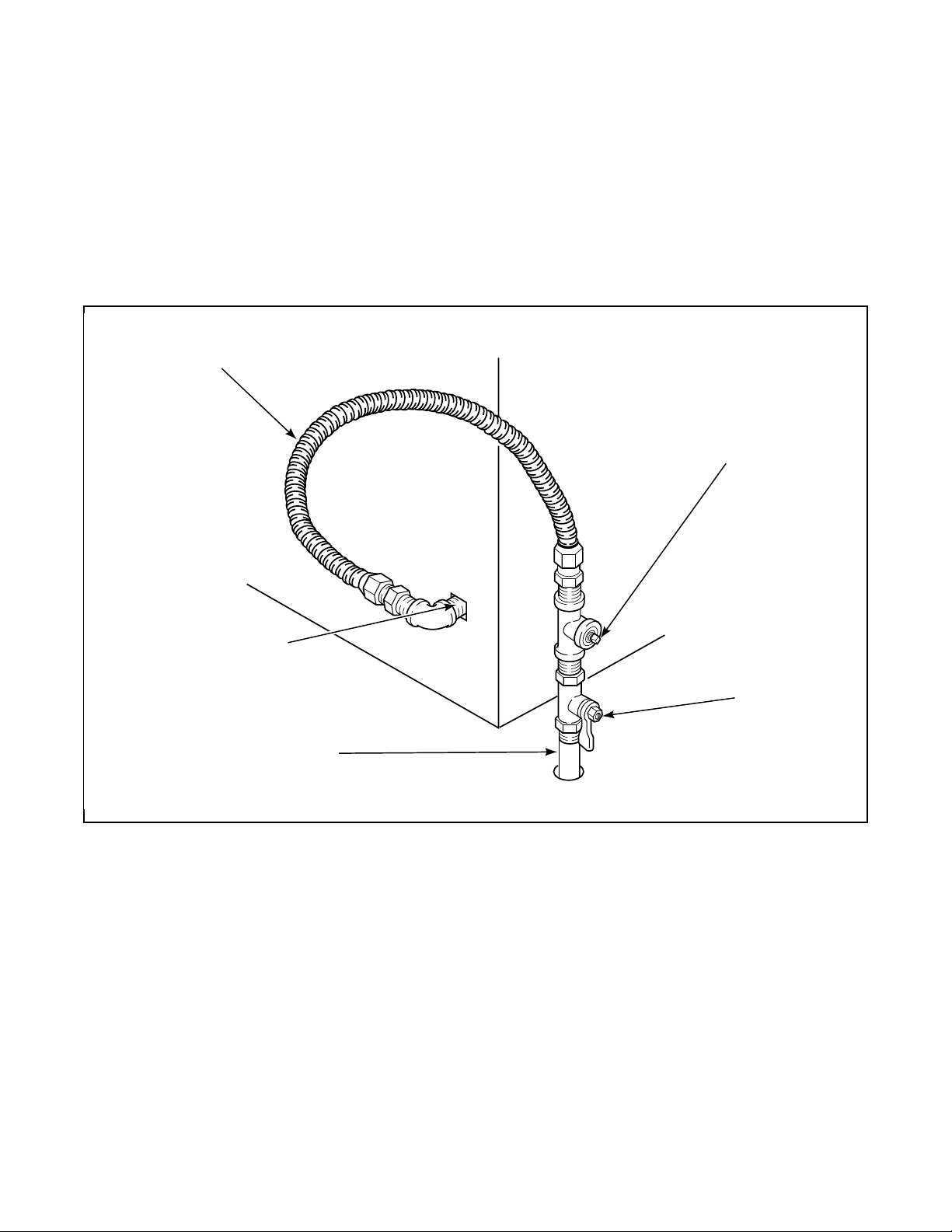

Step 3: (Gas Dryer ONLY)
Connect Gas Supply Pipe
For further assistance, refer to Section on Gas Requirements.
1. Make certain your dryer is equipped for use with
the type of gas in your laundry room. Dryer is
equipped at the factory for Natural Gas with a 3/8"
NPT gas connection.
2. Remove the shipping cap from the gas connection
at the rear of the dryer. Make sure you do not
damage the pipe threads when removing the cap.
3. Connect to gas supply pipe.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal & external) for
gas leaks with a non-corrosive leak detection fluid.
5. For L.P. (propane) gas connection, refer to Section
on Gas Requirements.
3/8" NPT
GAS CONNECTION
1/8" NPT
PIPE PLUG
(For checking
inlet gas pressure)
NEW
STAINLESS STEEL
FLEXIBLE
CONNECTOR
USE ONLY
IF ALLOWED
BY LOCAL
CODES
(Use
Design A.G.A.
Certified
Connector)
EQUIPMENT
SHUT-OFF
VALVE
Install within
6' (1.8 m) of dryer
D233IE3D
BLACK IRON PIPE
Shorter than 20' (6.1 m) - use 3/8" pipe
Longer than 20' (6.1 m) - use 1/2" pipe

504607 7
Step 4: (ELECTRIC DRYER ONLY)
Connect Electrical Plug
For further assistance, refer to Section on Electrical
Requirements.
IMPORTANT: Use only a new U.L. listed No. 10
(copper wire only) three conductor power supply
cord kit rated 240 Volts (minimum) 30 Amperes
and labeled as suitable for use in a clothes dryer.
NOTE: For more detailed information on
connecting three-wire or four-wire plugs, refer to
Section on Electrical Plug Connection.
NOTE: Four-wire cord is required for mobile
homes or where codes do not permit grounding
through neutral.
STRAIN
RELIEF
NUT
TYPICAL
THREE-WIRE
RECEPTACLE POWER CORD
(Three-Wire)
STRAIN
RELIEF
D275IE0D
Three Wire
NUT
TYPICAL
FOUR-WIRE
RECEPTACLE POWER CORD
(Four-Wire)
STRAIN
RELIEF
D006IE0A
STRAIN
RELIEF
Three Wire
Four Wire
D276IE1A
CENTER
WIRE
(NEUTRAL)
STRAIN
RELIEF
(NOT SUPPLIED
WITH DRYER)
NEUTRAL
TERMINAL
GROUND
WIRE
"L2"
TERMINAL
"L1"
TERMINAL
GROUND
SCREW
GROUND
TO NEUTRAL
WIRE
Three-Wire Connection
D171IE1A
WHITE
WIRE
(NEUTRAL)
GROUND
SCREW
NEUTRAL
TERMINAL
"L1"
TERMINAL
BLACK
WIRE
GROUND
WIRE
STRAIN
RELIEF
(NOT SUPPLIED
WITH DRYER)
GROUND
WIRE
"L2"
TERMINAL
RED
WIRE
Four-Wire Connection
NOTE: Dryer is shown with access cover removed
for illustration purposes only. NEVER operate
dryer with access cover removed.

8504607
Step 5:
Wipe Out Inside Of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
Step 6:
Plug in the Dryer
Refer to Section on Electrical Requirements, and
connect the dryer to an electrical power source.
Step 7:
Check Installation
Refer to Installer Check on the back cover of this
manual and make sure that dryer is installed correctly.
D327IE2A
D275IE0C
ELECTRIC
Connect to 30 Amp circuit.
D254IE0B
GAS
Plug cord into separately fused
15 Amp circuit.

504607 9
Heat Source Check . . .
Electric Dryers
Close the loading door and start the dryer in a heat
setting (refer to the Operating Instructions supplied
with the dryer). After the dryer has operated for three
minutes, the exhaust air or exhaust pipe should be
warm.
Gas Dryers
To view the burner flame, remove the lower front panel
of the dryer.
Close the loading door, start the dryer in a heat setting
(refer to the Operating Instructions supplied with the
dryer); the dryer will start, the igniter will glow red and
the main burner will ignite.
IMPORTANT: If all air is not purged out of gas
line, gas igniter may go off before gas is ignited. If
this happens, after approximately two minutes
igniter will again attempt gas ignition.
After the dryer has operated for approximately five
minutes, observe burner flame through lower front
panel. Adjust the air shutter to obtain a soft, uniform
blue flame. (A lazy, yellow tipped flame indicates lack
of air. A harsh, roaring, very blue flame indicates too
much air.) Adjust the air shutter as follows:
a. Loosen the air shutter lockscrew.
b. Turn the air shutter to the left to get a luminous
yellow-tipped flame, then turn it back slowly to the
right to obtain a steady, soft blue flame.
c. After the air shutter is adjusted for proper flame,
tighten the air shutter lockscrew securely.
d. Reinstall the lower front panel.
After the dryer has operated for approximately three
minutes, exhaust air or exhaust pipe should be warm.
For personal safety, lower front panel must
be in place during normal operation.
W046
WARNING
D316IE3A
AIR SHUTTER
LOCKSCREW
AIR
SHUTTER
1/8" (3.1 mm) PIPE PLUG
(For checking
manifold pressure)
APPLIANCE
MAIN GAS
VALVE

10 504607
Reversing Door Procedure . . .
The door on this dryer is completely reversible. To reverse door proceed as follows:
D271PE1B
1
Remove four
hinge attaching
screws.
D272PE1A
2
Remove all nine screws.
D268PE1A
Pull bottom of
door liner out,
then pull down,
removing door
liner from door
panel.
3
B
AD273PE1C
4
Rotate door panel
180 degrees
as shown.
D276PE1B
5
Remove door strike
from door liner
and reinstall on
opposite side.
D269PE1C
6
Insert liner under
flange on bottom of
door, then push
top of door
liner into place.
B
A
D270PE1B
7
Reinstall nine screws
removed in Step 2.
D274PE1A
8
Using a screwdriver,
remove two door plugs,
and reinstall on
opposite side of
door opening.
D275PE1A
9
Reinstall four hinge
attaching screws
removed in Step 1.

504607 11
Manufactured (Mobile) Home
Installation . . .
The dryer can be installed in a manufactured (mobile)
home by following these instructions:
1. IMPORTANT: Gas dryers MUST be
permanently attached to the floor at the time of
installation. Order No. 526P3 Dryer Installation
Kit for a manufactured (mobile) home
installation. Follow the instructions supplied
with the kit.
2. Electrical Connections (Electric Dryer Only) must
be a 4-wire connection, refer to page 13.
3. Venting—Dryer MUST be exhausted to the
outdoors.
•The dryer can be exhausted to the outdoors through
the back, left, right or bottom panel. Gas dryers
cannot be exhausted out the left side because of the
burner housing.
•The dryer exhaust duct must be secured to the
mobile home structure.
•Exhaust ducts MUST NOT be connected with sheet
metal screws or fasteners which extend into the duct.
•Exhaust duct must not be connected to any other
duct, vent or chimney.
•Dryer exhaust duct MUST NOT terminate under the
mobile home.
•For proper operation, it is important that the dryer
has an ample amount of outside make-up air. The
free area of any opening for the introduction of
outside air must be at least 25 in2(163 cm2).
•When exhausting the dryer to the outdoors, the dryer
can be installed with “0”inch clearance at the sides
and rear. Clearance of the duct from combustible
construction must be a minimum of 2 inches (5.08
cm).
•Venting materials are not supplied with the dryer
(obtain locally).
IMPORTANT: Installation must conform to
the Manufactured Home Construction and
Safety Standards, Title 24 CFR, Part 32-80 or
Standard CAN/CSA-Z240 MH.
To reduce the risk of fire and combustion
gas accumulation, the dryer MUST BE
EXHAUSTED TO THE OUTDOORS. Refer to
Section on Dryer Exhaust Requirements.
W047
WARNING
To reduce the risk of fire, the exhaust duct
and weather hood MUST be fabricated of a
material that will not support combustion.
Rigid or flexible metal pipe is recommended
for a clothes dryer.
W048
WARNING

12 504607
Electrical Requirements . . .
(Electric Dryers)
NOTE: The wiring diagram is located inside the
control hood. Grounding Instructions
This dryer must be connected to a grounded metal,
permanent wiring system; or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead
on the dryer.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses checked by a qualified electrician
to make sure your home has adequate
electrical power to operate the dryer.
W113
WARNING
D003IE3A
POWER SUPPLY POWER SUPPLY
3-WIRE GROUNDED NEUTRAL
120/240 VOLT, 60 HERTZ AC 1 PHASE
SERVICE ENTRANCE SWITCH BOX
(SEE NOTE BELOW)
NEUTRAL WIRE NEUTRAL WIRE
METALLIC OR
NON-METALLIC
SHEATHED CABLE
(COPPER WIRE
ONLY)
PIGTAIL
TO DRYER
(SEE NOTE BELOW)
NEUTRAL
L1 L2
PIGTAIL CONNECTION
L1 L2
DIRECT CONNECTION
NEUTRAL
WALL
RECEPTACLE
INTERMEDIATE
FUSE BOX
(MAY BE
OMITTED IF
SERVICE
ENTRANCE
BOX IS FUSED)
INTERMEDIATE
SHUT-OFF BOX
(MAY OR MAY
NOT BE FUSED)
A typical
30-Amp
Three-wire
Receptacle
NEMA Type
10-30R
30 AMPERE FUSES OR
CIRCUIT BREAKER
TERMINAL BLOCK
IN DRYER
120 ±12
VAC
240 ±12
VAC
120 ±12
VAC
NOTE: The power cord (pigtail) is NOT supplied with the
electric dryer. Type of pigtail and gauge of wire must conform
to local codes and instructions.
The method of wiring the dryer is optional and subject to local
code requirements.
NOTE: Connect the dryer to the power supply with the
MAXIMUM RATED VOLTAGE listed on the nameplate.
NOTE: Use COPPER WIRE only.
Shorter than 15' (4.5 m) use 10 A.W.G.
Longer than 15' (4.5 m) use 8 A.W.G.
120 ±12
VAC
A typical 30-Amp
Four-wire Receptacle
240 ±12
VAC
120 ±12
VAC
120 ±12
VAC
120 ±12
VAC
D006IE1F

504607 13
Electrical Plug Connection . . .
Three-Wire Plug
4. Tighten all screws and reinstall access cover
removed in Step 1.
D284IE0C

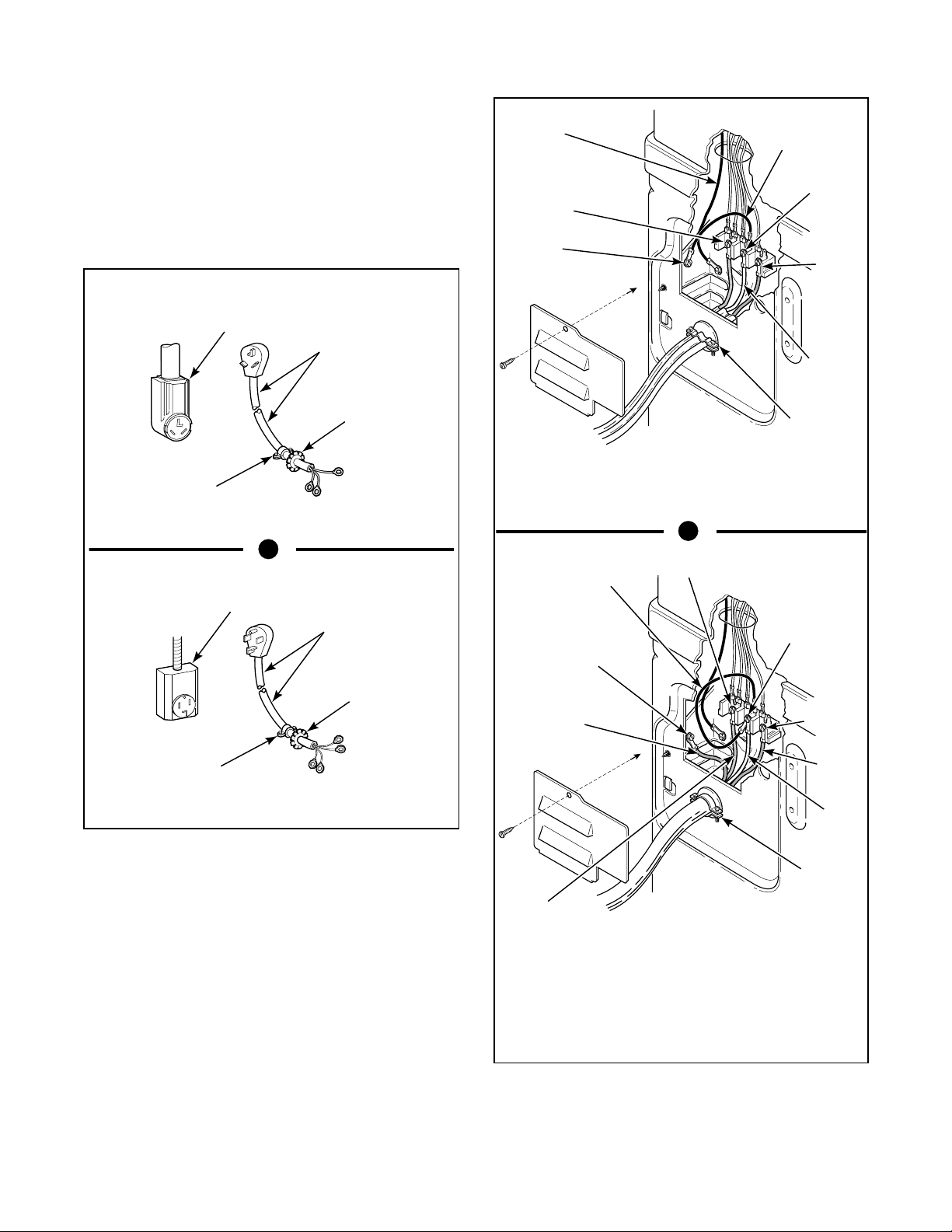

1. Remove access
cover from rear of
dryer.
D285IE0D
2. Use a strain relief and insert
end of power cord through
power supply hole.
D286IE0B
"L1"
TERMINAL
"L2"
TERMINAL
NEUTRAL
TERMINAL
3. Use the three
screws from
the envelope
located in the
cylinder to attach
the power cord
wires to the
terminal block.

14 504607
Four-Wire Plug
4. Attach power cord ground (green) wire to rear
bulkhead using ground screw removed in Step 2.
NOTE: When installing the white wire, loop the
free eyelet end of the ground wire (removed in Step
2) and attach along with the white wire to the
neutral (center) terminal on the terminal block.
6. Tighten all screws and reinstall access cover
removed in Step 1.
D284IE0C

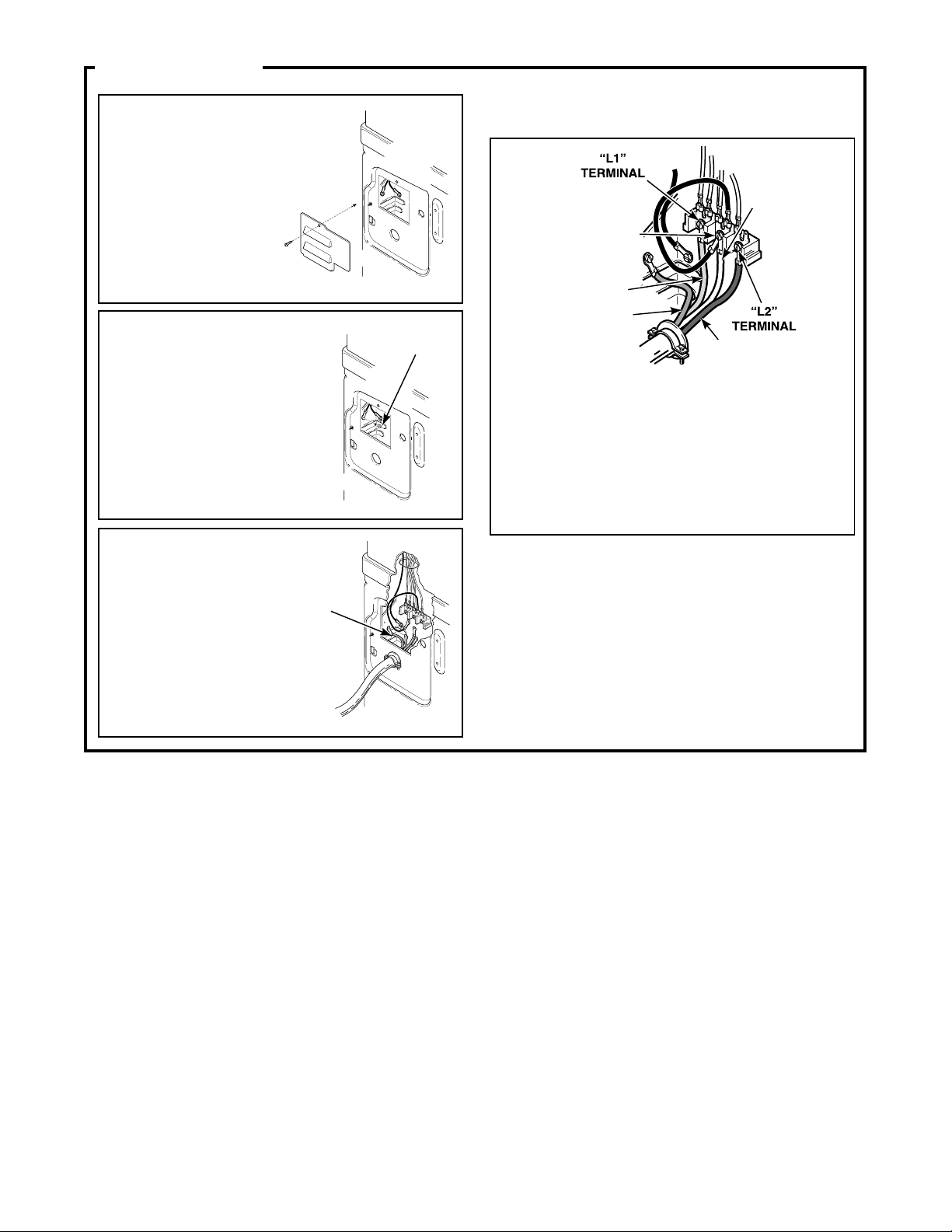

1. Remove access cover
from rear of dryer.
D287IE0E
GROUND
SCREW
2. Remove ground screw and
save for use in Step 4.
Remove wire and use in
Step 5.
D288IE0D
POWER
CORD
GROUND
WIRE
3. Use a strain relief
and insert end of
power cord
through power
supply hole.
D289IE0C
NEUTRAL
TERMINAL
RED
GREEN
WHITE
BLACK
5. Use the three screws from the envelope located
in the cylinder to attach the remaining power
cord wires to the terminal block as follows:
a. Red wire to “L1”terminal.
b. Black wire to “L2”terminal.
c. White wire to Neutral terminal.

504607 15
Electrical Requirements . . .
(Gas Dryers)
NOTE: The wiring diagram is located inside the
control hood.
Grounding Instructions
The dryer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The dryer is equipped
with a cord having an equipment-grounding conductor
and a 3-prong grounding plug. The three-prong
grounding plug on the power cord should be plugged
directly into a polarized three-slot effectively grounded
receptacle rated 110/120 Volts AC (alternating current)
15 Amps.
Do not modify the plug provided with the dryer—if it
will not fit the outlet, have a proper outlet installed by
a qualified electrician.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that illustrated, the qualified
electrician should correct the problem.
Do not operate other appliances on the same circuit
when this appliance is operating.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses checked by a qualified electrician
to make sure your home has adequate
electrical power to operate the dryer.
W113
WARNING

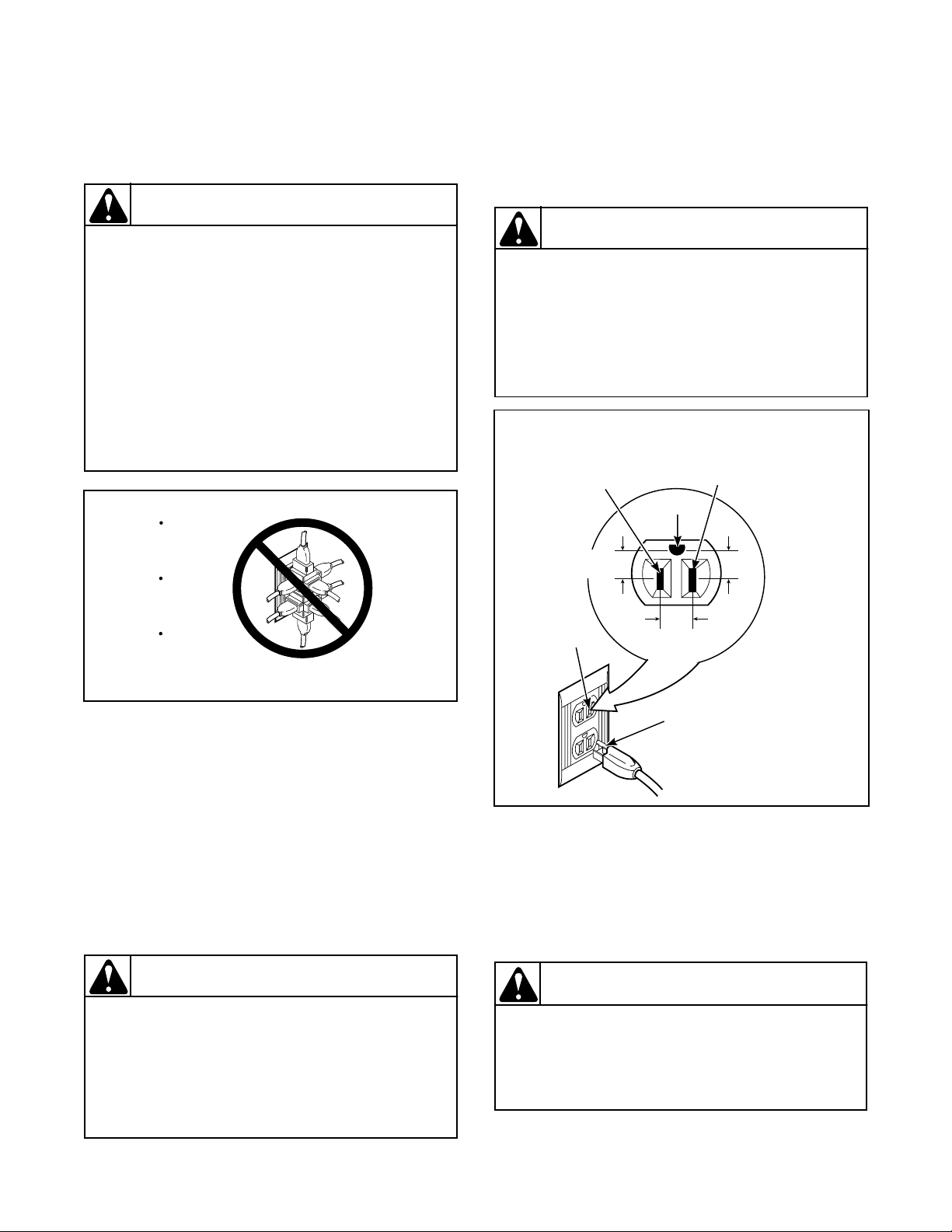

D009IE0C
DO NOT
OVERLOAD
CIRCUITS
DO NOT
USE AN
ADAPTER
DO NOT
USE AN
EXTENSION
CORD
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the dryer is properly
grounded.
W038
WARNING
This dryer is equipped with a three-prong
(grounding) plug for your protection against
shock hazard and should be plugged
directly into a properly grounded three-
prong receptacle. Do not cut or remove the
grounding prong from this plug.
W036
WARNING
D090IE1E
STANDARD 120 VOLT, 15 AMP, 60 HERTZ, 3-WIRE
EFFECTIVELY GROUNDED CIRCUIT
NEUTRAL
ROUND
GROUNDING
PRONG
GROUND
NEUTRAL
SIDE
“L1”
0
V.A.C.
115 ±12
V.A.C.
115 ±12
V.A.C.
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the dryer to the electrical
power source.
W037
WARNING

16 504607
Gas Requirements . . .
(Gas Dryers)
NOTE: The gas service to a gas dryer must conform
with the local codes and ordinances, or in the
absence of local codes and ordinances, with the
latest edition of the National Fuel Gas Code ANSI
Z223.1/NFPA 54 or the CAN/CGA-B149, National
Gas Installation Code.
Natural Gas, 1,000 Btu/ft3(37.3 MJ/m3) service must
be supplied at 6.5 ± 1.5 inch water column pressure.
For proper operation at altitudes above 2,500 feet (760
m) the natural gas valve spud orifice size must be
reduced to ensure complete combustion. See table at
right.
L.P. (Propane) Gas, 2,500 Btu/ft3(93.1 MJ/m3)
service must be supplied at 10 ± 1.5 inch water column
pressure.
NOTE: DO NOT connect the dryer to L.P.
(Propane) Gas Service without converting the gas
valve. An LPK1 Sales Accessory (L.P. [Propane]
Gas Conversion Kit 649P3) must be installed.)
NOTE: The dryer and its appliance main gas valve
must be disconnected from the gas supply piping
system during any pressure testing of that system at
test pressures in excess of 1/2 psi (3.45 kPa). (See
illustration on page 10.)
The dryer must be isolated from the gas supply piping
system by closing the equipment shut-off valve during
any pressure testing of the gas supply piping system at
test pressures equal to or less than
1/2 psi (3.45 kPa)
NOTE: When connecting to a gas line, an
equipment shutoff valve must be installed within 6'
(1.8 m) of the dryer. An 1/8" N.P.T. pipe plug must
be installed as shown. See illustration.
Altitude Orifice Size Part
Number
ft m # Inches mm
3000 915 43 0.0890 2.26 503778
6000 1830 44 0.0860 2.18 58719
8000 2440 45 0.0820 2.08 503779
9000 2740 46 0.0810 2.06 503780
10000 3050 47 0.0785 1.99 503781
To reduce the risk of gas leaks, fire or
explosion:
•The dryer must be connected to the type
of gas as shown on nameplate located in
the door recess.
•Use a new flexible stainless steel
connector.
•Use pipe joint compound insoluble in LP
(propane) Gas, or Teflon tape, on all pipe
threads.
•Purge air and sediment from gas supply
line before connecting it to the dryer.
Before tightening the connection, purge
remaining air from gas line to dryer until
odor of gas is detected. This step is
required to prevent gas valve
contamination.
•Do not use an open flame to check for gas
leaks. Use a non-corrosive leak detection
fluid.
W114R1
WARNING
D233IE2E
3/8" NPT
GAS CONNECTION
1/8" NPT
PIPE PLUG
(For checking
inlet gas pressure)
NEW
STAINLESS
STEEL
FLEXIBLE
CONNECTOR
USE ONLY
IF ALLOWED
BY LOCAL
CODES
(Use
Design A.G.A.
Certified
Connector)
EQUIPMENT
SHUT-OFF
VALVE
Installed within
6' (1.8 m) of dryer
BLACK IRON PIPE
Shorter than 20' (6.1 m) - use 3/8" pipe
Longer than 20' (6.1 m) - use 1/2" pipe

504607 17
Location Requirements . . .
Select a location with a solid floor.
No other fuel burning appliance should be installed in
the same closet with the dryer.
The dryer must not be installed or stored in an area
where it will be exposed to water and/or weather.
Leveling legs can be adjusted from inside the dryer
with a 1/4" driver. All four legs must rest firmly on the
floor so the weight of the dryer is evenly distributed.
The dryer must not rock.
The dryer needs sufficient clearance and an adequate
air supply for proper operation and ventilation, and for
easier installation and servicing. (Minimum clearances
are shown below.)

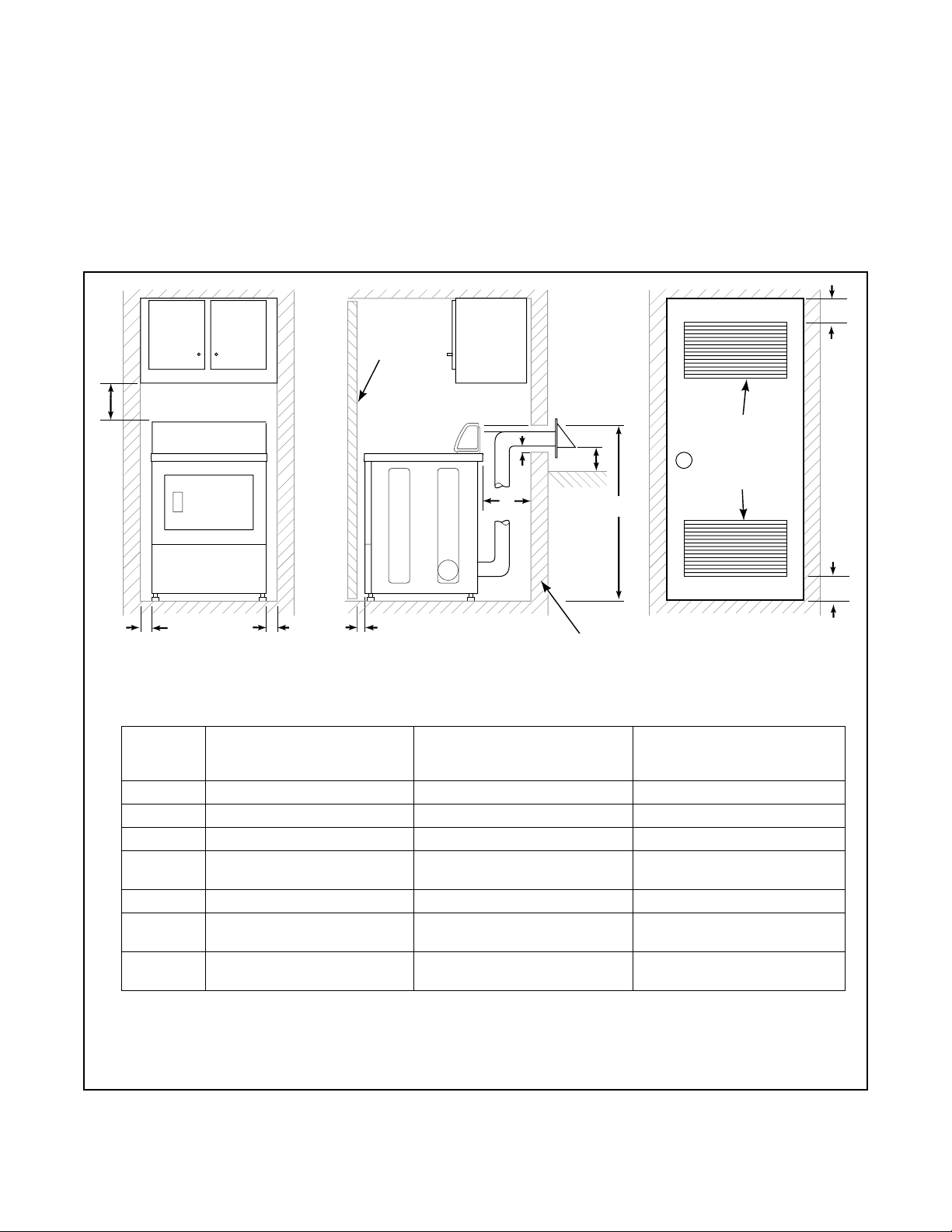

CLOSET
DOOR
D317IE3C
FRONT VIEW
(w/o Closet Door) SIDE VIEW
AAC
A
DE
B
CENTERED
AIR
OPENINGS (G)
(2 Openings
Minimum)
FRONT VIEW
(Closet Door)
F
F
OUTER
WALL OF
ENCLOSURE
**42"
** NOTE: For new installations, locate top of wall vent 42 inches above floor to make venting easier to
connect.
AREA DESCRIPTION FREE STANDING / ALCOVE
INSTALLATION
(See Illustration)
CLOSET INSTALLATION
(See Illustration)
ADryer sides and rear clearance 0" (0 cm) 0" (0 cm)
BDryer top clearance 12" (30.5 cm) 12" (30.5 cm)
CDryer front clearance Not Applicable 2" (5.1 cm)
DExhaust duct clearance to
combustible material 2" (5.1 cm) 2" (5.1 cm)
EWeather hood to ground clearance 12" (30.5 cm) 12" (30.5 cm)
FDistance from floor or ceiling to
hole edge Not Applicable 3" (7.6 cm)
G* Area of centered air openings in
closet door
Not Applicable 40 sq. in./open (260 sq. cm)
*Louvered door with equivalent air openings is acceptable. (Minimum clearances are shown.)

18 504607
Dryer Exhaust Requirements . . .
Never install flexible duct in concealed spaces, such as
a wall or ceiling.
Exhaust System Materials
Exhaust duct must be four inches (10.2 cm) in diameter
having no obstructions. Rigid metal duct is
recommended. Non-combustible semi-rigid flexible
metal duct is acceptable. Do not use plastic pipe or
flexible plastic pipe, because it contributes to poor
drying performance and collects lint, which can lead to
a fire hazard.
DO NOT use sheet metal screws on exhaust pipe joints
or other fastening means which extend into the duct
that could catch lint and reduce the efficiency of the
exhaust system. Secure all joints with duct tape.
Make-Up Air Requirements
For proper operation it is important that you locate the
dryer in an area that has an ample amount of make-up
air to replace the amount exhausted by the dryer.
Energy efficient homes with low air infiltration rates
should be equipped with an air exchanger that can
accommodate on demand make-up air needs in the
home. These devices can be obtained through your
building contractor or building material suppliers.
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W116
This gas appliance contains or produces a
chemical or chemicals which can cause
death or serious illness and which are
known to the State of California to cause
cancer, birth defects, or other reproductive
harm. To reduce the risk from substances in
the fuel or from fuel combustion, make sure
this appliance is installed, operated, and
maintained according to the instructions in
this manual.
W115
To reduce the risk of fire and the
accumulation of combustion gases, DO NOT
exhaust dryer air into a window well, gas
vent, chimney or enclosed, unventilated
area, such as an attic, wall, ceiling, crawl
space under a building or concealed space
of a building.
W045
To reduce the risk of fire, DO NOT use
plastic pipe or flexible plastic pipe to
exhaust the dryer.
W041
WARNING
DO
D314IE0B
DON'T
D315IE0A
