Alliance Laundry Systems SWD439C User manual

Installation
www.comlaundry.com
Stacked Washers
and Dryers
Electric and Gas Dryers
SWD439C
NOTA: El manual en
españolaparecedespués
del manual en inglés.
Part No. 800937R1
September 2004
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

Model Identification
Information in this manual is applicable to these
models:
LTS87A*H
LTS89A*H
LTU87A*H
LTU89A*H
LTZ87A*H
LTZ89A*H

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT800937 1
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the
unit user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above must
be posted in a prominent location near the unit for customer use.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
W052
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
W053
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING
The following information applies to the state of Massachusetts, USA.
●This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.
●This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.
●A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.
●This appliance must not be installed in a bedroom or bathroom.

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
2800937
Notes

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
© Copyright 2004, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
800937 3
Table of
Contents
Replacement Parts.............................................................................. 5
Installation........................................................................................... 7
Dimensions and Specifications............................................................. 7
Before You Start................................................................................... 8
Tools ................................................................................................ 8
Water................................................................................................ 8
Gas ................................................................................................... 8
Location ........................................................................................... 8
Exhaust............................................................................................. 8
Electrical .......................................................................................... 8
Installing the Unit ................................................................................. 9
Step 1: Position Unit Near Installation Area.................................... 9
Step 2: Connect Water Inlet Hoses .................................................. 9
Step 3: Connect Drain Hose to Drain Receptacle............................ 10
Step 4: (Gas Dryer Only) Connect Gas Supply Pipe ....................... 12
Step 5: (Electric Dryer Only) Connect Electrical Plug.................... 13
Step 6: Connect Dryer Exhaust System........................................... 14
Step 7: Position and Level the Unit ................................................. 15
Step 8: Remove the Shock Sleeves and Shipping Brace
(Washer Only) ................................................................................ 16
Step 9: Wipe Out Inside of Washer Drum and Dryer Drum............ 16
Step 10: Plug In the Washer and Dryer ........................................... 17
Step 11: Check Installation .............................................................. 17
Moving Unit to a New Location ...................................................... 17
Heat Source Check ............................................................................... 18
Electric Dryers ................................................................................. 18
Gas Dryers ....................................................................................... 18
Electrical Requirements........................................................................ 19
Washer ............................................................................................. 19
Electric Dryer................................................................................... 20
Electrical Plug Connection ................................................................... 22
Three-Wire Plug............................................................................... 22
Four-Wire Plug ................................................................................ 23
Electrical Requirements........................................................................ 25
Gas Dryer......................................................................................... 25
Gas Requirements................................................................................. 27
Water Supply Requirements................................................................. 29
Water Temperature .......................................................................... 29
Water Pressure ................................................................................. 29
Risers................................................................................................ 29
Location Requirements......................................................................... 30

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
4800937
Dryer Exhaust Requirements................................................................ 31
Exhaust System Materials................................................................ 31
Make-Up Air Requirements............................................................. 32
Make-Up Air Dos and Don’ts.......................................................... 32
Exhaust Direction............................................................................. 32
Exhaust System................................................................................ 33
Exhaust System Maintenance .......................................................... 34
Dryer Airflow................................................................................... 34
Information for Handy Reference......................................................... 35
Installer Checklist.................................................................. Back Cover

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 5
800937
Replacement Parts
If replacement parts are required, contact the source
from where you purchased your unit or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

800937
6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Notes

© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT 7
800937
Installation
Dimensions and Specifications
SWD440N
*With leveling legs turned into base.
SWD441N
*With leveling legs turned into base.
13/8" N.P.T. Gas Connection
SWD440N
23.5"
(59.7 cm)
5.25"
(13.3 cm)
17.5"
(44.8 cm)
28"
(71.1 cm)
29.6" (75.1 cm)
31.1" (79 cm)
*75" (190.5 cm)
44.1" (112 cm)
15.4"
(39.1 cm)
26.9"
(68.3 cm)
2.0"
(5.1 cm)
ELECTRIC DRYERS
8.0"
(20.3 cm)
14.3"
(36.3 cm)
SWD441N
23.5"
(59.7 cm)
5.25"
(13.3 cm)
17.5"
(44.8 cm)
28"
(71.1 cm)
29.6" (75.1 cm)
31.1" (79 cm)
*75" (190.5 cm)
44.1" (112 cm)
15.4"
(39.1 cm)
26.9"
(68.3 cm)
2.0"
(5.1 cm)
2.3"
(6 cm)
GAS DRYERS
8.0"
(20.3 cm) 1
42.4" (107.7 cm)
14.3"
(36.3 cm)

Installation
800937
8© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Before You Start
Tools
For most installations, the basic tools you will need
are:
Figure 1
Water
Washer needs two standard 3/4 in. (19.1 mm) water
supply faucets with a pressure between 20 and
120 pounds per square inch (138 to 827 kPa). For more
detailed information, refer to section on Water Supply
Requirements.
Gas
Dryer is equipped for Natural Gas with a 3/8 in. N.P.T.
gas supply connection. For more detailed information,
refer to section on Gas Requirements.
Location
Place the unit on a solid floor with an adequate air
supply. For more detailed information, refer to section
on Location Requirements.
Exhaust
Use rigid metal duct and exhaust the dryer to the
outside by the shortest route possible.
NOTE: For more detailed information, refer to
section on Dryer Exhaust Requirements.
Figure 2
Electrical
●WASHER
Refer to serial plate for specific electrical
requirements. For more detailed information,
refer to section on Washer Electrical
Requirements.
●ELECTRIC DRYER
Dryer needs a 3 or 4 wire 120/240 or 120/208 Volt,
60 Hertz, 30 Amperes, AC single phase electrical
supply. For more detailed information, refer to
section on Electric Dryer Electrical
Requirements.
●GAS DRYER
Dryer needs a 120 Volt, 60 Hertz, 15 Amperes,
polarized 3-slot effectively grounded receptacle.
For more detailed information, refer to section on
Gas Dryer Electrical Requirements.
NOTE: 208 Volt heating element is available
(as optional equipment at extra cost).
D814I
1Wrench
2Screwdrivers
3Pliers
4Socket Wrench
5Te f l o n Ta p e
6Level
7Duct Tape
1 2 3
4
5
6
7
SWD442N

Installation
9
800937 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installing the Unit
Step 1: Position Unit Near Installation
Area

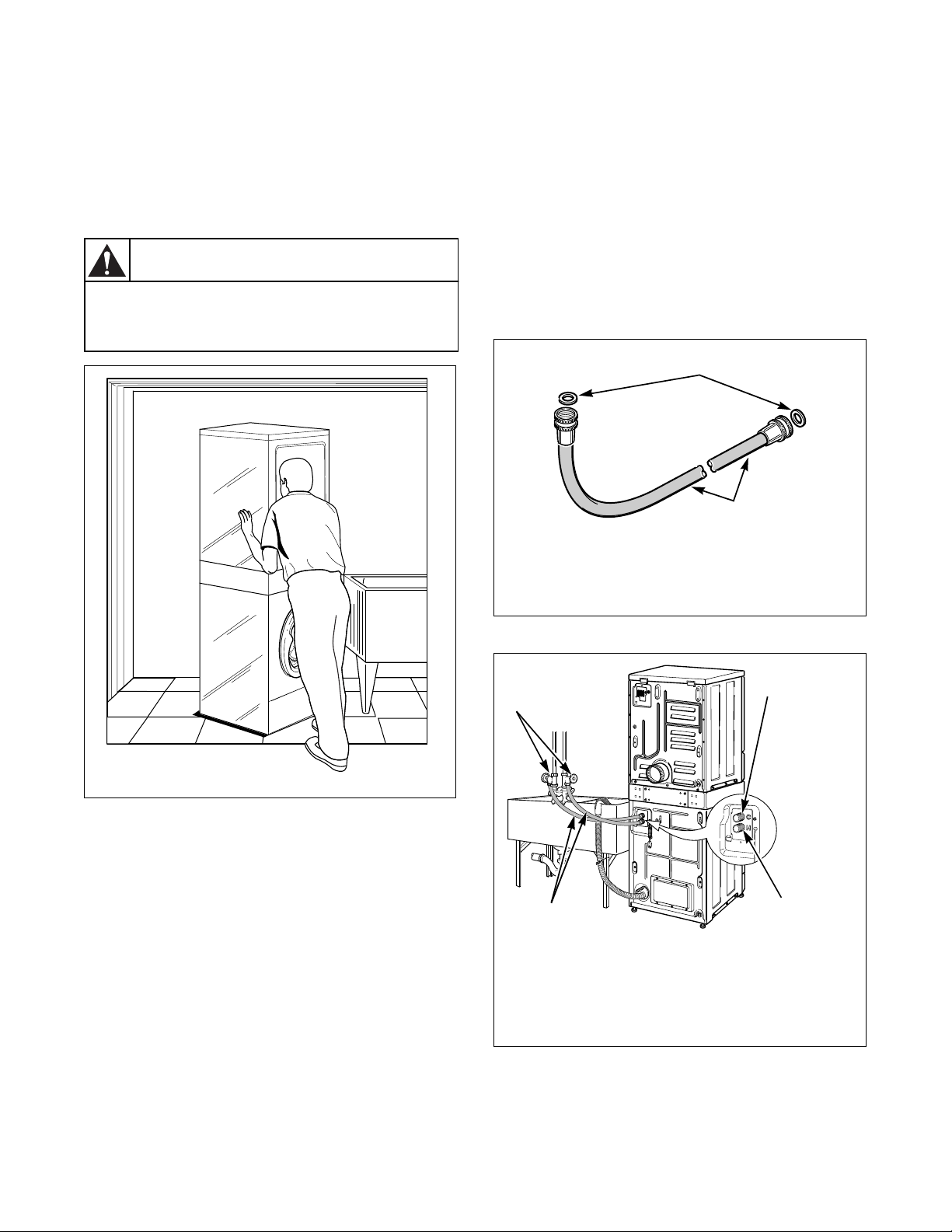

Move unit so that it is within 4 ft. of the desired area of
installation.
Figure 3
Step 2: Connect Water Inlet Hoses
NOTE: Refer to section on Water Supply
Requirements before connecting water inlet hoses.
Remove the four plain rubber washers from
accessories bag, and install them according to Figure 4.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
IMPORTANT: Thread hose couplings onto valve
connections finger-tight, then approximately
1/4 turn with pliers. DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
Figure 4
Figure 5
SWD443N
Washer and dryer are not designed to be
operated as separated, side-by-side units.
W187
CAUTION
SWD443N
H091I
1Rubber Washer (Plain)
2Inlet Hose
SWD548N
1Water Supply Faucets
2Cold Water Connection
3Hot Water Connection
4Water Inlet Hoses
H091I
1
2
SWD548N
12
3
4
WATER MIXING
VALVE

Installation
800937
10 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 3: Connect Drain Hose to Drain
Receptacle

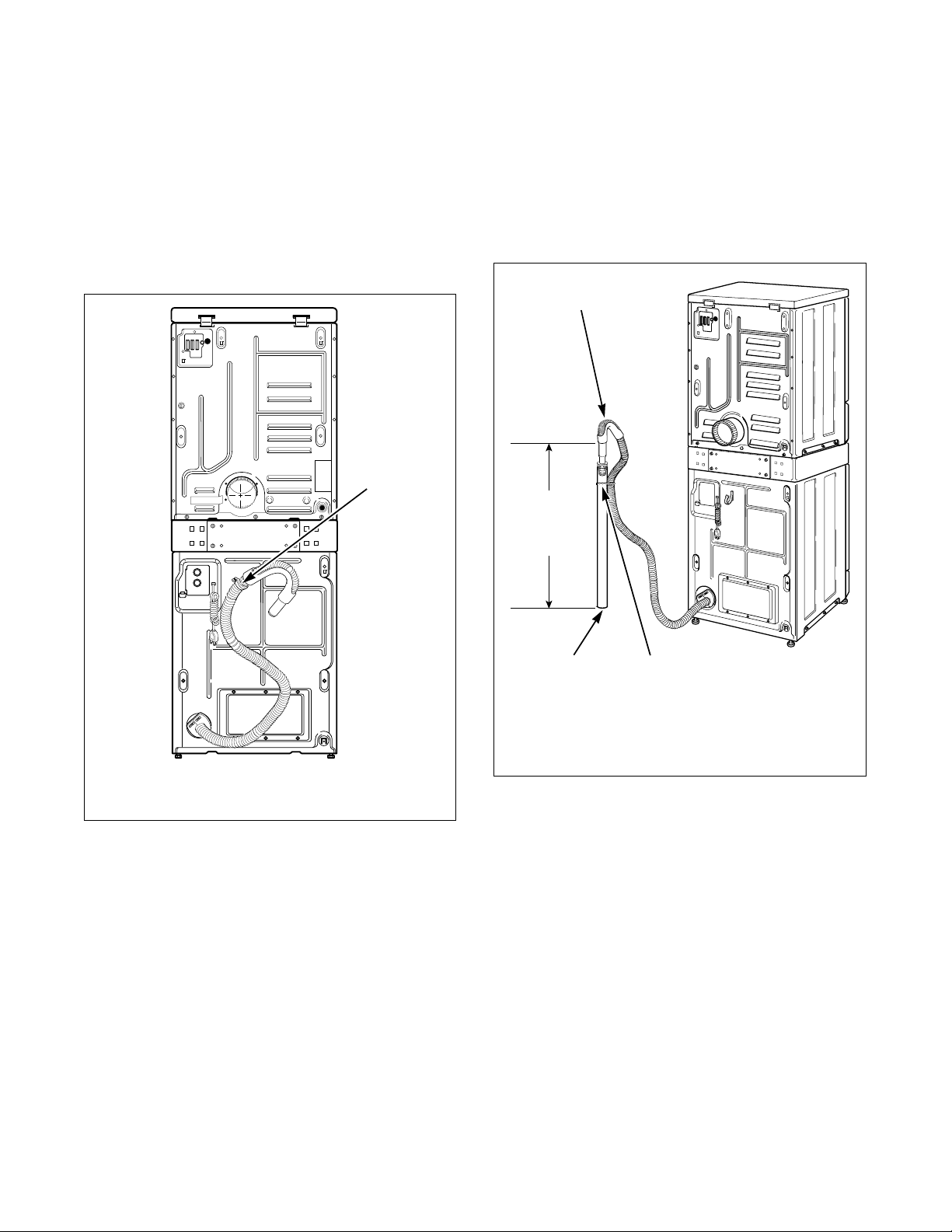

Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp or by removing the shipping tape.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/4 in. (3.2 cm) outside
diameter drain hose.
Figure 6
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. This will
prevent the drain hose from dislodging from drain
receptacle during use.
Figure 7
SWD549N
1Retainer Clamp
SWD549N
1
SWD550N
1Drain Hose
2Beaded Tie-Down Strap
3Standpipe 2" (5.08 cm) or 1-1/2" (4 cm)
SWD550N
1
2
3
24" TO 36"
(61 TO 91.44 cm)
RECOMMENDED
HEIGHT

Installation
11
800937 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Sink Installation

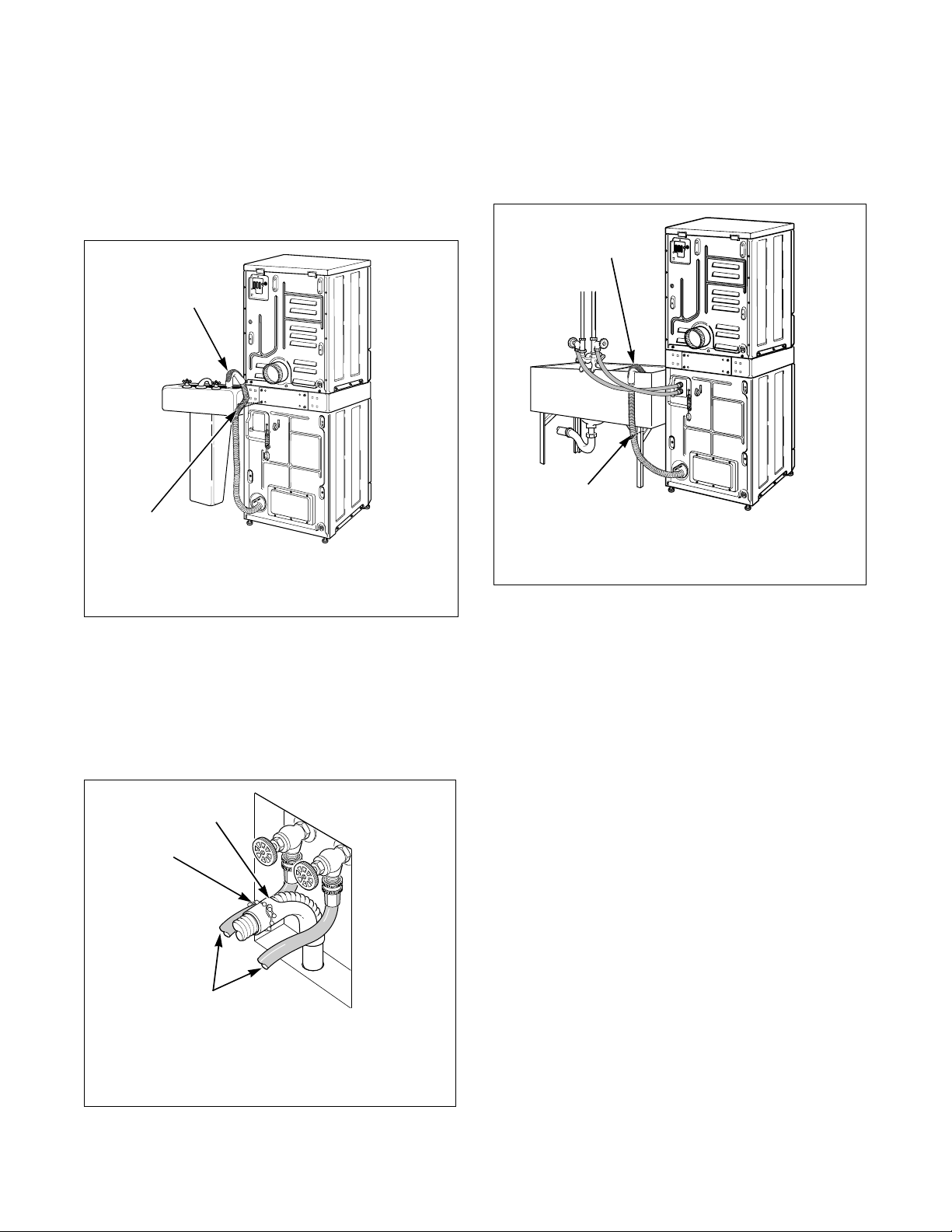

For this type of installation, use the beaded tie-down
strap (supplied in accessories bag), or use a large wire
tie (available from your local hardware store) and
secure the drain hose to the cabinet top hinge (refer to
Figure 8). This will prevent the drain hose from
dislodging during use.
Figure 8
In-the-Wall Installation
For installations of this type, the drain hose MUST
be secured to one of the inlet hoses using the beaded
tie-down strap from accessories bag.
NOTE: End of drain hose must not be below 24 in.
Figure 9
Laundry Tub Installation
For this type of installation, the drain hose MUST be
secured to the stationary tub to prevent hose from
dislodging during use. Use the beaded tie-down strap
(supplied in accessories bag) to secure hose.
Figure 10
SWD551N
1Drain Hose
2Tie-Down Strap (Wire tie or tape if necessary)
H023I
1Drain Hose
2Tie-Down Strap (Tape if necessary)
3Inlet Hoses
SWD551N
1
2
2
3
1
SWD552N
1Drain Hose
2Tie-Down Strap (Tape if necessary)
SWD552N
1
2

Installation
800937
12 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 4: (Gas Dryer Only) Connect Gas
Supply Pipe
For further assistance, refer to section on Gas
Requirements.
1. Make certain dryer is equipped for use with the
type of gas in laundry room. Dryer is equipped at
the factory for Natural Gas with a 3/8 in. N.P.T.
gas connection.
2. Remove the shipping cap from the gas
connection at the rear of the dryer. Make sure you
do not damage the pipe threads when removing
the cap.
3. Connect to gas supply pipe using a new flexible
stainless steel connector.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal and external)
for gas leaks with a non-corrosive leak detection
fluid.
5. For L.P. (Liquefied Petroleum) gas connection,
refer to section on Gas Requirements.
Figure 11
D434I
1New Stainless Steel Flexible Connector –
Use only if allowed by local codes
(Use Design A.G.A. Certified Connector)
4Black Iron Pipe
Shorter than 20' (6.1 m) –Use 3/8" pipe
Longer than 20' (6.1 m) –Use 1/2" pipe
21/8" N.P.T. Pipe Plug
(For checking inlet gas pressure)
53/8" N.P.T. Gas Connection
3Equipment Shut-Off Valve –Installed within
6' (1.8 m) of dryer
1
5
4
2
3

Installation
13
800937 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 5: (Electric Dryer Only) Connect
Electrical Plug
For further assistance, refer to section on Electrical
Requirements.
IMPORTANT: Use only a new U.L. listed No. 10
(copper wire only) three conductor power supply
cord kit rated 240 Volts (minimum) 30 Amperes
and labeled as suitable for use in a clothes dryer.
Figure 12
NOTE: For more detailed information on
connecting three-wire or four-wire plugs, refer to
section on Electric Dryer Electrical Requirements.
NOTE: Four-wire cord is required for mobile
homes or where codes do not permit grounding
through neutral.
Figure 13
D275I
D006I
1Typical Receptacle
2Power Cord (Not supplied with dryer)
3Strain Relief Nut
4Strain Relief
12
3
4
THREE-WIRE
1
2
3
4
FOUR-WIRE
D679I
D680I
NOTE: Dryer is shown with access cover removed for
illustration purposes only. NEVER operate the dryer
with access cover removed.
1Ground Wire
2Ground to Neutral Wire
3Neutral Terminal
4“L2”Terminal
5Center Wire (Neutral)
6Strain Relief (Not supplied with dryer)
7Ground Screw
8“L1”Terminal
9Black Wire
10 White Wire (Neutral)
11 Red Wire
D679I
1
8
7
6
5
4
3
2
THREE-WIRE CONNECTION
D680I
1
8
7
6
10
4
3
1
11
9
FOUR-WIRE CONNECTION

Installation
800937
14 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 6: Connect Dryer Exhaust System
For further assistance, refer to sections on Location
Requirements and Dryer Exhaust Requirements.
●DO NOT use plastic or thin foil ducting.
●Locate unit so exhaust duct is as short as
possible.
●Be certain old ducts are cleaned before installing
your new dryer.
●Use 4 in. (10.2 cm) diameter rigid or flexible
metal duct.
●The male end of each section of duct must point
away from the dryer.
●Use as few elbows as possible.
●Use duct tape on all duct joints.
●Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
●Failure to exhaust dryer properly will void
warranty.
Figure 14
NOTE: Venting materials are not supplied with the
unit (obtain locally).
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W116
WARNING
SWD449N
SWD449N
DO DON’T

Installation
15
800937 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 7: Position and Level the Unit
Place unit in position on a clean, firm and reasonably
level floor. Installing the unit on any type of carpeting
is not recommended.
Loosen 7/8 in. locknut and adjust the front and rear
leveling legs until the unit is level from side to side and
front to back (using a level). Unit should not rock.
NOTE: Level must rest on raised portion of top
panel. Refer to Figure 15.
Tighten the locknuts securely against the unit base
using the 7/8 in. wrench. If the locknuts are not tight,
unit will move out of position during operation.
NOTE: DO NOT slide unit more than four feet
across floor if the leveling legs have been extended,
as legs and base could become damaged.
NOTE: Use of the dispenser drawer or washer or
dryer doors as handles in the transportation of the
unit may cause damage to the dispenser or doors.
Remove rubber feet from accessories bag and place on
all four leveling legs.
NOTE: For further assistance, refer to section on
Location Requirements.
Figure 15
Units elevated above floor level must be
anchored to that elevated surface, base or
platform. The material used to elevate the
unit should also be anchored to the floor to
ensure that the unit will not walk or that the
unit can not be physically pulled, tipped or
slid from its installed position. Failure to do
so may result in conditions which can
produce serious injury, death and/or
property damage.
W307
WARNING
SWD450N
1Leveling Leg
2Unit Base
3Level
4Locknut
5Rubber Foot
SWD450N
3
2
1
4
5

Installation
800937
16 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 8: Remove the Shock Sleeves and
Shipping Brace (Washer Only)
Remove front access panel by removing the two
screws.
Remove bolts and lockwashers from shipping brace
with 9/16 in. wrench and remove brace. Remove shock
sleeves by pulling on the yellow rope.
Remove label from front side of front access panel and
place on backside of front access panel.
NOTE: The shipping brace, bolts, lockwashers and
shock sleeves should be saved and MUST be
reinstalled whenever the unit is moved more than
four feet. Do not lift or transport unit from front or
without shipping materials installed.
Store the shipping materials in the bag provided in the
accessories bag. Save materials for use whenever the
unit is moved.
NOTE: The shipping materials MUST be reinstalled
whenever the unit is moved. Refer to Moving Unit
to a New Location section for proper instructions on
reinstalling the shipping materials.
Reinstall front access panel.
Figure 16
Step 9: Wipe Out Inside of Washer Drum
and Dryer Drum
Before using the washer and dryer for the first time,
use an all-purpose cleaner, or a detergent and water
solution, and a damp cloth to remove shipping dust
from inside the drums.
Figure 17
Figure 18
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
2
1
4
3
SWD451N
SWD452N
SWD451N

Installation
17
800937 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 10: Plug In the Washer and Dryer
Refer to sections on Electrical Requirements and
connect the washer and dryer to an electrical power
source.
Figure 19
Figure 20
Figure 21
Step 11: Check Installation
Refer to Installer Checklist on the back cover and
make sure that unit is installed correctly.
Moving Unit to a New Location
To prevent damage while moving the unit, the
shipping materials MUST BE reinstalled.
Reinstallation of Shipping Materials
Remove front access panel by removing two screws.
Place the shock sleeves on all four shock absorbers.
Refer to Figure 22.
Insert hooked end of shipping brace into the open slot
of the motor mount. Attach with bolts and lockwashers.
Refer to Figure 22.
Reinstall front access panel.
Figure 22
Refer to step 8 for proper procedures whenever the
unit is moved.
D254I
D275I
D254I
D254I
WASHER
Plug cord into separately fused 15 Amp circuit.
ELECTRIC DRYER
Connect to 30 Amp circuit.
D254I
GAS DRYER
Plug cord into separately fused 15 Amp circuit.
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
2
1
4
3

Installation
800937
18 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Heat Source Check
Electric Dryers
Close the loading door and start the dryer in a heat
setting (refer to the Operating Instructions supplied
with the dryer). After the dryer has operated for three
minutes, the exhaust air or exhaust pipe should be
warm.
Gas Dryers
To view the burner flame, remove the lower front
panel of the dryer.
Close the loading door, start the dryer in a heat setting
(refer to the Operating Instructions supplied with the
dryer); the dryer will start, the igniter will glow red
and the main burner will ignite.
IMPORTANT: If all air is not purged out of gas
line, gas igniter may go off before gas is ignited. If
this happens, after approximately two minutes
igniter will again attempt gas ignition.
After the dryer has operated for approximately five
minutes, observe burner flame through lower front
panel. Adjust the air shutter to obtain a soft, uniform
blue flame. (A lazy, yellow-tipped flame indicates lack
of air. A harsh, roaring, very blue flame indicates too
much air.) Adjust the air shutter as follows:
a. Loosen the air shutter lockscrew.
b. Turn the air shutter to the left to get a
luminous yellow-tipped flame, then turn it
back slowly to the right to obtain a steady, soft
blue flame.
c. After the air shutter is adjusted for proper
flame, tighten the air shutter lockscrew
securely.
d. Reinstall the lower front panel.
After the dryer has operated for approximately three
minutes, exhaust air or exhaust pipe should be warm.
Figure 23
For personal safety, lower front panel of
dryer must be in place during normal
operation.
W288
WARNING
D700I
1Shut-Off Valve Handle 5Open Position
Closed Position
2Air Shutter Lockscrew 6
3Air Shutter
41/8" (3.1 mm) Pipe Plug
(For checking manifold pressure)
2
3
4
1
6
5
