Installation Instructions
for Front Control Dryers
Dimensions........................................................................ 3
Before You Start................................................................ 4
Installing the Dryer............................................................ 5
Installer Checklist.............................................. Back Cover
Date Purchased __________________________
Model Number __________________________
Serial Number __________________________
Part No. 506126R5
September 2009
Inside........................................

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506126
2
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the
dryer user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above
must be posted in a prominent location near the dryer for customer use.
The following information applies to the state of Massachusetts, USA.
•This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.
•This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.
•A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.
•This appliance must not be installed in a bedroom or bathroom.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
W052
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING
• Installation of unit must be performed by a qualified installer.
• Install clothes dryer according to manufacturer’s instructions and local codes.
• DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil
type) duct is installed, it must be of a specific type identified by the appliance manufacturer
as suitable for use with clothes dryers. Refer to section on connecting exhaust system.
Flexible venting materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct clothes dryer airflow and increase the risk of fire.
W729R1
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
W053
WARNING
© Copyright 2009, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
506126

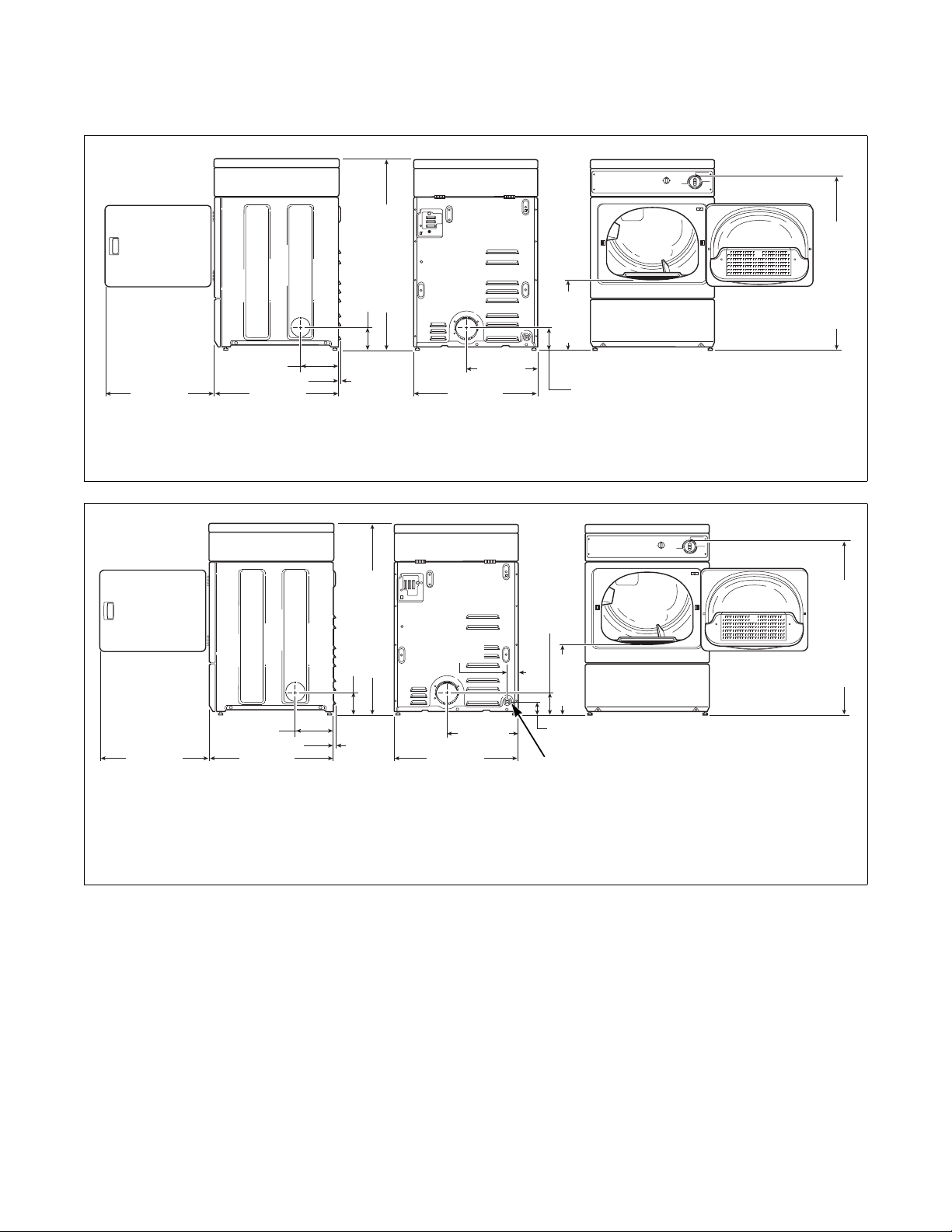

Dimensions
DRY2281N
* With leveling legs turned into base.
DRY2281N
23.5 in.
(59.7 cm)
28 in.
(71.1 cm)
0.4 in.
(1.1 cm)
*4.5 in. (11.4 cm)
*41.2 in. (104.6 cm)
*4.0 in.
(10.2 cm)
26.9 in.
(68.3 cm)
ELECTRIC DRYERS
8.0 in.
(20.3 cm) 15.4 in.
(39.1 cm)
*15.44 in.
(39.2 cm)
*37.44 in. (95.1 cm)
DRY2282N
*With leveling legs turned into base.
13/8 in. NPT Gas Connection
DRY2282N
23.5 in.
(59.7 cm)
28 in.
(71.1 cm)
0.4 in.
(1.1 cm)
*4.5 in. (11.4 cm)
8.0 in.
(20.3 cm)
*41.2 in. (104.6 cm)
*4.0 in. (10.2 cm)
15.4 in.
(39.1 cm)
26.9 in.
(68.3 cm) 1
GAS DRYERS
*15.44 in. (39.2 cm)
*37.44 in. (95.1 cm)
2.3 in.
(6 cm)
*2.8 in. (7 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506126
4
Before You Start
Supplies
For most installations, the basic supplies you will need
are:
Figure 1
D818I
1Wrench
2Screwdriver
3Level
4Duct Tape
5Teflon Tape (Gas Models)
123
5
4
Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W299
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
506126
Installing the Dryer
Step 1: Position and Level the Dryer
Install dryer before washer. This allows room for
attaching exhaust duct.
Select a location with a solid floor. Dryers installed in
residential garages must be elevated 18 inches (46 cm)
above the floor.
No other fuel burning appliance should be installed in
the same closet with the dryer.
The dryer must not be installed or stored in an area
where it will be exposed to water and/or weather.
Leveling legs can be adjusted from inside the dryer
with a 1/4 inch driver. All four legs must rest firmly on
the floor so the weight of the dryer is evenly
distributed. The dryer must not rock.
The dryers needs sufficient clearance and an adequate
air supply for proper operation and ventilation, and for
easier installation and servicing. (Minimum clearances
are shown below).

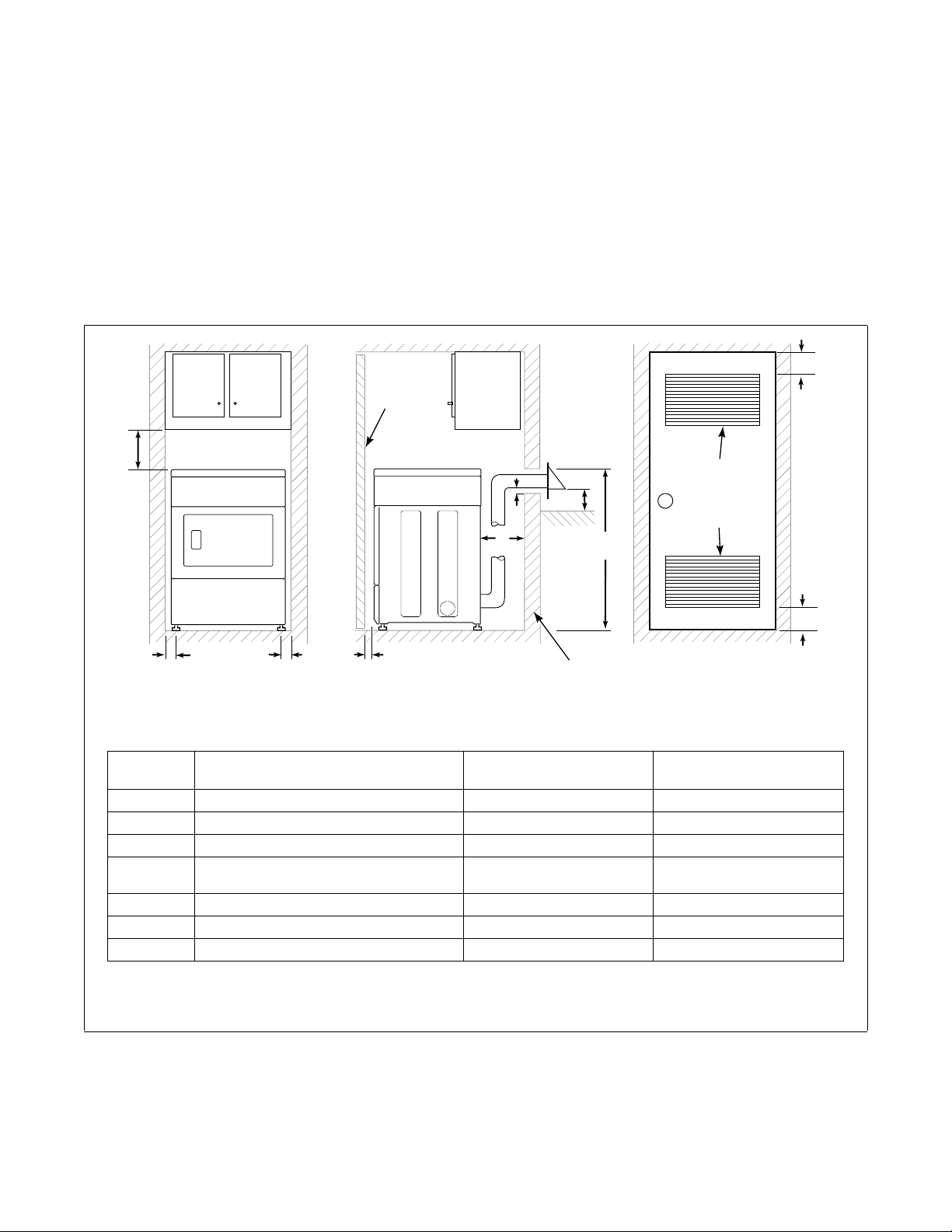

Figure 2
DRY1914N
**NOTE: For new installations, locate top of wall vent 42 inches (106.7 cm) above floor to make venting
easier to connect.
CLOSET
DOOR
DRY1914N
AAC
A
D
E
B
CENTERED
AIR
OPENINGS (G)
(2 Openings
Minimum)
F
F
OUTER
WALL OF
ENCLOSURE
**42"
FRONT VIEW
(w/o Closet Door)
SIDE VIEW FRONT VIEW
(Closet Door)
**42 in.
(106.7 cm)
Area Description Free Standing/Alcove
Installation Closet Installation
ADryer sides and rear clearance 0 in. (0 cm) 0 in. (0 cm)
BDryer top clearance 12 in. (30.5 cm) 12 in. (30.5 cm)
CDryer front clearance Not Applicable 2 in. (5.1 cm)
DExhaust duct clearance to combustible
material
2 in. (5.1 cm) 2 in. (5.1 cm)
EWeather hood to ground clearance 12 in. (30.5 cm) 12 in. (30.5 cm)
FDistance from floor or ceiling to hole edge Not Applicable 3 in. (7.6 cm)
G* Area of centered air openings in closet door Not Applicable 40 sq. in./open (260 sq. cm)
*Louvered door with equivalent air openings is acceptable. (Minimum clearances are shown.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506126
6
Place the dryer in position, and adjust the legs until the
dryer is level from side to side and front to back. The
dryer must not rock.

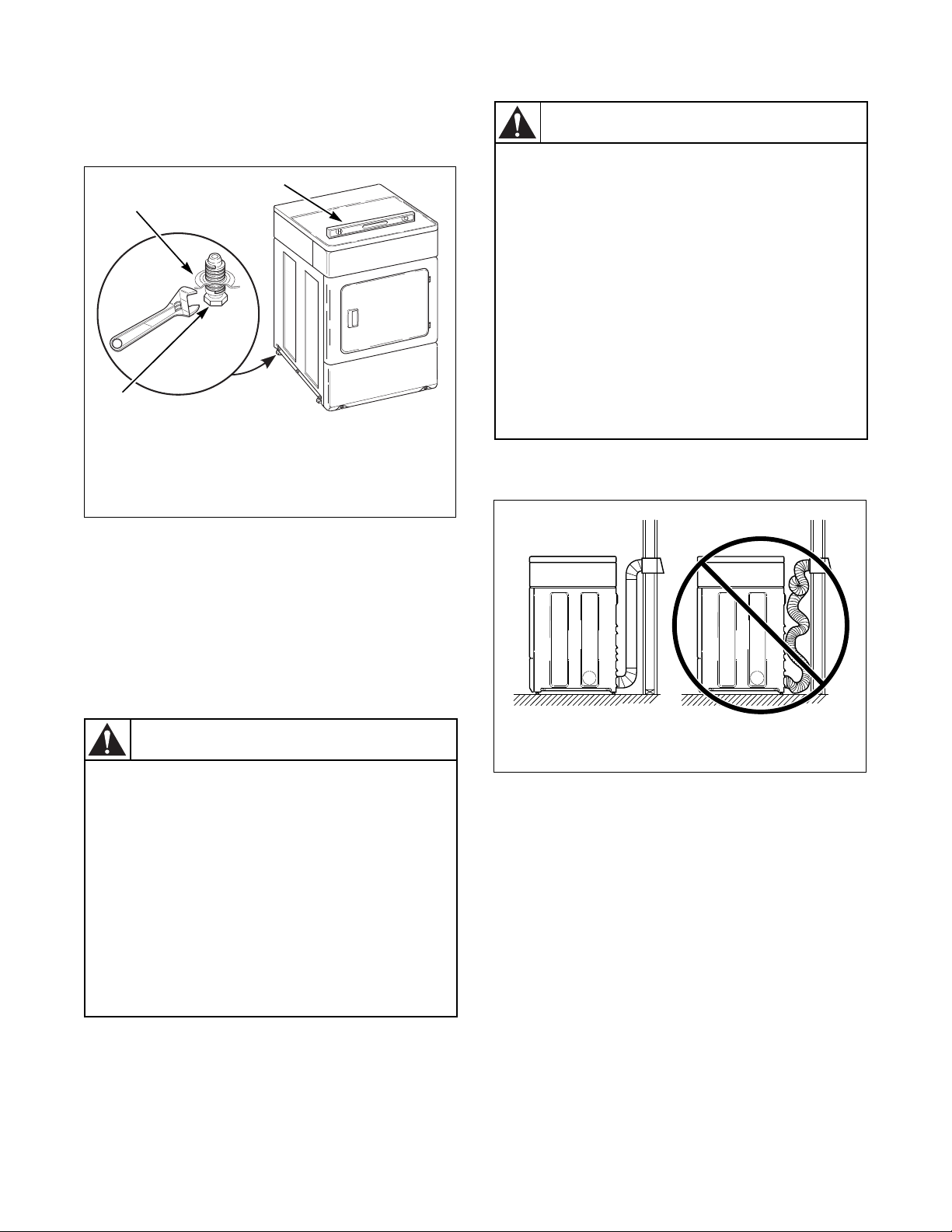

Figure 3
IMPORTANT: In mobile home installations, gas
dryers MUST be permanently attached to the floor
at the time of installation. Order No. 526P3 Dryer
Installation Kit (available at extra cost) for a
manufactured (mobile) home installation. Follow
the instructions supplied with the kit.
Step 2: Connect Dryer Exhaust System
•DO NOT use plastic or thin foil ducting. Rigid
metal duct is recommended.
•Locate dryer so exhaust duct is as short as
possible.
•Be certain old ducts are cleaned before installing
your new dryer.
•Use 4 inch (102 mm) diameter rigid or flexible
metal duct.
•The male end of each section of duct must point
away from the dryer.
•Use as few elbows as possible.
DRY2345N
1Dryer Base
2Level
3Leveling Leg
1
2
3
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W116
To reduce the risk of fire and the
accumulation of combustion gases, DO NOT
exhaust dryer air into a window well, gas
vent, chimney or enclosed, unventilated
area, such as an attic, wall, ceiling, crawl
space under a building or concealed space
of a building.
W045
WARNING
DRY688N
Figure 4
This gas appliance contains or produces a
chemical or chemicals which can cause
death or serious illness and which are
known to the State of California to cause
cancer, birth defects, or other reproductive
harm. To reduce the risk from substances in
the fuel or from fuel combustion, make sure
this appliance is installed, operated, and
maintained according to the instructions in
this manual.
W115
To reduce the risk of fire, DO NOT use
plastic or thin foil ducting to exhaust the
dryer.
W354
WARNING
DRY688N
DON’TDO

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7
506126
•Use duct tape or pop-rivets on all duct joints. DO
NOT use sheet metal screws or fasteners on
exhaust pipe joints which extend into the duct
and catch lint.
•Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
•When exhausting the dryer to the outdoors, the
dryer can be installed with “0” inch clearance at
sides and rear. Clearance of the duct from
combustible construction must be a minimum of
2 inches (5.08 cm).
•For proper operation, it is important that the
dryer has an ample amount of outside make-up
air. The free area of any opening for the
introduction of outside air must be at least 25 in.2
(163 cm2).
•In mobile home installations, dryer exhaust duct
must be secured to mobile home structure.
•Dryer exhaust duct MUST NOT terminate under
mobile home.
•Exhaust duct must not be connected to any other
duct, vent, or chimney.
•Dryer exhausts 220 cfm (measured at back of
dryer).
•Never install flexible duct in concealed spaces,
such as a wall or ceiling.
•Energy efficient homes with low air filtration
rates should be equipped with an air exchanger
that can accomodate on demand make-up air
needs in the home. These devices can be obtained
through your building contractor or building
material suppliers.
•Static pressure in exhaust duct should not be
greater than .6 inches water column (1.5 cm),
measured with manometer placed on exhaust
duct two feet (61 cm) from dryer (check with
dryer running and no load).
•Exhausting dryer in hard-to-reach locations can
be done by installing 521P3 Flexible Metal Vent
Kit (available as optional equipment at extra
cost).
•Failure to exhaust dryer properly will void
warranty.
NOTE: Venting materials are not supplied with the
dryer (obtain locally).

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506126
8
Exhaust Direction
The dryer can be exhausted to the outdoors through the
back, left, right or bottom of the dryer. EXCEPTION:
Gas dryers cannot be vented out the left side
because of the burner housing.
Dryer is shipped from factory ready for rear exhaust.
Exhausting the dryer through sides or bottom can be
accomplished by installing a Directional Exhaust Kit,
528P3, available as optional equipment at extra cost.
Exhaust System
For best drying results, recommended maximum
length of exhaust system is shown in Table 1.
To prevent backdraft when dryer is not in operation,
outer end of exhaust pipe must have a weather hood
with hinged dampers (obtain locally).
NOTE: Weather hood should be installed at least
12 inches (30.5 cm) above the ground. Larger
clearances may be necessary for installations where
heavy snowfall can occur.

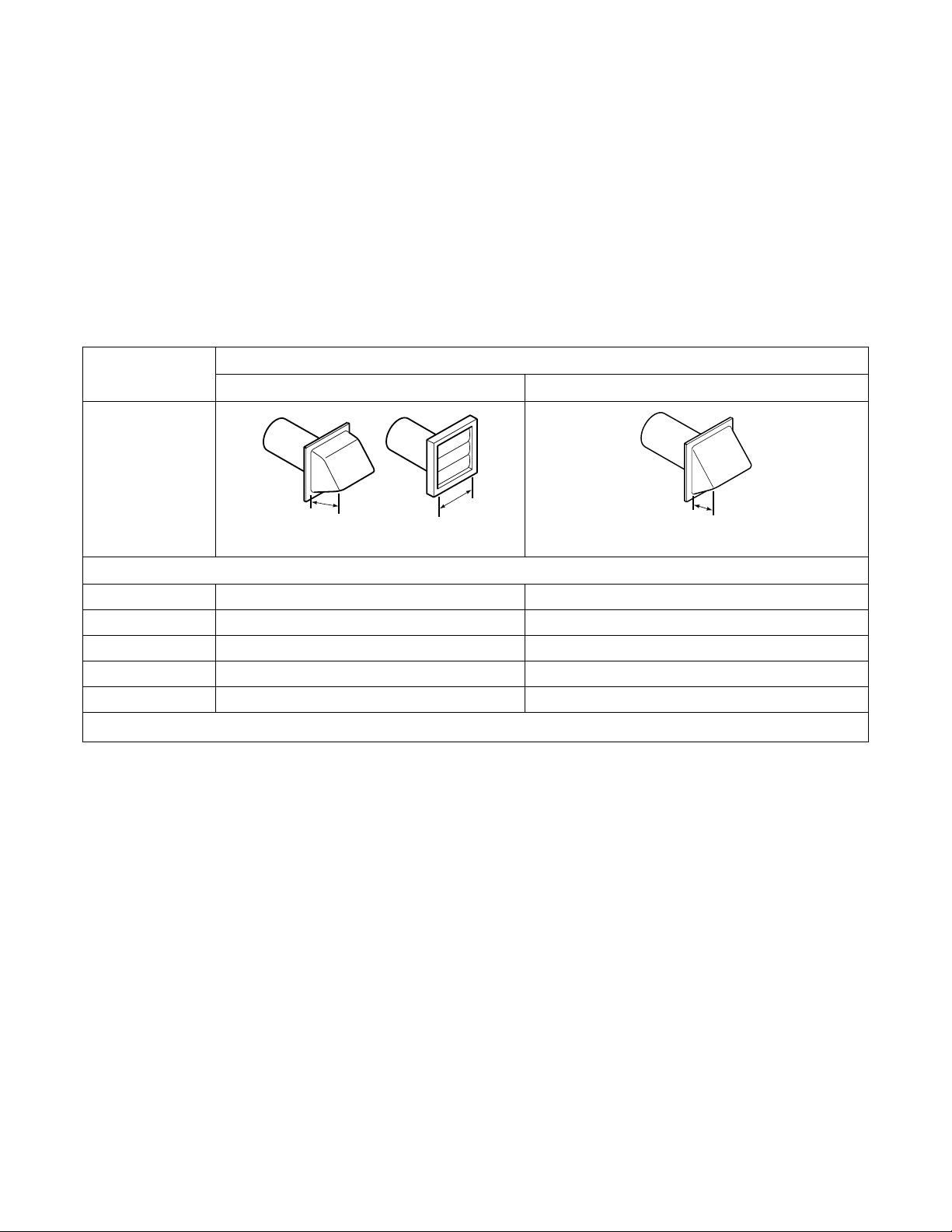

Table 1
NOTE: The maximum length of a 4 in. (10.2 cm)
diameter flexible metal duct must not exceed 7.87
ft. (2.4 m), as required to meet UL2158, clause
7.3.2A.
Number of
90° Elbows
Weather Hood Type
Recommended Use Only for Short Run installations
D673I D802I
Maximum length of 4 in. (10.2 cm) diameter rigid metal duct.
0 65 feet (19.8 m) 55 feet (16.8 m)
1 55 feet (16.8 m) 47 feet (14.3 m)
2 47 feet (14.3 m) 41 feet (12.5 m)
3 36 feet (11.0 m) 30 feet (9.1 m)
4 28 feet (8.5 m) 22 feet (6.7 m)
NOTE: Deduct 6 feet (1.8 m) for each additional elbow.
4 in.
(10.2 cm)
4 in.
(10.2 cm)
2-1/2 in.
(6.35 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9
506126
Step 3: (Gas Dryer Only) Connect Gas
Supply Pipe
1. Make certain your dryer is equipped for use with
the type of gas in your laundry room. Dryer is
equipped at the factory for Natural Gas with a
3/8 inch NPT gas connection.
NOTE: The gas service to a gas dryer must
conform with the local codes and ordinances, or in
the absence of local codes and ordinances, with the
latest edition of the National Fuel Gas Code ANSI
Z223.1/NFPA 54 or the CAN/CSA-B149.1 Natural
Gas and Propane Installation Code.
Natural Gas, 1000 Btu/ft3(37.3 MJ/m3) service must
be supplied at minimum 5.0 inch water column
pressure to maximum 10.5 inch water column
pressure.
For proper operation at altitudes above 2500 feet
(760 m) the natural gas valve spud orifice size must be
reduced to ensure complete combustion. Refer to
Table 2.
2. Remove the shipping cap from the gas
connection at the rear of the dryer. Make sure you
do not damage the pipe threads when removing
the cap.
3. Connect to gas supply pipe using a new flexible
stainless steel connector.
NOTE: When connecting to a gas line, an
equipment shut-off valve must be installed within
6 feet (1.8 m) of the dryer. An 1/8 in. NPT pipe plug
must be installed as shown for checking inlet
pressure. Refer to Figure 5.
.
To reduce the risk of gas leaks, fire or
explosion:
• The dryer must be connected to the type
of gas as shown on nameplate located in
the door recess.
• Use a new flexible stainless steel
connector.
• Use pipe joint compound insoluble in L.P.
(Liquefied Petroleum) Gas, or Teflon tape,
on all pipe threads.
• Purge air and sediment from gas supply
line before connecting it to the dryer.
Before tightening the connection, purge
remaining air from gas line to dryer until
odor of gas is detected. This step is
required to prevent gas valve
contamination.
• Do not use an open flame to check for gas
leaks. Use a non-corrosive leak detection
fluid.
• Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W316
WARNING
Natural Gas Altitude Adjustments
Altitude Orifice Size Part No.
feet m No. inches mm
3000 915 43 0.0890 2.26 503778
6000 1830 44 0.0860 2.18 58719
8000 2440 45 0.0820 2.08 503779
9000 2740 46 0.0810 2.06 503780
10,000 3050 47 0.0785 1.99 503781
Table 2
D233I
1New stainless steel flexible connector –
(Use design CSA certified connector)
Use only if allowed by local codes
21/8 in. NPT Pipe Plug
3Equipment Shut-Off Valve
4Black Iron Pipe
Shorter than 20 ft. (6.1 m) –
Use 3/8 in. (9.5 mm) pipe
Longer than 20 ft. (6.1 m) –
Use 1/2 in. (12.7 mm) pipe
53/8 in. NPT Gas Connection
Figure 5
D
1
3
2
4
5

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506126
10
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal & external)
for gas leaks with a non-corrosive leak detection
fluid.
NOTE: The dryer and its appliance main gas valve
must be disconnected from the gas supply piping
system during any pressure testing of that system
at test pressures in excess of 1/2 psi (3.45 kPa).
Refer to Step 9 (Check Heat Source).
L.P. (Liquefied Petroleum) Gas, 2500 Btu/ft3
(93.1 MJ/m3) service must be supplied at 10 ± 1.5 inch
water column pressure.
For proper operation at altitudes above 2500 feet (760 m)
the L.P. gas valve spud orifice size must be reduced to
ensure complete combustion. Refer to Table 3.
NOTE: DO NOT connect the dryer to L.P. Gas
Service without converting the gas valve. Install
L.P. Gas Conversion Kit 649P3, available at extra
cost.
Step 4: (Electric Dryer Only) Connect
Electrical Plug
Dryer requires 120/240 Volt or 120/208 Volt, 60 Hertz,
3 wire electrical suppy. Refer to serial plate for
specific electrical requirements.
IMPORTANT: Use only a new U.L. listed No. 10
(copper wire only) three or four conductor power
supply cord kit rated 240 Volts (minimum) 30
Amperes and labeled as suitable for use in a clothes
dryer.
NOTE: The wiring diagram is located behind the
control panel, inside the control cabinet.
Grounding Information
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The cord-kit must be
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided with the cord-kit - if
it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
L.P. Altitude Adjustments
Altitude Orifice Size Part No.
feet m No. inches mm
3000 915 55 0.0520 1.32 58755
8000 2440 56 0.0465 1.18 503786
Table 3
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses installed by a qualified electrician
to make sure adequate electrical power is
available to the dryer.
W521
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the dryer is properly
grounded.
W038
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 11
506126
The dryer has its own terminal block that must be
connected to a separate branch, 60 Hertz, single phase
circuit, AC (alternating current) circuit, fused at 30
Amperes (the circuit must be fused on both sides of
the line). Electrical service for the dryer should be
of maximum rated voltage (208 or 240 Volt,
depending on heating element) listed on the
nameplate. Do not connect dryer to 110, 115, or 120
Vol t ci rc uit.
Heating elements are available for field installation in
dryers which are to be connected to electrical service
of different voltage than that listed on nameplate, such
as 208 Volt.
NOTE: Branch circuit wire size requirements to
laundry room outlet are shown in Table 4.
The power cord connection between wall receptacle
and dryer terminal block IS NOT supplied with
dryer. Type of power cord and gauge of wire must
conform to local codes.
Wire Length Wire
Less than
4.5 m (15 ft.)
Listed No. 10 AWG
Copper wire only
Longer than
4.5 m (15 ft.)
Listed No. 8 AWG
Copper wire only
Table 4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506126
12
Connecting Power Cord with Three-Wire
Plug
NOTE: Four-wire cord is required for new branch-
circuit installations, mobile homes or where codes
do not permit grounding through neutral.
Figure 6
1. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
Figure 7
3. Use a strain relief and insert end of power cord
through power supply hole.
Figure 8
D816I

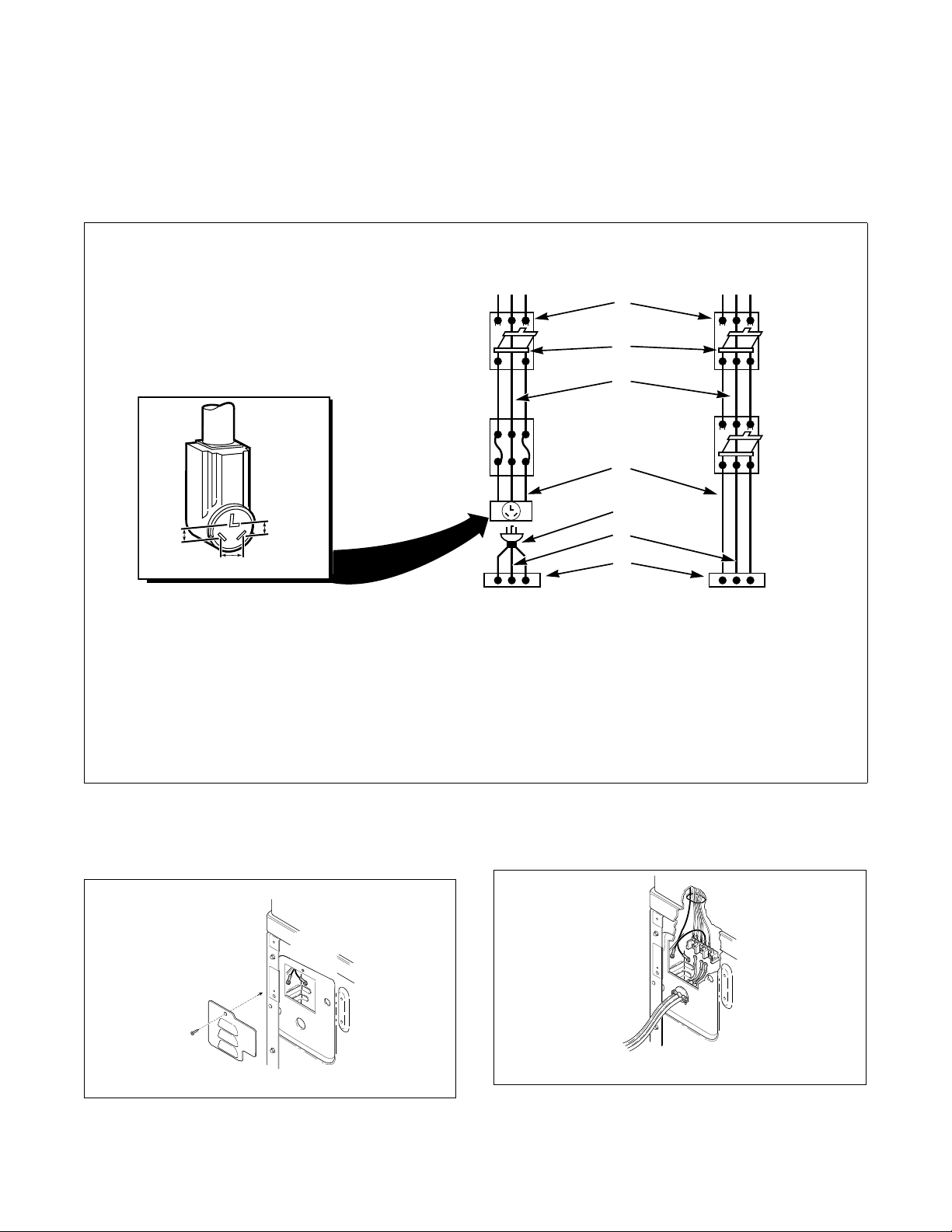

13 Wire Grounded Neutral 120/240 Volt, 60 Hertz 4Metallic or Non-Metallic Sheathed Cable
(Copper Wire Only)
AC 1 Phase Service Entrance Switch Box
(Refer to NOTE above) 5Power Cord (Not supplied with dryer)
230 Ampere Fuses or Circuit Breaker 6Neutral
3Neutral Wire 7Terminal Block in Dryer
NOTE: The power cord is NOT supplied with the
electric dryer. Type of power cord and gauge of wire
must conform to local codes and instructions.
The method of wiring the dryer is optional and subject
to local code requirements.
NOTE: Connect the dryer to the power supply with the
MAXIMUM RATED VOLTAGE listed on the nameplate.
1
3
5
6
7
4
2
POWER CORD CONNECTION DIRECT CONNECTION
L1 L2 L1 L2
INTERMEDIATE
SHUT-OFF BOX
(may or may not
be fused)
POWER SUPPLYPOWER SUPPLY
INTERMEDIATE
FUSE BOX (may
be omitted if
service entrance
box is fused)
WALL
RECEPTACLE
A typical
30-Amp
Three-Wire
Receptacle
NEMA Type
10-30R
120 ± 12
V.A.C.
120 ± 12
V.A.C.
240 ± 12
V.A.C.
NOTE: Use COPPER WIRE only.
Shorter than 15 ft. (4.5 m) – use 10 AWG
Longer than 15 ft. (4.5 m) – use 8 AWG
D695I
D696I

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 13
506126
4. Use the three screws from the accessories bag to
attach the power cord wires to the terminal block.
Refer to Figure 9.
Figure 9
5. Tighten all screws firmly.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
6. Secure the strain relief to the power cord, or
wires, where they enter the dryer cabinet.
7. Check the continuity of the ground connection
before plugging the cord into an outlet. Use an
acceptable indicating device connected to the
center grounding pin of the plug and the green
screw on the back of the cabinet.
8. Reinstall access cover and screw.
Connecting Power Cord with Four-Wire Plug
NOTE: Four-wire cord is required for new branch-
circuit installations, mobile homes or where codes
do not permit grounding through neutral.
Figure 10
1. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
Figure 11
D286I

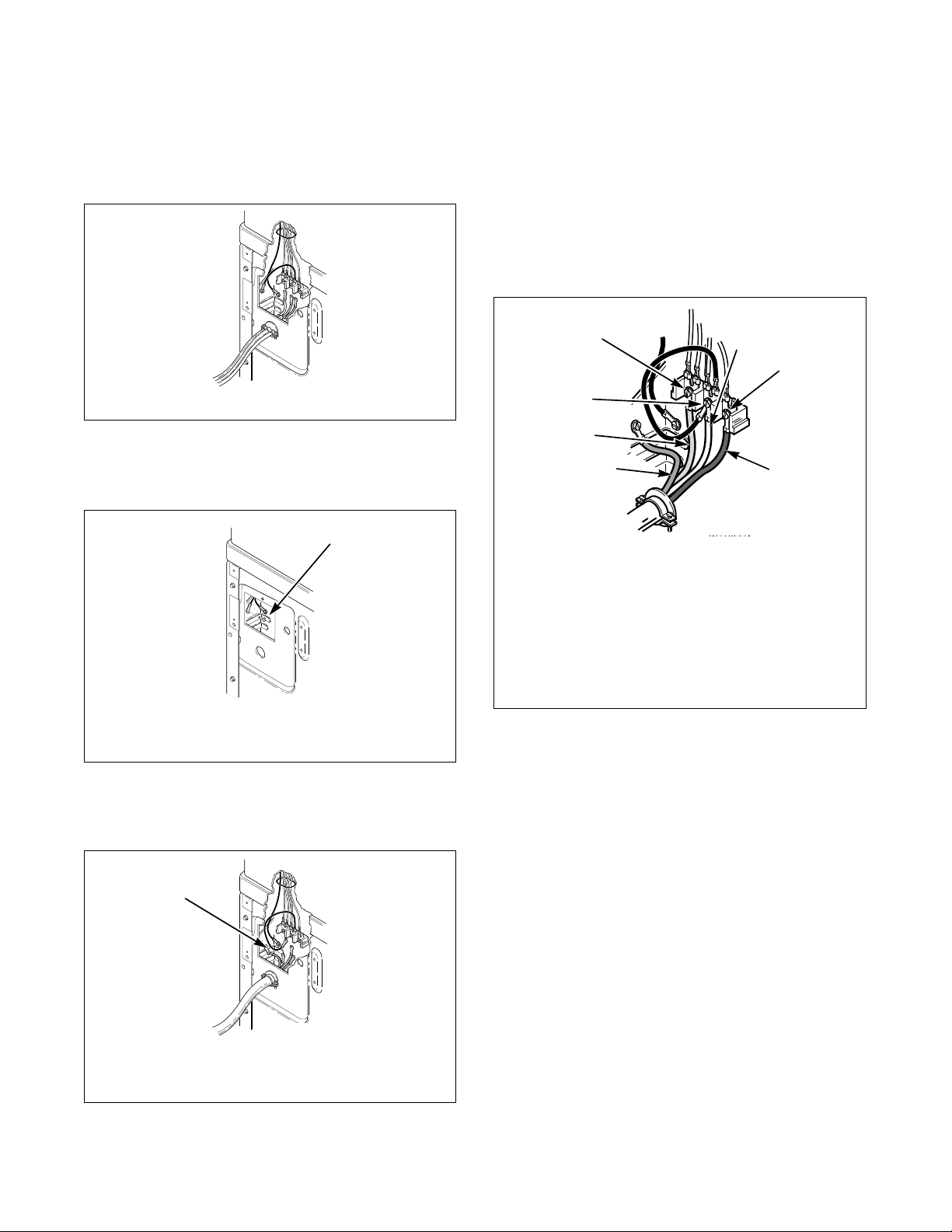

1“L1” Terminal
2Neutral Terminal
3“L2” Terminal
12
3
DRY815I
1Typical Four-Wire Receptacle
2Power Cord – Not Supplied with Dryer
3Strain Relief Nut
4Strain Relief
D695I
1
2
3
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506126
14
3. Remove the three screws holding the three wires
to the terminal block terminals. Save these
screws. Loosen the strain relief screw and pull
the cord or wires out through the rear of the
dryer.
4. Remove ground screw and save for use in Step 6.
Remove wire and use in Step 7.
Figure 13
5. Use a strain relief and insert end of power cord
through power supply hole.
Figure 14
6. Attach power cord ground (green) wire to rear
bulkhead using ground screw removed in Step 4.
7. Use the three screws from the accessories bag to
attach the remaining power cord wires to the
terminal block as follows:
a. Red wire to “L1” terminal.
b. Black wire to “L2” terminal.
c. White wire to Neutral terminal.
NOTE: When installing the white wire, loop the
free eyelet end of the ground wire (removed in
Step 4) and attach along with the white wire to the
neutral (center) terminal on the terminal block.
8. Tighten all screws firmly.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
9. Check the continuity of the ground connection
before plugging the cord into an outlet. Use an
acceptable indicating device connected to the
center grounding pin of the plug and the green
screw on the back of the cabinet.
10. Reinstall access cover and screw.
D696I
Figure 12
D697I
1Ground Screw
D698I
1Power Cord Ground Wire
D697I
1
D698I
1
DRY522N
1“L1” Terminal
2White
3“L2” Terminal
4Black
5Green
6Red
7Neutral Terminal
Figure 15
1
7
2
3
4
5
6

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 15
506126
Step 5: Reverse Door, if Desired
The door on this dryer is completely reversible. To
reverse door proceed as follows:
1. Remove four hinge attaching screws.
2. Remove all nine screws.
3. Pull bottom of door liner out, then pull down,
removing door liner from door panel.
4. Rotate door panel 180 degrees as shown.
5. Remove door strike from door liner and reinstall
on opposite side.
6. Insert liner under flange on bottom of door, then
push top of door liner into place.
7. Reinstall nine screws removed in Step 2.
8. Using screwdriver, remove two door plugs, and
reinstall on opposite side of door opening.
DRY2051N
D272P
DRY1916N
%
$
DRY1916N
D273P
DRY1917N
DRY1917N
DRY1918N
%
$
DRY1918N
DRY1919N
DRY2052N
DRY2052N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506126
16
9. Reinstall four hinge attaching screws, removed in
Step 1.

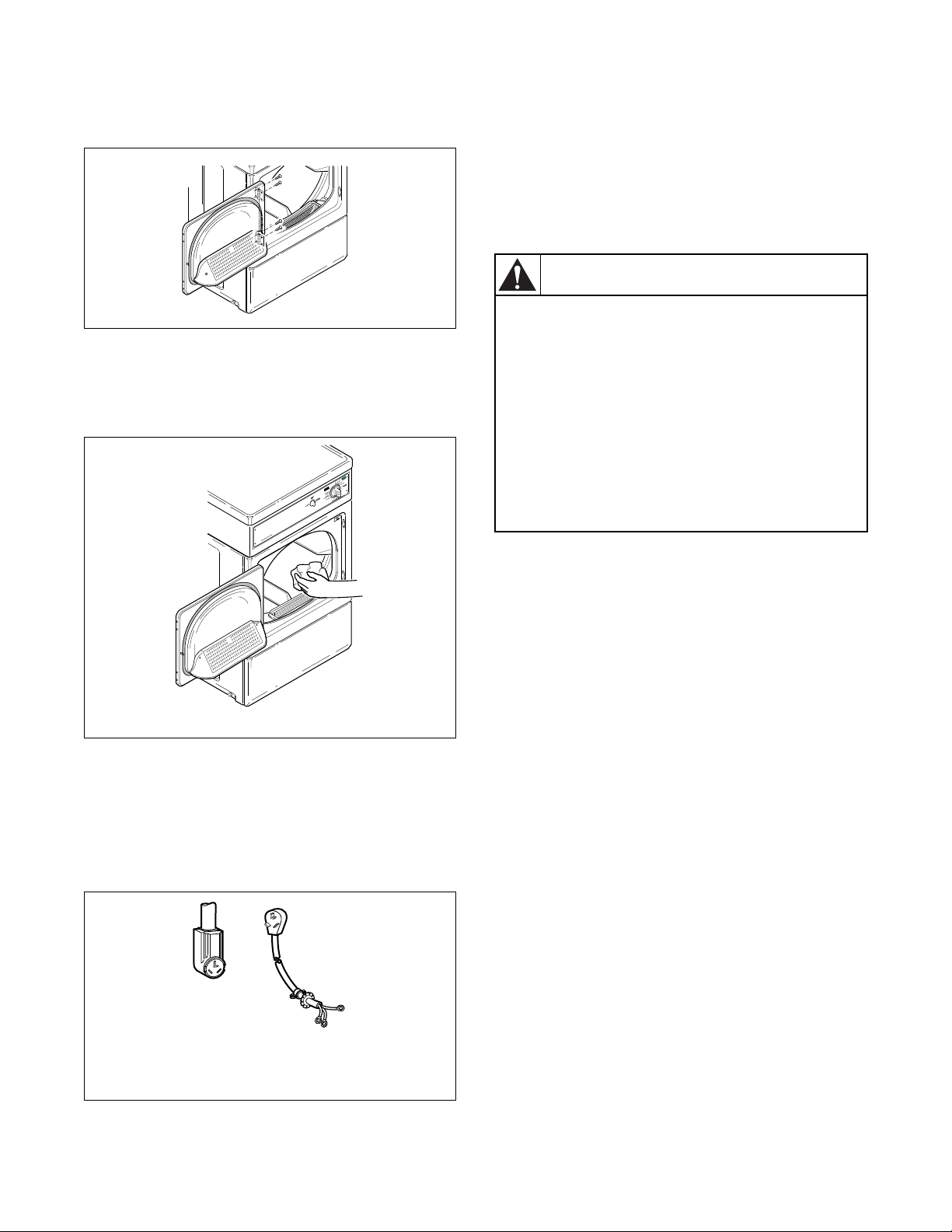

Step 6: Wipe Out Inside of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
Figure 16
Step 7: Plug In the Dryer
Electric Dryer
Connect the dryer to an electrical power source. Refer
to Step 4 for information on connecting power cord.
Figure 17
Gas Dryer
Dryer requires 120 Volt, 60 Hertz electrical supply and
comes equipped with a 3-prong grounding plug. Refer
to serial plate for specific electrical requirements.
NOTE: The wiring diagram is located behind the
control panel, inside the control cabinet.
When plugging in the dryer:
•Do not overload circuits.
•Do not use an adapter.
•Do not use an extension cord.
•Do not operate both a washer and gas dryer on
the same circuit. Use separetely fused 15 amp
circuits.
The dryer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current) circuit
protected by a 15 Ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 120 Volts AC
(alternating current) 15 Amps. Refer to Figure 18 to
determine correct polarity of the wall receptacle.
DRY689N
D275I
D623I
DRY689N
Connect to 30 Amp circuit.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses installed by a qualified electrician
to make sure adequate electrical power is
available to the dryer.
W521
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 17
506126
Grounding Information
The dryer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The dryer is equipped
with a cord having an equipment-grounding conductor
and a three-prong grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided with the dryer – if it
will not fit the outlet, have a proper outlet installed by
a qualified electrician.
If the laundry room’s electrical supply does not meet
the above specifications and/or if you are not sure the
laundry room has an effective ground, have a qualified
electrician or your local electrical utility company
check it and correct any problems.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that illustrated, the
qualified electrician should correct the problem.
Do not operate other appliances on the same circuit
when this appliance is operating.
Step 8: Recheck Steps 1-7
Refer to Installer Checklist on the back cover of this
manual and make sure that dryer is installed correctly.
Step 9: Check Heat Source
Electric Dryers
Close the loading door and start the dryer in a heat
setting (refer to the User’s Guide supplied with the
dryer). After the dryer has operated for three minutes,
the exhaust air or exhaust pipe should be warm.
This dryer is equipped with a three-prong
(grounding) plug for your protection against
shock hazard and should be plugged
directly into a properly grounded three-
prong receptacle. Do not cut or remove the
grounding prong from this plug.
W036
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the dryer is properly
grounded.
W038
WARNING
DRY2022N
1“L1”
2Ground
3Neutral
4Neutral Side
5Round Grounding Prong
Figure 18
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the dryer to the electrical
power source.
W037
WARNING
D254I
DRY2
0 V.A.C
120±12
V.A. C
Plug cord into separately fused 15 Amp circuit.
3
2
1
4
5
120±12
V.A.C

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 506126
18
Gas Dryers
To view the burner flame, remove the lower front
panel of the dryer.
Close the loading door, start the dryer in a heat setting
(refer to the User’s Guide supplied with the dryer); the
dryer will start, the igniter will glow red and the main
burner will ignite.
IMPORTANT: If all air is not purged out of gas
line, gas igniter may go off before gas is ignited. If
this happens, after approximately two minutes
igniter will again attempt gas ignition.
After the dryer has operated for approximately five
minutes, observe burner flame through lower front
panel. Adjust the air shutter to obtain a soft, uniform
blue flame. (A lazy, yellow-tipped flame indicates lack
of air. A harsh, roaring, very blue flame indicates too
much air.) Adjust the air shutter as follows:
1. Loosen the air shutter lockscrew.
2. Turn the air shutter to the left to get a luminous
yellow-tipped flame, then turn it back slowly to
the right to obtain a steady, soft blue flame.
3. After the air shutter is adjusted for proper flame,
tighten the air shutter lockscrew securely.
4. Reinstall the lower front panel.
After the dryer has operated for approximately three
minutes, exhaust air or exhaust pipe should be warm.
For personal safety, lower front panel must
be in place during normal operation.
W046
WARNING

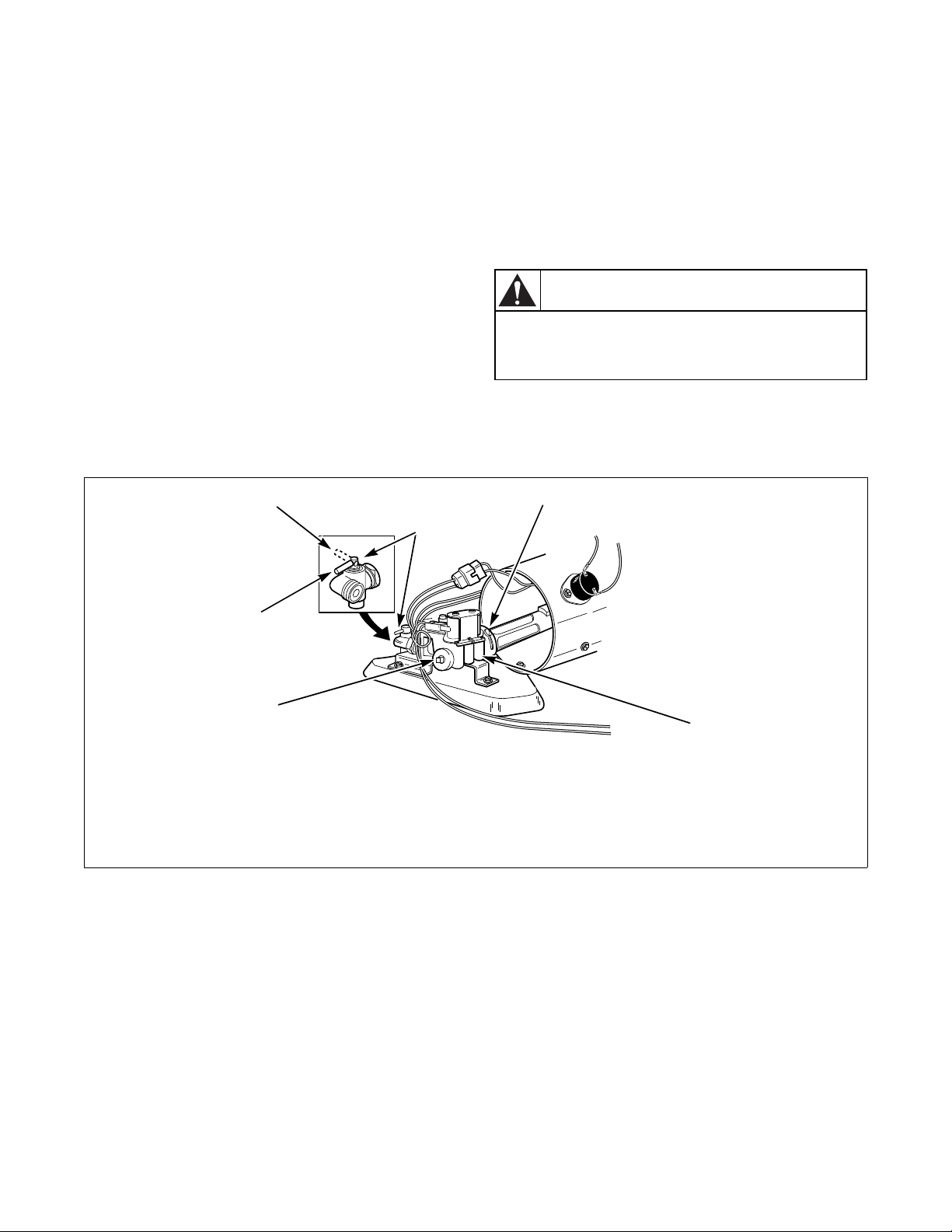

D700I
1Shut-Off Valve Handle 41/8 in. (3.1 mm) Pipe Plug
(For checking manifold pressure)
2Air Shutter Lockscrew
3Air Shutter 5Open Position
6Closed Position
2
5
3
4
6
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

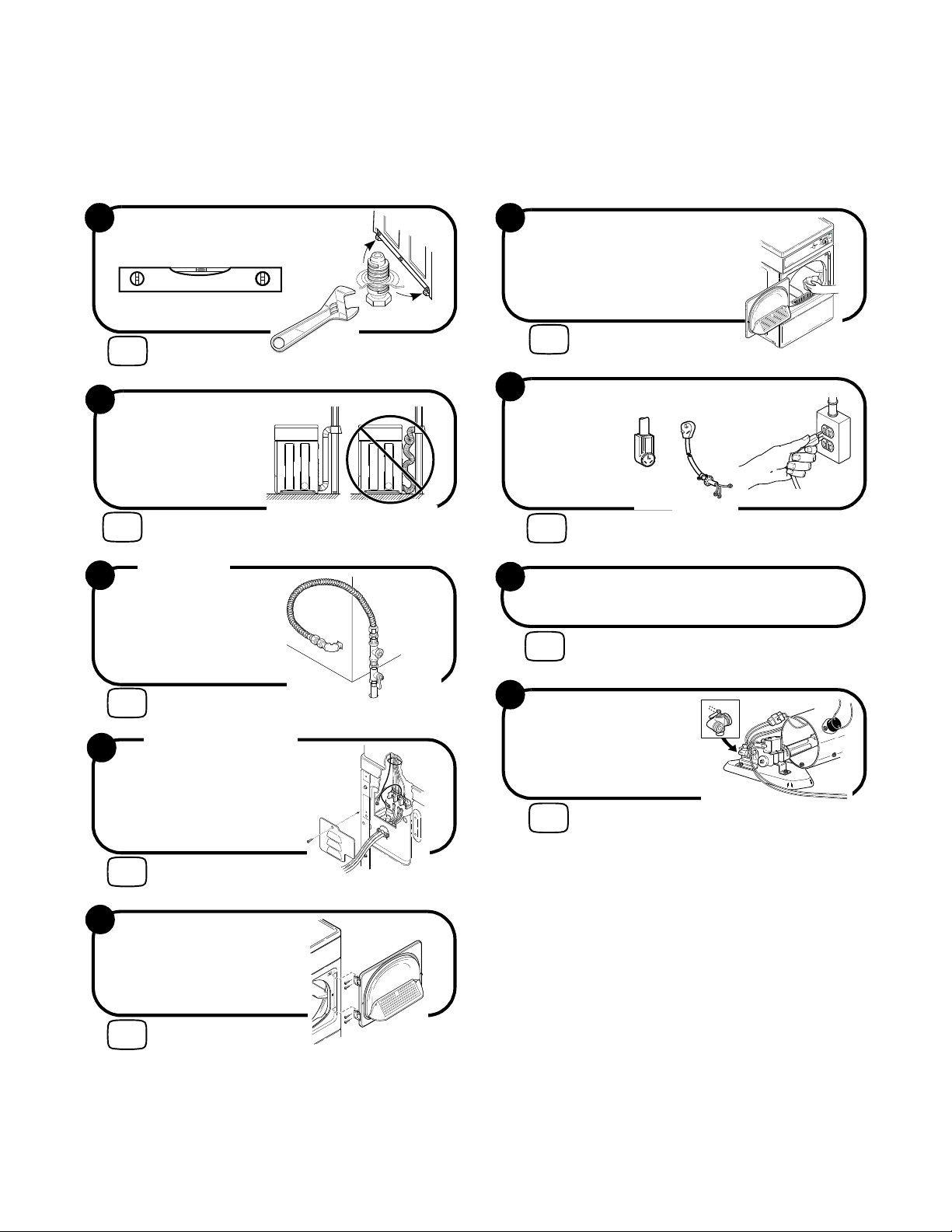

Installer Checklist
Fast Track for Installing the Dryer
(Refer to the manual for more detailed information)
• Position and
Level the Dryer.
1
D256I
CHECK D259I
LEVEL
D255I
D255I
2
DRY688N
• Connect Dryer
Exhaust
System.
CHECK DRY688N
3GAS ONLY
D258I
CHECK
• Connect Gas
Supply Pipe.
•CheckforGas
Leaks.
4
D699IE0A
ELECTRIC ONLY
• Connect
Electrical Cord.
CHECK D699IE0A
• Reverse Door,
if Desired.
5
DRY2051N
DRY2051N
CHECK
6•WipeOutInside
of Dryer.
CHECK
DRY689N
DRY689N
7
D254I
CHECK
Electric
Gas
• Plug In the Dryer.
D275I
D254I
• Recheck Steps 1-7.
8
CHECK
9
CHECK
D700I
•CheckHeat
Source.
D700I
