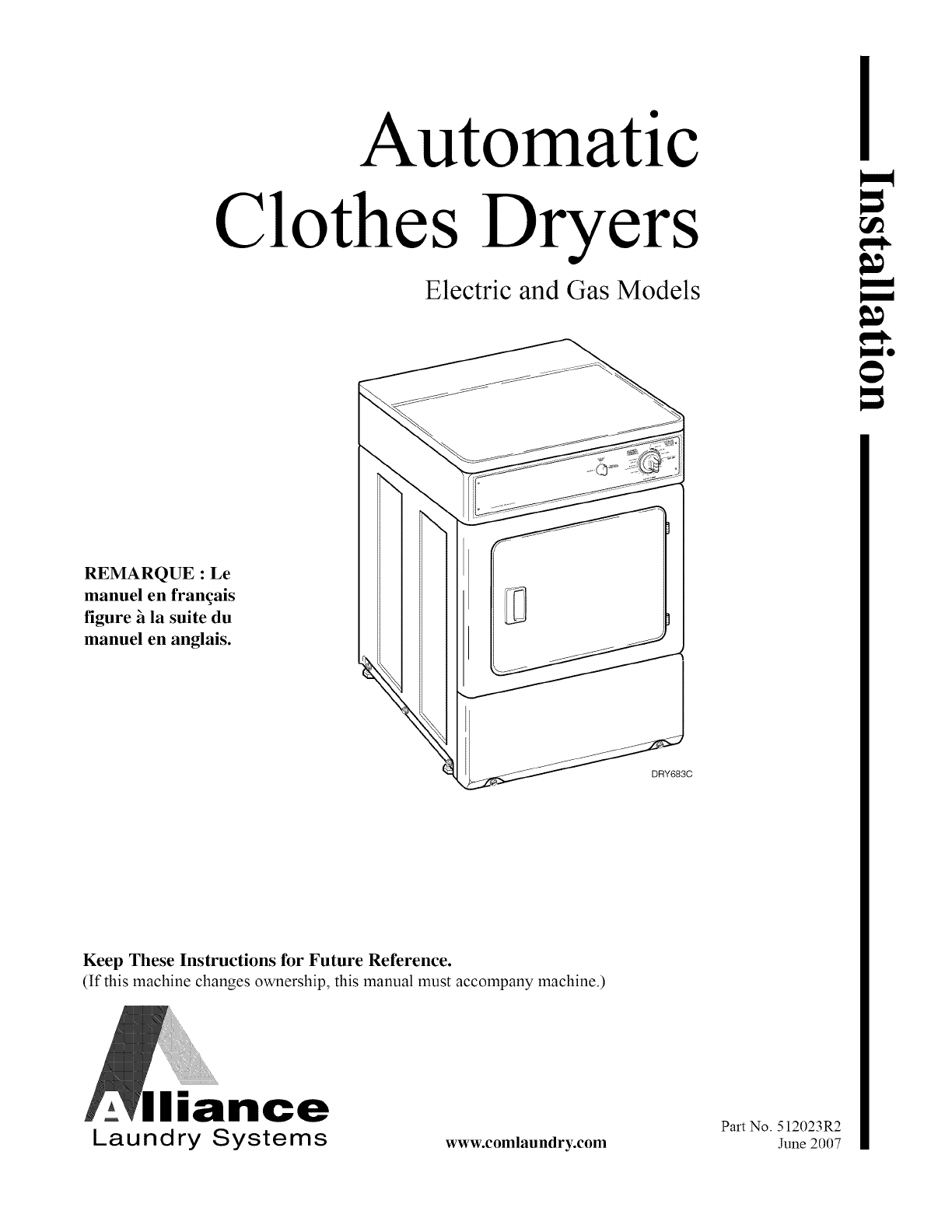

Alliance Laundry Systems DRY2195N User manual

Automatic
Clothes Dryers
Electric and Gas Models
r_
REMARQUE : Le
manuel en fran_ais
figure _la suite du
manuel en anglais.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
liance
Laundry Systems www.comlaundry.com Part No. 512023R2
June 2007

WARNING
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury or death. W033
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
•WHAT TO DO IF YOU SMELL GAS:
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Clear the room, building or area of all occupants.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
- If you cannot reach your gas supplier, call the fire department.
•Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
W052
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the
unit user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above must
be posted in a prominent location near the unit for customer use.
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance, W053
Electric models are approved by CSA - International.
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 1

Notes
2© Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 512023

Table of
Contents
Replacement Parts .............................................................................. 5
Installation ........................................................................................... 7
Dimensions and Specifications ............................................................. 7
Before You Start ................................................................................... 8
Tools ................................................................................................ 8
Gas ................................................................................................... 8
Location ........................................................................................... 8
Exhaust ............................................................................................. 8
Electrical .......................................................................................... 8
Installing the Dryer ............................................................................... 9
Step 1: Position and Level the Dryer ............................................... 9
Step 2: Connect Dryer Exhaust System ........................................... 9
Step 3: (Gas Dryer Only) Connect Gas Supply Pipe ....................... 10
Step 4: Wipe Out Inside of Dryer .................................................... 11
Step 5: Plug In the Dryer ................................................................. 11
Step 6: Check Installation ................................................................ 11
Heat Source Check ............................................................................... 12
Electric Dryers ................................................................................. 12
Gas Dryers ....................................................................................... 12

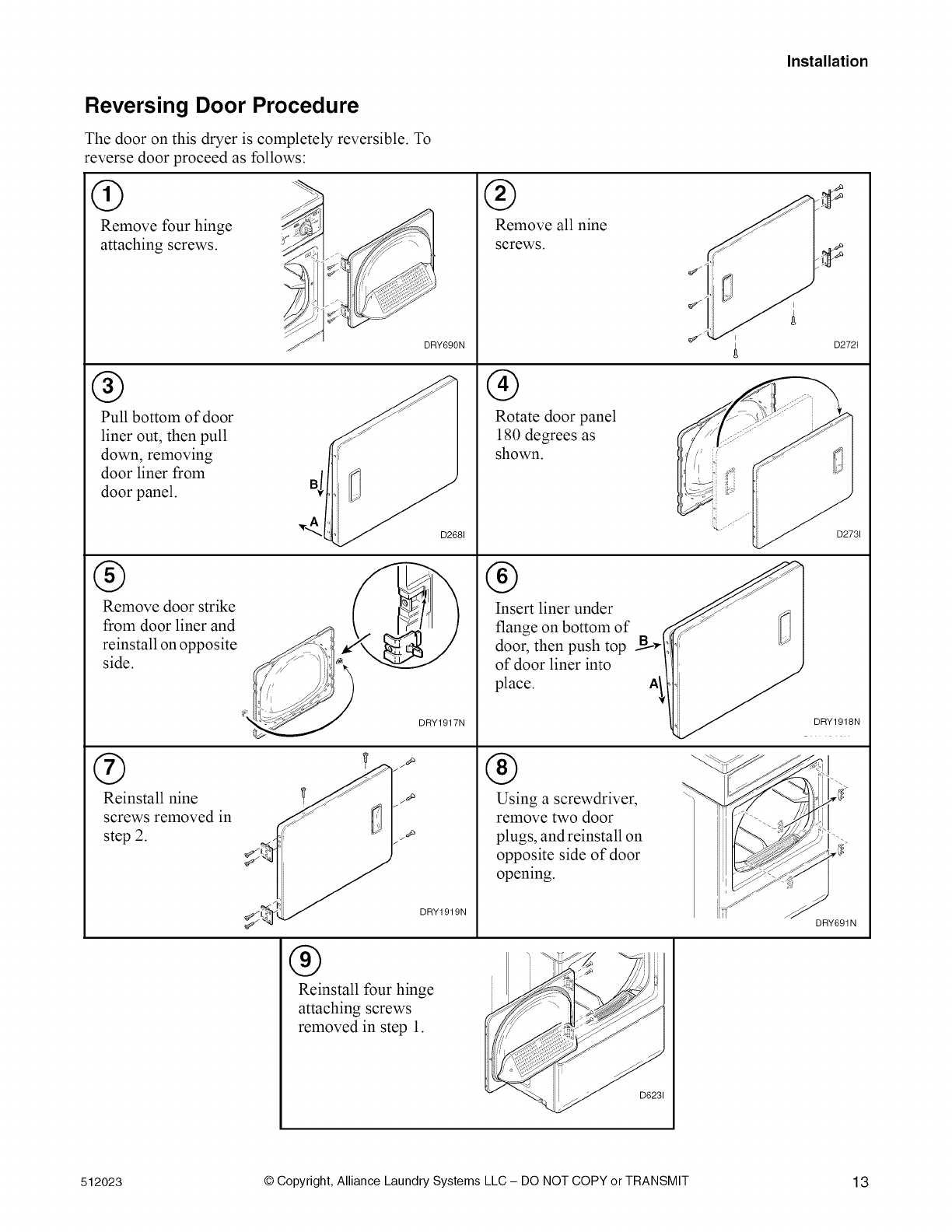

Reversing Door Procedure .................................................................... 13
Manufactured (Mobile) Home Installation ........................................... 14
Electrical Requirements ........................................................................ 15
Electric Dryers with 4-Wire Plug (Supplied with Dryer) ................ 15
Electric Dryers with 3-Wire Plug (Requires Conversion) ............... 16
Grounding Instructions .................................................................... 16
Gas Dryers ....................................................................................... 20
Gas Requirements ................................................................................. 22
Location Requirements ......................................................................... 24
Dryer Exhaust Requirements ................................................................ 25
Exhaust System Materials ................................................................ 25
Make-Up Air Requirements ............................................................. 25
Exhaust System ................................................................................ 26
Exhaust Direction ............................................................................. 26
Exhaust System Maintenance .......................................................... 27
Dryer Airflow ................................................................................... 27
Maintenance ........................................................................................ 29
User-Maintenance Instructions ............................................................. 29
Lubrication ....................................................................................... 29
Care of Your Dryer .......................................................................... 29
Exhaust System ................................................................................ 29
Information for Handy Reference ......................................................... 30
Installer Checklist ................................................................. Back Cover
(c)Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 3

Notes
4 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 512023

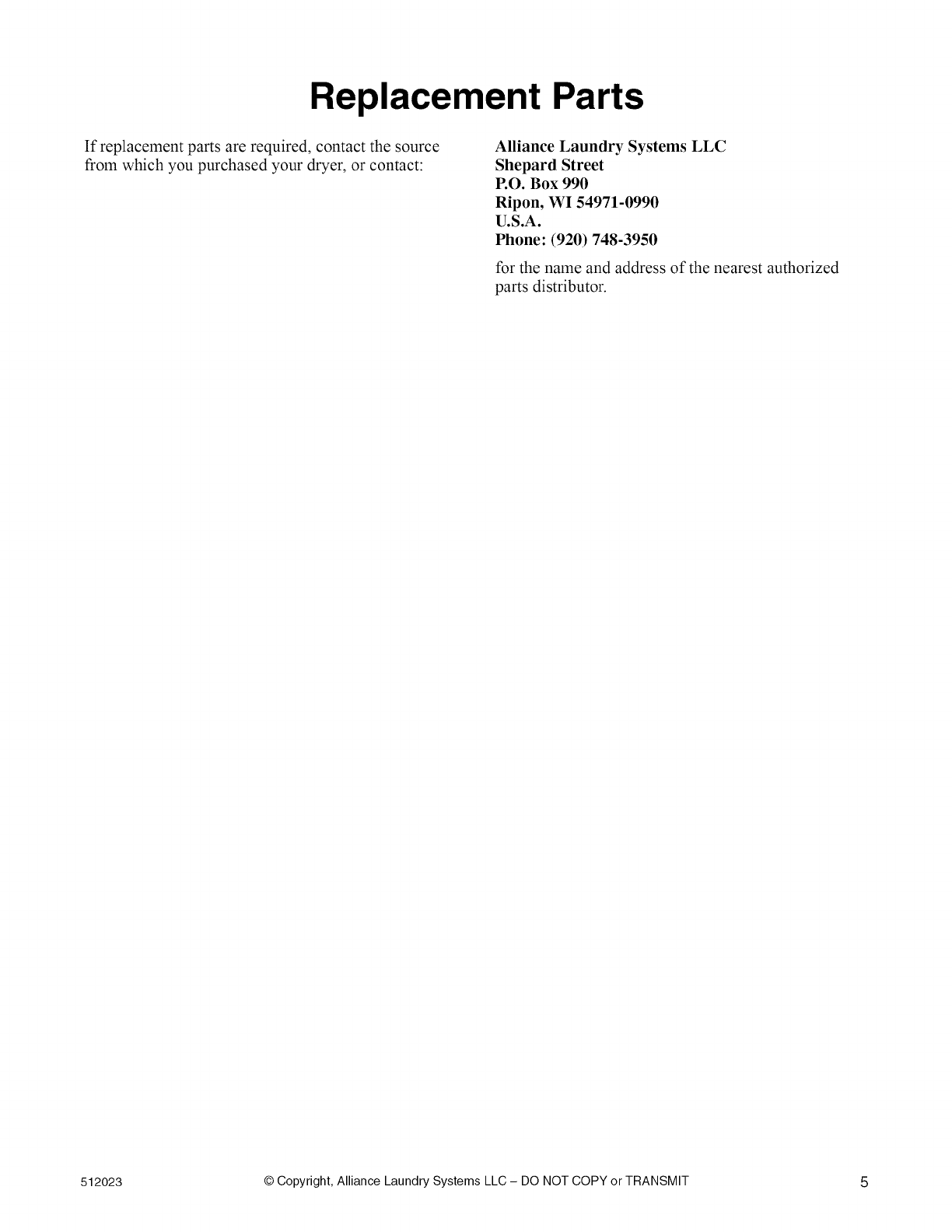

Replacement Parts
If replacement parts are required, contact the source
from which you purchased your dryer, or contact: Alliance Laundry Systems LLC Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 5

Notes
6 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 512023

Installation
Dimensions and Specifications
23.5 in.
(59.7 cm) (71.1 cm)
1
m
0.4 in.
(1.1 cm)
15.4 in. I
(39,1 cm) ÷
26.9 n. -_
(68,3 cm)
®
*4 in.
(10.2 cm)
*With leveling legs turned into base.
ELECTRIC DRYERS
DRY2195N
23.5 in.
(59.7 cm)
F_
8 in.
(20.3 cm) --
28 in. __
(71.1 cm)
1
• m
0.4 in.
(1.1cm)
*With leveling legs turned into base.
1 3/8 in. NPT Gas Connection
15.4 in.
(39.1
26.9 in.
(68.3 cm)
GAS DRYERS
®
*4 in.
cm)
DRY2196N
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 7

Installation
Before You Start
Tools
For most installations, the basic tools you will need are:
Exhaust
Use rigid metal duct and exhaust the dryer to the
outside by the shortest route possible.
1
/
5
1 Wrench
2Screwdrivers
3Level
4Teflon Tape
5Duct Tape
3\q......
D8181
Figure 1
Gas
Dryer is equipped for Natural Gas with a 0.375 inch
NPT gas supply connection. For more detailed
information, refer to section on Gas Requirements.
Location
Place the dryer on a solid floor with an adequate air
supply. For more detailed information, refer to section
on Location Requirements.
WARNING
Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person. W299
i
//i"/////////////, U/l,
DRY686N
Figure 2
NOTE: For more detailed information, refer to
section on Dryer Exhaust Requirements.
Electrical
ELECTRIC DRYER
Dryer needs a 4 wire 120/240 Volt, 30 Amp, 60 Hertz,
1 Phase electrical supply.
GAS DRYER
Dryer needs a 120 Volt, 15 Amp, 60 Hertz, polarized
3 slot effectively grounded receptacle.
NOTE: For more detailed information, refer to
section on Electrical Requirements.
If the supply cord is damaged, it must be replaced by a
special cord or assembly available from the
manufacturer or its service agent and is to be replaced
by a qualified service person.
8 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 512023

Installation
Installing the Dryer

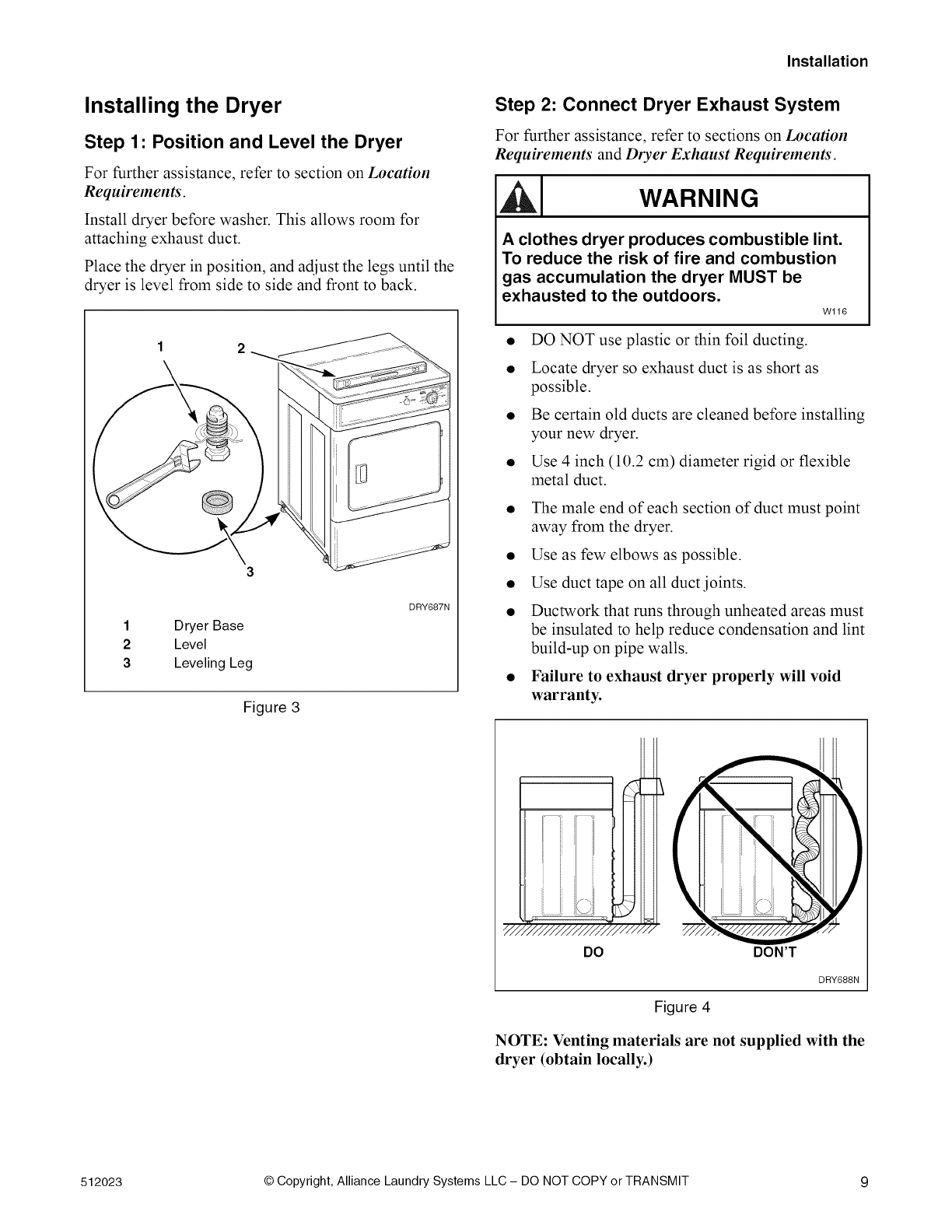

Step 1: Position and Level the Dryer
For further assistance, refer to section on Location
Requirements.
Install dryer before washer. This allows room for
attaching exhaust duct.
Place the dryer in position, and adjust the legs until the
dryer is level from side to side and front to back.
1 2
1
2
3
Dryer Base
Level
Leveling Leg
DRY687N
Figure 3
Step 2: Connect Dryer Exhaust System
For further assistance, refer to sections on Location
Requirements and Dryer Exhaust Requirements.
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
Wl16
•DO NOT use plastic or thin foil ducting.
• Locate dryer so exhaust duct is as short as
possible.
• Be certain old ducts are cleaned before installing
your new dryer.
• Use 4 inch (10.2 cm) diameter rigid or flexible
metal duct.
• The male end of each section of duct must point
away from the dryer.
• Use as few elbows as possible.
• Use duct tape on all duct joints.
• Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
• Failure to exhaust dryer properly will void
warranty.
Z_
DO DON'T
DRY688N
Figure 4
NOTE: Venting materials are not supplied with the
dryer (obtain locally.)
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 9

Installation
Step 3: (Gas Dryer Only) Connect Gas
Supply Pipe
For further assistance, refer to section on Gas
Requirements.
.
.
Make certain your dryer is equipped for use with
the type of gas in your laundry room. Dryer is
equipped at the factory for Natural Gas with a
0.375 inch NPT gas connection.
Remove the shipping cap from the gas
connection at the rear of the dryer. Make sure you
do not damage the pipe threads when removing
the cap.
.
4.
.
Connect to gas supply pipe.
Tighten all connections securely. Turn on gas and
check all pipe connections (internal and external)
for gas leaks with a non-corrosive leak detection
fluid.
For L.R (Liquefied Petroleum) gas connection,
refer to section on Gas Requirements.
2
3
2
3
4
New Stainless Steel Flexible Connector -
Use only if allowed by local codes
(Use Design CSA Certified Connector)
0.125 in. NPT Pipe Plug
(For checking inlet gas pressure)
Equipment Shut-Off Valve - Install within
6 ft. (1.8 m) of dryer
Black Iron Pipe
Shorter than 20 ft. (6.1 m) - Use 0.375 in.
(9.5 mm) pipe
Longer than 20 ft. (6.1 m) - Use 0.5 in.
(12.7 mm) pipe
0.375 in. NPT Gas Connection
Figure 5
D2331
10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 512023

Installation

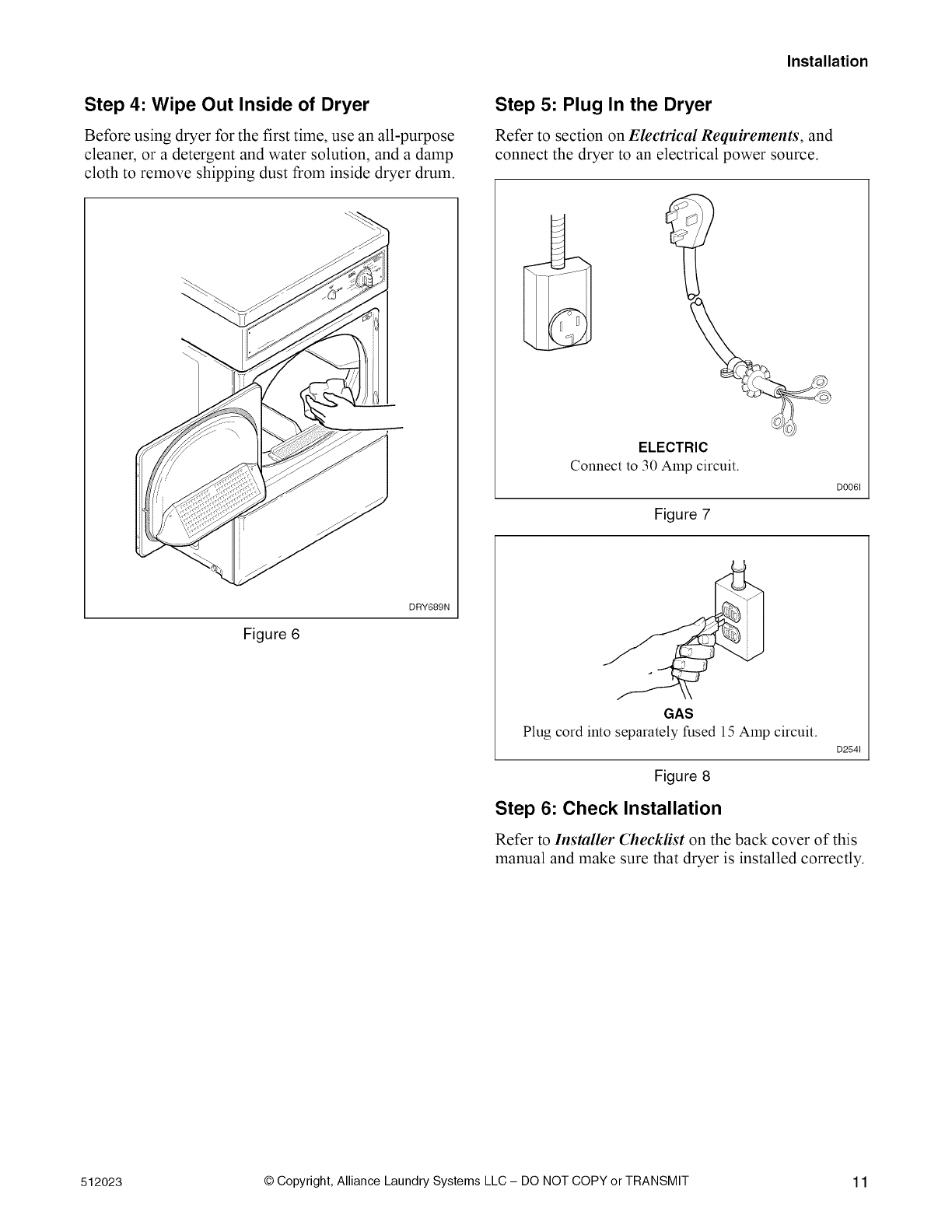

Step 4: Wipe Out Inside of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
Step 5: Plug In the Dryer
Refer to section on Electrical Requirements, and
connect the dryer to an electrical power source.
Figure 6
DRY689N
ELECTRIC
Connect to 30 Amp circuit.
D0061
Figure 7
GAS
Plug cord into separately fused 15 Amp circuit.
D2541
Figure 8
Step 6: Check Installation
Refer to Installer Checkfist on the back cover of this
manual and make sure that dryer is installed correctly.
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 11

Installation

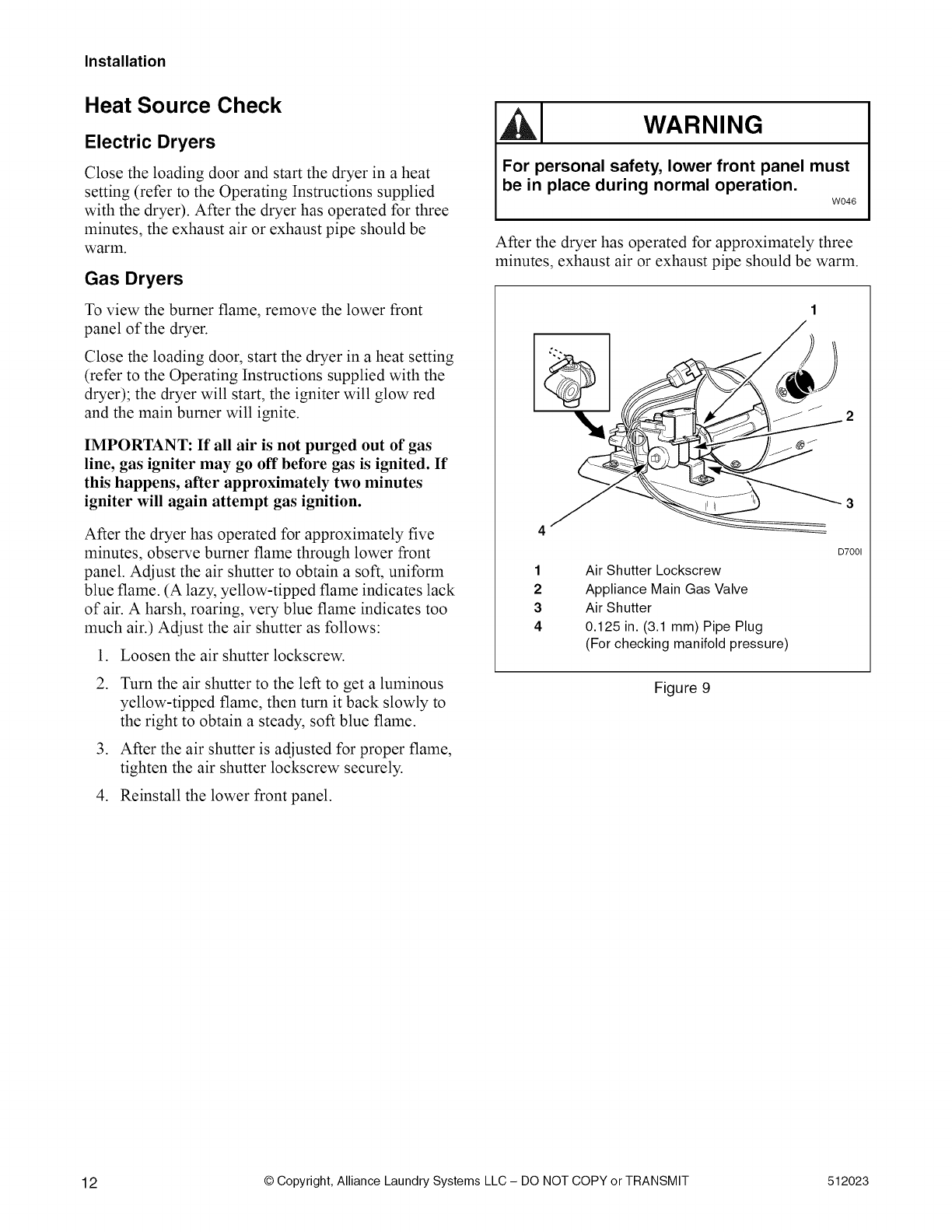

Heat Source Check
Electric Dryers
Close the loading door and start the dryer in a heat
setting (refer to the Operating Instructions supplied
with the dryer). After the dryer has operated for three
minutes, the exhaust air or exhaust pipe should be
warm.
Gas Dryers
To view the burner flame, remove the lower front
panel of the dryer.
Close the loading door, start the dryer in a heat setting
(refer to the Operating Instructions supplied with the
dryer); the dryer will start, the igniter will glow red
and the main burner will ignite.
IMPORTANT: If all air is not purged out of gas
line, gas igniter may go off before gas is ignited. If
this happens, after approximately two minutes
igniter will again attempt gas ignition.
After the dryer has operated for approximately five
minutes, observe burner flame through lower front
panel. Adjust the air shutter to obtain a soft, uniform
blue flame. (A lazy, yellow-tipped flame indicates lack
of air. A harsh, roaring, very blue flame indicates too
much air.) Adjust the air shutter as follows:
1. Loosen the air shutter lockscrew.
.
.
Turn the air shutter to the left to get a luminous
yellow-tipped flame, then turn it back slowly to
the right to obtain a steady, soft blue flame.
After the air shutter is adjusted for proper flame,
tighten the air shutter lockscrew securely.
4. Reinstall the lower front panel.
WARNING
For personal safety, lower front panel must
be in place during normal operation. W046
After the dryer has operated for approximately three
minutes, exhaust air or exhaust pipe should be warm.
1
2
3
4
Air Shutter Lockscrew
Appliance Main Gas Valve
Air Shutter
0.125 in. (3.1 mm) Pipe Plug
(For checking manifold pressure)
D7001
Figure 9
12 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 512023

Installation
Reversing Door Procedure
The door on this dryer is completely reversible. To
reverse door proceed as follows:
(!)
Remove four hinge
attaching screws.
®
Pull bottom of door
liner out, then pull
down, removing
door liner from
door panel.
®
Remove door strike
from door liner and
reinstall on opposite
side.
®
Reinstall nine
screws removed in
step 2.
DRY690N
D2681
DRY1917N
/,_
DRY1919N
®
Remove all nine
screws.
®
Rotate door panel
180 degrees as
shown.
®
Insert liner under
flange on bottom of
door, then push top B-ga'!
of door liner into
place.
®
Using a screwdriver,
remove two door
plugs, and reinstall on
opposite side of door
opening.
®
Reinstall four hinge
attaching screws
removed in step 1.
D6231
D2721
D2731
DRY1918N
DRY691 N
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 13

Installation
Manufactured (Mobile) Home
Installation
IMPORTANT: Installation must conform to 1
the Manufactured Home Construction and 1
Safety Standards, Title 24 CFR, Part 32-80 |
Standard CAN/CSA-Z240
The dryer can be installed in a manufactured (mobile)
home by following these instructions:
.IMPORTANT: Gas dryers MUST be
permanently attached to the floor at the time
of installation. Order No. 526P3 Dryer
Installation Kit for a manufactured (mobile)
home installation. Follow the instructions
supplied with the kit.
2. Venting - Dryer MUST be exhausted to the
outdoors.
WARNING
To reduce the risk of fire and combustion
gas accumulation, the dryer MUST BE
EXHAUSTED TO THE OUTDOORS. Refer to
Section on Dryer Exhaust Requirements. W047
The dryer can be exhausted to the outdoors
through the back, left, right or bottom panel. Gas
dryers cannot be exhausted out the left side
because of the burner housing.
The dryer exhaust duct must be secured to the
mobile home structure.
Exhaust ducts MUST NOT be connected with
sheet metal screws or fasteners which extend into
the duct.
Exhaust duct must not be connected to any other
duct, vent or chimney.
Dryer exhaust duct MUST NOT terminate under
the mobile home.
For proper operation, it is important that the dryer
has an ample amount of outside make-up air. The
free area of any opening for the introduction of
outside air must be at least 25 in 2 (163 cm2).
When exhausting the dryer to the outdoors, the
dryer can be installed with "0" inch clearance at
the sides and rear. Clearance of the duct from
combustible construction must be a minimum of
2 inches (5.08 cm).
Venting materials are not supplied with the dryer
(obtain locally).
WARNING
To reduce the risk of fire, the exhaust duct
and weather hood MUST be fabricated of a
material that will not support combustion.
Rigid or flexible metal pipe is
recommended for a clothes dryer. W048
14 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 512023

Installation
Electrical Requirements
Electric Dryers with 4-Wire Plug (Supplied
with Dryer)
(120/240 Volt, 60 Hertz, 3-Wire and Ground
Installation)
(120/208 Volt, 60 Hertz, 3-Wire and Ground
Installation)
NOTE: The wiring diagram is located inside the
control hood.
WARNING
To reduce the risk of fire, electric shock or
personal injury, all wiring and grounding
MUST conform with the latest edition of the
National Electrical Code ANSI/NFPA 70 or
the Canadian Electrical Code, CSA C22.1,
and such local regulations as might apply. It
is the customer's responsibility to have the
wiring and fuses installed by a qualified
electrician to make sure adequate electrical
power is available to the dryer. W511
Grounding and Wiring Instructions
The electric service must be a separate branch,
polarized, three-wire and ground, 120/240 Volt, or
120/208 Volt, 60 Hertz, AC single phase circuit fused
with 30 ampere fuses.
The cord and plug assembly (supplied with dryer)
should be plugged into an approved receptacle that is
mounted on the wall adjacent to the dryer. This
receptacle should be accessible to the user or service
person when the dryer is in position, to permit
disconnecting when necessary.
If the branch circuit to the dryer is 15 feet (4.57 m) or
less in length, use No. 10 A.W.G. wire or as required
by local codes. If over 15 feet (4.57 m), a No. 8
A.W.G. wire should be used, or as required by local
codes.
;
0
V.A.C.
1 Typical Four-Wire Receptacle
2Power Cord (Four-Wire)
3 Strain Relief Nut
4 Strain Relief
DRY2016N
Figure 10
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 15

Installation
Electric Dryers with 3-Wire Plug (Requires
Conversion)
(120/240 Volt, 60 Hertz, 3-Wire Installation)
(120/208 Volt, 60 Hertz, 3-Wire Installation)
NOTE: The wiring diagram is located inside the
control hood.
WARNING
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer's responsibility to have the wiring
and fuses installed by a qualified electrician
to make sure adequate electrical power is
available to the dryer. W512
Grounding Instructions
This dryer must be connected to a grounded
metal, permanent wiring system; or an
equipment-grounding conductor must be run
with the circuit conductors and connected to the
equipment-grounding terminal or lead on the
dryer.
The dryer has its own terminal block that must be
connected to a separate branch, 60 Hertz, single
phase circuit, AC (alternating current) circuit,
fused at 30 Amperes (the circuit must be fused
on both sides of the line). Electrical service for
the dryer should be of maximum rated voltage
listed on the nameplate. Do not connect dryer
to 110, 115, or 120 Volt circuit. Heating
elements are available for field installation in
dryers which are to be connected to electrical
service of different voltage than that listed on
nameplate, such as 208 Volt.
If branch circuit to dryer is 15 feet (4.57 m) or
less in length, use No. l0 A.W.G. wire (copper
wire only), or as required by local codes. If over
15 feet (4.57 m), use No. 8 A.W.G. wire (copper
wire only), or as required by local codes. Allow
sufficient slack in wiring so dryer can be moved
from its normal location when necessary.
The power cord (pigtail) connection between
wall receptacle and dryer terminal block IS NOT
supplied with dryer. Type of pigtail and gauge
of wire must conform to local codes and with
instructions mentioned on the following pages.
The method of wiring the dryer is optional and
subject to local code requirements. Refer to
Figure 11.
16 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 512023

Installation
Three-Wire Plug
NOTE: The power cord (pigtail) is NOT supplied with the electric
dryer. Type of pigtail and gauge of wire must conform to local
codes and instructions.
The method of wiring the dryer is optional and subject to local
code requirements.
NOTE: Connect the dryer to the power supply with the
MAXIMUM RATED VOLTAGE listed on the nameplate.
POWER SUPPLY
_1_
2
POWER SUPPLY
120-+12
V.A.C.
240 -+12
V.A.C,
A typical
30-Amp
Three-wire
Receptacle
NEMA Type
10-30R
_ 120-+12
,V.A.C.
INTERMEDIATE
FUSE BOX (May
be omitted if
service entrance
box is fused)
WALL RECEPTACLE
INTERMEDIATE
SHUT-OFF BOX
(May or may
rnot be fused)
NOTE: Use COPPER WIRE only.
Shorter than 15 ft. (4.5 m) use 10 A.W.G.
Longer than 15 ft. (4.5 m) use 8 A.W.G.
L1 L2
PIGTAIL CONNECTION
L1 L2
DIRECT CONNECTION
2
3
3-Wire Grounded Neutral 120/240 Volt, 60 Hertz
AC 1 Phase Service Entrance Switch Box
(Refer to NOTE above)
30 Ampere Fuses or Circuit Breaker
Neutral Wire
4
5
6
7
Metallic or Non-Metallic Sheathed Cable
(Copper wire only)
Pigtail to Dryer (Refer to NOTE above)
Neutral
Terminal Block in Dryer
D8161
Figure 11
To Convert from 4-Wire Connection to 3-Wire
Connection
l. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
Figure 12
D6951
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 17

Installation
.Remove the three silver screws holding the three
wires to the terminal block terminals. Remove
green ground screw holding power cord ground
wire to rear bulkhead. Save all four screws.
Loosen the strain relief screw and pull the cord or
wires out through the rear of the dryer.
4. Attach one end of green ground wire (supplied in
accessories bag) to rear bulkhead using green
ground screw removed in step 3.
IMPORTANT: Do not use power screwdriver when
tightening ground screw or terminal block screws.
1
2
3
4
Silver L1 Terminal Screw
Silver Neutral Terminal Screw
Silver L2 Terminal Screw
Green Ground Screw
DRY2017N
1
1 Ground Screw
Figure 14
DRY2018N
Figure 13
18 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 512023

Installation

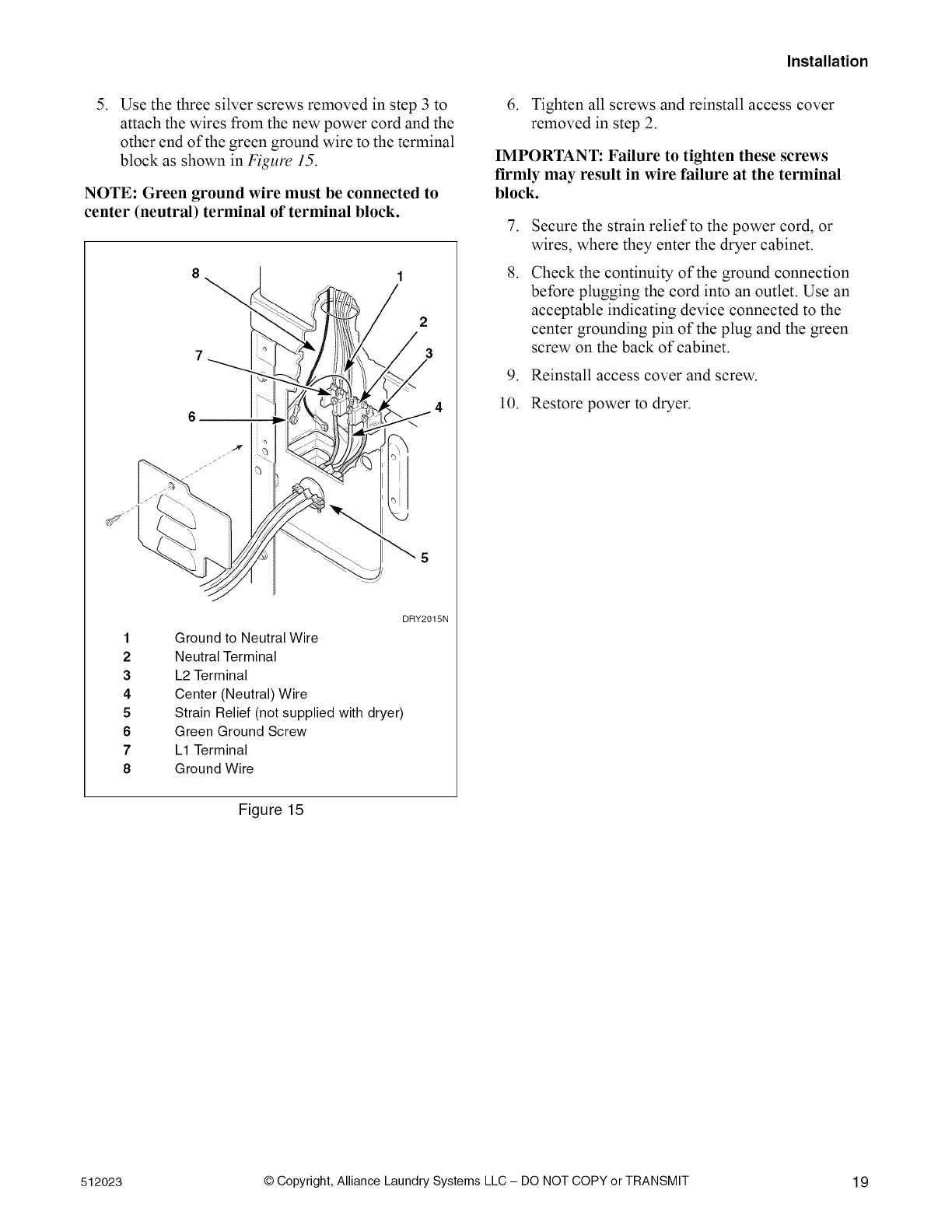

.Use the three silver screws removed in step 3 to
attach the wires from the new power cord and the
other end of the green ground wire to the terminal
block as shown in Figure 15.
NOTE: Green ground wire must be connected to
center (neutral) terminal of terminal block.
8
5
1
2
3
4
5
6
7
8
DRY2015N
Ground to Neutral Wire
Neutral Terminal
L2 Terminal
Center (Neutral) Wire
Strain Relief (not supplied with dryer)
Green Ground Screw
L1 Terminal
Ground Wire
6. Tighten all screws and reinstall access cover
removed in step 2.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
.
.
.
10.
Secure the strain relief to the power cord, or
wires, where they enter the dryer cabinet.
Check the continuity of the ground connection
before plugging the cord into an outlet. Use an
acceptable indicating device connected to the
center grounding pin of the plug and the green
screw on the back of cabinet.
Reinstall access cover and screw.
Restore power to dryer.
Figure 15
512023 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 19
