Alliance Laundry Systems DRY2033N User manual

for your
frontload
washer
www.comlaundry.com
Inside . . .
Safety Information . . . 3
Operation . . . . . . . . . . . 6
Clothing Care . . . . . . . 18
Maintenance . . . . . . . 27
Troubleshooting . . . .30
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.
Part No. 802753R2
May 2008

-2-
802753
For your safety and to reduce the risk of fire or an explosion, do not store or use
gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
W022
WARNING

-3-
802753
Safety Information
Explanation of Safety
Messages
Throughout this manual and on machine decals,
you will find precautionary statements
(“DANGER,” “WARNING,” and “CAUTION”) followed
by specific instructions. These precautions are
intended for the personal safety of the operator,
user, servicer, and those maintaining the machine.
Additional precautionary statements
(“IMPORTANT” and “NOTE”) are followed by
specific instructions.
IMPORTANT: The word “IMPORTANT” is used to
inform the reader of specific procedures where
minor machine damage will occur if the
procedure is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or
servicing information that is important but not
hazard related.
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the
washer.
2. Refer to the Grounding (Earthing)
Information in the Installation Instructions
for the proper grounding (earthing) of the
washer.
3. Do not wash articles that have been
previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents,
or other flammable or explosive substances
as they give off vapors that could ignite or
explode.
4. Do not add gasoline, dry-cleaning solvents,
or other flammable or explosive substances
to the wash water. These substances give off
vapors that could ignite or explode.
Indicates an imminently hazardous
situation that, if not avoided, will
cause severe personal injury or death.
DANGER
Indicates a hazardous situation that, if
not avoided, could cause severe
personal injury or death.
WARNING
Indicates a hazardous situation that, if
not avoided, may cause minor or
moderate personal injury or property
damage.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING
© Copyright 2008, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or
transmitted in any form or by any means without the expressed written consent
of the publisher.

-4-
802753
5. Under certain conditions, hydrogen gas may
be produced in a hot water system that has
not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a
period, before using a washing machine or
combination washer-dryer, turn on all hot
water faucets and let the water flow from
each for several minutes. This will release any
accumulated hydrogen gas. THE GAS IS
FLAMMABLE. DO NOT SMOKE OR USE AN
OPEN FLAME DURING THIS TIME.
6. Do not allow children to play on or in the
washer. Close supervision of children is
necessary when the washer is used near
children. This is a safety rule for all
appliances. This appliance is not intended for
use by young children or infirm persons
without supervision. Young children should be
supervised to ensure that they do not play
with the appliance.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash
drum is moving.
9. Do not install or store the washer where it
will be exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the
washer, or attempt any servicing unless
specifically recommended in the user-
maintenance instructions or in published
user-repair instructions that you
understand and have the skills to carry out.
12. To reduce the risk of an electric shock or fire,
DO NOT use an extension cord or an adapter
to connect the washer to the electrical
power source.
13. Use your washer only for its intended
purpose, washing clothes.
14. ALWAYS disconnect the washer from
electrical supply before attempting any
service. Disconnect the power cord by
grasping the plug, not the cord.
15. Install the washer according to the
Installation Instructions. All connections for
water, drain, electrical power and grounding
(earthing) must comply with local codes and
be made by licensed personnel when required.
Do not do it yourself unless you know how!
16. To reduce the risk of fire, clothes which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or
anything containing wax or chemicals such
as in mops and cleaning cloths, must not be
put into the washer. These flammable
substances may cause the fabric to catch
on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or
product.
18. Keep your washer in good condition. Bumping
or dropping the washer can damage safety
features. If this occurs, have your washer
checked by a qualified service person.
19. Replace worn power cords and/or loose plugs.
20. Be sure water connections have a shut-off
valve and that fill hose connections are tight.
CLOSE the shut-off valves at the end of
each wash day.
21. Loading door MUST BE CLOSED any time
the washer is to fill, tumble or spin. DO NOT
by-pass the loading door by permitting the
washer to operate with the loading door
open.
22. Check washer for water leaks after each use.
If water is found, turn off the water supply
and call for service immediately. Don’t use
washer until it is repaired by an authorized
service agent.
23. If the washer’s volume or type of sound
changes from what is normally heard, call an
authorized service agent immediately to
prevent possible damage to other
components.
24. Never start a cycle and leave the property
without first checking to make sure the wash
cycle is complete.

-5-
802753
25. Always read and follow manufacturer’s
instructions on packages of laundry and
cleaning aids. Heed all warnings or
precautions. To reduce the risk of poisoning
or chemical burns, keep them out of the
reach of children at all times (preferably in a
locked cabinet).
26. Always follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the washer with any guards
and/or panels removed.
28. DO NOT operate the washer with missing or
broken parts.
29. DO NOT by-pass any safety devices.
30. Failure to install, maintain, and/or operate
this machine according to the
manufacturer's instructions may result in
conditions which can produce bodily injury
and/or property damage.
31. Replace washer fill hoses every five years.
32. If unit is a stacked washer and dryer, do not
operate washer and dryer if the the units
have been separated.
NOTE: The WARNING and Important Safety
Instructions appearing in this manual are not
meant to cover all possible conditions and
situations that may occur. Observe and be
aware of other labels and precautions that are
located on the machine. They are intended to
provide instructions for safe use of the
machine. Common sense, caution and care
must be exercised when installing, maintaining,
or operating the washer.
Always contact your dealer, distributor or service
agent about any problems or conditions you do
not understand.

-6-
802753
Operation
Before Washing
Prepare Wash Load
Empty Pockets and Cuffs
Make sure all pockets are empty and turn them
inside out. One bobby pin, metal or plastic toy, nail
or sharp object in a load can catch laundry, cause
tears and plug the pump. Facial tissue left in a
pocket will produce extreme “lint”. A crayon or
lipstick in a wash load may cause stains that
cannot be removed. Roll down cuffs and shake out
grass, sand and gravel.
Mend Rips and Tears
Little holes can become bigger in the washer.
Mend holes and tears before placing garments in
the washer.
Close Zipper and Fasten Hooks
These can catch on garments in a wash load and
tear them. Tie belts and sashes so they won’t
wind around clothes.
Put Small Items in Bag
Small items such as baby socks may get stuck
around the door. Put them inside a mesh garment
bag.
Check For Colorfastness
Squeeze a portion of garment in warm or hot
sudsy water. If the color bleeds or runs, wash the
item separately in cold water.
Sorting Items
Different items use different wash cycles and
temperatures. Always follow the manufacturer’s
care label. Proper sorting is easy if you follow a
few guidelines:
1. Sort by Color:
Separate items into loads of
whites, darks, lights and non-
colorfast.
2. Sort by Fabric and Construction:
Separate items into loads of
cottons/linens, permanent
press, synthetics/blends/poly
knits, and delicates.
3. Sort by Temperature:
Separate items into loads
that can be washed in cold,
warm or hot water.
4. Sort by Type and Amount of Soil:
Heavily soiled clothes will need extra
treatment. Lightly soiled clothes can become
dingy if washed with heavily soiled items.
5. Sort Lint “Shedders” From Lint “Receivers”:
Some fabrics attract lint and should not be
washed with lint-shedding loads. Lint
shedders are cottons, terry towels, chenille
bedspreads, rugs and clothes that have been
heavily bleached.
Lint receivers are synthetics, permanent or
durable press, knits (including socks),
corduroy, and other smooth fabrics.
Pretreat
Pretreat shirt collars and cuffs with a pretreat
product or liquid detergent when placing them in
the washer. Before washing, treat special stains
individually. Refer to Stain Removal section for
procedures on treating specific stains.
Whites
TLW1991
TLW1991N
TLW1990N
TLW1990N
Cottons
TLW1991
TLW1991N
Cold
TLW1991N
TLW1991N

-7-
802753
Loading the Washer
Load Articles
•Load items by the amount of space they
take up, not by their weight. Mix large and
small items in a load to get the best washing
results.
•Load items loosely into the wash drum. The
bulk of the clothes rather than the weight will
determine load size.
Bulky Items
•Use the HANDWASH/DELICATE cycle for
bulky items such as blankets and
comforters. The cycle includes 12 minutes of
gentle agitation to clean items delicately
and thoroughly. The extra rinse cycle may be
selected to ensure complete removal of soap
residue. A final spin extracts the moisture at
a low speed to maintain the load’s balance
and minimize wear to the articles.
Load Sizes
•Load sizes vary. Small and large items
should be washed together to create a
balanced load. If washing a large item, two
bath towels should be added to even the
load.
•Smaller loads can create an unbalanced
condition and cause premature wear on the
washer. Do not hesitate to fill the entire
inner drum of the washer. The load will
compress a great deal when wet. This allows
room for proper tumbling.
Water Level
•The washer will automatically adjust the
water level to the type and size of the load
during any fill.
Wash Temperature
Boosted Hot Water (on select models only)
The Boosted Hot Wash will boost the water
temperature in the tub to 140°F (60°C) and is
useful for improved cleaning of some loads. The
red HEATING light will light up when heating. The
cycle will not advance until 140°F (60°C) has been
reached.
The time needed to reach this temperature may
add an additional 30 to 60 minutes to the cycle
time. Hot water is the most effective for cleaning
but it is not recommended for all fabric types
(read labels).
NOTE: The Boosted Hot Wash can be turned off
by changing the cycle selector knob to OFF and
restarting a cycle with a different water
temperature setting.
Hot Water
The Hot Wash temperature is determined by the
actual temperature of the hot water supplied to
the washer. For models with Boosted Hot Wash,
the heater element will not be on. Hot water is the
most effective for cleaning, but it is not
recommended for all fabric types (read labels).
Warm Water
The Warm Wash is useful for providing a thorough
cleaning on lightly soiled clothing without
damaging fabric or adding to color fading.
The Warm Rinse is useful in preventing wrinkles on
certain fabrics. Check labels for fabric
manufacturer’s recommendations.
Do not wash or dry items soiled with
vegetable or cooking oils. Some oils may
remain after washing and may cause the
fabric to catch on fire by itself.
W527
WARNING

-8-
802753
Cold Water
The Cold Wash is ideal for delicate items.
Although its cleaning abilities are not as great
with hot or warm water, it is useful for colors that
bleed easily and for sensitive fabrics.
The Cold Rinse is optional in every cycle and is the
most beneficial for fabrics. Cold rinses reduce
wrinkling and color fading. In addition, cold
rinses will save money and energy.
NOTE: In wash temperatures colder than 60oF
(16oC), detergents do not dissolve well. This
may cause ineffective cleaning, or lint and
residue to form.

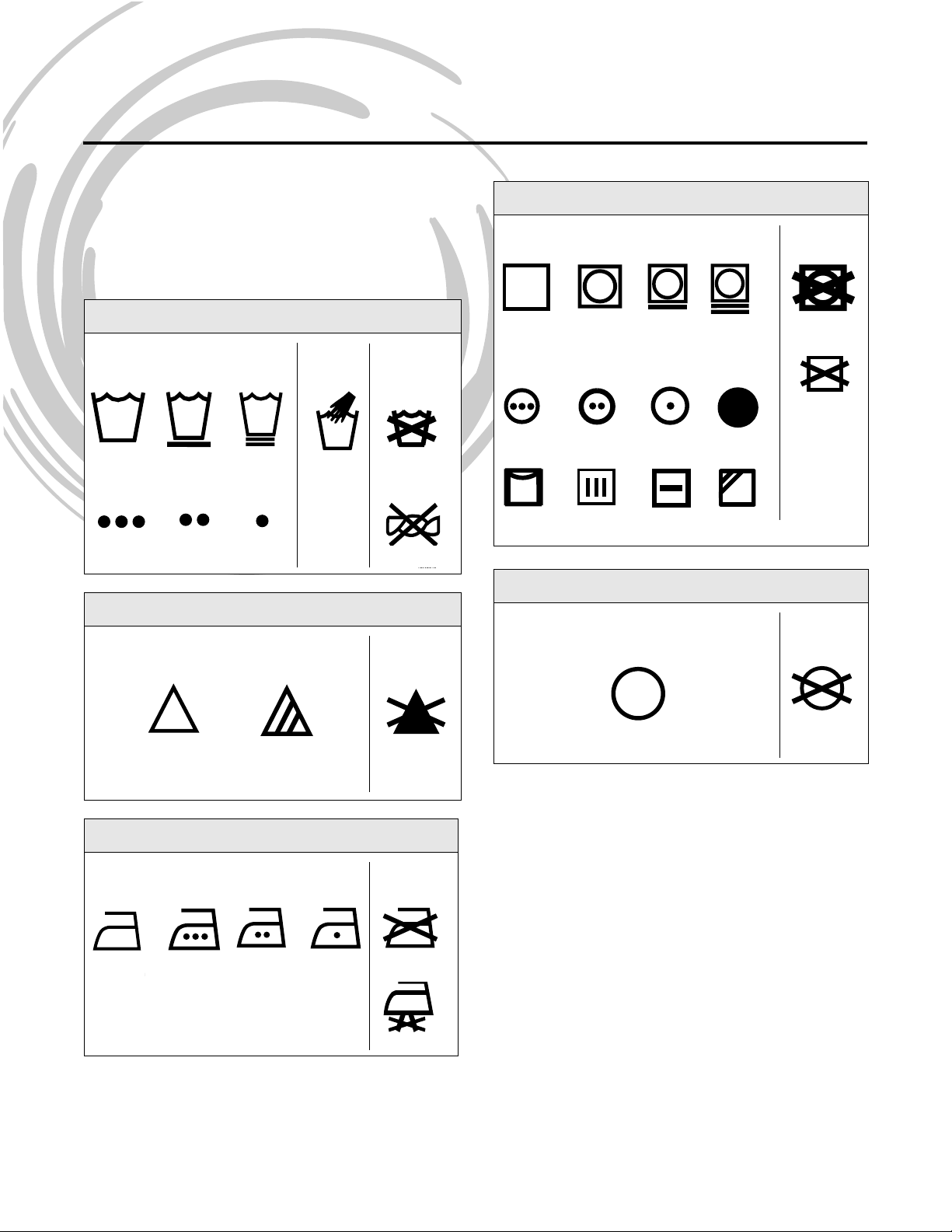

NOTE: Always follow manufacturer’s care labels.
Wash Temperature Guide
Energy
You can save energy when washing by following a
few guidelines:
1. Heating water accounts for the greatest
energy expense when washing. Save on
heating water by using warm or cold washes
as well as cold rinses.
2. Wash full loads, but do not overload.
Water Temperature Use Comments
BOOSTED HOT
(select models only)
(approximately 140°F [60°C])
• Sturdy whites and colorfast items
•Workclothes
• Heavily soiled items
•Diapers
• Best cleaning for heavily soiled
items
• Best for sanitizing
HOT
(approximately 120°F [49°C]
or as determined by outside
hot water supply)
• Sturdy whites and colorfast items
•Workclothes
•Soileditems
•Diapers
• Best cleaning for soiled items
• Good for sanitizing
WARM
(approximately 100º F [38°C])
• Rinsing of some items
• Light and moderately soiled items
• Non-colorfast or dark colors
• Permanent press
• Silks, woolens, nylon, acrylic
• Reduces wrinkling in permanent
press fabrics
• Less fading
• Reduces shrinking in knits
COLD
(approximately 60º F [16°C])
• Rinsing of most items
• Non-colorfast fabrics
• Extra delicate clothing
• Saves energy
• Reduces color fading
• Reduces wrinkling
• Reduces shrinking
120oF
(49oC)
100oF
(38oC)
60oF
(16oC)
HOT
WARM
COLD
TLW1994N

-9-
802753
Operating Your Washer
a.
NOTE: Always follow manufacturer’s care labels.
Determine Proper Cycle
NOTE: The cycle times might be longer if a
Boosted Hot Wash, if available, is selected.
Regular Cycle
Use for sturdy items, like play or work clothes,
towels, T-shirts, etc. This cycle includes a wash
tumble for 24 minutes. The cycle has two rinses
with an optional third rinse. The final spin starts
with a two-minute medium spin and finishes with
a three-minute high spin. The total cycle time is
approximately 44 minutes without the extra
rinse.
Permanent Press Cycle
Use for permanent press items and synthetics.
This cycle includes a wash tumble of 20 minutes.
The cycle has two rinses with an optional third
rinse. The final spin starts with a three-minute
medium spin and finishes with a two-minute high
spin. The total cycle time is approximately 40
minutes without the extra rinse.
Delicate Cycle
Wash delicate items usually washed by hand on
this cycle. The cycle includes a wash tumble of 12
minutes. The cycle has two rinses with an optional
third rinse. The final spin extracts moisture at a
low spin for four minutes. The total cycle time is
approximately 30 minutes without the extra
rinse.
Rinse & Spin Cycle
Use to quickly rinse items. The rinse is followed by
a high spin. The total cycle time is approximately
12 minutes.
Spin Only Cycle
Use to extract water from wet items. This cycle
uses the high spin. The total cycle time is
approximately 10 minutes.
OFF
Use to stop a cycle or change cycles.
Extra Rinse
This optional setting is useful for detergent
sensitive skin. By pressing the “EXTRA RINSE”
button to “ON,” the REGULAR, PERMANENT
PRESS and DELICATE cycles will each provide an
additional rinse.
WARNING
To reduce the risk of fire, electric shock,
serious injury or death to persons, read
the Safety Information section before
operating your washer.
W522

-10-
802753
To Wash Clothes
IMPORTANT: Before using your new washer,
make sure the washer cord is plugged into an
appropriate electrical outlet that has the
proper grounding (earthing) and polarity. Refer
to the washer nameplate and Installation
Instructions for proper voltage and Hertz the
washer is designed to operate on. Refer to
Contact Information section for nameplate
location. Make sure the washer hoses are
connected to the hot and cold water faucets,
and that the faucets are turned on. Be sure the
drain hose is not kinked and is inserted into a
drain. Refer to the INSTALLATION
INSTRUCTIONS for details of proper washer
installation.
IMPORTANT: Prior to first wash, use an all
purpose cleaner, or a detergent and water
solution, and a damp cloth to remove shipping
dust from inside of wash drum.
1. Get the clothes ready for washing. Empty
pockets and cuffs. Sort items into separate
loads. Pretreat stains and heavily soiled areas.
IMPORTANT: Remove all sharp objects from
laundry to avoid tears and rips to items
during normal machine operation.
2. Measure and add low sudsing, high
efficiency (HE) detergent, fabric softener
and bleach to the dispenser drawer. Refer to
section on Using Your Dispenser Drawer.
Follow instructions on detergent package for
amount to use.
NOTE: High efficiency (HE)
detergents are designed
especially for frontload
washers to reduce oversudsing
and maximize cleaning results.
Look for the HE logo or “high efficiency” on the
detergent’s label.
IMPORTANT: If using non-HE detergent, avoid
oversudsing by using only 1/2 of the detergent
manufacturer's recommended amount.
3. Load clothes into wash drum. (18 pounds
[8.1 kg] maximum dry clothes load.) Refer to
section on Load Sizes.
NOTE: Small items such as baby socks may get
caught around the door. Place these articles
inside a mesh garment bag.
TLW1991N
TLW1991N
FLW2169N
FLW2170N
FLW2170N

-11-
802753
When washing bulky items such as blankets and
comforters, use the HANDWASH/DELICATE cycle.
The cycle includes 12 minutes of gentle agitation
to clean items delicately and thoroughly. The
extra rinse cycle may be selected to ensure
complete removal of soap residue. A final spin
extracts the moisture at a low speed to maintain
the load’s balance and minimize wear to the
articles.
4. Close the loading door tightly. The washer will
not operate with the loading door open.
5. Set WASH/RINSE temperatures.
There are four or five WASH/RINSE temperatures
available – Boosted Hot Wash/Cold Rinse (select
models only), Hot Wash/Cold Rinse, Warm Wash/
Warm Rinse, Warm Wash/Cold Rinse, Cold Wash/
Cold Rinse.
Refer to the Water Temperature section for the
temperature that works best for your garments.
6. Select EXTRA RINSE if desired.
The extra rinse control is useful for detergent
sensitive skin. By pressing the EXTRA RINSE to
ON, the REGULAR, PERMANENT PRESS, and
DELICATE cycles will each provide an additional
rinse. If the rinse is desired, press the switch to
ON. When the extra rinse is not wanted, OFF
should be selected.
7. Select the cycle according to the type of
fabric being washed. Use the indicator dot on
the cycle selector knob as a guide.
8. Press and hold the START button for two
seconds to start the washer. The DOOR light
will come on after a short delay, water fill will
begin, and wash drum will begin tumbling.
NOTE: Washer door MUST be closed tightly to
start washer.
FLW2171N
FLW2174N
To reduce the risk of serious injury, do
not bypass the loading door switch by
permitting the washer to tumble or spin
with the loading door open.
W095
WARNING
FLW2175N
WARNING
Window may be hot in the Boosted Hot
and Hot wash cycles.
W325

-12-
802753
If items need to be added or removed after a cycle
has started, turn the cycle selector knob to the
OFF position. Wait until the DOOR light goes off
(approximately 45 seconds after cycle has been
stopped), open door, add or remove items, and
start the cycle again.
There is no agitator on this washer. Instead, the
clothing gently tumbles through the water. The
wash action consists of a period of tumbling in
one direction, a brief pause, and then a reverse
tumble in the opposite direction. The pauses are
part of the tumble action and add to the unique
cleaning capabilities of the washer. They are part
of the cycle.
NOTE: There will be extended pauses when
Boosted Hot Wash, if available, is selected
because the water is being heated.
To Change Cycles
If the selected cycle is not the correct cycle for
the fabric being washed, you may change the cycle
selection at any time until the first wash fill is
complete. Once the washer has filled for the first
part of the cycle (the wash portion), the current
cycle must be aborted and a new cycle must be
started.
To change the cycle before the first fill is
complete:
Change the cycle selected on the cycle selector
knob.
To change the cycle after the first fill is
complete and before the first wash is complete:
1. Abort the current cycle by changing the
cycle selector knob to the OFF position.
2. Set the WASH/RINSE temperature selector.
3. Set cycle selector knob.
4. Turn on extra rinse, if desired.
5. Press and hold the START button for two
seconds.
To change the cycle after the first wash is
complete:
NOTE: This should only be done if the speed of
the final extract is incorrect for the fabric being
washed. For example, if washing delicate items
on the REGULAR cycle, the high speed extract
may damage the fabric. Or, if washing towels or
jeans on the DELICATE cycle, the lower speed
extract would increase drying time.
1. Abort the current cycle by changing the
cycle selector switch to the OFF position.
2. Restart the cycle from the beginning. Refer
to the To Wash Clothes section.
To Pump Out Water After Aborting Cycle
Run a SPIN ONLY cycle. This cycle will perform a
high speed extract operation that will pump all of
the water out of the washer.
Manual Soaking
To soak a clothes load, start a wash in the
desired cycle. After fill is complete and wash drum
has started tumbling, turn the cycle selector
knob to OFF. When the clothes have soaked the
desired length of time, turn the cycle selector
knob to the cycle and press the start button to
restart the cycle.

-13-
802753
DOOR Light
When the washer is started, the DOOR light will
come on after a short delay. The light will turn off
approximately 45 seconds after the cycle is
complete.
WASH Light
This light comes on during the wash part of each
cycle.
RINSE Light
This light comes on for the rinse portion of each
cycle.
FINAL SPIN Light
This light comes on while the wash load is in the
final spin of the cycle.
HEATING Light (Red Light – on select
models only)
This light comes on during the Boosted Hot
setting only. While the washer is heating, the
HEATING light will turn on.
Out of Balance Load
If at the end of the cycle, the load is dripping wet,
the washer has limited the spin speed. This is to
prevent damage to the unit if there is a severely
unbalanced load.
If this condition occurs, redistribute the load
manually and run a RINSE & SPIN cycle.
If the condition persists, consider steps
discussed in the Before Washing section.

-14-
802753
Available Washing Cycles
The cycles of your washer include several different
settings. Refer to the table below for what can be
expected during the cycles that you select.
Regular Cycle
Activity Water Temperatures
Wash Fill & Tumble Boosted Hot (select models),
Hot, Warm or Cold
Spin Pulse Spin
Rinse Fill & Tumble Cold
Spin Pulse Spin
Extra Rinse (Optional) Fill & Tumble Cold
Spin Pulse Spin
Final Rinse Fill & Tumble Warm or Cold
Spin Pulse Spin
Spin Medium Spin (650 rpm)
Final Spin High Spin (1000 rpm)
Fluff Tumble
Permanent Press Cycle
Activity Water Temperatures
Wash Fill & Tumble Boosted Hot (select models),
Hot, Warm or Cold
Spin Pulse Spin
Rinse Fill & Tumble Cold
Spin Pulse Spin
Extra Rinse (Optional) Fill & Tumble Cold
Spin Pulse Spin
Final Rinse Fill & Tumble Warm or Cold
Spin Pulse Spin
Spin Medium Spin (650 rpm)
Final Spin High Spin (1000 rpm)
Fluff Tumble

-15-
802753
Common Washer Sounds
Delicate Cycle
Activity Water Temperatures
Wash Fill & Tumble Boosted Hot (select models),
Hot, Warm or Cold
Spin Pulse Spin
Rinse Fill & Tumble Cold
Spin Pulse Spin
Extra Rinse (Optional) Fill & Tumble Cold
Spin Pulse Spin
Final Rinse Fill & Tumble Warm or Cold
Spin Pulse Spin
Final Spin Low Spin (500 rpm)
Fluff Tumble
Rinse & Spin Cycle
Activity Water Temperatures
Rinse Fill & Tumble Warm or Cold
Spin Pulse Spin
Spin Medium Spin (650 rpm)
Final Spin High Spin (1000 rpm)
Fluff Tumble
NOTE: The Rinse setting will give a cold rinse when the optional Extra Rinse is selected.
Sounds Cause
Accelerating This sound is heard during the spin portion of every cycle.
Tapping These sharp sounds may come from metal fasteners, zippers, belt buckles or coins
hitting the wash drum or door glass.
Thumping Washer may be out of balance. Washer is designed to balance the load. If the washer is
severely unbalanced, turn cycle selector knob to OFF and redistribute the load.
Rumbling Washer may not be level. Stop washer and adjust leveling legs. Refer to INSTALLATION
INSTRUCTIONS for details.

-16-
802753
Using Your Dispenser Drawer
Detergent Compartment
The detergent compartment is located on the
right side of the dispenser drawer. Refer to
compartment 1 of illustration.
Use low sudsing, high efficiency (HE) powdered or
liquid detergents that are recommended for use
with frontload washers. Powdered bleach can also
be used in the dispenser along with the detergent.
NOTE: High efficiency (HE)
detergents are designed
especially for frontload
washers to reduce oversudsing
and maximize cleaning results.
Look for the HE logo or “high efficiency” on the
detergent’s label.
NOTE: If using non-HE detergent, avoid
oversudsing by using only 1/2 of the detergent
manufacturer's recommended amount.
When adding detergent, use only the
recommended amount. Adding too much
detergent or using regular sudsing detergent
could result in an oversudsing condition, which
would require additional rinsing with cold water.
Use care when adding detergent so as not to spill
into the other compartments. Detergent mixed
with fabric softener can make the softener
gummy.
NOTE: The normal level of suds should be below
center of the door.
Liquid Bleach Compartment
The bleach compartment is located in the left
front corner of the dispenser drawer. Refer to
compartment 2 of illustration. It has been
designed to prevent the dispensing of undiluted
bleach onto the clothes load.
Use liquid bleach in the dispenser. Po w d e re d
bleach must not be used in this compartment.
Powdered bleach can be used in the detergent
compartment only and can be added along with
the detergent.
DO NOT use more than the maximum level
indicated for the bleach compartment. Adding
more than the maximum amount could result in
early dispensing of the product and possible
damage to fabrics.
Carefully pour recommended amount of bleach
into the compartment before starting wash load.
Be careful not to spill undiluted bleach. It is a
strong chemical and can damage some fabrics if
it is not properly diluted. Follow bleach
manufacturer’s label for proper use.
Carefully close dispenser door. Do not allow bleach
to spill into other compartments.
1Detergent
2Bleach
3Fabric Softener
3
21
FLW2172N

-17-
802753
Fabric Softener Compartment
The fabric softener compartment is located in
the left rear corner of the dispenser drawer. Refer
to compartment 3 of illustration.
Use no more than the maximum level indicated for
the fabric softener compartment. Adding more
than the maximum amount could result in early
dispensing of the product and possible staining of
fabrics.
Add fabric softener to compartment before
beginning wash load. The fabric softener will be
dispensed during the last rinse cycle.
Carefully close dispenser door. Do not allow
softener to spill into other compartments.
To Clean the Dispenser
Pour hot water into the dispenser drawer, making
sure it flushes through each compartment. Use a
small brush to thoroughly clean out any residue.
It is not necessary to remove the dispenser
drawer for normal maintenance. If the dispenser
drawer needs to be removed for any reason, use
dispenser drawer removal tool, Part No. 318P4, to
avoid damage to the drawer.

-18-
802753
Clothing Care
Clothing Care Labels
The symbols below appear on many clothing care
labels. Following the instructions on each label will
help ensure the best laundry results.
WASH
BLEACH
IRON
TLW2010N
Machine Wash Cycle
Normal
TLW2011N
Pe r m a n e n t
Press/Wrinkle
Resistant
TLW2013N
Hand wash
Warning
Signs
TLW2015N
Hot TLW2016N
Warm
TLW2017N
Cold
TLW2018
Do not wring
TLW2014N
Do not wash
Water Temperature
TLW2012N
Gentle/
Delicate
TLW2019N
TLW2020N
TLW2021N
Bleach Symbols
Any bleach
(when needed)
Warning
Signs
Only
non-chlorine
bleach
(when needed)
Do not bleach
TLW2027N
TLW2024N
TLW2025N
Iron - Dry or Steam
Low
Warning
Signs
TLW2022N
Iron
TLW2023N
High Medium
No steam
Do not iron
DRY
DRYCLEAN
DRY2033N
DRY2034N
DRY2035N
DRY2036N
DRY2037N
DRY2038N
DRY2039N
DRY2040N
DRY2041N
DRY2042N
DRY2045N
DRY2046N
Tumble Dry Cycle Warning
Signs
Dry Do not
tumble dry
Normal Pe r m a n e n t
Press/Wrinkle
Resistant
Gentle/
Delicate
High Medium Low No heat/Air
Do not dry
(used with
Do not
wash)
DRY2043N
Line dry/
Hang to dry In the shade
Special Instructions
DRY2044N
Drip dry Dry flat
Heat Setting
DRY2048N
Dryclean Warning
Signs
DRY2047N
Dryclean
Do not Dryclean

-19-
802753
Washing Special Items
NOTE: Always Follow Manufacturer’s Care Label
Instructions.
Bedding • Warm wash and warm rinse.
• Use DELICATE cycle.
• Pretreat heavily soiled areas before washing.
• When washing an electric blanket, protect the plug by stitching the edge of the
blanket over the plug. Only dry in dryer if manufacturer says it can be done.
Diapers • Rinse out diapers immediately in cold water and soak in a diaper pail with a
small amount of detergent or enzyme presoak. Soak before washing.
• Limit wash load to two dozen cloth diapers.
• Use an all-purpose, low-sudsing detergent.
Draperies, Curtains, Slip Covers • Shake to remove dust. Remove hooks and close zippers.
• Sun-damaged draperies and curtains will not withstand washing.
• Use warm water.
• Wash curtains frequently. They can be weakened from soil, fumes, dust, and
the sun.
• Fiberglass curtains need gentle care. Read care label to see if washable. Some
fiberglass curtains should be hand washed.
Pillows
(Feather and Down)
• Do not wash pillows unless they can be dried in dryer. They may mildew if not
dried completely.
• Use warm wash, cold rinse and low-sudsing detergent.
Rugs • Shake before washing. Do not use hot water on rubber-backed rugs.
• Wash two or three rugs to balance the washer.
Slips and Nightgowns • Wash often using all-purpose detergent, warm or hot water and cold rinse on
the PERMANENT PRESS cycle.
• To keep nylons and polyesters white, wash only with whites and use chlorine
bleach occasionally.
• Use fabric softener to remove static electricity.
Shoes • Most shoes made of cloth and rubber can be washed.
• Use the REGULAR cycle and warm water.
• Wash with towels to balance the load.
Small Items • Wash small items such as baby socks in a mesh garment bag.
Cotton Knits • Unless the label indicates it is preshrunk, cotton knits will probably shrink to
some degree.
• Wash water should be hot or warm, suitable for color and soil.
• Rinse water should be cold.
Rayon Knits • Rayon stretches and shrinks easily. Treat as a delicate fabric and wash gently.
Synthetic Fiber Knits • These items will generally keep their shape.
• Make sure trimmings (including belts) are machine washable, seams are not
puckered, and zippers and trimmings are well fastened.
Knits of Manufactured Fibers • Use PERMANENT PRESS cycle.
• Wash water should be warm, or suitable for color and soil.
• Rinse water should be cold.
• Do not wash with lint-shedding fabrics.
continued

-20-
802753
NOTE: We do not recommend starching in this washer.
Sweaters of Manufactured Fibers • Follow directions for comparable knits.
• Button sweaters and turn inside out.
• Stretch to shape after washing.
• Avoid pulling when wet.
Wool Items • Unless labeled “machine washable,” wash by hand.
Permanent Press • Wash often. Permanent press clothes tend to look clean even when they should
be washed.
• Do not wash with lint-shedding loads.
• Pretreat grease stains and oily areas.
• Use the PERMANENT PRESS cycle, hot or warm water, cold rinse and
recommended amount of low-sudsing detergent.
• Use fabric softener in the dispenser drawer. This will reduce the static
electricity which attracts lint and makes garments cling.
