Alliance Laundry Systems 801479R2 Guide

Installation/Operation
www.comlaundry.com
Frontload Washers
Metered Commercial
FLW1523
C
Part No. 801479R2
April 2012
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.

801479 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense, caution, and
carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by the
person(s) installing, maintaining, or operating the washer.
Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not
understand.
Failure to install, maintain, and/or operate this machine according to the manufacturer's
instructions may result in conditions which can produce bodily injury and/or property
damage.
W030
WARNING

© Copyright 2012, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
2801479© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Replacement Parts .............................................................................. 4
Safety Information.............................................................................. 5
Explanation of Safety Messages........................................................... 5
Important Safety Instructions ............................................................... 5
Installation........................................................................................... 7

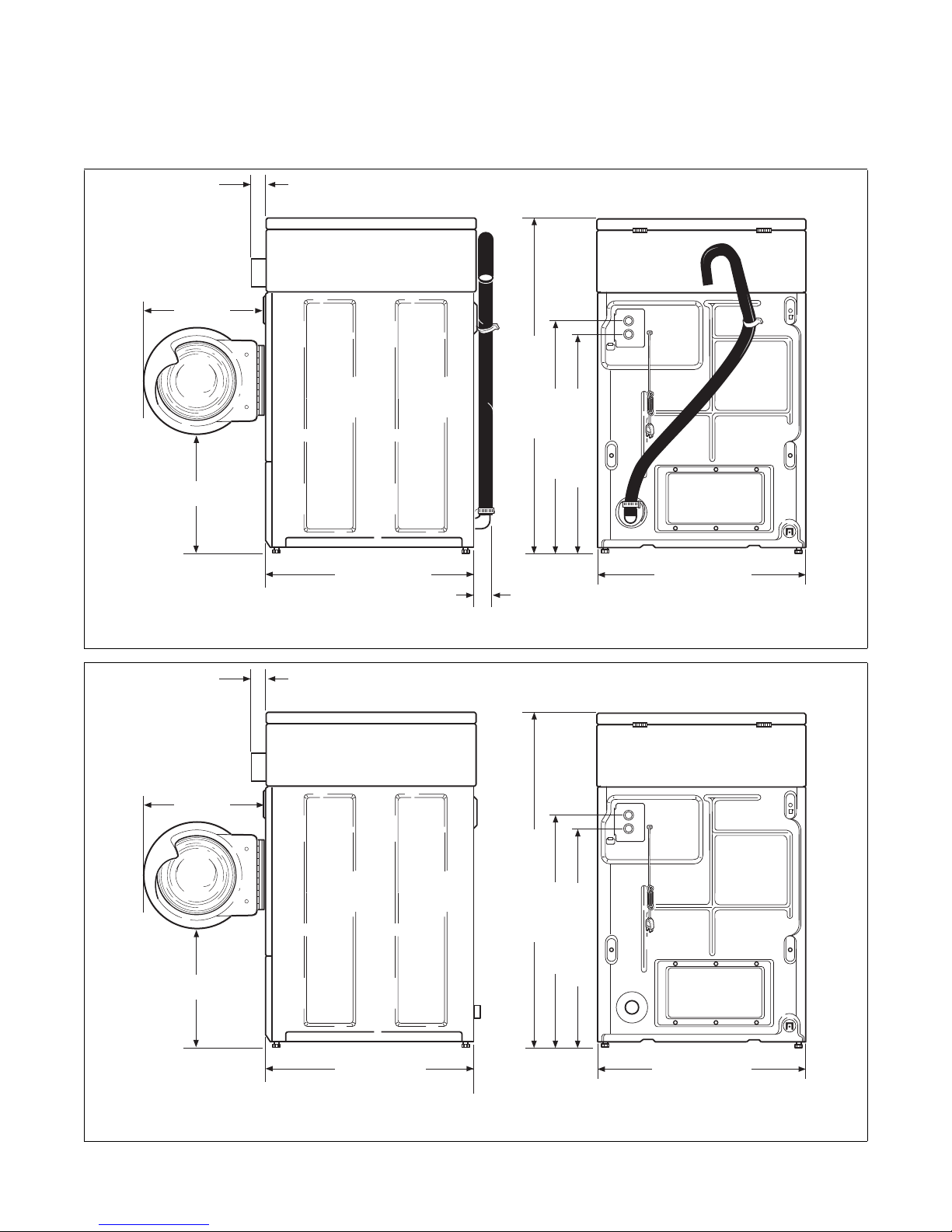

Dimensions and Specifications............................................................. 7
Before You Start ................................................................................... 9
Tools ................................................................................................ 9
Electrical .......................................................................................... 9
Water................................................................................................ 9
Installing the Washer ............................................................................ 10
Step 1: Position Washer Near Installation Area .............................. 10

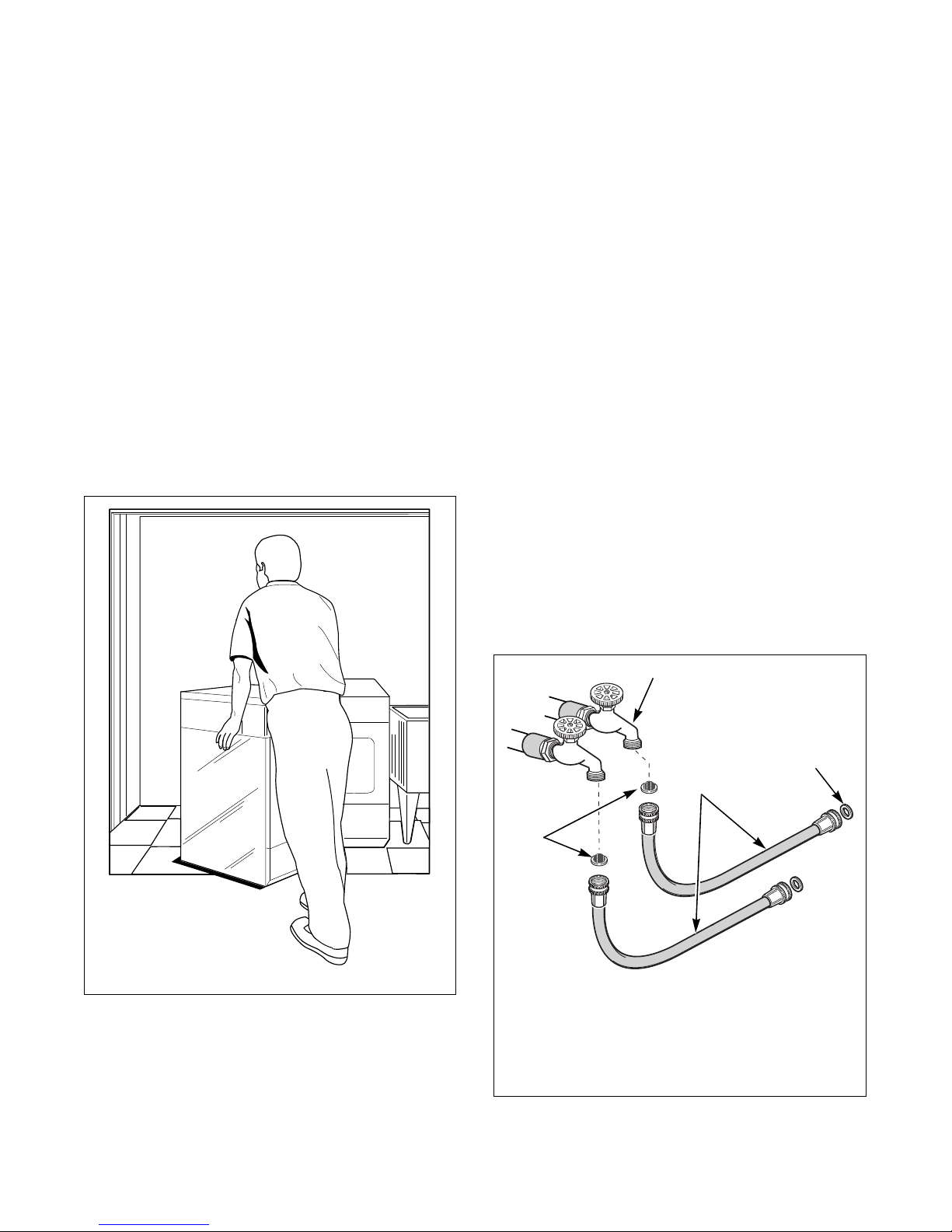

Step 2: Connect Fill Hoses............................................................... 10
Step 3: (Non-Gravity Drain Models Only)
Connect Drain Hose to Drain Receptacle....................................... 11
Step 4: (Gravity Drain Models Only)
Connect Drain Outlet to Drain System........................................... 12
Step 5: Position and Level the Washer ............................................ 13
Step 6: Remove the Shock Sleeves and Shipping Brace ................. 14
Step 7: Wipe Out Inside of Wash Drum .......................................... 14
Step 8: (Supply Injection Models Only)
Connect External Supplies to Washer ............................................ 14
Control Function Test ...................................................................... 15
Step 9: Plug In the Washer............................................................... 16
Step 10: Check Installation .............................................................. 16
Moving Washer to a New Location ................................................. 16
Electrical Requirements........................................................................ 17
Grounding Instructions .................................................................... 17
Water Supply Requirements................................................................. 19
Water Temperature .......................................................................... 19
Water Pressure ................................................................................. 19
Risers................................................................................................ 20
Operation............................................................................................. 21
Operation Instructions for MDC Washers............................................ 21
Step 1: Set Fabric Selector and Wash Temperature......................... 21
Step 2: Add Laundry Supplies ......................................................... 21
Step 3: Load Laundry....................................................................... 22
Step 4: Close Loading Door............................................................. 22
Step 5: Insert Coin(s) or Card .......................................................... 22
Step 6: Start Washer......................................................................... 23
Indicator Lights................................................................................ 23
Operation Instructions for NetMaster Washers .................................... 24
Step 1: Load Laundry....................................................................... 24
Step 2: Close Loading Door............................................................. 24
Step 3: Add Laundry Supplies ......................................................... 24
Step 4: Set Fabric Selector............................................................... 25
Step 5: Set Wash Temperature......................................................... 25

801479 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 6: Insert Coin(s) or Card .......................................................... 25
Step 7: Start Washer......................................................................... 26
Indicator Lights................................................................................ 26
Maintenance ........................................................................................ 27
User-Maintenance Instructions............................................................. 27
Cold Weather Care........................................................................... 27
Care of Your Washer ....................................................................... 27
Replacing Hoses............................................................................... 27
Filter Screens ................................................................................... 27
Vacations and Extended Non-Use ................................................... 27
Before You Call for Service ................................................................. 28
If Service Is Required ........................................................................... 29
Information for Handy Reference......................................................... 30
Installer Checklist................................................................ Back Cover

801479
4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Replacement Parts
If replacement parts are required, contact the source
from which you purchased your washer, or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

5
801479 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
(Save These Instructions)
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas
is flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
9. Do not install or store the washer where it will be
exposed to water and/or weather.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

Safety Information
801479
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
13. Use your washer only for its intended purpose,
washing clothes.
14. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
15. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
16. To reduce the risk of fire, clothes which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
18. Keep your washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have your washer checked by a
qualified service person.
19. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
20. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
21. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
22. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
23. Always follow the fabric care instructions
supplied by the garment manufacturer.
24. Never operate the washer with any guards and/or
panels removed.
25. DO NOT operate the washer with missing or
broken parts.
26. DO NOT bypass any safety devices.
27. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

7
801479 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
Dimensions and Specifications
FLW1962N
FLW1962N
2 in.
(5.1 cm)
43.6 in. (110.7 cm)
29.6 in. (75.1 cm)
28 in. (71.1 cm)
17.5 in.
(44.8 cm)
26.9 in. (68.3 cm)
14.3 in.
(36.3 cm)
2 in.
(5.1 cm)
31.1 in. (79 cm)
NON-GRAVITY DRAIN MODELS WITH OLD STYLE DOOR
FLW1934N
FLW1934N
2 in.
(5.1 cm)
43.6 in. (110.7 cm)
29.6 in. (75.1 cm)
28 in. (71.1 cm)
17.5 in.
(44.8 cm)
26.9 in. (68.3 cm)
14.3 in.
(36.3 cm)
31.1 in. (79 cm)
GRAVITY DRAIN MODELS WITH OLD STYLE DOOR

Installation
801479
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
FLW2093N
FLW2093N
2 in.
(5.1 cm)
43.6 in. (110.7 cm)
29.6 in. (75.1 cm)
28 in. (71.1 cm)
18.7 in.
(47.5 cm)
26.9 in. (68.3 cm)
14.3 in.
(36.3 cm)
2 in.
(5.1 cm)
31.1 in. (79 cm)
NON-GRAVITY DRAIN MODELS WITH NEW STYLE DOOR
FLW2094N
FLW2094N
2 in.
(5.1 cm)
43.6 in. (110.7 cm)
29.6 in. (75.1 cm)
28 in. (71.1 cm)
18.7 in.
(47.5 cm)
26.9 in. (68.3 cm)
14.3 in.
(36.3 cm)
31.1 in. (79 cm)
GRAVITY DRAIN MODELS WITH NEW STYLE DOOR

Installation
9
801479 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Before You Start
Tools
For most installations, the basic tools you will need
are:
Figure 1
Electrical
Refer to serial plate for specific electrical
requirements. For more detailed information, refer to
section on Electrical Requirements.
Water
Washer needs two standard 3/4 inch (19.1 mm) water
supply faucets with a pressure between 20 and
120 pounds per square inch (138 to 827 kPa). For
more detailed information refer to section on Water
Supply Requirements.
D074I
1Wrench
2Screwdriver
3Pliers
4Socket Wrench
5Level
123
5
4

Installation
801479
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installing the Washer
NOTE: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
Step 1: Position Washer Near Installation
Area
Move washer so that it is within 4 feet (1.2 meters) of
the desired area of installation.
NOTE: For best performance and to minimize
vibration or movement, install washer on a solid,
sturdy and level floor. Some floors may need to be
reinforced, especially on a second floor or over a
basement. Do not install the washer on carpeting,
soft tile, a platform or other weakly supported
structures.
Figure 2
Step 2: Connect Fill Hoses
NOTE: Refer to section on Water Supply
Requirements before connecting fill hoses.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
Insert each filter screen into the end of each fill hose
that will connect to the water supply faucet. The screen
must be facing outward. Refer to Figure 3.
Insert each plain rubber washer into the other end of
each fill hose that will connect to the water mixing
valve at the rear of the washer. Refer to Figure 3.
IMPORTANT: Thread hose couplings onto valve
connections finger-tight, then approximately
1/4 turn with pliers. DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
Figure 3
H054I
H054I
TLW1976N
1Faucet
2Fill Hoses
3Plain Rubber Washer
4Filter Screens
HOT
COLD
2
1
3
4

Installation
11
801479 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a yearly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Figure 4
Step 3: (Non-Gravity Drain Models Only)
Connect Drain Hose to Drain Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by removing the shipping tape.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-3/8 inch (3.5 cm) outside
diameter drain hose.
Figure 5
FLW1974N
1Water Supply Faucets
2Hot Water Connection
3Cold Water Connection
4Fill Hoses
FLW1974N
2
1
3
4
WATER
MIXING
VALVE
FLW1963N
1Shipping Tape
1

Installation
801479
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. This will
prevent the drain hose from dislodging from drain
receptacle during use.
Figure 6
Step 4: (Gravity Drain Models Only)
Connect Drain Outlet to Drain System
Remove drain fitting and hose clamp from accessories
bag, and clamp fitting onto drain outlet.
Connect the drain fitting to a vented drain system
using a flexible connection (obtain locally). The drain
system must be vented to prevent an air lock or
siphoning.
IMPORTANT: Increasing the drain hose length,
installing elbows, or causing bends will decrease
drain flow rates and increase drain times,
impairing machine performance.
Figure 7
FLW1964N
1Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm)
Flw1964N
1
24 TO 36 in.
(61 TO 91.44 cm)
RECOMMENDED
HEIGHT
FLW1935N
1Drain Trough
2Drain Outlet
Flw1935N
2
1

Installation
13
801479 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 5: Position and Level the Washer
Place washer in position on a solid, sturdy and level
floor. Installing the washer on any type of carpeting,
soft tile, a platform or other weakly supported
structures is not recommended.
Loosen 7/8 in. locknut and adjust the front and rear
leveling legs until the washer is level from side to side
and front to back (using a level). Washer should not
rock.
NOTE: Level must rest on raised portion of top
panel. Refer to Figure 8.
Tighten the locknuts securely against the washer
base using the 7/8 in. wrench. If the locknuts are not
tight, washer will move out of position during
operation.
NOTE: DO NOT slide washer across floor if the
leveling legs have been extended, as legs and base
could become damaged.
NOTE: Use of the dispenser drawer or washer door
as a handle in the transportation of the washer may
cause damage to the dispenser or door.
Remove rubber feet from accessories bag and place on
all four leveling legs.
Verify that unit doesn’t rock.
Figure 8
Washers elevated above floor level must
be anchored to that elevated surface,
base or platform. The material used to
elevate the washer should also be
anchored to the floor to ensure that the
washer will not walk or that the washer
can not be physically pulled, tipped or
slid from its installed position. Failure to
do so may result in conditions which can
produce serious injury, death and/or
property damage.
W306
WARNING
FLW2095N
1Leveling Leg
2Washer Base
3Level
4Locknut
5Rubber Foot
FLW2095
2
1
3
4
5

Installation
801479
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 6: Remove the Shock Sleeves and
Shipping Brace
Remove front access panel by removing the two screws.
Remove bolts and lockwashers from shipping brace
with 9/16 in. wrench and remove brace. Remove shock
sleeves by pulling on the yellow rope. Remove label
from front side of front access panel and place on
backside of front access panel.
NOTE: The shipping brace, bolts, washers and
shock sleeves should be saved and MUST be
reinstalled whenever the washer is moved more
than four feet. Do not lift or transport washer from
front or without shipping materials installed.
Store the shipping materials in the bag provided in the
accessories bag. Save materials for use whenever the
washer is moved.
Reinstall front access panel.
IMPORTANT: DO NOT tip washer more than
6 inches (152.4 mm) in any direction after shipping
brace has been removed. Shock absorbers may
separate and damage to washer may result. For
leveling purposes, the washer may be tilted a
maximum of 6 inches (152.4 mm) in any direction.
Figure 9
NOTE: The shipping materials MUST be
reinstalled whenever the washer is moved. Refer to
section on Moving Washer to a New Location for
instructions.
Step 7: Wipe Out Inside of Wash Drum
Before using washer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside wash drum.
Figure 10
Step 8: (Supply Injection Models Only)
Connect External Supplies to Washer
IMPORTANT: Undiluted chemical dripping can
damage the washer.
1. Remove two nozzles from accessories bag. Use
either the 3/8 inch or 1/4 inch nozzles, depending
on the diameter of the dispenser tubing used.
2. Attach nozzles to rear of machine. Connection
point located on cabinet, above water mixing
valve. Refer to Figure 11.
3. Connect supply hoses to nozzles and secure with
hose clamps (obtain locally). Refer to Figure 11.
NOTE: Hoses can be connected to either nozzle.
4. Refer to supply injection system instructions and
label inside washer junction box cover
(Figure 12) for electrical connection.
Do not attempt to make supply injection
electrical connections to points other than those
provided specifically for that purpose by the
factory.
5. Refer to supply injection system instructions for
details on operation.
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
H336I
2
1
4
3
FLW2096N

Installation
15
801479 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Figure 11
A junction box on the rear panel houses a terminal
strip which furnishes supply output signals for the
supply injection pumps. These are dry contacts.
Voltage needs to be supplied. Refer to Figure 12 for
the injection interface label.
Figure 12
These terminals may be used to provide signals to the
supply injection system but must not be used to
provide power to the actual pump.
Any injection system pump which requires
110 VAC must be powered by a separate external
power source.
Control Function Test
The washer should be cleaned after the installation is
complete. A function test should then be executed on
the unloaded machine:
1. Check the power supply for such characteristics
as correct voltage, phase, and cycles to be certain
they are correct for the washer.
2. Open manual shut-off valves to the washer.
3. Apply power to the washer.
Supply Injection System
Number of liquid supply connections
(1–Detergent and 2–Softener)
2
Liquid supply connection size,
in. (mm)
3/8 (9.52)
or
1/4 (6.35)
FLW2027N
1Injection Point
2Nozzle
3Supply Dispenser Pump Outlet
Wear eye and hand protection when
handling chemicals; always avoid direct
contact with raw chemicals. Read the
manufacturer’s directions for accidental
contact before handling chemicals. Ensure
an eye-rinse facility and an emergency
shower are within easy reach. Check at
regular intervals for chemical leaks.
SW016
WARNING
2
1
3
FLW2028N
DETERGENT
DISPENSER
CONNECTION
SOFTENER
DISPENSER
CONNECTION
SOFTENER
RELAY
DETERGENT
RELAY
CHEMICAL INJECTION
ELECTRICAL INTERFACE
NO CONNECTION
TERMINAL
BLOCK
YELLOW
YELLOW/BLACK
RED
RED/BLACK
801653R1
NOTE: Normally Open Contacts.
Contacts Close to Start Chemical Injection.
Maximum Load Connection per Contact:
1A @ 120VAC/240VAC

Installation
801479
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 9: Plug In the Washer
Refer to section on Electrical Requirements and plug
the washer in.
Figure 13
Step 10: Check Installation
Refer to Installer Checklist on the back cover and
make sure that washer is installed correctly.
Moving Washer to a New Location
To prevent damage while moving the washer, the
shipping materials MUST be reinstalled.
Reinstallation of Shipping Materials
Disconnect washer from electrical supply.
Remove front access panel by removing two screws.
Place the shock sleeves on all four shock absorbers.
Refer to Figure 14.
Insert hooked end of shipping brace into the open slot
of the motor mount. Attach with bolts and lockwashers.
Refer to Figure 14.
Reinstall front access panel.
Figure 14
Refer to step 6 for proper procedures whenever the
washer is moved.
D254I
D254I
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
H336I
2
1
4
3

Installation
17
801479 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Electrical Requirements
(120 Volt, 60 Hertz with 3-Prong Grounding Plug)
NOTE: The wiring diagram is located in the
control cabinet.
Figure 15
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current) circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 16
to determine correct polarity of the wall receptacle.
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT. DO NOT OVERLOAD
CIRCUITS!
Grounding Instructions
The washer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The washer is equipped
with a cord having an equipment-grounding conductor
and a 3-prong grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided with the washer – if
it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
D009I
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA No. 70, and such local
regulations as might apply. It is the
customer’s responsibility to have the
wiring and fuses checked by a qualified
electrician to make sure the laundry room
has adequate electrical power to operate
the washer.
W227
WARNING
DO NOT OVERLOAD
CIRCUITS
DO NOT USE
ADAPTER
DO NOT USE AN
EXTENSION CORD
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.
W082
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is
properly grounded.
W216
WARNING

Installation
801479
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that illustrated, the
qualified electrician should correct the problem.
Figure 16
D799I
1L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
12
3
4
5
STANDARD 120 VOLT, 60 HERTZ,
3-WIRE EFFECTIVELY GROUNDED CIRCUIT
120 ± 12
V.A.C.
120 ± 12
V.A.C .
0
V.A.C.
