Alliance Laundry Systems BWNBC2PP112TW01 Owner's manual

Programming
MDC
Topload Washer
Refer to Page 6 for Model Identification
TLW1R_SVG
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. 202713ENR1
December 2016

WARNING
Failure to install, maintain, and/or operate this ma-
chine according to the manufacturer's instructions
may result in conditions which can produce bodily
injury and/or property damage.
W030
WARNING
For your safety and to reduce the risk of fire or an
explosion, do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or
any other appliance.
W022
NOTE: The WARNING and IMPORTANT instructions ap-
pearing in this manual are not meant to cover all possi-
ble conditions and situations that may occur. It must
be understood that common sense, caution, and care-
fulness are factors which cannot be built into these
washers. These factors MUST BE supplied by the per-
son(s) installing, maintaining, or operating the washer.
Always contact the distributor, service agent, or the manufacturer
about any problems or conditions you do not understand.
Read all instructions before using washer.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. 202713ENR1

Table of Contents
Model Indentification............................................................................. 6
Preliminary Information.........................................................................7
About the Control........................................................................................... 7
Glossary of Terms...........................................................................................7
Power Failure Recovery.................................................................................. 7
Card Reader Communications (Card Models Only)............................................7
Control Identification............................................................................. 8
SELECT CYCLE Keypads..............................................................................8
START Keypad.............................................................................................. 8
Display Identification..............................................................................9
Light Emitting Diodes (LEDs)......................................................................... 9
Four 7-Segment Digits.................................................................................... 9
Washer Operation.................................................................................10
Start Up....................................................................................................... 10
Ready Mode.................................................................................................10
Opening the Washer Lid................................................................................ 10
Signals.........................................................................................................10
Special Features ................................................................................... 11
Programming Control....................................................................................11
Collecting Audit Information......................................................................... 11
Testing Machine and MDC Functions............................................................. 11
Rapid Advance Feature..................................................................................11
Coin Drop.................................................................................................... 11
Start Pulse Operation.....................................................................................11
Service Door and Coin Vault Openings........................................................... 11
Opening the Service Door..................................................................... 12
Coin Models.................................................................................................12
Card Reader Models......................................................................................12
Entering the Manual Mode................................................................... 13
How to Enter the Manual Mode......................................................................13
Manual Mode Features.................................................................................. 13
© Copyright 2016, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. 202713ENR1

Programming Control...........................................................................14
What Can Be Programmed?........................................................................... 14
Programmable Options Available................................................................... 14
Vend Price AtS............................................................................................. 14
Coin #1 Amount dEn1...................................................................................15
Coin #2 Amount dEn2...................................................................................15
Start Pulse Value PLSE..................................................................................16
Cycle Time CyCL......................................................................................... 17
Configuration Display CnFg.......................................................................... 17
Configuration Programming....................................................................... 18
Default Cycle dCyC...................................................................................... 20
How to Exit Programming Feature..............................................................21
Collecting Audit Information................................................................ 22
How to Enter Audit Feature........................................................................... 22
How to Read Audit Data................................................................................22
How to Exit Audit Feature When Using Manual Mode.....................................22
Testing Machine and MDC Functions................................................... 23
How to Enter Testing Feature.........................................................................23
How to Start Tests.........................................................................................23
How to Exit Testing...................................................................................... 23
Diagnostic Test Descriptions..........................................................................23
Production Test Cycle....................................................................................23
Error Codes..........................................................................................25
Rapid Advance Feature.........................................................................26
How to Enter Rapid Advance from Ready Mode..............................................26
How to Enter Rapid Advance During an Active Cycle......................................26
How to Use Rapid Advance........................................................................... 26
How to Exit Rapid Advance Feature............................................................... 26
Power Fail Recovery............................................................................. 27
Default Washer Settings........................................................................28
Default Cycle............................................................................................... 28
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. 202713ENR1

Model Indentification
Information in this manual is applicable to these washer models:
BWNBC2PP112TW01 HWNBX2SP122DW01 SWNBX1SP542DW01
BWNBX2PP112TW01 HWNBY2PP112TW01 SWNBX2PP112TW02
BWNBX2PP302AW01 HWNBY2SP112CW01 SWNBX2SP082JW01
BWNBY2PP112TW01 NWNBX2SP302NW22 SWNBX2SP112FW27
HWNBC2PP112TQ01 PWNBC2PP112TG02 SWNBX2SP112TQ01
HWNBC2PP112TW01 PWNBX2PP112TG02 SWNBX2SP112TW01
HWNBD2SP112CQ01 PWNBX2PP302AG02 SWNBX2SP122DW01
HWNBD2SP112CW01 SWNBC2PP112TQ01 SWNBX2SP302AW01
HWNBE2SP112CW01 SWNBC2PP112TW01 SWNBX2SP302NQ22
HWNBX1SP122DW01 SWNBC2PP112TW02 SWNBX2SP302NW22
HWNBX1SP542DW01 SWNBC2SP112TQ01 SWNBY2PP112TW01
HWNBX2SP112CW01 SWNBC2SP112TW01 SWNBY2SP112TW01
HWNBX2SP112FW28 SWNBX1SP122DW01 TWNBX2SP302NW22
Model Indentification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. 202713ENR1

Preliminary Information
About the Control
MDC on the commercial washer is a programmable control that
lets the owner control machine features by pressing a sequence of
keypads.
MDC allows the owner to program cycle time, set vend prices,
retrieve audit information and run diagnostic tests. Washers ship-
ped from the factory have a programmable default cycle (PERM
PRESS/WARM) built in.
IMPORTANT: In the event of a power failure, the control
will not have to be reprogrammed. It is designed with a
memory system that will remember how it was pro-
grammed (for up to 10 years) until the electrical power
is restored.
IMPORTANT: It is extremely important that the washer
has a positive ground connection and that all mechani-
cal and electrical connections to the control are made
before applying power to or operating the washer.
Glossary of Terms
The following are a few terms and abbreviations to learn. These
are referred to throughout the instructions.
Four-Digit Display – This term refers to the window area of the
control that displays words and values.
LED (Light Emitting Diode) – This term refers to the lights next
to the keypads and status words of the control.
Power Failure Recovery
If power fails during an active cycle, the cycle status is saved in
memory. If the European Community (EC) Power Recovery is
disabled, control will automatically resume the cycle (washer lid
must be closed). If EC Power Recovery is enabled and power is
restored in less than two seconds, the washer will automatically
resume the cycle (washer lid must be closed). If the length of the
power failure is greater than two seconds, the user must press the
START keypad to resume the cycle.
Card Reader Communications (Card
Models Only)
The control will communicate with a third party card reader,
available at extra cost from various card reader manufacturers.
Contact the card reader manufacturer of your choice for availabil-
ity and additional information.
Preliminary Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. 202713ENR1

Control Identification
SELECT CYCLE Keypads
SELECT CYCLE keypads are used to select the specific washer
cycle. These keypads include NORMAL/HOT, NORMAL/
WARM, PERM PRESS/ WARM, and DELICATES/COLD. The
selection of one of these keypads will light up the corresponding
LED. The default cycle is PERM PRESS/WARM as shipped
from the factory. The SELECT CYCLE keypads are not active
after the first fill cycle of the washer. Pressing the flashing
START keypad will confirm selection and cycle will begin.
START Keypad
The START keypad is used to start the washer after the full vend
price has been satisfied and the washer lid is closed.
Both the START keypad and the SELECT CYCLE keypads are
used in various combinations for programming cycles, retrieving
audit information, running diagnostic tests, and other operations
described in How to Enter the Manual Mode.

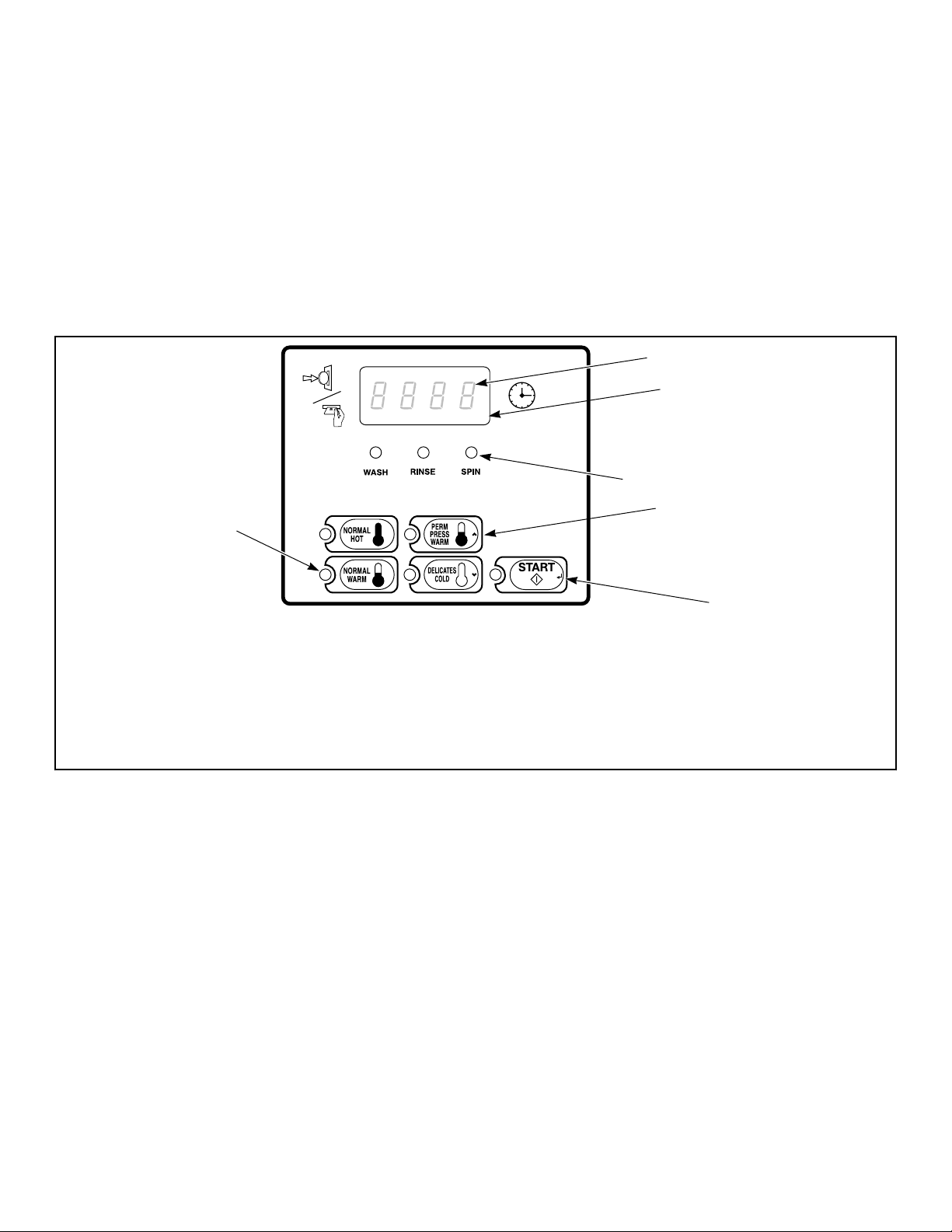

TLW1R_SVG1
1
2
3
5
6
4
1. Four 7-Segment Digits
2. Four-Digit Display
3. LED Status Lights
4. SELECT CYCLE Keypads
5. START Keypad
6. LED Light
Figure 1
Control Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. 202713ENR1

Display Identification
Light Emitting Diodes (LEDs)
LIGHT EMITTING DIODES (LEDs) are used to indicate the
chosen cycle and cycle status. See below for information on each
LED.
START LED
The START keypad LED flashes whenever the washer is not in a
cycle, the full vend price has been satisfied, and the washer lid is
closed. When the START keypad is pressed, the cycle will begin
or resume. The START LED will shut off when the START key-
pad is pressed.
WASH LED
WASH LED is lit at the beginning of a wash portion of the cycle
and will remain lit until the wash is complete.
RINSE LED
RINSE LED is lit at the beginning of a rinse portion of the cycle
and will remain lit until the rinse is complete.
SPIN LED
The SPIN LED is lit for all spin cycles.
Four 7-Segment Digits
The 7-SEGMENT DIGITS are used to display the time remain-
ing in a cycle, vend price, error messages and descriptive codes.
During diagnostic testing or manual programming of the control,
these digits will display descriptive codes and values.
When displaying the time remaining, the time value is displayed
on the right side of the display. When displaying the vend price,
the value is displayed on the left side of the display.
Display Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. 202713ENR1

Washer Operation
Start Up
When power is applied to the washer, the control will display its
software version as S--- (--- is the version number) for two
seconds. If the control was not powered down during a running
cycle, it will enter the Ready Mode.
Ready Mode

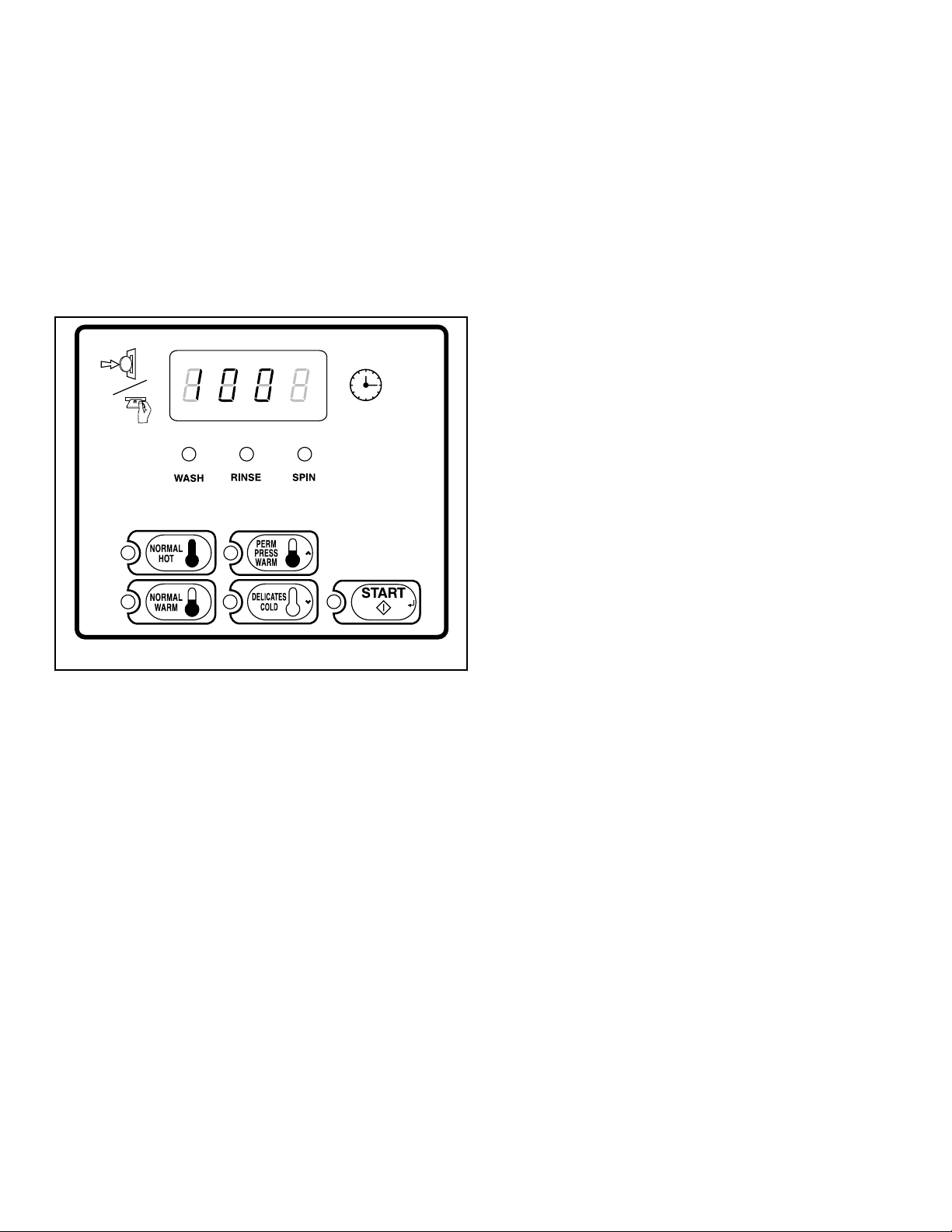

TLW2R_SVG
Figure 2
In Ready Mode, the PERM PRESS/WARM (default cycle) LED
is lit, and the full vend price is displayed as left justified. The
user may select a different cycle, if desired. (In card reader ma-
chines, if the current cycle has a vend price which differs from
the default cycle, the display will be updated to show the new
price.) If another cycle is selected, the control will flash the
amount needed to satisfy the vend shown on the display. If the
vend price is not satisfied within one minute, the washer control
will stop flashing the vend price and return to the default cycle.
The display will continue to show the remaining vend needed to
start a cycle and will credit any vend entered by the user.
Vends may be satisfied by a coin drop, start pulses, or by a third
party card reader. If a coin drop is used, the remaining vend price
will decrease with each coin entry. If start pulses are used, the re-
maining vend price will decrease with each received pulse. Once
the vend is satisfied, the START LED will begin to flash. If a
third party card reader is used, the START LED will begin to
flash when a valid cash card is entered into the reader.
When the START keypad is pressed, the washer will start. The
START LED will stop flashing and the WASH LED will be lit.
The display will change to show the remaining cycle time on the
right side of the display. The appropriate LEDs will light while
the machine passes through different cycle steps. Any coin en-
tered after the first fill cycle will be added to the total coin coun-
ter, but the user will not be able to change cycles.
When a cycle is complete, the Four-Digit Display will show 00
until the lid is opened, a key is pressed, a coin or card is entered,
or a start pulse is received. When one of these instances occurs,
the Four-Digit Display will revert back to the Ready Mode.
Opening the Washer Lid
Opening the washer lid in a running cycle will automatically stop
the cycle, the Four-Digit Display will show LId, and the timer
will stop. Once the lid is closed, the cycle will resume from the
point it was interrupted. If the washer lid is opened in the last
three minutes of the cycle, the timer will continue to count down
to the end of the cycle. When the timer control reaches 0 mi-
nutes, the control will return to the Ready Mode.
Signals
There are three instances when a signal may sound during washer
operation. The owner may program the signal to be turned on or
off (refer to Configuration Display CnFg). These three instances
are listed below:
1. Keypad Depression Signal - The signal will sound for .25 sec-
onds each time a keypad is pressed.
2. Coin Input/Start Pulse Input/Card Insertion Signal - The sig-
nal will sound for .25 seconds each time a coin or start pulse
is received or a card is entered.
3. Machine Error Signal - The signal will sound for 15 seconds
if an error occurs.
Washer Operation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. 202713ENR1

Special Features
Programming Control
The control allows the owner to program the control with the use
of the keypad. Cycle and vend information may be programmed,
audit information may be viewed and diagnostic tests may be run
by pressing keypad combinations.
Collecting Audit Information
With MDC, the washer owner is able to access valuable audit in-
formation by manual access or by a third party card reader. Audit
information recorded and available to be displayed to the owner
includes total coins entered, total start pulses received, and total
cycles.
For detailed information on audit features, refer to Collecting Au-
dit Information.
Testing Machine and MDC Functions
Special diagnostic features built into the control allow the owner
to run specific diagnostic tests. By opening and closing the serv-
ice door and then pressing various sequences of Select Cycle
pads, the owner may perform the following tests:
• Show Fill Time Test
• Show Drain Time Test
• Production Test
For detailed information on running diagnostic tests, refer to Test-
ing Machine and MDC Functions.
Rapid Advance Feature
This feature allows the user to quickly advance through an active
cycle or advance into a cycle from the Ready Mode. This feature
is useful when tests must be performed immediately on a ma-
chine currently in an active cycle. In this case, the user can quick-
ly advance through the cycle to the Ready Mode. At this point,
the user can perform the required tests and then return the ma-
chine to the active cycle.
Coin Drop
The control will accept pulses from a single or dual coin drop to
satisfy vend price. Each coin drop will have the ability to start or
run a cycle.
Start Pulse Operation
The control will accept pulses from a central card reader system
(available at extra cost). The machine can be programmed for the
value of each start pulse received. Refer to Start Pulse Value
PLSE.
Service Door and Coin Vault Openings
An open service door combined with various keypad presses al-
lows the control to enter manual modes of operation. These
modes include Manual Programming, Audit Collection, and Di-
agnostics.
Special Features
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. 202713ENR1

Opening the Service Door
Coin Models
Manually programming MDC requires the user to open and close
the service door. Opening and closing the service door trips a
switch allowing access to various programming options, diagnos-
tics and audit capabilities. The coin drawer switch must be closed
to enter the Manual Mode.
The service door is located on the top of the meter case. Refer to
Figure 3 .
Card Reader Models
Manual programming requires the user to remove the control
panel and unplug the bullet connector located between the
“white/black” and “red/blue” wires. This will allow the user to
access various programming options, diagnostics, and audit capa-
bilities. Refer to Figure 3 .

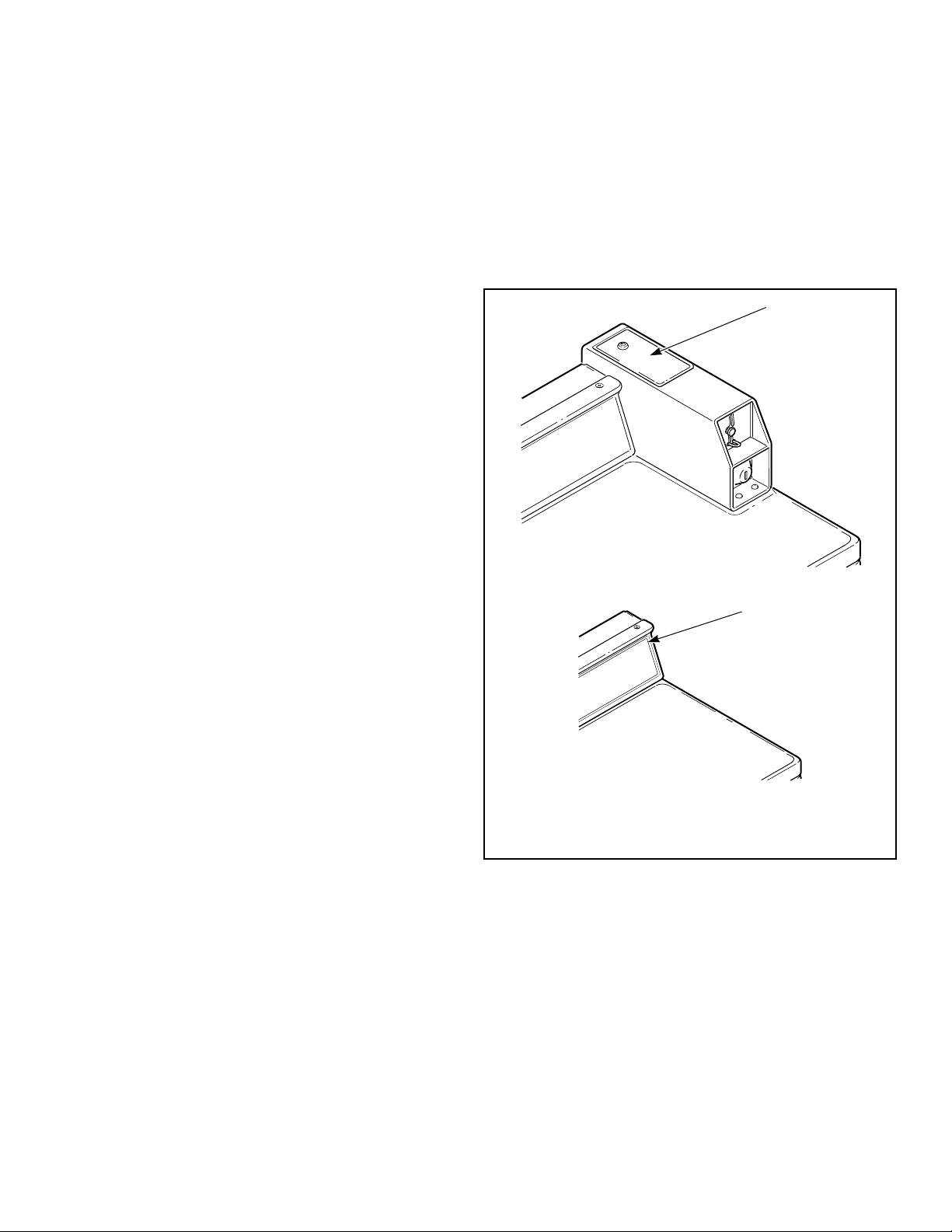

W521I_SVG
1
FLW6R_SVG1
2
1. Service Door
2. Control Panel
Figure 3
Opening the Service Door
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. 202713ENR1

Entering the Manual Mode
How to Enter the Manual Mode
For programming, testing, and retrieving information from MDC,
it is often necessary to enter the Manual Mode by following the
six simple steps below.
1. Be sure the washer is in the Ready Mode before continuing to
step 2. If the washer is in an active cycle, rapid advance
through the cycle. Refer to Rapid Advance Feature.
2. Open the service door. The coin drawer must be closed.
3. While pressing and holding the NORMAL/HOT keypad with
one hand, press the NORMAL/ WARM keypad with the other
hand.
4. The Four-Digit Display will show rAPd.
TLW3R_SVG
Figure 4
5. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to scroll through the options until the de-
sired option appears in the display.
6. Press the START (enter) keypad.
Manual Mode Features
There are four manual features available. They are as follows:
1. Manual Programming (PrOg)
2. Manual Audit (Audt)
3. Diagnostic Tests (dIAg)
4. Manual Rapid Advance (rAPd)
Once in the Manual Mode, continue on into one of the features
described in detail on the following pages.
Instructions on how to exit each feature are found at the end of
each feature description.
Entering the Manual Mode
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 Part No. 202713ENR1

Programming Control
What Can Be Programmed?
This feature allows the owner to program cycle information,
standard vend pricing and other features by using the keypads.
This section offers a detailed description of all seven options
available for programming.
Each description includes instructions on when and why the op-
tion might be used and, more importantly, how to program the
option.
For more advanced users, a quick reference list of the options
available through the programming mode is located on this page.
NOTE: The letters and numbers in the Option column
of the Programmable Options List are what will be
shown in the Four-Digit Display when that option is se-
lected.
Programmable Options Available
Option Description
AtS Vend Price
dEn1 Coin #1 Amount
dEn2 Coin #2 Amount
PLSE Start Pulse Value
CyCL Cycle Time
CnFg Configuration Display
dCyC Default Cycle
Vend Price AtS
This option allows the owner to set the vend price. The vend
price will be displayed in the Four-Digit Display.
Program this option whenever the vend price needs to be
changed.
1. Control must be in Manual Mode. Refer to How to Enter the
Manual Mode.
2. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad until PrOg appears in the Four-Digit Dis-
play.

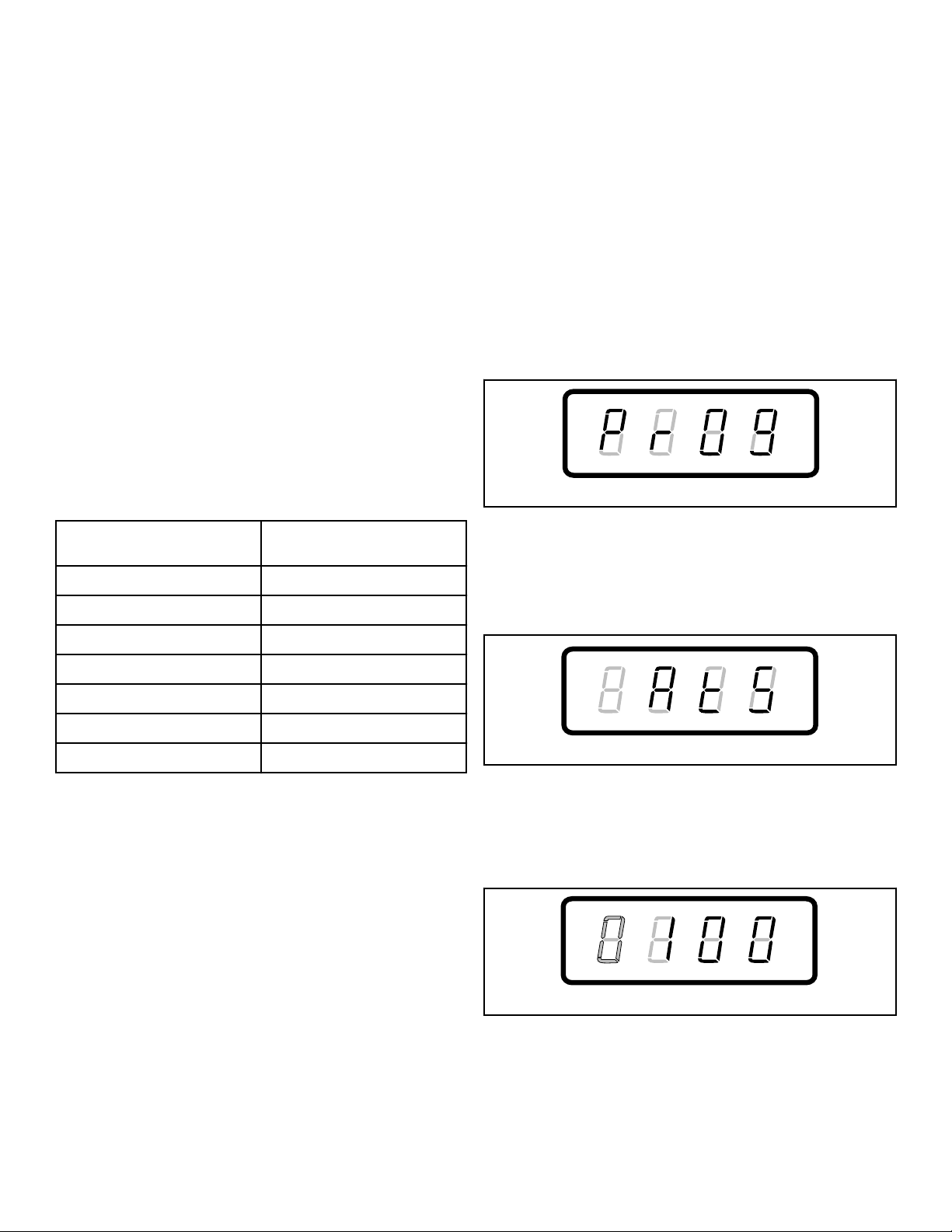

COM1R_SVG
Figure 5
3. Press the START (enter) keypad.
4. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to scroll through the programmable options
until AtS appears in the Four-Digit Display.
DRY550R_SVG
Figure 6
5. When AtS appears in the Four-Digit Display, press the
START (enter) keypad. There are four digits in Vend Price
and the fourth digit will become the active digit. The active
digit will flash one second on and one second off.
COM4R_SVG
Figure 7
NOTE: The vend price can be set from 0 to 9999.
6. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to increase or decrease the value of the ac-
Programming Control
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
14 Part No. 202713ENR1

tive digit and the START (enter) keypad to enter the value of
the digit and advance to the next digit.
7. Repeat step 6 for each of the four digits. When the START
(enter) keypad is pressed and the last digit is the active digit,
the changes to the vend price will be saved into the memory.
The next option, dEn1, will appear in the Four-Digit Display.
NOTE: To program dEn1 (Coin #1 Amount), refer to
that section. To program other options, refer to the
appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option, not a val-
ue.
2. While pressing and holding the NORMAL/HOT keypad with
one hand, press the NORMAL/ WARM keypad with the other
hand. The control will revert back to the previous mode of op-
eration.

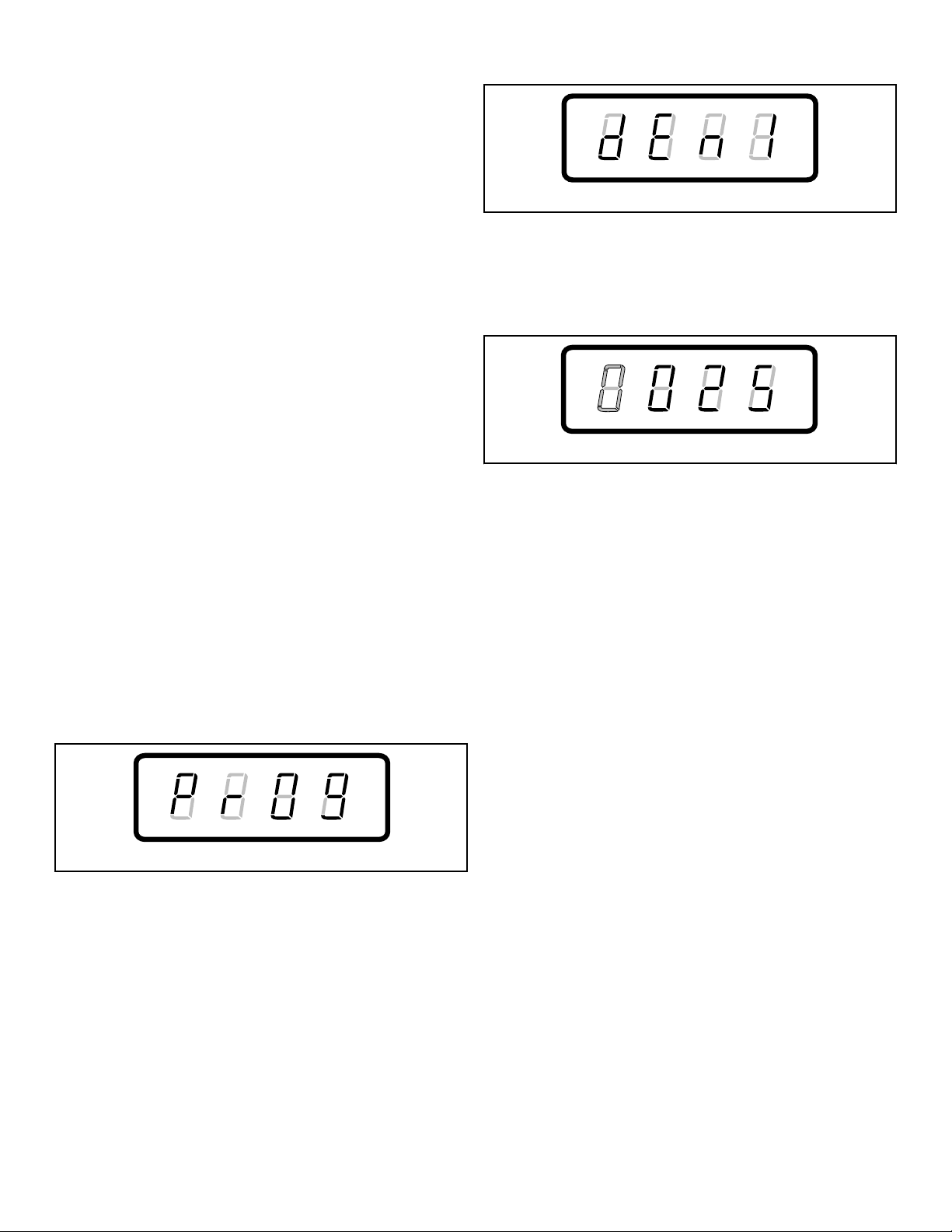

Coin #1 Amount dEn1
This option allows the owner to set a specific numerical value for
a coin entered. For example, in the United States, the coin value
for one quarter would be measured in cents (25). Therefore, the
coin amount entered for one quarter would be 0025.
If the vend price (Vend Price AtS) is set for 75, and the coin
amount is set for 0025, the vend price displayed will decrease by
25 for each coin entered.
1. Control must be in Manual Mode. Refer to How to Enter the
Manual Mode.
2. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad until PrOg appears in the Four-Digit Dis-
play.
COM1R_SVG
Figure 8
3. Press the START (enter) keypad and AtS will appear in the
Four-Digit Display.
4. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to scroll through the programmable options
until dEn1 appears in the Four-Digit Display.
DRY552R_SVG
Figure 9
5. When dEn1 appears in the Four-Digit Display, press the
START (enter) keypad. There are four digits in Coin #1
Amount, and the fourth digit will become the active digit. The
active digit will flash one second on and one second off.
COM5R_SVG
Figure 10
NOTE: The coin amount can be set from 1 to 9999.
6. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to increase or decrease the value of the ac-
tive digit and the START (enter) keypad to enter the value of
the digit and advance to the next digit.
7. Repeat step 6 for each of the four digits. When the START
(enter) keypad is pressed and the last digit is the active digit,
the changes to the coin #1 amount will be saved into the
memory. The next option, dEn2, will appear in the Four-Digit
Display.
NOTE: To program dEn2 (Coin #2 Amount), refer to
that section. To program other options, refer to the
appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option, not a val-
ue.
2. While pressing and holding the NORMAL/HOT keypad with
one hand, press the NORMAL/ WARM keypad with the other
hand. The control will revert back to the previous mode of op-
eration.
Coin #2 Amount dEn2
This option allows the owner to set a specific numerical value for
a coin entered when using the dual coin drop. For example, the
coin value for a dollar coin would be measured in cents (100).
Therefore, the coin amount entered for one dollar coin would be
0100.
Programming Control
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
15 Part No. 202713ENR1

If the vend price (Vend Price AtS) is set for 200, and the coin
amount is set for 0100, the vend price displayed will decrease by
100 for each coin entered.
1. Control must be in Manual Mode. Refer to How to Enter the
Manual Mode.
2. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad until PrOg appears in the Four-Digit Dis-
play.

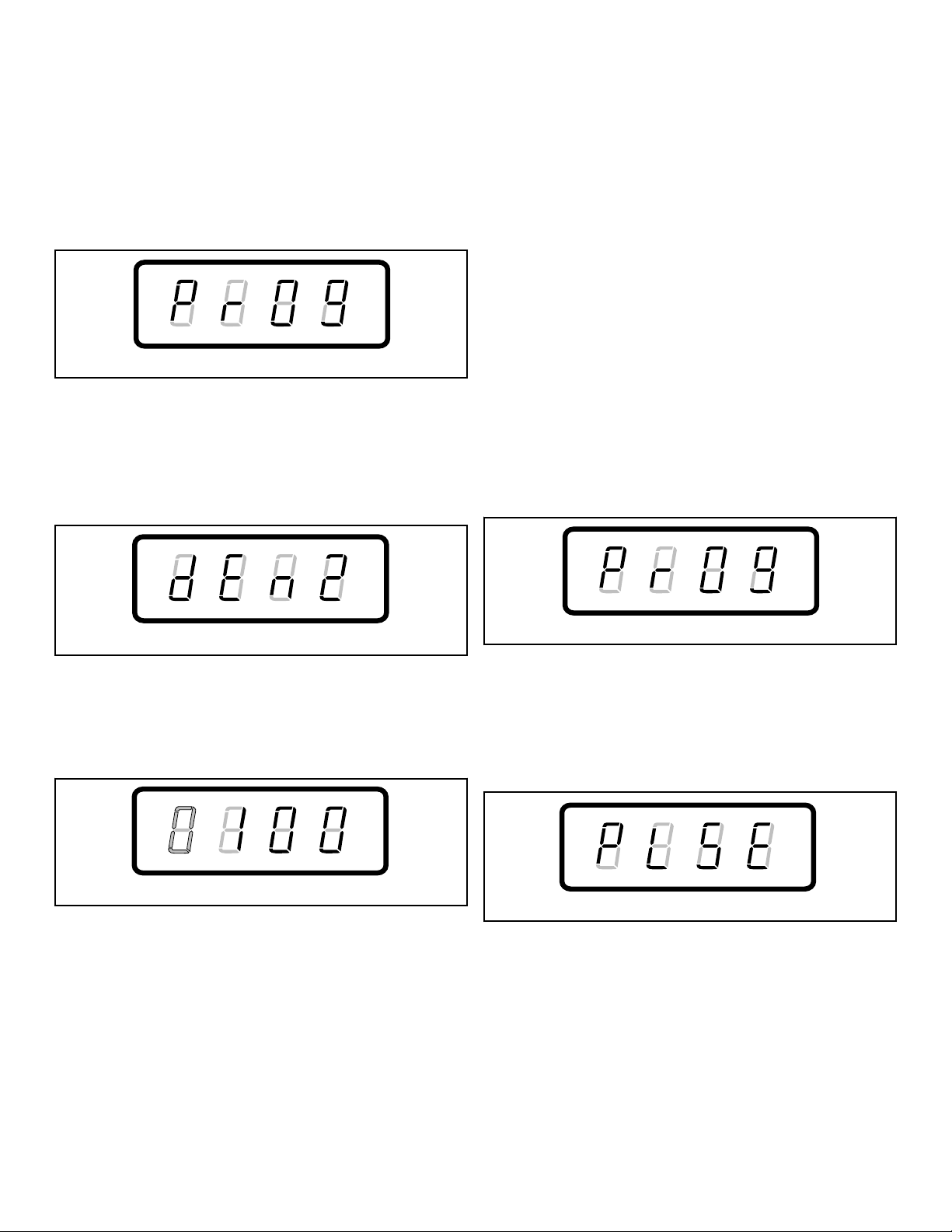

COM1R_SVG
Figure 11
3. Press the START (enter) keypad and AtS will appear in the
Four-Digit Display.
4. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to scroll through the programmable options
until dEn2 appears in the Four-Digit Display.
DRY553R_SVG
Figure 12
5. When dEn2 appears in the Four-Digit Display, press the
START (enter) keypad. There are four digits in Coin #2
Amount, and the fourth digit will become the active digit. The
active digit will flash one second on and one second off.
COM4R_SVG
Figure 13
NOTE: The coin amount can be set from 1 to 9999.
6. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to increase or decrease the value of the ac-
tive digit and the START (enter) keypad to enter the value of
the digit and advance to the next digit.
7. Repeat step 6 for each of the four digits. When the START
(enter) keypad is pressed and the last digit is the active digit,
the changes to the coin #2 amount will be saved into the
memory. The next option, PLSE, will appear in the Four-Digit
Display.
NOTE: To program PLSE (Start Pulse Value), refer to
that section. To program other options, refer to the
appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option, not a val-
ue.
2. While pressing and holding the NORMAL/HOT keypad with
one hand, press the NORMAL/ WARM keypad with the other
hand. The control will revert back to the previous mode of op-
eration.
Start Pulse Value PLSE
This option allows the owner to program the value of the start
pulse with an aftermarket central card reader or pay system.
1. Control must be in Manual Mode. Refer to How to Enter the
Manual Mode.
2. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad until PrOg appears in the Four-Digit Dis-
play.
COM1R_SVG
Figure 14
3. Press the START (enter) keypad and AtS will appear in the
Four-Digit Display.
4. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to scroll through the programmable options
until PLSE appears in the Four-Digit Display.
DRY554R_SVG
Figure 15
5. When PLSE appears in the Four-Digit Display, press the
START (enter) keypad. There are four digits in Start Pulse
Value, and the fourth digit will become the active digit. The
active digit will flash one second on and one second off.
Programming Control
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. 202713ENR1

COM4R_SVG
Figure 16
NOTE: The start pulse can be set from 1 to 9999.
6. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to increase or decrease the value of the ac-
tive digit and the START (enter) keypad to enter the value of
the digit and advance to the next digit.
7. Repeat step 6 for each of the four digits. When the START
(enter) keypad is pressed and the last digit is the active digit,
the changes to the start pulse value will be saved into the
memory. The next option, CyCL, will appear in the Four-Digit
Display.
NOTE: To program CyCL (Cycle Time), refer to that
section. To program other options, refer to the ap-
propriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option, not a val-
ue.
2. While pressing and holding the NORMAL/HOT keypad with
one hand, press the NORMAL/ WARM keypad with the other
hand. The control will revert back to the previous mode of op-
eration.
Cycle Time CyCL
This option allows the owner to set the length of time for all cy-
cles.
1. Control must be in Manual Mode. Refer to How to Enter the
Manual Mode.
2. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad until PrOg appears in the Four-Digit Dis-
play.
COM1R_SVG
Figure 17
3. Press the START (enter) keypad and AtS will appear in the
Four-Digit Display.
4. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to scroll through the programmable options
until CyCL appears in the Four-Digit Display.
DRY555R_SVG
Figure 18
5. When CyCL appears in the Four-Digit Display, press the
START (enter) keypad. A two-letter code will appear in the
Four-Digit Display. This code (found below) corresponds to
the cycle time.
SH = Short Cycle
LO = Long Cycle
6. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to increase or decrease the current code
displayed in the Four-Digit Display to the desired code.
7. Press the START (enter) keypad when the correct code ap-
pears in the Four-Digit Display. The next option, CnFg, will
appear in the Four-Digit Display.
NOTE: To program CnFg (Configuration Display), re-
fer to that section. To program other options, refer
to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option, not a val-
ue.
2. While pressing and holding the NORMAL/HOT keypad with
one hand, press the NORMAL/ WARM keypad with the other
hand. The control will revert back to the previous mode of op-
eration.
Configuration Display CnFg
This option allows the owner to turn ON or turn OFF preprog-
rammed capabilities within MDC.
1. Control must be in Manual Mode. Refer to How to Enter the
Manual Mode.
2. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad until PrOg appears in the Four-Digit Dis-
play.
Programming Control
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. 202713ENR1

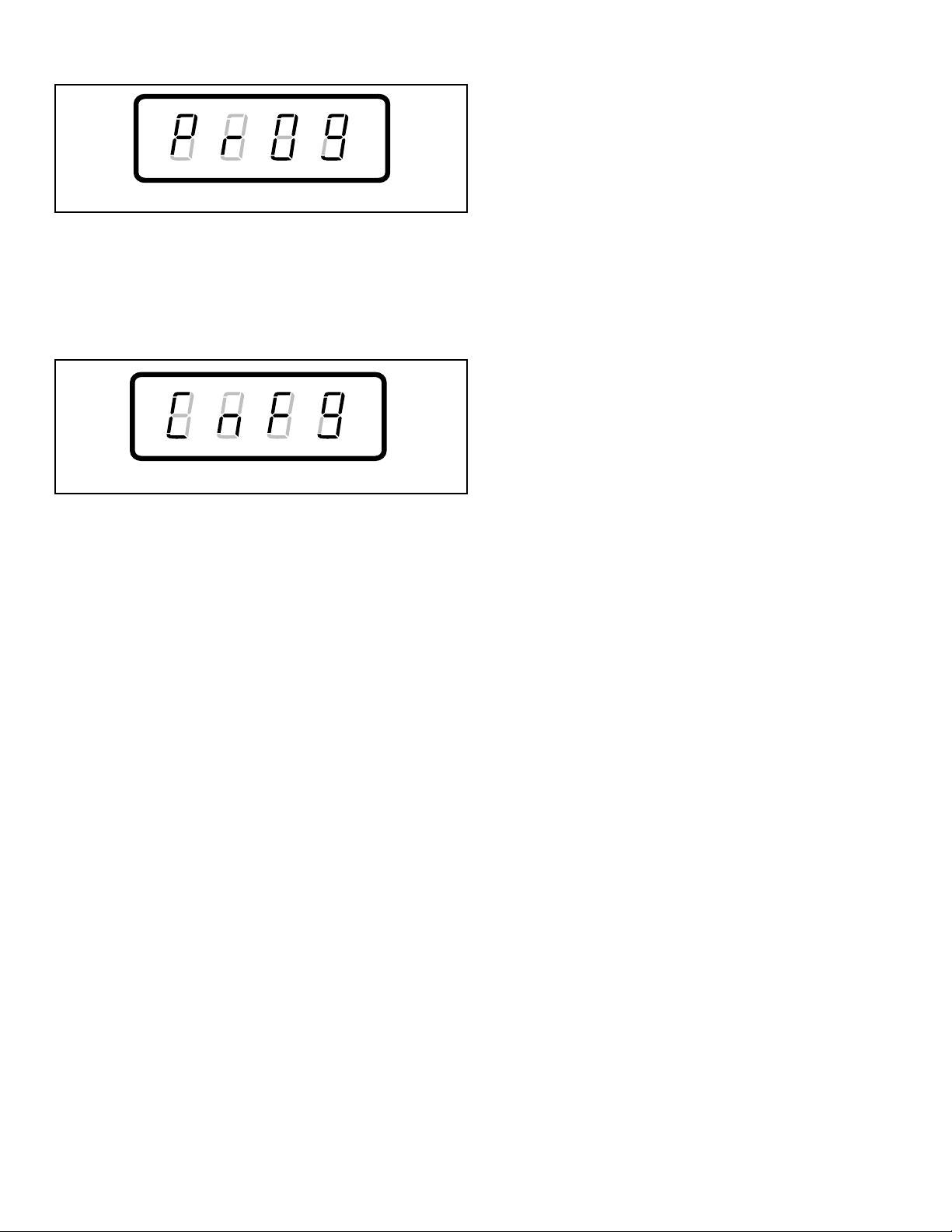

COM1R_SVG
Figure 19
3. Press the START (enter) keypad and AtS will appear in the
Four-Digit Display.
4. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to scroll through the programmable options
until CnFg appears in the Four-Digit Display.
DRY563R_SVG
Figure 20
5. When CnFg appears in the Four-Digit Display, press the
START (enter) keypad. A number will appear in the Four-
Digit Display. This number corresponds to the current config-
uration value.
6. Press the PERM PRESS/WARM (∧) or the DELICATES/
COLD (∨) keypad to increase or decrease the current number
to the desired number selected from Table 1 .
7. Press the START (enter) keypad when the correct number ap-
pears in the Four-Digit Display. The next option, dCyC, will
appear in the Four-Digit Display.
NOTE: To program dCyC (Default Cycle), refer to that
section. To program other options, refer to the ap-
propriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option, not a val-
ue.
2. While pressing and holding the NORMAL/HOT keypad with
one hand, press the NORMAL/ WARM keypad with the other
hand. The control will revert back to the previous mode of op-
eration.
Programming Control
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. 202713ENR1

Configuration Programming
Use Table 1 to turn on or turn off the preprogrammed Card Read-
er Display Control, Audio Signal, Error Mode, Coin Drop #1 and
EC Power Recovery in MDC.
To change any or all of these configuration options, review the
following descriptions carefully and choose the appropriate con-
figuration value from Table 1 . Enter the appropriate value in step
6 on the previous page.
Card Reader Display Control This option, when enabled, prevents the control from displaying certain card operation-related
messages on the Four-Digit Display to allow a third party card reader to display messages on
the Four-Digit Display.
OFF = Turns on control generated display messages.
ON = Turns off control generated display messages.
Audio Signal This option determines whether the audio signal will sound for machine errors, keypad de-
pression, coins/start pulse received, or card insertion.
OFF = Turns audio signal off.
ON = Turns audio signal on.
Error Mode This option determines whether the Fill and Drain Error Modes occur. If programmed off, the
Fill Error will not occur and the machine will continue to wait for the fill level to be reached.
In addition, the Drain Error will not occur and the machine cycle will advance to the next cy-
cle step as though the water had been pumped out.
OFF = Turns off Error Mode.
ON = Turns on Error Mode.
Coin Drop #1 This option determines whether the control will accept a pulse from Coin Drop #1.
Coin Drop #1 = Turns on Coin Drop #1.
EC Power Recovery This option determines if the European Community Power Recovery feature is enabled. If en-
abled and a power failure lasts at least two seconds, the control will require the user to press
the START keypad to resume the cycle that was in operation at the time of the power failure.
OFF = Turns off the European Community Power Recovery feature.
ON = Turns on the European Community Power Recovery feature.
Programming Control
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. 202713ENR1

Value
Card Reader
Display Con-
trol Audio Signal Error Mode Coin Drop #1
EC Power Re-
covery
64 OFF OFF OFF Coin Drop #1 OFF
65 OFF OFF OFF Coin Drop #1 ON
68 OFF OFF ON Coin Drop #1 OFF
69 OFF OFF ON Coin Drop #1 ON
72 OFF ON OFF Coin Drop #1 OFF
73 OFF ON OFF Coin Drop #1 ON
76 (default) OFF ON ON Coin Drop #1 OFF
77 OFF ON ON Coin Drop #1 ON
96 ON OFF OFF Coin Drop #1 OFF
97 ON OFF OFF Coin Drop #1 ON
100 ON OFF ON Coin Drop #1 OFF
101 ON OFF ON Coin Drop #1 ON
104 ON ON OFF Coin Drop #1 OFF
105 ON ON OFF Coin Drop #1 ON
108 ON ON ON Coin Drop #1 OFF
109 ON ON ON Coin Drop #1 ON
Table 1
Programming Control
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
20 Part No. 202713ENR1
