Alliance Laundry Systems F232198R4 Troubleshooting guide

Operation/Maintenance
www.comlaundry.com
Washer-Extractors
Cabinet Hardmount
A-Series Microcomputer
2 Speed and Variable-Speed
Refer to Page 6 for Model Identification
CHM166C
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. F232198R4
January 2008
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
F232198 1
© Copyright 2008, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
Table of
Contents
Safety Information............................................................................ 2
Explanation of Safety Messages......................................................... 2
Important Safety Instructions ............................................................. 2
Safety Decals ...................................................................................... 4
Operator Safety................................................................................... 5
Introduction....................................................................................... 6
Model Identification ........................................................................... 6

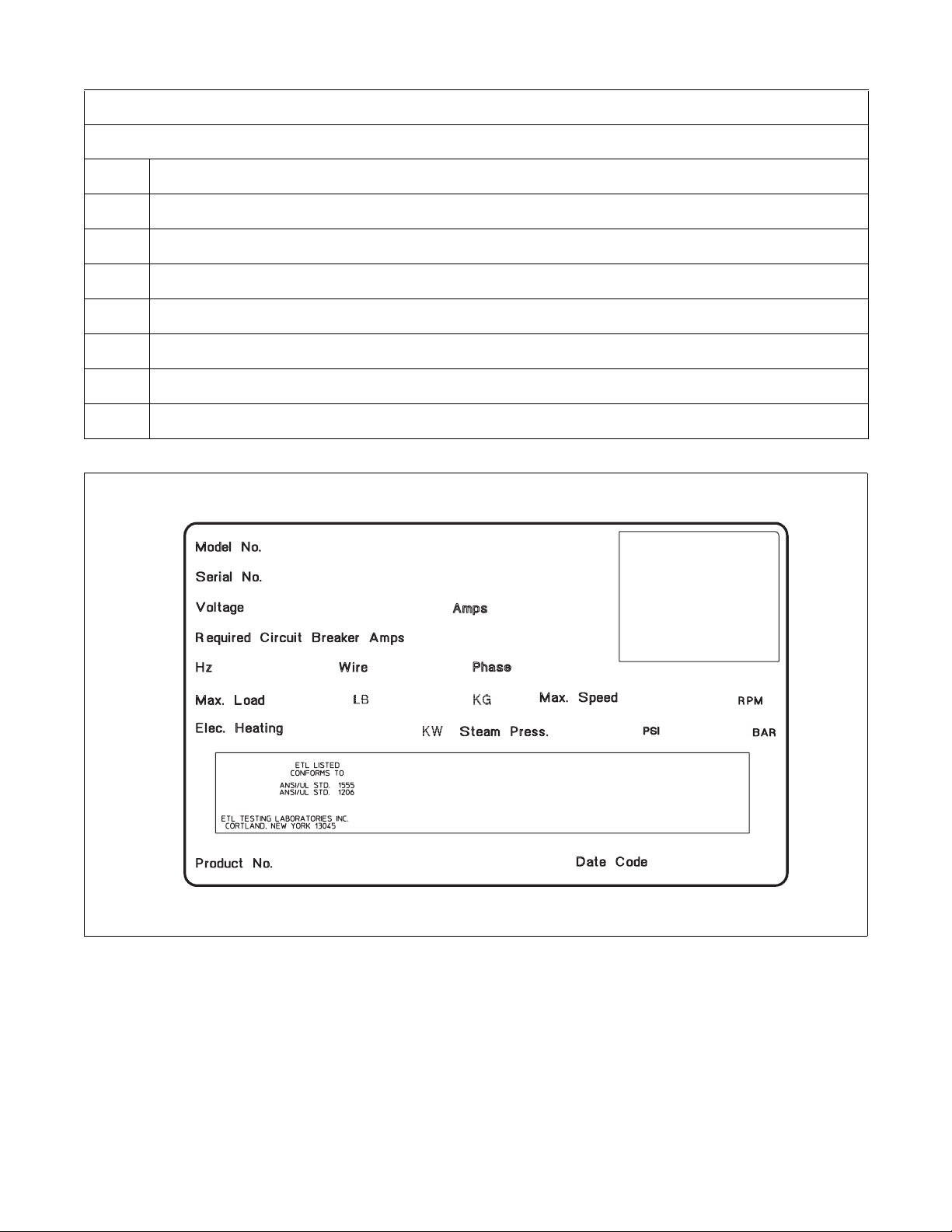

Nameplate Location............................................................................ 7
Replacement Parts .............................................................................. 7
Customer Service................................................................................ 7
Operation........................................................................................... 9
Control Panel ...................................................................................... 9
Display Indicators............................................................................. 11
Operating Instructions (Vend Models) ............................................. 13
Operating Instructions (OPL Models) .............................................. 15
Maintenance .................................................................................... 17
Daily ................................................................................................. 17
Beginning of Day......................................................................... 17
End of Day ................................................................................... 17
Weekly.............................................................................................. 18
Monthly............................................................................................. 18
Quarterly ........................................................................................... 22
Care of Stainless Steel ...................................................................... 23

F232198
2© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, kerosene, waxes, cooking oils, dry-
cleaning solvents, or other flammable or
explosive substances as they give off vapors that
could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable; do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

Safety Information
3
F232198 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use washer only for its intended purpose,
washing textiles.
14. Never wash machine parts or automotive parts in
the machine. This could result in serious damage
to the bucket.
15. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
16. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
17. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
18. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a qualified
service person.
20. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
21. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
22. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT
bypass the loading door switch by permitting the
washer to operate with the loading door open.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
24. Always follow the fabric care instructions
supplied by the textile manufacturer.
25. Never operate the washer with any guards
and/or panels removed.
26. DO NOT operate the washer with missing or
broken parts.
27. DO NOT bypass any safety devices.
28. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

Safety Information
F232198
4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
IMPORTANT: Ensure that the recommended
clearances for inspection and maintenance
are provided. Never allow the inspection and
maintenance space to be blocked.
Safety Decals
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals
could result in injury to the operator or service
technician.
To provide personal safety and keep the machine in
proper working order, follow all maintenance and
safety procedures presented in this manual. If
questions regarding safety arise, contact the
manufacturer immediately.
Use manufacturer-authorized spare parts to avoid
safety hazards.
This machine must be installed, adjusted,
and serviced by qualified electrical
maintenance personnel familiar with the
construction and operation of this type of
machinery. They must also be familiar
with the potential hazards involved.
Failure to observe this warning may result
in personal injury and/or equipment
damage, and may void the warranty.
SW004
WARNING
Install the machine on a level floor of
sufficient strength. Failure to do so may
result in conditions which can produce
serious injury, death and/or property
damage.
W703
WARNING
Be careful around the open door,
particularly when loading from a level
below the door. Impact with door edges
can cause personal injury.
SW025
CAUTION
Never touch internal or external steam
pipes, connections, or components.
These surfaces can be extremely hot and
will cause severe burns. The steam must
be turned off and the pipe, connections,
and components allowed to cool before
the pipe can be touched.
SW014
WARNING

Safety Information
5
F232198 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operator Safety
To ensure the safety of machine operators, the
following maintenance checks must be performed
daily:
1. Prior to operating the machine, verify that all
warning signs are present and legible. Missing or
illegible signs must be replaced immediately.
Make certain that spares are available.
2. Check door interlock before starting operation of
the machine:
a. Attempt to start the machine with the door
open. The machine should not start with the
door open.
b. Close the door without locking it and attempt
to start the machine. The machine should not
start with the door unlocked.
c. Close and lock the door and start a cycle.
Attempt to open the door while the cycle is in
progress. The door should not open.
If the door lock and interlock are not functioning
properly, call a service technician.
3. Do not attempt to operate the machine if any of
the following conditions are present:
a. The door does not remain securely locked
during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly
grounded circuit.
Do not bypass any safety devices in the machine.
NEVER insert hands or objects into
basket until it has completely stopped.
Doing so could result in serious injury.
SW012
WARNING
Never operate the machine with a
bypassed or disconnected balance
system. Operating the machine with
severe out-of-balance loads could result
in personal injury and serious equipment
damage.
SW039
WARNING

F232198
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
Model Identification
Information in this manual is applicable to these models:
HC20AC2 HC30AL2 HC60ACV HC80AYV SC30AC2 SC40AX2 SC60AXF UC40AN2
HC20ACV HC30AX2 HC60AL2 SC20AC2 SC30ACV SC40AY2 SC60AY2 UC40ANV
HC20AL2 HC30AY2 HC60ALF SC20ACV SC30AL2 SC40AYV SC60AYF UC60AN2
HC20AX2 HC30AYV HC60AX2 SC20AL2 SC30AN2 SC60AC2 SC60AYV UC60ANF
HC20AY2 HC40AC2 HC60AXF SC20AN2 SC30AX2 SC60ACF SC80ACV UC60ANV
HC20AYV HC40ACV HC60AY2 SC20AX2 SC30AY2 SC60ACV SC80ALV UC80ANV
HC25AC2 HC40AL2 HC60AYF SC20AY2 SC30AYV SC60AL2 SC80ANV UC125ANV
HC25AL2 HC40AX2 HC60AYV SC20AYV SC40AC2 SC60ALF SC80AXV
HC25AX2 HC40AY2 HC80ACV SC25AC2 SC40ACV SC60AN2 SC80AYV
HC25AY2 HC40AYV HC80ALV SC25AL2 SC40AL2 SC60ANF SC125ANV
HC30AC2 HC60AC2 HC80ANV SC25AX2 SC40AN2 SC60ANV UC20AN2
HC30ACV HC60ACF HC80AXV SC25AY2 SC40ANV SC60AX2 UC30AN2

Introduction
7
F232198 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Nameplate Location
The nameplate is located at the rear of the machine and
inside door. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assistance.
Figure 1
Replacement Parts
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
Customer Service
For technical assistance, call [phone]
Ripon, Wisconsin.
CHM2060N
1Nameplate
C
1

Introduction
F232198
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
* Denotes Brand
Figure 2
Model Number Familiarization Guide
Sample Model Number: *C40AC2OU60001
*C Model Number Prefix
40 Washer-Extractor Capacity (pounds dry weight)
AType of Electrical Control (A = A - Control)
CActuation (C = Coin drop)
2Washer-Extractor Speed Capability (2 = 2 speed)
OElectrical Characteristics
U6 Design Series
0001 Option Identification (varies from machine to machine)
CHM2008N
CHM2008N
*C40AC2OU60001
00000000000
500000
208 – 240
60 3 3
0
18
3
60
N/A N/A
470
7
EXAMPLE OF NAMEPLATE

9
F232198 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
Control Panel
Figure 3 shows the control panels for A-series
microcomputer machines for Vend models.
Figure 3
CHM477R CHM478R
1Normal/Hot Cycle Keypad “CY01” 9START Keypad
2Normal/Warm Cycle Keypad “CY02” 10 “Clean Filter” Indicator LED
(Active for inverter drive models only)
3Normal/Cold Cycle Keypad “CY03”
4Perm Press/Warm Cycle Keypad “CY04” 11 Door Open LED
5Delicate/Cold Cycle Keypad “CY05” 12 Spin Cycle LED
6Rugs Blankets/Cold Cycle (*) Keypad “CY06” 13 Rinse Cycle LED
7Extra Rinse (∨) Keypad (modifier 2) 14 Add Bleach LED
8Extra Wash (∧) Keypad (modifier 1) 15 Wash Cycle LED
CHM477R
1
4
5
6
7
8
10
2
93
11
12
13
14
15
DOMESTIC MODELS
CHM478R
1
4
5
6
7
8
10
2
93
11
12
13
14
15
INTERNATIONAL MODELS

Operation
F232198
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Figure 4 shows the control panel for A-series
microcomputer machines for OPL models.
Figure 4
CHM1766C
1Cycle Keypad “1” 11 Door Open LED
2Cycle Keypad “3” 12 Spin Cycle LED
3Cycle Keypad “5” 13 Rinse Cycle LED
4Rapid Advance/Up Edit 14 Add Bleach LED
5Cycle Keypad “2” 15 Wash Cycle LED
6Cycle Keypad “4” 16 Out-of-Balance Indicator Dot
7Cycle Keypad “6” (Variable-speed only)
8Stop/Down Edit 17 High Water Level Indicator Dot
9START Keypad 18 Medium Water Level Indicator Dot
10 CLEAN FILTER Indicator LED 19 Low Water Level Indicator Dot
CHM1766C
<
<
12
34
56
1
5
6
7
4
10
2
16 17 18 19
39
11
12
13
14
15
8

Operation
11
F232198 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Display Indicators
Table 1 lists various displays and what they mean. The operator should become familiar with these machine
displays.
Display Meaning
bLCH Control will also light “add bleach” indicator (only if SUPPLY 2 alone)
---C The first 3 digits are reserved for temperature reading, C indicates “degrees Celsius”
SPEC Special time of day pricing in effect, Vend models only
---F The first 3 digits are reserved for temperature reading, F indicates “degrees Fahrenheit”
FILL “Fill error” – machine did not fill to programmed water level within 10 minutes, displays
during Rapid Advance Mode (if enabled)
dOOr “Door” opened during cycle
SHUt/dOOr Machine user must “shut door” of the washer to allow the cycle to begin
CAnt/OPEn Control cannot unlock the door
dOnE Cycle has concluded
---- Flashes for a period of time (for safety) after power up while keeping outputs OFF
01 Approximately one minute remaining in cycle (shows on display as right justified)
250 Vend remaining to be satisfied (shows on display as left justified)
Err Card reader error
bAL/xxxx Balance remaining (card system) is “xxxx” (xxxx = cash balance)
PULL/CArd Remove card from card reader slot
Adv Rapid Advance, displays during Rapid Advance mode (if enabled)
Erdn Drain count error (will display for certain models)
Erfl Fill error count (will display for certain models)
E Pr The number of times power has been interrupted during a cycle (will display for certain
models)
CyC Cycle counter
USH1 “Wash 1” segment, displays during Rapid Advance Mode (if enabled)
USH2 “Wash 2” segment, displays during Rapid Advance Mode (if enabled)
USH3 “Wash 3” segment, displays during Rapid Advance Mode (if enabled)
USH4 “Wash 4” segment, displays during Rapid Advance Mode (if enabled)
rIn1 “Rinse 1” segment, displays during Rapid Advance Mode (if enabled)
rIn2 “Rinse 2” segment, displays during Rapid Advance Mode (if enabled)
rIn3 “Rinse 3” segment, displays during Rapid Advance Mode (if enabled)
rIn4 “Rinse 4” segment (final rinse), displays during Rapid Advance Mode (if enabled)
drAI Drain step, displays during Rapid Advance Mode (if enabled); also indicates machine is in
drain step during test cycle in 2-speed models
Table 1 (Continued)

Operation
F232198
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Display Meaning
tESt Diagnostic test cycle selected or enabled
SPIn Spin (extract) step
SUP1 Supply signal 1 (“S1” output), normally detergent
SUP2 Supply signal 2 (“S2” output), normally bleach
SUP3 Supply signal 3 (“S3” output), normally softener
SUP4 Supply signal 4
SUP5 Supply signal 5
SUP6 Supply signal 6
SUP7 Supply signal 7
SdLY Spin coast (motor coasts after high speed extract)
CFIL Cold Fill
HFIL Hot Fill
bFIL Warm Fill (cold + hot)
PASS Variable-speed ONLY – balance “PASS” condition; shows in “test” cycle only
FAIL Variable-speed ONLY – balance “FAIL” condition; shows in “test” cycle only
bAL? Variable-speed ONLY – meaning: “Do you wish to enter balance detection test routine?”
CY__ Cycle number (followed by number 1 through 46)
SPn1 Variable-speed ONLY – low spin speed (the lowest of 3 spin speeds)
SPn2 Variable-speed ONLY – medium spin speed (the middle of 3 spin speeds)
SPn3 Variable-speed ONLY – high spin speed (the highest of 3 spin speeds)
For Wash speed forward (during test cycle)
rEv Wash speed reverse (during test cycle)
dISt Variable-speed ONLY – distribution speed (during test cycle)
LO Low water level
nEd Medium water level
HI High water level
CEL Display all temperatures in degrees Celsius
FAr Display all temperatures in degrees Fahrenheit
rIn5 “Rinse 5” segment
rIn6 “Rinse 6” segment (final rinse)
AG1 Agitation 1: 18 seconds forward, 3 seconds off, 18 seconds reverse, 3 seconds off
AG2 Agitation 2: 3 seconds forward, 27 seconds off, 3 seconds reverse, 27 seconds off
AG3 Agitation 3: 10 seconds forward, 20 seconds off, 10 seconds reverse, 20 seconds off
AG4 Agitation 4: 4 seconds forward, 56 seconds off, 4 seconds reverse, 56 seconds off
Tabl e 1

Operation
13
F232198 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions (Vend
Models)
NOTE: Opening the coin box while in Run Mode
and before a cycle has started will put control into
Audit Mode. Display will show “Audt”. To revert
back to Run Mode, close coin box and press START
keypad.
1. Turn on main power source (circuit breaker).
2. Push button and turn handle clockwise to open.
Refer to Figure 5.
Figure 5
3. Load to capacity whenever possible. Refer to
Figure 6.
NOTE: Underloading can cause out-of-balance
conditions that can shorten machine life.
Figure 6
4. Close door and turn handle counterclockwise
until button pops out. Refer to Figure 7.
Figure 7
5. The default wash cycle will display.
NOTE: The default cycle is Normal/Cold (Domestic
Models) or Perm Press 60°C (International
Models) for coin models if no cycle is selected.
Refer to Figure 8.
Figure 8
U001I
U003I
U001I
U005I
CHM477R
CHM480R
To avoid personal injury, recommended
inlet water temperature should be no
higher than 125°Fahrenheit (51°Celsius).
W709
WARNING
CHM477R
DOMESTIC MODELS
CHM480R
INTERNATIONAL MODELS

Operation
F232198
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
6. If desired, select a different cycle at this point or
after satisfying vend. The LED indicator for that
cycle will light.
7. Select EXTRA WASH and/or EXTRA RINSE if
desired.
8. Add liquid and/or powder supplies to supply
dispenser. Refer to Figure 9.
a. Add detergent to compartment 1.
b. Add softener to compartment 3.
Figure 9
9. If the machine is a coin operated unit, add coins.
As each coin is added, the display counts down to
the amount remaining.
10. If the machine is a card operated unit, insert and
remove card per card system instructions.
11. If the unit is interfaced to a central/remote pay
system, go to the central/remote pay console,
make payment, select the machine, and follow
central/remote pay system instructions.
12. Press the desired wash cycle key if it has not
already been selected.
NOTE: Once START keypad is pressed, the
selected wash cycle is locked in and wash cycle will
begin.
13. Press the START keypad.
14. Add bleach if and when prompted (display will
show “bLCH” for 45 seconds, or until water level
is reached, signal will sound on and off for 8
seconds [if set up for “bEEP”] and Add Bleach
indicator lights).
NOTE: If the version of the control in machine is
capable of reading temperature and control is not
in Audit Mode, pressing the START keypad while a
cycle is running will cause display to show
temperature briefly. Display will revert to time
remaining automatically after about 2 – 3 seconds.
15. When cycle is complete, display shows “dOnE”,
the Door Open LED lights and door can be
opened.
CHM2031N
1Detergent
2Bleach
3Softener
2
13

Operation
15
F232198 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions (OPL
Models)
1. Turn on main power source.
2. With left hand, push and hold white rocker
switch. Refer to Figure 10.
3. Push button and turn handle clockwise to open
door. Refer to Figure 10.
Figure 10
4. Load to capacity whenever possible. DO NOT
OVERLOAD. Refer to Figure 11.
NOTE: Underloading can cause out-of-balance
conditions that can shorten machine life.
Figure 11
5. Close door and turn handle counterclockwise
until button pops out. Refer to Figure 12.
Figure 12
6. The default wash cycle will display. Refer to
Figure 13.
Figure 13
CHM2027N
1Rocker Switch
2Handle
U003I
2
1
U005I
CHM1766C
<
<
12
34
56
To avoid personal injury, recommended
inlet water temperature should be no
higher than 125°Fahrenheit (51°Celsius).
W709
WARNING

Operation
F232198
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7. If desired, select a different cycle at this point.
Refer to Table 2.
8. Add liquid and/or powder supplies to supply
dispenser. Refer to Figure 14.
a. Add detergent to compartment 1.
b. Add softener to compartment 3.
c. When applicable, add bleach to compartment
2 when the ADD BLEACH LED is lit.
Figure 14
9. Press the desired wash cycle number.
10. Press the START keypad.
11. To stop the wash cycle early, press STOP on the
keypad.
12. When cycle is complete, display shows “dOnE”.
Cycle
Number Cycle Name
1 Permanent Press Light Soil
2 Cotton Terrycloth Light Soil
3 Permanent Press Medium Soil
4 Cotton Terrycloth Medium Soil
5 Permanent Press Heavy Soil
6 Cotton Terrycloth Heavy Soil
11 Table Napery Blends Colors
12 Table Napery Blends Whites
13 VISA Table Napery Colors
14 VISA Table Napery Whites
15 Rags Heavy Soil
16 Reclaim
21 Personals with Bleach
22 Personals No Bleach
23 Delicates Spreads Cold Water
24 Delicates Spreads Warm Water
25 Custom #1
26 Custom #2
31 Normal 90°C (Pre Wash)
32 Normal 90°C
33 Normal 60°C (Pre Wash)
34 Normal 60°C
35 Normal 40°C (Pre Wash)
36 Custom #3
41 Permanent Press 90°C (Pre Wash)
42 Permanent Press 90°C
43 Permanent Press 60°C (Pre Wash)
44 Permanent Press 60°C
45 Fine 40°C
46 Custom #4
Table 2
CHM486R
1Detergent
2Bleach
3Softener
CHM486R
1
2
3

17
F232198 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Maintenance
IMPORTANT: Replace all panels that are removed
to perform service and maintenance procedures.
Do not operate the machine with missing guards or
with broken or missing parts. Do not bypass any
safety devices.
Daily
IMPORTANT: Door lock should be checked daily
to ensure proper operation. Also check that all
safety and instruction stickers are on the machine.
Any missing or illegible safety instructions stickers
should be replaced immediately.
Beginning of Day
1. Inspect water inlet valve hose connections on the
back of the machine for leaks.
2. Inspect steam hose connections for leaks (where
applicable).
3. Check door interlock before starting operation:
a. Attempt to start the machine with the door
open. The machine should not start with the
door open.
b. Close the door without locking it and attempt
to start the machine. The machine should not
start with the door unlocked.
c. Close and lock the door, and start a cycle.
Attempt to open the door while the cycle is in
progress. The door should not open.
If the door lock and interlock are not functioning
properly, call a service technician.
End of Day
1. Clean the door gasket of residual detergent and
all foreign matter.
2. Clean between the door gasket and the door glass
with a damp cloth.
3. Clean automatic supply dispenser lid and general
area. Flush dispenser with clean water.
4. Clean the machine’s top, front and side panels
with mild detergent. Rinse with clean water.
5. Leave loading door open at the end of each day to
allow moisture to evaporate.
NOTE: Unload the machine promptly after each
completed cycle to prevent moisture buildup. Leave
loading door open after each completed cycle to
allow moisture to evaporate.
Sharp edges can cause personal injury.
Wear safety glasses and gloves, use
proper tools and provide lighting when
handling sheet metal parts.
W366R1
WARNING

Maintenance
F232198
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Weekly
1. For variable-speed models only, clean the AC
drive box filter(s) weekly or more frequently as
needed:
NOTE: If fan filter service indicator light is on, fan
filter must be cleaned immediately to prevent
possible damage. Thermostat automatically resets
after drive compartment cools down. LED will go
out after cycle run.
IMPORTANT: If filter indicator is ignored,
repeated resets might shorten life of drive. Clean
filter regularly to avoid indicator prompt.
a. Open the top cover.
b. Grasp the filter handle and pull straight up to
remove filter.
c. Wash the filter with warm water and allow
filter to air dry. As an alternative, the filter
may be vacuumed clean.
IMPORTANT: The control module cover and fan
filter must be in place for the fan to properly cool
the AC inverter drive. Failure to observe this
warning will void the warranty and could lead to
expensive AC inverter drive repair.
2. Check the machine for leaks.
a. Start an unloaded cycle to fill the machine.
b. Verify that door and door gasket do not leak.
c. Verify that the drain valve is operating and
that the drain system is free from obstruction.
If water does not leak out during the first wash
segment, the drain valve is closed and
functioning properly.
Monthly
NOTE: Disconnect power to the machine at its
source before performing the monthly maintenance
procedures.
1. Use the following procedures to determine if
V-belt(s) require replacement or adjustment. Call
a qualified service technician in either case.
a. Check V-belt(s) for uneven wear and frayed
edges.
b. For groove-pulley drive systems, verify
alignment by placing a straightedge across
both pulley faces. The straightedge should
make contact with the pulleys in four places.
Refer to Figure 15.
Figure 15
H040I
1Motor
2Motor Pulley
3Straightedge
4Basket Pulley
H040I
1
23
4
