Alliance Laundry Systems UW100TV User manual

Installation
www.alliancelaundry.com
Washer-Extractors
Pocket Hardmount
UniLinc
Refer to Page 5 for Model Numbers
PHM1400C
PHM1400C
PHM1402C
PHM1402C
150 Model
35 – 125 Models
Part No. F8138601R12
October 2012
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2012, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
F8138601 1
Table of
Contents
Safety Information.............................................................................. 2
Explanation of Safety Messages........................................................... 2
Important Safety Instructions ............................................................... 2
Safety Decals ........................................................................................ 4
Operator Safety..................................................................................... 4
Introduction......................................................................................... 5
Model Identification ............................................................................. 5
Delivery Inspection............................................................................... 6

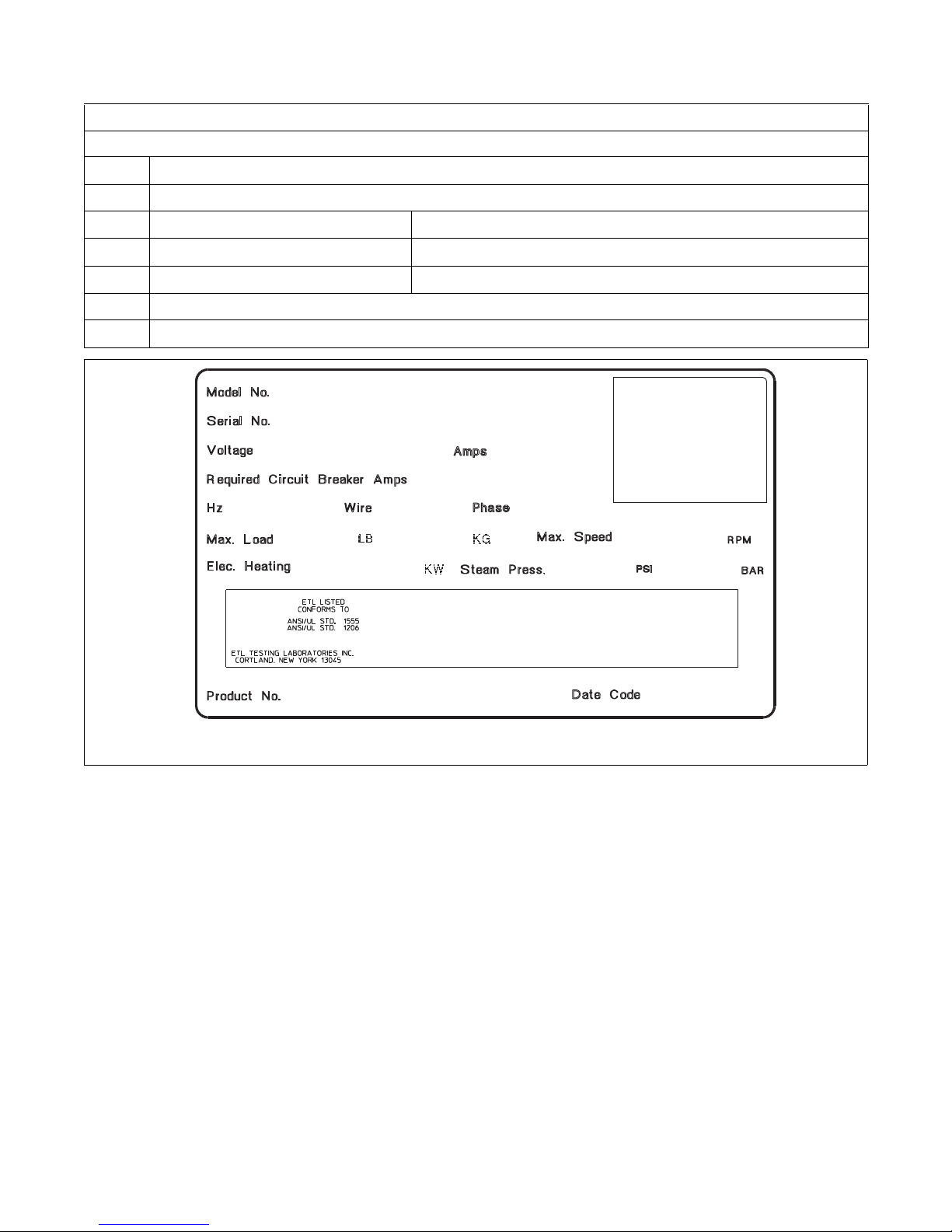

Name plate Location............................................................................. 6
Nameplate Location - UniLinc Models ........................................... 6
Replacement Parts ................................................................................ 6
Customer Service.................................................................................. 6
Specifications and Dimensions........................................................... 8

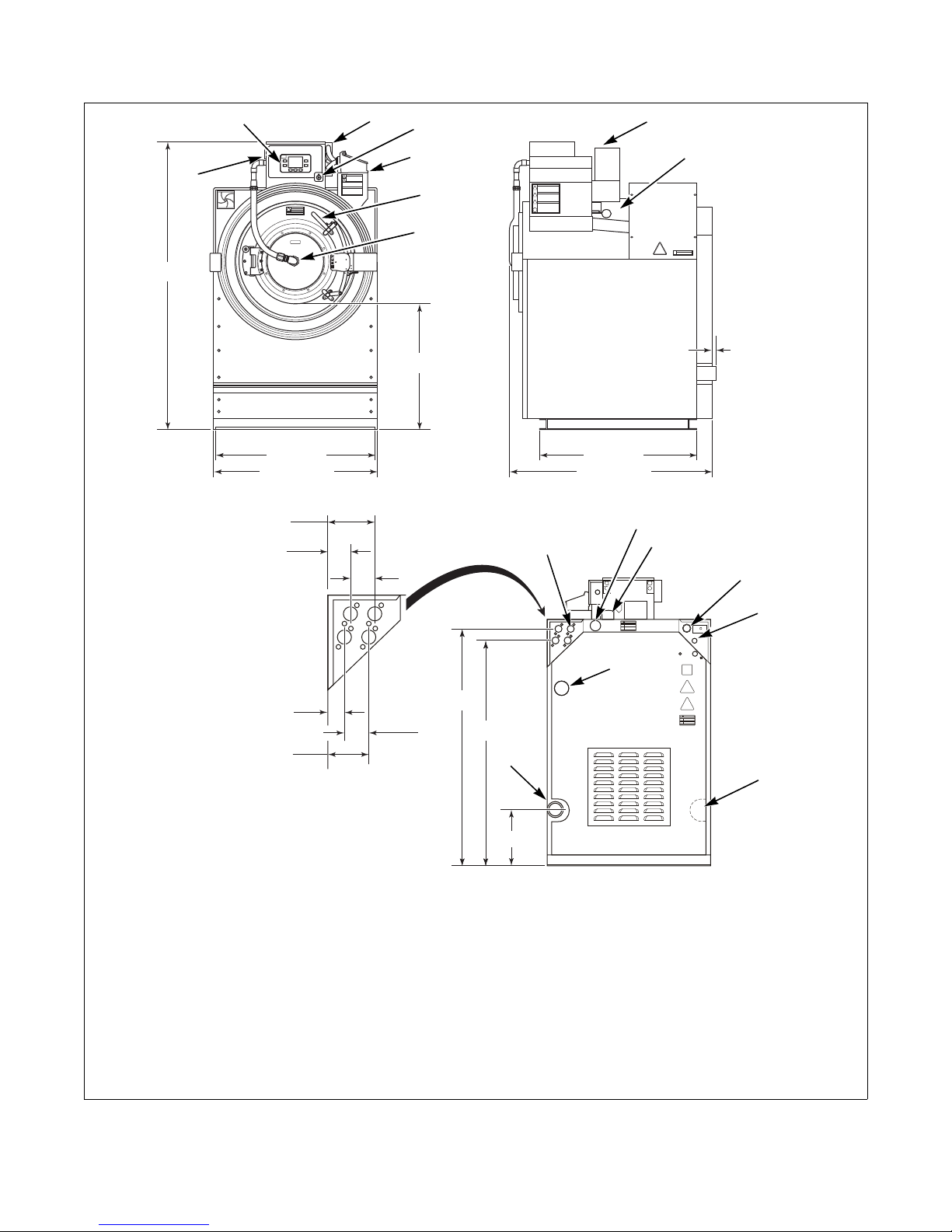

Machine Dimensions ............................................................................ 10
UWTV Models ................................................................................ 10
Machine Foundation Requirements...................................................... 13
Concrete Foundation Pad Installation................................................... 14
Floor Load Data ............................................................................... 16

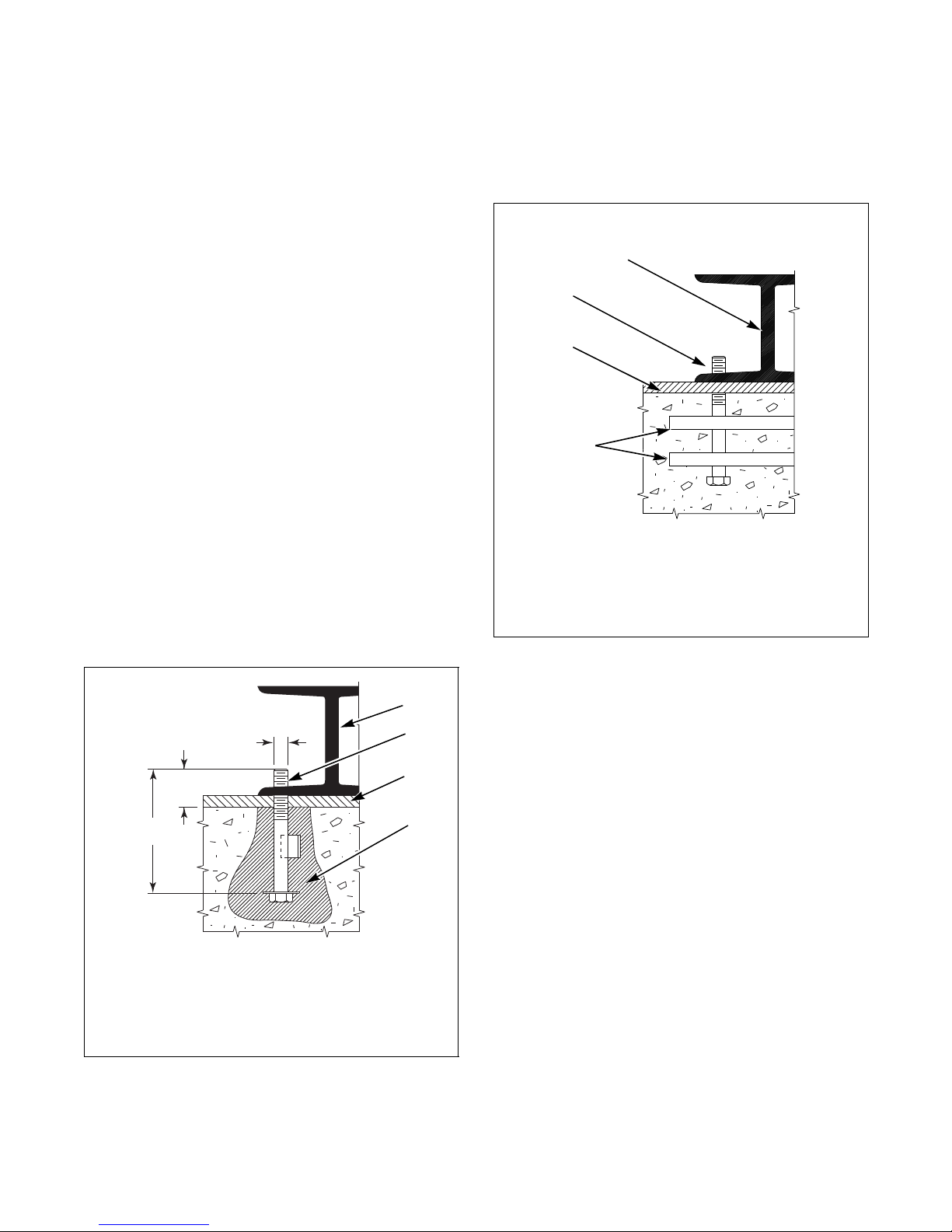

Mounting Bolt Installation Requirements ............................................ 17
Machine Mounting and Grouting..................................................... 18
Mounting Bolt Hole Locations ............................................................. 19
Grout Placement ................................................................................... 24
Gap Setting for Vibration Switch .................................................... 25
Drain Connection Requirements........................................................... 29
Water Connection ................................................................................. 31
Electrical Installation Requirements..................................................... 33
Steam Requirements (Steam Heat Option Only).................................. 36
Chemical Injection Supply System....................................................... 37
External Supplies .................................................................................. 40
Chemical Injection Using Internal 24VAC Control Transformer ... 40
Chemical injection Using External AC Power Source .................... 41
External Supply Signals................................................................... 42

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138601
2
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Install the washer according the
INSTALLATION instructions. Refer to the
GROUNDING instructions in the
INSTALLATION manual for the proper
grounding of the washer. All connections for
water, drain, electrical power and grounding must
comply with local codes and be made by licensed
personnel when required. It is recommended that
the machine be installed by qualified technicians.
3. Do not install or store the washer where it will be
exposed to water and/or weather.
4. To prevent fire and explosion, keep the area
around machine free from flammable and
combustible products. Do not add the following
substances or textiles containing traces of the
following substances to the wash water: gasoline,
kerosene, waxes, cooking oils, vegetable oils,
machine oils, dry-cleaning solvents, flammable
chemicals, thinners, or other flammable or
explosive substances. These substances give off
vapors that could ignite, explode or cause the
fabric to catch fire by itself.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas
is flammable, do not smoke or use an open flame
during this time.
6. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
DANGER indicates an imminently
hazardous situation that, if not avoided,
will cause severe personal injury or
death.
DANGER
WARNING indicates a hazardous situation
that, if not avoided, could cause severe
personal injury or death.
WARNING
CAUTION indicates a hazardous situation
that, if not avoided, may cause minor or
moderate personal injury or property
damage.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
3
F8138601
7. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This appliance
is not intended for use by young children or
infirm persons without supervision. Young
children should be supervised to ensure that they
do not play with the appliance. This is a safety
rule for all appliances.
8. DO NOT reach and/or climb into the tub or onto
the washer, ESPECIALLY if the wash drum is
moving. This is an imminently hazardous
situation that, if not avoided, will cause severe
personal injury or death.
9. Never operate the washer with any guards, panels
and/or parts removed or broken. DO NOT bypass
any safety devices or tamper with the controls.
10. Use washer only for its intended purpose,
washing textiles. Never wash machine parts or
automotive parts in the machine. This could
result in serious damage to the basket or tub.
11. Use only low-sudsing, no-foaming types of
commercial detergent. Be aware that hazardous
chemicals may be present. Wear hand and eye
protection when adding detergents and
chemicals. Always read and follow
manufacturer’s instructions on packages of
laundry and cleaning aids. Heed all warnings or
precautions. To reduce the risk of poisoning or
chemical burns, keep them out of the reach of
children at all times (preferably in a locked
cabinet).
12. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
13. Always follow the fabric care instructions
supplied by the textile manufacturer.
14. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open. Do not
attempt to open the door until the washer has
drained and all moving parts have stopped.
15. Be aware that hot water is used to flush the
supply dispenser. Avoid opening the dispenser lid
while the machine is running.
16. Do not attach anything to the supply dispenser’s
nozzles, if applicable. The air gap must be
maintained.
17. Do not operate the machine without the water
reuse plug or water reuse system in place, if
applicable.
18. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a
qualified service person.
20. DANGER: Before inspecting or servicing
machine, power supply must be turned OFF. The
servicer needs to wait for at least 3 minutes after
turning the power OFF and needs to check for
residual voltage with a voltage meter. The
inverter capacitor or EMC filter remains charged
with high voltage for some time after powering
OFF. This is an imminently hazardous situation
that, if not avoided, will cause severe personal
injury or death.
21. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out. ALWAYS disconnect the
washer from electrical, power and water supplies
before attempting any service.
22. Disconnect the power cord by grasping the plug,
not the cord. Replace worn power cords and/or
loose plugs. If the supply cord is damaged, it
must be replaced by a special cord or assembly
available from the service agent.
23. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
24. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
F8138601
4
IMPORTANT: Ensure that the recommended
clearances for inspection and maintenance are
provided. Never allow the inspection and
maintenance space to be blocked.
Safety Decals
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals
could result in injury to the operator or service
technician.
Use manufacturer-authorized spare parts to avoid
safety hazards.
Operator Safety
The following maintenance checks must be performed
daily:
1. Verify that all warning labels are present and
legible, replace as necessary.
2. Check door interlock before starting operation of
the machine:
a. Attempt to start the machine with the door
open. The machine should not start.
b. Close the door without locking it and start the
machine. The machine should not start.
c. Attempt to open the door while a cycle is in
progress. The door should not open.
If the door lock and interlock are not functioning
properly, disconnect power and call a service
technician.
3. Do not attempt to operate the machine if any of
the following conditions are present:
a. The door does not remain securely locked
during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly
grounded circuit.
This machine must be installed, adjusted,
and serviced by qualified electrical
maintenance personnel familiar with the
construction and operation of this type of
machinery. They must also be familiar
with the potential hazards involved.
Failure to observe this warning may result
in personal injury and/or equipment
damage, and may void the warranty.
SW004
WARNING
Never touch internal or external steam
pipes, connections, or components.
These surfaces can be extremely hot and
will cause severe burns. The steam must
be turned off and the pipe, connections,
and components allowed to cool before
the pipe can be touched.
SW014
WARNING
NEVER insert hands or objects into
basket until it has completely stopped.
Doing so could result in serious injury.
SW012
WARNING
Operating the machine with severe out-of-
balance loads could result in personal
injury and serious equipment damage.
W728
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
F8138601
Introduction
Model Identification
Information in this manual is applicable to these
models:
UW35TV
UW60TV
UW80TV
UW100TV
UW125TV
UW150TV

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
F8138601
6
This manual is designed as a guide to the installation
of the Pocket Hardmount washer-extractor.
NOTE: All information, illustrations, and
specifications contained in this manual are based
on the latest product information available at the
time of printing. We reserve the right to make
changes at any time without notice.
IMPORTANT: Warranty is void unless washer-
extractor is installed according to instructions in
this manual. Installation should comply with
minimum specifications and requirements, and
with applicable municipal building codes, water
supply regulations, electrical wiring regulations
and any other relevant statuary regulations. Due to
varied requirements, applicable local codes should
be thoroughly understood and all pre-installation
work arranged for accordingly.
Delivery Inspection
Upon delivery, visually inspect crate, protective cover,
and unit for any visible shipping damage. If the crate,
protective cover, or unit is damaged or signs of
possible damage are evident, have the carrier note the
condition on the shipping papers before the shipping
receipt is signed, or advise the carrier of the condition
as soon as it is discovered.
Remove the crate and protective cover as soon after
delivery as possible. If any damage is discovered upon
removal of the crate and/or protective cover, advise the
carrier and file a written claim immediately.
Name plate Location
The nameplate is located on the back of the machine.
Always provide the machine’s serial number and
model number when ordering parts or when seeking
technical assistance. Refer to Figure 1 and Figure 2.
Nameplate Location - UniLinc Models
On UniLinc models, nameplate information is also
programmed into the control. To access machine ID
through the control:
1. Press and hold , then , then
keypads at the same time.
2. Press the keypad until Diagnostic is
highlighted.
3. Press the keypad.
4. Press the keypad until machine ID is
highlighted.
5. Press the keypad.
Always provide the machine’s serial number and
model number when ordering parts or when seeking
technical assistance. Refer to Figure 1.
Figure 1
Replacement Parts
If literature or replacement parts are required, contact
the source from which the washer-extractor was
purchased or contact Alliance Laundry Systems LLC
at [phone] for the name of the nearest
authorized parts distributor. A parts manual may be
ordered by returning the reply card provided with each
washer-extractor.
Customer Service
For technical assistance, contact your local distributor
or call:
[phone]
Ripon, Wisconsin
A record of each washer-extractor is on file with the
manufacturer. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assistance. Refer to Figure 1
and Figure 2.
PHM1400C
1In Control (UniLinc Models)
2At Back of Machine
PHM1400C
2
MODEL EXAMPLE OF NAMEPLATE LOCATION
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
7
F8138601
Figure 2
Model Number Familiarization Guide
Sample Model Number: UW60TVQU10001
UW Model Number Prefix
60 Washer-Extractor Capacity (60 pounds dry weight of laundry)
TType of Electrical Control T = UniLinc Control
VWasher-Extractor Speed Capabilities V = 8 Speeds
QElectrical Characteristics Refer to Table 7.
U1 Design Series
0001 Option Identification (varies from machine to machine)
PHM697N
PHM697N
UW060TVQU10001
00000000000
500000
200 – 240
50 – 60 3 3
30
60 27 720
19
EXAMPLE OF SERIAL PLATE

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138601
8
Specifications and Dimensions
.
Specifications 35 60 80 100 125 150
Overall Dimensions
Overall width, in (mm) 32.5 (826) 36.625 (930) 41.5 (1054) 41.5 (1054) 48 (1219) 50.25 (1277)
Overall height, in (mm) 55.5 (1410) 64.5 (1638) 68.5 (1740) 68.5 (1740) 72 (1829) 79 (2007)
Overall depth, in (mm) 43.625 (1108) 45 (1143) 51.5 (1308) 54.5 (1384) 58 (1473) 63 (1600)
Weight And Shipping Information
Net weight, lb (kg) 1030 (468) 1300 (590) 1730 (785) 1770 (805) 2420 (1100) 2970 (1347)
Basket Weight, lb (kg) 150 (68) 200 (92) 330 (150) 360 (163) 550 (250) 572 (260)*
Domestic shipping weight, lb (kg) 1085 (493) 1340 (608) 1795 (814) 1835 (832) 2525 (1148) 3022 (1371)
Domestic shipping volume,
ft3(m3)
66 (1.9) 84 (2.4) 119 (3.4) 119 (3.4) 166 (4.7) 172 (4.87)
Domestic shipping dimensions,
WxDxH, in (mm)
38x47x64
(970x1200x
1630)
40x49x74.5
(1016x1245x
1892)
44x60.5 x77.25
(1118x1537x
1962)
44x60.5x77.25
(1118x1537x
1962)
61.5x60x77.75
(1560x1520x
1980)
54.5x69x79
(139x176x
201)
Export shipping weight, lb (kg) 1150 (522) 1464 (664) 1990 (903) 2030 (921) 2800 (1270) 3350 (1520)
Export shipping volume, ft3(m3) 78 (2.2) 96 (2.7) 134 (3.8) 134 (3.8) 184 (5.3) 220 (6.3)
Export shipping dimensions,
WxDxH, in (mm)
41x50x65.5
(1050x1280x
1670)
43x52.125x74.5
(1092x1324x
1892)
47x63.5x77.25
(1194x1613x
1962)
47x63.5x77.25
(1194x1613x
1962)
63.5x63x80
(1620x1610x
2030)
61.5x71x87
(1562x1804x
2210)
Wash Cylinder Information
Cylinder diameter, in (mm) 26.25 (667) 32 (813) 36 (914) 36 (914) 42 (1067) 43 (1093)
Cylinder depth, in (mm) 18.375 (467) 20 (508) 21 (533) 27 (686) 24 (610) 27.8125 (706)
Cylinder volume, ft3(l) 5.76 (163) 9.31 (264) 12.4 (350) 15.9 (450) 19.2 (544) 23.4 (662)
Perforation size, in (mm) 0.1875 (4.8) 0.1875 (4.8) 0.1875 (4.8) 0.1875 (4.8) 0.1875 (4.8) 0.1875 (4.8)
Perforation open area, % 18 22 23 23 24 21.5
Door Opening Information
Door opening size, in (mm) 14.375 (365) 17.5 (445) 17.5 (445) 17.5 (445) 20 (508) 24.75 (629)
Height of door bottom above floor,
in (mm)
23.75 (603) 28.25 (718) 29 (737) 29 (737) 29 (737) 32 (813)
Drive Train Information
Number of motors in drivetrain111111
Drive motor power, hp (kW) 5.0 (3.7) 5.0 (3.7) 7.5 (5.6) 7.5 (5.6) 10 (7.5) 10 (7.5)
* Basket Only
(Continued)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
9
F8138601
(Continued)
Specifications 35 60 80 100 125 150
Cylinder Speeds / Centrifugal Force Data
1/2 Wash/reverse, rpm (g) 26 (.25) 26 (.31) 26 (.35) 26 (.35) 26 (.40) 23 (.31)
Wash/reverse, rpm (g) 42 (.66) 40 (.73) 40 (.82) 40 (.82) 37 (.82) 36 (0.8)
Distribution, rpm (g) 83 (2.57) 71 (2.29) 73 (2.57) 70 (2.50) 62 (2.29) 61 (2.29)
Very Low extract, rpm (g) 401 (60) 364 (60) 343 (60) 343 (60) 317 (60) 314 (60)
Low extract rpm (g) 568 (120) 514 (120) 485 (120) 485 (120) 449 (120) 444 (120)
Medium extract, rpm (g) 695 (180) 630 (180) 594 (180) 594 (180) 550 (180) 543 (180)
High extract, rpm (g) 803 (240) 727 (240) 686 (240) 686 (240) 565 (190) 627 (240)
Very High extract, rpm (g) 898 (300) 813 (300) 766 (300) 766 (300) 579 (200) 701 (300)
Balance Detection
Vibration switch installed STD STD STD STD STD STD
Direct Steam Heating (Optional)
Steam inlet connection size,
in (mm)
0.5 (13) 0.5 (13) 0.5 (13) 0.5 (13) 0.75 (19) 0.75 (19)
Numberofsteaminlets111111
Steam required to
raise bath temperature
10°F, lb (10°C, kg)
LOW 2.1 (1.5) 3.3 (2.4) 4.6 (3.3) 5.7 (4.1) 6.7 (4.9) 8.3 (6.0)
MED 2.3 (1.7) 3.7 (2.6) 5.2 (3.8) 6.5 (4.7) 7.8 (5.6) 9.5 (6.9)
HIGH 2.7 (1.9) 4.1 (2.9) 6.1 (4.4) 7.6 (5.5) 9.1 (6.6) 11.1 (8.0)
Average consumption per cycle,
BHP (kg)
1.4 (21.4) 2.1 (33.4) 3.1 (48.4) 3.8 (60.4) 4.6 (72.0) 5.8 (91.0)
Electrical Heating (Optional)
Total electrical heating capacity,
kW
15.6 27.4 41.2 (Q-Volt)
27.4 (N-Volt)
41.2 (Q-Volt)
27.4 (N-Volt)
N/A N/A
Number of electrical heating
elements
6699N/AN/A
Electrical heating element size,
kW
2.64.24.24.2N/AN/A
Time required to
raise bath temperature
10°F, min (5°C, min)
LOW 2.4 (3.6) 2.4 (3.7) 2.2 (3.4) 2.8 (4.2) N/A N/A
MED 2.7 (4.1) 2.7 (4.1) 2.5 (3.9) 3.2 (4.8) N/A N/A
HIGH 3.1 (4.7) 3.0 (4.6) 3.0 (4.5) 3.7 (5.6) N/A N/A

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
F8138601
10
Machine Dimensions
Dimensional Clearances
Allow a minimum of 24 inches (60 cm) at the rear and
6 inches (15.24 cm) at the sides for maintenance,
inspection, and adjustment. Allow at least 6 inches
(15.24 cm) between machines in multiple installations.
NOTE: The dimensions shown here are for
planning purposes only. They are approximate and
subject to normal manufacturing tolerances. If
exact dimensions are required for construction
purposes, contact the distributor or the
manufacturer. We reserve the right to make
changes at any time without notice.
UWTV Models
Crush hazard.
To avoid personal injury and/or property
damage, do not tip the UW150 machine
more than 25 degrees in any direction.
W642
WARNING
(Refer to Figure 3 and Figure 4)
Dimension
35 60 80 100 125 150
in mm in mm in mm in mm in mm in mm
A30.125 765 35.625 905 41.125 1045 41.125 1045 48 1219 50.25 1277
B133.375 848 36.625 930 41.5 1054 41.5 1054 48 1219 50.25 1277
C23.75 603 28.25 718 29 737 29 737 29 737 32 813
D43.625 1108 45 1143 51.5 1308 54.5 1384 58 1473 63 1600
E2.5 13 1 25 3 76 3 76 1.5 38 2.9 73
F55.5 1410 64.5 1638 68.5 1740 68.5 1740 72 1829 79 2007
G236 914 36 914 43.75 1111 43.75 1111 48 1219 56 1422
H8 203 15.5 394 16.875 429 16.875 429 11.375 289 15.75 400
J43.14 1096 49.8 1265 53.54 1360 53.54 1360 56.4 1433 62.85 1596
K46.64 1185 53.3 1354 57.04 1449 57.04 1449 59.9 1521 66.35 1685
L5.12 130 5.12 130.05 7.12 181 7.12 181 7.12 181 7.12 181
M2.62 66 2.62 66 3.62 92 3.62 92 3.62 92 3.62 92
N1.37 35 1.37 35 2.25 57 2.25 57 2.25 57 2.25 57
O3.87 98 3.87 98 5 127 5 127 5 127 5 127
P2.5 64 2.5 64 2.75 70 2.75 70 2.75 70 2.75 70
Q2.5 64 2.5 64 3.5 89 3.5 89 3.5 89 3.5 89
1Overhang dimensions for the optional starch dispenser are as follows:UW35TV, 3.88 inches (9.86 cm); UW60TV, 1.75 inches
(4.45 cm); UW80TV and UW100TV, 0.33 inch (0.83 cm). (The starch dispenser does not overhang the UW125TV.) (No longer
available.)
2The overhang dimension for the premium wet clean module option (compatible with wet-clean-capable washer-extractors only) adds
24 inches (60.96 cm) to combined machine dimensions E and G.
Table 1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
11
F8138601
PHM735N
1External Supply Control Mounting Bracket
(Models Through 6/30/08)
9Water Inlet Valves
10 Steam Connection (Optional)
2Door Unlock Button 11 Shell Vent
3Supply Valve Box 12 Power Input (Electric Heat Models)
4Emergency Stop Button 13 Power Input (Non-Electric Heat Models)
5Supply Dispenser 14 Drain (UW80TV, UW100TV and UW125TV
models only)
6Door Handle
7Spray Rinse Nozzle 15 Drain
8Recirculation Inlet 16 Overflow Vent
Figure 3
3
5
2
9
13
C
A (BASE)
B(OVERALL)
G (BASE)
D(OVERALL)
UW35TV - UW125TV MODELS
F
J
H
7
15
6
14
4
8
E
10
3
11
12
16
K
M
N
L
O
P
Q
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
F8138601
12
PHM736N
1External Supply Control Mounting Bracket
(Models Through 6/30/08)
8Basket Jog Buttons
9Recirculation Inlet
2Door Unlock Button 10 Shell Vent
3Emergency Stop Button 11 Water Inlet Valves
4Supply Valve Box 12 Steam Connection (Optional)
5Supply Dispenser 13 Power Input
6Spray Rinse Nozzle 14 Drain
7Door Handle 15 Overflow Vent
Figure 4
TMB736N
4
5
7
911
C
A (BASE)
B(OVERALL)
E
G (BASE)
D(OVERALL)
UW150TV MODELS
F
J
H
6
13
14
3
8
2
11 15
M
N
L
O
P
Q
J
K
10
12
10
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
13
F8138601
Machine Foundation Requirements
A 6 inch (153 mm) (for 35 and 60 2-speed, L-speed
and M-speed models) or a 12 inch (305 mm) (for all
other models) thickness of 3500 psi reinforced
concrete foundation is absolutely necessary because of
the high extract speed and the G-forces exerted.
When designing floors or foundations, refer to Table 2
for Floor Load Data for all model sizes. If the
foundation requirements have been met, proceed to
Mounting Bolt Installation Requirements section.
NOTE: Do not mount on wooden floors, above
ground level, or over basements. Installation must
be “slab on grade” or equal.
Thoroughness of detail must be stressed with all
foundation work to ensure a stable unit installation,
eliminating possibilities of excessive vibration during
extract.
For new foundations a bolt-locator fixture or rebar
frame is available and a preferred option. This rigid
welded assembly made of reinforcing rod and
mounting bolts is designed to be embedded in
concrete. Refer to Figure 7.
The washer-extractor must be anchored to a smooth
level surface so that the entire base of the machine is
supported and rests on the mounting surface. (Do not
support the washer-extractor on only four points.)
Make sure to grout machine. Refer to Figure 6 and
Figure 7.
Ensure that the machine is installed on a
floor that is level to within 3/8 inch when
the machine is grouted. Also ensure that
the floor is of sufficient strength and that
the recommended clearances for
inspection and maintenance are provided.
Never allow the inspection and
maintenance space to be blocked.
W760
CAUTION
To reduce the risk of fire, this appliance
must be bolted to an uncovered concrete
floor.
W743
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
F8138601
14
Concrete Foundation Pad
Installation
A concrete foundation and pad may be constructed to
elevate the machines. Care must be exercised in the
design of the foundation pad due to the force exerted
by the machine during extract. This concrete base
(recommended not to exceed 8 inches [20.32 cm])
(above existing floor) must be poured, reinforced with
rebar and tied to the existing 6 inch (153 mm) (for 35
and 60 2-speed, L-speed and M-speed models) or 12
inch (305 mm) (for all other models) minimum floor.
Refer to Figure 5 and Table 2.
IMPORTANT: Do NOT install a pad on top of the
existing floor. The foundation and pad must be
constructed and tied together as one piece.
If the existing floor is not reinforced concrete at least 6
inch (153 mm) (for 35 and 60 2-speed, L-speed and
M-speed models) or 12 inch (305 mm) (for all other
models) thick over a solid foundation, the following
steps must be performed (refer to Figure 5):
1. Cut a hole larger on all sides than the machine
base through the existing floor. The foundation
should extend a minimum of 9 inches (229 mm)
for 35 models or 12 inches (305 mm) for 60 - 150
models out from the machine on all sides.
2. Excavate to a depth of 18 inches (457 mm) from
the top of the existing floor.
3. Produce a PYRAMID-SHAPED hole by
excavating the bottom of the hole to a width 6
inches wider on each side than the width of the
top of the hole.
4. If installing a foundation and pad, prepare a form
for the above-ground portion of the foundation.
Verify that the top of the foundation is level. The
height of the foundation pad must not exceed 8
inches (203 mm) above the existing floor.
5. Refill with compacted fill dirt, making sure to
allow for correct concrete thickness.
6. Wet the hole around the cement foundation well
and brush the exposed foundation with cement
grout.
7. Completely fill with a minimum of 6 inch (153
mm) (for 35 and 60 2-speed, L-speed and
M-speed models) or 12 inch (305 mm) (for all
other models) of 3500 psi concrete up to the
existing foundation level plus any added level for
the desired elevated pad. The concrete must be
poured so that the entire foundation and pad
cures as one piece.
8. For new foundations only a bolt-locator fixture
or a rebar frame is available and a preferred
option. Embed the mounting bolts or rebar frame
as the concrete is poured. Ensure that the bolt
threads extend 2 inches (51 mm) for 35 - 125
models and 3 inches (76 mm) for 150 models
above floor level.
9. Allow concrete to dry.
10. Proceed to Machine Mounting and Grouting
section.
NOTE: If the washer-extractor installation will
include the Premium Wet Clean Module, the
elevated base must be designed to accommodate the
additional depth of 24 inches (60.96 cm).
For technical assistance, contact your local distributor
or call Alliance Laundry Systems at [phone].

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
15
F8138601
Figure 5
PHM771N
35 60 80 100 125 150
1
2-Speed,
L-Speed and M-Speed
6 in. (153 mm) 12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
Variable-Speed
12 in. (305 mm)
2
6 in.
(152 mm)
minimum
6 in.
(152 mm)
minimum
6 in.
(152 mm)
minimum
6 in.
(152 mm)
minimum
6 in.
(152 mm)
minimum
6 in.
(152 mm)
minimum
39 in.
(229 mm)
12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
436 in.
(914 mm)
36 in.
(914 mm)
43.75 in.
(1111 mm)
43.75 in.
(1111 mm)
48 in.
(1219 mm)
56 in.
(1422 mm)
5
0 - 8 in.
(0 - 203 mm)
max.
0 - 8 in.
(0 - 203 mm)
max.
0 - 8 in.
(0 - 203 mm)
max.
0 - 8 in.
(0 - 203 mm)
max.
0 - 8 in.
(0 - 203 mm)
max.
0 - 8 in.
(0 - 203 mm)
max.
648.125 in.
(1222 mm)
59.625 in.
(1514 mm)
65.125 in.
(1654 mm)
65.125 in.
(1654 mm)
72 in.
(1829 mm)
74.25 in.
(1886 mm)
1
2
346
LENGTH FOR ONE MACHINE
COMPACTED FILL DIRT 18 in. (457 mm) DEPTH
3
33
5
Brush with
Cement Grout Brush with
Cement Grout
Brush with
Cement Grout
COMPACTED FILL DIRT 18 in. (457 mm) DEPTH

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
F8138601
16
Floor Load Data
Static and dynamic loads on the floor or foundation are
shown in Table 2.
UWTV Pocket Hardmount Floor Load Data
Specifications Design
Series 35 60 80 100 125 150
Static floor load, lbs (kN) U1 and
greater
1272 (5.66) 1677 (7.45) 2292 (10.2) 2490 (11.1) 3283 (14.6) 3936 (17.5)
Static pressure,
lbs/ft2
U1 and
greater
169 (8.08) 187 (8.94) 184 (8.79) 199 (9.6) 205 (9.8) 202 (9.7)
Dynamic floor load, lbs (kN) U1 and
greater
1648 (7.33) 2824 (12.6) 3679 (16.36) 3690 (16.41) 5011 (22.29) 4358 (19.4)
Dynamic pressure,
lbs/ft2(kN/m2)
U1 and
greater
219 (10.5) 317 (15.2) 295 (14.2) 295 (14.2) 312 (15) 224 (11)
Dynamic load frequency, Hz U1 and
greater
15 13.6 12.8 12.8 9.7 11.7
1Maximum vertical load,
lbs (kN)
U1 and
greater
2719 (12.1) 4168 (18.5) 5482 (24.38) 5561 (24.73) 7559 (33.62) 7508 (33.4)
2Minimum vertical load,
lbs (kN)
U1 and
greater
576 (2.56) 1450 (6.45) 1852 (8.24) 1794 (8.0) 2434 (10.8) 1208 (5.4)
Base moment, lb/ft (kN/m) U1 and
greater
4249 (5.8) 8895 (12.1) 11951 (16.2) 11984 (16.3) 16606 (22.5) 16707 (22.7)
1Acting in the downward direction against the floor.
2Acting in the upward direction away from the floor.
Table 2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
17
F8138601
Mounting Bolt Installation
Requirements
Approved Foundations Only
NOTE: If installing expansion bolts into an
elevated concrete foundation pad, the concrete
foundation pad should extend a minimum of 9
inches (229 mm) for 35 machines or 12 inches (305
mm) for 60 - 150 machines out from the machine
base on all sides. Refer to Figure 5.
A bolt kit consisting of eight bolts is available as an
option. 35 machines use 5/8-11 x 8 inch bolts.
60 – 125 machines use 3/4-10 x 8 inch bolts. 150
machines use 3/4-10 x 10 inch grade 5 bolts. The bolts
should be embedded in a 3500 psi (241 bar) minimum
reinforced concrete floor that is a minimum of 6 inches
(153 mm) (for 35 and 60 2-speed, L-speed, and
M-speed models) or a 12 inch (305 mm) (for all other
models) thick. Use the mounting bolt layouts in
Mounting Bolt Hole Locations section.
On 35 – 125 machines, the threaded end of the bolts
should extend 2 inches (5.08 cm) above the mounting
surface. On 150 machines, the threaded end of the
bolts should extend 3 inches above the mounting
surface.
Refer to Figure 6 for a typical installation of
individual mounting bolts.
Figure 6
For new foundations a bolt-locator fixture or rebar
frame is available and a preferred option. This rigid
welded assembly made of reinforcing rod and
mounting bolts is designed to be embedded in
concrete. Refer to Figure 7.
Figure 7
PHM722N
1Machine Frame Base
2Mounting Bolt Threads
3Grouting
4Cement or Structural Epoxy
PHM722N
1
3
2 in.
(51 mm)
8 in.
(203 mm)
0.75 in.
(19 mm)
4
2
PHM179N
1Machine Frame Base
2Mounting Bolt Threads
3Grouting
4Reinforcing Rod
PHM179N
1
2
3
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
F8138601
18
Machine Mounting and Grouting
After the concrete has cured, proceed as follows:
1. Place the washer-extractor adjacent to the
foundation. Do not attempt to move the machine
by pushing on the sides. Always insert a pry bar
or other device under the bottom frame of the
machine to move it.
2. Remove the wood skid by unscrewing the
carriage bolts holding the skid to the bottom
frame of the washer-extractor.
3. Place the washer-extractor carefully over the
anchor bolts. Never attempt to lift the machine by
the door handle or by pushing on the cover
panels.
4. Raise and level the washer-extractor 0.5 inch
(1.27 cm) off the floor on three points, using
spacers such as nut fasteners.
5. Fill the space between the washer-extractor base
and the floor with a good quality non-shrinking
machinery precision grout to ensure a stable
installation. Grout completely under all frame
members. (Remove front panel and back panel to
gain access to all frame members.) Refer to
Figure 13. Force grout under machine base until
all voids are filled.
6. Remove the spacers carefully, allowing the
machine to settle into the wet grout.
7. Before grout sets completely, make a drain
opening in the rear of the washer-extractor
grouting with a stiff piece of wire; this opening
should be approximately 1/2 inch (1.27 cm) wide
to allow any surface water build-up under the
base of the machine to drain away. Do not omit
this step.
8. Position the mounting bolt lockwashers and
locknuts on the anchor bolts and finger-tighten
locknuts to machine base.
9. After the grout is completely dry, tighten the
locknuts by even increments – one after the other –
until all are tightened evenly and the washer-
extractor is fastened securely to the floor.
10. After installing bolts using a rebar frame, torque
5/8 inch bolts (35 model) to 90 ft. lb. and torque
3/4 inch bolts (60-150 models) to 160 ft. lb.
When using bolts not specified by Alliance
Laundry Systems, refer to the specifications
provided with the bolt.
NOTE: Check and retighten the locknuts after five
to ten days of operation and every month
thereafter.
