Alliance Laundry Systems FLW1526C User manual

Scuka Enterprises Ltd
881 Highway 33 E
Kelowna, BC , V1X 6V1
Submittal
Submittal 45.2: PKHS SD # 45.2 Laundry Rooms Huebsch Machine Specs
APPROVERS (ASSIGNEES): CREATED BY:
Brett Sichello (Philip Mac Donald Architect Inc.) Lisa Duckworth
PROJECT: ISSUE DATE:
Penticton Kiwanis
150 Van Horne Street
Penticton, BC, V2A 4K2
Canada
12/16/10
PROJECT NUMBER: SUBMITTAL NO / REVISION:
SC-415 45.2 / 0
COST CODE: STATUS:
Open
SUBMITTAL TYPE: BALL IN COURT:
Brett Sichello
SPEC SECTION:
RECEIVED FROM: RECEIVED DATE:
John Finch (Pacic Wholesale Appliance) 12/16/10
COPIES TO: REQUESTED REPLY DATE:
Joe Dees
Ben Duckworth
Lisa Duckworth
John Finch
Ernie Schneider
12/24/10
DESCRIPTION:
Hi Brett,
When we were onsite this morning with John Finch, he is interested in proposing some dierent machines that are higher and
will not need the pedestools as part of the package.
Ernie is really indierent on the machine type because they will have to service them and maintain them but i wanted you both
to review this and we'll ask John Finch to get us some actual makes and models in the next day or so to add to this review as
well.
Please see if you have any questions or concerns and have a great night,
Lisa Duckworth
REFERENCES / ATTACHMENTS
•415 2010-12-16 SD 45.2 Laundry Huebsch Specs.pdf
APPROVER RESPONSES
APPROVER NAME DATE SENT DATE
RETURNED STATUS ATTACHMENTS COMMENTS
Brett Sichello 12/16/10 Pending None

From: John Finch
To: "[email protected]";
Subject: FW: Huebsch Sepc
Date: Thursday, December 16, 2010 2:49:37 PM
Attachments: Dryer install 2.pdf
Dryer install 1.pdf
Washer install 2.pdf
Washer install 1.pdf
Hi Lisa;
Here are the cut sheets for the Huebsch washer and dryer.
You will note that the door openings are higher up than the Maytag models, hence there will be no
need for the platforms.
The Society will also save because the cost of the platforms won't have to be included in their
rental.
Please review and confirm that the dimensions for these machines are compatible with the
ammenities you are building for the laundry rooms.
Thanks,
John
-----Original Message-----
From: Allan Wong
Sent: December 16, 2010 2:43 PM
To: John Finch
Subject: Huebsch Sepc
Thank you
Allan Wong
Coinamatic Pacific a Division of Coinamatic Canada Inc.
2451 Vauxhall Place
Richmond, B.C. V6V 1Z5
Tel: [phone] Fax:[phone]
Canada’s Most Trusted Name in Apartment Services®

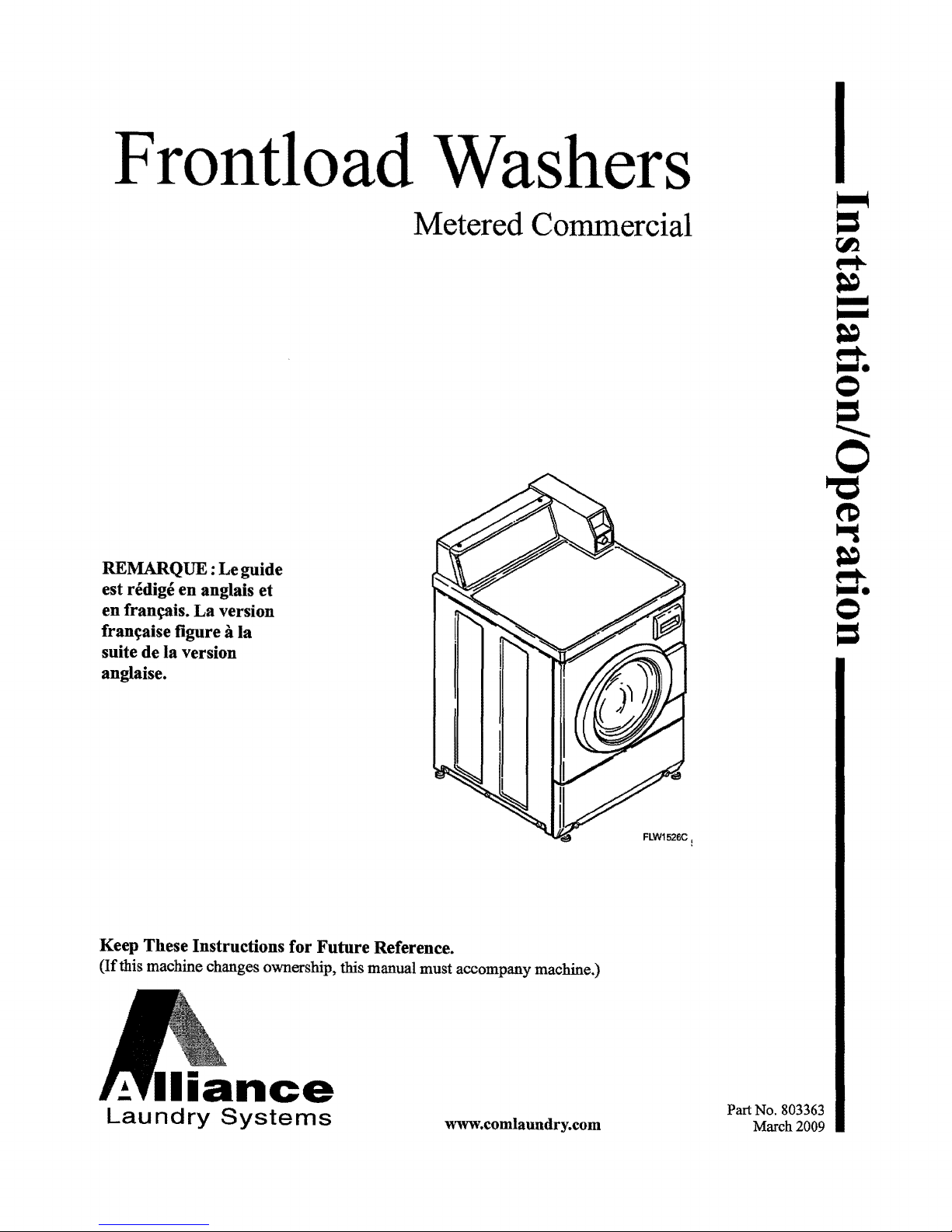

Frontload Washers
Metered Commercial
REMARQUE:Leguide
est redige en anglais et
en
fran~is. La version
fran~aise figure ala
suite de la version
anglaise.
FLW1526C!
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompanymachine.)
liance
Part No. 803363
Laundry Systems
www.comlaundry.com March
2009

AI

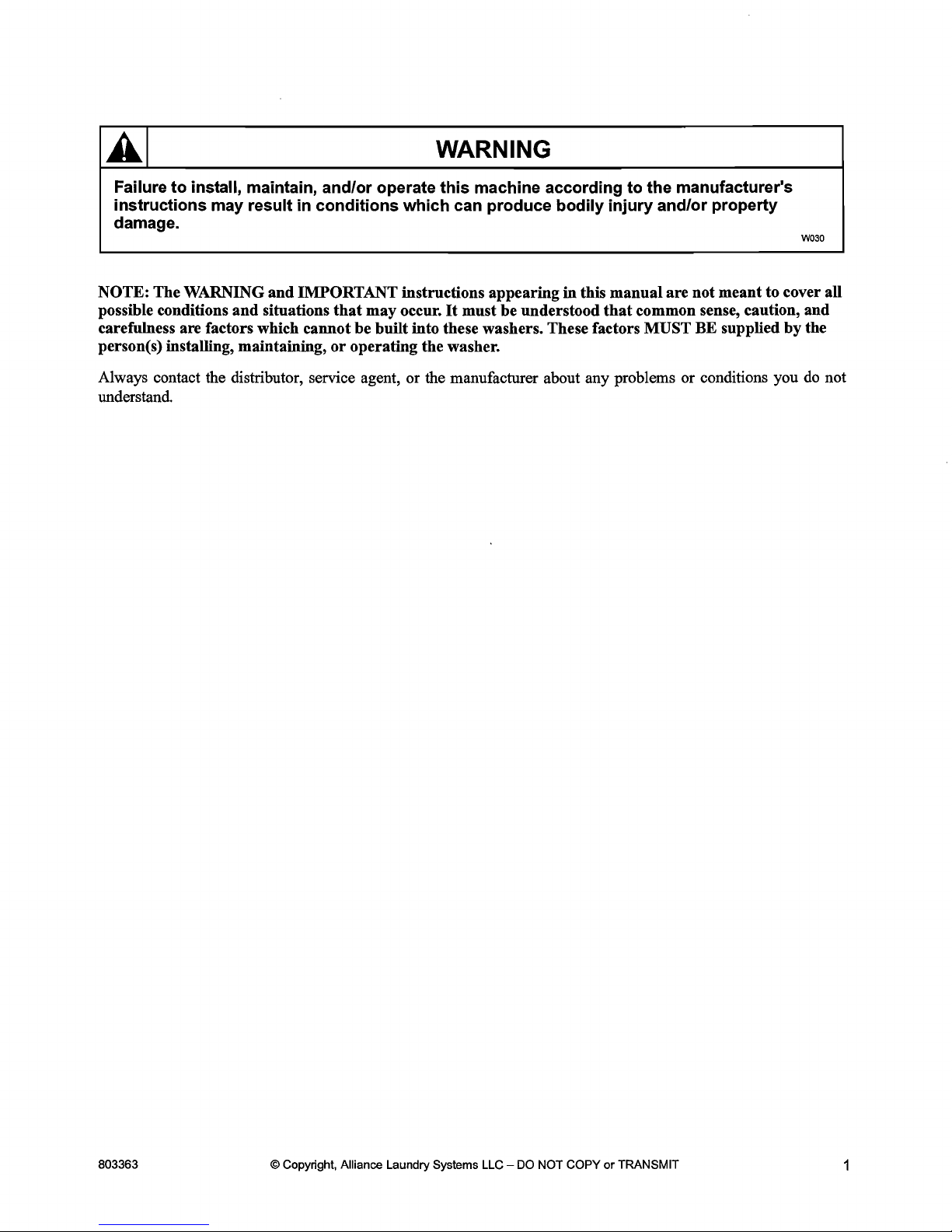

WARNING
Failure to install, maintain, and/or operate this machine according to the manufacturer's
instructions may result in conditions which can produce bodily injury and/or property
damage.
W030
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all
possible conditions
and situations that may occur. It must be understood that common sense, caution, and
carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by the
person(s) installing, maintaining,
or operating the washer.
Always contact the distributor, service agent, or the manufacturer about any problems or conditions you
do not
understand.
803363 © Copyright, Alliance Laundry Systems LLC -DO NOT COPY or TRANSMIT 1

Table of
Safety Information.............................................................................. 3
Explanation of Safety Messages........................................................... 3
Contents hnportant Safety Instructions ............................................................... 3
Installation........................................................................................... 5

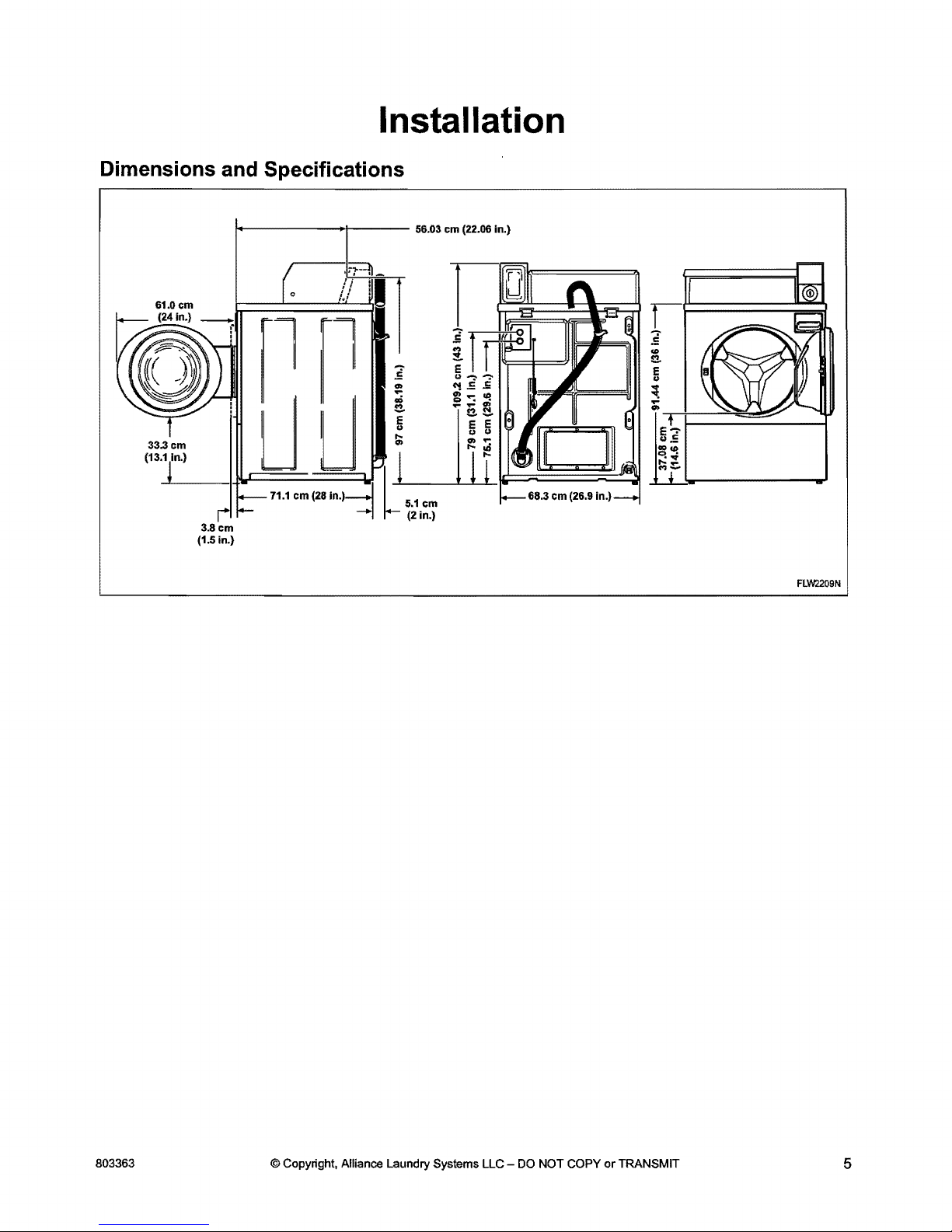

Dimensions and Specifications............................................................. 5

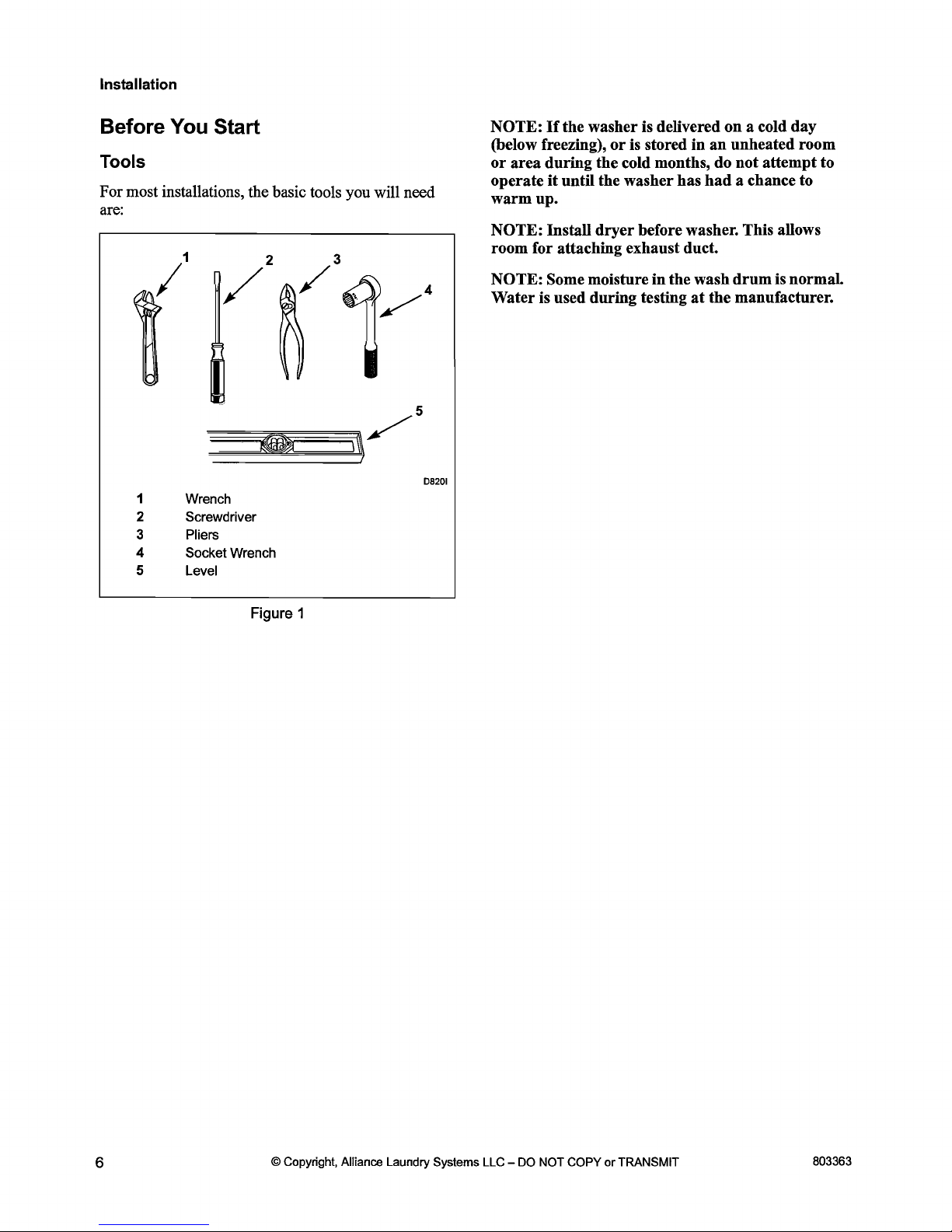

Before You Start................................................................................... 6
Tools ................................................................................................ 6
Installing the Washer............................................................................ 7
Step
1: Position WasherNear Installation Area .............................. 7
Step

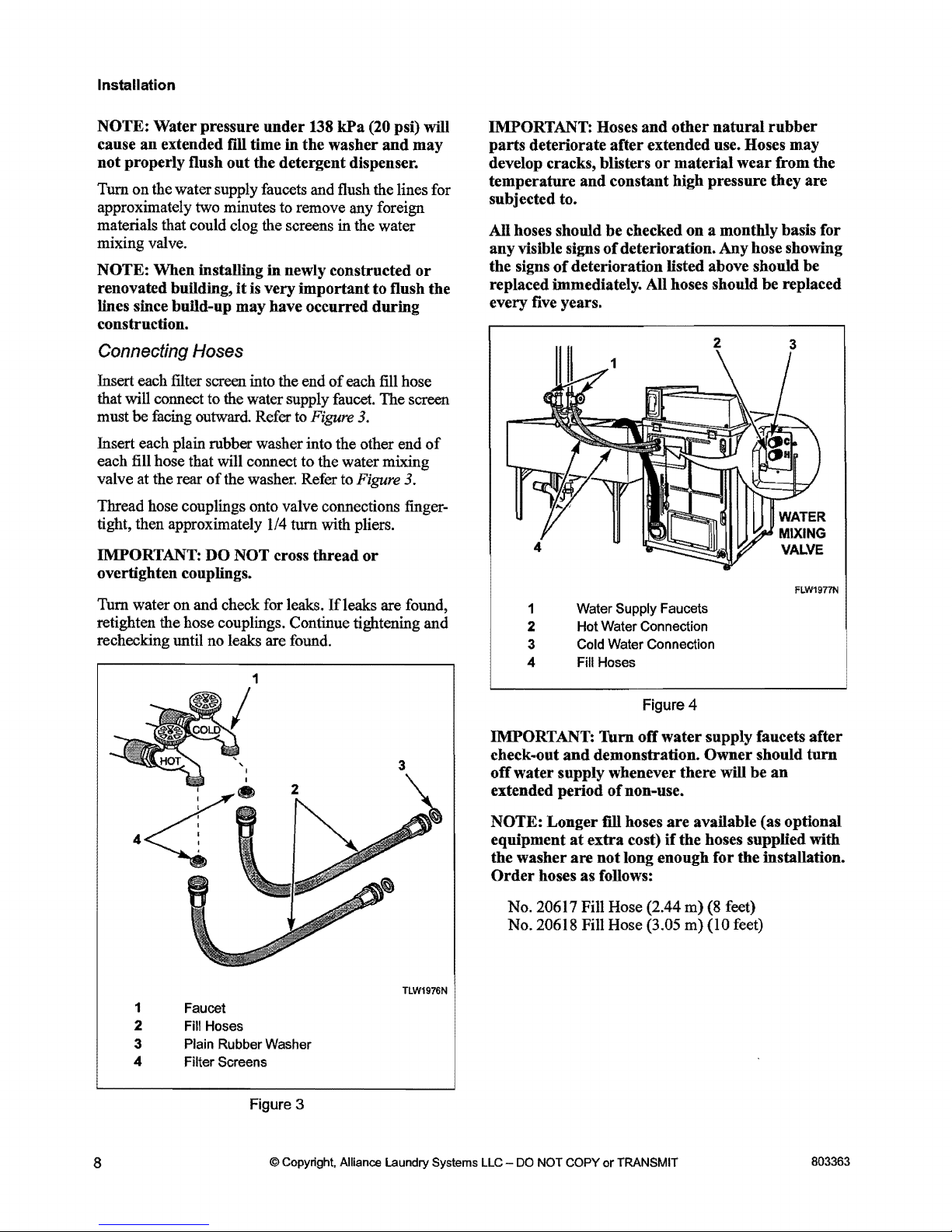

2: Connect Fill Hoses............................................................... 7

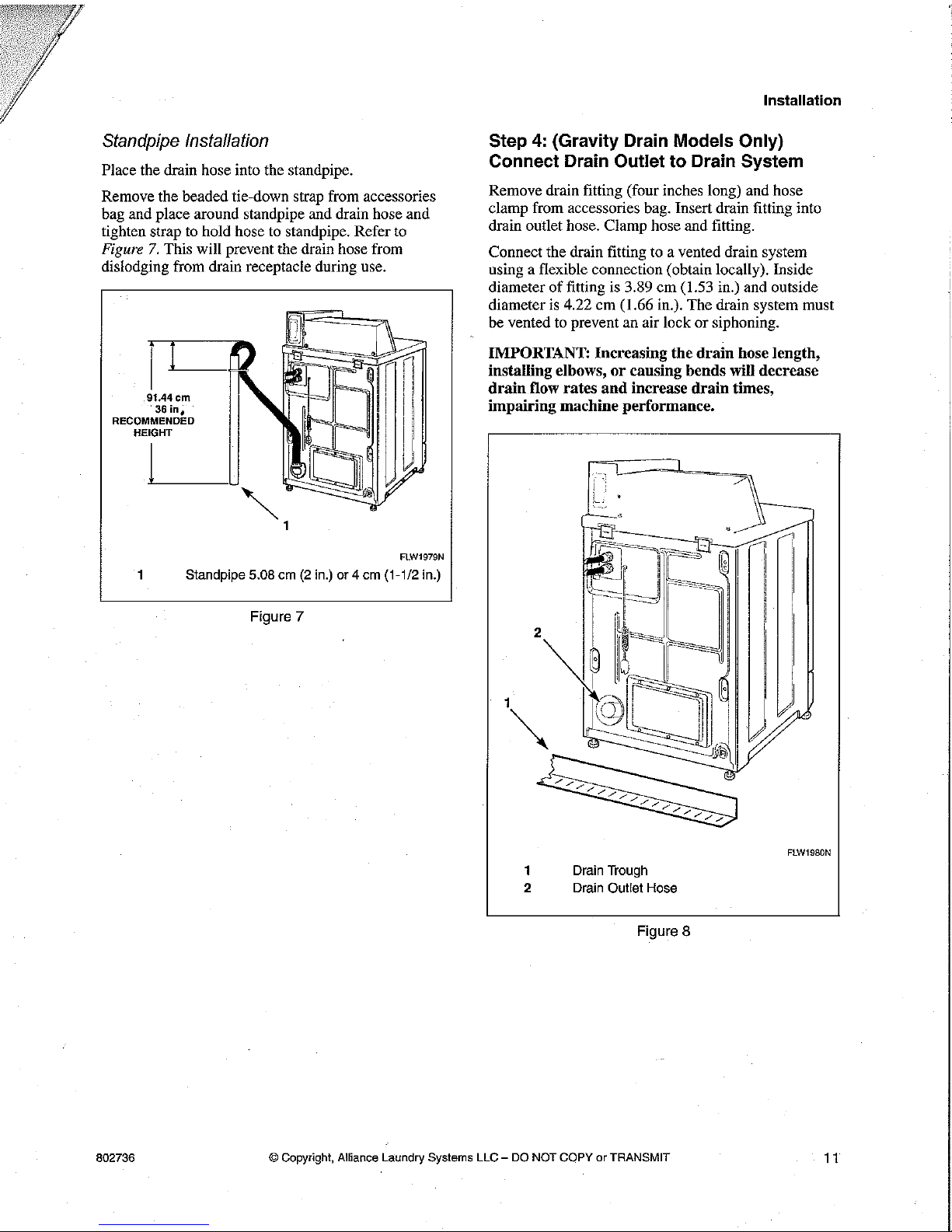

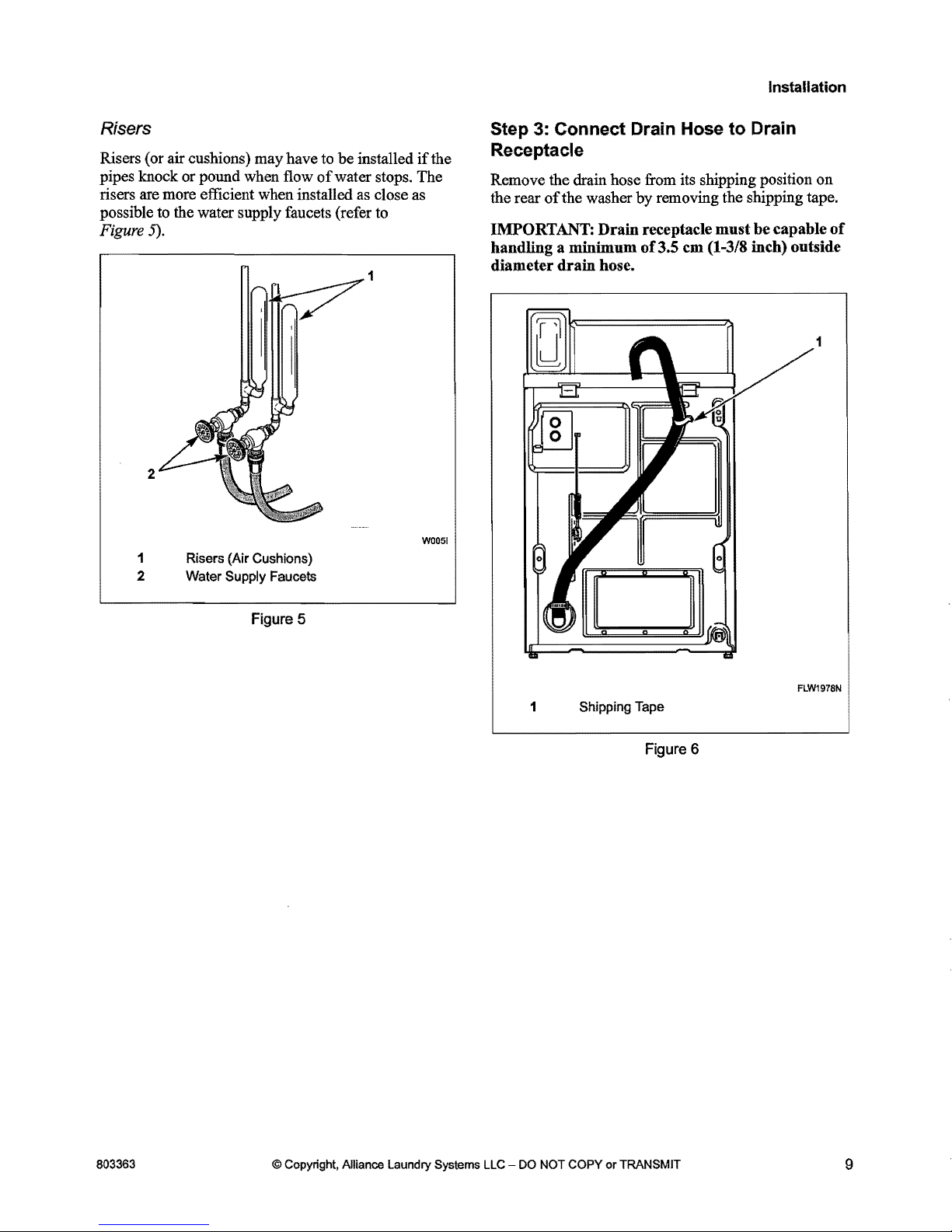

Step 3: Connect Drain Hose to Drain Receptacle............................ 9
Step 4: Position and Level the Washer............................................ 10

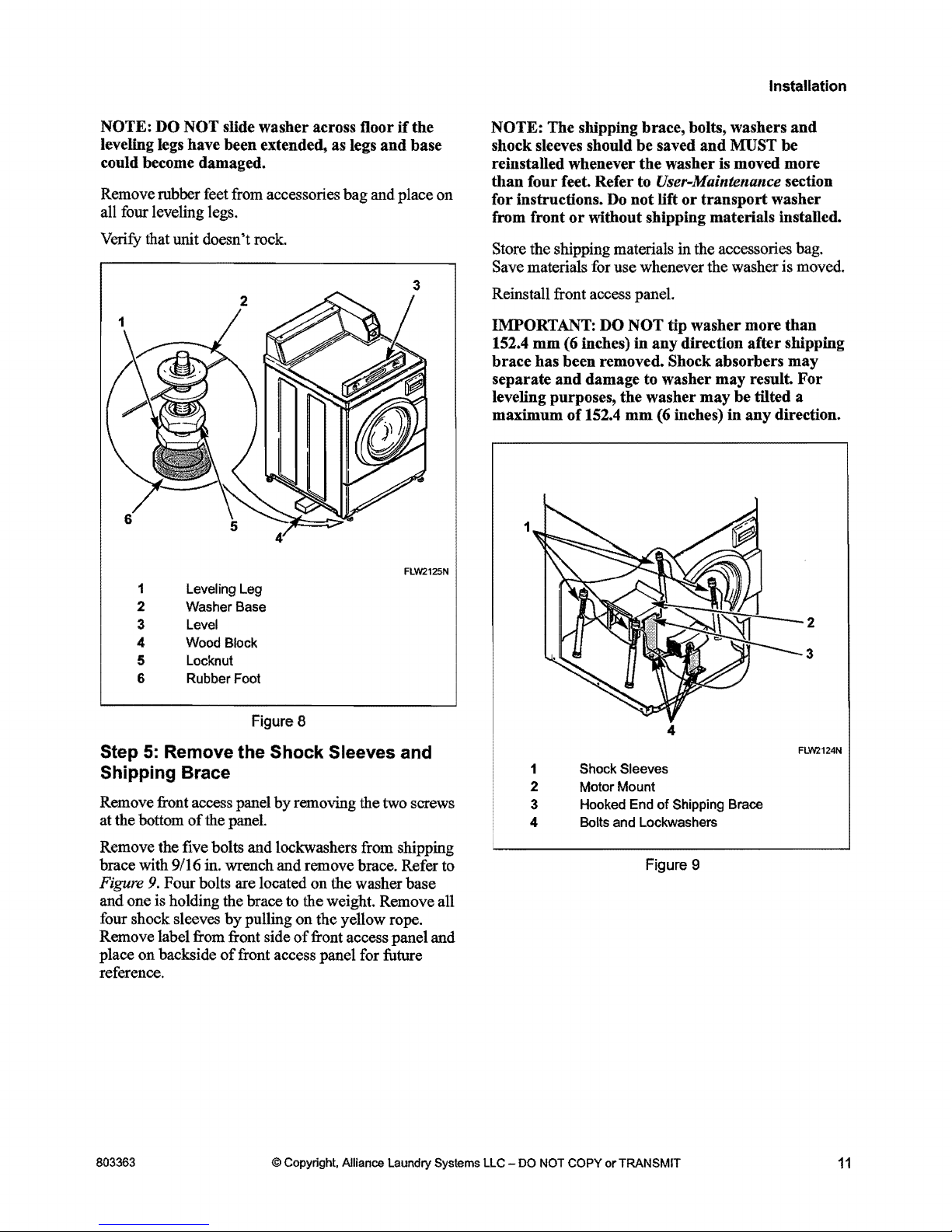

Step 5: Remove the Shock Sleeves and Shipping Brace .................
11
Step 6: Wipe Out Inside of Wash Drum .......................................... 12
Step 7: Plug In the Washer............................................................... 12
Step 8: Check Installation ................................................................
13
Vending................................................................................................. 13
MeterCase....................................................................................... 13
Models Prepped for Card Reader..................................................... 13
Operation............................................................................................. 14
Operation Instructions .......................................................................... 14
Step
1: Load Laundry....................................................................... 14
Step 2: Close Loading Door............................................................. 14
Step
3: Add Laundry Supplies......................................................... 15
Step 4: Set Fabric Selector............................................................... 15
Step 5: Set Wash Temperature......................................................... 15
Step 6: Set Soil Level....................................................................... 16
Step 7: Insert Coin(s) or Card.......................................................... 16
Step 8: Start Washer......................................................................... 16
Indicator Lights................................................................................ 17
Maintenance........................................................................................ 18
User-Maintenance Instructions............................................................. 18
ColdWeather Care........................................................................... 18
Care of Your Washer....................................................................... 18
Cleaning Glass Sealing Area ........................................................... 18
ReplacingHoses............................................................................... 18
Filter Screens ................................................................................... 18
Vacations and ExtendedNon-Use ................................................... 18
Reinstallation of Shipping Materials ............................................... 19
Cleaning Foreign Object
Trap ......................................................... 19
Troubleshooting.................................................................................. 20
ContactInformation........................................................................... 22
Installer Checklist............................................................... Back Cover
© Copyright 2009, Alliance Laundry Systems LLC
All rights reserved.
No part of the contents of this book may be reproduced or transmitted in any fonn or by any
means without the expressed written consent
of thepublisher.
2 @ Copyright. Alliance Laundry Systems LLC -DO NOT
COpy or TRANSMIT 803363

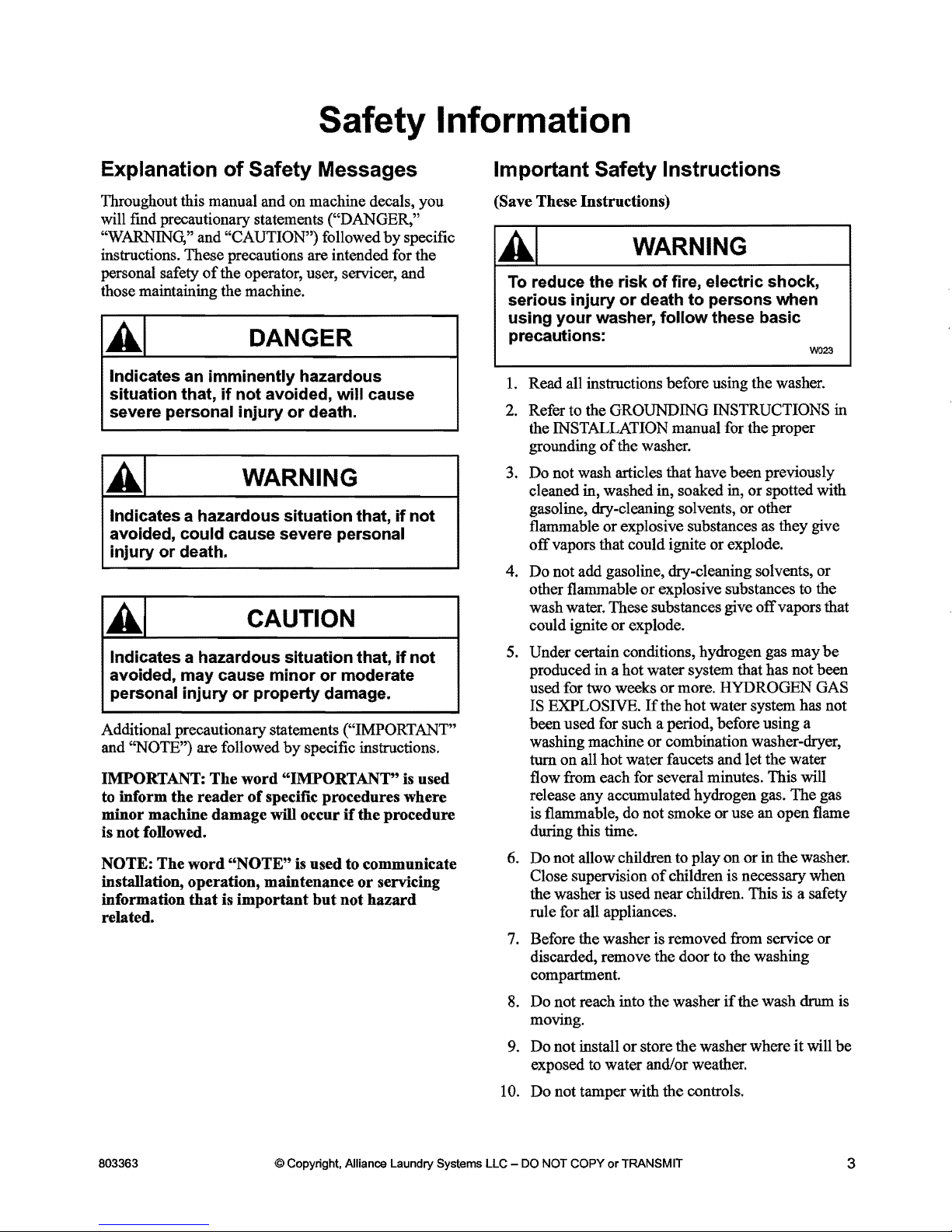

Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will fmd precautionary statements ("DANGER,"
"WARNING," and "CAUTION") followed
by specific
instructions. These precautions are intended for the
personal safety
of the operator, user, servicer, and
those maintaining the machine.
.AI
DANGER
Indicates an imminently hazardous
situation that,
if not avoided, will cause
severe personal
injury or death.
.AI
WARNING
Indicatesa hazardous situationthat, if not
avoided, could cause severe personal
injury or death.
.AI
CAUTION
Indicatesa hazardous situationthat, if not
avoided, may cause minor or moderate
personal
injury or property damage.
Additional precautionarystatements ("IMPORTANT"
and "NOTE") are followed
by specific instructions.
IMPORTANT: The word "IMPORTANT" is used
to inform
the reader of specific procedures where
minor machine damage will occur if the procedure
is
not followed.
NOTE:
The word "NOTE" is used to communicate
installation, operation, maintenance
or servicing
information
that is important but not hazard
related.
Important Safety Instructions
(Save TheseInstructions)
.AI
WARNING
To reduce the risk of fire, electricshock,
serious
injury or death to persons when
using your washer, follow these basic
precautions:
W023
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for theproper
grounding
of the washer.
3. Do not wash articles that have beenpreviously
cleaned in, washed in, soaked in,
or spottedwith
gasoline, dry-cleaning solvents, or other
flammable orexplosive substances as they give
off vapors that could ignite orexplode.
4. Do not add gasoline, dry-cleaning solvents,
or
otherflammable or explosive substances to the
washwater. These substances give
off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas
may be
produced in a hot water system thathas not been
used for two weeks
or more. HYDROGEN GAS
IS EXPLOSIVE.
If the hot watersystem has not
beenused for such a period, before using a
washing machine
or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulatedhydrogen gas. The gas
isflammable, do not smoke
or use an openflame
during this time.
6.
Do not allowchildrento playon or inthewasher.
Close supervision
of children is necessarywhen
the washer is used nearchildren. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
9.
Do not install or storethe washerwhere it will be
exposed to water and/or weather.
10. Do not tamperwith the controls.
803363 © Copyright. Alliance Laundry Systems LLC -DO NOT COpy or TRANSMIT 3

Safety Information
11. Do notrepair orreplace anypart of the washer, or
attempt any servicing unless specifically
recommended inthe user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
13. Use your washer onlyfor its intended purpose,
washing clothes.
14. ALWAYS disconnect the washer from electrical
supplybeforeattempting anyservice. Disconnect
the power cord
by grasping the plug, notthe cord.
15. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections forwater, drain, electricalpowerand
grounding mustcomply with local codes and
be
made by licensedpersonnel when required. Do
not do it yourselfunless you know how!
16. To reduce the risk
of fire, clothes which have
traces
of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc.
or anything
containingwax
or chemicals such as inmops and
cleaning cloths, must not
be put into the washer.
These flammable substances may cause the
fabric to catch on fire
by itself.
17. Do notuse fabric softeners or products to
eliminate static unless recommended
by the
manufacturer
of the fabric softener or product.
18. Keep your washeringood condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have your washer checked by a
qualified service person.
19.
If thesupplycord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
20.
Be sure water connections have a shut-offvalve
and that fill hose connections are tight. CLOSE
the shut-offvalves at the end
of each wash day.
21. Loading door MUST
BE CLOSED anytime the
washer is to fill, tumble or spin. DO
NOT bypass
the loading door switch
by permitting the washer
to opemte with the loading door open.
22. Always read and follow manufacturer's
instructions on packages
of laundry and cleaning
aids. Heedall warnings orprecautions. To reduce
the risk
of poisoning or chemical burns, keep
them out
of the reach of children at all times
(preferably in a locked cabinet).
23. Always follow the fabric care instructions
supplied
by the garment manufacturer.
24. Never operate the washer withany guards and/or
panels removed.
25. DO
NOT operate the washer with missing or
brokenparts.
26.
DO NOT bypass anysafety devices.
27. Failure to install, maintain, and/or operate this
washer according to the manufacturer's
instructions may result inconditions which can
producebodily injury and/or property damage.
NOTE:TheVV~Gand~ORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions
and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining,
or operating the washer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.
4 @ Copyright. Alliance Laundry Systems
LLC - DO NOT COPY orTRANSMIT
803363

Installation
Dimensions and Specifications
I+-----t--- 56.03 em (22.06 in.)
33.3 em
(13.1(.)
I~-
Ii
, '
o ;,./
fl fl ~
UU!
71.1 em (28 in.)--=.! IJ 5.1 em
-I I- (2 in.)
I
3.8 em
(1.5 in.)
FLW2209N
803363 @ Copyright, Alliance Laundry Systems LLC -DO NOT COPY
or TRANSMIT 5

Installation
Before You Start
Tools
Formost installations, the basic tools you will need
are:
2
/
08201
1 Wrench
2 Screwdriver
3 Pliers
4 Socket Wrench
5 Level
Figure 1
NOTE: If the washer is delivered on a cold day
(below freezing),
or is stored in an unheated room
or area during the cold months, do not attempt to
operate
it until the washer has had a chance to
warm up.
NOTE: Install
dryer before washer. This allows
room for attaching exhaust duct.
NOTE: Some moisture
in the wash drum is normal
Water is used during testing at the manufacturer.
6 © Copyright, Alliance Laundry Systems LLC -DO NOT
COpy or TRANSMIT 803363

Installing the Washer
Step 1: Position Washer Near Installation
Area
Move washer so that itis within 1.2 meters (4 feet) of
the desired area of installation.
NOTE: For best performance and to minimize
vibration or movement, install washer on a solid,
sturdy and level floor. Some floors may need to be
reinforced, especially on a second floor or over a
basement. Do
not install the washer on carpeting
soft tile, a platform or other weakly supported '
structures.
H1351
Figure 2
Installation
Step 2: Connect Fill Hoses
AI
WARNING
Undercertain conditions, hydrogen gas
maybe produced in a
hot water system
that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If
the hot water system has not been used
for such a period and before using the
washer,
turn on all hot waterfaucets and
let
the water flow from each for several
minutes. This
will release any
accumulated hydrogen gas. THE GAS IS
FLAMMABLE, DO NOT SMOKE OR USE
AN OPEN FLAME DURING THIS TIME.
W029
Water Supply
~ater supply faucets must fit standard 19.1 mm (3/4
mch) female garden hose couplings. DO NOT USE
SLIP-ON
OR CLAMP-ON CONNECTIONS.
Water supply faucets should be readily accessible to
permit turning them
off when washer is not being
used.
Recommended cold water temperature is
16
0 to 270
Celsius (600 to 800 Fahrenheit). Recommended
maximum hot water temperature is
51
0 Celsius (1250
Fahrenheit). Warm water is a mixture of hot and cold
water. Warm water temperature is dependent upon
water temperature and pressure
of both the hot and
cold water supply lines.
AI
WARNING
To prevent personal injury, avoid contact
with inletwatertemperatures higher than
51° Celsius (125°Fahrenheit) and
hot
surfaces.
W700
Water pressuremust be a minimum of 138 to a
maximum
of 827 kPa (20 to 120 psi) static pressure
measured at the faucet.
803363 @ Copyright. Alliance Laundry Systems LLC -DO
NOT COPY or TRANSMIT 7

Installation
NOTE: Water pressure under 138 kPa (20 psi) will
cause an extended fill time in the washer and may
not properlyflush out the detergent dispenser.
Tum onthe watersupply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up
may have occurred during
construction.
Connecting Hoses
Inserteach filter screen into the end of each fill hose
that will connect to the water supply faucet. The screen
must be facing outward. Refer to Figure 3.
Insert each plain rubber washer into the other end of
each fill hose that will connect to the water mixing
valve at the rear
of the washer. Refer to Figure 3.
Thread hose couplings onto valve connections finger-
tight, then approximately
114 turn with pliers.
IMPORTANT:
DO NOT cross thread or
overtighten couplings.
Tum water on and check for leaks.
If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
1
TLW1976N
1 Faucet
2
Fill Hoses
3 Plain Rubber Washer
4 Filter Screens
Figure 3
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should
be checked on a monthly basis for
any visible signs of deterioration. Anyhose showing
the signs
of deterioration listed above should be
replacedimmediately. All hoses should be replaced
every five years.
1
2
3
4
2
Water Supply Faucets
Hot Water Connection
Cold Water Connection
Fill Hoses
3
FLW1977N
Figure 4
IMPORTANT: Tum off water supplyfaucets after
check-out and demonstration. Owner should turn
off water supply whenever there will be an
extended period of non-use.
NOTE: Longer fill hoses are available (as optional
equipment at extra cost) if the hoses suppliedwith
the
washer are not long enough for the installation.
Order hoses as follows:
No. 20617 Fill Hose (2.44 m) (8 feet)
No. 20618 Fill Hose (3.05 m) (10 feet)
8 @ Copyright. Alliance
laundry Systems LLC -DO NOTCOPY or TRANSMIT 803363

Risers
Risers (or air cushions) mayhave to be installed if the
pipes knock or pound when flow
of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets (refer to
Figure 5).
1
2
W0051
1 Risers (Air Cushions)
2 Water Supply
Faucets
Figure 5
Installation
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear
of the washer by removing the shipping tape.
IMPORTANT: Drainreceptacle must be capable of
handling a minimum 00.5 cm (1-3/8 inch) outside
diameter
drain hose.
FLW1978N
1 Shipping Tape
Figure 6
803363 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 9

Installation
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. Refer to
Figure 7. This will prevent the drain hose from
dislodging from drain receptacle during use.
61 TO 91.44 em
(24 TO 36 in.)
RECOMMENDED
HEIGHT
FLW1979N
1 Standpipe 5.08 cm (2 in.) or 4 cm (1-1/2 in.)
Figure 7
Step 4: Position and Level the Washer
AI
WARNING
Washers elevated above floor level must
be anchored to that elevated surface,
base
or platform. The material used to
elevate the washer should also be
anchored
to the floor to ensure that the
washer will not walk or that the washer
can not be physically pulled, tipped or
slid from its installed position. Failure to
do so may result in conditions which can
produce serious injury, death and/or
property damage.
W306
Position washer so it has sufficient clearance for
installation and servicing.
NOTE: Use of the dispenser drawer or washer door
as a handle in the transportation of the washer may
cause damage to the dispenser or door.
Place washer in position on a solid, sturdy and level
floor. Installing the washer on any type
of carpeting,
soft tile, a platform or other weakly supported
structures is not recommended.
Place a level on the cabinet top and check
if the
washer is level from side to side and front to back.
NOTE: Level must rest on raised portion oftop
panel. Refer to Figure 8.
If washer is not level, tilt washer to access the front
and rear leveling legs. Foreasier access to leveling
legs, prop up washer with a wooden block. Refer to
Figure 8. Loosen 7/8 in. locknut and adjust legs until
the washer is level from side to side and front to back
(using a level). Washer should not rock.
Tighten
the locknuts securely against the washer
base using the 7/8 in. wrench. If the locknuts are not
tight, washer will move out
of position during
operation.
10
© Copyright, Alliance Laundry Systems LLC -DO NOT COPY or TRANSMIT 803363

NOTE: DO NOT slide washer across floor if the
leveling legs have been extended, as legs
and base
could become damaged.
Removerubber feet from accessories bag andplace on
all four leveling legs.
Verify that unit doesn't rock.
3
FlW2125N
1 Leveling
Leg
2
Washer Base
3 Level
4 Wood Block
5 Locknut
6 Rubber Foot
Figure 8
Step 5: Remove the Shock Sleeves and
Shipping Brace
Remove front access panel by removing the two screws
at the bottom
of the panel.
Remove the five bolts andlockwashers from shipping
brace with 9/16 in. wrench and remove brace. Refer to
Figure 9. Fourbolts are located on the washer base
and one is holding the brace to the weight. Remove all
four shocksleeves
by pulling on the yellow rope.
Removelabel from front side
of front access paneland
place
on backside of front access panel for future
reference.
Installation
NOTE: The shipping brace, bolts, washers and
shock sleeves should be saved and MUST be
reinstalled whenever
the washer is moved more
than four feet. Refer to User-Maintenance section
for instructions.
Do not lift or transport washer
from front
or without shipping materials installed.
Store the shipping materials inthe accessories bag.
Savematerials for use whenever the washer is moved.
Reinstall front access panel.
IMPORTANT: DO NOT tip washer more than
152.4 mm (6 inches) in anydirection after shipping
brace has been removed. Shock absorbers
may
separate and damage to washer may result For
leveling purposes, the washer may be tilted a
maximum
of 152.4 mm (6 inches) in any direction.
1
2
3
FlW2124N
1
2
3
4
4
Shock Sleeves
Motor Mount
Hooked End of Shipping Brace
Bolts and Lockwashers
Figure 9
803363
@ Copyright. Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT
11

Installation
Step 6: Wipe Out Inside of Wash Drum
Beforeusing washerfor thefrrst time, useanall-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside wash drum.
FLW2126N
Figure 10
Step 7: Plug In the Washer
Electrical Requirements
(120 Volt, 60 Hertz with 3-Prong Grounding Plug)
NOTE: The wiring diagram is located in the
control hood.
AI
WARNING
To reduce the risk of fire, electrical shock
or personal injury, all wiring and
grounding MUST
conform with the latest
edition
of the Canadian Electrical Code,
Parts I and II, and
such local regulations
as
might apply. It is the customer's
responsibility
to have the wiring and
fuseschecked
by a qualifiedelectrician to
makesurethe laundry room hasadequate
electrical
power to operate the washer.
W110
When plugging in the washer:
• DO NOT overload circuits.
• DO NOT use an extension cord.
• DO NOT use an adapter.
• DO NOT operate other appliances on the same
circuit.
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current), circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively groundedreceptacle rated 1101120 Volts
AC (alternating current) 15 Amps. Refer to Figure 11
to determine correct polarity of the wall receptacle.
Standard 120 Volt, 60 Hertz
3-Wire Effectively
Grounded Circuit
ORY2022N
1 L1
2 Ground
3 Neutral Side
4
Round Grounding Prong
5 Neutral
Figure 11
AI WARNING
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter
to connectthe washer to the
electric powersource.
W082
12 © Copyright, Alliance Laundry Systems
LLC - DO NOT COPY or TRANSMIT
803363
5

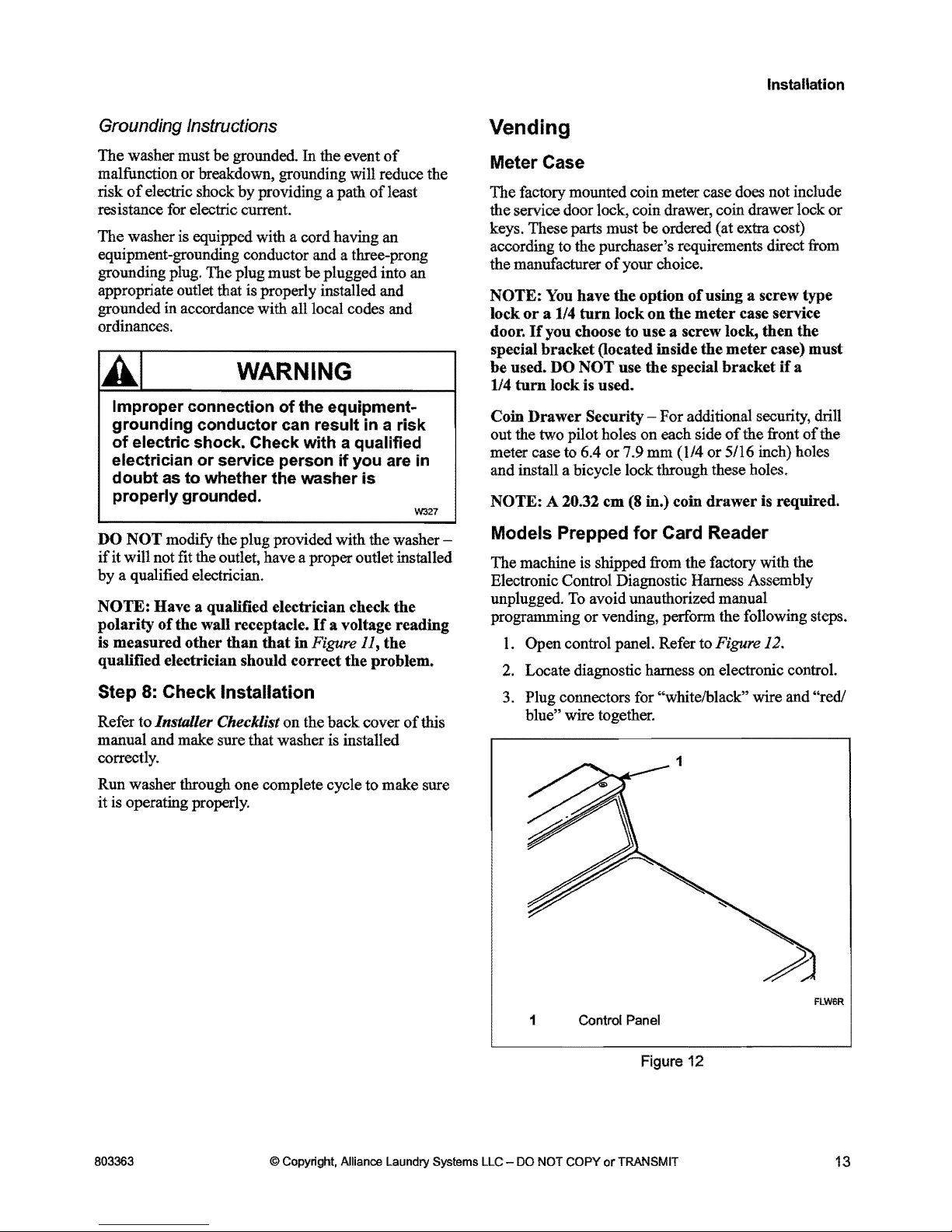

Groundinglnstnucffons
The washermust be grounded. In the event of
malfunction orbreakdown, grounding will reduce the
risk
of electric shock by providing a path of least
resistance for electric current.
The washeris equipped with a cord having an
equipment-grounding conductor and a three-prong
grounding plug.
The plug must be plugged into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
AI
WARNING
Improperconnection of the equipment-
grounding
conductor can result in a risk
of electricshock. Check with a qualified
electrician
or service person if you are in
doubt as to whether the washer is
properlygrounded.
W327
DO NOT modify the plug provided with the washer
if itwill not fit the outlet, have a proper outlet installed
by a qualified electrician.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that in Figure 11, the
qualified electrician should correct the problem.
Step 8: Check Installation
Refer to Installer Checklist on theback cover of this
manual andmake sure that washer is installed
correctly.
Run washer through one complete cycle to make sure
it is operating properly.
Installation
Vending
Meter Case
The factory mounted coinmeter case does not include
theservice door lock, coin drawer, coin drawer lock
or
keys. Theseparts must be ordered (at extra cost)
according to the purchaser's requirements direct from
themanufacturer
of your choice.
NOTE: You have the option of using a screw type
lock or a 1/4 tum lock on the meter case service
door.
If you choose to use a screw lock, then the
special bracket (locatedinside the meter case) must
be used. DO NOT use the special bracket if a
1/4
tum lockis used.
Coin Drawer Security -For additional security, drill
out the two pilot holes on each side
of thefront of the
meter case to 6.4
or 7.9 mm (1/4 or 5116 inch) holes
and install a bicycle lock through these holes.
NOTE: A 20.32 em (8 in.) coin drawer is required.
Models Prepped for Card Reader
The machine is shipped from the factory with the
Electronic Control Diagnostic Harness Assembly
unplugged. To avoid unauthorized manual
programming or vending, perform the following steps.
1. Open control panel. Refer to Figure 12.
2. Locate diagnostic harness on electronic control.
3. Plug connectors for "whitelblack" wire and "redl
blue" wire together.
1
FLW6R
1 Control Panel
Figure 12
803363
@ Copyright, Alliance Laundry Systems LLC -DO NOT COpy or TRANSMIT 13
