Alliance Laundry Systems HA1000 Assembly instructions

www.comlaundry.com Part No. 24163R6
March 2005
W194P
Service
Automatic
Washers
Refer to Page 5 for Model Numbers

24163 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of Contents
Section 1 – Safety Information
Locating an Authorized Servicer ............................4
Section 2 – Introduction
Model Identification ................................................5
Customer Service ....................................................5
Nameplate Location ................................................5
Section 3 – Troubleshooting
1. No Hot Water ...................................................7
2. No Cold Water .................................................7
3. No Warm Water ...............................................8
4. Water Fill Does Not Stop At Proper Level ......8
5. Timer Does Not Advance ................................8
6. No Agitation .....................................................9
7. Constant Agitation ...........................................9
8. Slow Spin or No Spin ....................................10
9. Constant Spin .................................................10
10. Drive Motor Overload Protector Cycles
Repeatedly ......................................................10
11. Outer Tub Does Not Empty ...........................11
12. Excessive Vibration .......................................11
13. Water Leaking From Outer Tub .....................11

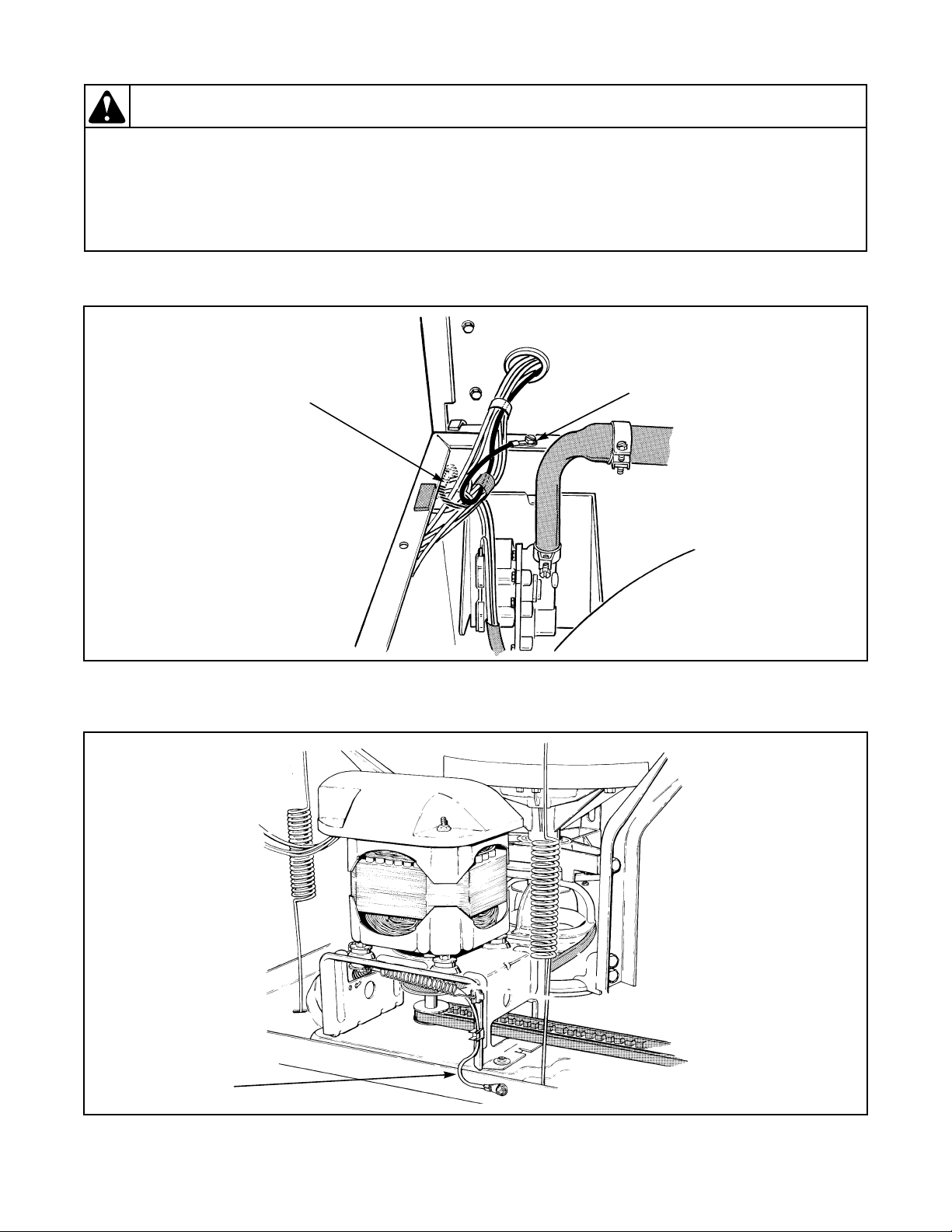

Section 4 – Grounding
14. Power Cord To Control Hood ........................13
15. Control Hood To Bottom Flange Of Control
Panel ...............................................................13
16. Main Wire Harness To Top Rear Flange Of
Cabinet ...........................................................14
17. Motor To Motor Mounting Bracket, To Base 14
Section 5 – Service Procedures
18. Control Panel ..................................................15
19. Timer ..............................................................16
20. Temperature or Speed (Action) Switch .........17
21. Pressure Switch ..............................................17
22. Drain Hose Elbow ..........................................18
23. Loading Door .................................................18
24. Agitator Post Assembly .................................18
25. Agitator Drive Shaft .......................................20
26. Front Panel .....................................................20
27. Pump Belt .......................................................20
28. Drive Belt .......................................................21
29. Motor And Mounting Bracket ........................23
30. Idler Lever and Pulley ....................................26
31. Motor Drive Pulley or Pump Pulley ..............26
32. Motor Switch ..................................................26
33. Pump Assembly .............................................26
34. Cabinet Top Assembly ...................................27
35. Door and Out-of-Balance Switch and Bracket
Assembly ........................................................28
36. Mixing Valve Assembly ................................29
37. Washtub and Lint Filter .................................29
38. Water Seal Assembly .....................................31
39. Outer Tub .......................................................34
40. Drive Pulley And Helix .................................36
41. Brake Assembly .............................................37
42. Lower Bearing Housing .................................38
43. Transmission Assembly .................................40
44. Balance Ring ..................................................45
45. Upper Bearing Assembly ...............................46
Section 6 – Adjustments
46. Timer Knob Indicator ....................................47
47. Leveling Legs .................................................47
48. Pressure Switch ..............................................48
49. Belt – Agitate And Spin .................................48
50. Belt (Pump) ....................................................48
51. Out-Of-Balance Switch Trigger .....................49
Section 7 – Test Procedures
Section 8 – Cycle Sequence Charts
Timer No. 27694 Cycle Sequence
(Two Cycle–Mallory) ...........................................53
Timer No. 28918 Cycle Sequence
(Two Cycle) ..........................................................54
Timer No. 28093 Cycle Sequence
(Three Cycle – Mallory) .......................................55
Timer No. 28917 Cycle Sequence
(Three Cycle) ........................................................56
Timer No. 29966 Cycle Sequence
(Three Cycle) ........................................................57
Timer No. 27693 Cycle Sequence
(Four Cycle – Mallory) .........................................58
Timer No. 28919 Cycle Sequence
(Four Cycle) ..........................................................59
Section 9 – Internal Wiring of Washer Motor
Switch .....................................................................61

224163
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

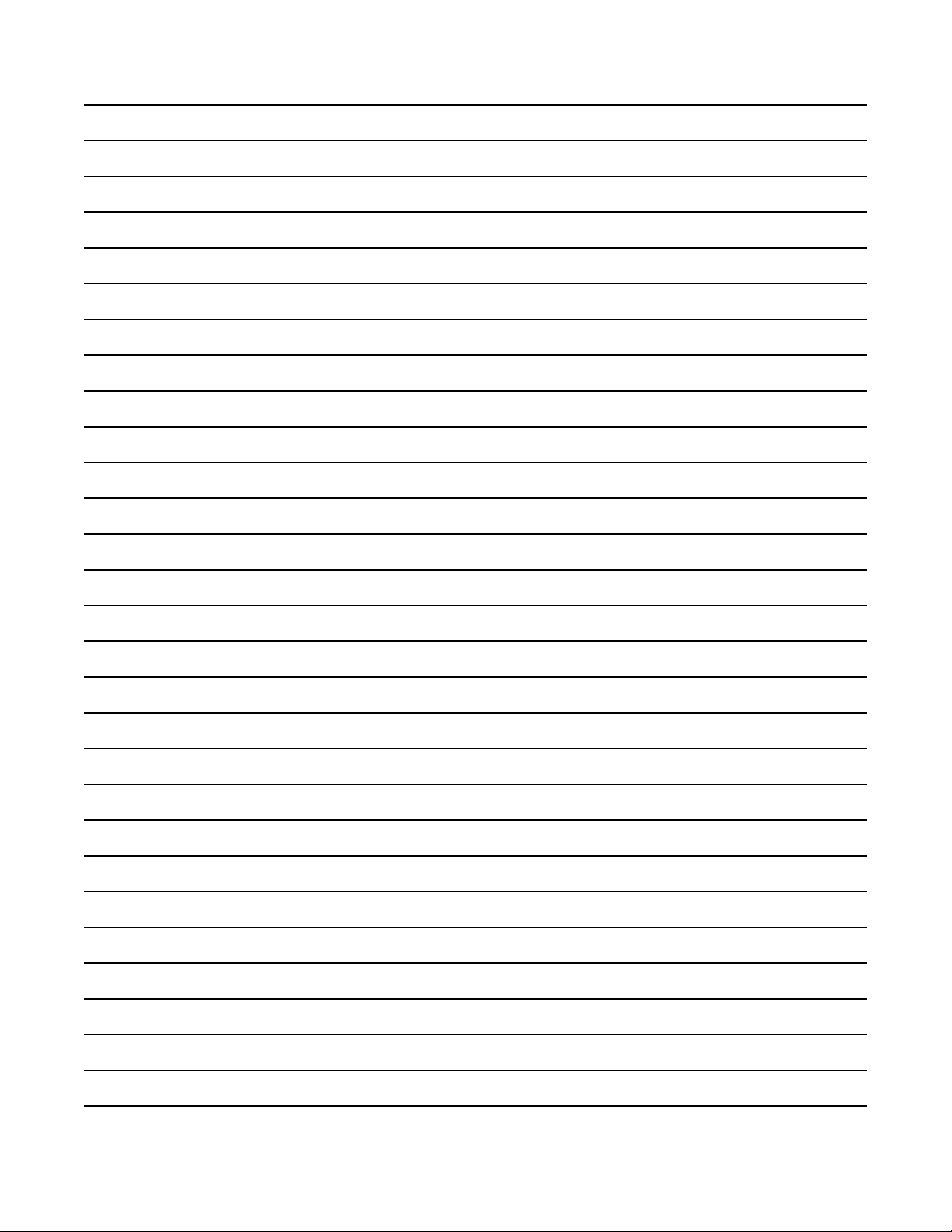

Notes

24163 3
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 1
Safety Information
Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION,”
“WARNING,” and “DANGER”) followed by specific instructions. These precautions are intended for the personal
safety of the operator, user, servicer and those maintaining the machine.
aDANGER
Danger indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death.
aWARNING
Warning indicates a hazardous situation that, if not avoided, could cause severe personal injury or death.
aCAUTION
Caution indicates a hazardous situation that, if not avoided, may cause minor or moderate personal injury or property
damage.
Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.
IMPORTANT
The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will
occur if the procedure is not followed.
NOTE
The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is
important but not hazard related.
In the interest of safety, some general precautions relating to the operation of this machine follow.
• Failure to install, maintain and/or operate this product according to the manufacturer’s
instructions may result in conditions which can produce serious injury, death and/or property
damage.
• Do not repair or replace any part of the product or attempt any servicing unless specifically
recommended or published in this Service Manual and unless you understand and have the
skills to carry out the servicing.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the product is properly grounded and to reduce the risk of fire,
electric shock, serious injury or death.
W006R2
WARNING

424163
Section 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: The WARNINGS and IMPORTANT INSTRUCTIONS appearing in this manual are not meant to
cover all possible conditions and situations that may occur. Common sense, caution and care must be
exercised when installing, maintaining or operating the washer.
Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do
not understand.
Locating an Authorized Servicer
Alliance Laundry Systems is not responsible for personal injury or property damage resulting from improper
service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Alliance Laundry Systems also recommends contacting an authorized
technician and using authorized factory parts.
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
Repairs that are made to your products by unqualified persons can result in hazards due to
improper assembly or adjustments subjecting you or the inexperienced person making such
repairs to the risk of serious injury, electrical shock or death.
W007
WARNING
If you or an unqualified person perform service on your product, you must assume the
responsibility for any personal injury or property damage which may result. The manufacturer
will not be responsible for any injury or property damage arising from improper service and/or
service procedures.
W008
WARNING

24163 5
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 2
Introduction
Model Identification
Information in this manual is applicable to these washer models:
Customer Service
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call [phone].
Nameplate Location
When calling or writing about your product, be sure to
mention model and serial numbers. Model and serial
numbers are located on nameplate(s) as shown.
HA1000 HA4010 HA4211 HA4510 HA5590
HA1000-3059 HA4010-1088 HA4211-2200 HA4511 HA5591
HA2010 HA4010-2200 HA4260 HA4511-3050 HA6000
HA2300 HA4010-3059 HA4261 HA4511-3062 HA6001
HA2410 HA4011 HA4290 HA4520 HA6420
HA2411 HA4011-1088 HA4291 HA4521 HA6421
HA2620 HA4011-2200 HA4340 HA4590 HA6450
HA2621 HA4011-3059 HA4341 HA4591 HA6452
HA3000 HA4020 HA4370 HA5000 HA6470
HA3001 HA4021 HA4371 HA5001 HA6471
HA4000 HA4210 HA4500 HA5320 HA7000
HA4001 HA4210-2200 HA4501 HA5321 HA7001
HA7221
Nameplate

624163
Section 2 Introduction
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Notes

24163 7
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 3
Troubleshooting
IMPORTANT: Refer to appropriate wiring diagram for aid in testing washer components.
1. NO HOT WATER
2. NO COLD WATER
POSSIBLE CAUSE TO CORRECT
Hot water supply valve is closed. Open valve.
Water supply is cold. Check water heater.
Kinked hot water inlet hose. Straighten or replace hose.
Clogged mixing valve screen, or screen in outer end of
inlet hose nearest water supply valve. Disconnect hot water inlet hose, and clean or replace screen.
Inoperative hot water mixing valve solenoid. Test solenoid and replace if inoperative.
Inoperative timer. Test timer and replace if inoperative.
Inoperative temperature switch. Test switch and replace if inoperative.
Inoperative pressure switch. Test switch and replace if inoperative.
Clogged pressure hose. Remove and clean hose.
Broken, loose or incorrect wiring. Refer to appropriate wiring diagram.
POSSIBLE CAUSE TO CORRECT
Cold water supply valve is closed. Open valve.
Kinked cold water inlet hose. Straighten or replace hose.
Clogged mixing valve screen, or screen in outer end of
inlet hose nearest water supply valve. Disconnect cold water inlet hose, and clean or replace screen.
Inoperative cold water mixing valve solenoid. Test solenoid and replace if inoperative.
Inoperative timer. Test timer and replace if inoperative.
Inoperative temperature switch. Test switch and replace if inoperative.
Inoperative pressure switch. Test switch and replace if inoperative.
Clogged pressure hose. Remove and clean hose.
Broken, loose or incorrect wiring. Refer to appropriate wiring diagram.

824163
Section 3 Troubleshooting
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
3. NO WARM WATER
4. WATER FILL DOES NOT STOP AT PROPER LEVEL
5. TIMER DOES NOT ADVANCE
POSSIBLE CAUSE TO CORRECT
No hot water. Refer to Paragraph 1.
No cold water. Refer to Paragraph 2.
POSSIBLE CAUSE TO CORRECT
Inoperative pressure switch. Test switch and replace if inoperative.
Air leak in pressure hose. Replace hose.
Sediment on or under mixing valve diaphragm,
defective diaphragm, or armature binding in armature
guide.
Disassemble and clean mixing valve. Replace
deteriorated or not easily cleaned components. Refer to
parts manual for assembly sequence of valve.
Broken, weak or missing mixing valve armature spring. Disassemble valve and replace spring. Refer to parts
manual for assembly sequence of valve.
A siphoning action started in washer will cause water to
be siphoned from the washer during the cycle due to the
end of the drain hose being lower than cabinet top of
washer.
Install No. 562P3 Siphon Break Kit.
Water in pressure hose. Blow air through hose to remove water.
Broken, loose, shorted or incorrect wiring. Refer to appropriate wiring diagram.
POSSIBLE CAUSE TO CORRECT
Timer is designed to pause during fill periods. Allow completion of fill period.
Inoperative timer. Test timer, and replace if inoperative.
Timer in "OFF" position of SOAK CYCLE. Manually advance timer to SPIN.
Loading door is open. Close loading door.
Washer will not fill. Timer pauses until pressure switch is satisfied.
Timer motor lead wire off timer terminal. Refer to appropriate wiring diagram and reattach wire.
Broken, loose or incorrect wiring. Refer to appropriate wiring diagram.

24163 9
Section 3 Troubleshooting
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
6. NO AGITATION
*Timer is designed to pause (SOAK) during the HANDWASH/KNIT or DELICATE cycle.
7. CONSTANT AGITATION
POSSIBLE CAUSE TO CORRECT
*Inoperative timer. Test timer and replace if inoperative.
Inoperative action switch. Test switch and replace if inoperative.
Inoperative motor. Test motor and replace if inoperative.
Inoperative pressure switch. Test switch and replace if inoperative.
Broken, loose or incorrect wiring. Refer to appropriate wiring diagram.
Loose or broken drive belt. Adjust or replace belt.
Inoperative transmission assembly. Replace transmission assembly.
Sheared motor pulley roll pin. Remove drive motor, and replace roll pin and any other
damaged parts.
Drive motor overload protector has cycled. Refer to Paragraph 10.
Bind in pump. Replace pump.
Loading door is open or door switch is inoperative. Close door and test switch and replace if inoperative.
POSSIBLE CAUSE TO CORRECT
Inoperative timer. Test timer and replace if inoperative.
Inoperative drive motor. Test motor and replace if inoperative.
Shorted or incorrect wiring. Refer to appropriate wiring diagram.

10 24163
Section 3 Troubleshooting
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
8. SLOW SPIN OR NO SPIN
9. CONSTANT SPIN
10. DRIVE MOTOR OVERLOAD PROTECTOR CYCLES REPEATEDLY
POSSIBLE CAUSE TO CORRECT
Inoperative timer. Test timer and replace if inoperative.
Inoperative action switch. Test switch and replace if inoperative.
Some model washers, the timer is programmed for
SLOW spin in the DELICATE CYCLE regardless of the
action switch setting.
Use a different cycle.
Loading door is open or door safety switch is
inoperative. Close loading door, or test switch and replace if inoperative.
Bind in water pump. Replace pump.
Inoperative drive motor. Test motor and replace if inoperative.
Loose or broken drive belt. Adjust or replace spin belt.
Washer has gone OUT-OF-BALANCE. Open loading door to reset out-of-balance switch.
No clearance or stuck brake pads. Free sticky brake pads or replace pads.
Broken, loose or incorrect wiring. Refer to appropriate wiring diagram.
POSSIBLE CAUSE TO CORRECT
Inoperative timer. Test timer and replace if inoperative.
Inoperative drive motor. Test motor and replace if inoperative.
Excessive wear on brake pads, or missing brake pads. Replace brake pads.
Shorted or incorrect wiring. Refer to appropriate wiring diagram.
POSSIBLE CAUSE TO CORRECT
Excessive belt tension. Adjust belts.
Inoperative motor overload protector. Replace motor.
Bind in water pump. Replace pump.
Bind in transmission. Replace transmission.
Brake pads binding. Free binding pads, or replace pads.

24163 11
Section 3 Troubleshooting
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
11. OUTER TUB DOES NOT EMPTY
12. EXCESSIVE VIBRATION
13. WATER LEAKING FROM OUTER TUB
POSSIBLE CAUSE TO CORRECT
Kinked drain hose. Straighten hose.
Inoperative water pump. Replace pump.
Obstruction in outer tub outlet hose. Remove obstruction.
Loose pump belt. Adjust belt.
POSSIBLE CAUSE TO CORRECT
Unbalanced load in tub. Stop washer, redistribute load, then restart washer.
Broken, disconnected or centering spring(s) out of
adjustment. Connect or replace centering spring(s). Spring should be located in center notch. Refer to Figure 32.
Washer is not properly leveled. Adjust leveling legs.
Washer is installed on weak, "spongy" or built-up floor. Relocate washer, or support floor to eliminate weak or
"spongy" condition.
Incorrect or loose cabinet screws. Replace with correct screws or tighten.
POSSIBLE CAUSE TO CORRECT
Leaking water seal in outer tub. Replace water seal assembly. Refer to Paragraph 38.
Hole in outer tub. Replace outer tub.
Pressure hose bulb leaking. Replace pressure hose and/or bulb.
Outer tub cover gasket leaking. Replace gasket.

12 24163
Section 3 Troubleshooting
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Notes

24163 13
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 4
Grounding
14. POWER CORD TO CONTROL HOOD
15. CONTROL HOOD TO BOTTOM FLANGE OF CONTROL PANEL
Figure 1
Figure 2
Ground
Wire
Ground
Wire

14 24163
Section 4 Grounding
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
16. MAIN WIRE HARNESS TO TOP REAR FLANGE OF CABINET
17. MOTOR TO MOTOR MOUNTING BRACKET, TO BASE
Figure 3
Figure 4
Ground
Wire
on Cabinet
Corner
Gusset
(Some models)
Ground
Wire
on Cabinet
Flange
(Some models)
Ground
Wire

24163 15
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 5
Service Procedures
18. CONTROL PANEL
Refer to Figure 5 or 6.
a. Remove panel assembly screws and lift
assembly off panel support.
b. Remove end caps.
c. Remove timer knob assembly.
NOTE: When reinstalling timer knob assembly, pin
in timer shaft must be positioned in slot in timer
knob indicator.
d. Pull knobs off temperature and speed (action)
switches (if present), and remove knurled nuts
and lockwashers holding switches to control
panel.
NOTE: Lockwashers must be between switch and
control panel when installing switch.
e. Pull knob off pressure switch and remove
screws holding switch to control panel.
f. Remove screws holding timer to control panel.
DISCONNECT POWER CORD AND CLOSE
WATER SUPPLY VALVE BEFORE
SERVICING WASHER.
NEVER ENERGIZE THE ELECTRICAL
POWER TO THE WASHER WITH ANY OF
THE PANELS REMOVED.
WARNING
Whenever ground wires are removed during
servicing, those ground wires must be
reconnected to insure that the washer is
properly grounded.
CAUTION
Figure 5
EARLY
MODELS
End
Cap
Pressure
Switch
Timer
(Kingston)
Temperature
Switch
Speed
Switch
(Action)
Timer
Attaching
Screw
Panel
Assembly
Screw
Lockwashers
Lockwashers
Control
Panel Timer Knob
Indicator
Timer
(Mallory)

16 24163
Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: When installing timers shown in Figure 6,
the horizontal and vertical tabs on front plate of
timer must seat completely into the “cross shaped”
holes on the control panel bracket, and that the two
timer hex head attaching screws are torqued down
between 12 to 18 inch pounds (14 to 21 cm-Kg).
Refer to Figure 8.
19. TIMER
a. Remove panel assembly screws and lift
assembly off panel support.
b. Loosen setscrew holding timer knob to timer
shaft, then remove knob, spring and timer knob
indicator.
NOTE: When reinstalling timer knob assembly, pin
in timer shaft must be positioned in slot in timer
knob indicator. Refer to Figure 5.
EARLY MODELS
Refer to Figure 5.
a. Disconnect wires from timer.
IMPORTANT: Refer to appropriate wiring
diagram when rewiring timer.
b. Remove three Phillip head screws holding
timer to control panel bracket. Refer to
Figure 5.
LATE MODELS
Refer to Figure 6.
NOTE: DO NOT attempt to repair the timer.
a. Disengage wire harness terminal block plug
from the timer by pressing in on the movable
locking tabs (located on each side of the
terminal block plug) and pulling plug away
from timer. Refer to Figure 7.
Figure 6
End
Cap
Pressure
Switch
Timer
(Mallory)
Temperature
Switch
Speed
Switch
(Action)
Timer
Attaching Screw
Timer
(Singer)
Panel
Assembly
Screw
Lockwashers
Lockwashers
Control
Panel
Timer Knob
Indicator
Timer Knob
Setscrew
Timer
Knob
LATE
MODELS

24163 17
Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
IMPORTANT: To avoid an open circuit, DO NOT
pull on the terminal block wires when removing
block from timer as this could damage the wires or
terminal crimping.
Before attaching wire harness terminal block to
timer, be sure all the male terminals on timer are
straight and are capable of accepting the terminals
from the wire harness terminal block.
b. Remove the two hex head screws holding timer
to rear of control panel bracket.
NOTE: When installing timer, be sure timer is
installed correctly and is securely mounted to
bracket on control panel. Refer to Figure 8.
The horizontal and vertical tabs on front plate of timer
must seat completely into the "cross shaped" holes on
the control panel bracket, and that the two hex head
screws are torqued down between 12 to 18 inch pounds
(14 to 21 cm-kg).
IMPORTANT: To avoid timer damage, do not allow
timer to be struck on the corners, edges of frame, or
on the timer shaft.
20. TEMPERATURE OR SPEED (ACTION)
SWITCH
Refer to Figure 5 or 6for switch removal.
NOTE: Refer to appropriate wiring diagram when
rewiring switch.
21. PRESSURE SWITCH
Refer to Figure 5 or 6for switch removal.
NOTE: Refer to appropriate wiring diagram when
rewiring switch.
IMPORTANT: When installing pressure switch,
blow air through pressure hose before connecting
hose to switch to remove any condensation that may
have accumulated in the hose.
When the pressure hose has been removed and
replaced several times, the end of the hose may
become enlarged, and does not seal properly.
If hose is enlarged, cut approximately 1/2 to 3/4 inch
off the end of the hose and reinstall hose on pressure
switch.
Figure 7
Terminal
Block
Plug
Locking
Tabs
Figure 8
Timer
Attaching
Screws
Control
Panel
Bracket
Cross
Shaped
Holes

18 24163
Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the washer before servicing.
• Never start the washer with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the washer is properly grounded.
W003
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
22. DRAIN HOSE ELBOW
Refer to Figure 9.
a. Loosen hose clamp and remove drain hose from
elbow.
b. Remove screws holding elbow to rear of
washer cabinet.
c. Pull elbow out through opening in cabinet far
enough to permit loosening inner clamp, then
remove elbow from inner hose.
NOTE: When reinstalling elbow on inner hose, DO
NOT allow hose inside washer to twist! Direct elbow
toward drain receptacle before tightening the inner
hose clamp. If this is not done, the inner hose will
twist in the direction of the outer tub resulting in the
hose rubbing against the bottom edge of the outer
tub.
d. Secure elbow to washer cabinet using the
screws removed in step "b".
23. LOADING DOOR
Refer to Figure 10.
a. Depress tab on either hinge, then slide hinge out
of loading door and bushing in cabinet top.
b. Tilt loading door slightly and slide door and
hinge out of opposite bushing.
24. AGITATOR POST ASSEMBLY
a. Remove agitator hold-down cap and lift
agitator out of washtub. Refer to Figure 10.
b. Remove four cap screws holding agitator post
assembly to washtub hub. Refer to Figure 11.
Then lift assembly out of washtub.
Figure 9
Elbow
Attaching
Screws
Hose
Clamp
Drain
Hose
Figure 10
IF WATER IS PRESENT IN WASHTUB, SPIN
AND PUMP OUT BEFORE REMOVING
AGITATOR POST ASSEMBLY.
WARNING
Hinge
Hold-Down
Cap
