AT-8700XL Series Switch
Quick Install Guide
AT-8724XL
AT-8748XL

AT-8700XL Series Switch Quick Install Guide
Document Number C613-04042-01 REV D.
Copyright © 2003-2005 Allied Telesyn International, Corp.
19800 North Creek Parkway, Suite 200, Bothell, WA 98011, USA.
All rights reserved. No part of this publication may be reproduced without prior written
permission from Allied Telesyn.
Allied Telesyn International, Corp. reserves the right to make changes in specifications
and other information contained in this document without prior written notice. The
information provided herein is subject to change without notice. In no event shall Allied
Telesyn be liable for any incidental, special, indirect, or consequential damages
whatsoever, including but not limited to lost profits, arising out of or related to this
manual or the information contained herein, even if Allied Telesyn has been advised of,
known, or should have known, the possibility of such damages.
All trademarks are the property of their respective owners.

Quick Install Guide 3
C613-04042-01 REV D
Models Covered By This Guide
This Quick Install Guide includes information on the following models:
■AT-8724XL 24-port 10BASE-T/100BASE-TX Advanced Fast Ethernet
Switch
■AT-8748XL 48-port 10BASE-T/100BASE-TX Advanced Fast Ethernet
Switch
Quick Install Guide updates can be downloaded from
www.alliedtelesyn.co.nz/support/at8700xl/.
Package Contents
The following items are included with each AT-8700XL Series switch. Contact
your sales representative if any items are damaged or missing.
■One AT-8700XL Series switch.
■One AC power cord (AC models only).
■One serial cable for connecting the switch to a terminal or PC.
■One 19 inch rack-mount kit.
■One AT-8700XL Series Quick Install Guide.
■One Safety and Statutory Information booklet.
■One AT-8700XL Series Documentation and Tools CD-ROM (which includes
the complete AT-8700XL Series Document Set and utilities).
■One warranty card.
AT-8700XL Series
Printed Acrobat PDF Website
Documentation Roadmap
AT-8700XL Series Safety and Statutory Information Booklet
AT-8700XL Series User Guide
AT-8700XL Series Software Reference
General Customer Support
Visit www.alliedtelesyn.co.nz for
the latest documentation, FAQs,
and support information.
AT-8700XL Series Quick Install Guide
AT-8700XL Series Hardware Reference
Uplink Module
Uplink Module Quick Install Guide
Uplink Module Hardware Reference

4AT-8700XL Series Switch
C613-04042-01 REV D
Selecting a Site
The switch can be installed in a standard 19-inch rack or on a level surface such
as a desktop or bench. When installing the switch, choose a site that:
■Allows adequate airflow around the switch and its vents.
■Is free of dust and moisture.
■Will maintain an ambient temperature range of 0 to 40º C (32 to 104º F) and
a humidity range of 5 to 95% non-condensing.
■Has a reliable and earthed (grounded) power supply circuit, preferably
dedicated and filtered.
■Does not expose cabling to sources of electrical noise, such as radio
transmitters, broadband amplifiers, power lines, electric motors, and
fluorescent fixtures.
■Allows easy access to the switch’s power and cable connections.
■Will allow all related network devices to be connected to the switch
without exceeding maximum cable length limitations. See the AT-8700XL
Series Hardware Reference for cable length specifications.
Installing the Switch
All AC and DC versions of this equipment must be earthed.
Follow these steps to install the switch:
1. Before installing the switch, read the safety information
For safety information, see the Safety and Statutory Information booklet. A
copy of this booklet is supplied with each switch, and can also be found on
the Documentation and Tools CD-ROM or at
www.alliedtelesyn.co.nz/support/at8700xl/
2. Gather the tools and equipment you will need
If installing a DC version of the switch, you will need a DC power source,
DC supply cable, and wire strippers (see step 9).
If the switch is to be connected to a redundant power supply, you will need
a redundant power supply unit and cable (see step 11).
3. Choose a suitable site for the switch
Either a flat surface or 19 inch rack.
4. Unpack the switch
Verify the package contents. If any items are damaged or missing, contact
your sales representative.

Quick Install Guide 5
C613-04042-01 REV D
5. Install uplink modules (optional)
If you purchased uplink modules, install them now by following the
instructions in the Uplink Module Quick Install Guide.
6. Place the switch in its operating location
If installing the switch in a rack:
• Remove the rubber feet.
• Attach the rack-mounting brackets.
• Mount the switch in the rack.
7. Check the supply voltage and the switch’s rated voltage
AC versions of AT-8700XL Series switches are fitted with a universal main
power supply that will function over the range 100–240 VAC and
50–60 Hz.
DC versions of AT-8700XL Series switches require a supply voltage in the
range 39–60V DC.
The specific power supply requirements for a particular model are clearly
displayed on the rear or underside of the switch. If the supply is outside
the accepted range for the switch, the switch may not operate or damage to
the switch may result.
8. Apply AC power to the switch (for AC models)
Plug the power cord into the AC power connector on the switch’s rear
panel. The Fault LED should flash for approximately 10 seconds as the
switch runs internal tests. If the LED continues to flash or remains lit, refer
to the AT-8700XL Series Hardware Reference for troubleshooting information.

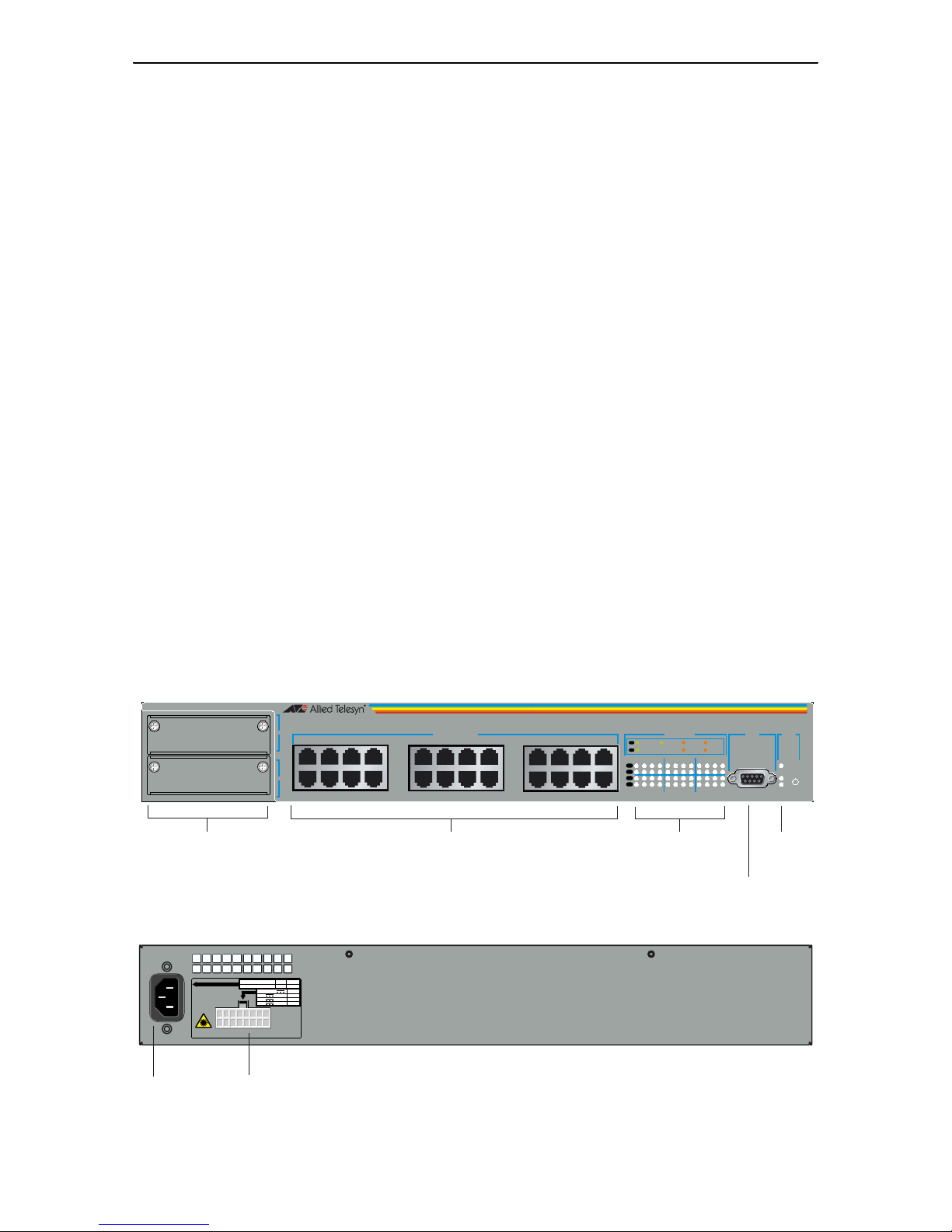

Figure 1: AT-8724XL front panel and rear panel with AC power inlet.
CLASS 1
LASER
R.P.S.
INPUT
AC SUPPLY DATA
100-120/200-240~HZ 50/60
AMPS
4/2
Input Vdc
+3.3
+5
+12
A Max
13
8
1
AC Power AT-RPS8000 RPS Connector
STATUS
RESET
FAULT
PWR
RPS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
10BASE-T / 100BASE-TX
1X3X5X7X
2X4X6X8X
9X11X13X15X
10X12X14X16X
17X19X21X23X
18X20X22X
100M LINK / ACTIVITY
24X
25
26
RS-232
TERMINAL PORT
10M LINK / ACTIVITY
HALF DUP/ COL
FULL DUP
PORT ACTIVITY
L/A
L/A
D/C
D/C
L/A
D/C
ASYN0
AT-8724XL
Advanced Fast Ethernet Switch
Uplink Module Bays 10/100 BASE Ports Port LEDs System
LEDs
RS-232 Terminal Port
Rear panel
Front panel

6AT-8700XL Series Switch
C613-04042-01 REV D
9. Apply DC power to the switch (for DC models)
Read the Safety and Statutory Information booklet before connecting a DC
power supply. A copy of this booklet is included with each switch. It is also
included on the Documentation and Tools CD-ROM, or can be
downloaded from www.alliedtelesyn.co.nz/support/at8700xl/
Only trained and qualified personnel should connect a DC power supply. Due
to exposed terminals, DC powered switches should be installed only in
Restricted Access Areas.
DC supply cable specifications:
• Number of wires (cores): 3
• Minimum size: 2.1mm2(14 AWG)
• Minimum cable rating: 600V, 90 degrees Celsius
DC power supply specifications:
• 48 VDC (39-60 VDC is acceptable)
• Either positive grounded or negative grounded
Circuit protection:
• Use a 10 Amp circuit breaker
To connect the DC supply:
a) Ensure the supply cable is not live
b) Strip the supply cable wires to expose 8mm (0.31 in.) of bare conductor
c) At the switch, connect the ground wire to the ground terminal
(terminals can be identified by the diagram on the switch’s rear panel,
see Figure 2). Tighten the terminal to between 0.6-0.8 Nm (0.041-0.055
pound-force per foot)
d) At the switch, connect the positive feed to the + (positive) terminal and
the negative feed to the - (negative) terminal. Tighten the terminals to
between 0.6-0.8 Nm (0.041-0.055 pound-force per foot)
e) Ensure there are no exposed conductor strands
f) Secure the supply cable (to the rack framework or similar object) so that
the connections are isolated from any force applied to the cable
g) Ensure the circuit breaker is in the Off position
h) Connect the supply-cable wires to the circuit breaker
i) Energise the circuit breaker

Quick Install Guide 7
C613-04042-01 REV D

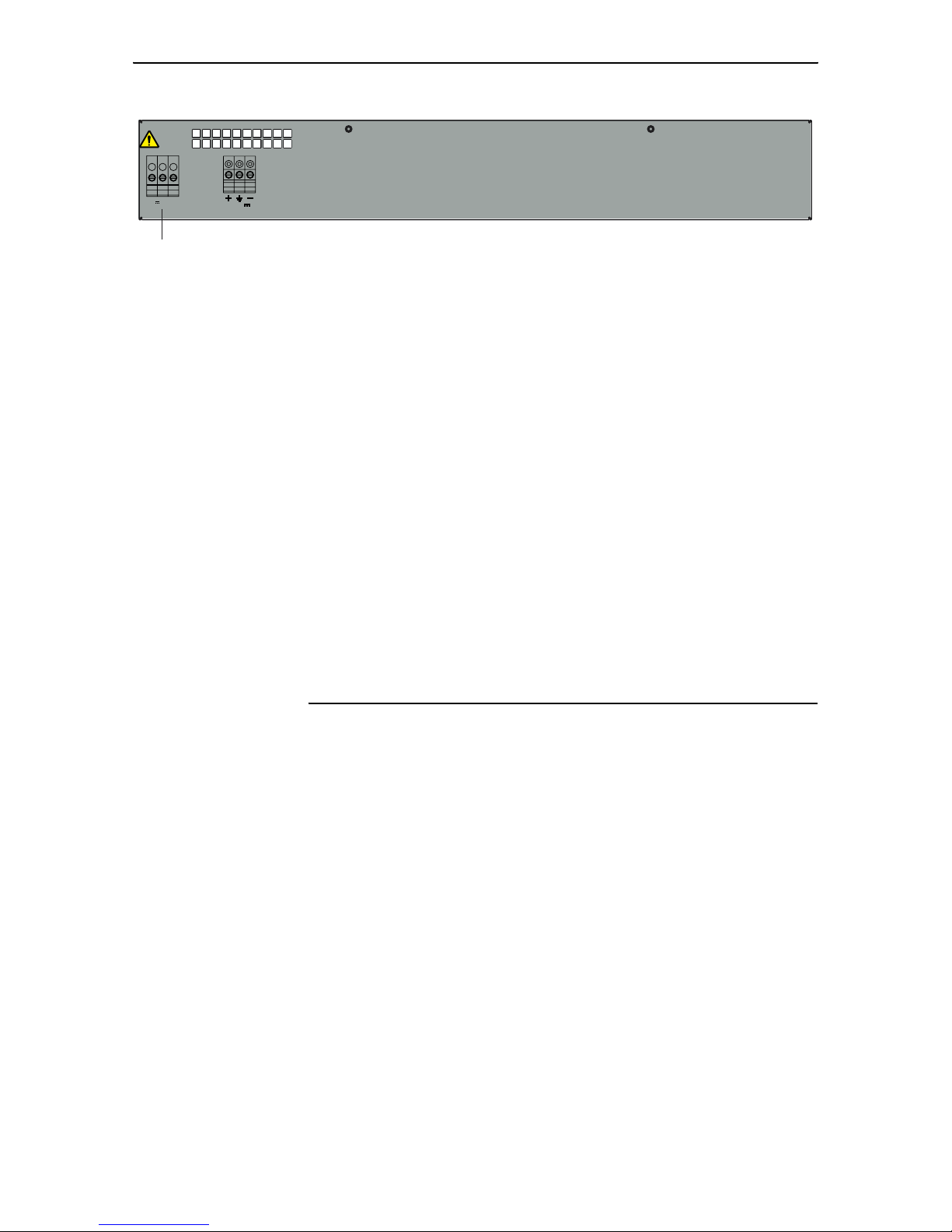

Figure 2: DC Power inlet terminals on an AT-8724XL.
The Fault LED should flash for approximately 10 seconds as the switch
runs internal tests. If the LED continues to flash or remains lit, refer to the
AT-8700XL Series Hardware Reference for troubleshooting information.
10. Check that the Power LED on the switch’s front panel lights green
If the LED fails to light, refer to the AT-8700XL Series Hardware Reference for
troubleshooting information.
11. Connect the Redundant Power Supply (Optional)
AC models of AT-8700XL Series switches have a Redundant Power Supply
(RPS) connector on their rear panel.
The switch is designed to operate with the AT-RPS8000 RPS, which can be
purchased separately. Contact your authorised Allied Telesyn distributer
or reseller for more information.
12. Connect the data cables
Make sure each cable connection is secure. The switch will now perform
basic Layer 2 switching functions.
Configuring the Switch
Some configuration is necessary if you wish to enable the switch’s advanced
switching capabilities. The switch can be configured via the Command Line
Interface (CLI) or Graphical User Interface (GUI).
Using the CLI to configure a switch
1. Connect a terminal or PC to the Terminal Port (ASYN0)
Using the supplied RS-232 DB9 straight-through cable, connect your
terminal or PC to the RS-232 Terminal Port on the switch’s front panel.
2. Set the communication parameters
Set the communication parameters on your terminal or terminal emulation
program to:
• Baud rate: 9600
• Data bits: 8
•Parity:None
• Stop bits: 1
• Flow control: Hardware
38-75VDC , 2A
FOR CENTRALIZED DC
POWER CONNECTION,
INSTALL ONLY IN A
RESTRICTED AREA
DC Power inlet
DC INPUT

8AT-8700XL Series Switch
C613-04042-01 REV D
3. Log in
After the switch has booted, the log-in prompt appears. If the log-in
prompt doesn’t appear, press [Enter] two or three times.
When the switch boots for the first time, it automatically creates an account
with manager privileges. The account has the log in name “manager” and
the password is “friend”.
At the log-in prompt, enter the log-in name and password.
Login: manager
Password: friend
The switch’s command prompt appears and you can now configure the
switch using the command line interface.
Change the password as soon as possible. Leaving the manager account with
the default password is a serious security risk. Make sure you remember the
new password as there is no way to retrieve it if it is lost.
Use the following command to change the account password:
set password
4. Load help files
To display a list of help topics, enter:
help
To display help on a specific topic, enter:
help topic
Alternatively, type a question mark (?) at the end of a partially completed
command to see a list of valid options.
See the AT-8700XL Series Software Reference for more information on
configuring the switch.
Using the GUI to configure a router:
This section describes how to establish a connection to the router through the
GUI, so you can configure the router before installing it in your LAN. For more
information about the GUI, see the Using the Graphical User Interface chapter
of the AT-8700XL Series Software Reference.
1. Select a PC to browse to the router from
You can browse to the router from any PC that is running a supported
operating system with a supported browser installed. JavaScript must be
enabled. If you are using a toolbar or plug-in on your browser to block
pop-ups, disable it while using the GUI. The GUI displays detailed
configuration options and information in pop-up windows.
You need to know the PC’s subnet.

Quick Install Guide 9
C613-04042-01 REV D
2. Connect the PC to the router
Use an Ethernet cable to connect an Ethernet card on the PC to any one of
the switch ports.
You can browse to the router through any VLAN, as long as you give that VLAN an IP
address (see below). These instructions assume you will use vlan1. The switch ports all
belong to vlan1 by default.
3. Access the router’s command line interface
Access the CLI from the PC, as described in the previous “Using the CLI to
configure a router” section.
4. Enable IP
enable ip
5. Assign the vlan1 interface an IP address in the same subnet as the PC
add ip interface=vlan1 ip=ipaddress mask=mask
6. Save the configuration and set the router to use it on bootup
create config=your-name.cfg
set config=your-name.cfg
7. On the PC’s web browser, bypass the HTTP proxy server, if necessary
8. Point your web browser at vlan1’s IP address
9. At the login prompt, enter the user name and password
The default username is manager:
User Name: manager
Password: friend
The System Status page is displayed. Select options from the sidebar menu
to configure and manage the router.
For context-sensitive online help, click on the Help button at the top of the
sidebar menu or on any pop-up page.

10 AT-8700XL Series Switch
C613-04042-01 REV D
System LEDs
System LEDs on its front panel indicate the switch’s operational status.
1. DC models of the switches do not have an RPS connector and the RPS LED will not function.
The AT-8700XL Series Hardware Reference has further troubleshooting
information, including information on Switch Port and Uplink Module LEDs.
Documentation and Tools CD-ROM
The Documentation and Tools CD-ROM bundled with each AT-8700XL Series
switch contains the complete Documentation Set for your switch and its
expansion options, as well as tools for managing the switch. This includes:
■The AT-8700XL Series Safety and Statutory Information booklet, which
provides safety and statutory information for the AT-8700XL Series switch
and its expansion options.
■The AT-8700XL Series Hardware Reference, which provides detailed
information on the hardware features of AT-8700XL Series switches.
■This Quick Install guide.
■The AT-8700XL Series Software Reference, which provides detailed
information on configuring the switch and its software.
■The Uplink Module Quick Install Guide, which outlines the procedure for
installing an Uplink Module; and the Uplink Module Hardware Reference,
which provides detailed information on Uplink Modules.
■AT-TFTP Server for Windows for downloading software releases.
■Adobe Acrobat Reader for viewing online documentation.
System LEDs
LED State Function
Power Green The switch is receiving power and the voltage
is within the acceptable range
Fault Red The switch or management software is
malfunctioning
1 flash A switch fan has failed. (The LEDs will not
indicate an RPS fan failure.)
3 flashes If an RPS is connected, the switch’s PSU (Power
Supply Unit) has failed
4 flashes If RPS monitoring is enabled, the RPS PSU has
failed
5 flashes If RPS monitoring is enabled, an RPS is not
connected or is not operational
RPS1(Redundant
Power Supply)
Green An RPS is connected to the switch
