2011 SPORTS OPTICS CATALOG

2
HD ED Optics

Alpen®Rainier™
Alpen®Rainier™
The high-quality HD ED optical system of
Alpen’s NEW Rainier binoculars #75 and
#77 maximizes light transmission to bring
every last ray of
light to your eyes
even in the worst
flat-light, dawn or
dusk conditions.
HD (high-defini-
tion) ED (Extra-
low Dispersion
Glass) delivers the
best premium-
performance at a level of clarity never
before achieved.
All Rainier™binoculars push the limits of
optical perfection. All optical components
receive our exclusive UBX™multi-layer coat-
ing for maximum light transmission. The
extra large BAK-4 prisms are coated with
over 60 layers of Alpen’s SHR™metallic and
PXA™phase coatings to deliver the best
brightness, clarity and color fidelity. Large
diameter lens elements throughout the opti-
cal system provide enhanced field of view
and eye relief for easy viewing.
Rainier binoculars are extremely rugged,
yet precise optical instruments providing
years of reliable performance.
Alpen®RainierTM Features:
•Models 75 and 77 with HD – High
definition, ED – Extra low dispersion
optical system
•Extra large BAK-4 prisms with SHR™
metallic coating, PXA™phase coating,
and UBX™multi-coating provide exquisite
optical performance
•Magnesium body construction provides
strength and shock resistant durability
•A-lock™diopter locking system keeps
adjustment settings in place
•Long eye relief for full field viewing
when wearing eye glasses
•1.5 turns from close focus to infinity for
quick image focus
•Textured body covering for a sure yet
comfortable grip
•O-ring sealed and nitrogen filled for
water proof and fog proof security
•Quick release neck strap system and
premium quality carrying case
•ALPEN’s lifetime warranty
75
HD ED Optics
Waterproof
BAK4 Optics
Long Eye Relief
UBXTM Fully Multi-Coated
SHRTMMetallic Coated
PXATM Phase Coating
A-lockTM Diopter System
77
67
Waterproof
BAK4 Optics
Long Eye Relief
UBXTM Fully Multi-Coated
SHRTMMetallic Coated
PXATM Phase Coating
A-lockTM Diopter System
68
8x42
10x42
8x32
10x32
Item Number 67 68 75 77
Description 8x32 10x32 8x42 ED 10x42 ED
Magnification 8X 10X 8X 10X
Objective Lens Diameter 32mm 32mm 42mm 42mm
Focus System Center Center Center Center
Prism Type Roof Roof Roof Roof
F.O.V. (ft @ 1000 yds) - Low/High 420 357 393 341
Exit Pupil 4.0mm 3.2mm 5.3mm 4.2mm
Eye Relief 18mm 15mm 18mm 16mm
Close Focus (feet) 6.5 6.5 6.5 6.5
Lens Coating
UBX Fully-Multi-Ctd
SHR Metallic Ctg
PXA Phase Ctg
UBX Fully-Multi-Ctd
SHR Metallic Ctg
PXA Phase Ctg
UBX Fully-Multi-Ctd
SHR Metallic Ctg
PXA Phase Ctg
UBX Fully-Multi-Ctd
SHR Metallic Ctg
PXA Phase Ctg
Net Weight (oz.) 25 25 29.4 29.4
Type of Neckstrap Extra Wide Extra Wide Extra Wide Extra Wide
Tripod Adaptable Yes Yes Yes Yes
Prism Material BAK4 BAK4 BAK4 BAK4
Waterproof/Fogproof Yes Yes Yes Yes
Eye Cups Multi-Position Twistlock Multi-Position Twistlock Multi-Position Twistlock Multi-Position Twistlock
Type of Case Premium Premium Premium Premium
A-lock™diopter system allows you
to set and lock
the eye piece
diopter to your
personal
setting.
Twist lock eye cups ensure
easy and
comfortable
viewing when
wearing eye
glasses.
3
Models 67 and 68
Models 75 and77
Models 67 and 68
Models 75 and77

4

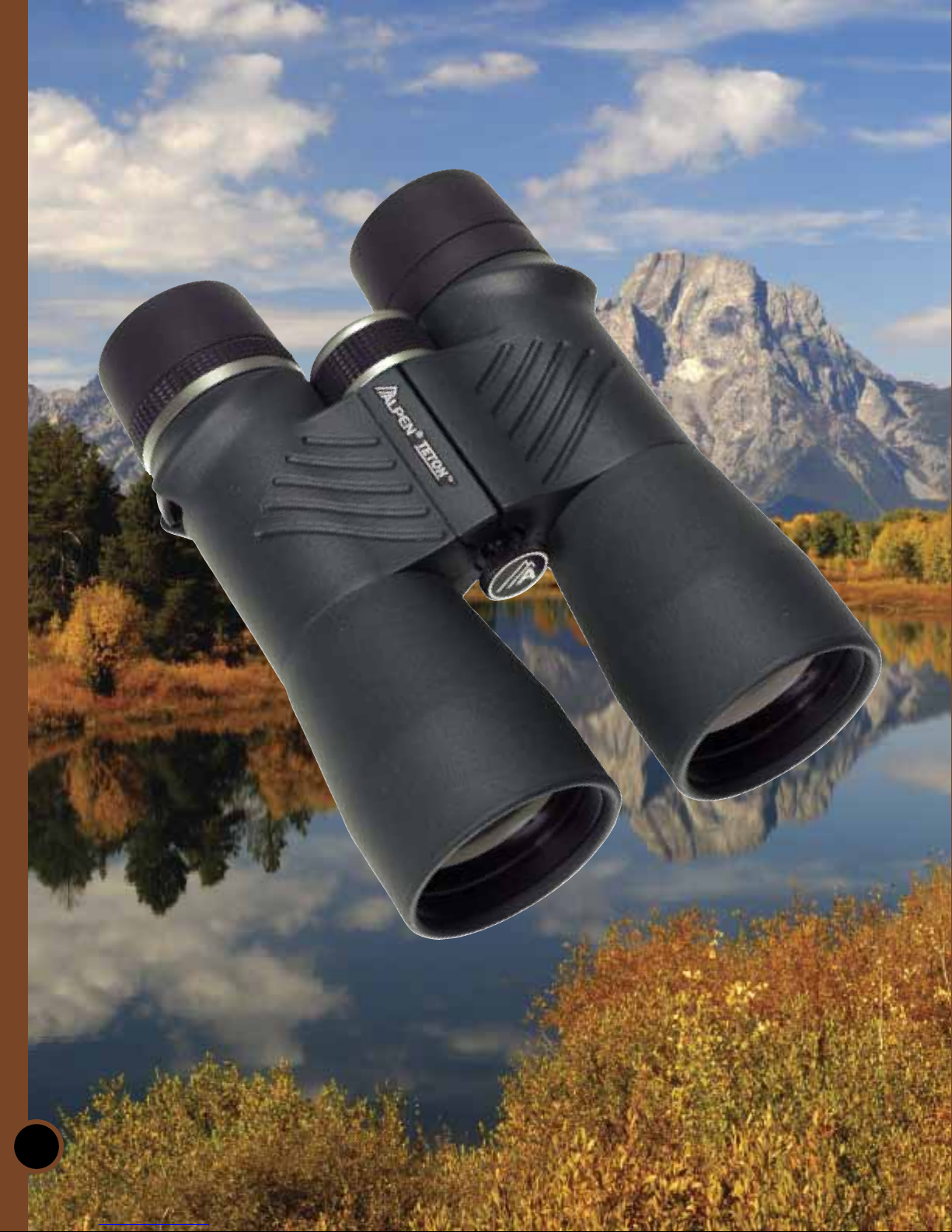

The Teton™binocular series delivers incredi-
ble optical performance in a lightweight, yet
durable, body design. Teton borrows its mag-
nification system from our top line Rainier™
and the body system from our popular high
quality Apex™binocular series. This combi-
nation of quality optical performance sets a
new standard in the top performance binoc-
ular category at an affordable price point.
Our exclusive PXA™phase coating and SHR™
metallic coating on BAK4 glass is featured for
an exquisitely bright and crisp image. The
composite body design provides light weight,
yet durable, performance for years of field
tough performance. Compare Alpen to com-
petitors that cost two or three times more,
you won’t believe your eyes.
Alpen®TetonTM Features:
•BAK4 prisms with Alpen’s exclusive SHR™
metallic coating for bright, sharp, high
resolution images
•Each air to glass surface is fully multi-
coated for maximum brightness
•PXA™ phase coating for outstanding
clarity and contrast
•Long eye relief provides full viewing
performance for eye glass wearers
•Large eye piece elements for a full field
view
•Waterproof, sealed and nitrogen filled for
guaranteed internal fog free performance
•Twist lock eye cups
•Light weight ergonomic body design for
comfort and field durability
•Soft rubber eye piece rain guard and
objective covers protect lenses from the
elements
•Premium quality carrying case and
quick release neck strap system
•Alpen’s lifetime warranty
Alpen®Teton™
Alpen®Teton™
5
84
Waterproof
BAK4 Optics
Long Eye Relief
Fully Multi-Coated
SHRTM Metallic Coated
PXATM Phase Coating
88
Waterproof
BAK4 Optics
Long Eye Relief
Fully Multi-Coated
SHRTMMetallic Coated
PXATM Phase Coating
89
85 8.5x50
10x50
8x42
10x42
Item Number 84 85 88 89
Description 8x42 8.5x50 10x42 10x50
Magnification 8X 8.5X 10X 10X
Objective Lens Diameter 42mm 50mm 42mm 50mm
Focus System Center Center Center Center
Prism Type Roof Roof Roof Roof
F.O.V. (ft @ 1000 yds) - Low/High 383 315 341 305
Exit Pupil 5.3mm 5.9mm 4.2mm 5.0mm
Eye Relief 17mm 20mm 17mm 19mm
Close Focus (feet) 6.8 13 6.8 13
Lens Coating
Fully Multi-Ctd
PXA Phase Ctd
SHR Metallic Ctg
Fully Multi-Ctd
PXA Phase Ctd
SHR Metallic Ctg
Fully Multi-Ctd
PXA Phase Ctd
SHR Metallic Ctg
Fully Multi-Ctd
PXA Phase Ctd
SHR Metallic Ctg
Net Weight (oz.) 26 30 26 30
Type of Neckstrap Extra Wide Extra Wide Extra Wide Extra Wide
Tripod Adaptable Yes Yes Yes Yes
Prism Material BAK4 BAK4 BAK4 BAK4
Waterproof/Fogproof Yes Yes Yes Yes
Eye Cups Multi-Position Twistlock Multi-Position Twistlock Multi-Position Twistlock Multi-Position Twistlock
Type of Case Premium Premium Premium Premium
Twist lock eye cups ensure
easy and comfortable
viewing when wearing
eye glasses.
Extra wide
neckstrap
included.

8x42
Super Close Focus (5 ft.)
Waterproof
Long Eye Relief
Fully Multi-Coated
BAK4 Optics
HRTMMetallic Coated
PXATM Phase Coating
Alpen®Apex®
Alpen®Apex®
ALPEN Apex binoculars define the best in
optics quality, featuring superb workmanship
and the latest optics technology. Including
fully multi-coated BAK4 glass, PXA™phase
coating and HR™metallic coating, Apex
binoculars
allow clearer
viewing in
bright and
dim light and
in the wettest
conditions.
The Apex
Zoom #500
binocular has the ability to change from 8x
magnification up to 16x magnification
while providing super crisp optical perfor-
mance. Simply turn each eye piece zoom
collar for detailed viewing.
Crisp, sharp optical clarity from the center
of view to the outer edges, gives users
exceptional quality at an affordable price.
Ergonomic styling and lightweight con-
struction allows tireless use and comfort.
Apex binoculars feature ALPEN’s lifetime
warranty.
Alpen®Apex®Features:
•Apex Zoom’s individual zoom eye piece
design provides 8x to 16x magnification
options
•BAK4 glass for clear, bright, high
resolution images
•Fully multi-coated for maximum
brightness
•PXA™phase coating for superior
resolution and color fidelity
•HR™metallic prism coating for enhanced
light transmission and brightness
•Waterproof, sealed and nitrogen filled
•Super close focus on selected models
•Twist lock eye cups
•Lightweight, ergonomic styling, roof
prism design
•Rubber armoring for comfort, protection
and durability
•Soft rubber rain guard
• Deluxe travel case and wide
comfortable neck strap
•ALPEN’s lifetime warranty
493
8x42
Waterproof
Long Eye Relief
Fully Multi-Coated
BAK4 Optics
HRTM Metallic Coated
PXATM Phase Coating
493 Mossy
6
Twist lock eye cups, premium neckstrap and rubber rain guard included.
8x–16x42
Zoom Magnification
Waterproof
BAK4 Optics
Long Eye Relief
Fully Multi-Coated
HRTMMetallic Coated
PXATM Phase Coating
500
Photo by Tony Proper

496
497
499
Item Number 491 492 493 493 MOSSY 495 495 MOSSY 496 497 499 500
Description 10x32 with
super close focus
8x32 with super
close focus
8x42 with super
close focus
8x42 Mossy
Oak® Camo
10x42 with
super close focus
10x42 Mossy
Oak® Camo 8.5x50 10x50 12x50 8–16x42 ZOOM
Magnification 10X 8X 8X 8X 10X 10X 8.5X 10X 12X 8–16X
Objective Lens Diameter 32mm 32mm 42mm 42mm 42mm 42mm 50mm 50mm 50mm 42mm
Focus System Center Center Center Center Center Center Center Center Center Center
Prism Type Roof Roof Roof Roof Roof Roof Roof Roof Roof Roof
F.O.V. (ft @ 1000 yds) 314 393 341 341 315 315 290 262 252 230 ft @ 8x/160 ft @ 16x
Exit Pupil 3.2mm 4.0mm 5.3mm 5.3mm 4.2mm 4.2mm 5.9mm 5.0mm 4.2mm 5.3mm @ 8x/2.6mm @ 16x
Eye Relief 16mm 16mm 20mm 20mm 16mm 16mm 20mm 20mm 16mm 21mm @ 8x/16mm @ 16x
Lens Coating
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Fully Multi-Ctd
PXA Phase Ctd
HR Metallic Ctd
Net Weight (oz.) 19 19 22 22 22 22 28 26 26 23
Type of Neckstrap Extra Wide Extra Wide Extra Wide Extra Wide Extra Wide Extra Wide Extra Wide Extra Wide Extra Wide Extra Wide
Tripod Adaptable Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Close Focus (feet) 4 4 5 8 5 8 16 9 13 13
Prism Material BAK4 BAK4 BAK4 BAK4 BAK4 BAK4 BAK4 BAK4 BAK4 BAK4
Waterproof/Fogproof Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Eyecups Twist Up Twist Up Twist Up Twist Up Twist Up Twist Up Twist Up Twist Up Twist Up Twist Up
Type of Case Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon Nylon
7
492
Waterproof
Long Eye Relief
Fully Multi-Coated
BAK4 Optics
HRTM Metallic Coated
PXATM Phase Coating
8.5x50
10x50
12x50
Super Close Focus (4 ft.)
Waterproof
Long Eye Relief
Fully Multi-Coated
BAK4 Optics
HRTM Metallic Coated
PXATM Phase Coating
10x32
8x32
491
10x42
Super Close Focus (5 ft.)
Waterproof
Long Eye Relief
Fully Multi-Coated
BAK4 Optics
HRTM Metallic Coated
PXATM Phase Coating
495
10x42
Waterproof
Long Eye Relief
Fully Multi-Coated
BAK4 Optics
HRTM Metallic Coated
PXATM Phase Coating
495 Mossy

Braden Gellenthien: FITA
World Ranking #1 Men’s
Compound Division; 1st World
Target Indoor Championship
(Turkey); 1st NAA US Nationals
Indoor Championship; 1st Arizona
Cup
Erika Anschutz: 3rd FITA
44th World Outdoor Target
Archery Championship (Team);
1st NFAA National Indoor
Championship; 2nd NFAA
National Outdoor Championship;
2nd NFAA National Marked 3-D
Championship; 1st NFAA Midwest
Indoor Sectional
Top competitors know that winning is a matter of having confidence in their equipment. Being
able to see targets clearly is a critical competitive advantage and they know Alpen excels.
Olympic competitors, professional and amateur archers, hunters and outdoor enthusiasts from
all over the world select Alpen Optics for consistent Quality, Value and Performance.
Look who’s winning
with Alpen Optics
“I looked at the lion through my Alpen’s.
It was like somebody turned a light on.”
“I was shooting a 3-D tournament when I came across a shot at a mountain
lion in a shaded area. I couldn’t make out the 12 ring so I pulled up a pair of
[brand X] binoculars and couldn’t see much better. Then I looked at the lion
through my Alpen’s. It was like somebody turned a light on!”
– Burley Hall, World & National Winning Professional Archer (shown above center).
A small sampling of Alpen’s Pro Staff: (From top left) Nathan Brooks, Todd Buckingham, Buddy Durr, Danny Evans, Eric Griggs, Adam Hayden,
Danny McCarthy, Derry Null, Kevin Polish, Duane Price, Dan Renner, Brandon Reyes, Jennie Richardson, Dick Scorzafava, K.J. Stone, Keli Van Cleave
8

Alpen Wings binocular series delivers an
ergonomic lightweight design with super
bright, sharp optical performance. The open
hinge design provides comfortable viewing
in two optical designs — ED “extra low dis-
persion” and non-ED versions.
ED optics provide
the very best in
color fidelity and
contrast in all light
conditions. With
Alpen’s fully multi-
coated, PXA phase
correction coating,
and silver metallic
prism coating the
Wings ED binocular series delivers outstand-
ing performance that provides superior
viewing to satisfy even the most serious
binocular user.
The non-ED Wings models also feature fully
multi-coated, PXA phase correction coating,
and silver metalic prism coating for optical
performance at a price point that is afford-
able while delivering a brilliant, crisp image.
Both series are fully waterproof, fogproof
and backed by Alpen’s lifetime warranty.
Wings binoculars have long eye relief,
great for eyeglass wearers, and twist up eye
cups provide comfortable viewing with or
without glasses.
Alpen®WingsTM Features:
•BAK4 glass for clear, bright and crisp
images.
•Fully multi-coated for maximum
brightness
•PXA phase coated for superior resolution
and color fidelity
•Silver metallic prism coating for superior
brightness
•Waterproof sealed and nitrogen filled.
•Long eye relief and twist up eye cups for
use with or without eye glasses
•Lightweight and ergonomic open hinge
body design
•Rubber armoring for holding comfort and
shock protection
•Soft rubber eyepiece rainguard
•Deluxe travel case and wide
comfortable neck strap
•Alpen’s lifetime warranty
Alpen®Wings™
Alpen®Wings™
9
Waterproof
BAK4 Optics
Long Eye Relief
Fully Multi-Coated
Silver Metallic Coated
PXATM Phase Coating
588
585
8x42
10x42
Item Number 585 588 592 595 597 599
Description 8x42 10x42 8x42 ED 10x42 ED 8x20 ED 10x25 ED
Magnification 8X 10X 8X 10X 8X 10X
Objective Lens Diameter 42mm 42mm 42mm 42mm 20mm 25mm
Focus System Center Center Center Center Center Center
Prism Type Roof Roof Roof Roof Roof Roof
F.O.V. (ft @ 1000 yds) 367 330 393 330 357 285
Exit Pupil 5.3mm 4.2mm 5.3mm 4.2mm 2.5mm 2.5mm
Eye Relief 17mm 15mm 17mm 15mm 16mm 16mm
Close Focus (feet) 8.5 8.5 7 7 6.5 7
Lens Coating
Fully Multi-Ctd
PXA Phase Ctd
Silver Ctd
Fully Multi-Ctd
PXA Phase Ctd
Silver Ctd
Fully Multi-Ctd
PXA Phase Ctd
Silver Ctd
Fully Multi-Ctd
PXA Phase Ctd
Silver Ctd
Fully Multi-Ctd
PXA Phase Ctd
Silver Ctd
Fully Multi-Ctd
PXA Phase Ctd
Silver Ctd
Net Weight (oz.) 22 22 24 24 8 8.5
Type of Neckstrap Extra Wide Extra Wide Extra Wide Extra Wide Regular Regular
Tripod Adaptable Yes Yes Yes Yes No No
Prism Material BAK4 BAK4 BAK4 BAK4 BAK4 BAK4
Waterproof/Fogproof Yes Yes Yes Yes Yes Yes
Eye Cups Twist Up Twist Up Twist Up Twist Up Twist Up Twist Up
Type of Case Soft Soft Black Premium Black Premium Soft Soft
Twist lock eye cups ensure
easy and comfortable
viewing when wearing
eye glasses.
Extra wide
neckstrap
included.
592 Waterproof
BAK4 Optics
Long Eye Relief
Fully Multi-Coated
Silver Metallic Coated
PXATM Phase Coating
595
8x42 ED
10x42 ED
8x20 ED
Compact Waterproof
BAK4 Optics
Long Eye Relief
Fully Multi-Coated
Silver Metallic Coated
PXATM Phase Coating
597 599
10x25 ED
Compact Waterproof
BAK4 Optics
Long Eye Relief
Fully Multi-Coated
Silver Metallic Coated
PXATM Phase Coating

Alpen®
Shasta Ridge
®
Alpen®
Shasta Ridge
®
ALPEN’s high performance Shasta Ridge
binoculars are fully waterproof, fully multi-
coated, have long eye relief, and feature
BAK4 optics that allow hunters, shooters, bird-
ers, boaters, and outdoor enthusiasts clearer,
brighter viewing under all conditions. And, they
feature ALPEN’s lifetime warranty.
The full size models have a sleek roof prism
design while the compact models are porro
prism design. Both designs provide the per-
formance required by the most dedicated
sports optics users.
Shasta Ridge binoculars meet the extreme all-
weather needs of today’s active adventurers.
When your goal is top performance and great
value, the ALPEN Shasta Ridge is your best
choice.
Alpen®Shasta Ridge®Features:
•Silver metallic prism coating for superior
brightness
•BAK4 optics for clear, bright, high
resolution images
•PXA™phase coating for superior resolution
and color fidelity (roof prism models)
•Fully multi-coated optics for maximum
brightness
•Waterproof and nitrogen filled
•Long eye relief for full field of view for
eyeglass wearers
•Twist lock eye cups
•Stylish ergonomic design
•Rubber armoring for protection and
durability
•Soft rubber rain guards (roof prism
models) and durable carrying case
• Premium quality neck strap
• ALPEN’s lifetime warranty
10
387SR
8x42
PXATM Phase Coated
Waterproof
Fog Proof
Long Eye Relief
BAK4 Optics
Silver Metallic Coated
Fully Multi-Coated
386SR
8.5x50
PXATM Phase Coated
Waterproof
Fog Proof
Long Eye Relief
BAK4 Optics
Silver Metallic Coated
Fully Multi-Coated
388SR
10x50
PXATM Phase Coated
Waterproof
Fog Proof
Long Eye Relief
BAK4 Optics
Silver Metallic Coated
Fully Multi-Coated
