ALPHA LITE RX Owner's manual

RX / TXRX / TX
WIRELESS MODULE
ALPHA LITEALPHA LITE
USER MANUAL USER MANUAL
BOOKBOOK

Product name. RX/TX 1
Do not open or disassemble the cover to reduce the risk of electric shock.
〔 WARNING 〕
Please wear safety equipment such as safety helmet during work.
Be sure to fix the safety chain on the product when installing and moving.
Please install the signs below for people to bypass when install
the product on high truss.
The work should be done under the direction of approved specialist
who is trained in safety and mechanical installations.
2
3
4
5
1
Precautions
Product name. RX/TX

ALPHA LITE ┃USER MANUAL BOOK
Contents
Safety Information 1
Equipment Connection
Power and DMX Connection
DMX Signal Link
DMX Signal Unlink
Status Indicator Instruction
6
7
8
9
10
Fixture Installation
Fixture Information
Fixture Exterior View
Technical Specifications
3
4
5
Fixture Information

3
Product name. RX/TX 3
Alpha Lite has an agreement with Lumen Radio in Sweden to partner with technology
and information. Lumen Radio Wireless DMX products offers unprecedented reliability
and will give you the trust you need to control your fixtures wirelessly.
Based on advanced CRMX technology, the CRMX Nova TX brings you all the advanced features
such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry
at 5ms, 128 bit encryption and much more. CRMX Nova utilizes the international license
free ISM band on 2.4GHz.
CRMX Nova TX is a DMX transmitter for one DMX universe of up to 512 channels
at maximum refresh rate. Multiple CRMX TX units can be used together to transmit
multiple DMX universes, allowing for easy system expansion.
CRMX Nova RX is a receiver for one DMX universe being transmitted by any CRMX transmitter.
It supports one full DMX universe of up to 512 channels at maximum refresh rate.
RX/TX
Product name.
Product name. RX/TX

4ALPHA LITE ┃USER MANUAL BOOK
RX
· Data receive-only (2 ports)
· Connect with Lighting fixtures
TX
· Data send-only (2 ports)
· Connect with a Consol
* If you insert the DMX input signal to the RX unit, an error may occur.
DMX Port
Clamp
Fixing Bar
Antenna
Antenna Connector
Link
Switch
Operation
Indications
Fixture Exterior View

5
Product name. RX/TX
International License Free ISM band on 2.4GHz
Operational Frequency Range 2,402~2,408MHz
Wireless Range Up to 1,000M
Signal Control 5-Pin DMX In and Out / Antenna: RP-SMA female
Individual Control Link Button
Supported Protocol DMX512 / RDM / DMX512 Wireless / RDM Wireless
Power Input Voltage AC 100-240V / 50~60Hz
Power Consumption (W) 23
Ambient Temperature
Operation (ºC) -20~45
Body Dimensions
(mm/inch) (WHD) 173 x 135 x 50 / 6.8 x 5.3 x 2
Weight (kg/lbs) 0.8 / 1.7
Protection Class IP20
Technical Specifications

6ALPHA LITE ┃USER MANUAL BOOK
Main Console
TX (Transmitter)
DMX Cable Connection
Wireless Connection
Lighting fixture
Lighting fixture
Lighting fixture
RX (Receiver)
Lighting fixture
Lighting fixture
Lighting fixture
RX (Receiver)
Lighting fixture
Lighting fixture
Lighting fixture
RX (Receiver)
Equipment Connection

7
Product name. RX/TX
AC power at 100-240V, 50-60Hz
2 3
1
2
3
1
DMX INPUT (XLR Mounting-plugs)
DMX OUTPUT (XLR Mounting-sockets)
POWER IN
1. Observe the proper voltage range.
2. If power is supplied outside the range, noise may be generated from the SMPS.
3. If the operating voltage is out of the proper voltage range,
SMPS function may be degraded or damaged.
주의 사항
Power and DMX Connection
RX
· Data receive-only (2 ports)
· Connect with Lighting fixtures
TX
· Data send-only (2 ports)
· Connect with a Consol
* If you insert the DMX input signal to the RX unit, an error may occur.
DMX Port

8ALPHA LITE ┃USER MANUAL BOOK

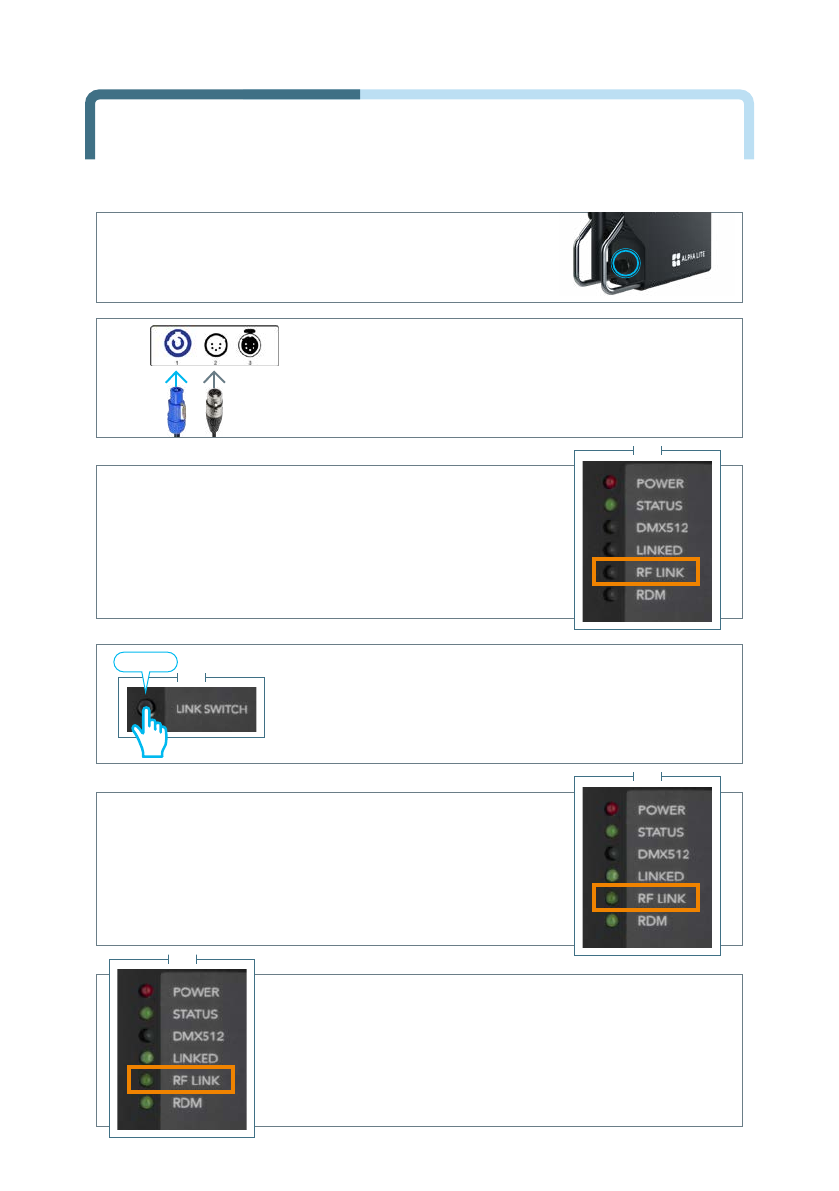

1
Connect an antenna
2
Power on
the transmitter(TX)
and receivers(RX)
3
Check all receivers
‘RF LINK’ indicators are off.
(If necessary, proceed with signal off process.)
4
TX
Touch!
When the receivers are ready to be linked,
press and hold the transmitter’s
‘LINK SWITCH’ button for 1 second.
The transmitter will search for any unlinked receivers.
5
After the transmitter’s ‘RF LINK’ indicator
flashes for 10 seconds,
normal connection is initiated.
6
When all receivers ‘RF LINK’ indicators are on,
the signal connection is complete.
RX
TX
RX
Connect
the power
(TX :
Connect with main console )
(RX : Connect with
lighting fixtures)
DMX Signal Link

9
Product name. RX/TX

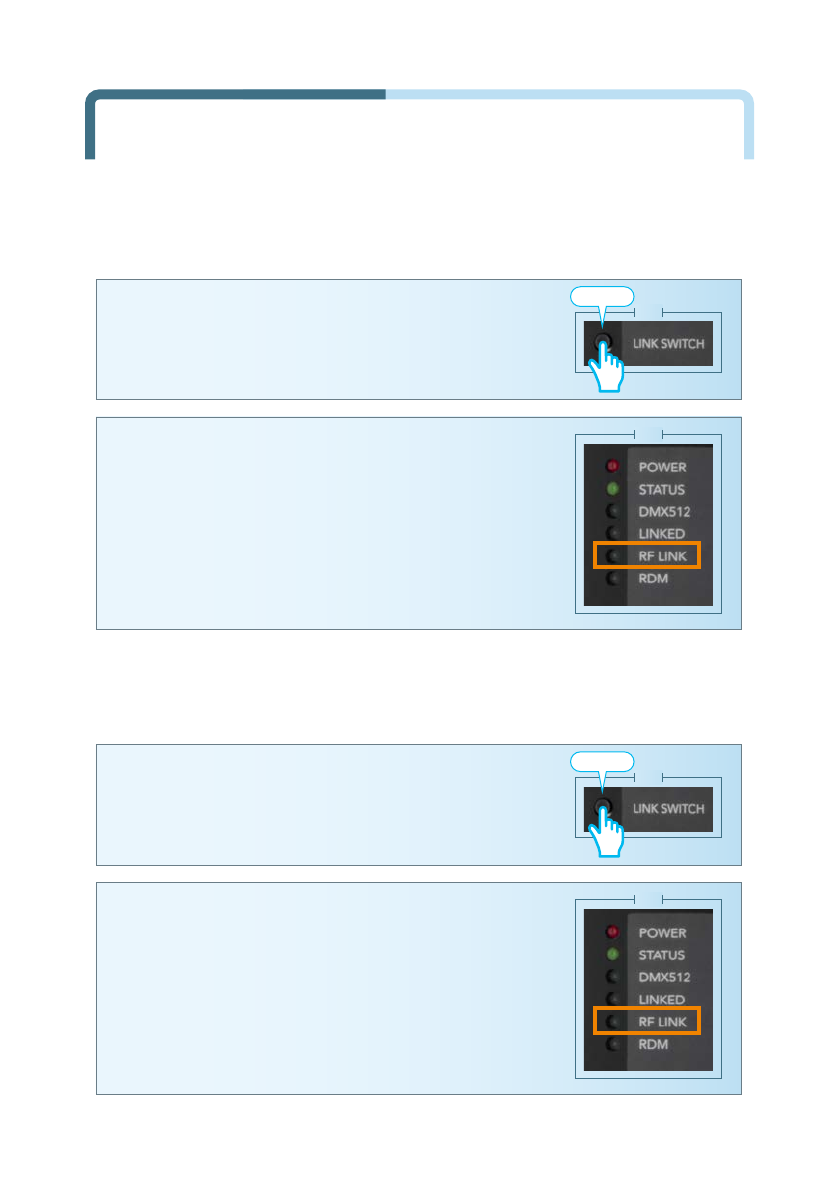

1
1
2
2
One receiver unlink (RX control)
All receivers unlink (TX control)
RX
Touch!
TX
Touch!
Press and hold one receiver’s
‘LINK SWITCH’ button for more than 3 seconds
to unlink from the transmitter.
Press and hold one transmitter’s
‘LINK SWITCH’ button for more than 3 seconds
to unlink all receivers.
The receiver’s ‘RF LINK’ indicator will off,
the connection with the transmitter is
disconnected.
The transmitter’s ‘RF LINK’ indicator will off,
the connection with all receivers is
disconnected.
RX
TX
DMX Signal Unlink

10 ALPHA LITE ┃USER MANUAL BOOK
Status Indicator Instruction
1
2
3
4
5
6
7
POWER It turns on when the power is on.
STATUS The length of the flash indicates the signal connection status.
(If there is no problem, it turns on.)
DMX512 It turns on when the wired DMX512 signal is connected.
LINKED It turns on when the signals of the transmitter
and receiver are connected to each other.
RF LINK Indicates the signal connection status of the transmitter and receiver.
(It flashes slowly as the receiver moves away from the transmitter’s signal range.)
RDM It turns on when the RDM operation other than main console operation.
1
2
3
4
5
6
7
Indicates the signal connection strength between RX and TX.
: 20%
: 40%
: 60%
: 80%

11
Product name. RX/TX
Status Indicator Instruction
Flashing (Off 100ms / on 100ms) : Linking with available RX
Flashing (Off 200ms / on 200ms) : Unlinking all currently linked RX
Flashing (Off 900ms / on 100ms) : Active radio link, no DMX present
Constant on : Active radio link, DMX data present
Constant off : Not linked to any TX
Flashing (Off 100ms / on 100ms) : Linked to a TX, but no active radio link
Flashing (Off 900ms / on 100ms) : Active radio link, no DMX present
Constant on : Active radio link, DMX data present
ON
OFF
TX (Transmitter) - ‘○STATUS’
RX (Receiver) - ‘○STATUS’

<Tel> 82-2-6317-0464
<Fax> 82-2-2039-0464
<E-mail> [email protected]
<Web> www.alpha-lite.net
2-4 Floor, 5-8, Gyeongin-ro 88-gil,Yeongdeungpo-gu,Seoul,Republic of Korea, 07363
