F R O M A L P H A T E C H N O L O G I E S
Nexsys System
600, 900, 1250
U N I N T E R R U P T I B L E P O W E R S U P P L I E S
Operator’s Manual
017-121-B0-002 05/99
USA, LATIN AMERICA &
ASIA PACIFIC
Alpha Technologies
3767 Alpha Way
Bellingham, WA 98226
Tel: [phone]
Fax: [phone]
UNITED KINGDOM
Alpha Technologies
Cartel Business Estate
Edinburgh Way
Harlow, Essex CM20 2DU
Tel: [phone]
Fax: [phone]
GERMANY
Alpha Technologies
Hansastrasse 8
D-91126 Schwabach
Tel: [phone]
Fax: [phone]
MIDDLE EAST
Alphatec
P.O. Box 6468
3307 Limassol, Cyprus
Tel: [phone]
Fax: [phone]
Alpha sales and service offices located throughout the world
http://www.alpha-us.com
CANADA
Alpha Technologies
7033 Antrim Ave.,
Burnaby BC V5J 4M5
Tel: [phone]
Fax: [phone]
AUSTRALIA
Alpha Technologies
8 Anella Ave., Unit 6
Castle Hill, NSW 2154
Tel: [phone]
Fax: [phone]
Printed In Canada

IMPORTANT SAFETY INSTRUCTIONS
CONTAINED IN THIS MANUAL
CAUTION
RISK OF ELECTRICAL SHOCK
CAUTION:
To reduce the risk of electrical shock and to ensure the
safe operation of this unit, the following symbols have
been placed throughout the manual. Where these
symbols appear, servicing should be performed by
qualified personnel only.
DANGEROUS VOLTAGE
A dangerous voltage exists in this area. Use extreme
caution
ATTENTION
Important operating instructions. Follow these
instructions closely.
WARNING:
Toreducetheriskoffireandshockhazards,donotexpose
this unit to rain or moisture.
WARNING:
Total Earth ground leakage current of loads connected to
this UPS are not to exceed 3.1 mA.
i
SAVE THESE INSTRUCTIONS
This manual contains important installation
and operating instructions.
Keep this manual in a safe place.
THE NEXSYS UPS
6. WARRANTY
Alpha Technologies warrants its equipment to be free of manufacturing defects in
material and workmanship for a period of 24 months from the date of manufacture.
The liability of Alpha Technologies under this warranty is solely limited to repairing,
replacing, or issuing credit for such equipment (at the discretion of Alpha Technologies),
providedthat:
1. AlphaTechnologies’CustomerServiceDepartmentispromptlynotified,byfacsimile
or telephone, that a failure or defect has occurred.
2. Alpha Technologies’ Customer Service Department issues a Return Materials
Authorization (RMA) number, and designates the service location. The RMA must be
clearly marked on the outside of the shipping container.
3.Purchaserisresponsibleforall in-bound shipping and handlingcharges (COD and
freight collect will not be accepted without prior approval from Alpha Technologies);
AlphaTechnologieswillpayout-boundsurfaceshippingcharges forreturnofrepaired
equipment.
4. A satisfactory examination of the returned unit by Alpha Technologies’ Service
personnel shall disclose that defects have not been caused by misuse, neglect,
improper installation, repair, alteration, or accident, or failure to follow instructions
furnishedbyAlphaTechnologies. IfAlphaTechnologies’Servicepersonneldetermine
that the unit has been damaged due to one of these causes, or if the unit is free of
defects, a handling or repair fee may be assessed prior to returning the unit.
WITH RESPECT TO BATTERIES, PERIPHERAL DEVICES, ATTACHMENTS OR
APPARATUS NOT MANUFACTURED BY ALPHA TECHNOLOGIES, ALPHA WILL
ASSIGN TO THE PURCHASER ITS RIGHTS UNDER THE ORIGINAL
MANUFACTURER’SWARRANTYOFSUCHBATTERIES, PERIPHERAL DEVICES,
ATTACHMENTS OR APPARATUS, BUT OFFERS NO ADDITIONAL WARRANTIES
IN CONNECTION THEREWITH.
THIS LIMITED 24-MONTH WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSORIMPLIED,INCLUDING,BUTNOTLIMITEDTO,IMPLIEDWARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO CASE SHALL ALPHA TECHNOLOGIES BE LIABLE FOR ANY INCIDENTAL,
SPECIALORCONSEQUENTIALDAMAGESWHATSOEVER,INCLUDINGWITHOUT
LIMITATION ANY CLAIM FOR LOST PROFITS OR REVENUES, EVEN IF ALPHA
TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH, FOR
BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED.
Anyactionforbreachofthislimited24-monthwarrantymustbebroughtwithinaperiod
of 24 months from date of manufacture.
This limited 24-month warranty does not extend to any unit that has been repaired or
altered by any party other than Alpha Technologies or its Authorized Service Center.
Alpha Technologies reserves the right to discontinue particular models and to make
modificationsindesignand/orfunctionatanytime,withoutnoticeandwithoutincurring
obligations to modify previously purchased units. 8/96
LIMITED 24-MONTH WARRANTY
AC PRODUCTS
57

THE NEXSYS UPS
ii
IMPORTANT SAFETY PRECAUTIONS
THE UPS SHOULD BE SERVICED BY QUALIFIED PERSONNEL
ONLY.
WARNING: This unit contains sealed lead-acid batteries with high
energy and chemical hazards. Carefully read this manual
regarding safe battery handling, maintenance, and dis-
posal. Inspection and replacement should be performed by
qualified personnel only.
Carefully unpack the UPS. Report any shipping damage immediately.
Read the operator’s manual. If you have questions regarding the safe
installation or operation of the UPS, contact Alpha Technologies.
When not in service, charge the UPS batteries at least once every 3
months to ensure optimum performance and battery life.
Install the UPS in a well ventilated area that is free of dust and mois-
ture.
Before installing the UPS, verify the voltage requirements of the
equipment to be protected (load), the AC input to the UPS (line), and
the output voltage of the UPS.
The utility service panel should be equipped with a circuit breaker that
is rated (amperage) for use with the UPS.
Notify fire or emergency personnel that a UPS is installed in the
building by placing a notification or warning label on the electrical
panel.
When connecting a load to the UPS, do not exceed the UPS’s output
rating.
Use proper lifting techniques when handling the UPS or external
battery pack.
KEEP THESE INSTRUCTIONS
5. MAINTENANCE
56
5.7 Specifications (Continued)
Specifications subject to change without notice
Specifications subject to change without notice
External Battery Packs (EBPs)
Batteries
EBP217-24N
EBP417-24N
EBP417-48N
Maintenance free, sealed, valve regulated
2 x 17 Ah batteries, 24 VDC total
4 x 17 Ah batteries, 24 VDC total
4 x 17 Ah batteries, 48 VDC total
Internal Fuse 2 x 80 A
Connector External battery connector for daisy chaining
Interconnect Cable 24" (610 mm) long, with connector
EBP Nominal Dimensions 3.5" x 17" x 15.75"
89 mm x 432 mm x 400 mm
EBP Weight (lbs/kg)
EBP217-24N
EBP417-24N
EBP417-48N
50/23
78/36
78/36
seirettaBlanretnISPUseirettaBlanretnISPUseirettaBlanretnISPUseirettaBlanretnISPUseirettaBlanretnISPU
yticapaCdnaepyTyrettaB 006sysxeN
009sysxeN
0521sysxeN
detalugerevlav,delaes,eerfecnanetniaM latotCDV42,seirettabhA71x2 latotCDV84,seirrettabhA2.7x4 latotCDV84,seirettabhA2.7x4
)CDV(tuotuCyrettaBegatloVwoL 006sysxeN
009sysxeN
0521sysxeN
5.91
93
93
)setunim(daoL%08taemiTnuR 006sysxeN
009sysxeN
0521sysxeN
82
51
9
)h(egrahC%59otemiTegrahC 006sysxeN
009sysxeN
0521sysxeN
8
4
4

iii
The UPS contains more than one live circuit. AC power may be
present at the UPS output, even if AC power is not present at its input.
Do not allow live battery wires to touch the UPS chassis. Shorted
battery wires could cause a fire or explosion.
Inspect the batteries once a year for signs of cracks, leaking or swell-
ing.
Always replace batteries with batteries of identical type and rating.
Never install old or untested batteries.
Do not use uninsulated tools or other conductive materials when
handling batteries or working inside the UPS.
Remove all rings, watches, and other jewellery before servicing
batteries.
Proper disposal of batteries is required. Refer to local regulations for
disposal procedures.
KEEP THESE INSTRUCTIONS
THE NEXSYS UPS
IMPORTANT SAFETY PRECAUTIONS
(Continued)
5. MAINTENANCE
55
5.7 Specifications
Specifications subject to change without notice
SPUseireSsysxeNSPUseireSsysxeNSPUseireSsysxeNSPUseireSsysxeNSPUseireSsysxeN
sretemaraPsretemaraPsretemaraPsretemaraPsretemaraP ledoMzH06,V021ledoMzH06,V021ledoMzH06,V021ledoMzH06,V021ledoMzH06,V021 ledoMzH05,V032ledoMzH05,V032ledoMzH05,V032ledoMzH05,V032ledoMzH05,V032
)zH(ycneuqerFtupnI3–063–05
)CAV(egatloVtupnIlacipyT021032
)CAV(egnaRegatloVtupnI531-29852-771
)A(tnerruCtupnImumixaM
006sysxeN
009sysxeN
0521sysxeN
5.5
9
31
3
5
7
)CAV(egatloVtupuOlacipyT021032
)A(tnerruCtuptuOmumixaM
006sysxeN
009sysxeN
0521sysxeN
0.5
5.7
0.01
6.2
9.3
4.5
)AV(rewoPtnerappAtuptuO
006sysxeN
009sysxeN
0521sysxeN
006
009
0521
)W(rewoPevitcAtuptuO
006sysxeN
009sysxeN
0521sysxeN
024
036
578
)%(noitalugeRtuptuO5–
)zH(egnaRycneuqerFtuptuO1.0–
mrofevaWtuptuOladiosuniS
cinomraHlatoTegatloVtuptuO
)%(daoLraeniLhtiwnoitrotsiD
5<
52taegatloVregrahC
0
C)CDV(
006sysxeN 009sysxeN 0521sysxeN 5.72
0.65
0.65
)A(tnerruCregrahC PBEtuohtiW PBEhtiW 3
6
erutarepmeTgnitarepO 0
0
04+otC
0
C
23+
0
401+otF
0
F
)ABd(m1taesioNelbiduA04<
snoisnemiDlanimoNSPU "52.5x"5.71x"71
mm993xmm331xmm234
)gk/sbl(thgieWSPU
006sysxeN
009sysxeN
0521sysxeN
5.92/56
8.13/07
8.13/07

THE NEXSYS UPS
Contents
1 INTRODUCTION .............................................................................8
1.1 The Alpha Advantage ..............................................................8
1.2 Unpacking and Inspection .......................................................9
1.3 A Tour of the Nexsys UPS .....................................................10
1.4 Nexsys UPS Front Panel .......................................................10
1.5 Nexsys UPS Rear Panel .......................................................11
2 INSTALLATION.............................................................................13
2.1 Pre–installation......................................................................13
2.2 Tower Configuration Installation.............................................14
2.3 Wall Mounting........................................................................20
2.4 Rack Mounting ......................................................................22
2.5 Connecting the UPS..............................................................23
2.6 External Battery Pack............................................................25
3 OPERATION .................................................................................26
3.1 Operating Modes...................................................................26
3.2 Starting and Testing the UPS ................................................28
3.3 Shutting Down the UPS.........................................................29
3.4 Self Test ................................................................................30
3.5 Front Panel Indicators and Controls ......................................31
4 COMMUNICATION .......................................................................39
4.1 Interface Port.........................................................................39
4.2 RS–232 Communication .......................................................42
5 MAINTENANCE ............................................................................49
5.1 Maintenance..........................................................................49
5.2 Run-time Testing ...................................................................49
5.3 Internal Battery Replacement................................................50
5.4 Troubleshooting .....................................................................53
5.5 Repair Instructions ................................................................54
5.6 Parts......................................................................................54
5.7 Specifications ........................................................................55
6 WARRANTY .................................................................................57
EMERGENCY SHUTDOWN ................................... Inside Back Cover
iv
IMPORTANT
Emergency shutdown procedure on inside back cover
5. MAINTENANCE
54
Before returning a unit to Alpha Technologies for repair, obtain a Return
Material Authorization (RMA) number from Alpha's customer service depart-
ment. Clearly mark the RMA number on the unit’s original shipping container.
For other shipping instructions, see Section 1.2, “Unpacking and Inspection.”
Alpha Technologies does not assume responsibility for damage
caused by improper packaging of returned units.
United States (360) 647–2360
Canada (604) 430–1476
United Kingdom [phone]
Germany [phone]
Middle East [phone]
Australia [phone]
To obtain complete technical support
(7 days/week, 24 hours/day)
Call
1–8 0 0– 3 2 2– 5 7 4 2
(USA)
1– 8 0 0–6 6 7–8 7 4 3
(Canada)
5.6 Parts
5.5 Repair Instructions

1. INTRODUCTION
8
uAdvanced Power Protection Technology
The Alpha Nexsys uninterruptible power supplies (UPS) provides continu-
ous and conditioned AC power to equipment such as computers, telephone
key switches, and other ancillary phone equipment.
uAdvanced Communications
An RS–232 port allows remote supervision of the UPS.
uSmart Charging
Alpha’s smart charge technology ensures the internal batteries are
consistently at peak performance level and automatically selects higher
charge current when an external battery pack is connected.

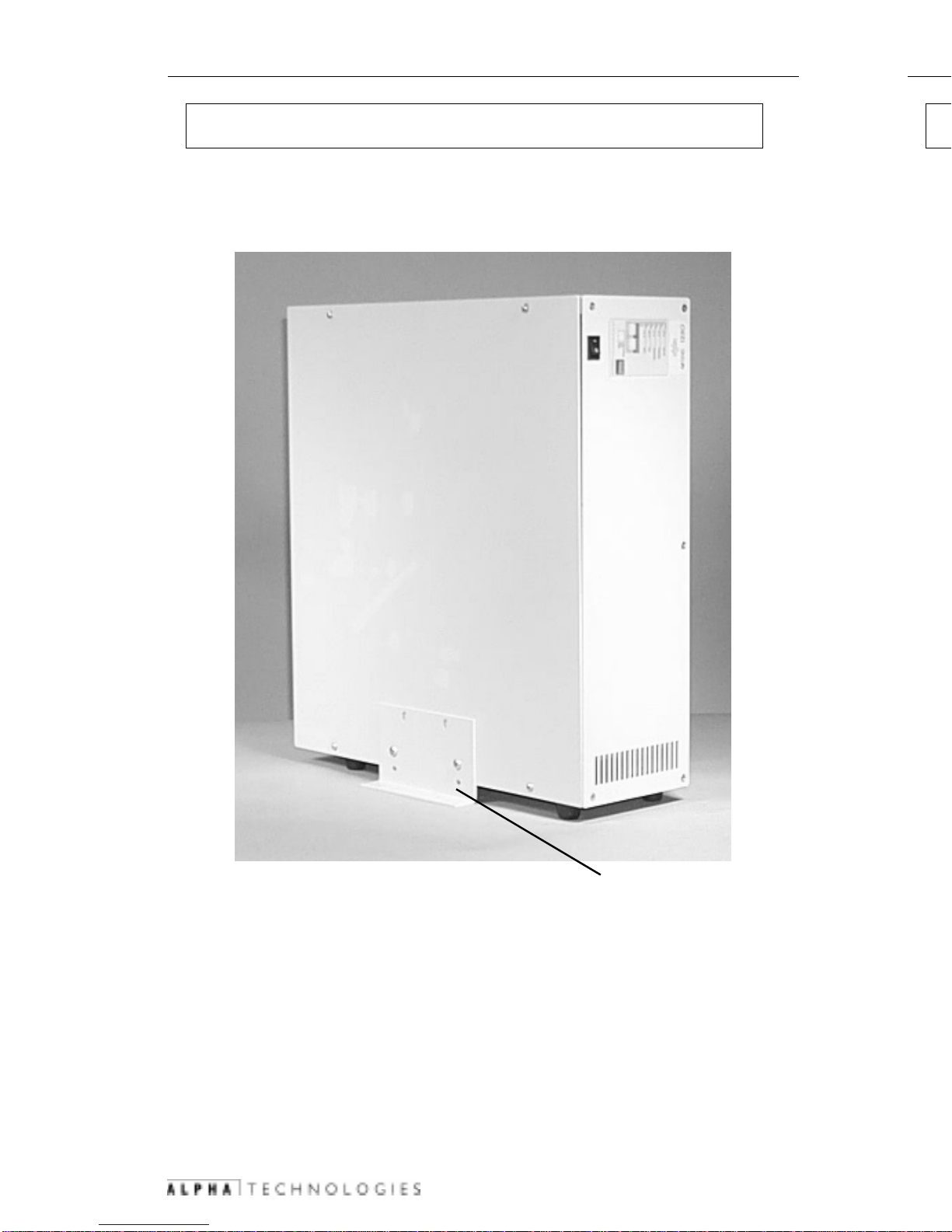

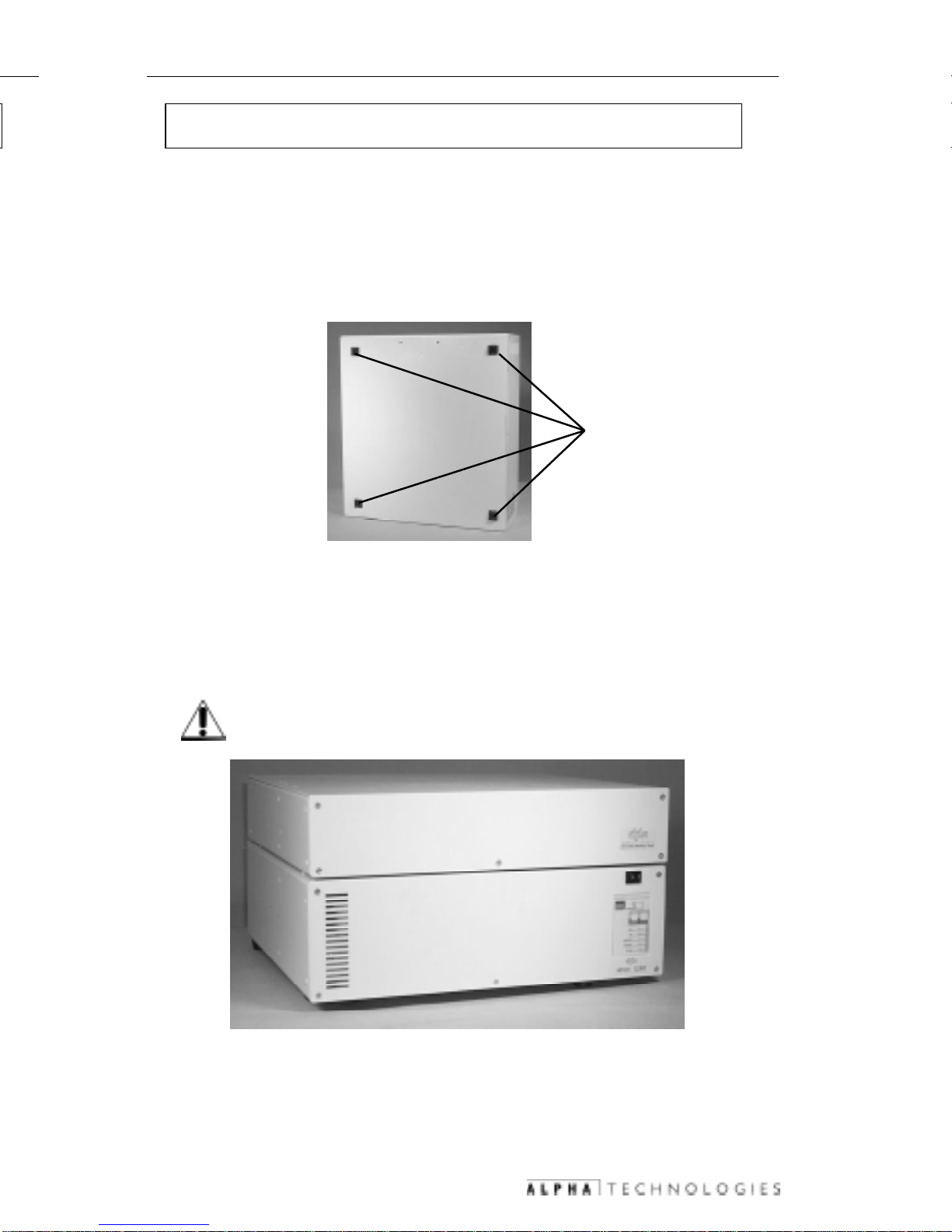

uTower Installation
The Nexsys UPS can be configured to stand on the floor next to the loads.
The external battery pack can be joined to the UPS.
uWall Mount Installation
The Nexsys UPS mounts easily on a wall adjacent to key systems. The
external battery pack can be wall mounted near the UPS.

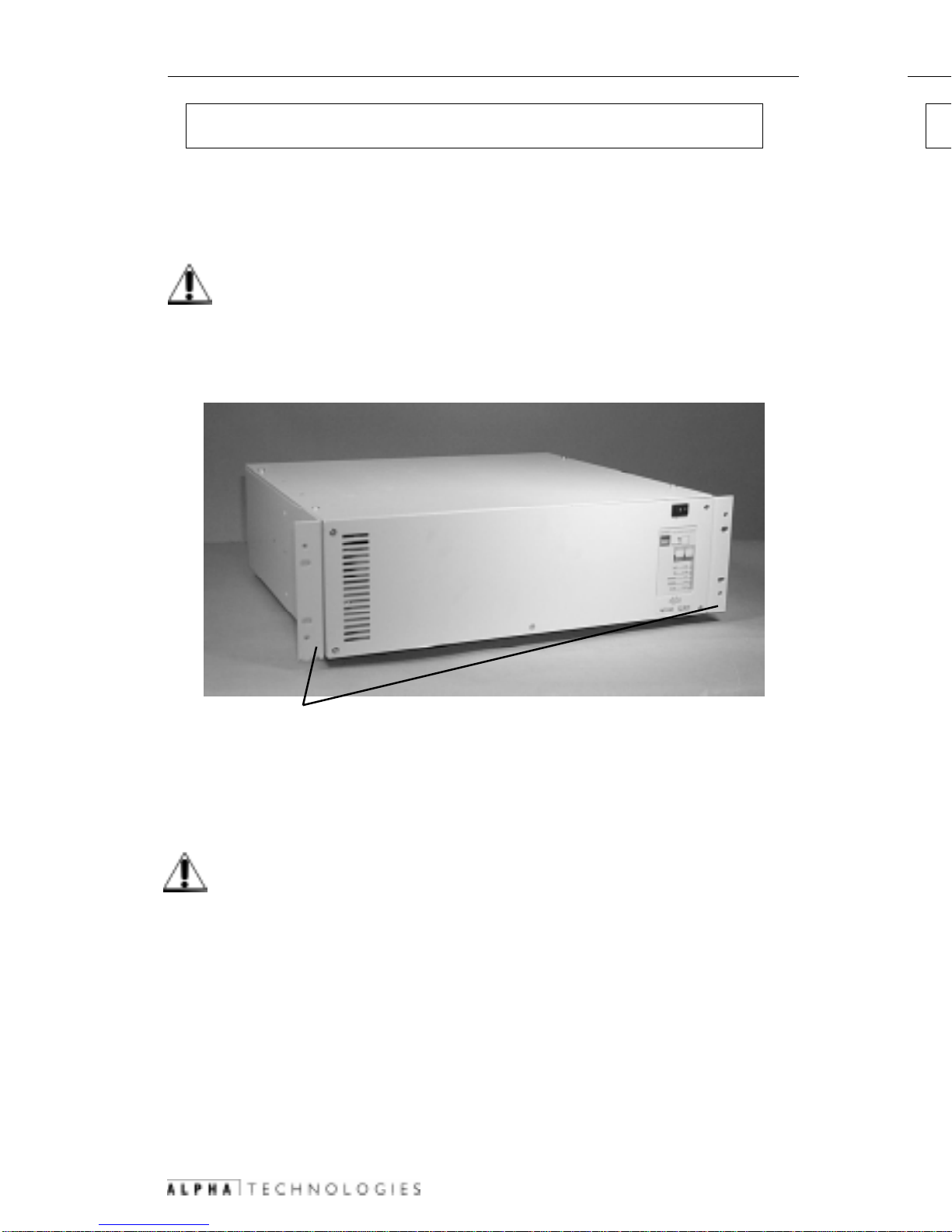

uRack Mount Installation
The Nexsys UPS mounts easily in a standard equipment rack to provide
power to other modules in the rack. The external battery pack can also be
rack mounted.
uExpandable Runtime Capabilities
Nexsys external battery packs can be daisy chained to increase backup
time to over 8 hours.
uPower Boost
Power boost increases output voltage in brownout conditions.
uService Friendly
Battery servicing is quick and easy.
uGenerator Standby Mode
The UPS can run with a generator as a power source.
1.1 The Alpha Advantage
5. MAINTENANCE
53
5.4 Troubleshooting
Notice
The UPS generates, uses, and can radiate radio frequency energy if not
installed and used in accordance with the instructions contained in the manual.
The UPS has been tested and found to comply with the limits established for a
Class A computing device pursuant to Part 15 of FCC rules and the radio
interference regulations of DOC which are designed to provide reasonable
protection against such interference when this type of equipment is operated in
a commercial environment. If the UPS appears to cause interference to radio or
television reception, which can be determined by switching the unit off and on,
relocate the equipment and/or use an electrical circuit other than that used by
the UPS.
SYMPTOM CAUSE REMEDY
UPS does not turn on
when
On/Off switch
turned on.
Discharged batteries.
or
Faulty circuit.
Charge batteries.
Contact vendor.
On Line mode does not
come on. No AC line power.
or
AC line voltage too high
or low.
or
On/Off
switch turned off.
Wait for AC line power.
Check input circuit
breaker.
Wait for voltage to
stablilize.
Turn on
On/Off switch.
On Battery mode does
not come on during
power failure.
Low battery charge.
or
Faulty circuit.
Charge batteries.
Contact vendor.
Backup time is less than
rated or flashing
Low
Battery
LED.
Battery is not fully
charged.
or
Charger failure.
or
Battery failure.
or
Faulty circuit.
Recharge batteries for
at least 4 hours, then
test the backup time
Contact vendor.
Clean and tighten
connections.
Check batteries and
replace if necessary.
Contact vendor.
Fault LED is on or
flashing. Check fault codes. Correct fault. Contact vendor.

1. INTRODUCTION
9
Carefully remove the UPS from its shipping container and inspect the
contents. If items appear to be damaged or missing, contact Alpha
Technologies and the shipping company at once. Most shipping companies
have a short claim period. Make sure that the following items are included:
1. One Nexsys UPS with an AC line cord (only included with North American
units with an IEC inlet).
2. One Operator's manual.
3. Installation kit with:
•Two multi-purpose brackets.
•Four #10 screws for mounting multi-purpose bracket.
•Four screw-mounted rubber feet.
•Four #8 screws for mounting rubber feet.
•Four adhesive backed rubber feet.
•One horizontal layout control panel overlay label.
•One wall mounting template.
•Four #12 tapping screws for wall mounting the UPS.
4. Any other ordered options.
SAVE THE ORIGINAL SHIPPING CONTAINER
If the UPS needs to be returned to the manufacturer for service, package it in
its original shipping container. If the original container is not available, make
sure that the unit is packed with at least three inches of shock-absorbing
material to prevent shipping damage. Do not use popcorn-type material. Alpha
Technologies is not responsible for damage caused by improper packaging of
returned units.
READ THE OPERATOR'S MANUAL
Become familiar with your UPS front and side panels by reviewing the
drawings and illustrations in this manual before starting installation. If you have
questions regarding safe installation or operation, contact Alpha Technologies.
1.2 Unpacking and Inspection
5. MAINTENANCE
52
8. Slide the new batteries into the UPS until the batteries are sticking out
about 2 inches (5 cm).
9. Attach the battery cables onto the battery posts of the new batteries.
The red cable should be attached to the positive post and the black
cable to the negative post.
10. Plug in the red/blue battery connector and slide the batteries all the way
in. Reinstall the battery holding bracket and its foam block.
For the Nexsys 900 and 1250:
4. Undo the two screws on the battery holding bracket and remove the
battery holding bracket and the battery holding foam block.
5. Pull out the batteries about 2 inches (5 cm) and disconnect the battery
cable connectors. This disconnects the UPS from internal battery
power.
6. Remove the batteries and the filler foam block from the chassis.
7. Slide the new batteries into the UPS until the batteries are sticking out
about 2 inches (5 cm).
8. Attach the battery cable connectors to the battery tabs of the new
batteries. The red cable should be attached to the positive tab and the
black cable to the negative tab.
9. Slide the batteries all the way in and position the filler foam block.
10. Reinstall the battery holding bracket and its foam block.
For all models:
11. Close the cover and reinstall the five screws.
12. If the UPS has an external battery pack attached, go to Step 15.
13. Press the Mute and % Batt buttons at the same time for 3 seconds to
exit the Hot Swap mode. The On Line LED will come on.
14. Press the % Batt button to check the battery capacity.
15. If the UPS is shut off, turn it on and make sure the unit starts. Unplug
the UPS while it is running and check that there is normal AC power at
the output. The UPS output will fail if the batteries have not been
installed correctly. Do not perform this test when running critical loads.
5.3 Internal Battery Replacement (Continued)

1. INTRODUCTION
10
The Nexsys UPS is easy to use and extremely adaptable. Each Nexsys model is
available in two versions; one for 120 V, 60 Hz applications and the other for
230 V, 50 Hz. The integrated front control and display panel provides many
information management options. The rear panel hosts low profile output
receptacles or optional terminal blocks and a serial interface/alarm connector to
facilitate your most demanding power and communication needs.
1.3 A Tour of the Nexsys UPS
1.4 Nexsys UPS Front Panel
Control and Display Panel
The control and display panel shows vital operating information about the UPS
and allows the operator to invoke a self-test to confirm proper operation.
On/Off Switch
This switch controls the power to the UPS.

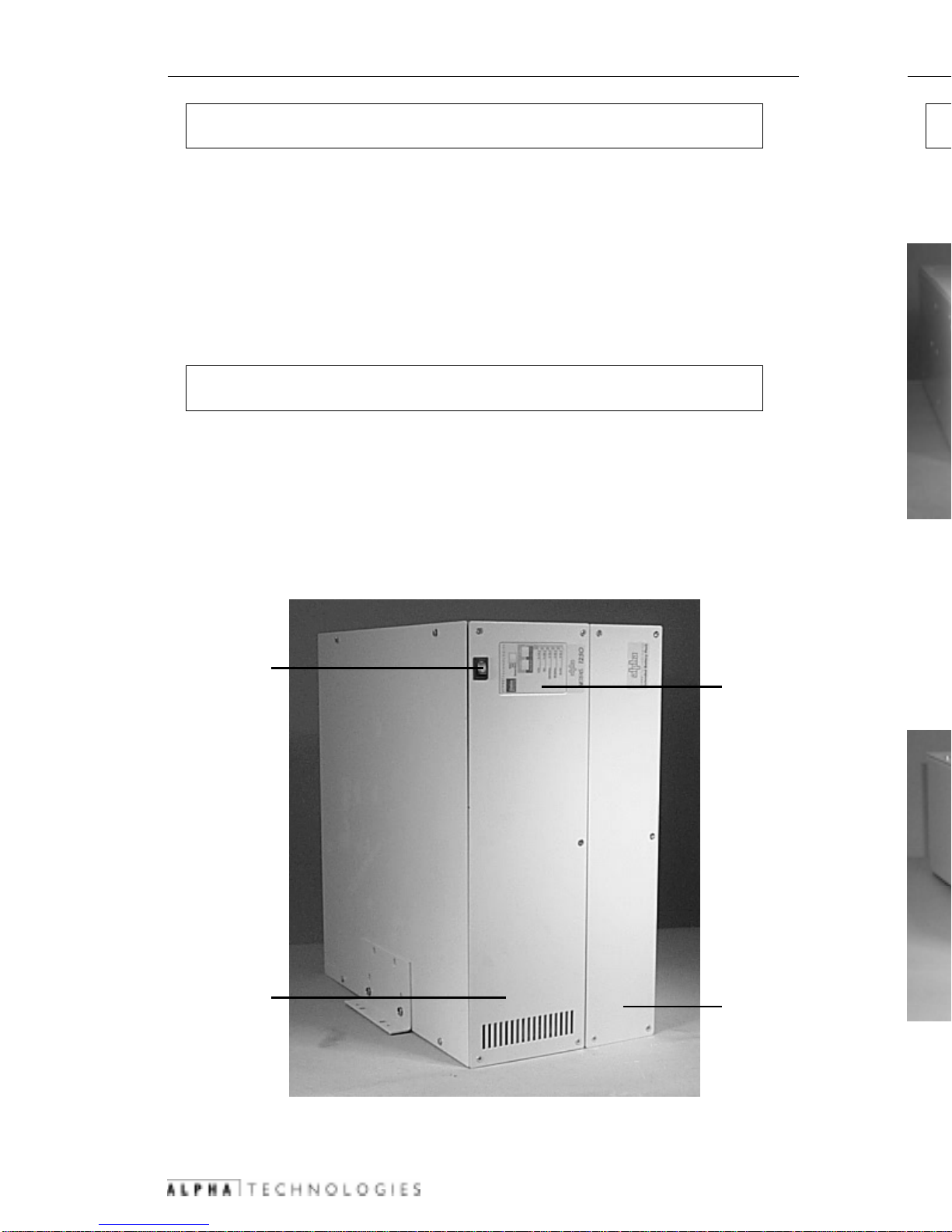

Figure 1.1
Front Panel
On/Off
Switch Control and
Display Panel
External
Battery Pack
(EBP)
UPS
5. MAINTENANCE
51
5.3 Internal Battery Replacement (Continued)
Figure 5.1
Nexsys 600 Internal Battery Compartment
Battery LeadsBattery Holding
Bracket Battery CablesBattery Holding Foam Block
Figure 5.2
Nexsys 900 and 1250 Internal Battery Compartment
Battery Connectors
Battery Holding
Bracket Battery Holding
Foam Block

1. INTRODUCTION
11
1.5 Nexsys UPS Rear Panel
Cooling Fans
This UPS uses cooling fans to ensure maximum cooling protection in all operating
modes.
External Battery Pack (EBP) Connector
This connector accepts a standard plug for an Alpha external battery pack which
extends available backup time. The UPS's smart charge system will automatically
select a higher charge current.
Nameplate Label
The nameplate label displays vital UPS information. Always verify the input
voltage and frequency (e.g., 120 VAC / 60 Hz) before using the UPS.
Communication/Alarm Interface Connector
This communication/alarm RS–232 interface connects to a host computer for
remote monitoring, control, and calibration of the UPS. A special serial cable to
connect the UPS to the computer is available from Alpha Technologies. The part
numbers for the cables are:
•870-540-21 Cable Assembly, Nexsys–PC, RS–232, DE–9M to DB–25F
•870-540-22 Cable Assembly, Nexsys–PC, RS–232, DE–9M to DE–9F
Input/Output Receptacle Plate
The standard Nexsys UPS comes with an input/output receptacle plate with the
following:
AC Input Circuit Breaker
The AC input circuit breaker automatically disconnects the UPS from the
utility line AC power if an overcurrent is applied to the UPS input.
AC Output Receptacles
The equipment to be protected is connected to these UPS output recep-
tacles. The style of the output receptacle varies, depending on country,
frequency, and voltage.
AC Line Cord Connector
An AC line cord is supplied with the UPS for North American customers.
Optional Terminal Block
A terminal block connection box can be used instead of the standard input/output
receptacle plate.
5. MAINTENANCE
50
IMPORTANT: Read the safety precautions at the front of this manual before
proceeding.
WARNING: Do not short out the battery terminals. Do not lay tools or parts on
top of the batteries. Do not allow tools or leads to contact the
chassis during assembly or disassembly.
WARNING: The UPS does not need to be shut off to change the batteries, but if
it does not have external batteries attached, and the input power
fails during the change out procedure, the output power of the UPS
will also fail. Do not change the batteries while operating critical
systems. The loads are not protected when changing internal
batteries without an external battery pack attached to the UPS.
Once a year, inspect the batteries for signs of cracks, leaks, or swelling and
always replace them with batteries of identical type and rating. Never install
old or untested batteries. Order batteries from Alpha Technologies.
The batteries are hot swappable. They can be changed without shutting off the
UPS.
Procedure:
For all models:
1. If the UPS has an external battery pack attached and is running
properly, go to Step 3.
2. Switch the UPS into Hot Swap mode by following the procedure in
Section 3.6.9, “Hot Swap Mode.”
3. Undo the five screws that secure the front panel and swing the front
panel open.
For the Nexsys 600:
4. Undo the two screws on the battery holding bracket. Remove the
battery holding bracket and the battery holding foam block.
5. Unplug the red/blue battery connector. This disconnects the UPS from
internal battery power.
6. Pull out the batteries about 2 inches (5 cm) and unscrew the battery
leads from the battery terminals. Wrap the leads in electrical tape to
prevent the leads from shorting.
7. Remove the batteries from the chassis.
5.3 Internal Battery Replacement

1. INTRODUCTION
12
1.5 Nexsys UPS Rear Panel (Continued)
Figure 1.2
Rear Panel
External Battery
Pack Cord
AC Input
Circuit Breaker AC Output
Receptacles
Cooling fans
External Battery
Pack (EBP)
Connector
Communication/Alarm
Interface Connector
External
Battery
Connector
(UPS)
AC Line Cord
Connector
Nameplate
Label
5. MAINTENANCE
49
5.1 Maintenance
The electronic components used in the UPS require no maintenance. If the
unit fails to perform a specific function, refer to the troubleshooting section.
The guide lists typical symptoms, causes, and solutions to problems, starting
with the most obvious and working systematically through the unit.
By following the guidelines contained in this manual, your UPS will continue to
provide years of trouble-free service.
The maintenance–free batteries used in the UPS will be affected by many
variables including operating temperature, number of discharges over the life
of the battery, charging characteristics, and low voltage cell cutoff. The Nexsys
UPS complies with all factory recommendations for charging and discharging
batteries to ensure optimum performance and the longest possible battery life.
During normal operation, the UPS batteries will tend to increase in capacity
over the first three to twelve months of service. After the first ten to fifteen
battery discharges, the available backup power may increase by 20%. Once
the batteries reach this peak, they will slowly lose capacity and, eventually, will
be unable to provide the required backup power.
To determine the maximum amount of battery run time available, run this test
at least once a year. The length of the test varies from several minutes to
many hours and should not be done while critical loads are running, depending
on the UPS's output. This test discharges the batteries, so backup power may
not be available during a utility power failure.
Procedure:
1. Unplug the AC line cord from the wall receptacle. The front panel On
Battery LED comes on. Record this start time.
2. Record the time when the Low Battery warning LED starts to flash and
subtract the start time. This is the backup time available. The test can
be interrupted here by plugging the AC line cord back into the wall
receptacle.
CAUTION: The next step shuts down the UPS.
3. Allow the UPS to continue to a complete shutdown. Record the time
when the UPS goes into the shutdown state with the LEDs flashing
sequentially. Subtract this time from the Low Battery warning time to
determine the available reserve time.
4. Switch off the UPS and the load(s). Plug the AC line cord back into the
wall receptacle and start the UPS. The batteries will begin recharging.
5.2 Run-time Testing

2. INSTALLATION
13
Site Preparation
Install the UPS in a well-ventilated, dust-free environment. Do not mount it on any
surface unable to fully support its weight.
Install the UPS near the equipment to be protected. The AC line socket and the
output receptacles must be easily accessible in case of an emergency.
Utility Circuit Breaker
The UPS should be installed on a dedicated circuit with a properly sized circuit
breaker to protect the UPS from short circuits or over-currents. Check the UPS
nameplate for the appropriate current rating.
For UPS's equipped with terminal blocks, mark the circuit breaker controlling the
power going to the UPS for emergency disconnection from utility line AC power.
Grounding
Many older facilities may have an electrical system that is incapable of supporting
current grounding requirements. A qualified electrician should inspect the existing
wiring in the building prior to installation to verify proper grounding. Use the
external ground lug on the UPS's rear panel if required.
Standby Generators
The UPS is equipped with a frequency sense circuit, along with a frequency
synchronization circuit, to optimize operation with most standby generators. Prior
to installation, compare the output voltage of the generator to the voltage
requirements of the UPS (see the UPS nameplate label).
By switching the UPS to Generator Mode, the acceptable ranges of input voltage
and frequency can be broadened to accommodate fluctuations inherent to
generator power.
Alpha Technologies recommends using a generator equipped with electronic
speed and voltage control. Generators equipped with mechanical governors can
cause the UPS to run continuously in On Battery mode due to the unstable
frequency of the generator. The generator should produce less than 10%
voltage total harmonic distortion (THD).
2.1 Pre-installation
4. COMMUNICATION
48
4.2 RS-232 Communication (Continued)
4.2.9 Calibration
Calibration allows you to customise the UPS detection and warning
characteristics. Normally, these factory settings do not have to be changed.
CAUTION: Improper calibration parameter values may cause permanent
damage to the UPS. The calibration must be done by well trained
personnel only. Parameter values are relative numbers that only make
sense when viewed through the UPS control system. Contact Alpha
Technologies before making any adjustment.
Slow Detect Hi Lmt
Decreasing this value makes the UPS more sensitive to a slow, high
amplitude line disturbance (sustained overvoltage) by lowering the
overvoltage detection level.
NOTE: The Slow Detect Hi Hys Ref should also be adjusted by the same
amount.
Slow Detect Lo Lmt
Increasing this value makes the UPS more sensitive to a slow, low
amplitude line disturbance (brownout) by raising the brownout detection
level.
NOTE: The Slow Detect Lo Hys Ref should also be adjusted by the same
amount.
Slow Detect Lo Hyst
Increasing this value raises the voltage level where the UPS resumes On
Line mode after a line disturbance has been corrected.
Slow Detect Hi Hyst
Decreasing this value lowers the voltage level where the UPS resumes
On Line mode after an overvoltage condition has been corrected.
Slow Detect Boost High
Increasing this value raises the re-transfer voltage from Boost mode to
On Line mode.
Slow Detect Boost Low
Increasing this value raises the transfer voltage from On Line mode to
Boost mode.
Bat Charge Current
Increasing this value increases the battery charging current.

2. INSTALLATION
14
2.2 Tower Configuration Installation
2.2.1 UPS Installation
1. Install the four rubber feet on the correct side of
the cabinet. For proper ventilation, the front
panel vent hole must be on the bottom when the
UPS is standing on its rubber feet.
Requires
Phillips Screwdriver

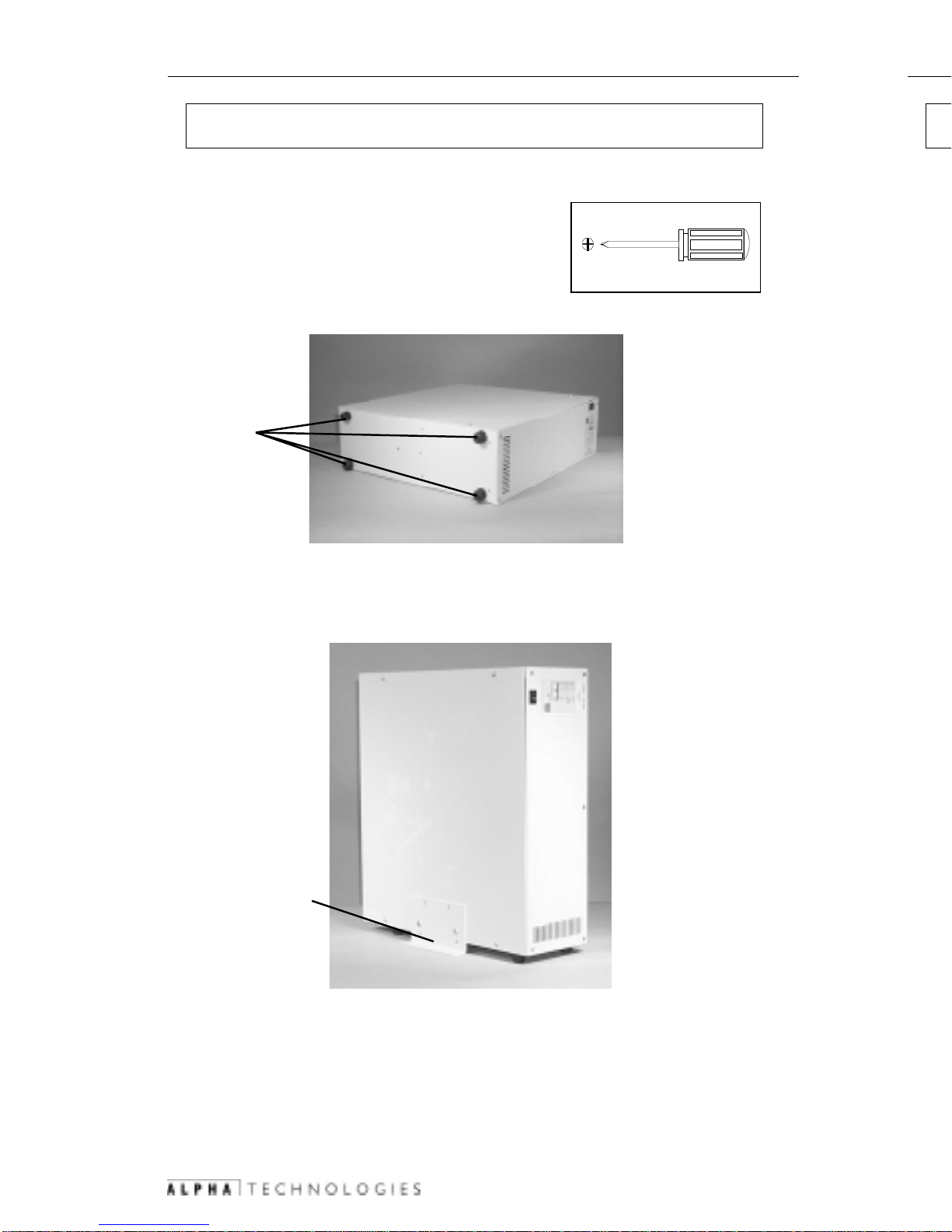

Figure 2.1
Rubber Feet
2. Install the multipurpose bracket as a seismic bracket on both sides of the
UPS.
Figure 2.2
Seismic Bracket
3. Stick the adhesive side of the horizontal layout overlay label over the control
and display panel to make reading the control and display panel easier.
Make sure that the label is properly aligned.
4. Connect the UPS as shown in Section 2.5.
Rubber
Feet
Multipurpose
Bracket as a
Seismic Bracket
4. COMMUNICATION
47
4.2 RS-232 Communication (Continued)
Volt Amps
The apparent output power of the UPS is calculated by multiplying the
output voltage by the output current. The total UPS output VA may not
equal the sum VA drawn from the connected equipment. This is due to
different power factor rating for each piece of equipment.
Power in Watts
The real output power of the UPS is calculated in Watts. This is equal to the
sum of the real output power for all equipment connected to the UPS.
Power Factor
The ratio of true power (power actually consumed) to apparent power
(simple product of voltage and current) at the input of the UPS expressed
as a decimal (e.g., 0.89).
4.2.7 Battery
Battery Temperature
Displayed in degrees C, Ambient Temperature is measured inside the UPS
in the vicinity of the battery compartment.
Battery Voltage
Voltage indicates the average DC voltage of UPS batteries.
4.2.8 Maintenance
Maintenance allows you to start the test mode and shut down the output.
Battery test options
A self test can be initiated or cancelled by selecting this menu. The test
duration can be set in steps of 0.5 seconds. The default is 120 steps which
equals 60 seconds.
Output Shutdown
The output of the unit can be turned off by sending a command via the RS–
232 port using a computer or terminal. The shutdown delay can be set in
steps of 0.5 seconds. The default is 0. The Test LED flashes when a delay
is set and a UPS Output Shutdown is pending.
Inverter On/Off
Switches the inverter on or off. This option is used when the unit is in the
On Battery mode to prevent a deep battery discharge. The UPS does not
respond to this command when it is not in On Battery mode. Inverter Off
delay can be set in steps of 0.5 seconds. The default is 0. The Test LED
flashes when a delay is set and a UPS I nverter Off state is pending.

2. INSTALLATION
15
2.2.2 External Battery Pack Installation
1. To join an external battery pack (EBP) to the UPS, first install the four rubber
feet to the bottom of the EBP.
2. On the sides where the UPS will join the EBP, remove the two upper and
lower screws on both the UPS and the EBP.
3. Loosen but do not remove the remaining UPS and EBP front panel screws.
4. Slide the braces behind the EBP front panel and chassis at the upper and
lower screw holes where the screws have been removed. Align the slots of
the braces with the screw holes and insert the screws. Adjust the braces so
that they are aligned parallel to the top and bottom chassis surfaces. Tighten
the screws.
2.2 Tower Configuration Installation (Continued)

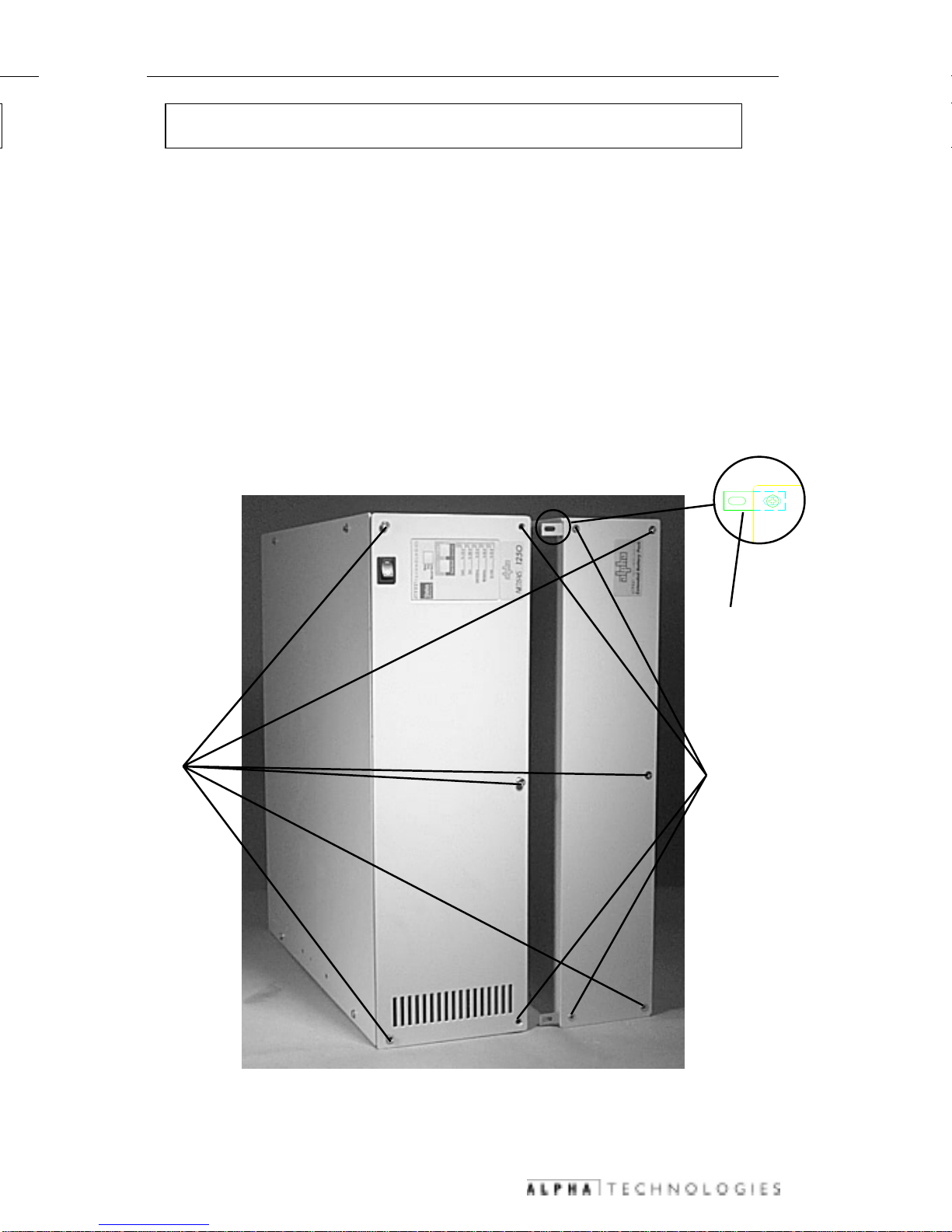

Figure 2.3
Brace
Loosen
Screws Remove
Screws
Brace
4. COMMUNICATION
46
3 Maintenance
30 Battery Test options [Default Value]
300 Set battery test period [120]
301 Battery test On/Off [Off]
31 Output Shutdown Options
310 Set Shutdown delay [000]
311 Shutdown On/Off [Off]
32 Inverter Control Options
320 Set inverter-off delay [000]
321 Inverter On/Off [Off]
33 Change Password
4 Calibration
40 Slow Detect High Lmt [113]
41 Slow Detect Low Lmt [077]
42 Slow Detect High Hyst [108]
43 Slow Detect Low Hyst [082]
44 Slow Detect Boost High [096]
45 Slow Detect Boost Low [088]
46 Bat charge current [3.00]
4.2.6 Input/Output Values
Input:
Voltage
The voltage measured at the input of the UPS (e.g., 120 VAC).
Frequency
The frequency of the AC Line measured at the input of the UPS
(e.g., 60 Hz).
Output:
Voltage
Output Voltage displays the true RMS voltage at the output of the UPS.
Current
Output Current displays the true RMS current at the output of the UPS.
Frequency
The frequency, in Hertz, of the AC line as measured at the output of the
UPS.
4.2 RS-232 Communication (Continued)

2. INSTALLATION
16
2.2 Tower Configuration Installation (Continued)
5. Join the EBP with the UPS so that the EBP braces slide between the UPS
front panel and chassis. Align the braces with the UPS upper and lower
screw holes. Insert and tighten the screws.
6. Tighten all the other screws on the UPS and EBP front panels.
Figure 2.4
Front Installation
Brace
4. COMMUNICATION
4.2 RS-232 Communication (Continued)
4.2.5 Quick Reference
Currently available menus and commands:
Main Menu:
1 Unit Specifications
Unit Model xxx
Unit Freq xx hertz
Input Voltage xxx volts
Output Voltage xxx volts
Output VA xxxx VA
Battery Voltage xx volts
Max Chgr Current x.xx amps
EEPROM
Version: xx.xx
Date: xx/xx/xx
2 Input/Output Values
Input:
Voltage xxx.x volts
Freq xx.x hertz
Output:
Voltage xxx.x volts
Current xx.x amps
Freq xx.x hertz
VA xxx VA
Power xxx watts
PowerFactor x.xx
Battery:
Temperature xx deg C
Voltage xx.x volts
45

2. INSTALLATION
17
2.2 Tower Configuration Installation (Continued)
4. COMMUNICATION
44
The following are messages and descriptions for each group.
Line Status:
Normal: AC line is normal
Boost: AC line is out of tolerance, Boost mode in operation
Blackout: AC line non-exist
Low : AC voltage low
High: AC voltage high
Freq low: Line frequency too low
Freq high: Line frequency too high
Output Status:
Line mode
Inverter mode
Inverter mode, low batt. warning
Inverter mode (testing battery)
Boost mode
Hot swap mode
Shutdown due to fault
Shutdown due to low battery
Shutdown due to user request
Shutdown due to no line
Faults:
Vout_Abs: Output voltage absent/Output short circuit
Vout_Hi: Output voltage high
Vbat_Hi: Battery voltage high
Vbat_Lo: Battery voltage low
Temp_Hi: Ambient temperature high
Iout_Hi: Output current high
EEPROM_Flt: Error reading EEPROM
Wout_Hi: Output power high (overload)
Alarms:
Vout_Lo: Output voltage low
Iout_Hi: Output current high
Overload: Output overloaded
Temp_Hi: Ambient temperature high
Temp_Lo: Ambient temperature low
Pll: PLL can not lock
Line_Freq: Line freq high or low
Bat_Test: Failed battery test
4.2 RS-232 Communication (Continued)
7. Install two other braces to the outside of the UPS and EBP rear panels using
the screws shipped with the EBP.
Braces
EBP
Connector
Cable
Figure 2.5
Rear Installation
EBP
UPS

2. INSTALLATION
18
8. Install two multipurpose brackets to the outside bottom edges of the UPS/
EBP combination to act as seismic brackets.
9. Connect the UPS to the EBP using the EBP connector cable.
10. Connect the UPS as shown in Section 2.5.
2.2 Tower Configuration Installation (Continued)
Multipurpose
Bracket as a
Seismic BracketFigure 2.6
Seismic Bracket
4. COMMUNICATION
43
4.2 RS-232 Communication (Continued)
4.2.4 Menus and Commands
The RS–232 menus are hierarchical. The top level menu, the Main menu, can
be accessed by pressing Enter which sends a carriage return character. This
menu lists the numbers used for accessing sub-menus and shows the status
of the AC line voltage and pending alarms.
Figure 4.3 shows the opening menu screen which displays menu Option 1
through 4. Current line status, output status, faults, and alarms (if any exist)
are also displayed.
Alpha Technologies - NEXSYS
[0-Main Menu]
1 Unit Specification
2 Input/Output Values
3 Maintenance
4 Calibration
Line Status:
Output Status:
Faults:
Alarms:
Figure 4.3
Main Menu Screen
4.2.3 Communication Setup
gnikahsdnaH)ffoX/noX(gnikahsdnaHerawtfoS
etaRduaBspb0021
tamroFataDtiBpotS1,ytiraPoN,ataD8

2. INSTALLATION
19
2.2 Tower Configuration Installation (Continued)
2.2.3 Bench Top Laying
The Nexsys UPS and EBP can be laid on their sides and stacked on top of
each other.
1. Attach four adhesive backed rubber pads to the bottom of the UPS and
EBP chassis, about 1 inch (25 mm) from the corners.
Figure 2.7
Adhesive Backed Rubber Pads
2. Stack the UPS on top of the EBP or vice versa.
WARNING: Do not place the UPS and EBP on a surface that is unable
to fully support their combined weight.
Figure 2.8
Bench Top Laying
3. Connect the UPS as shown in Section 2.5.
Adhesive Backed
Rubber Pads
4. COMMUNICATION
42
4.2 RS-232 Communication
4.2.1 Introduction
This section describes how to monitor, control, and calibrate the UPS using
RS–232 ASCII commands and how to navigate through the program using the
menus.
Terminal emulation software is used to program the RS–232 serial interface.
Parameters and commands can be accessed through the menus or by typing a
number associated with the desired functions.
4.2.2 Terminal Emulation Set-up
If you are using a terminal emulation package, such as Procomm , to communi-
cate with the UPS, use the following setup:
NOTE: The Back-Space and Delete keys are ignored by the program.
If a command is typed in incorrectly, press Enter and type the
command again.
Microsoft Windows can also be used to set up these parameters:
•Windows 3.x: Click the Terminal icon.
•Windows 95 or Windows 98 path: Start/Programs/Accessories/Communica-
tions/Hyperterminal.
epyTnoitalumEelbitapmoCro001TV
edoMxelpuDxelpuDflaH
lortnoCwolFffoX/noXnO
lortnoCwolFSTC/STRffO
parWeniLnO
llorcSneercSnO
noitalsnarTRCRC
ecapSkcaB)etoNees(A/N
htgneLkaerBA/N
yriuqnIA/N

2. INSTALLATION
20
2.3 Wall Mounting
Tools Required:
• Masking tape
• Drill and drill bits for pilot holes
• Mounting hardware kit (included with unit)
Install the UPS on a 1.25 inch (3 cm) thick wood mounting board. Attach the
wood mounting board securely to the wall so that it can safely support the
UPSs weight. Four #12 x 1.25 inch tapping screws are supplied for attaching
the UPS to the wood mounting board.
•The UPS requires 6 inches (15 cm) of clearance on the rear panel side for
ventilation and cable connections, and 7 inches (18 cm) of clearance on the
front panel side for internal battery replacement.
•Install the UPS so its AC input cord can reach a grounded power outlet and
make sure the cords connecting the loads are long enough to reach the
loads.
•The UPS can be mounted with the front panel facing right or left but the
internal batteries are easier to remove if the front panel is facing right.
1. Place the mounting template on the wood mounting board with the top of
the template facing up.
2. Use a level to align the template at the template leveling line. Use masking
tape to temporarily secure the template to the wood mounting board.
3. Drill four pilot holes through the template at the screw locations marked S in
the template.
4. Remove the template.
5. Use the tapping screws to install the lower bracket onto the wood mounting
board. Level the top surface of the mounting bracket and tighten the
screws.
Requires
Phillips Screwdriver
4. COMMUNICATION
41
4.1 Interface Port (Continued)
Figure 4.2
RS-232 Serial Cable Connections
n
n
n
n
n
n
n
n
n
n1
n2
n3
n4
n5
n6
n7
n8
n9
To AWM 600
RS–232 9–Pin IBM PC
Serial Port
TXD
RXD
TXD
GND
GND
1
2
3
4
5
6
7
8
9
RXD
To 9-Pin Connector
25–Pin Connector
n24
n25
To AWM 600
RS–232
25–Pin IBM PC
Serial Port
TXD
RXD
GND
n1
n2
n3
n4
n5
n6
n7
n
n
n
n
n
n
n
n
n
TXD
RXD
GND
1
2
3
4
5
6
7
8
9

2. INSTALLATION
21
6. Install the upper bracket on to the UPS.
2.3 Wall Mounting (Continued)
Figure 2.9
Wall Mount Bracket
7. Lift the UPS and rest it on top of the lower bracket installed in Step 5.
WARNING: The UPS is heavy. Use proper lifting techniques.
8. Use the tapping screws to attach the upper bracket of the UPS to the wood
mounting board.
9. Attach the lower bracket to the UPS.
10. If an external battery pack (EBP) is being installed, mount it to the wall in
the same way as the UPS module. Connect the EBP to the UPS using the
EBP connector cable.
11. Connect the UPS as shown in Section 2.5.
Multipurpose Bracket
Positioned for Wall
Mounting
4. COMMUNICATION
40
4.1 Interface Port (Continued)
4.1.2 RS-232 Connection
A male DE–9 connector is required when connecting the UPS's RS–232 port
to a PC to run ASCII commands. Figure 4.1, “Pin Assignment DE–9 Female
Connector” shows the wiring configuration.
NOTE: Use only fully shielded cables to make connections to any of the DE–9
connectors.
Figure 4.1
Pin Assignment DE–9 Female Connector

2. INSTALLATION
22
2.4 Rack Mounting
1. Mount the multipurpose brackets on the sides of the UPS cabinet. The
brackets can be mounted in the centre of the chassis or flush with the front
panel.
NOTE: By changing the orientation of the multipurpose bracket, the UPS
can be mounted in a 19 or 23 inch rack. However, the standard multipur-
pose bracket is not strong enough to be mounted flush with the front panel
in the 23 inch rack configuration. A thicker multipurpose bracket is available
from Alpha Technologies for that purpose.
.
Figure 2.10
Rack Mounting
2. Lift the UPS into position and secure the brackets to the rack.
WARNING: The unit is heavy! Use proper lifting techniques.
3. If an external battery pack (EBP) is being installed, mount it to the rack in
the same way as the UPS module. Connect the EBP to the UPS using the
EBP connector cable.
4. Connect the UPS as shown in Section 2.5.
Multipurpose
Bracket For
Rack Mounting
4. COMMUNICATION
39
4.1 Interface Port
The UPS is equipped with a DE–9 female connector for remote communica-
tion. When linked to a PC with a terminal emulation package, the PC can
monitor, control, and calibrate the UPS using RS–232 ASCII commands.
4.1.1 Pin Assignments
•Pin–1: Inverter Shtdwn
The UPS shuts down the inverter (no output voltage) when a RS–232
high level (+7 to +15 volts) signal is applied to Pin–1 for 2.5 seconds.
The UPS responds to this signal only when in On Battery mode.
•Pin–2: Not Connected
•Pin–3: Line Fail, Line Fail Alarm (N.O.), 10 mA maximum
Along with COM (Pin–4), this opto-isolated open collector pin
simulates a relay contact closure whenever the AC line is out of
tolerance (e.g. On Battery mode except in Test mode).
•Pin–4: COM, Common for Pin 3 and 5
This is the common signal for Line Fail and Low Battery alarm signals.
This pin is not internally connected to the logic ground. If required, the
connection to the logic ground should be provided externally.
•Pin–5: Low Batt, Low Battery Alarm (N.O.), 10 mA maximum
This opto-isolated, open-collector pin and COM (Pin–4) simulates a
relay contact closure whenever the battery runtime is low.
•Pin–6: +V, +7V to +12V, 20 mA maximum
This pin provides a positive voltage whenever the UPS is powered up.
The positive voltage can be used to either shutdown the inverter by
placing a switch/relay contact between Pin–6 and Pin–1 (Shutdown) or
to provide a pull up voltage for the Line Fail and Low Batt signals.
•Pin–7: Tx, RS-232 Transmit
•Pin–8: Rx, RS-232 Receive
•Pin–9: GND, logic GND for RS-232 and +V.
