Alpha Technologies Novus P1250 User manual

Operator’s Manual
Novus P1250 and 1250T
U N I N T E R R U P T I B L E P O W E R S U P P L I E S
From Alpha Technologies

IMPORTANT SAFETY INSTRUCTIONS
ARE CONTAINED INTHIS MANUAL
CAUTION:
To reduce the risk of electrical shock and for the safe use of the Novus
P1250and1250TUPS’s,the following symbolsare placed throughout
this manual. Where they appear, servicing should be done only by
qualifiedpersonnel.
A DANGEROUSVOLTAGE exists in this area.Use extreme
caution.
ATTENTION;importantoperatinginstructions.Follow them
closely.
i
THEALPHANOVUSP1250AND1250T
SAVE THESE INSTRUCTIONS
This manual contains important installation
and operating instructions.
Keep it in a safe place.
CAUTION
RISKOFELECTRICALSHOCK

ii
THEALPHANOVUS P1250 AND 1250T
IMPORTANTSAFETYPRECAUTIONS
Novus 1250T and P1250 UPS Safety Checklist
Only qualified personnel should service the UPS.
Carefully unpack the UPS and report any shipping damage at once.
Read this operator’s manual. If you have any questions about safe
installation,operationormaintenance,contactAlphaTechnologies.
Install the UPS upright in a well ventilated area.
Verify the UPS’s output voltage meets the voltage and current
requirements of the equipment to be protected. Do the same for the
line voltage and current input into the UPS.
The UPS should be installed on a dedicated, circuit breaker
equippedline.
Alert fire, emergency and service personnel a UPS is installed by
placing a warning label on the electrical panel and the host equip-
ment.
When connecting a load, make sure it does not draw more power
than the UPS provides.
Use proper lifting techniques when lifting the UPS (weight is 75 lbs,
34kg).
The UPS has more than one live circuit. Even if line power is not
present at the input, power can be present at the output.
SAVETHESEINSTRUCTIONS

THEALPHANOVUSP1250AND1250T
iii
Battery Safety Checklist
DANGER: Thebatterieshavehighenergyandchemicalhazards.
Thebattery compartment containsdangerousvoltages. Read this
manualfor safebatteryhandling, maintenanceand disposal
instructions.
Battery servicing should be done or supervised by personnel
trainedinhandlingofbatteriesandtherequiredprecautions.
When not in service, charge the batteries once every three months
foroptimumperformance andlonglife.
Batteries should be inspected yearly for signs of cracks, leaks or
swelling.
Always replace batteries with those of identical type and rating.
Never install old or untested batteries.
Proper disposal is required. Refer to local codes for procedures.
DANGER: Batteriesmayexplodeif burned. Do not open or
mutilate batteries. Electrolyte is harmful to the skin and eyes and
may be toxic.
IMPORTANTSAFETYPRECAUTIONS
SAVETHESE INSTRUCTIONS

iv
THEALPHANOVUSP1250AND1250T
SAVETHESEINSTRUCTIONS
Battery Compartment Safety Checklist
DANGER: The batteries are a shock risk. Observe these precau-
tions:
NOTE: The UPS is not turned off by turning the Battery Circuit
BreakerOFF.
Never let the front enclosure touch the battery terminals. A lethal
shock can result.
Before battery servicing remove all rings, watches and other
jewellery.
Use insulated tools when servicing the batteries or the UPS. Do not
lay tools on top of the batteries.
Do not let live battery wires touch the UPS’s chassis. Shorted
wires can cause a fire or explosion.
Wear insulated gloves and eye protection when servicing the
batteries.
Switch the battery circuit breaker OFF before connecting or discon-
nectingthe batteries.
DANGER:Lead–acidbatteriesgenerateHydrogengas,apotential
fire hazard. The following precautions must be followed:
Do not smoke, use fire or create sparks near them.
Touch a grounded metal surface before servicing the batteries to
discharge any static electricity.
IMPORTANTSAFETYPRECAUTIONS

EMERGENCYSHUTDOWNPROCEDURE

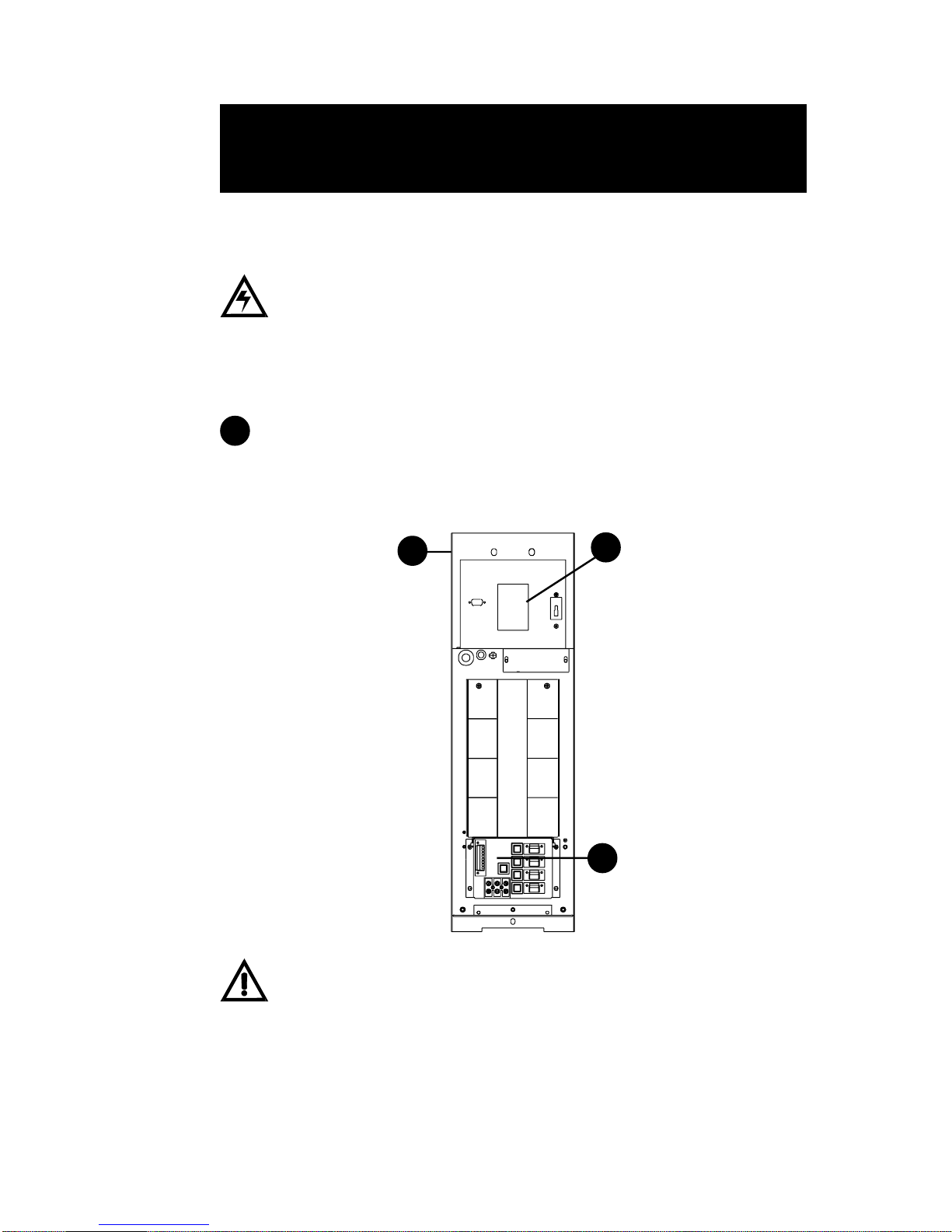

Open the enclosure.
7. EMERGENCY SHUTDOWN
The NOVUS UPS contains more than one live circuit. During
an emergency, line power may be disconnected, but power
will still be present at the UPS’s output.
To prevent injury to service or emergency personnel, always
turn the battery circuit breaker OFF.
1
5
Switch the
battery circuit
breaker OFF.
Switchtheinput
circuit breaker on
the terminal block
OFF.
Switchtheinput
circuit breaker
on the terminal
blockOFF.
3
2
4
Turn the line circuit breaker OFF.
NOVUS P1250, 1250T
QUICK INSTALLION GUIDE
NOTE: The installer must know the safety instructions, the installation,
set–up and operating procedures in this manual before proceeding.
DANGER: To reduce the risk of fire and shock hazards, do
not expose this UPS to rain or moisture.
WARNING: Never run the UPS at more than 100% of output
power(Section3.6.3).Overloadingcandamagetheinverter,
the batteries or the control electronics.
PROCEDURE:
TurnOFF:
•All loads
•The battery, input, output and line circuit breakers.
1
Mount the UPS
(Section 2.1 and 2.2
or 2.3).
Connect the UPS
(Section 2.4).
Start and test the UPS
(Section 3.2, 3.4)
3
24

EMERGENCYSHUTDOWNPROCEDURE
Open the enclosure.
7. EMERGENCY SHUTDOWN
The NOVUS UPS contains more than one live circuit. During
an emergency, line power may be disconnected, but power
will still be present at the UPS’s output.
To prevent injury to service or emergency personnel, always
turn the battery circuit breaker OFF.
1
5
Switch the
battery circuit
breaker OFF.
Switchtheinput
circuit breaker on
the terminal block
OFF.
Switchtheinput
circuit breaker
on the terminal
blockOFF.
3
2
4
Turn the line circuit breaker OFF.
NOVUS P1250, 1250T
QUICK INSTALLION GUIDE
NOTE: The installer must know the safety instructions, the installation,
set–up and operating procedures in this manual before proceeding.
DANGER: To reduce the risk of fire and shock hazards, do
not expose this UPS to rain or moisture.
WARNING: Never run the UPS at more than 100% of output
power(Section3.6.3).Overloadingcandamagetheinverter,
the batteries or the control electronics.
PROCEDURE:
TurnOFF:
•All loads
•The battery, input, output and line circuit breakers.
1
Mount the UPS
(Section 2.1 and 2.2
or 2.3).
Connect the UPS
(Section 2.4).
Start and test the UPS
(Section 3.2, 3.4)
3
24

TABLE OF CONTENTS
1. INTRODUCTION .......................................................... 1
1.1 The Alpha Advantage................................................................2
1.2 Unpacking and Inspection Checklist .........................................2

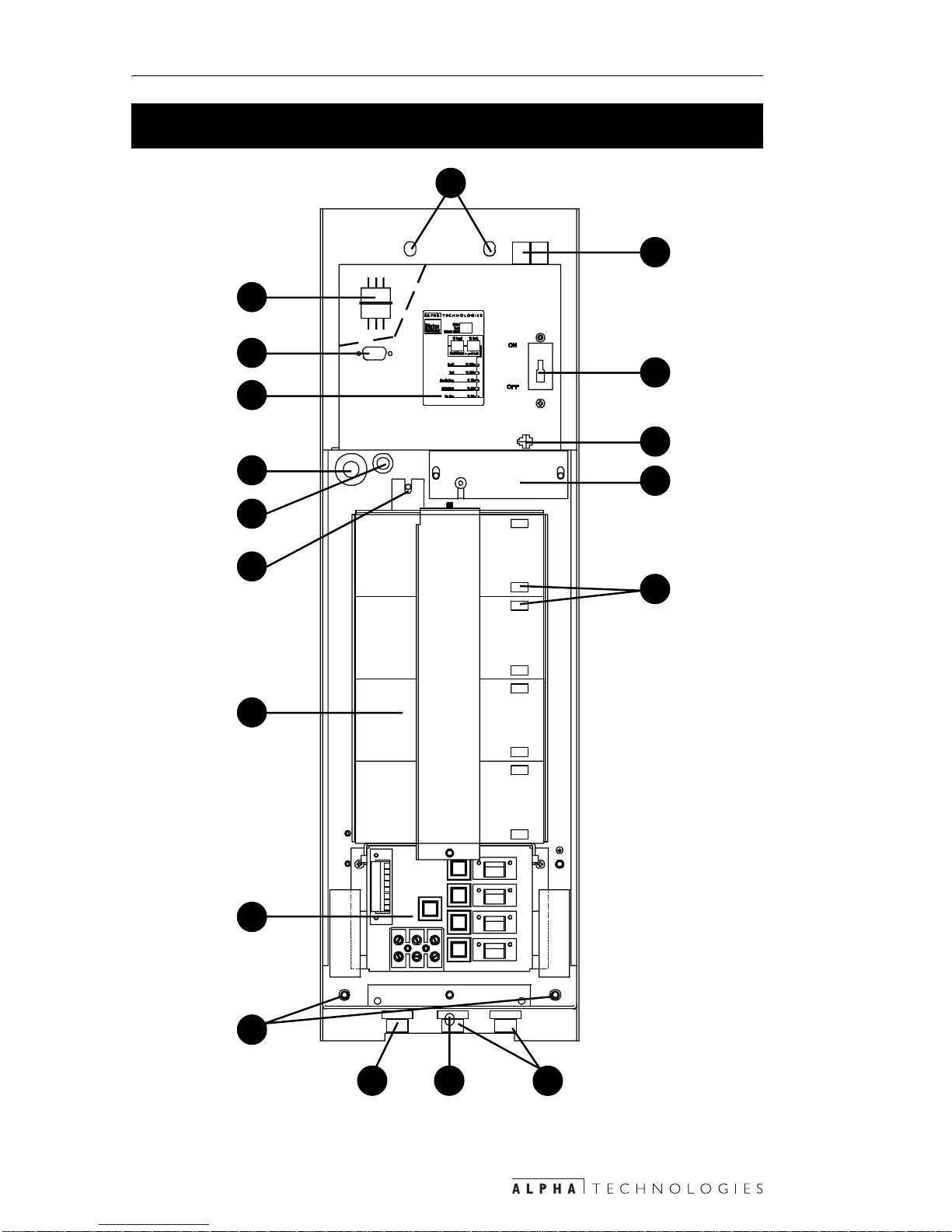

1.3 ATour of the Alpha P1250 and 1250T .......................................4
1.3.1 Enclosure....................................................................... 4
1.3.2 Interior............................................................................ 5

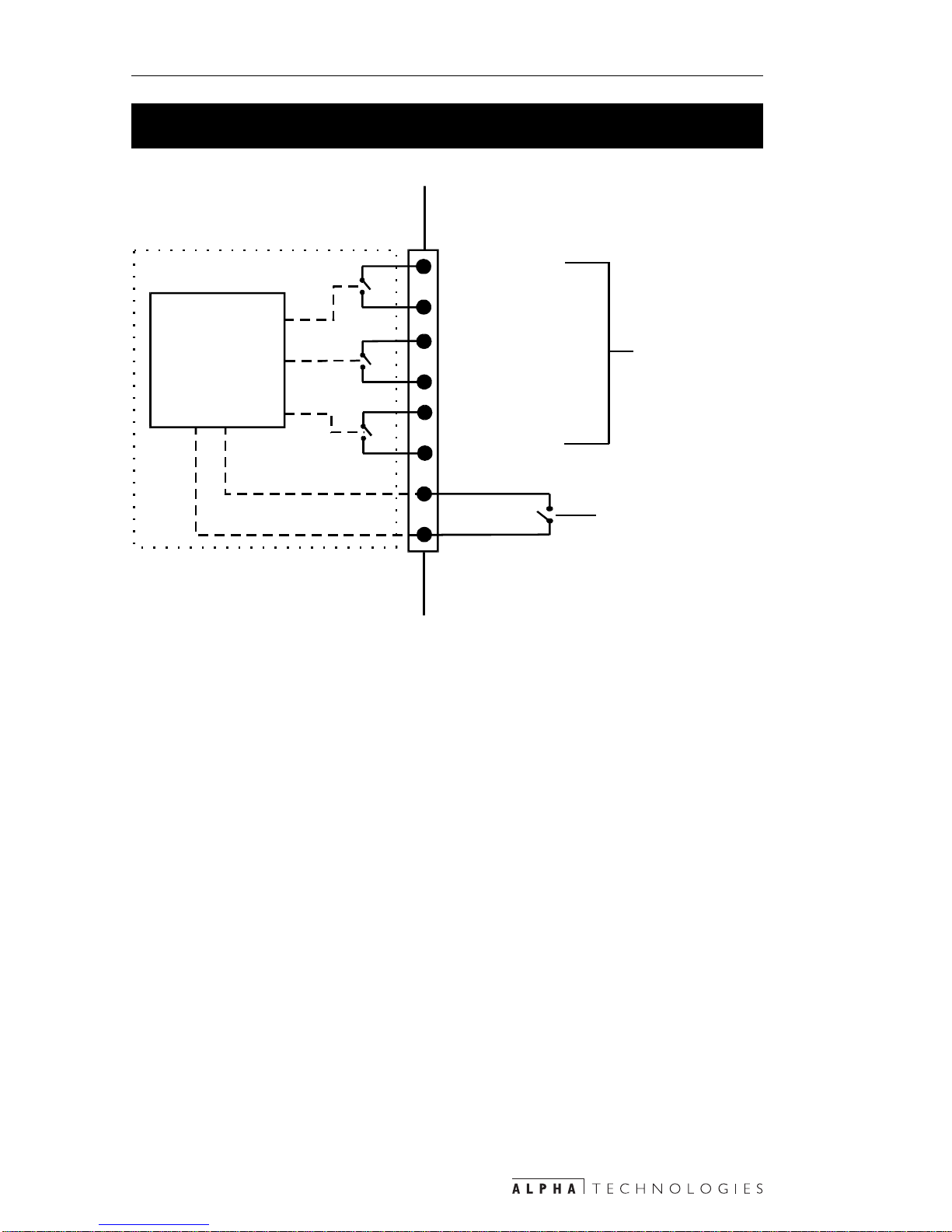

1.4 P1250Terminal Block ...............................................................8
1.5 1250TTerminalBlock................................................................9
2. INSTALLATION.......................................................... 12
2.1 Pre-Installation Checklist ....................................................... 13
2.2 Wall Mounting ........................................................................ 14
2.3 Pedestal Mounting ................................................................. 17
2.4 Wiring theUPS ...................................................................... 20
3. OPERATION .............................................................. 23
3.1 Operating Modes Quick ReferenceGuide .............................. 24
3.2 Starting and Testing the UPS................................................. 26
3.3 Shutting Down the UPS ......................................................... 27
3.4 Self Test ................................................................................ 28
3.5 Troubleshooting ...................................................................... 29
3.6 Front Panel Indicators and Controls ....................................... 33
3.6.1 On Line and On Battery LED’s ..................................... 34
3.6.2 Low Battery LED .......................................................... 35
3.6.3 PercentagePowerIndicator .......................................... 36
3.6.4 BatteryChargeIndicator............................................... 37
3.6.5 Test/Manual Start Button.............................................. 38
3.6.5.1 Test Button ........................................................................... 38
3.6.5.2 Manual Start Button ............................................................. 38
3.6.6 Standby Mode.............................................................. 38
3.6.7 Hot Swap Mode............................................................ 39
3.6.8 GeneratorMode ........................................................... 40
3.7 Low Battery Mode States ...................................................... 41
IMPORTANT
Emergencyshutdownprocedureoninsidebackcover
v
THEALPHANOVUSP1250AND1250T

IMPORTANT
Emergencyshutdownprocedureoninsidebackcover
TABLE OF CONTENTS
4. COMMUNICATION..................................................... 42
4.1 RS–232 Interface Port ...........................................................43
4.1.1Wiring ............................................................................ 43
4.1.2 Software Set Up ............................................................ 44
4.1.2.1 Terminal Emulation Set Up ..................................................... 44
4.1.2.1 Communication Parameters .................................................. 44
4.2 Main Menu............................................................................. 45
4.3 Sub Menus ............................................................................48
4.3.1RS–232 MenuTree ........................................................ 48
4.3.2 Unit Specifications ........................................................ 49
4.3.3UnitInput/OutputValues................................................ 50
4.3.4MaintenanceSpecifications........................................... 51
4.3.4.1 Password Change Procedure ............................................... 52
4.3.5LineSlowDetectionSet–Up .......................................... 53
4.3.5.1 Parameter Change Procedure .............................................. 53
4.4 HowToWorkWith Menus....................................................... 55
5. MAINTENANCE......................................................... 57
5.1 RunTimeTesting ...................................................................58
5.2 Fan ReplacementProcedure..................................................60
5.3 Battery PackReplacement Procedure ................................... 61
5.4 Battery ChangingProcedure ..................................................62
5.5 Troubleshooting ...................................................................... 64
5.6 Return Instructions ................................................................66
5.7 PartsandOrdering Information ..............................................66
5.8 Specifications ........................................................................67
6. WARRANTY............................................................... 70
vi
THEALPHANOVUSP1250AND1250T

1
Section One
Introduction
Thissectionintroducesyoutothe
NovusP1250and1250T
UninterruptiblePowerSupplies(UPS):
•An unpacking checklist (Section 1.2)
•A description of its various panels,
connections and switches (Sections 1.3)
•A description of the P1250 terminal
block (Section 1.4)
•A description of the 1250T terminal
block (Section 1.5)

2
1. INTRODUCTION
◆AdvancedPowerProtectionTechnology
Alpha's Novus P1250 and 1250T Uninterruptible Power Supply (UPS) provides
continuous, conditioned, AC power. The enclosure protects it from the weather
for safe mounting for almost anyplace where power is needed.
◆AdvancedCommunications
An RS–232 port and control signal relay contacts provides remote supervision.
◆AdvancedBatteryCharging
Automatic self-testing tells the operator when the batteries need servicing.
◆HostandPedestalMountableforEasyInstallation
The UPS mounts easily to a wall or host equipment or it can be floor mounted on
a pedestal (The pedestal mounting kit is ordered from Alpha Technologies).
◆EquipmentProtection
Equipment is protected from brownout and surges.
◆ServiceFriendly
Convenient battery access for quick and easy servicing.
◆LoadControl on Low Battery
Control signal relay contacts for automated equipment shutdown if the UPS is
discharged by an extended power outage.
1.1 The Alpha Advantage
Purpose: Describes the unpacking and inspection
instructions.

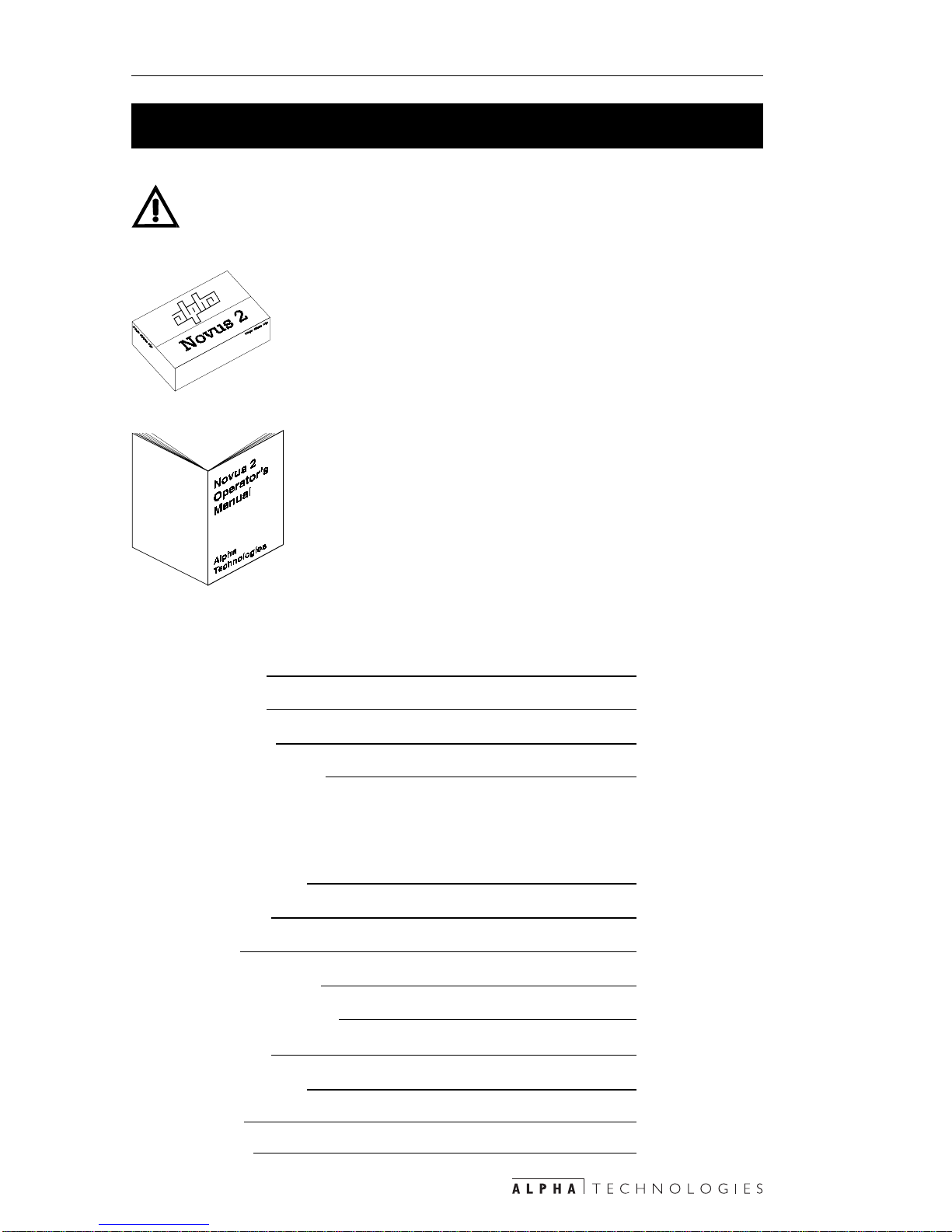

Carefully remove the UPS from its shipping container and inspect the contents. Make
sure the following items are included:
One Novus P1250 or 1250T Uninterruptible Power Supply (UPS).
One operator's manual.
One Host / Wall Mount installation kit and hardware.
Any other ordered options.
1.2 Unpacking and Inspection Checklist

3
1. INTRODUCTION
1.2 Unpacking and Inspection Checklist
NOTE: If anything is damaged or missing, contact Alpha Technologies and the
shipping company at once. Most shipping companies have only a short claim
period.
Save the Original Shipping Container
If the UPS needs to be returned for service, package it in its
original shipping container. Alpha Technologies is not
responsible for damage caused by improper packaging of
returned UPSs.
ReadThisOperator'sManual
Before installation or use, become familiar with your UPS by
reviewing the procedures and drawings in this manual. If you
have any questions about safe installation, operation or
maintenance, contact Alpha Technologies.
Completethefollowing for your records
Model #
Serial #
Options
Purchase Date
This UPS was purchased from
Dealer Name
Contact
City
State/Province
Zip/Postal Code
Country
Telephone #
Fax #
E Mail

4
1. INTRODUCTION
1.3 ATour of the Alpha P1250 and 1250T
Purpose: Describes various features of the P1250 and
1250T UPS's .
NOTE: This UPS is available in P1250 and 1250T models. Most of the
information in this manual applies to both and it is called the “UPS.”
Where there are specific instructions for a particular model, the model
name is used.
1.3.1 Enclosure (Figure 1.1)
The electronics and batteries are protected from the weather by a two–piece type 3R
metal enclosure. To access the interior, unlock, lift up the front enclosure and move
it out of the way. A nylon rope and a grounding wire connecting the two halves are at
the bottom.
A lock at the bottom of the front enclosure prevents unauthorized personnel from
opening it. The keys are shipped in the mounting kit.
DANGER: When mounting the front enclosure onto the rear, take great care
that the front does not touch the battery terminals. A lethal shock can result.

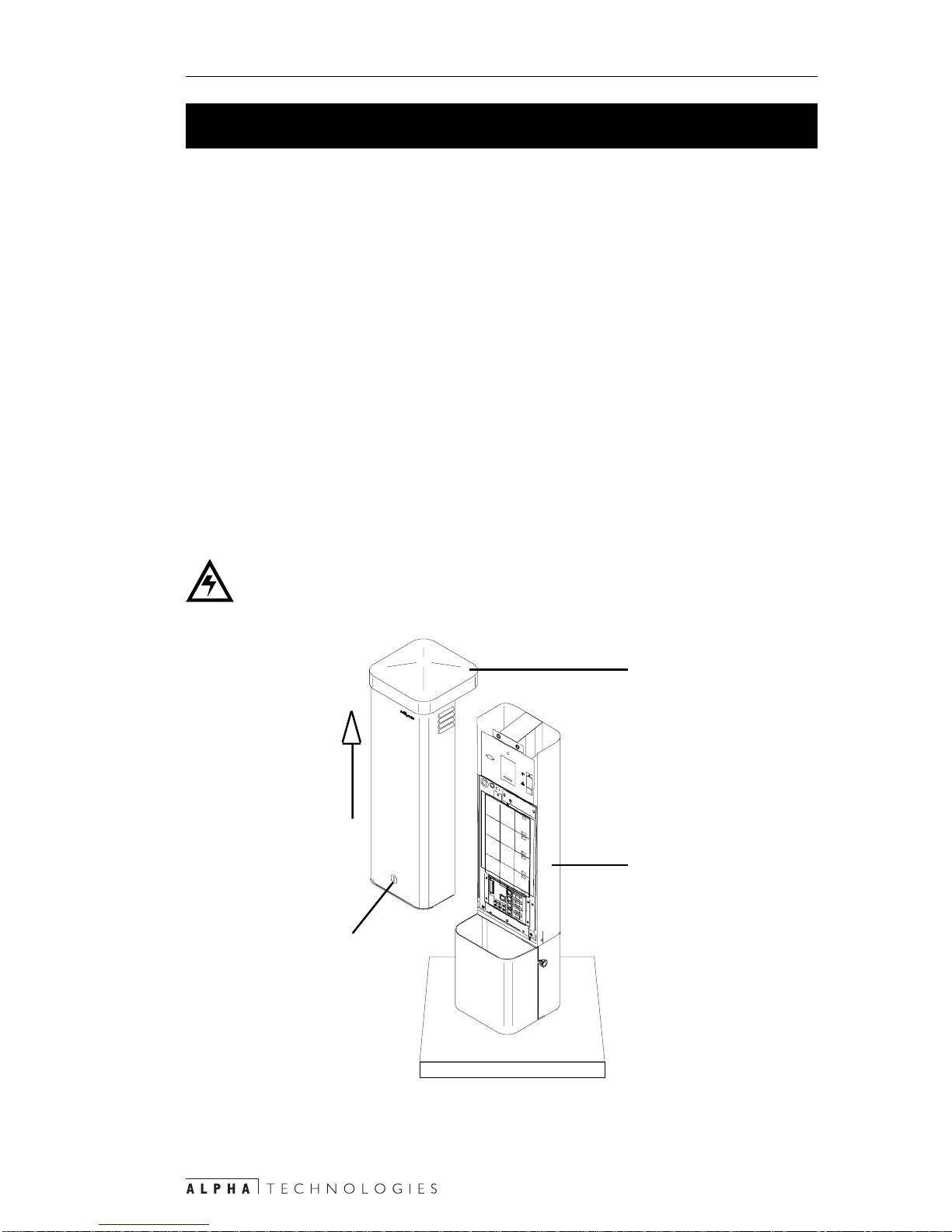

Figure 1.1
Interior Access
Lift up front
enclosure
to access
the UPS's
interior
Rear enclosure is
pedestal (shown) or
host mounted
LOCK
Removable front
enclosure allows access
to the UPS's electronics
Turn 1/4turn clockwise
to unlock.

5
1. INTRODUCTION
1.3.2 Interior(Figure1.2)
BatteryCircuitBreaker
This circuit breaker connects or disconnects the batteries. For normal
operation, it must be ON.
Control and Display Panel
This panel provides vital information about the UPS’s performance and provides
management functions. More information is given in Section 3.
RS–232 Serial Interface
This connects the UPS to the host computer for remote servicing, control and
calibration. More information is given in Section 4.
The serial cable is available from Alpha Technologies:
• 870–540–21, Cable assembly, Nexsys PC, RS–232, DE–9 Male to DB–25
Female.
• 870–540–22, Cable assembly, Nexsys PC, RS–232, DE–9 Male to DE–9
Female.
BatteryConnector
This connects the batteries to the UPS.
Temperature Sensor
This sensor measures the battery's temperature. The charging current is
temperature dependent.
Internal Fan Connector
This connects the internal fan to the UPS.
Batteries
They provide the backup power.
Terminal Block
This terminal block is the UPS's input and output. If used, the external alarm
panel is connected here.
There are two types of terminal blocks used: The P1250 (Section 1.4) and the
1250T (Section 1.5).
ShelfAttachment Screws
These two screws secure the shelf to the rear enclosure.
1.3 ATour of the Alpha P1250 and 1250T
1
4
5
6
3
2
7
9
8

6
1. INTRODUCTION
EnclosureAttachment Screws
These three screws attach the rear enclosure to the mounting bracket.
Internal Fan
This hot swappable fan (Section 5.2) controls the UPS's internal temperature for
optimum performance.
BatteryPack Attachment Screw
This screw secures the battery pack to the shelf.
Inverter InputConnector
This connects the transformer's output to the inverter.
Transformer Line Power Connection
This connects line power to the transformer's input.
BatteryTerminals
The batteries are connected in series.
Conduits
These three, 1/2inch conduits connect the UPS to the loads, line power and, if
used, to the external alarm panel.
Conduit or armoured cable is used.
They can be replaced by 3/4 inch conduits (which are not provided by Alpha
Technologies) by removing the conduits and the knockouts surrounding each
hole (Section 2.4).
1.3 ATour of the Alpha P1250 and 1250T
11
10
12
13
14
15
16

7
1. INTRODUCTION
1.3 ATour of the Alpha P1250 and 1250T
Figure 1.2
Shelf (1250T Version Shown)
10
4
5
3
2
7
8
9
12
16
1
11
13
16
15
6
10
14

8
1. INTRODUCTION
1.4 P1250Terminal Block
Purpose: Describes the P1250 terminal block
(Figures1.3, 1.4).
External Alarm Terminal Block
An external alarm panel can be connected to this terminal block to display a low
battery warning. The operator supplies the panel. The operating diagram is
shown in Figure 1.4.
SurgeSuppressor
An Alpha LAP Plus transient voltage surge suppressor is factory installed for
protection against surges caused by lightning strikes. A second suppressor can
be attached to the load side as an ordered option.
Input Terminal Block
This terminal block connects the P1250 to line power.
LinePowerCircuitBreaker
This circuit breaker connects or disconnects the P1250 from line power. It must
be ON for normal operation.
OutputTerminalBlock
This terminal block connects the loads to the P1250's output.
OutputPowerCircuitBreaker
This circuit breaker connects or disconnects the loads from the P1250's power.
It must be ON for normal operation.
1
4
5
6
3
2
Figure 1.3
P1250 Terminal Block
Circuit Breaker OFF
Circuit Breaker ON
14
5
6
3
2

9
1. INTRODUCTION
1.4 P1250Terminal Block
Purpose: Describes the 1250T terminal block
(Figures1.5, 1.6).
External Alarm Panel Terminal Block
An external alarm panel can be connected to this terminal block to display
selected warnings and start the self test. The operator provides the panel. Figure
1.6 shows its operation.
When the 1250T detects a fault, it automatically closes the appropriate contacts in
the terminal block.
•Service Alarm: When the Display and Control panel displays a fault, this alarm
is activated.
•Low Battery Alarm: When the battery voltage is below 44 volts, this alarm is
activated.
•On Battery Alarm: When the UPS is operating on battery power, this alarm is
activated.
•Self Test: The self test starts when this input is shorted.
1
1.5 1250T Terminal Block
TB1
TB2
Microprocessor
P1250 Interior
Low battery warning contacts
close on alarm
Figure 1.4
Low Battery External Alarm Terminal Block Operating Diagram
Note: The Maximum
contact rating is 0.6 Amp
at 125 VAC or 110 VDC

10
1. INTRODUCTION
1.5 1250TTerminal Block
SurgeSuppressors
Two Alpha LAP Plus surge suppressors are factory installed on the terminal
block. One protects against surges caused by lightning strikes on the utility line
and the other does the same on the load side.
Input Terminal Block
This terminal block connects the 1250T to line power.
InputCircuitBreaker
This circuit breaker connects or disconnects the 1250T from line power. It must
be ON for normal operation.
OutputTerminalBlocks
These four terminal blocks connect the loads to the 1250T's output power.
OutputCircuitBreakers
These four circuit breakers connect or disconnect the loads from the P1250's
power. They must be ON for normal operation.
4
5
6
3
2
Figure 1.5
1250T Terminal Block
Circuit Breaker OFF
Circuit Breaker ON
14
5
63
2

11
1. INTRODUCTION
1.5 1250TTerminal Block
Figure 1.6
External Alarm Terminal Block Wiring Diagram
On Battery
To start the self test,
short these contacts.
The user provides the
switch.
Service Alarm
Low Battery
Warning
TB1
TB2
TB3
TB4
TB5
TB6
TB7
TB8
Microprocessor
1250T Interior
Contacts close
on alarm
