alphainnoTec Solterra SWP 230H User manual

Alpha-InnoTec GmbH
Industriestrasse 3, D-95359 Kasendorf
Tel.: [phone]
Fax.: [phone]
www.alpha-innotec.de
e-mail:[email protected]
INSTRUCTION MANUAL
with Product Information
Professionell
Brine / Water Heat pumps
Inside Installation
H-Devices up to max. 65° C
Flow Temperature:
SWP 230H
SWP 330H
SWP 410H
SWP 500H
M-Devices up to max. 55° C
Flow Temperature:
SWP 390
SWP 540
SWP 670
SWP 820
This instruction manual is part of the scope of supply
and must be handed over to the user of the plant. Please
keep safely and show to authorized service-technicians, if
necessary..
The future of heat pumps

2- Subject to Technical Modifications - 830109aGB/151024
TABLE OF CONTENTS
Page
Safety Regulations 2
General 3
Scope of Supply 3
Transport 4
Installation 5
Assembly hydraulics
- Heat source supply point 6
- Hydraulic schematic 7
- Heating circuit water supply point 8
- Hydraulic schematic 9
Power supply 10
Controller 11
Terminal connection diagram 12
Start up / maintenance / trouble shooting 13
Technical data
- H-devices 14
- M-devices 18
Heating output
- H-devices 22
- M-devices 26
Pressure drop curve
- H-devices 30
- M-devices 31
View plans
- H-devices 32
- M-devices 33
Legend circuit diagram 34
Circuit diagram 35
EC-Declaration of Conformity 38
Guarantee Conditions 39
Notice of Completion 41/42
SAFETY REGULATIONS
In general, the following recommendations are referred to
in this instruction manual:
Safety regulations. Important! Please observe!
Please observe advice referring to function and
operating method!
Reference to instruction manual of the heat pump
controller
The heat pump installation must be installed and
commissioned by a competent person in accordance
with the current legislation and standards and the
instruction manual.
The use of a heat pump plant must be notified to
your local energy supply company.
The heat pump must not be inclined by more than
45° during transportation.
The components and pipework of the refrigeration
circle must on no account be used for lifting
purposes.
For safety reasons, the power supply of the heat
pump and of the controller must never be shut off
even outside the heating period.
Opening of the device only by a competent person.
Before opening the device, all electric circuits must
be switched off.
Works on the refrigeration system must be carried
out only by competent persons.
After purging the evaporator with a chemical purifying
agent, the neutralization of remainders as well as
intense water rinsing is absolutely necessary.
Never treat the device surface with scouring, acidic
or corrosive agents,


830109aGB/151024 - Subject to Technical Modifications - 3
General
Operative range
The heat pump is designed exclusively for the heating of
heating circuit water and domestic hot water. Considering
the application limits (see technical data), the heat pump
can be installed on new or existing heating installations.
Functioning of the brine / water heat pump
The heat pump converts the low temperature heat of the
earth to a higher temperature. Brine (a mixture of water
and antifreeze agent) is pumped through coils laid in the
earth and conducted to the evaporator of the heat pump.
The evaporator contains the liquid agent which boils
and vaporizes at low temperatures and low pressure.
The vaporizing heat is transferred from the brine. The
compressor sucks in the vaporized agent and compresses
it to achieve a higher pressure. The compressed gaseous
agent enters the condenser, where it condenses at high
pressure and high temperature. The condensation heat
is transferred to the heating circuit water with resultant
increase in temperature.
The energy transmitted to the heating circuit water
corresponds to the energy transmitted from the brine plus
the small amount of electric energy for the compressor.
Energy-saving use of the heat pump heating
installation
By choosing a heat pump heating installation, you have
acknowledged the need for environmental protection
by lower emissions and less consumption of energy. To
ensure your new heating system works as efficiently as
possible, please note the following:
The heat pump heating installation must be
correctly sized and installed.ks.
Avoid unnecessarily high flow temperatures.
The lower the flow temperature at the heating
circuit water side is, the more efficiently the heat
pump works.
The controller must be set correctly!!
Preferably open the window totally to renew the
air. Compared to constantly pivot-hung windows
opening outward, this kind of ventilation reduces the
energy consumption and saves money!
Scope of Supply
• Compact device with fully hermetic compressor and
all relevant safety components for refrigeration circuit
monitoring.
• Integrated heat pump- and heating installation-controller.

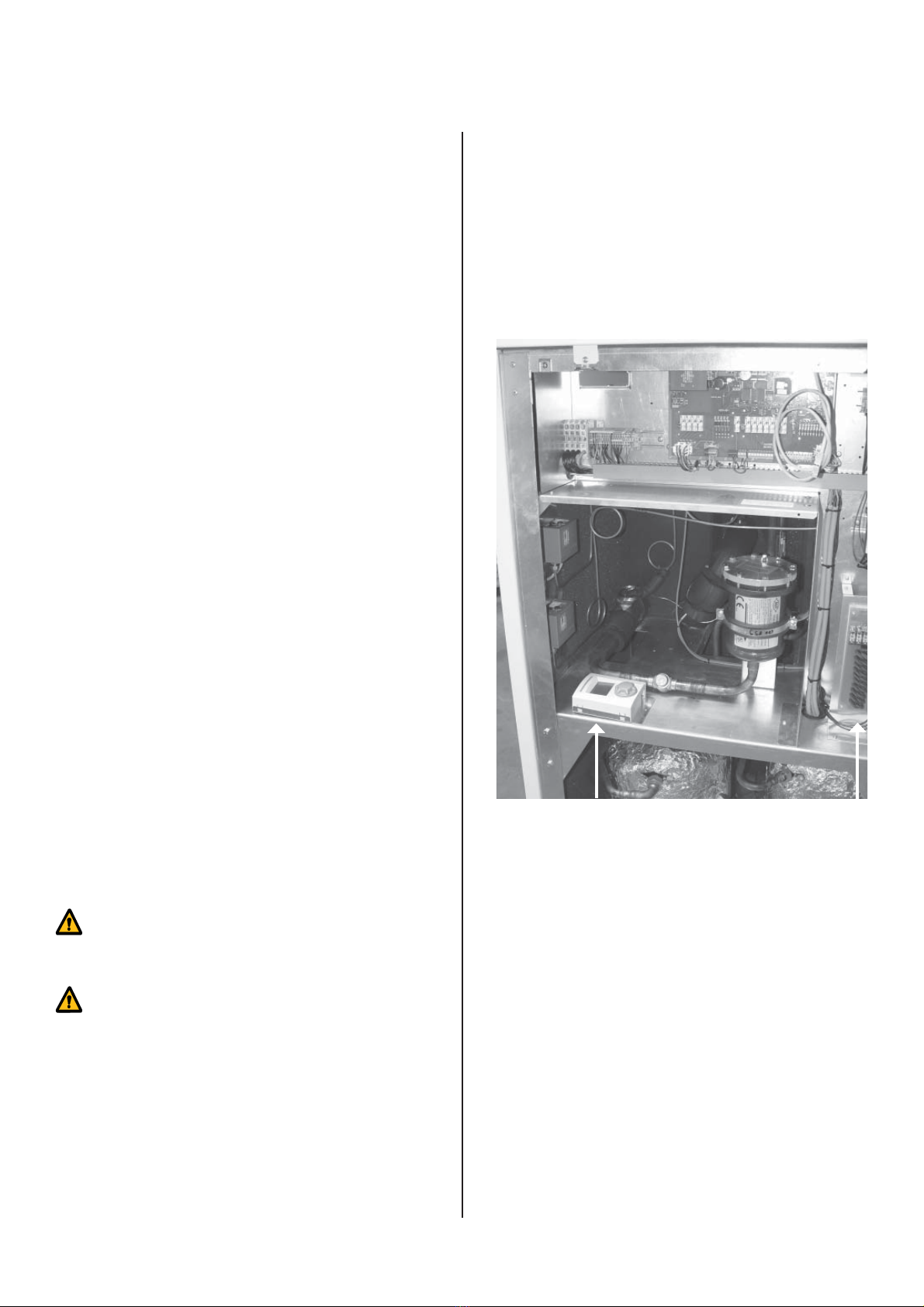

During the transport, the operating element of the heat
pump-controller is stored inside the device.)
• Electric switch box with power contactor, phase guard and
soft starter
Controller Luxtronik
Enclosed in the supplement:
• The outdoor temperature sensor
• 4 screws + spring washers (for the two cover
plates for the pedestal))
Furthermore, the pluggable front panel (wrapped in lami-
nation sheet), the two cover plates for the pedestal, an in-
struction manual for the device and an instruction manual
for the heat pump controller are included.
Further features
Sensors mounted in the device for capturing of the flow-
and return temperature of the heating circuit water. Sen-
sors for the monitoring of the heat source temperature and
the hot gas temperature of the refrigeration circuit.

SCOPE OF SUPPLY
GENERAL

4- Subject to Technical Modifications - 830109aGB/151024
Transport with the lift truck
To avoid transportation damage, the heat pump should be
transported with a lift truck or a pallet truck. Transport the
device in packed condition to the final destination. The lift
truck may be shifted directly in the two openings of the
pedestal.
To avoid damage, the heat pump must not
be inclined by more than 45° during the
transportation.
The components and pipework of the refrigera-
tion circle, the heating side and the heat source
side must on no account be used for lifting pur-
poses.
Consider the weight of the heat pump! (See
product information technical data sheet)
Close the two openings for the lift truck with the
cover plates (two screws each).
Please close
the transport
openings for
silencing!
To go through narrow passages, you can remove the
side panels to reduce the total device width by about
4 cm.
If you want to reduce the device width:
1. Open the quick-release
screws on the front plate
by turning anticlockwise
(90°).
2. Lift the front panel and put it
down safely.
3. Open the two screws of the cover plate and lift the
cover plate.
4. Now, you can unscrew the side panels from the top.
Lift the side panels and put them down.
Transport with the lift truck
Each side panel
overlaps outside
by 2 cm.
TRANSPORT
3. 4.

830109aGB/151024 - Subject to Technical Modifications - 5
INSTALLATION
The heat pump must be installed on a sustainable
and horizontal underground, preferably on a sound-
absorbing concrete foundation (consider the weight
of the heat pump)! The heat pump must not be
installed on a PUR foam boiler platform.
The heat pump must any time be accessible for the
fitter. All parts of the heat pump can be operated in
the front.
The installation room must be frost-protected and
dry.
When positioning two or more heat pumps side by
side, observe a minimum distance of 1600 mm on
the operating side.
.
Subject to technical modifications


!

!
%HGLHQVHLWH
5pJXODWLRQ
&RQWUROOHU
:lUPHSXPSH
/DSRPSHjFKDOHXU
+HDW XPS
+HL]XQJVDQVFKOX:lUPHSXPSHQDQVFKOX
/HUDFFRUGHPHQWGXFKDXIIDJHFRQQHFWLRQGHSRPSHGHFKDO
H
+HDWLQJFRQQHQWLRQVKHDWSXPSFRQQHFWLRQV

!
%HWRQIXQGDPHQWPLW
6FKDOOGlPPHLQODJH
)RQGHPHQWHXEpWRQ
DYHFLQVRQRULVDWLRQ
&RQFUHWHIRXQGDWLRQZLWK
VRXQGVXSSUHVVLRQ
6FKUDIILHUWH)OlFKH)UHLUDXPIU6HUYLFH]ZHFNH
6HFWLRQKDFKXUHHVSDFHOLEUHSRXUVHUYLFHDSUqVYHQWH
+DWFKHGVHFWLRQFOHDUDUHDIRUPDLQWHQDQFH
V.819135b
Heating suppy point/
Heat source supply point


!
!
%HGLHQVHLWH
5pJXODWLRQ
&RQWUROOHU
:lUPHSXPSH
/DSRPSHjFKDOHXU
+HDW XPS
:lUPHSXPSH
/DSRPSHjFKDOHXU
+HDW XPS
+HL]XQJVDQVFKOX:lUPHSXPSHQDQVFKOX
/HUDFFRUGHPHQWGXFKDXIIDJHFRQQHFWLRQGHSRPSHGHFKDOHXU
+HDWLQJFRQQHQWLRQVKHDWSXPSFRQQHFWLRQV
V.819136b

6- Subject to Technical Modifications - 830109aGB/151024
The hydraulic supply points are on the de-
vice rear:
.
All pipe connections are 2” external threads (conical pipe
threads).
To avoid structure-borne sound transmissions to the
heating system, the connection of the heat pump on
the heating circuit water side and on the heat source
side must be vibration-free.
We recommend the use of compensators (see photo
to the right).
When connecting the heating circuit water pipework,
the connection point on the heat pump must be secu-
red against torsion with a spanner in order to avoid
damage to the copper pipe on the condenser side.
Heat source supply point:
The heat source installation must be sized in accordance with the
prescriptions in the project planning manual.
Please note:
• Before filling the heat source installation, it must be rinsed
thoroughly.
• A mud flap (sieve size 1,0 mm) must be installed in front of
the heat pump input on the brine side (not delivered with the
unit)
• The water/antifreeze-mixture (brine) must be mixed tho-
roughly before filling in the heat source installation.
• The brine concentration must be at least 25%.
The heat source side should be vented by the controller before
the commissioning of the heat pump (see “system venting” under
“service>settings” in the instruction manual of the heat pump
controller).
Upon completion of the venting program, clean the mud flap
again before commissioning the heat pump.
Please ensure the minimum brine flow rate.
Motor circuit switches for the brine circulating pump are integra-
ted in the heat pump. Please find the relevant settings in the
following schedule:
Device Settings motor circuit switch
SWP 230H 1,1 - 1,6 A
SWP 330H 1,1 - 1,6 A
SWP 410H 1,1 - 1,6 A
SWP 500H 1,8 - 2,5 A
SWP 390 1,1 - 1,6 A
SWP 540 1,8 - 2,5 A
SWP 670 1,8 - 2,5 A
SWP 820 1,8 - 2,5 A
Install a bigger motor circuit switch in case you need
a brine circulating pump with a bigger capacity.
Consider the viscosity of the brine when dimensioning
the brine circulating pump.
Compensator with flanged connexions
Heat source
output
Heat source input
ASSEMBLY HYDRAULICS
Photo: SWP...-M-devices

830109aGB/151024 - Subject to Technical Modifications - 7
Ground sonde:
Earth collector:
HYDRAULIC SCHEMATIC
Legend
1) Heat pump with flow and return sensor for the heating system
2) Radiator or floor heating system
3) Vibration-free connection (flexible connections or compensators)
4) Sound-absorbing support (only for elevated sound intensity)
5) Gate valve with drain device
6) Expansion vessel
7) Safety valve
8) Gate valve
9) Heating circulating pump
10) Non-return valve
11) Thermostatic valve / single room temperature control
12) Pressure differential regulating valve
13) Vapour-proof insulation
14) Domestic hot water circulating pump
15) Three-way mixer (mixing circuit)
16) Mixer motor
17) 2nd heating circuit with tv<tv 1st heating circuit
18) Immersion heating element heating
19) Four-way mixing valve
20) Immersion heating element household hot water
21) Circulating pump mixing circle
22) Circulating pump swimming pool
23) Feeder circulating pump
!24) Manometer
25) Heating circulating pump and domestic hot water
26) Reversing valve domestic hot water
27) Immersion heater for heating and domestic hot water
28) Brine circulating pump
29) Mud flap (1 mm sieve size)
30) Storage tank for brine liquid
31) Wall penetration
32) Supply pipe PE-MR PN10
33) Brine distributor with filling and drain device
34) Collector pipe PE-MRS8
35) Permanent aspirator
36) Well pump (corrosion-proof immersion pump)
37) Thermostat 0°C - 16°C
38) Flow switch
39) Suction well pipe
40) Absorption well pipe
A Outside wall sensor
B Domestic hot water sensor or thermostat
C Flow sensor (mixing circle)
D Floor temperature limiter
The heat exchanger surface of the domestic hot water storage must be
adapted to the heating output of the heat pump! All pipe work must be si-
zed correctly to achieve minimum water flow rate through the heat pump!
Safety components in accordance with DIN ED 12828.
See heating
installation
See hydraulics
heating instal-
lation
Sensor depth
30 - 99 m
Distance bet-
ween sensors
min. 6 mtrs.
Ground water flow
direction

8- Subject to Technical Modifications - 830109aGB/151024
The hydraulic supply points are on device
rear:
.
All pipe connections are 2” external threads (conical pipe
threads).
To avoid structure-borne sound transmissions to the
heating system, the connection of the heat pump on
the heating circuit water side and on the heat source
side must be vibration-free.
We recommend the use of compensators (see photo
to the right).
When connecting the heating circuit water pipework,
the connection point on the heat pump must be secu-
red against torsion with a spanner in order to avoid
damage to the copper pipe on the condenser side.
Heating circuit water supply point:
The heating system must be flushed before connecting the
heat pump to prevent contamination inside the heating system
affecting the function of the heat pump.
On the heat pump side, flow and return must be equipped with
isolating valves to allow eventual flushing of the condenser.
The heat source installation must be sized in accordance
with the prescriptions in the project planning manual.
Please note:
• Ensure the minimum heating circuit water flow rate.
The minimum heating circuit water flow rate depends on the
heating output of the heat pump; for further details see the
technical data sheets of the heat pumps.
• The spread between flow and return must be < 10K
• Buffer storage
A series buffer storage is needed to ensure a minimum run-
ning time of the heat pump and to limit the number of heat
pump timings.
Size of the buffer storage:
• With bivalent installations, the heat pump should never
be flown through by heating circuit water temperatures
exceeding 55°C (M-devices) or 65°C (H-devices).
• Circulating pump
The heating circuit water and sanitary water circulating
pumps must be graded.
The use of variable speed pumps is not
permitted!
• Sanitary water heating
Domestic water heating with the heating pumps takes place
with a second heating circuit run in parallel to the heating
circuit. Please note: during the installation, the return must
not be connected to the buffer storage. Water heating takes
priority, provided it has not been altered within the program-
mer.
• Sanitary water storage
For domestic hot water requirements using a heat pump, it
is vital to have special sanitary hot water storages. It is im-
portant to have a large enough heat exchanger within the
hot water tank to ensure the heating output of the heat
pump is transferred with lowest possible spread with a he-
ating circuit water flow temperature < 55°C (M-devices) or <
65°C (H-devices). The storage volume must be big enough
to ensure the required sanitary hot water quantity even du-
ring off-times by your local energy supply company..
Heating circuit water input (return)
Heating circuit water output (flow)
ASSEMBLY HYDRAULICS
VBuffer storage =Nominal heating circuit water flow rate/h
10
Photo: SWP … M-devices

830109aGB/151024 - Subject to Technical Modifications - 9
HYDRAULIC SCHEMATIC
BRINE/WATER HEAT PUMP PROFESSIONELL, MONOVALENT OPERATION
Sanitary hot water
storage
See hydraulics heat
source installation
Buffer
storage
Heat source instal-
lation
Legend
1) Heat pump with flow and return sensor for the heating system
2) Radiator or floor heating system
3) Vibration-free connection (flexible connections or compensators)
4) Sound-absorbing support (only for elevated sound intensity)
5) Gate valve with drain device
6) Expansion vessel
7) Safety valve
8) Gate valve
9) Heating circulating pump
10) Non-return valve
11) Thermostatic valve / single room temperature control
12) Pressure differential regulating valve
13) Vapour-proof insulation
14) Domestic hot water circulating pump
15) Three-way mixer (mixing circuit)
16) Mixer motor
17) 2nd heating circuit with tv<tv 1st heating circuit
18) Immersion heating element heating
19) Four-way mixing valve
20) Immersion heating element household hot water
21) Circulating pump mixing circle
22) Circulating pump swimming pool
23) Feeder circulating pump
!24) Manometer
25) Heating circulating pump and domestic hot water
26) Reversing valve domestic hot water
27) Immersion heater for heating and domestic hot water
28) Brine circulating pump
29) Mud flap (1 mm sieve size)
30) Storage tank for brine liquid
31) Wall penetration
32) Supply pipe PE-MR PN10
33) Brine distributor with filling and drain device
34) Collector pipe PE-MRS8
35) Permanent aspirator
36) Well pump (corrosion-proof immersion pump)
37) Thermostat 0°C - 16°C
38) Flow switch
39) Suction well pipe
40) Absorption well pipe
A Outside wall sensor
B Domestic hot water sensor or thermostat
C Flow sensor (mixing circle)
D Floor temperature limiter
The heat exchanger surface of the domestic hot water storage must be
adapted to the heating output of the heat pump! All pipe work must be si-
zed correctly to achieve minimum water flow rate through the heat pump!
Safety components in accordance with DIN ED 12828.

10 - Subject to Technical Modifications - 830109aGB/151024
POWER SUPPLY
The cables must
be led through the
cable entry points
on the device rear.
The strain relief is on the rear
The terminal strips are situated in the central control room.
Top right, you see the phase guard, shining green when
the tension is correct and shining red whenever there is
a left-hand rotating field or when the phase is missing -
the controller will show the message “flow” (see fault diag-
nostic of the instruction manual of the heat pump controller
- N° 717) and the heat pump will shut down.
Installation and electric works must be carried
out by competent persons and in accordance
with all safety and IEE* regulations.
*IEE – Institute of Electrical Engineers
Please secure right-hand rotating field of the load supply
when connecting the heat pump.
The supply of the heat pump must be equipped
with an all-pole switching-off with minimum 3
mm contact opening distance and a 3-pole over-
load release.
Please find the relevant starting current on the respective
technical data sheet.
The connections of the supply lines of the heat pump, the
circulating pumps and the ambient temperature sensor
must be connected in accordance with the terminal con-
nection diagram and the circuit diagrams.
