Altinex Tilt'N Plug TNP100 User manual

ACCESSORIES
MANUAL PART NUMBER: 400-0091-002
PRODUCT REVISION: 1
TNP100
Tilt ‘N Plug™ Interconnect Box
USER'S GUIDE

ACCESSORIES
1
INTRODUCTION
Your purchase of the TNP100 Tilt ‘N Plug™
Interconnect Box is greatly appreciated. We are sure
you will find it reliable and simple to use.
Superior performance for the right price, backed by
solid technical and customer support is what
ALTINEX has to offer.
The product you are holding in your hands is
designed using state-of-the-art technology and is
superior to anything available on the market. You will
find this and our other products reliable, long lasting,
and simple to operate.
We are committed to providing our customers with
signal management solutions to the most demanding
audio-visual installations at very competitive pricing.
We appreciate your selection of our products and are
confident that you will join the ranks of our many
satisfied customers throughout the world.
This manual covers:
TNP100 – Tilt ‘N Plug™ Interconnect Box.
TABLE OF CONTENTS
Page
PRECAUTIONS / SAFETY WARNINGS ...............2
GENERAL..........................................................2
INSTALLATION..................................................2
CLEANING.........................................................2
FCC / CE NOTICE .............................................2
ABOUT YOUR TNP100.........................................3
TECHNICAL SPECIFICATIONS............................3
TNP100 DIMENSIONS..........................................4
DIAGRAMS1A-1D .............................................4
DESCRIPTION DIAGRAM.....................................5
DIAGRAM 2........................................................5
APPLICATION DIAGRAM .....................................6
DIAGRAM 3........................................................6
DIAGRAM 4........................................................7
DIAGRAM 5........................................................8
INSTALLATION.....................................................9
OPERATION .......................................................10
FREQUENTLY ASKED QUESTIONS (FAQ).......10
CABLES AND ACCESSORIES ...........................11
TROUBLESHOOTING GUIDE ............................11
ALTINEX POLICY ...............................................12
LIMITED WARRANTY......................................12
RETURN POLICY ............................................12
CONTACT INFORMATION ..............................12

ACCESSORIES
2
PRECAUTIONS / SAFETY WARNINGS 1
Please read this manual carefully before using your
TNP100 Interconnect Box. Keep this manual handy
for future reference. These safety instructions are to
ensure the long life of your TNP100 and to prevent
fire and shock hazard. Please read them carefully
and heed all warnings.
1.1 GENERAL
•Unauthorized personnel shall not open the
unit since there are high-voltage
components inside.
•Qualified ALTINEX service personnel, or
their authorized representativesmust
perform all service.
1.2 INSTALLATION
•For best results, place the TNP100
Interconnect Box in a dry area away from
dust and moisture.
•To prevent fire or shock, do not expose this
unit to rain or moisture. Do not place the
TNP100 Interconnect Box in direct sunlight,
near heaters or heat radiating appliances,
or near any liquid. Exposure to direct
sunlight, smoke, or steam can harm internal
components.
•Handle the TNP100 Interconnect Box
carefully. Dropping or jarring can damage
internal components.
•Never place fingers inside the opening on
each side of the unit. This action could
cause serious injury because of the sharp
edges inside of the TNP100.
•Do not place heavy objects on top of the
TNP100.Do not use excessive force to
push down on the top of the unit.
•To turn off the main power, disconnect the
power cord, which powers the power socket
on the TNP100 pop up panel.The power
outlet socket should be installed as near to
the equipment as possible, and should be
easily accessible.
•We recommend using wall outlets with a
Ground Fault Circuit Interrupter (GFCI) for
maximum protection.
•Install all cables according to the
instructions. Do not force or pull out any
cable or power cord that is attached to the
TNP100 Interconnect Box.
1.3 CLEANING
•Surfaces should be cleaned with a dry cloth.
Never use strong detergents or solvents,
such as alcohol or thinner. Do not use a wet
cloth or water to clean the unit.
1.4 FCC / CE NOTICE
•This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
•This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is
operated in a commercial environment. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area is likely to
cause harmful interference in which case

ACCESSORIES
3
the user will be required to correct the
interference at his own expense.
•Any changes or modifications to the unit not
expressly approved by ALTINEX, Inc. could
void the user’s authority to operate the
equipment.
ABOUT YOUR TNP100 2
The TNP100 is designed for installation into a
conference room table. The TNP100 Tilt ‘N Plug™
Interconnect Box provides a means of connecting
audio, video, control,and computer video sources
into a presentation system. It is ideal for use together
with ALTINEX computer video interfaces. The
TNP100 Tilt ‘N Plug™ Interconnect Box can either
pop up and “tilt”toa raised position to provide
access to the connectors or it can be lowered into a
table when not in use. A pneumatic shock inside the
TNP100’s tower type construction applies pressure to
the panel mechanism, making it easy to raise and
secure the unit firmly in an open position. Also, for
safety, the chassis of the TNP100 is connected to
the ground pin of the power plug.
The Tilt ‘N Plug™Interconnect Box has one input
plate on the front panel of the unit. The standard
plate offers Computer Video (15-pin HD);Composite
Video (RCA), Audio (RCA), Computer Audio (Stereo
Mini), Modem (RJ-11), 9-pin D-type RS-232 and
Network (RJ-45) input connections. All signals are
passed through to a set of female connectors or
cables. Several optional connectors can be
substituted for the standard set of connectors (see
page 11).
The Tilt ‘N Plug™Interconnect Box is designed for
use with tables ranging from one to three inches
thick. The Tilt ‘N Plug™comes in a standard matte
black color; however, it can be finished to match the
table. This is available on a custom per order basis at
an additional charge.
TECHNICAL SPECIFICATIONS 3
FEATURES/
DESCRIPTION TNP100
GENERAL
Front Panel
Standard
Configuration
Connectors
Faceplate Cable end
under table
Power 1 outlet with one
5A circuit
breaker
1 plug with 6ft
cord
Computer Video 1 15-pin HD-F 1 15-pin HD-F
Composite Video 1 Yellow RCA-F 1 Yellow RCA-F
Audio, left, right 1 Black, 1 Red
RCA-F 1 Black, 1 Red RCA-F
Audio 1 3.5 mm stereo
female plug 1 3.5 mm stereo female plug
Telephone 1 RJ-11 F (6-
position) 1-RJ-11-M (6- position)
Network 1 RJ-45-F (8-
position) 1 RJ-45-M (8- position)
Control 1 DB-9 F 1 DB-9 F
Table 1. TNP100 General
MECHANICAL TNP100
Width (inches) 6.03in (153mm)
Height (closed) 4.79in (122mm)
Height (opened) 8.05in (205mm)
Depth (inches) 7.56in (192mm)
Finish Flat Black
T°Operating 10°C-35°C
T°Maximum 50°C
Humidity 90%non-condensing
Table 2. TNP100 Mechanical
ELECTRICAL TNP100
Power
Power Rating (pass through
connector) 90-140 VAC, 5Amps Max
Table 3. TNP100 Electrical

ACCESSORIES
4

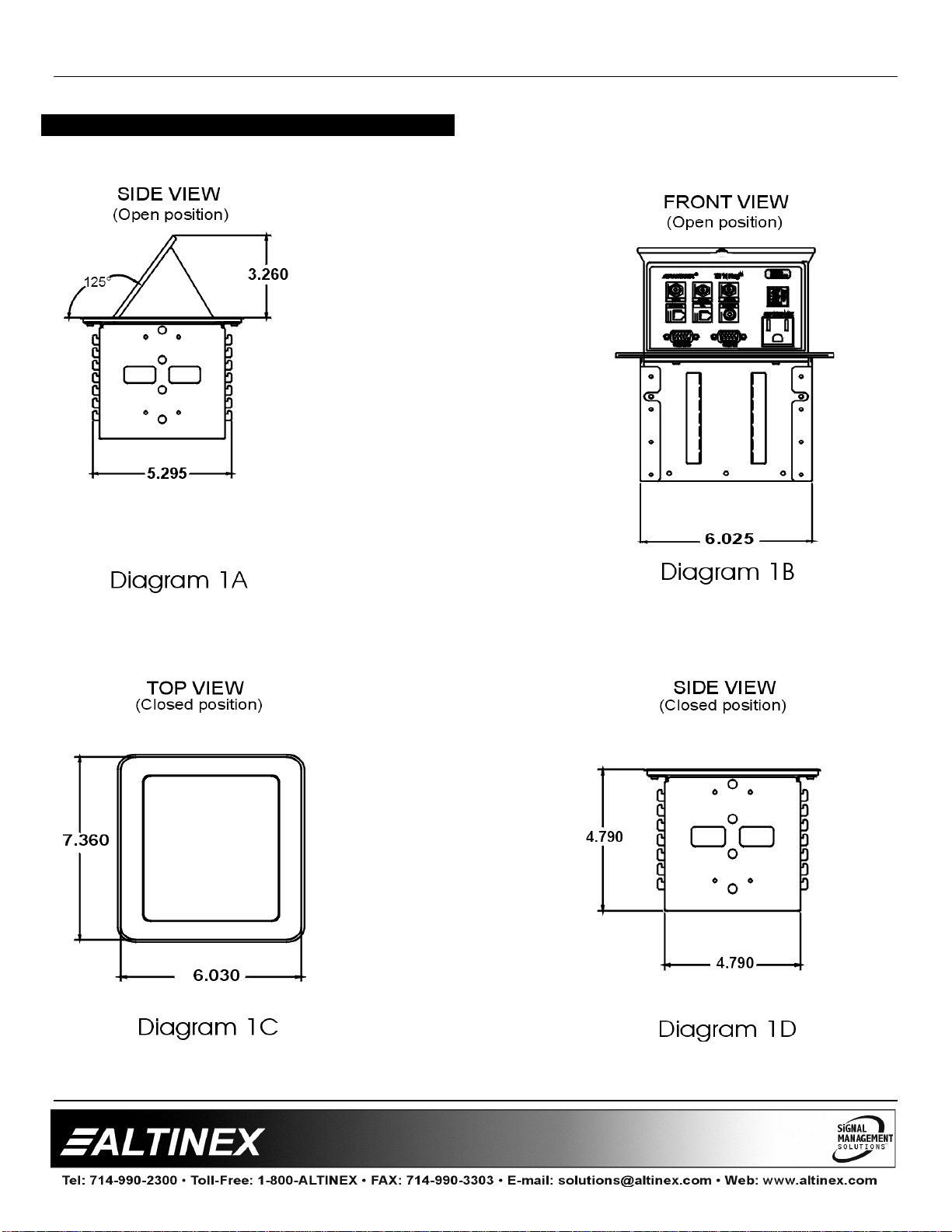

TNP100 DIMENSIONS 4
Diagrams: 1A, 1B, 1C, & 1D

ACCESSORIES
5

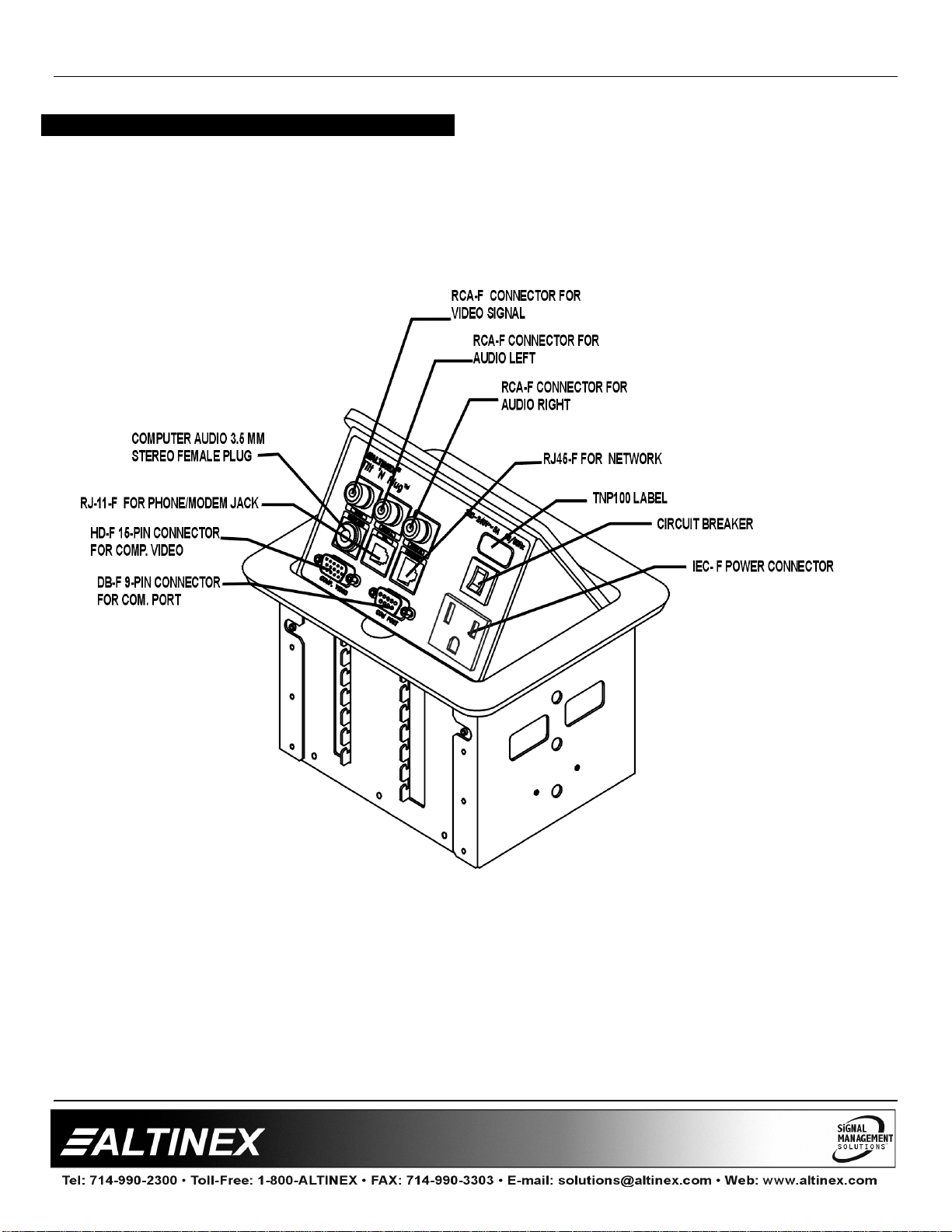

DESCRIPTION DIAGRAM 5
Diagram 2: Label of Product

ACCESSORIES
6
APPLICATION DIAGRAM 6
Diagram 3: Application

ACCESSORIES
7
Diagram 4: Final Installation

ACCESSORIES
8

ACCESSORIES
9
INSTALLATION 7
Step 1.Cut an opening into the table’s surface.
Refer to diagram 5on page 8of the
manual for table cutout requirements.
Note: The table can be 3 inches or thinner
in thickness. Always confirm dimensions
before cutting to insure that specifications
have not changed.
Step 2.Insert the TNP100 into the opening in the
table.
Step 3.Place the support brackets under the table
and place them between the support
mount grooves on the side of the TNP100
unit. Attach the brackets to the groove at
the desired height and secure them to the
bottom of the table using the 6-32 nut.
There are two support brackets, one for
each side of the unit. (See Figure 1)
Figure 1: Attachment of the TNP100 to the
table using support brackets and set screws
Step 4.Secure the cables by using the provided
cable clamp (See Figure 2). Pass the
power cord from the bottom of the housing
and attach it to the table using the cable
clamp supplied with the TNP100 unit. Do
not keep the cord too tight or too loose
(See Diagram 4, page 7).
Figure 2: Cable Clamp
Step 5.Connect the appropriate cables with the
correct input connectors. There are two
RCA audio connectors on the front panel
of the TNP100. The black connector is
known as audio left, whereas the red
connector is called audio right. There is
also anRCA video connector, which is
yellow in color. The network connection is
red.In addition, the telephone or data
connection is gray.
Step 6.Once you have applied power and
connected the proper cables on the bottom
of the unit, you may raise the unit. To raise
the TNP100 into position, lift the top by
pulling upward at the notch in the top plate.
Step 7.To lower the unit, push on the top of the
TNP100 until it fits into place.
For more information, please refer to the FAQ
Section or the Troubleshooting Guide.

ACCESSORIES
10
OPERATION 8
8.1 HOW TO RELEASE AND REPLACE THE GAS
SPRING
To replace the spring, push up, and turn the
knob in the center on the bottom of the
TNP100 by 90 degrees, thereby releasing the
gas spring.
Unscrew the knob, and then unscrew the gas
spring itself from the TNP100. Replace the
gas spring with a new one by screwing it in,
and then replacing the knob.
Re-engage the new gas spring by pushing
up, and turning the knob by 90 degrees. After
you have finished this step, you have
completed the installation.
Under normal conditions the gas spring will
last up to five years.
FREQUENTLY ASKED QUESTIONS (FAQ) 9
No: Question Answer
1Why are the
VGA connectors
female on both
ends of the
cables?
Female cables are more
reliable.
2Why is there a
DB-9 connector? The DB-9 connector is compatible with RS-232
serial communication.
3What happens if
the spring
breaks?
The unit will not stay
open.
4What do I do if
the TNP100
won’t stay open?
Replace the gas spring.
Call ALTINEX for service
information.
5How much room
is taken up on
the underside of
the table?
The unit is 4.5 inches
deep maximum below
the table; to this
dimension add about 2.5
inches for cable
clearance.
6What if my table
is thicker than 3
inches?
Then the area under the
table near the TNP100
must be reduced to 3
inches of thickness.
7Are cables
available for
connecting a
PC/laptop to the
TNP100
available?
Consider using
MS8126CA (3ft) or
MS8156CA (6ft) for VGA
connection.
8Does ALTINEX
honor any
warranty on field
modifications?
Anything modified by
non-ALTINEX personnel
is not covered by
warranty.

ACCESSORIES
11
CABLES AND ACCESSORIES 10
Model No. Description
VGA MALE TO MALE(HD-15) HIGH
RESOLUTION CABLE
CB37xxMR xx = available length of 3ft, 6ft, 15ft,
25ft, 50ft, 75ft, 100ft, 150ft
VGA MALE TO FEMALE (HD-15)
HIGH RESOLUTION CABLE
CB39xxMR xx = available length of 3ft, 6ft, 15ft,
25ft, 50ft, 75ft, 100ft, 150ft, 200ft,
250ft
SUPER HIGH RESOLUTION
PLENUM-FLEX MULTI- CHANNEL
COAX CABLE
VGA MALE TO VGA MALE (HD-15)
CB5000PL-
5VMxxxVM xxx = available length of 3ft, 6ft, 15ft,
25ft, 50ft, 75ft, 100ft, 150ft, 200ft,
250ft
SUPER HIGH RESOLUTION
PLENUM-FLEX MULTI- CHANNEL
COAX CABLE
VGA MALE TO VGA FEMALE (HD-
15)
CB5000PL-
5VMxxxVF xxx = available length of 3ft, 6ft, 15ft,
25ft, 50ft, 75ft, 100ft, 150ft, 200ft,
250ft
SUPER HIGH RESOLUTION
PLENUM-FLEX MULTI- CHANNEL
COAX CABLE
VGA MALE TO VGA FEMALE (HD-
15)
CB5100PL-
5VMxxxVM xxx = available length of 3ft, 6ft, 15ft,
25ft, 50ft, 75ft, 100ft, 150ft, 200ft,
250ft
SUPER HIGH RESOLUTION
PLENUM-FLEX MULTI- CHANNEL
COAX CABLE
VGA MALE TO VGA FEMALE (HD-
15)
CB5100PL-
5VMxxxVF xxx = available length of 3ft, 6ft, 15ft,
25ft, 50ft, 75ft, 100ft, 150ft, 200ft,
250ft
OPTIONAL CUSTOM
CONNECTORS (for custom units)
CM11301 Blank Connector (Snap-in and 15-pin
location)
CM11311 BNC Female
CM11308 4-pin Mini-DIN
CM11309 6-pin Mini-DIN
TROUBLESHOOTING GUIDE 11
The supplied TNP100 unit was carefully tested and
no problems were detected;however, we would
like to offer the following suggestions:
•If there is no power, check to see if the circuit
breaker is tripped.
•Please make sure that the highest quality
video, audio, network, and telephone cables or
connectors are used.
•Make sure that no cable or power cord is
damaged or pinched.If there has been
damage, then do not use the TNP100 unit.
Immediately contact the ALTINEX Customer
Service Department to have the unit repaired.

ACCESSORIES
12
ALTINEX POLICY 12
12.1 LIMITED WARRANTY
ALTINEX warrants that its products and cables
are free from defects in materials under normal
use and service. This warranty is limited to
repairing at company’s factory any part or parts
of the product, which upon company’s
examination shall disclose to be, thus defective.
Products considered defective should be
returned to company with transportation charges
pre-paid within 2 years (90 days for cables) from
date of shipment to the purchaser. The warranty
is expressly instead of all other warranties
expressed or implied. ALTINEX neither assumes
nor authorizes any other person to assume for it
any other liability concerning the sale of the
products. This warranty shall not apply to any
product that shall have been repaired or altered
outside of company’s factory in any way so as, in
its judgment, to affect its stability or reliability, or
that has been subject to misuse, negligence,or
accident.
12.2 RETURN POLICY
It is very important to ALTINEX that you receive
all products that you have ordered and that this
product meets your expectations. In the unlikely
event that an ALTINEX product needs to be
returned,please follow the policies below:
ALTINEX will accept all product returns for a
period of 30 days from authorized ALTINEX
dealers in an unopened package.
If a product has been opened, the restocking
fees will apply. For the restocking fee, please
contact an ALTINEX Sales Representative.
If the product is in your possession for more than
30 days,the restocking fees will apply.
ALTINEX will not accept any returns on cablesor
custom products.
If your product is in warranty and needs service,
contact the ALTINEX Sales Department for an
RMA (Return Material Authorization). Products
returned without an RMA number may
experience a delay in service.
If your product is out of warranty and needs
service, contact the ALTINEX Sales Department
for an RMA (Return Material Authorization).
Products returned without an RMA number may
experience a delay in service. The service
charges will be quoted to you before the actual
repairs are done.
12.3 CONTACT INFORMATION
Sales Department
Phone: [phone]
Fax: [phone]
