RT300-121 VGA RETRACTABLE CABLE User’s Guide
400-0612-001
1

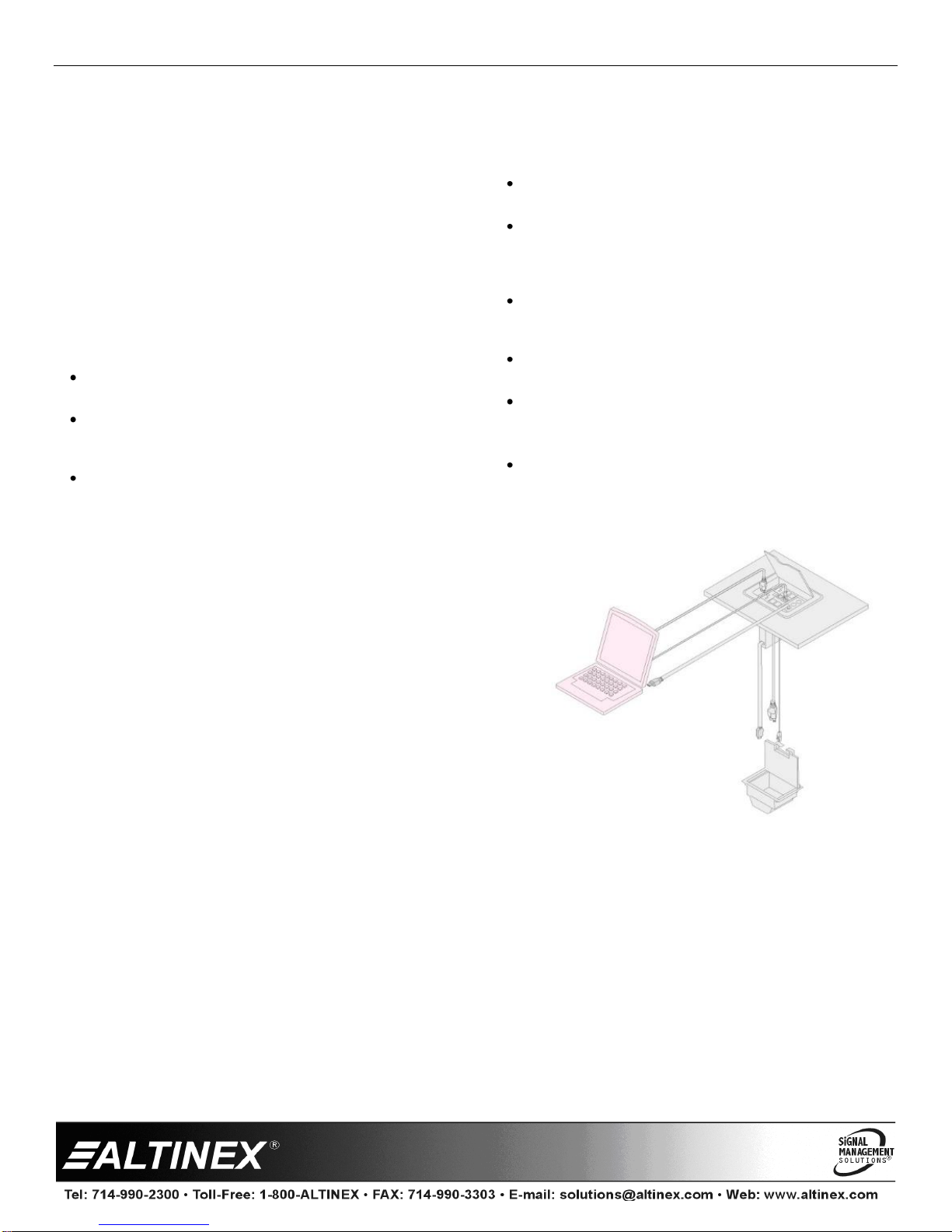

Welcome!
Thank you for purchasing the MINI-ME™ RT300-121 VGA
Retractable Cable. We know you will find it easy to install, easy
to use and easy to maintain.
Our goal is to provide our customers with unique Signal
Management Solutions®for Audio Visual applications.
1. Precautions and Safety Warnings
Please read this manual carefully before using MINI-ME RT300-
121 VGA Cable Retractor. Keep this manual handy for future
reference. These safety instructions are to ensure the long life of
your cable retractor and to prevent fire and shock hazards.
1.1 General
The RT300-121 does not contain any user serviceable
parts inside.
Do not disassemble the unit. RT300-121 contains high
tension spring that can uncoil rapidly causing cutting
hazard.
Only qualified Altinex service personnel is allowed to
perform cable retractor repairs. Removal of the warranty
sticker will void the warranty.
1.2 Installation
Use the RT300-121 VGA cable retractor in a dry area away
from dust and moisture.
Do not place the RT300-121 VGA cable retractor in direct
sunlight, near heaters or heat-radiating appliances, or near
any liquid. Exposure to direct sunlight, heat and moisture
will damage internal precision components.
Handle the RT300-121 VGA cable retractor with care.
Dropping, straining, or shaking can damage internal
components.
Do not place heavy objects on top of the RT300-121 VGA
cable retractor.
Follow installation instructions RT300-121 for optimum
performance.
1.3 Cleaning
Clean surfaces with a dry or slightly damp cloth. Do not use
detergents or solvents.
2. Installation Procedures
Step 1 Mount the RT300-121 onto the AC200-125 or AC221-125
mounting bracket and secure it with the four 4x40 screws
provided.
Step 2 Slide mounting bracket onto the CNK200 or CNK221 exterior
hooks and secure the thumbscrews with the wing nuts provided
by the accessories.
Step 3 Feed retractable cable through the bottom of the CNK unit and
the faceplate.
Step 4 Connect the fixed cable to a display or a switcher
Step 5 Refer to CNK200 or CNK221 user guide for installation
instructions.
3. Limited Warranty/Return Policies
Please visit Altinex website at www.altinex.com for details on warranty and
return policies. If you have any questions, please call us at 1-800-ALTINEX or
714-990-2300.

RT300-121 User’s Guide
400-0591-001
2
4. Technical Specification
Specifications are subject to change. Please visit www.altinex.com for up-to-date specification
Features/Description
Inputs
Video/Audio
VGA format
Outputs
Video/Audio
VGA format
Compatibility
Tabletop enclosures
CNK200 & CNK221
Stand-alone mounting
Mounting holes with
4x40 threads are
provided
Additional Accessories
Mounting Hardware
AC200-125 for
CNK200
AC221-125 for
CNK221
Table 1 RT300-121 General Specifications
Mechanical
Dimensions
Height
4.8 in (122 mm)
Width
4.8 in (122 mm)
Depth
1.4 in (37 mm)
Other
Normal Pull force
0.3lb (+/- 0.1)
End of the cable pull
force
Max 10lb (+2lb)
(Damage may occur if
customer forces retract past
the end of cable)
Weight
0.78 lbs. (0.353 kg)
Color
Black
Material
Plastic
T Operating
10 C - 35 C
T Maximum
50 C
Humidity
90 non-condensing
MTBF (tested)
10,000 retractions
Table 2 RT300-121 Mechanical Specifications
Electrical
RT300-121 VGA
Retractable Cable
Cable Gauge
36AWG wires,
32AWG coaxes
Voltage Rating for Cable
30V
Power
none
Amplifier
none
Table 3 RT300-121 Electrical Specifications

RT300-121 User’s Guide
400-0591-001
3
5. The MINI-ME RT300-121 VGA Retractable Cable features
Convenient, easy to install cable retraction system for
CNK200, CNK221 interconnect box and stand alone
Simple operation for AV connectivity
VGA compliant coaxial cable
CNK200 supports four MINI-ME RT300-121 units
CNK221 supports two MINI-ME RT300-121 units
Tested to 10,000 retracts
The RT300-121 offers a solution for managing VGA cables. The cable assembly was designed to deliver high definition
video and audio to a switcher or a display. The VGA cable contains built-in amplifier to maintain VGA signal integrity. The
RT300-121 has 4.0 ft of retractable cable and 4 ft of the fixed length cable. The cable and the retractor has been tested to
over 10,000 extensions/retractions. The AC200-125 and AC221-125 mounting hardware securely mounts the cable
retractors to CNK200 and CNK221 table top units.
AC200-125 mounting bracket for the CNK200 AC221-125 mounting bracket for the CNK221

RT300-121 User’s Guide
400-0591-001
4
6. Application Diagram
Diagram 1: Typical RT300-121 Installation and use
Diagram 2: Retractor Side Dimensions
Diagram 3: Front Dimensions

RT300-121 User’s Guide
400-0591-001
5
Diagram 4: Mounted on a CNK200 Front View
Diagram 5: Mounted on a CNK200 Side View

RT300-121 User’s Guide
400-0591-001
6
Diagram 6: Mounted on a CNK221 Front View
Diagram 7: Mounted on a CNK221 Side view
7. Operation
7.1 Accessing the RT300-121 VGA Retractable Cable
After proper installation, no further configuration is
needed. To connect, simply open the CNK bezel and
pull on the cable. Connect to desired source. When
finished, disconnect the source and automatically the
cable will retract back into the bezel.
8. Troubleshooting Guide
The RT300-121 VGA Retractable Cable supplied was
carefully tested and no problems were detected.
However, we would like to offer the following
suggestions:
Please make sure that the highest quality cables are
used in addition to the retractable cable.
Make sure that no cable or power cord is damaged or
pinched. If there has been damage, do not use the
CNK200 or the retractable cable. Please call the Altinex
Customer Service Department at [phone] to
have the unit repaired.
