Altinex RT300-101 User manual

PDF provided by Conference Room AV
Altinex RT300-101 HDMI ShareTime 4' Retractable Cable for Cable Nooks
ShareTime RETRACTABLE HDMI CABLE User’s Guide
400-0600-001 1
Welcome!
Everyone at Altinex greatly appreciates your purchase of the
ShareTime Retractable HDMI cable. We are confident that you
will find it to be reliable and simple to use. If you need support,
please do not hesitate to call us at 714-990-2300.
At Altinex, we are committed to developing unique and state of
the art Signal Management Solutions®for demanding
audiovisual installations. Welcome to the Altinex family of
satisfied customers around the world!
1. Precautions and Safety Warnings
Please read the manual entirely before using your ShareTime.
You can download a full version of this manual at
www.altinex.com. These safety instructions are to ensure the
reliable operation of your ShareTime and to prevent fire and
shock hazards. Please read carefully and heed all warnings.
1.1 General
ShareTime RT300-101 contains a micro USB programming
connector that allows users to update the firmware of their
unit when additional capabilities are developed by our
engineering team.
ShareTime RT300-101 contains a Li-Ion battery to provide
the desired features and capabilities.
1.2 Installation Precautions
To prevent fire or shock, do not expose this unit to water or
moisture. Do not place the ShareTime RT300-101 in direct
sunlight, near heaters or heat-radiating appliances, or near
any liquid. Exposure to direct sunlight, smoke, or steam
can harm internal components.
Handle the unit with care. Dropping or jarring can cause
damage.
Do not abusively pull any cables that are attached to the
RT300-101. Hold the RT300-101 firmly.
1.3 Cleaning
Clean the ShareTime RT300-101 with a dry cloth only.
Never use strong detergents or solvents such as alcohol or
thinner. Do not use a wet cloth or water to clean the
connectors.
1.4 FCC Notice
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 2 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions found herein, may cause
harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause
harmful interference in which case the user will be required
to correct the interference at their expense.
Any changes or modifications to the unit not expressly
approved by Altinex, Inc. could void the user’s authority to
operate the equipment.
2. Installation Procedures
Step 1 Mount the RT300-101 onto the AC200-125 or AC221-125 mounting
bracket and secure it with the four 4x40 screws provided.
Step 2 Slide the mounting bracket onto the CNK200 or CNK221 exterior hooks
and secure the thumbscrews with the wing nuts provided with the
accessories.
Step 3 Feed the retractable cable through the bottom of the CNK and the
faceplate.
Step 4 Connect the fixed cable to a display or a switcher
Step 5 Refer to the CNK200 or CNK221 user guide for additional installation
instructions.
The RT300-101 is now ready for operation. Section 7 of this manual will explain
how to setup configuration button user features and operational features through
the circular touchpad just once.
3. Warranty and Return Policies
Please visit the Altinex website at www.altinex.com for details on warranty and return policies. In the case of a unit needing repair,
please fill out the RMA (return material authorization) form located on the bottom left hand corner of the Altinex homepage. Once filled
out, please email the form to [email protected].
RT300-101 User’s Guide
400-0600-001 2
4. Technical Specifications
Specifications are subject to change due to continuous product developments. See www.altinex.com for up-to-date information.
Features/Description
Specification
RT300-101
Output
Output Connectors
HDMI F, Type A
Input
Input Connectors
HDMI M, Type A
Compatibility
Signal Types
HDMI
Signal resolution
Standard HDMI resolutions
Agency Approval
FCC/EU
CE, FCC Class A
Additional Accessories
Mounting Hardware
AC200-125 for CNK200
AC221-125 for CNK221
Table 1. RT300-101 General
Mechanical
Specification
Material
ABS Plastic
Color
Black
Collaborative Display Controller
Height
0.58 in (14.7 mm)
Width
1.08 in (27.4 mm)
Depth
2.20 in (55.9 mm)
Retractable Cable Housing
Height
4.8 in (122 mm)
Width
4.8 in (122 mm)
Depth
1.4 in (37 mm)
Total Weight
0.85 lb. (0.39 kg)
Normal Pull Force
0.3lb (+/-0.1)
End of the cable pull force
Max 10lb (2lb)
(Damage may occur if
customer forces retract past
the end of cable)
Retractable Cable Length
4 ft. (1.22 m)
Fixed Cable Length
4 ft. (1.22 m)
T° Operating
10°C-35°C (50°F-95°F)
T° Maximum
50°C (122°F)
Humidity
90% non-condensing
MTBF (tested.)
68,000 hrs.
Table 2. RT300-101 Mechanical
Electrical
Specification
Cable Gauge
36AWG
Voltage Rating for Cable
30V
Video Output Signal
Digital Impedance
100Ω
Digital Signal Level
Pass-through
Power
5V DC
25 mW
Amplifier
Built in for 1080p
Table 3. RT300-101 Electrical
Color
Shutdown Time
Pink
Never
Green
30 seconds
Blue
1 minute
Yellow
2 minutes
Cyan
5 minutes
Table 4. RT300-101 LED pattern
HDMI, the HDMI Logo, and High Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
RT300-101 User’s Guide
400-0600-001 2
5. About Your RT300-101
Easy collaborative control of display input switching
Automatically powers display ON and OFF by touch
HDMI compliant retractable cable with internal boost
Compact design allows for easy plug & play
Use as many collaborative controllers as the number of HDMI inputs available
Compatible with all switchers and displays that comply with CEC commands
Combined benefits of a collaborative display controller and a retractable cable
The RT300-101 Retractable HDMI cable is a revolutionary HDMI collaborative display controller that allows cooperative control of with a
retractable cable feature. Having multiple RT300-101 Retractable HDMI cables allows multiple users to connect to one display and
work together as they seamlessly switch between multiple sources, allowing for collaborative teamwork and cable organization. . The
HDMI cable contains built-in amplifier to maintain HDMI signal integrity. The RT300-101 has 4.0 ft. of retractable cable and 4 ft. of the
fixed length cable. The cable and the retractor has been tested to over 10,000 extensions/retractions.
In a typical application, users would connect the fixed HDMI cable to a monitor input and then connect a retractable cable to the source.
As soon as the ShareTime compact unit is plugged into an HDMI laptop output, a white light flashes to indicate the input number. The
LED then turns a solid green and the video is displayed on the TV.
If the monitor is in stand-by mode, the RT300-101 will automatically turn it ON and select the proper input to assure that the image is
properly displayed. Any number of ShareTime units can be used together to form a collaboration station with a single monitor. The
RT300-101 constantly monitors its environment by default. When the last RT300-101 is disconnected from the HDMI source, the TV will
turn OFF after the configured shutdown time.
The RT300-101 can easily be used with any CEC compatible switchers to create a larger multiuser collaborative solution. Its small and
compact design allows users to have an easy plug and play experience with instant collaboration. With the launch of the UT260-041
and UT260-052 under table HDMI switchers, the RT300-101 is a great addition to the overall collaborative experience.
AC200-125 mounting bracket for the CNK200 AC221-125 mounting bracket for the CNK221
RT300-101 User’s Guide
400-0600-001 4
6. Application Diagrams
Diagram 1: Typical Setup
RT300-101 User’s Guide
400-0600-001 5
Diagram 2: RT300-101 Internal View
Diagram 3: RT300-101 Dimensions
RT300-101 User’s Guide
400-0600-001 5
Diagram 4: RT300-101 front dimensions.
Diagram 5: RT300-101 mounted on a CNK200
RT300-101 User’s Guide
400-0600-001 6
7. Operation
Getting Started
After pulling the cable towards the source and plugging the RT300-101 into a laptop HDMI source, the RT300-101 will communicate
which input it is connected to through the numbers of times the LED flashes white. The number of flashes corresponds to the input
number (one flash indicates input one, two flashes indicate input two, and so forth).
Note: If there is a problem reading the input, the LED flashes magenta until successful. If the LED flashes for more than 10 seconds,
there is most likely a problem with the cable or the TV does not support CEC.
After a few seconds, the LED turns a solid green and the video is displayed. If in standby mode, the RT300-101 LED will automatically
turn a solid green when plugged into a laptop HDMI source.
In order to manually turn the display OFF, press and hold the circular touchpad. The LED flashes red after about 5 seconds and then
becomes a solid red after another 5 seconds. When the LED turns a solid red, release the touchpad. At this point, the RT300-101 will
turn the monitor OFF. To turn the monitor back ON, unplug the RT300-101 from the HDMI source and plug it back in.
Unplugging the RT300-101 from the HDMI source will start the shutdown timer. A green LED will flash briefly every second of the
countdown timer. Under its own power, the cable will retract back. For better longevity, it is recommended to guild the cable back
Note: If other RT300-101 units are active, the RT300-101 will shut down after a few seconds and there will be no power off from that
RT300-101.
A RT300-101 unit with a solid white LED signals that a source is present but not displayed on the TV. Touch and release the touchpad
of a RT300-101 unit to turn the LED green and display the video on the TV. When this switching occurs, if another RT300-101 was
displayed on the TV previously, its LED will turn white and its video will no longer be present.
Remote Control
To shut down all RT300-101 units immediately, a remote control can be used to turn OFF the TV. After shutting down the TV, the
RT300-101 units must be disconnected from the source and then reconnected to start the TV. The RT300-101 units also reflect the
changes made when a user changes the input with a TV remote control.
Notes: If the RT300-101 units are in standby mode and a remote control is used, the units will shut down immediately and there will
be no countdown to turn OFF the TV.
Touchpad Features
The circular touchpad has many additional new features in addition to setting a source as active. Holding it down for a number of
seconds and initializing different color allows different actions. Upon release while flashing red or no LED present, returns the
collaborative controller back to normal operation with no changes. Upon releasing it while a solid red will turn off TV if TV has CEC
compatibility. TV detection can be enabled or disabled with an active source. While enabled, the CEC controller will constantly send a
signal so that when that input is selected, that RT300-101 will be set as active source. Even if the collaborative controller is switched to
another input.
Action
LED
Upon Release
Touch and Release
Green*
Set as active source
Hold +3 sec
Flash Red
Return to normal operation
Hold +2 sec
Red
Turn off TV
Hold +8 sec
Blue
Enable TV detection when active and reset
Hold +11 sec
Yellow
Disable TV detection when active and reset
Hold +14 sec
OFF
Return to normal operation
* If configured for UT240-041 LED toggles active/inactive
RT300-101 User’s Guide
400-0600-001 7
Configuration Button Setup
Step 1. Make sure CEC capability and standby mode is enabled on the monitor. Some monitors have it defaulted to OFF.
Step 2. Plug the RT300-101 into the laptop HDMI source. The LED flashes white to indicate the input number and green to indicate
that the video is on the display. At this point, if the TV is OFF it turns ON.
Step 3. To configure the RT300-101 shutdown time, press the configuration button with a paper clip.
Step 4. The various flashing colors represent the choices available. To select a time, wait for the desired color to start blinking and
then press the button again. The LED turns solid on the selection.
Configuration Button Features
The configuration button also has additional features that when pressed down and released indicate several configuration settings
currently saved internally the collaborative controller. A quick press and release will have the LED indicate the current TV off time and
then allow for selection of a new TV off time. Release when the LED is blue will flash the version number. Releasing while yellow,
flashes the physical address of the collaborative controller within the system. For example, the physical address 1.2.0.0 indicates that
the collaborative controller is connected to input 2 of a HDMI interface that leads to the input 1 of the destination. Red would flash twice,
while blue would flash once, followed by quick flashes from green and yellow indicating zero. For a press and release while in cyan, it
will either flash red or green indicating a failure or a pass in the internal CEC circuit of the collaborative controller. While holding down
the configuration button, if the LED turns off, it is safe to return to normal operation with no changes.
Action
LED
Upon Release
Press and Release
ON
The LED turns on to indicate the current TV off time and then the LED
starts flashing to allow TV off time selection
Hold 2 sec
Blue
Flash version number of times; the color and flashes vary by version
Hold 4 sec
Yellow
Flash the physical address.
Physical address = A.B.C.D.
A = Blue
B = Red
C = Green
D = Yellow
Hold 6 sec
Cyan
Test the CEC in circuit. The LED flashes green 3 times indicating the
circuit is working; red if there is a failure
Hold 8 sec
Red
Set select plus de select operation then reset. **
Hold 10 sec
Pink
Set for active operation only; no de-select. **
Hold 12 sec
OFF
Return to normal operation; no changes.
** Reset upon selection
RT300-101 User’s Guide
400-0600-001 8
Updating Firmware:
1. Download and install the firmware update from www.altinex.com.
2. Connect ShareTime to a PC using USB Type A to Micro USB.
Once connected, the LED turns a solid color and then briefly turns
OFF. The RT300-101 then flashes the appropriate number of
times corresponding with a color to notify the user what version
they currently have.
4
5
6
7
8
Blue
Yellow
Pink
Cyan
Green
After this notification, the LED will again briefly turn off and then
becomes a solid color depending on current firmware loaded.
3. When the LED is a solid color, launch the update the application.
4. Select Program from the menu to run the application.
5. After the update is complete, the LED flashes blue once more to
indicate the NEW version number.
6. Disconnect the USB cable from the RT300-101 and remove from the source, if connected. Wait 3 seconds and reconnect to
the HMDI source.
7. ShareTime is now ready with new firmware.
8. Troubleshooting Guide
We have carefully tested the RT300-101 prior to it leaving the factory. However, we would like to offer suggestions for the following:
RT300-101
Symptom
Resolution
LED does not turn on
Make sure that the unit is fully inserted into the HDMI connector and that the video output is set up
to mirror the display of the laptop.
Display does not turn
ON
1. Make sure the display has fully powered OFF. During power OFF, the sequence monitor may
not understand the power ON command.
2. Connect the RT300-101 first to the display, using an HDMI cable, and then connect RT300-101
to your laptop.
3. The display may not be CEC compatible.
Cable does not retract
1. Guild the retractable cable and make sure nothing is denying the retraction.
2. Contact Altinex Technical Support at (714)990-2300 for warranty/none warranty repair

Other Altinex Cables And Connectors manuals

Altinex RT300-126 User manual

Altinex

Altinex RT300-126 User manual

Altinex UT Series User manual

Altinex

Altinex UT Series User manual

Altinex DA103-302 User manual

Altinex

Altinex DA103-302 User manual

Altinex RT300-125 User manual

Altinex

Altinex RT300-125 User manual

Altinex Tilt'nPlug TNP600 Series User manual

Altinex

Altinex Tilt'nPlug TNP600 Series User manual

Altinex RT300-121 User manual

Altinex

Altinex RT300-121 User manual

Altinex RT300-145 User manual

Altinex

Altinex RT300-145 User manual

Altinex UT240-125S User manual

Altinex

Altinex UT240-125S User manual

Altinex RT300-125 User manual

Altinex

Altinex RT300-125 User manual

Altinex RT300-155 User manual

Altinex

Altinex RT300-155 User manual

Altinex DA103-301 User manual

Altinex

Altinex DA103-301 User manual

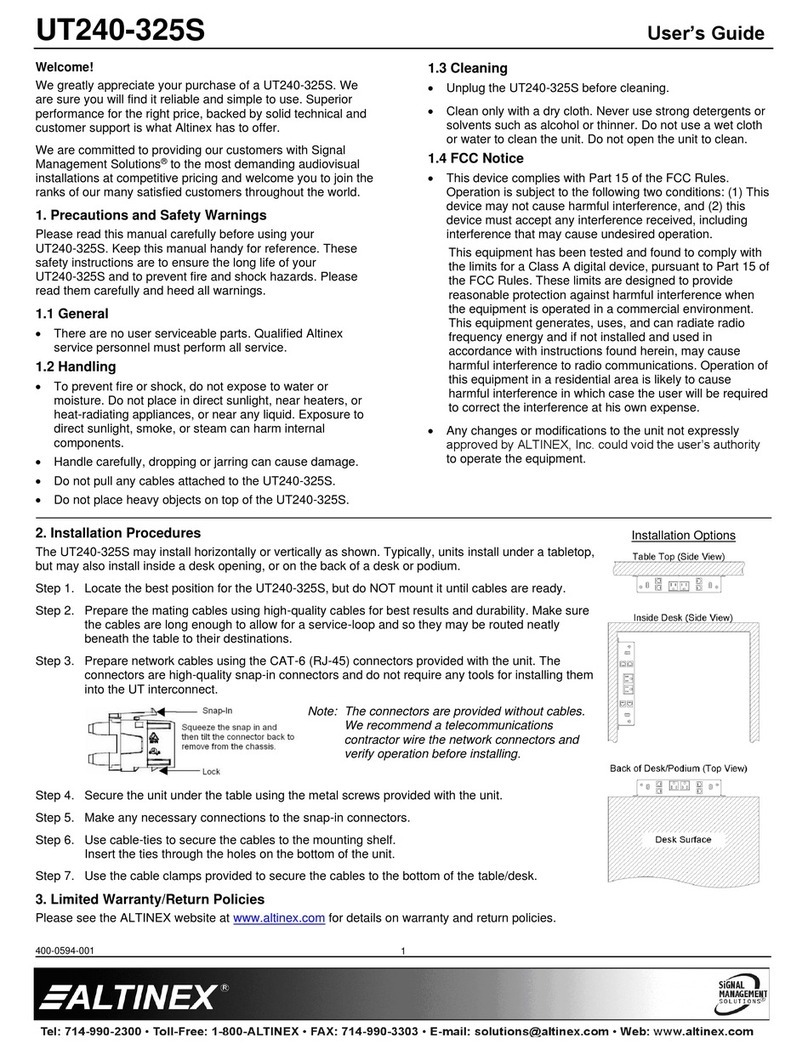

Altinex UT240-325S User manual

Altinex

Altinex UT240-325S User manual

Altinex RT300-134 User manual

Altinex

Altinex RT300-134 User manual

Altinex UT240-121S User manual

Altinex

Altinex UT240-121S User manual

Altinex RT300-125 User manual

Altinex

Altinex RT300-125 User manual

Altinex Tilt'N Plug TNP100 User manual

Altinex

Altinex Tilt'N Plug TNP100 User manual

Altinex RT300-121 User manual

Altinex

Altinex RT300-121 User manual

Popular Cables And Connectors manuals by other brands

SeaLevel SeaLINK+232I user manual

SeaLevel

SeaLevel SeaLINK+232I user manual

Watts 957-FS Series installation instructions

Watts

Watts 957-FS Series installation instructions

SATA AE3001 user manual

SATA

SATA AE3001 user manual

HELGI HI0312-V2.0 user manual

HELGI

HELGI HI0312-V2.0 user manual

InCarTec r.LiNK-Interface 27-316 quick start guide

InCarTec

InCarTec r.LiNK-Interface 27-316 quick start guide

Avermedia EzRecorder 130 user manual

Avermedia

Avermedia EzRecorder 130 user manual

OMB TVS-TUNNEL/S quick start guide

OMB

OMB TVS-TUNNEL/S quick start guide

Ahuja DA-80 Operation manual

Ahuja

Ahuja DA-80 Operation manual

Thitronik XL 868 quick guide

Thitronik

Thitronik XL 868 quick guide

PCB Piezotronics 010T30 Installation and operating manual

PCB Piezotronics

PCB Piezotronics 010T30 Installation and operating manual

ODU Easy-Clean AMC Assembly instruction

ODU

ODU Easy-Clean AMC Assembly instruction

Festo NEBC-D12G4-E D12G4-ET Series Assembly instructions

Festo

Festo NEBC-D12G4-E D12G4-ET Series Assembly instructions

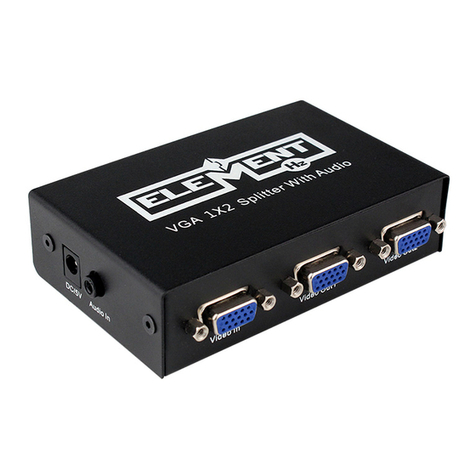

Element ELE1X2SPV500 installation manual

Element

Element ELE1X2SPV500 installation manual

Actisense PRO-BUF-2 quick start guide

Actisense

Actisense PRO-BUF-2 quick start guide

PULSECOM CPM-DS3 manual

PULSECOM

PULSECOM CPM-DS3 manual

Cardas Audio Schuko Plug Assembly instruction

Cardas Audio

Cardas Audio Schuko Plug Assembly instruction

Philips SDW5225GN Specifications

Philips

Philips SDW5225GN Specifications

Mychanic 52752 operating instructions

Mychanic

Mychanic 52752 operating instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
