Alto VERB II User manual

ServiceManual
Model: αVERB II
40-BIT DIGITAL EFFECTS MODULE
www.altoproaudio.com

CONTENTS
1. INTRODUCTION
2. SPECIFICATION
3. BLOCK DIAGRAM
4. SCHEMATIC DIAGRAM
5. PCB LAYOUT
6. TEST PROCEDURE
7. BOM
8. EXPLODED VIEWS & MECHANICAL PARTS LIST

Robust and Compact Design
40-bit Digital Audio Processor
16 Great Sounding Programs
Variation adjust knob (16 positions)
256 presets in total
Analog Mix (Dry/Wet) control
User adjustable Input and Output Gain
Stereo/Mono Jack Inputs
LED control for digital overdrive
Easy to operate Front Panel controls
SMT Design for greater reliability
Short Signal Path and no internal cabling to provide superior sound
Manufactured under QS9000, VDA6.1 Quality System
1. INTRODUCTION
- 1 -

Electrical
Frequency Response +0.5 / -1.5 dB from 20 Hz to 20 kHz
S/N Ratio (process) 80 dB "A" wtg, 20 Hz-22 kHz
S/N Ratio (bypass) >90 dB "A" wtg, 20 Hz-22 kHz
THD+Noise <0.008% @ 1 kHz (0 dBv, bypass)
Input
Number of Channels 2
Format 1/4" unbalanced
Maximum Level (bypass) +9 dBu
Impedance >500 kOhms
A/D -D/A Conversions
A/D converter 1 bit Sigma-Delta
D/A converter 1 bit Sigma-Delta
Output
Number of Channels 2
Format 1/4" unbalanced
Maximum Level (bypass) +9 dBu
Output Impedance <500 Ohms
Front Panel
Controls IN/OUT levels (ANALOG)
PROGRAM selections (2 knobs)
Indicators Power, Signal clip LED
Rear Panel
Input (LEFT/MONO, RIGHT) 1/4" 2-conductor (mono)
Output (LEFT, RIGHT) 1/4" 2-conductor (mono)
BYPASS 1/4" 2-conductor (auto-sense pedal type) for
momentary footswitches
Power 9 Volt AC Power Adaptor
Processing and Memory
Processor Speed 12 MIPs (million instructions per second)
Internal DSP resolution52-bit MPY accumulator
Main Preset Programs 16
Preset Total Combinations 256
Internal digital audio memory 3000 milliseconds
Physical
Net Weight 0.76 kg (1.26lb)
Dimension 197(W)×131(D)×44(H)mm (7.76" × 5.12"× 1.73")
2. SPECIFICATION
- 2 -

BYPASS
L IN R IN
Input gain Input gain
If only LIN Input : 1.LIN MONO 2.RIN OPEN
MIX
LIN RIN
LOUT ROUT
MUTE
MIX
OUTPUT GAIN L OUTPUT R OUTPUT
Singal LED
Distortion detect CHEE
OUTPUT GAIN

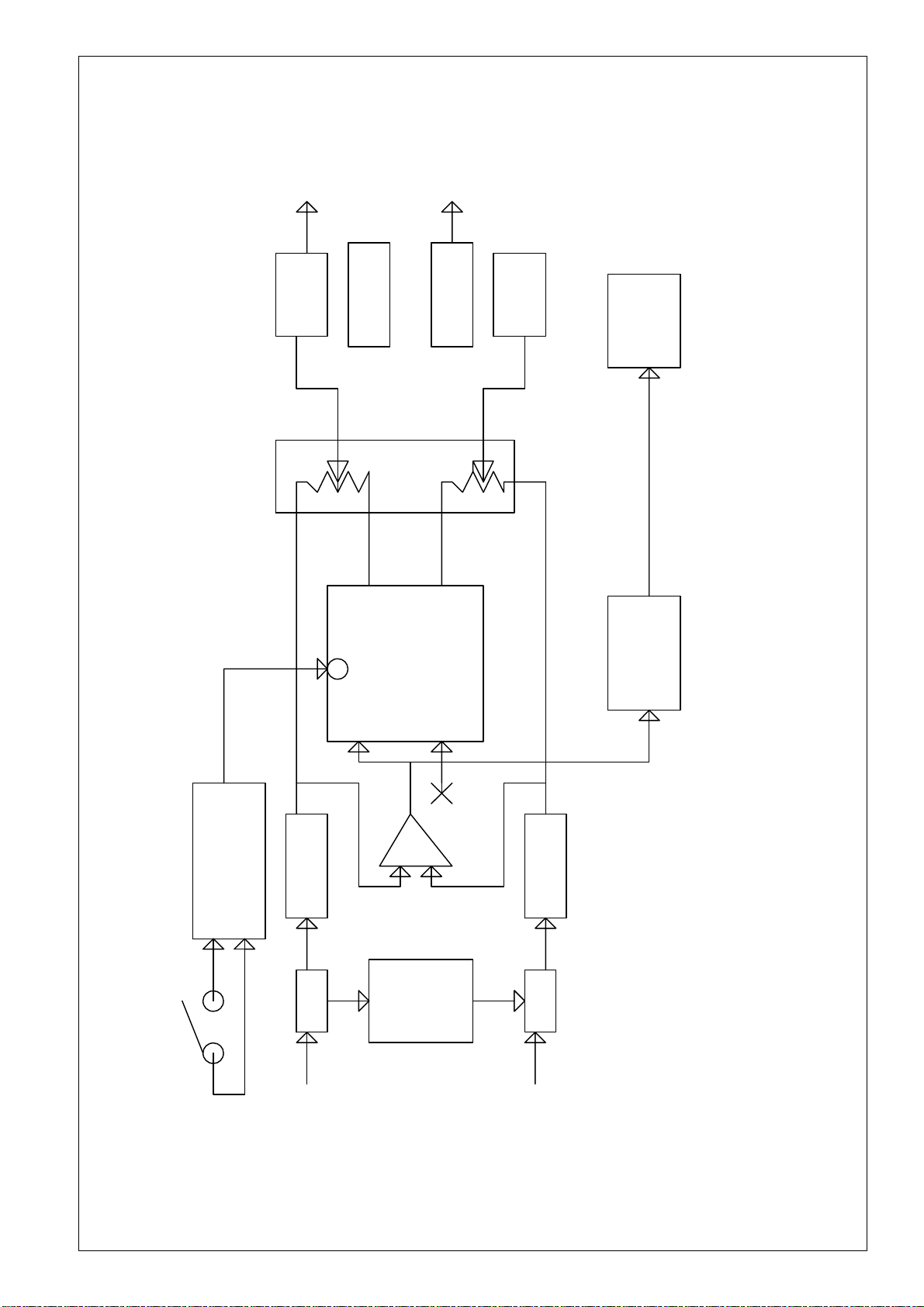

3. BLOCK DIAGRAM
- 3 -

4-14-1

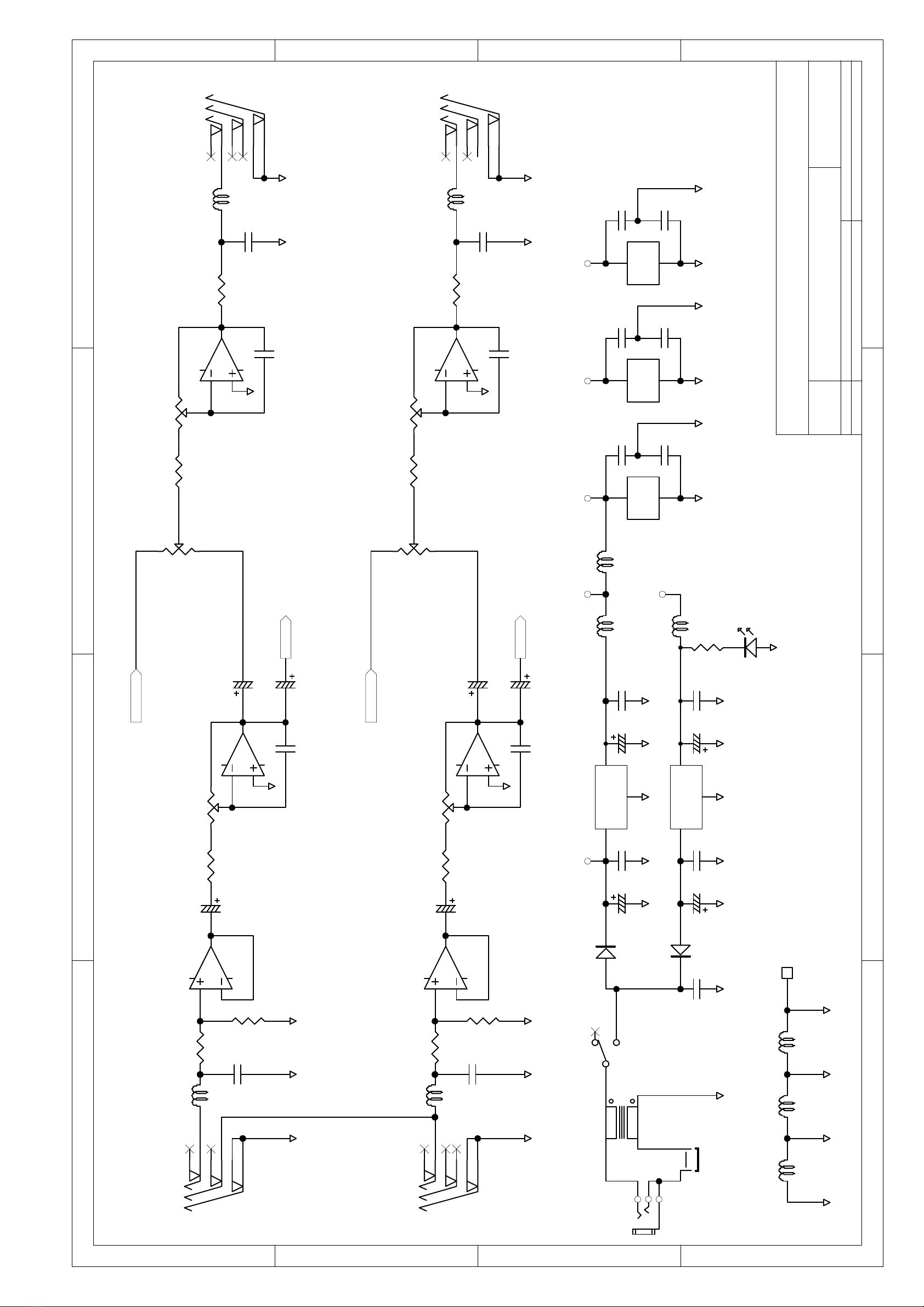

4. SCHEMATIC DIAGRAM
- 4 -

1 2 3 4 5 6 78
A B C D
8
7654321
D
C B A
HB0254~1.SCH
File: Date: Drawn By:
Sheet
Revision
23-Jun-2007 YONG QIAN YAO
21of
aVERB II VER070615
C24 22P
C30
1.5nF
C7
4.7uF 3
2
1
U3A
TL074CD
R10 10K
R1 100R
R3
10K R8
10K
R9
10K
AGND AGND
5 6
7
U3B
TL074CD
R14
10K
C28 22P C32
1.5nF
C23
4.7uF 12
13
14
U3D
TL074CD
R25 10K
R2 100R
R6 10K R18
10K
R24
10K
AGND AGND
10 9
8
U3C
TL074CD
R27
10K
10
98
U2C
TL074CD AGNDAGND
12 13 14
U2D
TL074CD
C31 1.5nF R22
10K
R21 10K
C29 22P
R26 10K
C27 22P R34 10K
R16 10K
INPUTR
12 34 56 78 910 1112 1314 1516
CN2
HEADER 8X2 1
3 4 6
COM
EN2
288S0366
1 3 4 6
COM
EN1
288S0366
1 2
3 4
5 6
7 8
AR1 680R*4
1 2
3 4
5 6
7 8
AR2 680R*4
DGND DGND
+5V
SGND
+5V
CLK 4
J2
S
5
R
1
Q
6
Q
7K3
U5A 74HC109
+5V R32
10K
A
2K1
D5 RLS4148
12
U6A 74HC14
C41 1uF
DGND
+5V
R33 10K
A
2K1
D6
RLS4148
C42 1uF
DGND
R42
220R
(MUTE)
R29 10K
R28 10K
TR1
BR
DGNDDGND
+5V
R41 220R
R40 7K5
LD1 RED
3 4
U6B 74HC14
5 6
U6C 74HC14
8 9
U6D
74HC14
12 13
U6F
74HC14
147
U6G
74HC14
DGND
CLK 12
J14
S
11
R
15
Q
10
Q
9K13
U5B 74HC109
DGND
168
U5C
74HC109 C38
100nF
C37
100nF +5V
DGND
C40 10uF
JP1
AGND2
1 2 4 8
1 2 4 8
DGND
3 2
1
U4A
LM393
5 6
7
U4B LM393
R36 4K7
+5VA
R37 1K
C36 100nF
R38 1MR39
2M2
R43 820K
AGND
D1 RLS4148
PEAK(FLICKER) MUTE(GLOW)
PRESETVARIATION
AGND
AGND
TR2 BR
DGND
R30
10KR31
10K
DGND
OUT
3RS 4
TG 2 TH 6
CTR
5
DS
7
U8A NE555
C35
100nF
DGND
+5V
R35 47K
C39 10uF
DGND
81
U8B
NE555
C34 33P
AGND AGND
C33 33P
9 8
6
U7A 4066
11 10
12
U7B 4066
4 3
5
U7C 4066
1 2
13
U7D 4066
147
U7E
4066
MUTE1 MUTE2
AGND
R47 100R
C43 47uF/25V
R46 470R
R44 470R R45 470R
MUTE1 MUTE2
R17 10K
INPUTL
OUTPUTR OUTPUTL
TPVERBIO.SCH
DGND
D4 RLS4148 D7 RLS4148
84
U4C
LM393
-5V
+5VA
C20
100nF
C21
100nF
AGND
1 2 3 4 5 6PJ5
MIC6PIN
Text
AlphaverbII (1/2)
- 5 -

1234
A B C D
4321
D C B A
1 2
L4
BLM21A102
1
2
3
VR1A A10K
C12
47uF/25V
AGNDAGND2
3 21
U1A
TL074CD
C8
47uF/25V
R7 10K C13
47uF/25V
INPUTR
10
98
U1C
TL074CD
R4 1K
AGND
R5
1M
OUTPUTR
1
2
3
VR2A B1K
1
2
3
VR3A A10K
AGND
R20
270R
3 21
U2A
TL074CD
R11 10K
L1
BLM21A102
AGND2
R-OUT
OUTPUT-A
MIXER-A
INTPUT-A
R-INPUT
AGND
L-OUT
L-INPUT
411
U3E
TL074CD
411
U1E
TL074CD
-5V -5V
+5VA +5VA
3 1 2
J1
C10
1000uF/25V
C11
220uF/25V
Vin
GND
Vout
U10LM7805
Vin
2
G
1
Vout 3
U9 LM7905
C4
100uF/16V C6
0.1UF
C3
100uF/16V C5
0.1UF L2
LF22uH
L3
LF22uH -5VSGND
SGND
SGND SGND SGND SGND
SGNDSGNDSGND
A
2K1
D2
1N4002
A2
K
1
D3
1N4002
AC 9V INPUT
C9 220P
AGND
C14
10nF
+5V
L5
BLM21A102
4
5
6
VR1B A10K
C16
47uF/25V
AGNDAGND2
5 67
U1B
TL074CD
C15
47uF/25V
R15 10K C17
47uF/25V
INPUTL
12 13 14
U1D
TL074CD
R12
1K
AGND
R13
1M
OUTPUTL
4
5
6
VR2B B1K
4
5
6
VR3B A10K
AGND
R23
270R
5 67
U2B
TL074CD
R19 10K
L6
BLM21A102
AGND2
OUTPUT-B
MIXER-B
INTPUT-B
AGND
C25 220P
AGND
C26
10nF
C18
100nF
C19
100nFAGND
C45
100nF
C51
100nFAGND
C2
0.1UF
C1
0.1UF
SGND SGND
C22
100nF
SGND
+VCC
(MONOIN)
C46
47P
C47
47P
C48
47P
C49
47P
L7
BLM21A102
L8
BLM21A102
AGND2AGND
P1 STARTGND
SGND
6 1
34
L10 PLT09H-2003R
L12
BLM21A102
DGND
L11
BLM21A102
PS1
RX110
AS1 AS2
-5VO
HB0254~2.SCH
Titel Size File: Date: Drawn By:
Sheet
RevisionModel No:
23-Jun-2007 YONG QIAN YAO
AlphaverbII
22 of
aVERB II VERB070615
A3
LD2 RED
R48 4K7
SGND
411
U2E
TL074CD
-5V
+5VA
C44
100nF
C50
100nFAGND
(C10=f10*20mm)
1 2 3 4 5 6
PJ1 MIC6PIN
1 2 3 4 5 6
PJ2 MIC6PIN 1
2 3 4 5 6PJ4
MIC6PIN
1 2 3 4 5 6PJ3
MIC6PIN
21
3
SW1A
SW3*3
AlphaverbⅡ(2/2)
- 6 -

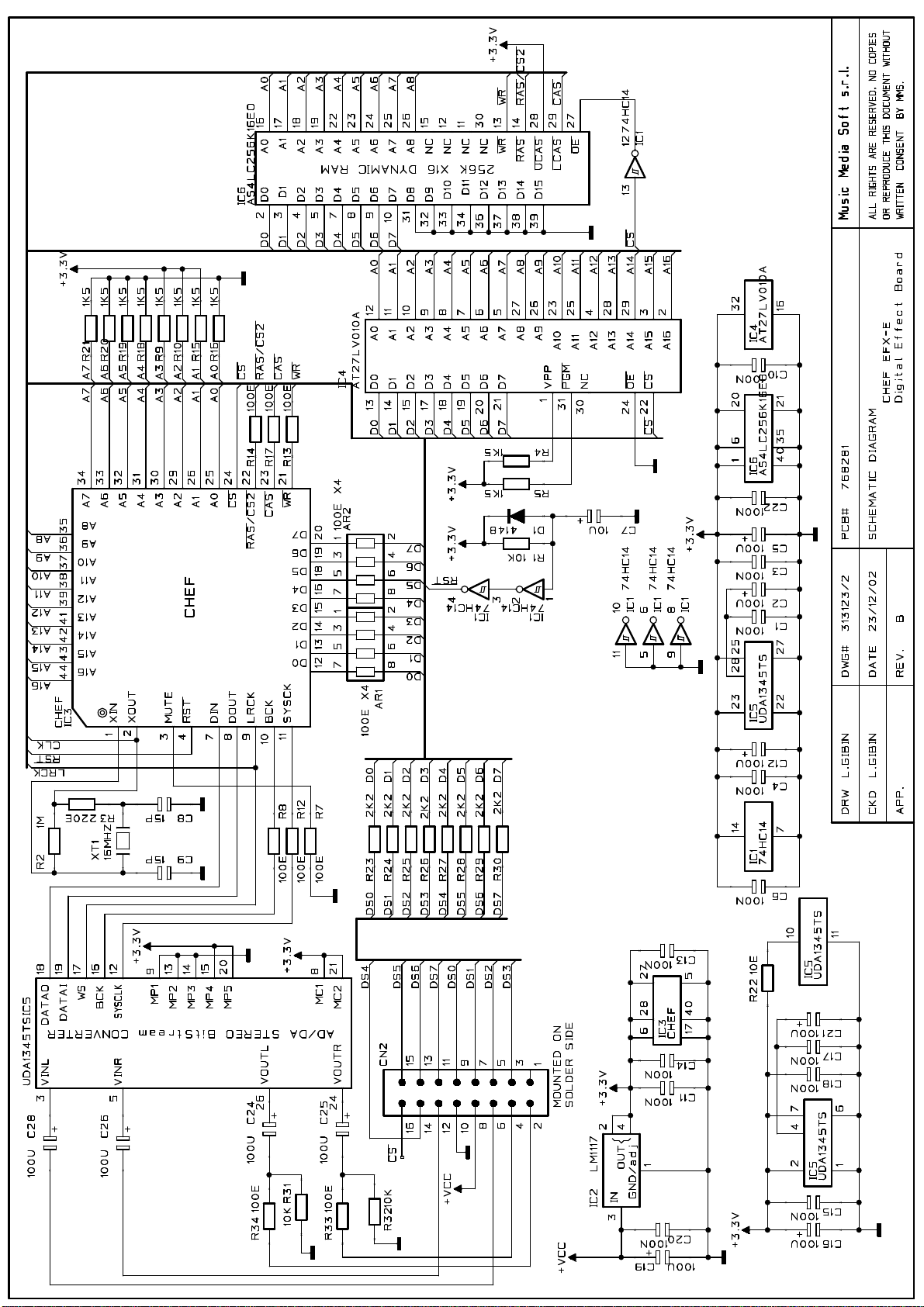

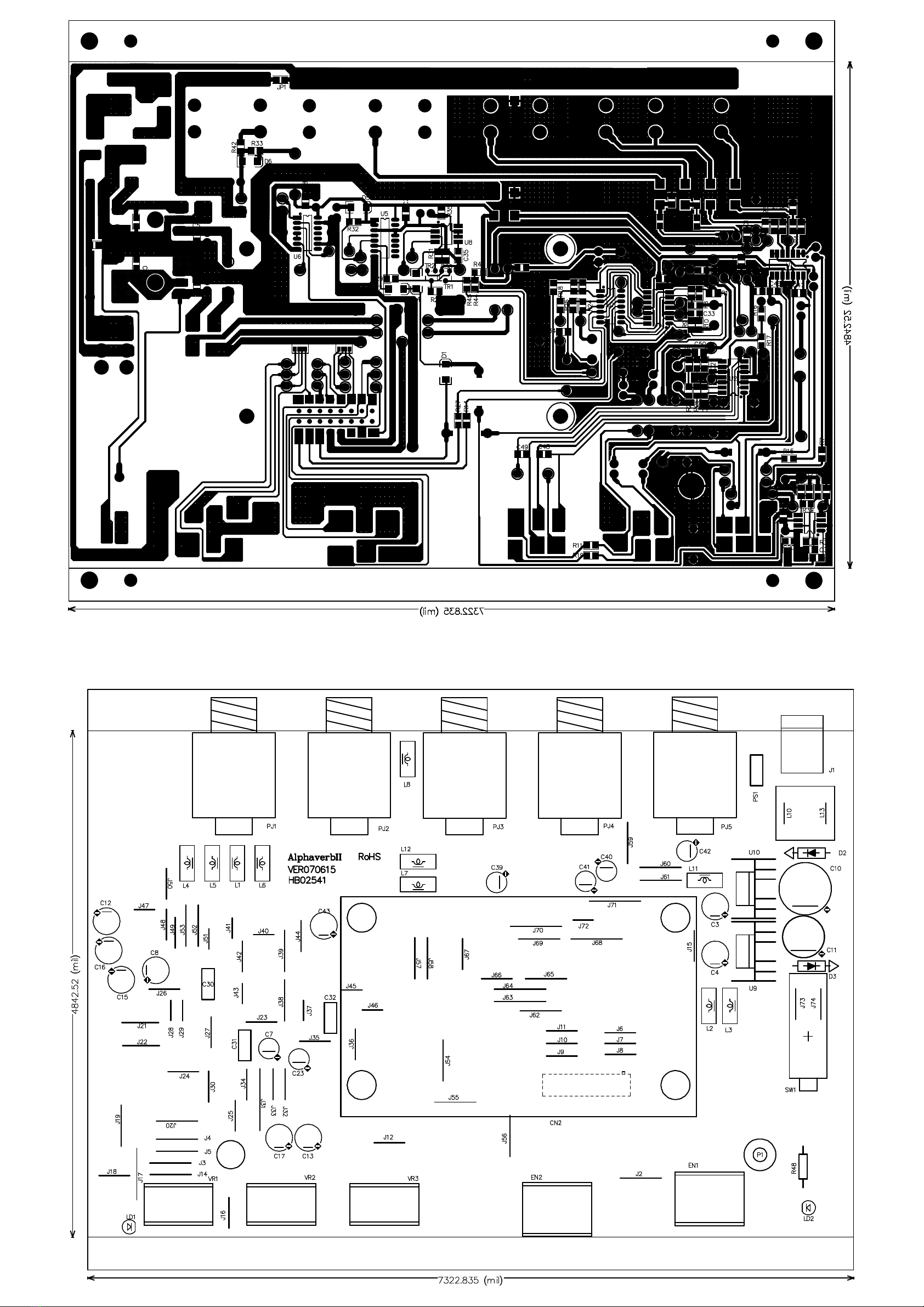

5. PCB LAYOUT
- 7 -

- 8 -

The Finished Product Test Procedure of aVERB II
1. Test Instruments:
a. Dual oscillagraph
b. AP (ATS-2 or System Two)
c. AC power supply or AC/DC Adapter: 9V
2. Instruments setting:
a. Connect the signal generator or AP output signal to L (Mono) Input (unbal-GND, 20 Ohm
Z-Out), and the AP input to L, R (BNC-Unbal).
b.BW:22Hz 22 KHz, FLTR: A Weighting.
c.Adjust the AP output signal to sine waveform 1 KHz, -20dbm.
3. Test Procedure:
a.After connecting the voltage converter (9V) to the AC socket, the PWR (Red) will light up.
b. Rotate the “VARIATIONS”(the smaller knob) to “1”position, and the “PRESETS”(the larger
one) to “HALL1”position.
c. Rotate the “INPUT”, “OUTPUT”knobs to maximum, the ”MIX”to minimum, the L/R output
signal is -20dbm (±2dbm), when rotate the “INPUT”, “OUTPUT”knobs to minimum, there is
no output signal. (Rotate the “INPUT”, “OUTPUT”knobs to maximum after the test is
finished)
d. rotate the “MIX”knob to maximum, L: -14dbm (±2dbm), R: -20dbm (±2dbm). During rotating
this knob from minimum to maximum, the effect will be changed.
e. The “PRESET”knob has 16 functions in thisaVERB II, the testing parameter please see the
below table (the “LEVEL”parameter is the reference).
No. PRESETS L-OUT/R-OUT LEVEL (±2dbm) Note
1HALL1 -14.0 dbm/-20 .0dbm
2HALL2 -11.0 dbm/-8.0 dbm
3HALL3 -19.0 dbm/-13.0 dbm
4SPRING1 -18.0 dbm/-17.0 dbm
5SPRING2 -18.0 dbm/-19.0 dbm
6TAPE -17.0 dbm/-17.0 dbm
7PLATE1 -16.0 dbm/-27.0 dbm
8PLATE2 -17.0 dbm/-17.0 dbm
9TREMOLO XXX The signal will be changed (-17→-19
→-17 dbm)
10 CHORUS -17.0 dbm/-17.0 dbm
11 FLANGE XXX The signal will be changed (-9→-26→
-9 dbm)
12 DELAY -16.0 dbm/-16.0 dbm
6. TEST PROCEDURE
- 9 -

No. PRESETS L-OUT/R-OUT LEVEL (±2dbm) Note
13 DELAY/REV. -11.0 dbm/-14.0 dbm
14 FLANGE/REV. XXX The changed signal (the waveform
strongly changed)
15 CHORUS/REV. XXX The changed signal (the waveform
strongly changed)
16 ROTARY XXX The changed signal (the waveform
strongly changed)
f. Rotate the “VARIATIONS”(the smaller one) from“1”position, the effect will be changed (it
presents the waveform will be strongly changed), and the “SIGNAL”(red) LED will blink.
g. rotate the “MIX”knob to minimum, connect the AP output to Right Input, at this moment, only
the “R”has output, rotate the “PRESET”(the larger knob) to “Delay”position, and the
“VARIATIONS”(the smaller one) to “1”position, also the “MIX”knob to maximum, the sweep
frequency response curve as below:
h. Test for “BYPASS”: rotate the “MIX”to maximum, connect the footswitch to “BYPASS”jack,
this footswitch can control the DSP effect.
i. When turn off the input signal, the output noise is<-70dbm.
j. Spot-check: to know if there is another noise and the DSP effect is OK.
k. Factory Preset: rotate the “INPUT”, “OUTPUT”, and “MIX”knobs to minimum, the
“VARIATIONS”(the smaller knob) to “1”position, and the “PRESETS”(the larger one) to
“HALL1”position.
- 10 -

Ran
k
Part No. Descri
p
tion S
p
ecification QT
Y
Remark
PF03857 DIGITAL
MULTIEFFECT
S
aVERB Ⅱ
_
ALTO
_
230V
_
CHIN
A
1
├
0001 MA07059 panel-RS αVERB ⅡALTO
_
V1.0 1
├
0002 MB05584 chassis-RS αVERB Ⅱ
_
V1.0 1
├
0003 MC00992 top cover-RS aVERB Ⅱ
_
V1.0 1
├0004 NI00363 knob-RS φ21*16mm COOL GRAY
8C/072C_V1.1 1
├
0005 NI02386 konb-RS φ14*13mm 1
├
0006 NI04996 knob-RS φ11*19(5445C)_V1.0 3
├
0007 NI04999 knob-RS φ8.5*4(123U)_V1.0 2
├
0008 NI04998 knob-RS φ8.5*4(298C)_V1.0 1
├
0009 MG00025 screw-RS M3*6 6
├
0010 MG00163 screw M3*8 2
├
0011 NI00002 plastic nut-RS φ7/16"*G20/15*4.8 5
├
0012 MF00014 washe
r
φ3*φ6.5*0.5t 2
├
0013 NC00131 washe
r
1*φ11.3*φ15.3 red 5
├0014 TG00023 adaptor 230V/50Hz_AC9V/300mA_E
T-35_CE 1
├
0015 HJ00002 dessican
t
10g 1
├
0016 NA00122 PE bag 0.04t*350*230mm 1
├
0017 NA00146 bubble bag 13*16 1
├
0018 NI00501 self-adhere foot cushion 12.7*9*3t(SF-004) 4
├
0019 NE05006 label-RS
A
LPHAVERB_V1.
0
4
├
0020 NE05004 label
A
LTO 4
├
0021 NE02717 label MADE IN CHIN
A
2
├
0022 NF00061 assurance card-RS-C
A
LTO_V1.1 1
├
0023
A
D00012 twin adhesive-RS 90*120mm_V1.0 1
├
0024 NA00279 clip-chain bag 0.04t*100*150mm_V1.0 1
├
0025 HK08950 PC board P-aVERB Ⅱ-N2-DIP 1
│
├
0001 CB00072 electrolytic capacitor 1000uF/25V φ10*20mm 1 C10
│
├
0002 HI00192 rotary switch 288S0366 2 EN1,EN2
│ ├0003 RC00086 potentiometer A10KΩ*2 RV16A01-20-20F-
A
14-301 2 VR1,VR3
│ ├0004 RC00087 potentiometer B1KΩ*2 RV16A01-20-20F-
B13-301 1 VR2
│
├
0005 HC00108 stereo MIC jac
k
φ6.3 stereo LJB0661-6 5 PJ1,PJ2,PJ3,PJ4,PJ5
│
├
0006 HC00183 DC jack-RS KJ-36-S φ3.5 1 J1
│
├
0007 SA00094 rectifier diode 1N4002/100
V
2 D2,D3
│
├
0008 SD00074 integrated circuit L7805CV(TO220)/(ST) 1 U10
│ ├0009 SB00083 voltage stabilized
transistor-RS-ACT UTC79L05(TO92)/(UTC) 1 U9
│
├
0010 SA00053 L.E.D φ3 round(red)long foot 2 LD1,LD2
│
├
0011 MI00256 heat-sin
k
25*15*10.6-1PIN SCL-2020 1
│
├
0012 MF00037 washe
r
φ3.2*φ5.5*1t 1
│
├
0013 MG00166 screw M3*10 1
│ ├0014 HC00473 connector-RS 2.45mm 180° 2*8P B25-
2*8BG1(B)H=5mm 1 CN2
│
├
0015 NI02249 plastic washe
r
TW-1(TO-220) 1
│
├
0016 HK08951 PC board P-aVERB Ⅱ-N2-SMD 1
│ │ ├0001 CI00007 SMD ceramic capacitor
0805 22PF/50V NPO 4 C24,C27,C28,C29
│ │ ├0002 CI00009 SMD ceramic capacitor
0805 33PF/50V NPO 2 C33,C34
│ │ ├0003 CI00012 SMD ceramic capacitor
0805 47PF/50V NPO 4 C46,C47,C48,C49
│ │ ├0004 CI00018 SMD ceramic capacitor
0805 220PF/50V NPO ±5% 2 C9,C25
7. BOM
- 11 -

Ran
k
Part No. Descri
p
tion S
p
ecification QT
Y
Remark
│ │ ├0005 CI00100 SMD ceramic capacitor
0805 0.1uF/50V X7R ±10% 17
C1,C2,C5,C6,C18,
C19,C20,C21,C22,
C35,C36,C37,C38,
C44,C45,C50,C51
│ │ ├0006 CI00112 SMD ceramic capacitor
0805 0.01uF/50V X7R ±10% 2 C14,C26
│
│
├
0007 RD00002 SMD fixed resistor 1/8W 0.0Ω±5% 0805 1 JP1
│
│
├
0008 RD00006 SMD fixed resistor 1/8W 100Ω±5% 0805 3 R1,R2,R47
│
│
├
0009 RD00009 SMD fixed resistor 1/8W 220Ω±5% 0805 2 R41,R42
│
│
├
0010 RD00010 SMD fixed resistor 1/8W 270Ω±5% 0805 2 R20,R23
│
│
├
0011 RD00014 SMD fixed resistor 1/8W 470Ω±5% 0805 3 R44,R45,R46
│
│
├
0012 RD00018 SMD fixed resistor 1/8W 1.0KΩ±5% 0805 3 R4,R12,R37
│
│
├
0013 RD00027 SMD fixed resistor 1/8W 4.7KΩ±5% 0805 1 R36
│
│
├
0014 RD00031 SMD fixed resistor 1/8W 7.5KΩ±5% 0805 1 R40
│ │ ├0015 RD00032 SMD fixed resistor 1/8W 10KΩ±5% 0805 26
R3,R6,R7,R8,R9,R10,
R11,R14,R15,R16,R17,
R18,R19,R21,R22,R24,
R25,R26,R27,R28,R29,
R30,R31,R32,R33,R34
│
│
├
0016 RD00044 SMD fixed resistor 1/8W 47KΩ±5% 0805 1 R35
│
│
├
0017 RD00056 SMD fixed resistor 1/8W 1.0MΩ±5% 0805 3 R5,R13,R38
│
│
├
0018 RD00057 SMD fixed resistor 1/8W 2.2MΩ±5% 0805 1 R39
│
│
├
0019 RD00267 SMD fixed resistor 1/8W 820KΩ±5% 0805 1 R43
│ │ ├0020 RE00011 SMD resistor networks
1/16W
680Ω*4 ±5% 8P
1206(0603x4
)
2 AR1,AR2
│
│
├
0021 SE00011 SMD rectifier diode RLS4148 0.5A (LL-34) 5 D1,D4,D5,D6,D7
│
│
├
0022 SF00056 transistor MMBT3904(SOT23)/(PHI) 2 TR1,TR2
│
│
├
0023 SG00001 SMD integrated circuit TL074CDT(SO14)/(ST) 3 U1,U2,U3
│
│
├
0024 SG00306 SMD integrated circuit LM393DR(TI)/(MEXICO) 1 U4
│
│
├
0025 SG00044 SMD integrated circuit BU4066F(SOT73)/(PHI) 1 U7
│
│
├
0026 SG00068 SMD integrated circuit 74HC14DT(SO14)/(PHI) 1 U6
│
│
├
0027 SG00469 SMD integrated circuit- SN74HC109DR(SO16)/(TI) 1 U5
│ │ ├0028 AE00449 solder material without
lead 9308/Sn Ag Cu 0.3768
│
│
├
0029 HK08952 PC board P-aVERB Ⅱ-N2-AI 1
│
│
│
├
0001 CB00189 electrolytic capacitor 1.0uF/50V φ4*5mm 2 C41,C42
│
│
│
├
0002 CB00190 electrolytic capacitor 4.7uF/25V φ4*7mm 2 C7,C23
│
│
│
├
0003 CB00192 electrolytic capacitor 10uF/16V φ4*7mm 2 C39,C40
│ │ │ ├0004 CB00194 electrolytic capacitor 47uF/25V φ5*11mm 7 C8,C12,C13,C15,C16,
C17,C43
│
│
│
├
0005 CB00195 electrolytic capacitor 100uF/16V φ6*7mm 2 C3,C4
│
│
│
├
0006 CB00251 electrolytic capacitor 220UF/25V φ8*11mm 1 C11
│
│
│
├
0007 CF00143 metal-film capacitor 0.0015uF/100V 5% CASE01 3 C30,C31,C32
│ │ │ ├0008 HA01919 jump 5mm 25
L1,L2,L3,L4,L5,L6,L7,
L8,L11,L12,L10,L13,
PS1,J28,J29,J37,J40,
J41,J43,J45,J46,J47,
J51,J72,PS1
│ │ │ ├0009 HA02441 jump 7.5mm 30
J50,J49,J48,J44,J42,
J36,J35,J34,J33,J32,
J30,J23,J27,J26,J25,
J24,J18,J16,J15,J12,
J11,J10,J9,J8,J7,J6,
J66,J67,J73,J74
│ │ │ ├0010 HA01925 jump 10mm 22
J62,J61,J60,J59,J58,
J57,J56,J55,J54,J53,
J52,J39,J38,J20,J19,
J14,J5,J4,J3,J2,J65,J69
│
│
│
├
0011 HA01935 jump 12.5mm 6 J63,J64,J68,J70,J71,J17
│
│
│
├
0012 HA01924 jump 9mm 2 J21,J22
- 12 -

Ran
k
Part No. Descri
p
tion S
p
ecification QT
Y
Remark
│
│
│
├
0013 HA01930 jump 15mm 1 J31
│
│
│
└
0014 HB02541 PCB-RS
A
l
p
haverbⅡ
_
VER07061
5
1
│
│
└
0030 SG00243 SMD integrated circuit NE555DR(SO8)/(TI) 1 U8
│
├
0017
A
C00179 tin without lead-RS M705E Sn 3Ag-0.5Cu 8.6
│
├
0018 NI01776 LED spacer suppor
t
LED-3 3mm 2
│
├
0019 ME0001
5
color nut 3m/m 4
│
├
0020 MG00036 screw M3*4 4
│
├
0021 MG00284 copper pillar M3*8*0.5PH 4
│
├
0022 HK04336 PC board P-313123-DIP(TOPVerb
)
1
│
│
├
0001 SC00004 crystal oscillator 16.00MH
Z
1XT
│ │ ├0002 HC00512 connector 2.54 180°2*8P(gold-plated)
4/9.5mm 1 CN2
│
│
├
0003 SG00300 SMD integrated circuit SST39VF010-70n/TOPVer
b
1 IC4
│
│
├
0004 NE13363 label TOPVerb_V1.0 1
│
│
├
0005 HK03894 PC board-RS-AC
T
P-313123-SMD(L-8) 1
│
│
│
├
0001 HB00895 PCB 313123/2(1*6) 1
│ │ │ ├0002 CI00075 SMD ceramic capacitor
0603 0.1uF/50V Y5V +80,-20% 13
C17,C15,C18,C6,C10,
C22,C20,C13,C14,C1,
C3,C4,C11
│
│
│
├
0003 RD00061 SMD fixed resisto
r
10Ω±5% 0603 1 R22
│ │ │ ├0004 RD00068 SMD fixed resistor
1/10W 100Ω±5% 0603 8 R12,R14,R7,R8,R34, R17,R13,R33
│
│
│
├
0005 RD00073 SMD fixed resisto
r
220Ω±5% 0603 1 R3
│ │ │ ├0006 RD00085 SMD fixed resistor
1/10W 1.5KΩ±5% 0603 10 R16,R15,R21,R20,R4, R19,R10,R18,R9,R5
│ │ │ ├0007 RD00088 SMD fixed resistor
1/10W 2.2KΩ±5% 0603 8 R28,R27,R23,R24, R29,R30,R25,R26
│
│
│
├
0008 RD00101 SMD fixed resisto
r
10KΩ±5% 0603 3 R32,R31,R1
│
│
│
├
0009 RD0012
5
SMD fixed resisto
r
1.0MΩ±5% 0603 1 R2
│ │ │ ├0010 RE00006 SMD resistor networks
1/16W
100KΩ*4 ±5% 8P
1206(0603x4
)
2 AR1,AR2
│
│
│
├
0011 SE00011 SMD rectifier diode RLS4148 0.5A (LL-34) 1 D1
│
│
│
├
0012 SG00068 SMD integrated circuit 74HC14DT(SO14)/(PHI) 1 IC1
│ │ │ ├0013 SG00410 SMD integrated circuit-
RS-AC
T
IC41LV16256-
35KG(SOJ40)/(ICSI) 1 IC6
│
│
│
├
0014 SG00166 SMD integrated circuit TY-2 1 IC3
│
│
│
├
0015 SG00037 SMD integrated circuit LD1117DT33C(TO252)/(ST
)
1 IC2
│
│
│
├
0016 HC00611 IC socket (SMD) PLCC32 (AMP S/N:822516
-
1 IC4
│
│
│
├
0017 SG00016 SMD integrated circuit UDA1345TS(SSOP28)/(PHI
)
1 IC5
│ │ │ ├0018 AE00449 solder material without
lead 9308/Sn Ag Cu 0.3864
│ │ │ └0019 CI00264 SMD ceramic capacitor-
RS 0603 15PF/50V NPO ±5﹪2 C8,C9
│
│
├
0006
A
C00179 tin without lead-RS M705E Sn 3Ag-0.5Cu 5.058
│ │ └0007 CB00166 electrolytic capacitor 100uF/16V φ6*5mm 11
C19,C12,C5,C2,
C24,C16,C21,C25,
C26,C28,C7
│
└
0023 RA01234 fixed resistor 1/4W 4.7KΩ1 R48
├0026 NB02141 carton a VERB;a COMP;a
MICTUBE ALT
O
1
├
0027 NB05581 inner case-RS αVERB ⅡALTO
_
V1.0 1
├
0028 MG00538 screw M3*10*0.5PH_V1.0 4
├
0029 NF02910 user manual-RS αVERBⅡALTO
_
V1.0 1
└
0030 NE05847 label-RS-AC
T
aVERB II_V1.0 1
- 13 -

8. EXPLODED VIEWS & MECHANICAL PARTS LIST
- 14 -

No. Part No. Description Specification QTY
1 NI00501 self-adhesive foot cushion-RS 12.7*9*3t
(
SF-004
)
4
2 NI00363
p
lastic knob-RS-C
φ
21*16mm COOL GRAY 8C 072C
_
1
3 NI00002
p
lastic nut-RS
φ
7/16"*G20/15*4.8 5
4 NI02386
p
lastic knob-RS-C
φ
14*13mm
(
cool
g
ra
y
8C 072C 1
5 NC00131 T-washer-RS-ACT 1*
φ
11.3*
φ
15.3 red 5
6 MG0028 co
pp
er
p
illar-RS M3*8*0.5PH 14 4
7 MF00014 washer-RS-ACT-zinc
p
lated
φ
3*
φ
6.5*0.5t 2
8 MG0003 screw-RS M3*4 4
9 MG0016 nickle screw-RS M3*8 2
10 HK04336 K-PCB 313123-DIP
(
TOPVerb
)
1
11 MC0099 ZB-to
p
cover-RS-5252 aVERB Ⅱ
_
V1.0 1
12 NI04999 knob-RS-CT-ABS
φ
8.5*4
(
123U
y
ellow
)_
V1.0 2
13 NI04998 knob-RS-CT-ABS
φ
8.5*4
(
298C blue
)_
V1.0 1
14 NI04996
p
lastic knob-RS-CT-
φ
11*19
(
5445C
g
ra
y)_
V1.0 3
15 MB05584 ZC-chassis-RS- αVERB Ⅱ_V1.0 1
16 MA07059 ZC-front panel-RS-5063 blue αVERB ⅡALTO_V1.0 1
17 HK08950 K-PCB aVERB Ⅱ-N2-DIP 1
18 MG0002 screw-RS M3*6 6
19 ME00015 color nut-RS 3mm 4
- 15 -
MECHANICAL PARTS LIST
