Altrad BELLE User manual
1

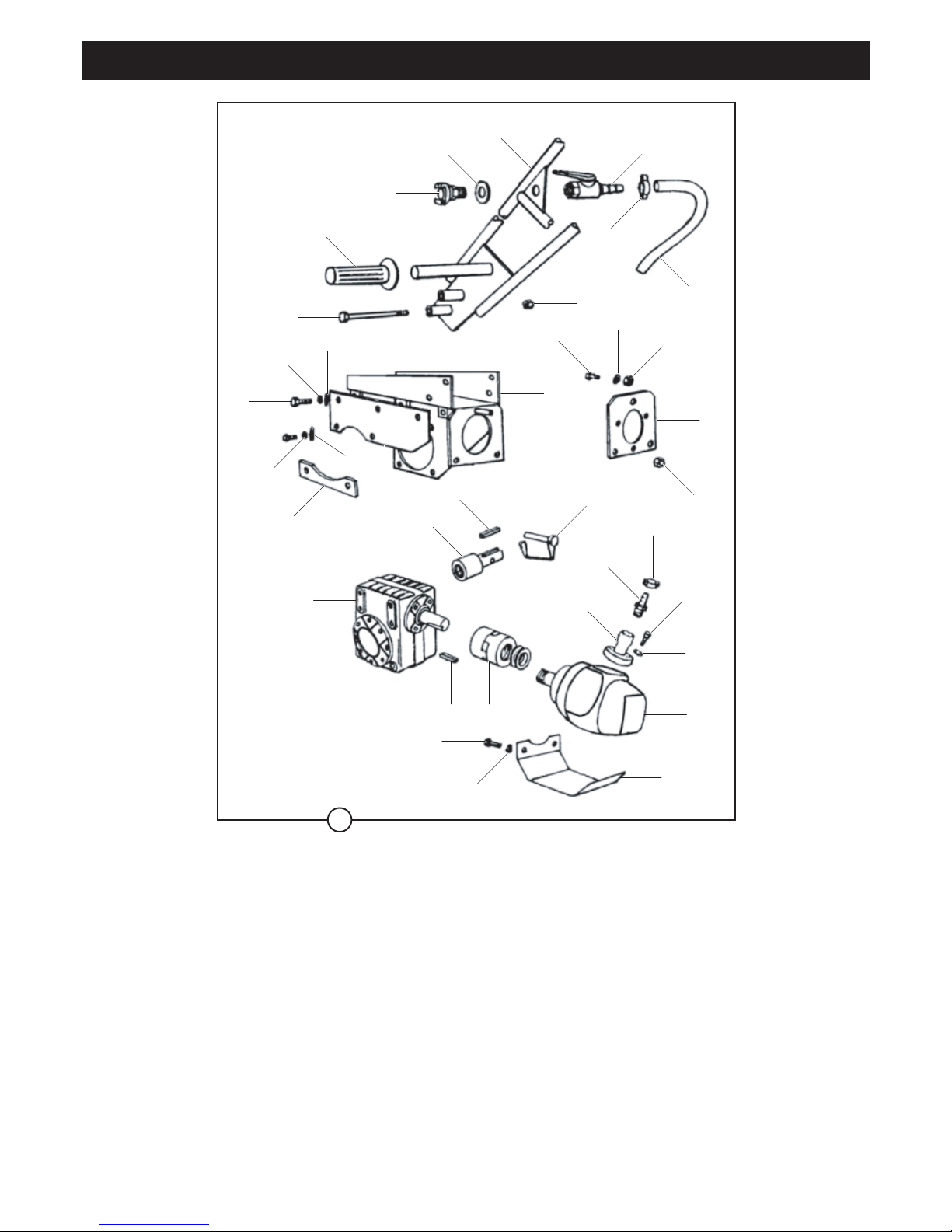

• Spare Parts Book
870/20008/4
07/18
Operators Manual
GB
10
BELLE
ROLLER STRIKER
4
2
Managing Director - On behalf of BELLE GROUP (SHEEN) UK.
Le Directeur Général - Pour le compte de la SOCIETE BELLE GROUP (SHEEN) UK.
Director Gerente - En nombre de BELLE GROUP (SHEEN) UK.
Director-Geral - Em nome de BELLE GROUP (SHEEN) UK.
Algemeen Directeur - Namens BELLE GROUP (SHEEN) UK.
Administrerende direktør – På vegne af BELLE GROUP (SHEEN) UK.
PRODUCT TYPE ................. TYPE DE PRODUIT.............. TIPO DE PRODUCTO..........
MODEL................................. MODELE............................... MODELO ..............................
SERIAL No........................... N° DE SERIE........................ N° DE SERIE........................
DATE OF MANUFACTURE. DATE DE FABRICATION ..... FECHA DE FABRICACIÓN..
SOUND POWER LEVEL NIVEAU DE PUISSANCE NIVEL DE POTENCIA
MEASURED / SONORE MESUREE / ACÚSTICA MEDIDO /
....................(GUARANTEED) ............................(GARANTIE) ..................(GARANTIZADO)
WEIGHT............................... POIDS................................... PESO....................................
We, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, hereby certify that if the product described within this certificate is bought from an
authorised Belle Group dealer within the EEC, it conforms to the following EEC directives: 2006/42/CE (This directive replaces directive 98/37/EC), Electromagnetic
Compatibility Directive 2004/108/CE (as amended by 89/336/EEC, 92/31/EEC & 93/68 EEC). The Waste Electrical and Electronic Equipment (WEEE) 2002/96/CE, the
low voltage directive 2006/95/CE, BS EN ISO 12100-1:2003 Safety of machinery and associated harmonised standards, where applicable. Noise emissions conform to
directives 2000/14/EC Annex VI & 2005/88/EC
Noise Technical files are held by Ray Neilson at the Belle group Head Office address which is stated above.
Nous soussignés, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, certifions que si le produit décrit dans ce certificat est acheté chez un
distributeur autorisé Belle Group au sein de la CEE, il est conforme aux directives CEE ci-après: 2006/42/CE (Cette directive remplace la norme 98/37/CE), Directive
compatible pour l'électromagnisme 2004/108/CE (modifié par 89/336/EEC, 92/31/EEC & 93/68 EEC). Les déchets électriques, et d’équipement électronique 2002/96/CE,
caractéristiques basse tension 2006/95/CE, BS EN ISO 12100-1:2003 Directive de sécurité des machines et des critères associés et configurés, si applicable. Les
émissions de bruit sont conformes à la directive 2000/14/EC Annexe VI et 2005/88/EC.
Les fichiers techniques des émissions sonores sont détenus par Ray Neilson à l’adresse du Siège du Groupe Belle qui est indiqué ci-dessus.
La Sociedad, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK 17 OEU, GB, por el presente documento certifica que si el producto descrito en este
certificado es comprado a un distribuidor autorizado de Belle Group en la CEE, este es conforme a las siguientes directivas: 2006/42/CE de la CEE (Esta directiva
sustituye a la Directiva 98/37/CE), Directiva 2004/108/CE sobre Compatibilidad Electromagnética (según enmiendas 89/336/EEC, 92/31/EEC & 93/68 EEC). Los
residuos eléctricos y electrónicos (RAEE) 2002/96/CE, Directiva sobre Bajo Voltaje 2006/95/CE, BS EN ISO 12100-1:2003 de Seguridad de Maquinaria y Niveles
armonizados estándares asociados donde sean aplicables. Emisión de Ruídos conforme a la Directiva 2000/14/CE Anexo VI y 2005/88/EC.
Archivos de ruido técnicos están en manos de Ray Neilson en la dirección del grupo Belle Sede de la que se ha dicho.
O signatário, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK 0EU, GB, pelo presente, declara que se o produto descrito neste certificado foi adquirido a
um distribuidor autorizado do Belle Group em qualquer país da UE, está em conformidade com o estabelecido nas seguintes directivas comunitárias: 2006/42/CE (Esta
directiva substitui a Directiva 98/37/EC), Directiva de Compatibilidade Electromagnética 2004/108/CE (conforme corrigido pelas 89/336/EEC, 92/31/EEC & 93/68 EEC).
O Eléctrico de Desperdício e Equipamento Electrónico (DEEE) 2002/96/CE, a directiva de baixa voltagem 2006/95/CE, BS EN ISO 12100-1:2003 Segurança da
maquinaria e às normas harmonizadas afins se aplicáveis. As emissões de ruído respeitam e estão dentro das directivas para máquinas 2000/14/EC Anexo VI &
2005/88/EC.
Arquivos de ruído técnicos são detidos por Ray Neilson no endereço Escritório Belle grupo Cabeça que é dito acima.
Ondergetekende, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 OEU, GB, verklaren hierbij dat als het product zoals beschreven in dit certificaat is
gekocht van een erkende Belle Group dealer binnen de EEG, het voldoet aan de volgende EEG richtlijnen: 2006/42/CE (Deze richtlijn vervangt Richtlijn 98/37/EC),
Electromagnetische Compatability Richtlijn 2004/108/CE (geamendeerd door 89/336/EEC, 92/31/EEC & 93/68 EEC). De afgedankte elektrische en elektronische
apparatuur (AEEA) 2002/96/CE, de Laagspannings Richtlijn 2006/95/CE, BS EN ISO 12100-1:2003 Veiligheid van Machines en hieraan gekoppelde geharmoniseerde
Standaarden, waar deze van toepassing is. Geluidshinder te voldoen aan de richtlijnen 2000/14/EG en 2005/88/EG bijlage VI.
Lawaai Technische dossiers zijn in handen van Ray Neilson op de Belle groep hoofdkantoor adres, dat staat boven
Vi, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, erklærer hermed, at hvis det i dette certifikat beskrevne produkt er købt hos en autoriseret
Belle Group forhandler i EU, er det i overensstemmelse med følgende EØF-direktiver: 2006/42/CE (Dette direktiv erstatter direktiv 98/37/EF), 2004/108/EØF (som ændret
ved 89/336/EEC, 92/31/EØF & 93/68 EØF), Affald af elektrisk og elektronisk udstyr (WEEE) 2002/96/CE, og tilknyttede, harmoniserede standarder, hvor relevant.
Støjniveauet er i overensstemmelse med direktiv 2006/95/CE, BS EN ISO 12100-1:2003. Støjemission i overensstemmelse med direktiverne 2000/14/EF bilag VI og
2005/88/EF.
Støj Tekniske filer er i besiddelse af Ray Neilson på Belle-gruppen hovedkontoret adresse, som er nævnt ovenfor.
EC DECLARATION OF CONFORMITY / DECLARATION CE DE CONFORMITE / DECLARACIÓN
DE CONFORMIDAD CE / DECLARAÇÃO CE DE CONFORMIDADE / EG-VERKLARING
VAN OVEREENSTEMMING / EF OVERENSSTEMMELSESERKLÆRING
Ray Neilson
TIPO DE PRODUCTO.......... PRODUCTTYPE................... PRODUKTTYPE...................
MODELO.............................. MODEL ................................. MODEL.................................
NO. DE SÉRIE ..................... SERIENUMMER ................... SERIENR..............................
DATA DE FABRIC................ FABRICAGEDATUM ............ FREMSTILLINGSDATO .......
NIVEL DE POTÊNCIA GEMETEN LYDEFFEKTNIVEAU
DE SOM MEDIDO / GELUIDSSTERKTENIVEAU / MÅLT /
.......................(GARANTIDO) ...............(GEGARANDEERD) ...................(GARANTERET)
PESO.................................... GEWICHT............................. VÆGT...................................
GB
F
E
P
NL
DK
Signed by:
Signature:
Medido por:
Assinado por:
Getekend door:
Uunderskrevetaf:
Place of Declaration - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Date of Declaration - 1993 ...........................................................................
Lieu de déclaration - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Date de déclaration - 1993...........................................................................
Declaración hecha en - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Fecha de la declarachón - 1993 ..................................................................
Lugar de Declaração - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data da Declaração - 1993...........................................................................
Plaats van de Verklaring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Datum van de verklaring - 1993 ..................................................................
Sted i erklæring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Dato for erklæringen - 1993.........................................................................
3
Мы, нижеподписавшиеся, от имени Belle Group Sheen (Великобритания), Sheen, Nr. Buxton, Derbyshire SK17 0EU, Великобритания, заявляем, что в случае,
если описанная в данном сертификате продукция была приобретена у уполномоченного представителя Белле Груп в ЕС, то она соответствует следующим
директивам ЕС: 2006/42/CE (Эта директива заменяет директиву 98/37/ЕЕС), директиве электромагнитной совместимости 2004/108/CE (дополненной
89/336/EEC, 92/31/EEC & 93/68 EEC). Утилизации электрического и электронного оборудования (WEEE) 2002/96/CE. директиве в области низкого напряжения
2006/95/CE, по применимым параметрам стандарту BS EH ISO 12100-1:2003 «Безопасность машин и связанные с этим гармонизированные стандарты».
Уровень шума в соответствии с директивами 2000/14/EC и 2005/88/EC Приложение VI
Шум технического файлы хранятся Рэй Нельсон на руководителя группы Belle Управления адрес, который указан выше.
Meie, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, kinnitan, et kui kirjeldatud toote jooksul käesoleva sertifikaadi on ostetud lubatud Belle
nimel vahendaja jooksul EMÜ, see vastab järgmistele EMÜ direktiividele: 2006/42/CE (käesolev direktiiv asendab direktiivi 98/37/EÜ) , elektromagnetilise ühilduvuse
direktiivi 2004/108/CE (muudetud 89/336/EMÜ, 92/31/EMÜ ja 93/68 EMÜ). Ja elektroonikaseadmete jäätmete (WEEE) 2002/96/CE, madalpinge direktiivi 2006/95/CE,
BS EN ISO 12100-1:2003 Masinate ohutus ning sellega seotud ühtlustatud standarditele, kui see on kohaldatav. Müratase vastavalt direktiivide 2000/14/EÜ ja
2005/88/EÜ VI lisa.
Müra Tehniline faile hoitakse Ray Neilson kell Belle grupi peakontor aadress, mis on märgitud eespool.
Mēs, Belle Group Sheen UK, Nr. Buxton, Derbyrshire, SK17 0EU, ar šo apliecinām, ar šo apliecinu, ka gadījumā, ja produkts aprakstīts šajā sertifikātā ir iegādājies
no pilnvarota Belle grupas dīlera teritorijā EEK, tā atbilst šādām EK direktīvām: 2006/42/CE (Šī direktīva aizvieto Direktīvu 98/37/EK) , Elektromagnētiskās saderības
direktīvu 2004/108/CE (kurā grozījumi izdarīti ar 89/336/EEK, 92/31/EEK un 93/68 EEK). Elektrisko un elektronisko iekārtu atkritumiem (EEIA), 2002/96/CE,
zemsprieguma directive 2006/95/CE, BS EN ISO 12100-1:2003 Mašīnu drošība un saistītos saskaņotus standartus, ja vajadzīgs. Trokšņa emisiju saskaņā ar Direktīvu
2000/14/EK un 2005/88/EK VI pielikumu.
Trokšņa Tehniskās faili tur Ray Neilson pie Belle grupas galvenā biroja adrese, kas norādīts iepriekš.
Mes, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK 0EU, GB, patvirtinu, kad jei produktas, kaip aprašyta šio sertifikato pirkti iš leidžiama Belle frakcijos
atstovas pagal EEB, jis atitinka šiuos EEB direktyvas: 2006/42/CE (ši direktyva pakeičia Direktyvą 98/37/EB) , elektromagnetinio suderinamumo direktyvos 2004/108/CE
(su pakeitimais, padarytais 89/336/EEB, 92/31/EEB ir 93/68 EEB). Elektros ir elektroninės įrangos atliekų (EEĮ atliekų), 2002/96/CE, Žemosios įtampos įrangos direktyvą
2006/95/CE, LST EN ISO 12100-1:2003 Mašinų sauga ir susiję darnieji standartai, jei taikytina. Triukšmo emisijos pagal Direktyvų 2000/14/EB ir 2005/88/EB VI priedo.
Triukšmo Techniniai failai vyks Ray Neilson Belle grupės buveinės adresu, kuris nurodytas aukščiau.
се удостоверява че ако стоката е описано в този сертификат е закупен от
оторизиран дилър група в рамките на ЕИО то отговаря на следните директиви на ЕИО настоящата директива заменя Директива ЕО
електромагнитна съвместимост Директива както е изменен с ЕИО ЕИО ЕИО За отпадъците от електрическо и електронно
оборудване ОЕЕО ниското напрежение директива Безопасност на машините и свързаните с тях
хармонизирани стандарти когато е приложимо Шумовите емисии в съответствие с директиви ЕО и ЕО на приложение
Шум Технически файлове се провеждат от Рей Нийлсън в групата адрес Belle централното управление, което е посочено по-горе.
Εμείς, η Belle Group, Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, Μεγάλη Βρετανία, βεβαιώνω ότι, αν το προϊόν που περιγράφεται σε αυτό το
πιστοποιητικό έχει αγοραστεί από εξουσιοδοτημένο αντιπρόσωπο Belle ομάδα στο εσωτερικό της ΕΟΚ, θα συμμορφώνεται με τις ακόλουθες οδηγίες ΕΟΚ: 2006/42/CE
(Η παρούσα οδηγία αντικαθιστά την οδηγία 98/37/ΕΚ) , Ηλεκτρομαγνητική Συμβατότητα οδηγία 2004/108/CE (όπως τροποποιήθηκε από την 89/336/ΕΟΚ, 92/31/ΕΟΚ και
93/68 ΕΟΚ). Τα Απόβλητα Ηλεκτρικού και Ηλεκτρονικού Εξοπλισμού (ΑΗΗΕ) 2002/96/CE, η οδηγία 2006/95/CE χαμηλής τάσης, BS EN ISO 12100-1:2003 Ασφάλεια
μηχανών και των σχετικών εναρμονισμένων προτύπων, ανάλογα με την περίπτωση. Εκπομπών θορύβου σύμφωνα με τις οδηγίες 2000/14/ΕΚ και 2005/88/ΕΚ του
παραρτήματος VI.
Οι θορύβου Τεχνικά αρχεία που κατέχονται από Ray Neilson στην ομάδα Belle Διεύθυνση έδρας που αναφέρεται παραπάνω.
СЕРТИФИКАТ СООТВЕТСТВИЯ / EÜ VASTAVUSDEKLARATSIOON / ATBILSTĪBAS
DEKLARĀCIJA / ES ATITIKTIES DEKLARACIJA /
ΕΕ ΔΗΛΩΣΗ ΚΑΤΑΛΛΗΛΟΤΗΤΑΣ
Ray Neilson
RUS
EST
LV
LT
BG
GR
Место декларирования - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Дата декларирования - 1993.....................................................................
Koht deklaratsiooni - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Deklaratsiooni kuupäev - 1993....................................................................
Vietas deklarāciju - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Dienas deklarācija - 1993.............................................................................
Vieta deklaracijos - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data deklaracijos - 1993 ..............................................................................
Дата на декларация - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Място на декларация - 1993......................................................................
Τόπος Διακήρυξης - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Ημερομηνία δήλωσης - 1993.......................................................................
ТИП ПРОДУКЦИИ............... TOOTE TÜÜP....................... PRODUKTA TIPS.................
МОДЕЛЬ.............................. MUDEL ................................. MODELIS..............................
СЕРИЙНЫЙ НОМЕР.......... SERIANUMBER ................... SĒRIJAS NR. ......................
ДАТА ВЫПУСКА ................ VALMISTAMISE KUUPÄEV. IZGATAVOŠANAS DATUMS
УРОВЕНЬ ШУМА ЗАМЕР HELITUGEVUSE TASE IZMĒRĪTAIS SKAŅAS
ПРОИЗВЕДЕН / MÕÕDETUD / JAUDAS LĪMENIS /
...............(ГАРАНТИРОВАН) ..............(GARANTEERITUD) ....................(GARANTĒTAIS)
АСТОТА ........................... KAAL .................................... MASA....................................
GAMINIO TIPAS .................. ВИД НА ПРОДУКТА............ Τύπος προϊόντος..........
MODELIS ............................. МОДЕЛ................................. Μοντέλο ............................
SERIJOS NR. ...................... СЕРИЕН НОМЕР................. Αριθμός Σειράς..............
PAGAMINIMO DATA............
ДАТА НА ПРОИЗВОДСТВО
.. Μετρημενη.......................
GARSO STIPRUMO НИВО НА СИЛАТА НА Σταθμη Θορυβου
LYGIS IŠMATUOTAS / ЗВУКА ИЗМЕРЕНО /
Κατα Την Ημερομηνια
.................(GARANTUOTAS) ...................(ГАРАНТИРАНО)
Κατασκευησ / (Εγγυημενη)
SVORIS................................ TЕО
Л.................................. Βάρος...................................
исполнительный директор от имени БЕЛЛЕ ГРУП ШИИН (ВЕЛИКОБРИТАНИЯ).
Tegevdirektor - BELLE GROUP (SHEEN) UK poolt.
Vadošais direktors - Pārstāvot BELLE GROUP (SHEEN) UK.
Generalinis direktorius - BELLE GROUP (SHEEN) UK vardu.
Pe - BELLE GROUP (SHEEN) UK.
Διευθύνων Σύμβουλος – εκ μέρους της BELLE GROUP (SHEEN) Μεγάλη Βρετανία.
Подпись
:
Alla kirjutanud:
Paraksts:
Pasiraše:
Подпис
:
Υπογραφή:
4
How To Use This Manual
GB
The life of the operator can be at risk.
WARNING
The product can be at risk. The machine or yourself can be damaged or injured if procedures are not
carried out in the correct way.
CAUTION
WARNING
GB
Contents
KNOW how to safely use the unit’s controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the
machine off before you switch on, in case you get into difculty.)
ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use
or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): +44 (0) 1298 84606
GB
This manual has been written to help you operate and service the ‘Roller Striker’ safely. This manual is intended for dealers and opera-
tors of the ‘Roller Striker’ .
Foreword

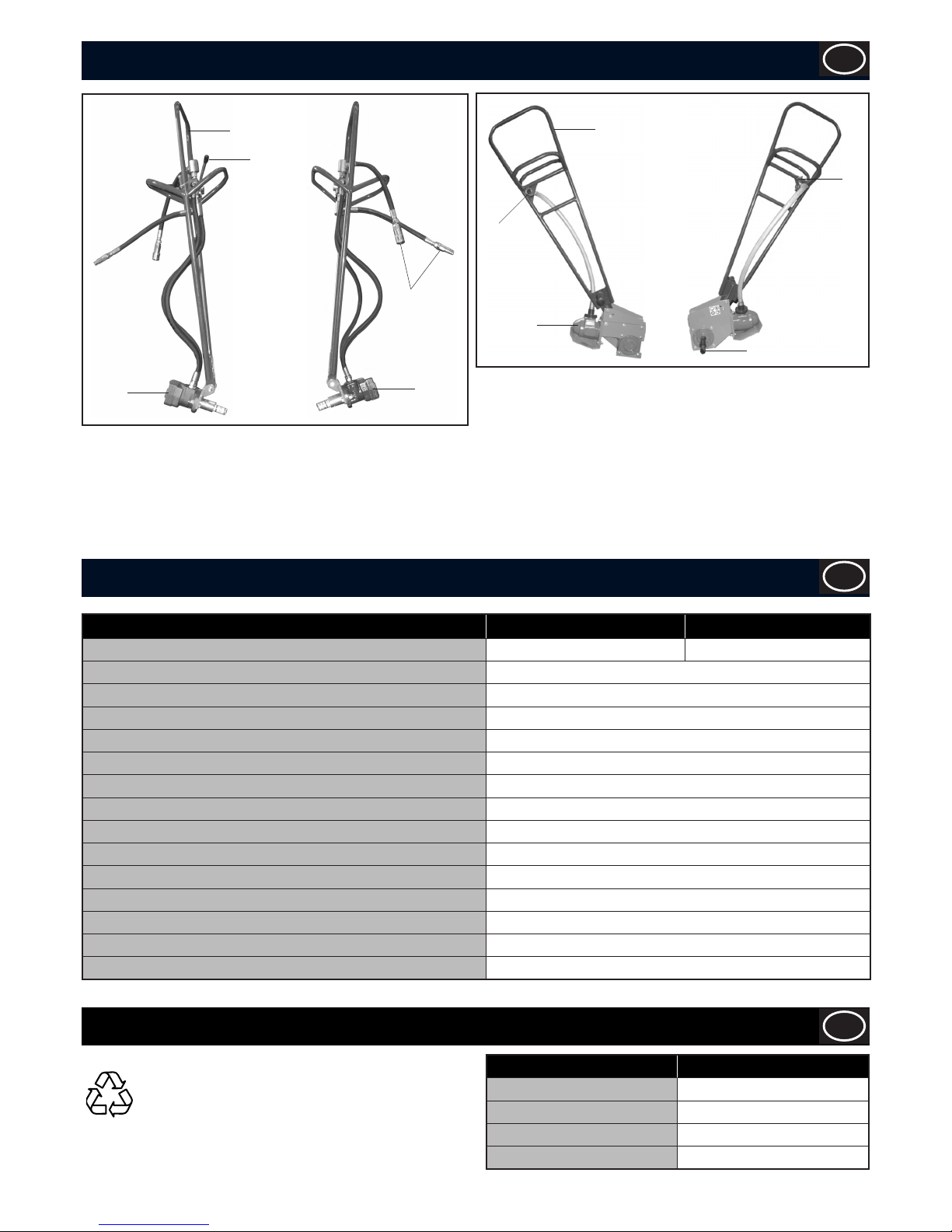

The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.
The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.
The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the
general public.
The ‘Operating Instructions’ section helps you with the setting up and use of the machine.
The ‘Trouble Shooting’ guide helps you if you have a problem with your machine.
The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine.
The ‘Warranty’ Section details the nature of the warranty cover and the claims procedure.
The ‘Declaration of Conformity’ section shows the standards that the machine has been built to.
Directives with regard to the notations.
Text in this manual to which special attention must be paid are shown in the following way:
How to use this manual .............................................................................................................................................................................4
Warning ......................................................................................................................................................................................................4
Machine Description...................................................................................................................................................................................5
Technical Data............................................................................................................................................................................................5
Environment ...............................................................................................................................................................................................5
General Safety ...........................................................................................................................................................................................6
Health and Safety ......................................................................................................................................................................................6
Pre-Start Checks........................................................................................................................................................................................6
Operating Instructions .......................................................................................................................................................................... 7 - 8
Trouble Shooting Guide .............................................................................................................................................................................8
Service & Maintenance ..............................................................................................................................................................................9
Declaration of Conformity ..........................................................................................................................................................................9
Altrad Belle reserves the right to change machine specication without prior notice or obligation.
WARNING Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY
this manual.
5
Machine Description
GB
Technical Data
GB
Pneumatic Option
1. Motor
2. Compressor Claw
3. Operating Handle
4. Control Lever
5. Drive Connector
3
2
1
5
4
10
7
8
9
6
Hydraulic Option
6. Motor
7. Control Lever
8. Couplings
9. Drive Connector
10. Operating Handle
Environment
GB
Safe Disposal
Instructions for the protection of the environment.
The machine contains valuable materials. Take the
discarded apparatus and accessories to the relevant
recycling facilities.
Model Roller Striker Sectional Roller Striker
Tube Length (M) 3.66 - 7.92 2.2 - 7.2
Machine Weight - Hydraulic (kg) 24
Machine Weight - Pneumatic (kg) 29
Motor Power - Hydraulic (hp) 3
Motor Power - Pneumatic (hp) 2.2
Max. Drive Speed - Hydraulic (rpm) 500
Max. Drive Speed - Pneumatic (rpm) 250
Pressure Required - Hydraulic (Bar) 140
Pressure Required - Pneumatic (Psi) 90
Flow Rate - Hydraulic (l/min) 30
Flow Rate - Hydraulic (cfm) 50
3 Axis Vibration - Hydraulic (M/Sec2)4.00
3 Axis Vibration - Pneumatic (M/Sec2)4.06
Usage Time - Hydraulic (Mins) 187.5
Usage Time - Pneumatic (Mins) 182.0
Component Material
Operator Handle Steel
Handle Grips Rubber
Main Tube Steel
Various Parts Steel, Rubber & Aluminium
6
General Safety
GB
For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following
safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely.
If you are unsure about the safe and correct use of the ‘Roller Striker’, consult your supervisor or Altrad Belle.
• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorized personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difculty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
• During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattend-
ed.
• Always ensure that no person or obstruction is in your line of travel. Watch your step to avoid tripping.
• Never remove or tamper with any guards / pipes tted, they are there for your protection. Always check guards for condition and
security, if any are damaged or missing, DO NOT USE THE MACHINE until the guard / pipe has been replaced or repaired.
• Do not operate the MACHINE when you are ill, feeling tired, or when under the inuence of alcohol or drugs.
Improper maintenance can be hazardous. Read and Understand this section before you perform any
maintenance, service or repairs.
CAUTION
Health & Safety
GB
Vibration.
Some vibration from the Roller Striker is transmitted through the handle to the operator’s hands. Refer to specications & technical data
for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.
PPE (Personal Protective Equipment).
Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped
footwear. Wear clothing suitable for the work you are doing. Always protect skin from contact with concrete. Suitable ear defenders
should be used.
Pre-start Checks
GB
Pre start-up inspection.
The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use,
whichever is rst. Please refer to the service section for detailed guidance. If any fault is discovered, the Roller Striker must not be
used until the fault is rectied.
1. Thoroughly inspect the Roller Striker for signs of damage. Check that the handles are securely attached.
2. Check uid lines, hoses ller openings, drain plugs and any other areas for signs of leakage. Fix any leaks before operating.
3. Inspect the entire unit for loose bolts/nuts and retighten/replace as necessary.
4. Sectional models only - Ensure that the sections are securely assembled before use.
7
Fig.2

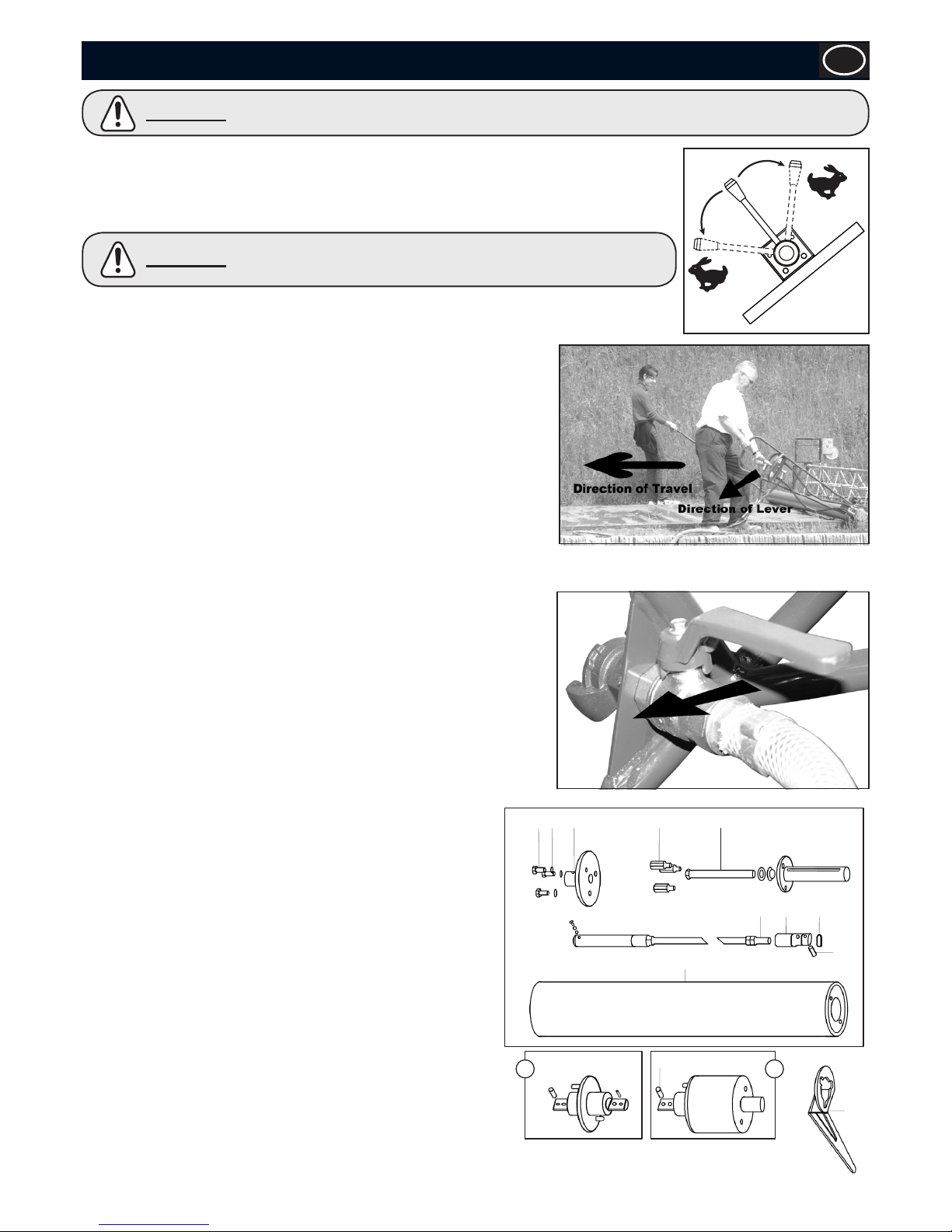

Operating Instructions
GB
Improper operation can be hazardous. Ensure that you are familiar with the operation of the
Compressor and the Roller Striker before use.
CAUTION
Start and Stop procedure - Hydraulic Models
1. Refer to the manufacturers Operating Instructions Manual for the start up procedure for Hydraulic
Power Packs.
2. Ensure that before starting the Power pack that all connections are tight and that the control valve
on the striker is in the NEUTRAL position (See Fig. 1)
N
Fig.1
Always ensure the operators are in control of the Roller Striker before
moving the lever on the Power Pack from Bypass to Flow to prevent
the striker operating unexpectedly.
CAUTION
3. Ensure that you move the control lever to the correct position for the direction of
travel (See Fig. 2)
4. This will ensure that the striker is rotating in the opposite direction to that in
which it is being pulled.
5. To start the roller striker, move the Control Lever slowly to the DRIVE
position as indicated below (See Fig. 2)
6. To stop the roller striker, move the Control Lever to the NEUTRAL position
(See Fig. 1)
Start and Stop procedure - Pneumatic Models
1. Refer to the manufacturers Operating Instructions Manual for the start up
procedure for Compressors.
2. Ensure that before starting the Compressor that all connections are tight and
that the control valve on the striker is in the CLOSED position.
3. To start the roller striker, move the Control Lever to the OPEN position.
4. To stop the roller striker, move the Control Lever to the CLOSED position.
Fig.2 shows the Pneumatic Contol Lever in the OPEN position, with arrow indicating direction for CLOSED position.

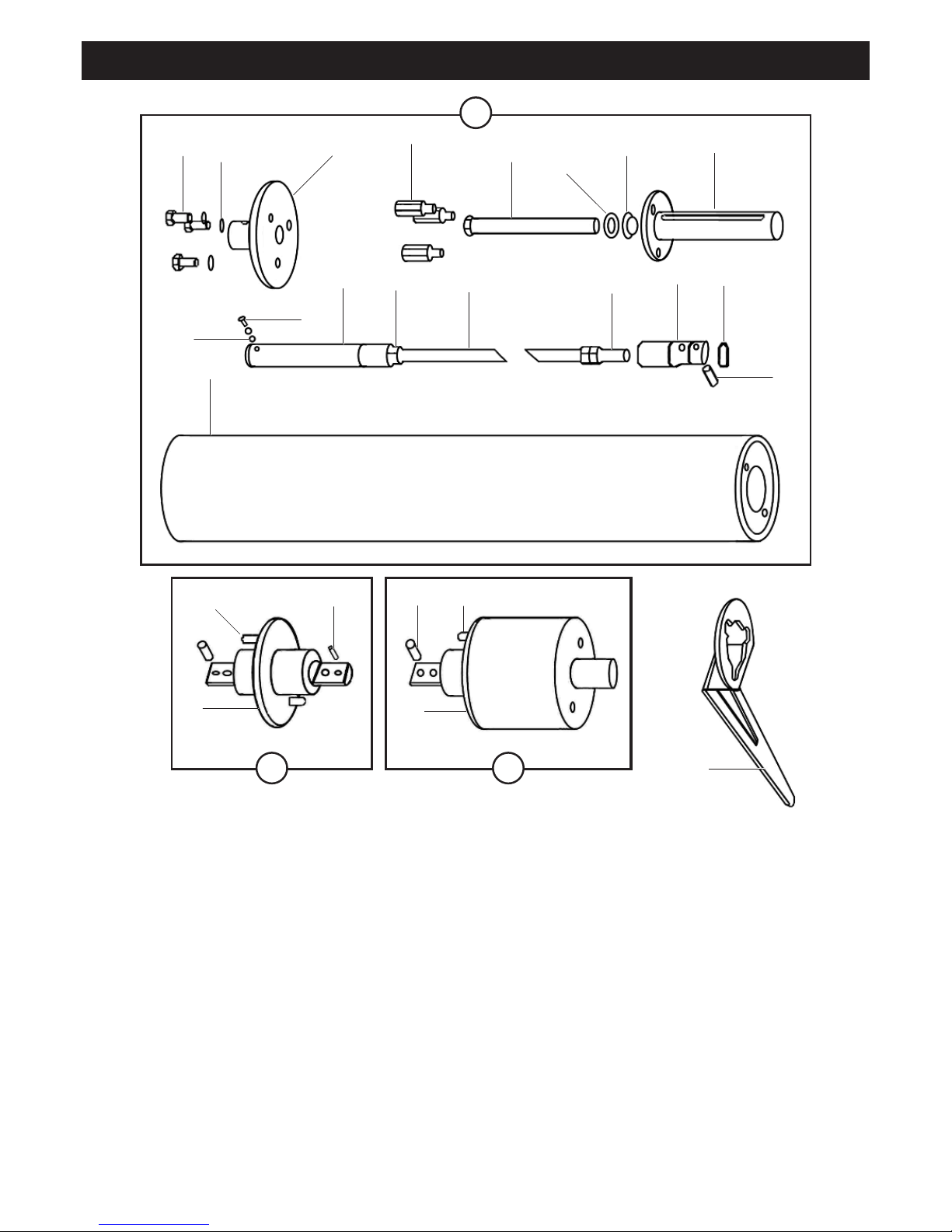

Assembly of Sectional Tube.
Using the 3 tubes as individuals with the short drive end or combining 2 lengths
with the adaptor plate it is possible to make tubes of the following lengths : 2.2,
3.2, 4.2, 5.2, 6.2 and 7.2 metres.
Tools required:
- 24mm Socket (19.1.270) - 17mm Socket (19.1.404)
- Torque Wrench (19.1.827) - Special Tool (150040)
Assembly Instructions
1. Remove setscrews (A), washers (B) and drive plate (C).
2. Fit special tool (D) around hexagon spacers (E).
3. Slacken off the tension screw (F) until the connector (G) is fully
exposed.
4. Check the tension of threaded dowel (H) & (I).
5. Screw the link rod (G) up to the nut (J) and then unscrew 1/2 a
turn. This will allow you to connect the two ends tightly together.
6. Connect the adaptor plate (K) or short drive end (L) to the
connector (G) and slide the securing ring (M) into the centre
groove.
7. Push the adaptor plate (K) into the tube (N).
8. With the special tool (D) still in position, tighten the tension screw
(F) to 100Nm.
9. Replace the end plate (C), washers (B) and setscrews (A).
10. Repeat the procedure to connect the second length of tube if
required.
11. For disassembly, reverse the procedure.
Fig.3
I
D
ABCE F
M
H
G
N
J
K L
Fig.4
8
Operating Instructions
GB
Always ensure that you are aware of the direction of travel when using the roller striker. If you incorrectly
engage the drive mechanism you will not only endager yourself , but also endager the other operator(s)
CAUTION
Take the Roller Striker to where it is required.
If the Roller Striker is to be transported to another location, ensure that the Striker is not rotating and that the Hydraulic / Pneumatic
pipes are disconnected. NEVER transport the Roller Striker whilst it is still connected to the Drive source, even if it is only being moved
a short distance.
When using a sectional roller striker, ensure:
a) that the indIvidual tubes have been disassembled fully before transporting.
b) that the tubes have been correctly connected together before using the machine.
Having carried out the checks listed in the ‘pre start’ section, you may connect it to the drive source and move the control
lever to the ON or DRIVE position.
When positioned correctly the tube will start rotating away from the operator. Ensure that the other operative knows you are going to
start the machine. ALWAYS check the tube for any signs of unusual noise. If this occurs, stop the machine immediately and refer to the
troubleshooting section. The Roller Striker will then require a consistent pulling movement to attain a consistent nish.
Communication.
Bad communication can cause accidents. If two or more people are working with the machine, make sure that each person is aware of
what the others are doing. Before starting the machine make sure that others are clear of the danger areas. People can be seriously
injured or even killed if these precautions are not taken. Keep people around you informed of what you will be doing. If you will be
working with other people, make sure that they understand any hand signals that you intend to use. Work sites can be very noisy - do
not rely on spoken commands.
Troubleshooting Guide
GB
Problem Cause Remedy
Tube not rotating. Not connected to power. Connect to power source source.
Sectional tubes incorrectly. Reconnect correctly connected.
Tube still not rotating. Major fault. Contact Service Agent or Altrad Belle.
Unusual noise or operation of the tube.
Check drive end connection. Re-connect if necessary.
Check pull handle connection. Re-connect if necessary.
Sectional tubes incorrectly connected. Re-connect correctly.
Sectional Tube keeps coming apart. Damaged or incorrectly tensioned dowel
pins. Check and replace as necessary
Concrete sticking to striker tube. Concrete too dry. Wet concrete.
9
Service & Maintenance
GB
Warranty
GB
Your new Altrad Belle Roller Striker is warranted to the original purchaser for a period of one-year (12 months) from the original date of
purchase. The Altrad Belle warranty is against defects in design, materials and workmanship.
The following are not covered under the Altrad Belle warranty:
1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly,
operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty
claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.
The following components are not covered by warranty.
· Drivebelt/s
· Engine air lter
· Engine spark plug
Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages,
losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.
Warranty Claims
All warranty claims should rstly be directed to Altrad Belle, either by telephone, by Fax, by E-mail, or in writing.
For warranty claims
Altrad Belle Warranty Department,
Unit 5, Bode Business Park,
Ball Haye Green,
Leek,
Staffordshire,
ST13 6BW,
GB

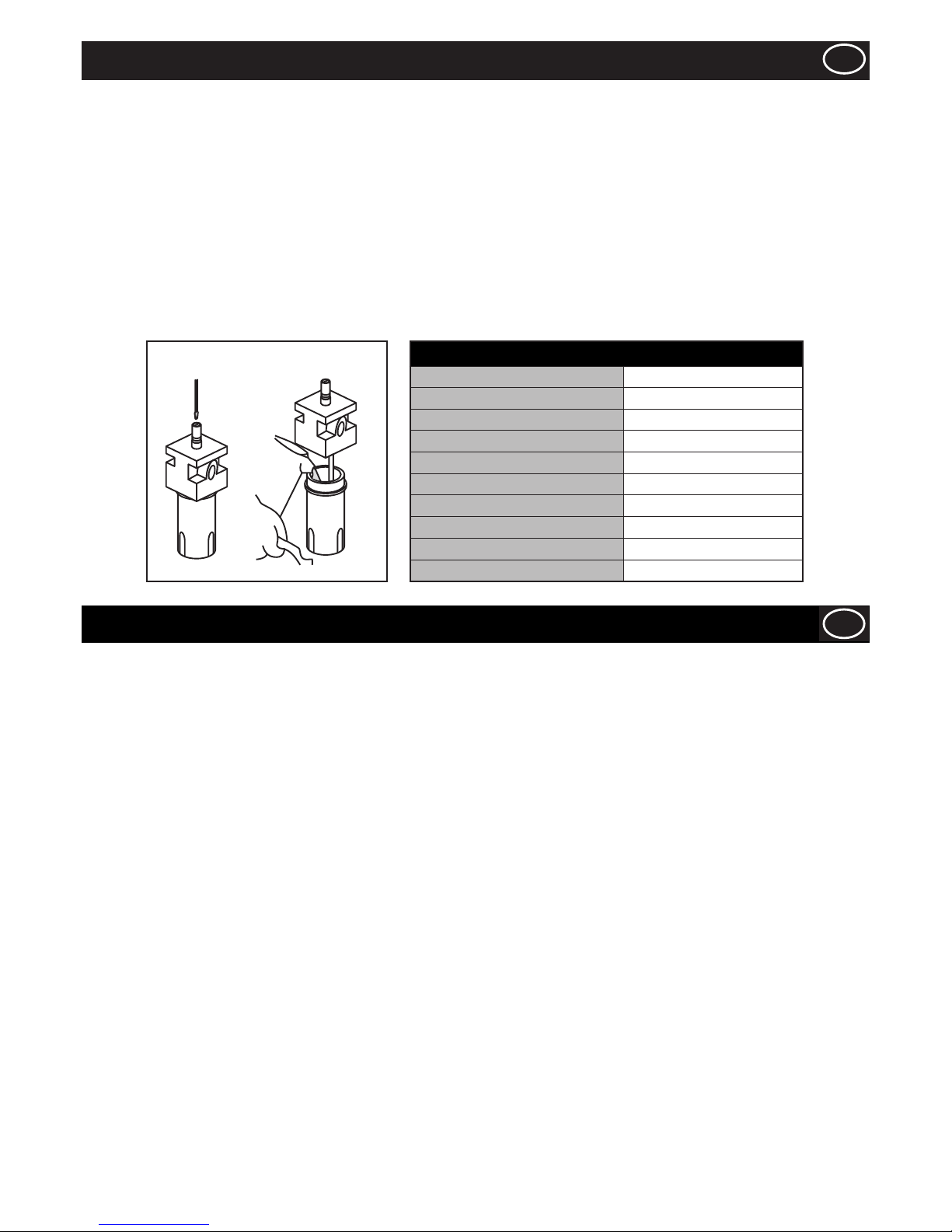

Maintenance
The Altrad Belle ‘Roller Strikers’ are designed to give many years of trouble free operation. It is recommended that an approved Altrad
Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious
parts may void your warranty.
Before any maintenance is carried out on the machine, ensure that is has been disconnect from any power source.
Always ensure that on the Pneumatic roller striker that the air lubricator is kept topped up with oil. Use only Altrad Belle AL4 lubricating
oil or equivalent.
Always ensure that the drive ends are kept clean and free from concrete deposits. Ensure that the drive ends are kept lubricated to
avoid rust damage.
To keep your sectional roller striker in good working order, always check that the dowel pins (129.0.214) are tightly in position, are
not bent and are in good condition. Ensure also, that the mating faces on the adaptor plate and link rod are not damaged and in good
condition.
Typical Physical Data
Appearance Reddish - brown
Specic Gravity (20°C) 1.107
Refractive Index (20°C) 1.427
Boiling Point (760 mmHg) 115°C
Vapour Pressure 8.5 mmHg
Vapour Density (Air = 1) 1.69
Viscosity (20°C) 20 mm2/s
Solubility in Water Complete
Pour Point -60°C
Typical Working Strength 100%
Setting The
Lubrication
Introduction Of Oil In
The Standard Container
10
Roller Striker - Pull Handle
Item Part
Number Number Description Qty
1 19.0.708................Hand Grip ................................2
2 129.0.049..............Handle Assembly.....................1
3 7/10010.................Setscrew M10 x 30..................2
4 05.8.016................Circlip.......................................1
5 12.0.313................Bearing ....................................1
6 129.2.000..............Retaining Pin ...........................1
7 129.0.050..............Shaft ........................................1
8 8/10006.................Nyloc Nut M10.........................2
9 4/1005...................Washer M10 ............................2
10 129.3.007..............Pull Handle Complete............. X
1
2
6
5
7
3
9
8
4
10
1-01
11
Item Part
Number Number Description Qty
1 19.1.021................Coupling ..................................1
2 129.0.044..............Spacer .....................................1
3 129.0.032..............Main Handle ...........................1
4 15.0.097................Ball Valve.................................1
5 14.0.578................Hosetail....................................2
6 15.0.069................Pipe Clip ..................................2
7 14.0.875................Hose ........................................1
8 19.0.701................Hand Grip ................................2
9 00.0.044................Bolt ..........................................2
10 129.0.068..............Drive Frame.............................1
11 4/1005...................Washer (M10)..........................3
12 4/1003...................Spring Washer (M10) ..............3
13 7/10005.................Setscrew (M10 x 25)................3
14 4/8006...................Washer (M8)............................4
15 4/8003...................Spring Washer (M8) ................6
16 7/8011...................Setscrew (M8 x 20)..................6
17 129.0.037..............Gearbox Skid Plate..................1
18 129.0.047..............Inspection Cover......................1
Item Part
Number Number Description Qty
19 06.8.018................Key ..........................................1
20 129.0.036..............Extension Shaft .......................1
21 16.3.000................Gearbox...................................1
22 06.3.004................Key ..........................................1
23 129.2.002..............Drive Coupling.........................1
24 4/1601...................M16 Washer ............................2
25 129.0.067..............Skid Plate ................................1
26 87.3.030................Air Motor (from M/c #199)........1
27 129.0.069..............Inlet Flange..............................1
28 4/6005...................Spring Washer (M6) ................2
29 7/6003...................Capscrew (5/16” x 1” UNC) .....2
30 129.2.000..............Retaining Pin ...........................1
31 8/8008...................M8 Nyloc Nut...........................3
32 129.0.066..............Adaptor Plate...........................1
33 4/8006...................Washer (M8)............................3
34 07.0.121................C’sk Screw (M6 x 20) ..............3
35 01.0.602................Nut...........................................2
36 129.3.011..............Pneumatic Drive End.............. X
Roller Striker - Pneumatic Drive End
1
2
34
6
5
7
8
9
10
23
14
16
15
17
11
13
12
19
20
21
22
18
16
25
14
35
34 31
33
32
31
30
26
28
29
6
5
27
36
2-01
12
Item Part
Number Number Description Qty
1 87.2.320................Drive Nut..................................1
2 87.2.318................Snap Ring................................1
3 87.2.325................Bearing Cover..........................1
4 87.2.301................Bearing Front...........................1
5 07.4.001................Capscrew (1/4”x1”UNC) ..........3
6 05.4.007................Spring Washer (1/4”) ...............3
7 87.2.324................Bearing Support.......................1
8 87.2.319................Key ..........................................1
9 87.2.321................Shaft ........................................1
10 87.2.307................Endplate - Front.......................1
11 87.2.327................Front Pin..................................1
12 87.2.305................Cylinder ...................................1
13 87.2.328................Rear Pin...................................1
14 87.2.300................Air Vane ...................................4
15 87.2.326................Rotor........................................1
16 87.2.306................End Plate - Rear......................1
17 87.2.302................Rear Bearing ...........................1
18 87.2.304................Rear Circlip..............................1
Item Part
Number Number Description Qty
19 87.2.303................Gasket .....................................1
20 87.2.323................Governor Shield.......................1
21 87.2.322................Governor..................................1
22 87.2.309................Main Body................................1
23 19.1.562................Spanner (2”) ............................1
24 87.3.030................Air Motor (from M/c #199)........1
Roller Striker - Pneumatic Motor
22
20
19
9
12
15
11
14
13
1
2
6
5
3
18
17
7
8
4
11
10
21
24 23
2-02
13
Roller Striker - Lubricator
13
7
8
8
1, 2
345
6
,9,10,11
Item Part
Number Number Description Qty
1 19.1.020 Coupling (1”)............................2
2 129.0.044 Spacer .....................................2
3 14.0.021 Nipple ......................................1
4 14.0.082 Ball Valve (1”) ..........................1
5 29.9.028 Filter Regulator........................1
6 21.0.242 Pressure Gauge ......................1
7 129.0.051 Frame ......................................1
8 129.0.052 Removable Side Strip..............1
9 02.0.018 Setscrew..................................2
10 4/1601 Washer (M6)............................2
11 8/16005 Nyloc Nut (M6).........................2
12 129.3.008 Air Hose Assy (Not Shown)....1
13 29.3.006 Lubricator Complete............... X
2-03
14
Roller Striker - Hydraulic Drive End
Item Part
Number Number Description Qty
1A 00545 Coupling 3/8” BSP Male 1
1B 00546 Coupling 3/8” BSP Female 1
2 5/0007 Bonded Seal 6
3 14.0.054 Hydraulic Fitting 3/8” BSP M/M 6
4 129.2.009 Hose Assy (From M/c #418) 2
5 14.0.236 Swivel Elbow 2
6 14.2.057 Control Valve 1
7 129.2.008 Hose Assy (From M/c #418) 2
8 6/0005 Adaptor - 1/2” x 3/8” BSP M/M 2
9 129.2.000 Retaining Pin 1
10 129.0.064 Drive Shaft Adaptor 1
11 06.8.018 Key 1
12 7/8030 Grubscrew M8 x 10 4
13 3-02 Hyd Motor (White)
(From M/c #102625) 1
13A 3-03 Hydr Motor (Parker) 1
13B 3-04 Hydr Motor (Eaton Char-Lyn) 1
14 8/12006 Nyloc Nut 3
Item Part
Number Number Description Qty
15 4/1204 Washer ....................................4
16 9/12004 Bolt M12 x 50...........................2
17 129.0.063 Motor Mounting Bracket ..........1
18 9/12011 Bolt M12 x 120.........................1
19 129.0.061 Handle Weldment....................1
20 9/8014 Bolt M8 x 50.............................2
21 8/8008 Nyloc Nut M8...........................2
22 142.3.003 12m Siamese Hose complete
(Not Shown).............................1
23 129701 Tool Kit - consisting of items
24 - 26 (Not Shown) ...............1
24 19.1.270 24mm Socket (Not Shown)......1
25 19.1.404 17mm Socket (Not Shown)......1
26 19.1.827 Torque Wrench (Not Shown) ...1
27 129.3.101 Hydraulic Drive End................ X
19
20
21
9
17
18
6
5
432
7
8
10
11
12
13
16
14
14 15
15
5
3
2
27
1B
1A
3-01
15
Roller Striker - Hydraulic Motor (White)
Roller Striker - Hydraulic Motor (Eaton Char-Lyn)
11 1 1 1 1 1
1 11
2
Item Part
Number Number Description Qty
1 29.9.080 Seal Kit
(From M/c #102625) 1
(Up To Serial #129350095950) 1
1 129.3.103 Seal Kit
(From Serial #129350095951) 1
2 129.3.102 Hydraulic Motor Kit
(From M/c #102625) 1
(Up To Serial #129350095950) 1
2 6/1149 Hydraulic Motor
(From Serial #129350095951) 1
2
1
3
Item Part
Number Number Description Qty
1 29.9.061 Mounting Flange......................1
2 29.9.047 Hydraulic Motor .......................1
3 29.9.055 Seal Kit ....................................1
3-02
3-03
16

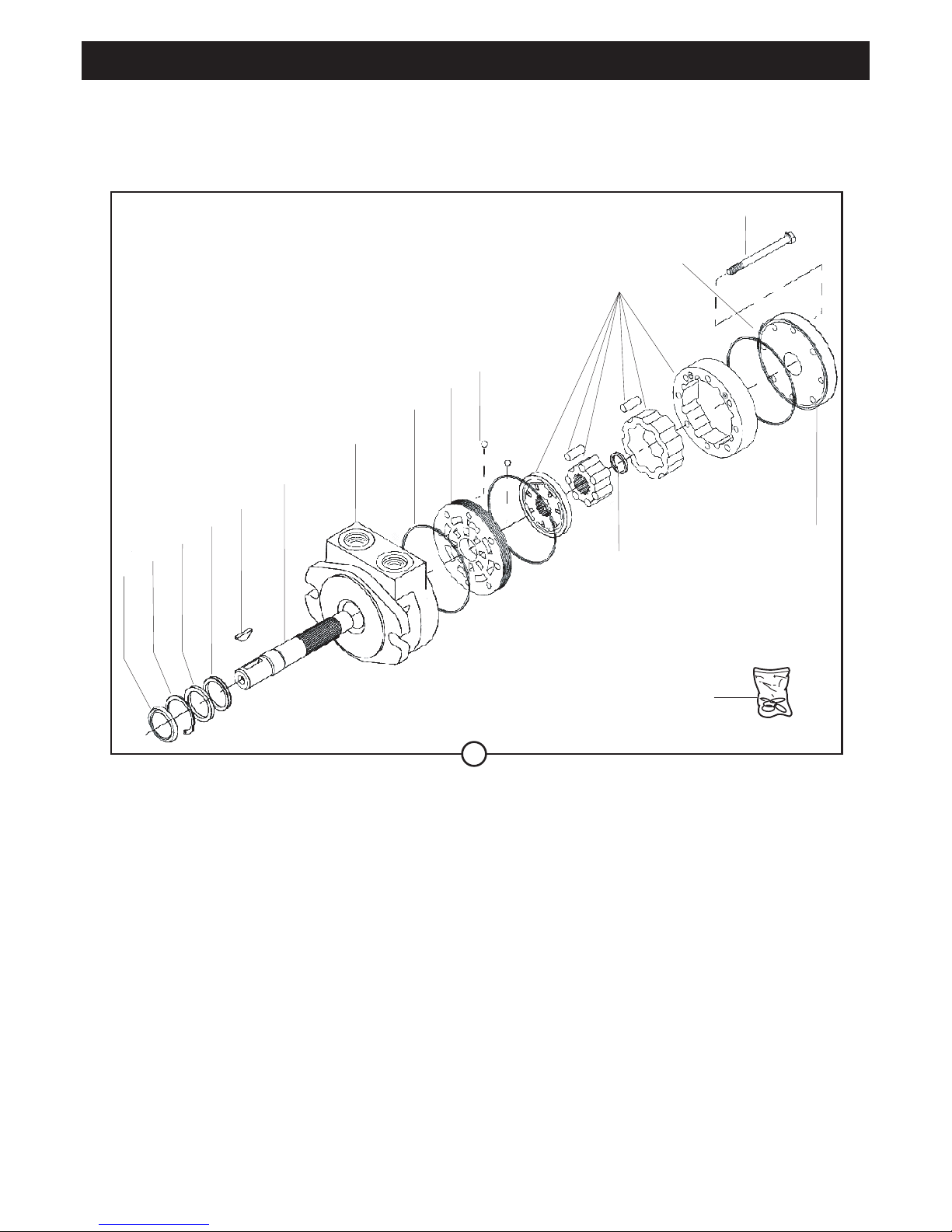

Roller Striker - Hydraulic Motor (Parker)
11
12
11
3
2
21
5
22
8
15
6
8
17
9
10
22
23
Item Part
Number Number Description Qty
1 29.9.067 Seal, Dust................................1
2 29.9.068 Back Up Ring...........................1
3 29.9.069 Seal, Lip...................................1
4 29.9.070 Rotary Valve ............................1
5 29.9.063 Check Valve Ball......................2
6 29.9.071 IGR Assembly 3.6 cu in / rev ...1
7 29.9.072 Snap Ring (Extra Heavy Duty) 1
8 29.9.073 Square Ring Seal ....................3
9 29.9.074 Plug, Vent c/w O ring...............1
10 29.9.075 Bolt (5/16” x 24).......................8
11 29.9.064 Key, Woodruff ..........................1
12 29.9.076 Shaft (1”)..................................1
15 29.9.060 Body / Bearing Assembly.........1
17 29.9.065 Cover / Bearing Assembly .......1
21 29.9.077 Snap Ring................................1
22 29.9.043 Hydraulic Motor .......................1
23 29.9.062 Seal Kit....................................1
3-04
17
Roller Striker - Sectional Tube Kits
Item Part
Number Number Description Qty
1 150700..................Tube Assy (2.1m) ....................1
1A 150701..................Tube Assy (3.1m) ....................1
1B 150702..................Tube Assy (4.1m) ....................1
2 150000..................Tube Assy (2.1m) ....................1
2A 150005..................Tube Assy (3.1m) ....................1
2B 150008..................Tube Assy (4.1m) ....................1
3 150711..................Tension Rod Assy (2.1m).........1
3A 150712..................Tension Rod Assy (3.1m).........1
3B 150713..................Tension Rod Assy (4.1m).........1
4 150707..................Tension Rod Assembly (2.1m).1
4A 150706..................Tension Rod Assembly (3.1m).1
4B 150703..................Tension Rod Assembly (4.1m).1
5 150025..................Adjustment Tube......................1
6 07.0.032................Socket Head Cap (M6 x 8) ......1
7 4/6005...................Washer M6 Spring...................2
8 150031..................Tension Rod (2.1m) .................1
8A 150036..................Tension Rod (3.1m) .................1
8B 150038..................Tension Rod (4.1m) .................2
9 01.0.008................Nut M16...................................3
12 150032..................Link Rod ..................................1
Item Part
Number Number Description Qty
13 15.0.253................O Ring .....................................1
14 129.0.214..............Threaded Dowel ......................1
15 150027..................Slide Housing ..........................1
16 129.0.202..............Flange Bush ............................1
17 05.0.030................Washer ....................................1
18 129.0.203..............Tension Screw .........................1
19 150015..................Hexagon Spacer......................3
20 150011..................Drive Plate...............................1
21 4/1005...................Washer (M10)..........................3
22 7/10003.................Setscrew (M10 x 30)................3
23 150704..................Adaptor Plate Assembly ..........1
24 150023..................Adaptor Plate...........................1
25 150024..................Drive Pin..................................2
26 129.0.214..............Dowel Threaded ......................2
27 150708..................Short Drive End Assembly.......1
28 150010..................Drive End Short .......................1
29 129.0.210..............Dowel (M10) ............................1
26 129.0.214..............Dowel Threaded ......................1
30 150040..................Tension Tool.............................1
25
1
2
5989
15
16
18
19
20
21
22 17
12 12
14
7
6
26
24
2723
26
28
29
30
4-01
18
Roller Striker - Tube Kits
Item Part
Number Number Description Qty
1A 129.0.026 Tube Assembly 26ft (7.92m)....1
1B 129.0.024 Tube Assembly 24ft (7.32m)....1
1C 129.0.022 Tube Assembly 22ft (6.71m)....1
1D 129.0.020 Tube Assembly 20ft (6.10m)....1
1E 129.0.018 Tube Assembly 18ft (5.49m)....1
1F 129.0.016 Tube Assembly 16ft (4.88m)....1
1G 129.0.014 Tube Assembly 14ft (4.26m)....1
1H 129.0.012 Tube Assembly 12ft (3.66m)....1
2 10-100-0513 Bonded Seal 1/2”.....................2
3 6/2003 Blanking Plug 1/2” ...................2
4-02
2
3
1A,1B,1C,1D,1E,1F,1G,1H
19
Roller Striker - Tube Carry Handle
Item Part
Number Number Description Qty
1 12.0.313 Bearing ....................................1
2 129.0.050 Shaft .......................................1
3 7/10010 Screw Set M10 x 30 ................2
4 129.0.082 Handle WA...............................1
5 4/1005 Washer Flat M10 Form A.........2
6 8/10006 Nut M10...................................2
7 05.8.016 Circlip.......................................1
8 129.2.000 Retaining Pin ...........................1
9 800/00300 Decal .......................................1
10 19.0.708 Handle Grip ............................2
11 129.0.083 Carry Handle Assembly...........1
5-01
10
8
6
5
3
7
1
10
4
11
2
9
20
Roller Striker - Loading Ramp
Item Part
Number Number Description Qty
1 129/99001 Ramp.......................................1
2 129/99002 Ramp Lead Plate.....................1
3 129/00100 Roller Head Assembly .............1
4 129/99003 Ramp Side Guard....................2
5 129/99004 Guide Roller.............................1
6 129/99005 Roller Axle ...............................2
7 3/1018 Lynch Pin.................................2
8 00011 Star Clip...................................2
9 4/1001 Washer M10 ..........................10
10 7/10013 Screw M10 x 16.......................6
11 7/10041 Screw M10 x 40.......................4
12 8/10006 Nut M10 ...................................4
13 800/99859 Belle Logo Decal .....................2
5-02
5
4
10
9
11
9
12
3
2
1
4
10
9
8
6
6
13
7
