Altronix TROVE T1RAG3F8 User manual

Rev. T1RAG3F8_110419
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
Access & Power Integration
T1RAG3F8
8 Door Kit with Fused Outputs

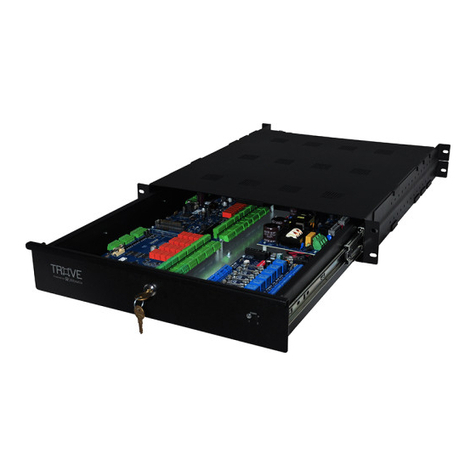

Fully assembled kit includes:
- Trove1R rack enclosure with T1AG1R Altronix/AMAG backplane
- One (1) eFlow6NB - Power Supply/Charger
- One (1) ACMS8 - Dual Input/Output Fused Access Power Controller
- One (1) VR6 - Voltage Regulator
Installation Guide
All registered trademarks are property of their respective owners. More than just power.™

- 2 - Trove1AG1R
Overview:
Altronix Trove rtack AMAG kit is pre-assembled and consist of Trove rack enclosures/backplane with factory installed Altronix power
supply/charger and sub-assemblies. Kits accommodate up to two (2) AMAG M4000 modules for up to eight (8) doors in a single enclosure.
Configuration Chart:
Altronix
Model
Number
120VAC
60Hz
Input
Current
Power
Supply
Board
Input
Fuse
Rating
Power
Supply
Board
Battery
Fuse
Rating
Nominal DC
Output Voltage Maximum Supply
Current for Main and
Aux. Outputs on
Power Supply board
and ACMS8 Access
Power Controllers’
outputs
Fail-Safe/
Fail-Secure
or Dry Form
“C” Outputs
ACMS8
Board
Input Fuse
Rating
ACMS8
Board
Output Fuse
Rating
[DC] [Aux]
Output
Range
(VDC)
Output
Range
(VDC)
T1RAG3F8 3.5A 5A/250V 15A/
32V
20.17-
26.4
20.28-
26.4 24VDC @ 5.4A 815A/
32V
3A/
32V
Assembling and Attaching Z Bracket Wire Management Accessory (included):
Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.
Hardware (included):
Ten (10) bolts and eight (8) lock nuts.
1. Carefully unpack Z Bracket. Do not discard hardware (included)
(Fig. 1, pg. 2).
2. Attach arms to each other using bolts and
lock nuts (Fig. 1a, pg. 2).
3. Attach the hinge brackets to the ends of
arms using bolts and nuts positioning
them as shown on Fig. 1b, pg. 2.
4. Make sure that all nuts are tightened.
5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable slide using bolts and lock nuts (included) (Fig. 2, 2a, pg. 2).
6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts (included).
Two (2)
Fig. 1
Fig. 2
Fig. 2a
Fig. 1b
Fig. 1a

Trove1AG1R - 3 -
Installation Instructions for T1RAG3F8:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware).
2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the
enclosure upside down. Punch out the knockout in designated location, on the back of the unit, from
outside of the drawer (Fig. 3, pg. 3). Insert the tamper switch into the knockout from outside of the drawer
with the button facing outwards and spaded connectors inside the drawer. Connect tamper switch wiring to the
Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the rack drawer.
3. Slide the Trove rack enclosure into an open 2U location in the rack cabinet.
4. Utilizing proper fasteners attach front ears to the rack rails.
5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.
6. Make sure that all internal cofigurations (wiring, voltage selection, switch settings, etc.) are complete
before mounting backplane back into enclosure.
7. After all components are mounted on the backplane, attach it to the enclosure using included hardware.
8. Mount AMAG M4000 modules to TAG1R backplane, refer to page 3.
9. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB and corresponding Sub-Assembly Installation Guides for the following
models: ACMS8 and VR6 for further installation instructions.
T1RAG3F8: Configuration of AMAG M4000 Modules:
1. Align the AMAG M4000 modules on the backplane to match the boards’ mounting holes with corresponding pems.
2. Fasten standoffs (provided) onto metal pems (Fig. 4a, pg. 3).
3. Mount AMAG M4000 modules to standoffs utilizing pan head screws (provided) (Fig. 4a, pg. 3).
4. Fasten TAG1R backplane to Trove1R rack enclosure utilizing hardware (provided).
Position Chart for the Following Models:
M4000 Pem Mounting
M4000-DEC4, M4000-IOC20/16 A
Fig. 4
Metal
Standoff
Placement eFlow6NB
ACMS8 with
VR6 below
A
A
Fig. 3
Tamper Switch mounting location
Back of the drawer,
viewed from outside.
Pem
Standoff
Backplane
Power Supply or
Sub-Assembly
Pan Head Screw
Fig. 4a

- 4 - Trove1AG1R
T1RAG3F8 Enclosure Dimensions (H x W x D):
3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.
3.25”
82.3mm
26.5”
673.1mm
19” (482.6mm)
2.4”
61mm
4.57”
116.1mm
11.175” (283.8mm)
R 1.27” (32.3mm)
1” (25.4mm)
0.55” (14mm)
3.62”
92mm
0.1”
2.5mm
1.5”
38.1mm
