AMA EL02C User manual

EL02C — Electrical Cardiology Table

SAFETY PRECAUTIONS
1. During the adjustment of the table, do not put any
part of the body into the gap of any moving parts.
2. Please operate with both hands when adjusting the
leaning angle of back, foot or head sections.
3. When the patient is on the table, it is not recommended
to adjust the angle of the table top.
4. Before using the product, ensure the four feet of
the table frame touch the ground at the same time and
check the stability of the table frame.
5. Before connecting to the power supply, please check
whether the incoming line to the controller is intact.
6. A regular inspection (at least once a year) is needed
for the treatment table.
7. Do not exceed the table weight capacity of 250 kg.
The safe working load of the arm rest is 15 kg.
8. Always clean the table after each use with a soft cloth
dampened with water and a mild antibacterial detergent.
Do not use abrasive cleaners..
9. Disconnect the table from the power source before
attempting any maintenance, installation, removal or
replacement procedures to prevent electrical shock and
possible damage to the table.
10. Please DO NOT make any changes to the table.
Replacement parts or labor can be provided by
Coinfycare, the selling dealer or a service technician
certified by the manufacturer.
CONTENTS OF CARTON
Electrical Cardiology Table: 1 unit
Instruction Manual: 1 unit
NORMAL OPERATING CONDITIONS
Temperature: 5 ℃ - 40 ℃
Relative humidity: 30% - 75%
Air pressure range: 860-1060hpa
Power supply: AC 220V ± 10%, 50Hz
REGULATION AND PRODUCT
STANDARDS
This table complies with the European regulation of
medical devices (EU) 2017/745 and with the following
standards:
- EN 60601-1:2006+A1:2013+AC:2014
Medical electrical equipment. Part 1: General
Requirements for Basic Safety and Essential
Performance.
- IEC/EN 60601-2-52:2009+A1:2015 clause
201.9.8.3.2
Medical electrical equipment. Part 2-52: Particular
requirements for basic safety and essential
operation of medical tables.
- EN 60601-1-6:2010+A1:2015
Medical electrical equipment. Part 1-6: General
Requirements for basic safety and essential
performance. Collateral standard: Suitability for
use
- EN 60601-1-2:2015
Medical electrical equipment. Part 1-2: General
requirements for basic safety and essential
performance. Collateral standard:
Electromagnetic disturbances. Requirements and
tests.
- EN ISO 13485:2016
Medical devices - Quality management systems -
Requirements for regulatory purposes
(ISO 13485:2016)
DIN EN ISO 13485:2016
PRECAUTIONS AND SAFETY
INDICATIONS
Coinfycare is not liable for any material or personal
damage due to misuse or incorrect use of this table
or for any purpose other than described in this user
manual.
Inspect the condition of the table before using it for
the first time and on a recurring basis as indicated in
the “MAINTENANCE” section.
Keep table out of high moisture environments.
Do not transport the table over rough or outdoor
surfaces. The retractable caster system could
become damaged and inoperable.
This table should be operated, transported, and
stored in temperatures between 5° C to + 45° C,
with max humidity of 75%.
DO NOT operate this table in an environment
where other devices are being used that
intentionally radiate electromagnetic energy in an
unshielded manner. Portable and mobile
communications equipment can affect Medical
Electrical Equipment.

This table generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to other devices in the vicinity. However,
there is no guarantee that interference will not occur in
a particular installation. Harmful interference to other
devices can be determined by turning this table on
and off. Try to correct the interference using one or
more of the following: reorient or relocate the receiving
device, increase the separation between the
equipment, connect the table to an outlet on a
different circuit from that which the other device(s) are
connected, and consult Coinfycare or your local dealer
for help.
Unplug the table from the power supply before starting
cleaning or any type of maintenance operations.
The table should be kept out of the reach of children
when there is no adult supervision.
The table is designed for discontinuous interval
operation, so the continuous running time of the motor
should never exceed 2 minutes. Should this happen,
damage may occur due to overheating of the
electronics.
Always use original accessories and spare parts
provided by your local dealer.
Always cover the table with a towel, disposable paper
or a cover and change it for each user, thus ensuring
correct hygiene and extending the useful life of the
upholstery.
Only connect the table to a properly installed and
grounded outlet. The local mains voltage must
correspond to the technical data of the device.
The power outlet should be accessible in case
the table needs to be quickly unplugged at any
given time. Always pull the plug and not the mains
cable.
Unplug the table from the power supply before starting
cleaning or any types of maintenance operations.
Only your dealer or a specialized technician should
repair the table.
Never touch the table or the power cord with wet
hands.
Never place your hands or any other part of your
body in any hole or void on the table while it is in
operation.
Make sure there are no objects in the space under
the table that could cause collisions or entrapment
during operation.
Make sure that your feet are not resting on the
peripheral foot bar or foot control during treatment
and especially when sitting near the table. This
could create a dangerous situation where your leg
is caught between the section and the peripheral
foot bar or floor surface.
Take into account the weight distribution on the
table when working. The weight must be distributed
along the table without concentrating on its ends to
maintain the correct stability.
You should not sit on the head and foot sections.If
you do there is a danger of tipping and table damage.
PLACEMENT IN THE
WORKPLACE
The table has four casters to facilitate
movement to the place where it will be used.
Once correctly positioned use the red & green
lever to lock and unlock the casters.
OPERATION

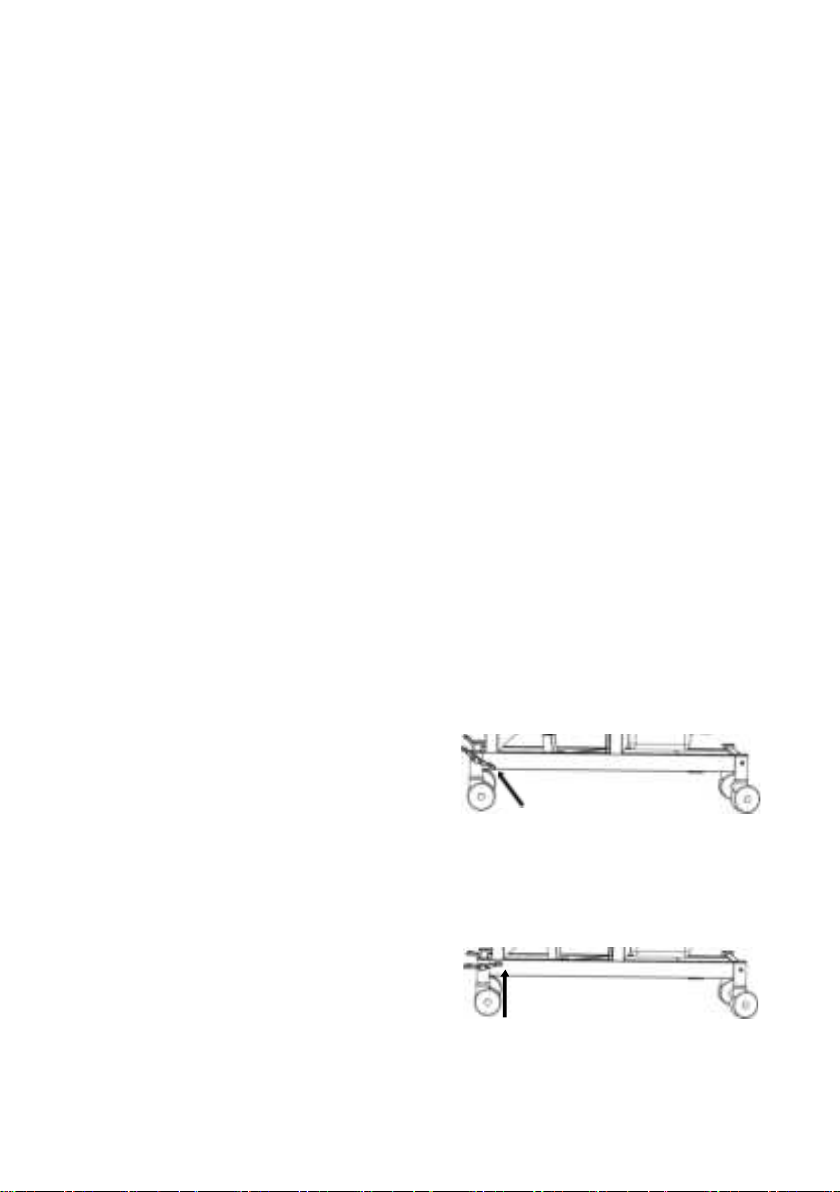

Figure 1: Table in a working position.
TECHNICAL SPECIFICATIONS
Product dimensions
Length: 1950mm
Width: 660mm
Lifting range of bed surface: 550-1000mm
If the electrical supply cable is defective,
disconnect the table immediately and inform your
dealer or a specialized technician.
Position the power cord properly so that it cannot be
tripped over.
Unplug the power cord from the mains if the table is
not going to be used for a long period of time.
If you detect any abnormality in the operation of the
table, consult your dealer or a specialized technician.
Never manipulate any electrical part or open or
repair any part of the table.
Figure 1 Locked
Figure 2: Table in a moving position.
Flat
Figure 2 Released
Connect the table to an electrical outlet using the
power cord.
Red side down

:
Lifting the table and adjusting head plate
Double foot switches are adopted for the table.
The height of the table and head section
angle can be adjusted by foot switch.

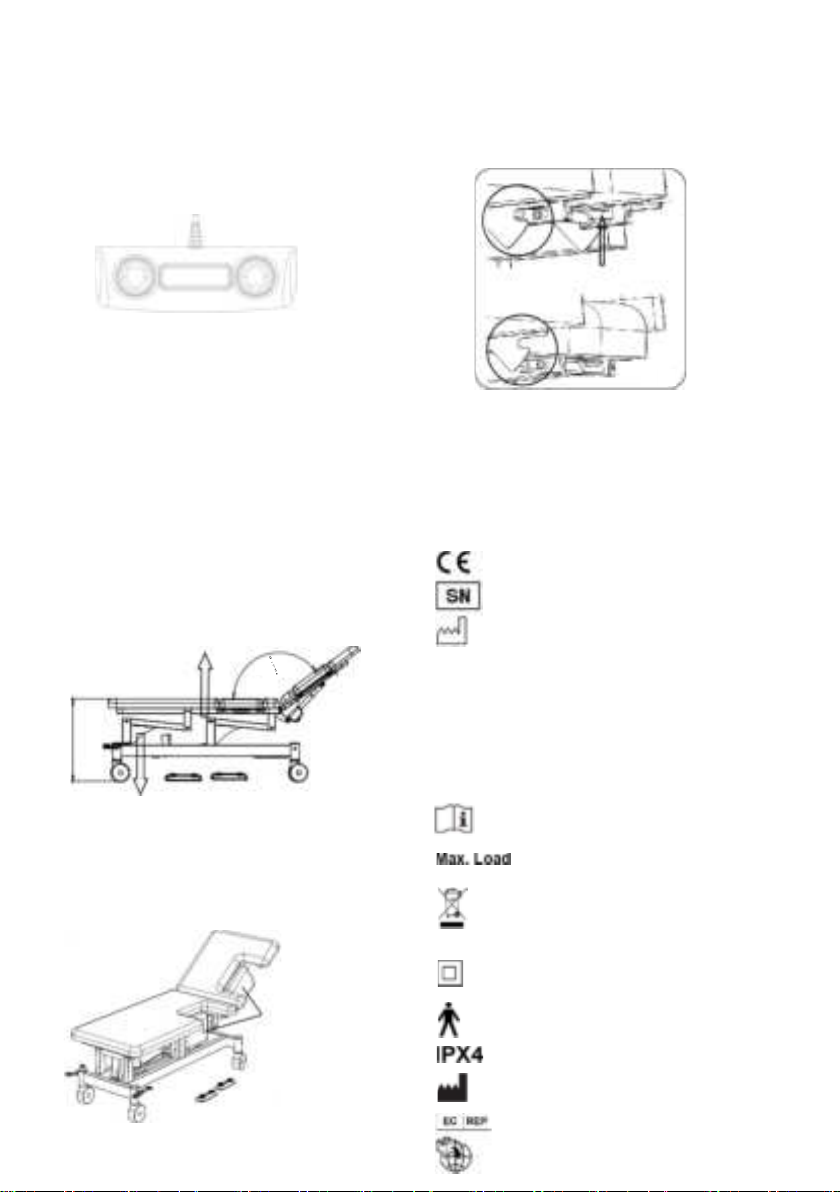

Figure 3 shows the appearance of the foot
switch.
Figure 3 Foot switch
As shown in the Figure below, pull the control lever
(in the direction shown by the arrow) to fold down
the cardiac cutout (Figure 6).
Pull the cardiac cutout plate up and the hook closes
automatically (Figure 6).
1. The table can be lifted or lowered by the foot
switch. Step on the left or right button of the foot
switch respectively to adjust the height of the
table. When the required height is reached
(Figure 4), release the button to stop.
2. The angle of head section can be adjusted by
the foot switch. Step on the left or right button of
the foot switch respectively to adjust the angle of
head section (Figure 4).
Please make sure that there are no objects in the
space under the table before any operation.
The table should be placed at the lowest level to
reduce the risk of injury caused by the patient
falling off the table when unattended.
Figure 4
Adjusting Cardiac cutout (fold down)
The Cardiac cutout can be folded down by
adjusting the buckle and hook under the
Cardiac Cutout plate.
Cardiac cutout
Figure 5
Figure 6
Legend to symbols and information on the
product label.
- Model: Product identification.
- Model Num.: Product version.
- : CE conformity marking.
- : Unique serial number identifying the product.
- Date of manufacture.
- Product Net Weight : Table weight in kg.
- INPUT : Necessary values of the electrical mains
supply.
- ON: 2 min / OFF: 18 min: Indicates the discontinuous
operation of the device according to IEC/EN 60601-1,
which indicates that 2 minutes of continuous operation
of the motor or motors should not be exceeded.
- : Consult the instructions for use or the user
manual.
- : Maximal load capacity that the table
can support.
- : Waste from Electrical and Electronic
Equipment. Selective waste collection of
electrical and electronic equipment is required.
- : Classification of medical electrical equipment -
Double Insulation.
- : Electrical Safety Classification - Type B.
- : Protection against splashing water or liquids.
- : Manufacturer identification.
- : Authorized representative in the EU.
- : Importer.
fold down
close
550-1 000m m

TROUBLESHOOTING
If, during the life of the table you detect any malfunction
or need a repair, contact your dealer and do not use the
table until you have received a diagnosis or the table has
been professionally repaired.
MAINTENANCE
Carry out a visual inspection at least once a month
to check the general conditions of the table. Moreover,
you must do the following:
- Check the correct adjustment of the different
sections.
- Check the proper functioning of the motors and
their movements.
- Check and clean the gas struts
- Check and tighten screws (if necessary).
- Grease the parts with friction.
- Check the conditions of the electrical wiring and
the socket.
- Check the wheel immobilization system.
RECYCLING
If you need to dispose of the table or any of its
parts or accessories, consult and respect the
laws and regulations applicable to waste
management and protection of the environment.
WARRANTY
This warranty shall remain in effect for 5 years
(60 months) for the structure and 3 years
(36 months) for the base frame and motor from the
date of original consumer purchase. An original
sales receipt or proof of purchase may be required
in order to redeem the warranty.
All repairs to the Product must be performed by a
service center certified by Coinfycare. Any
modifications or repairs performed by unauthorized
centers or groups will void this warranty. This
statement of guarantee prevails over any other
statement specified or implied by the seller.
CLEANING AND DISINFECTION
Before cleaning the table, unplug it from the mains.
Clean the table after each use.
Dust the table with a soft, dry cloth.
To clean the upholstery, apply a solution of warm
water and a mild detergent (for example, neutral
soap) with a well wrung soft cloth. Wipe the
table over once cleaned.
Disinfect upholstery and other surfaces with a
suitable bactericide for this purpose.
Apply the disinfectant on a soft cloth, never directly
on the table.
Never use a mixture of disinfectants or a mixture of
disinfectant and soap.
Wipe the table upholstery over once cleaned &
disinfected with a cloth and water only. This
will remove any residue from the upholstery.
Avoid the accumulation of moisture on the moving
parts of the metal structure, as they could rust.
Since we do not know which disinfectant will be
used, we cannot guarantee that it will not cause
damage to the upholstery. Read the instructions
and warnings for use of the disinfectant product
carefully before its purchase or use.
TRANSPORTATION AND STORAGE
CONDITION
Transport condition
The products can be transported by general means
of transportation. They should be protected from the
sun and rain, and should not be mixed with toxic,
harmful and corrosive materials.
Storage
The packed electric multifunctional physiotherapy
bed should be stored in a dry and well ventilated
environment without corrosive gas.
SHUTDOWN PROCEDURE
Adjust the bed to a suitable position to ensure that
the patient is safely left, then turn off the power.
Contraindication
Please note that our beds are not sterilized.
Please do not use them according to aseptic
standards.

JF-EMN-2022V.01
www.coinfycare.com
