Amana DLG330RAW Manual

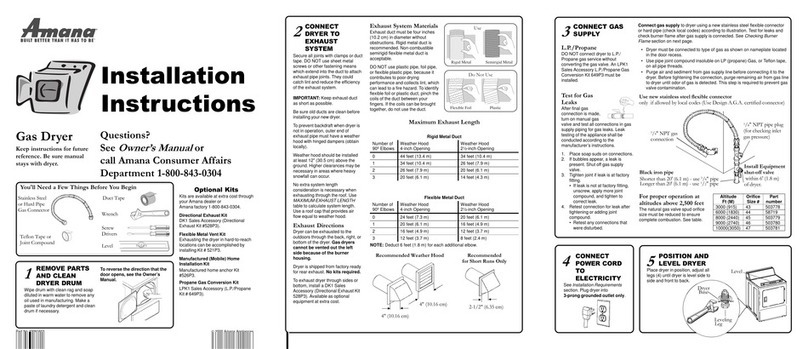

Amana Domestic Gas DryerTechnical Information
September 2002 16021969 Rev. 0
(This technical sheet replaces RT3210013 Rev. 0.)
1
120 V, 60 Hz Models
DLG330RAW PDLG330RAW DLG330RAW PDLG330RAW1
• Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
• This technical sheet replaces RT3210013 Rev. 0.
• Refer to Service Manual RS3200007 for detailed installation, operating, testing, troubleshooting, and disassembly
instructions.
• Refer to Parts Manual RP3200020 for part number information.
CAUTION
!
All safety information must be followed as provided in this Technical Sheet and in Service Manual RS3200007.
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply
before servicing, unless testing requires it.
Models DLG330RAW Models DLG330RAW
Power Source Temperature settings 3
Voltage AC 120 VAC Color coded control Electromechanical
Bi-directional
Amperage (Single Unit) 15 A Features
Frequency 60 Hz
Easy AccessOpening X
Motor horsepower 1/3 Reversible door X
Dimensions Upfront lint filter X
Cabinet Front servicable X
Height−overall 43” FabriCaresystem X
Height of cabinet 36” Signal switch X
Width 27”
Depth 28”
Clearance−dryer door 23 1/2”
Weight
Crated 145 lbs.

Component Testing Information
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply
before servicing, unless testing requires it.
16021969 Rev. 0 September 2002
(This technical sheet replaces RT3210013 Rev. 0.)
2
Illustration Component Test Procedure Results
Thermostat limit
S.P.S.T. −2 terminals
Measure resistance of the following
terminals:
Terminals 1 −2 ..................................
Open at 225°±7°F
Close at 215°±10°F
Continuity < 1 Ω
Thermostat cycling
S.P.D.T. −3 terminals
Measure resistance of the following
terminals:
Terminals 1 −3...............................
Heat thermostat with a small flame
until a distinct click is heard.
Terminals 1 −2...............................
Open at 153°±5°F
Close at 138°±5°F
Continuity < 1 Ω
Continuity < 1 Ω
Thermostat heater Disconnect wire terminals and
measure resistance of terminals.
Terminal to terminal ..........................
2400 ±240 Ω
Door switch
1 −COM
2 −N.C.
3 −N.O.
Measure resistance of the switch:
Door closed
Terminals 1 −3...............................
Door opened
Terminals 1 −2...............................
Continuity < 1 Ω
Continuity < 1 Ω
ON / OFF Signal
switch
Measure resistance of switch
positions:
ON (Closed position) ....................
OFF (Open position)......................
Continuity < 1 Ω
Infinite > 1 MΩ
Signal buzzer Measure resistance of the buzzer:
Terminal to terminal............................
1.2 K −1.4 K Ω
Fabric selector
3 position switch
Place switch in the positions indicated
in the chart.
Measure resistance of the terminals
indicated.
X indicates continuity (< 1 Ω)
Perm
Press/
Regular
Delicate
Fluff
L1-1

X

L1-2
X
X

L1-3


X
Timer Verify input and output voltage is
present.
Refer to specific model Technical Sheet
for timing sequence chart and functional
description of the component.
Sensor Remove wires from sensor terminals
Terminal to terminal ..........................
Any indication other than 0 Ω, replace
sensor.
0 Ω
Ignitor Measure resistance of the following:
Terminal to terminal ..........................
45 −200 Ω

Component Testing Information
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply
before servicing, unless testing requires it.
September 2002 3 16021969 Rev. 0
(This technical sheet replaces RT3210013 Rev. 0.)
Illustration Component Test Procedure Results
504091
1 - 3
45
4
5
123
Gas valve
SENSOR
SECONDARY
COIL
HOLDING
COIL
BOOSTER
COIL IGNITOR
Measure resistance of following coils:
Holding coil
Terminals 1 and 2 ..........................
Booster coil
Terminals 1 and 3 ..........................
Secondary coil
Terminals 4 and 5 ..........................
1365 Ω±25 Ω
560 Ω±25 Ω
1220 Ω±50 Ω
40099801
Motor See “Internal Motor Diagram and
Schematic” section.
See following section “Internal Motor
Diagram and Schematic” for correct
wiring contacts.
40111201 Belt Verify belt is not damaged or slipping. Wipe excess oil from cylinder, motor
pulley, and belt, to prevent slippage.
Replace belt if damaged.
502014 Power cord Measure resistance of wires. Continuity should be indicated on each
wire.
501801 Cylinder seal Verify air leakage is not present around
cylinder seal.
Replace seal, if indication of leakage.
501676 Cylinder glide Verify glides are not damaged. Replace all glides when replacing any
glides.
56234 Burner Verify proper operation. Replace if operation of burner is altered.

Internal Motor Diagram and Schematic
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply
before servicing, unless testing requires it.
16021969 Rev. 0 September 2002
(This technical sheet replaces RT3210013 Rev. 0.)
4
Unplug motor wire terminal from
motor before starting this test.
Continuity exists between switch
terminal 5 and Black wire.
Manually depress actuator.
Continuity broken between
switch terminal 5 and Black wire.
Continuity exists between switch
terminal 6 and Yellow wire.
Manually depress actuator.
Continuity broken between
switch terminal 6 and Yellow wire.
Continuity broken between switch
terminal 1 and switch terminal 2.
Manually depress actuator.
Continuity exists between switch
terminal 1 and switch terminal 2.
Motor switch checks OK.
Inoperative start switch.
Replace switch.
Inoperative start switch.
Replace switch.
Inoperative start switch.
Replace switch.
Start
Terminals
NOTE: Disconnect
Yellow wire from
motor switch
before testing
start terminals.
Run
Terminals
NOTE: Reconnect
Yellow wire to
motor switch
before testing
run terminals.
Heater Circuit
Terminals
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO

Internal Motor Diagram and Schematic
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply
before servicing, unless testing requires it.
September 2002 5 16021969 Rev. 0
(This technical sheet replaces RT3210013 Rev. 0.)
R
R
S
26 4 3 5 1
MAIN
START
ORANGE
CUSTOMER CIRCUIT
OVERLOAD
PROTECTOR
BROWN
BLACK
YELLOW
PUSH TO
START
LINE
SWITCH SHOWN IN START POSITION
R.S.P.C.
26 4 3 5 1
G

Wiring Diagram and Schematic
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply
before servicing, unless testing requires it.
16021969 Rev. 0 September 2002
(This technical sheet replaces RT3210013 Rev. 0.)
6
WARNING
Failure to install, maintain, and/or operate this
machine according to manufacturer's
instructions may result in conditions which can
produce bodily injury and/or propertydamage.
FOLLOWING PATENTS: CANADIAN NO: THIS MACHINE MANUFACTURED UNDER ONE OR MORE OF THE UNITED STATES NO: 5,113,562 OTHER PATENTS PENDING
5,257,448
O
F F
ORG-12
LIGHT SWITCH
BLK
TIMER KNOB
GROUND TO TERMINAL
GRN/YEL-18
YEL-18
BRN-18
WHT-18
CONNECTION DIAGRAM
RIBBED OR
RIDGED LEAD
BLOCK BRACKET
GROUND TO TERMINAL
GRN-18
CORD
LEAD-IN
IGNITOR
MOTOR
GAS
ORG-18
5
VALVE
WHT-18
18
ORG
BLU-18
WHT-18 3
4
1 2
BLU-18 SENSOR
ORG-18
HOUSING
PLUG
RECEPTACLE
BLU-18
2 4
1 2
4
1
GRN/YEL-18
COLOR MARKINGS
INDICATE WIRE GAUGE
disconnection when servicing controls.
Wiring errors can cause improper and
NUMERALS FOLLOWING
"Caution: Label all wires prior to "Verify proper operation after servicing"
dangerous operation."
TO TOP
GROUND
TO SUPPORT
PANEL
5 5
6 6
G
G
GRN/YEL-18
BLOCK BRACKET
GROUND TO
GRAPHICS PANEL
O F F
WHT-18
RED-18
BLK-18
CYLINDER LIGHT
(NOT ON ALL MODELS)
GRY-18
VIO-18
VIO-18
BLK-22
RED-18
DOOR SWITCH
RECEPTACLE
PLUG
1
RED-18
2 3
PNK-18
TIMER MOTOR
BLK-22
TIMER
RED-18
RED-18
T
B
L1
AUTOMATIC
REG/DRY
DRY
TIME
WRINKLE OUT
O F
F
SIGNAL
FABRIC SELECTOR
BLK
FLUORESCENT LAMP
(NOT ON ALL MODELS)
STARTER
THERMOSTAT
HEATER
PNK-18
RECEPTACLE
PNK-18
THERM.
LIMIT
PLUG
WHT-18
THERM.
PNK-18
CYCLING
VIO-18
3
ORG-18
1
2
WHT WHT
RED
JUMPERSUPPLIED ON TIMER
N
M A
H
S
START
PUSH TO
PERM PRESS/KNITS
O
F FSWITCH
BLU-18
GROUND
HOUSING
TO
BASE
GROUND
RED
BLU
BLK-18
213L1-3 NO HEAT
BALLAST
VIO-18
REGULAR
PERM PRESS
DELICATE
L1-2
L1-1-2
ORG-12
L1
GRY/BLK-18
SIGNAL SWITCH
PART NO. 40119302
BRN-18

Wiring Diagram and Schematic
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply
before servicing, unless testing requires it.
September 2002 7 16021969 Rev. 0
(This technical sheet replaces RT3210013 Rev. 0.)
L1
TB
CYLINDER LIGHT
(NOT ON ALL MODELS)
THERMOSTAT
1
SCHEMATIC
PUSH TO
START
TIMER
S
SIGNAL MH
SWITCH
SELECTOR
SWITCH
FABRIC
L1
3
CYCLING
2 1 3
2
LIGHT
L1
THERMOSTAT
TM
MOTOR
5
N
A
THERMOSTAT
HEATER
BOOSTER
COIL COIL
START
MAIN
TP 4
6
1
2
IGNITOR
FLUORESCENT LAMP
(NOT ON ALL MODELS)
BALLAST
STARTER
LIMIT
HOLDING
SECONDARY
COIL
240 VAC 120 VAC
SWITCH
DOOR
SENSOR
(NO)
3
(NC)
2
(COM)
1
N
