Amana PTH073J35A Service manual

This manual must be left with the owner of the equipment.
PACKAGE TERMINAL
AIR CONDITIONER/HEAT PUMP
INSTALLATION INSTRUCTIONS & OWNER’SMANUAL
Standard and Remote Applications with LED Control
IO-447E
10/2018
is a registered trademark of Maytag Corporation or its related companies and is used
under license to Goodman Company, L.P., Houston, TX, USA. All rights reserved.
ATTENTION INSTALLING PERSONNEL
As a professional installer you have an obligation to know the
product better than the customer. This includes all safety pre-
cautions and related items.
Prior to actual installation, thoroughly familiarize yourself with
this Instruction Manual. Pay special attention to all safety warn-
ings.
Often during installation or repair it is possible to place yourself
in a position which is more hazardous than when the unit is in
operation.
5151 San Felipe, Suite 500 • Houston, TX 77056 • www.amana-ptac.com
©2014 - 2015, 2017 - 2018 Goodman Company, L.P.
O NLY PERSONNEL THAT HAVE BEEN TRAINED TO INSTALL , ADJUST , SERVICE OR
REPAIR ( HEREINAFTER , “ SERVICE ”) THE EQUIPMENT SPECIFIED IN THIS MANUAL
SHOULD SERVICE THE EQUIPMENT . T HE MANUFACTURER WILL NOT BE RESPONSIBLE
FOR ANY INJURY OR PROPERTY DAMAGE ARISING FROM IMPROPER SERVICE OR
SERVICE PROCEDURES . I F YOU SERVICE THIS UNIT , YOU ASSUME RESPONSIBILITY
FOR ANY INJURY OR PROPERTY DAMAGE WHICH MAY RESULT . I N ADDITION , IN
JURISDICTIONS THAT REQUIRE ONE OR MORE LICENSES TO SERVICE THE EQUIPMENT
SPECIFIED IN THIS MANUAL , ONLY LICENSED PERSONNEL SHOULD SERVICE THE
EQUIPMENT . I MPROPER INSTALLATION , ADJUSTMENT , SERVICING OR REPAIR OF
THE EQUIPMENT SPECIFIED IN THIS MANUAL , OR ATTEMPTING TO INSTALL , ADJUST ,
SERVICE OR REPAIR THE EQUIPMENT SPECIFIED IN THIS MANUAL WITHOUT PROPER
TRAINING MAY RESULT IN PRODUCT DAMAGE , PROPERTY DAMAGE , PERSONAL
INJURY OR DEATH .
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
PROP 65 WARNING
FOR CALIFORNIA CONSUMERS
0140M00513-A

2
Contents
Unit Features .................................................. 2
Installation Instructions ..................................... 5
Wiring ........................................................... 7
Operating Instructions....................................... 8
Maintenance and Cleaning................................ 12
Obtaining Service........................................... 14
Normal Operating Sounds and Conditions ............. 14
Configuration Settings ..................................... 15
Configuration Chart ........................................ 16
Diagnostic Maintenance & Status Report .............. 18
Diagnostic Codes............................................ 19
UNIT FEATURES
Thisunithasmanyfeatureswhicharedifferentthanthose found
on conventional PTAC units. The servicer must be familiar with
these features in order to properly service the unit.
•LCDI or AFCI Power Cords - Underwriters Laboratories
and the National Electric Code (NEC) now require power
cords that sense current leakage and can open the elec-
trical circuit to the unit on units rated at 250 volts or
less. In the event that unit does not operate, check the
reset button located on or near the head of the power
cord as part of the normal troubleshooting procedure.
LCDI power Cord
IMPORTANT NOTE TO THE OWNER
This manual is to be used by qualified, professionally trained
HVAC technicians only. Goodman does not assume any respon-
sibility for property damage or personal injury for improper
service procedures or services performed by an unqualified
person.
IMPORTANT NOTES:
Your warranty certificate is also supplied with the unit.
Read the warranty carefully and note what is covered.
Keep the warranty certificate in a safe place, so you can
find it, if necessary.
Before using this manual, check the serial plate for
proper model identification.
THE INSTALLATION AND SERVICING OF THIS EQUIPMENT
MUSTBEPERFORMED BY QUALIFIED, EXPERIENCED TECH-
NICIANS ONLY.
Due to policy of continual product improvement, the
right is reserved to change specifications and design
without notice.
RECOGNIZE THIS SYMBOL
AS A SAFETY PRECAUTION.
IMPORTANT NOTE TO THE SERVICER
Readthismanualandfamiliarizeyourselfwiththespecificitems
whichmustbe adheredtobeforeattemptingtoservicethis unit.
TheprecautionslistedinthisInstallationManualareintendedas
supplementaltoexistingpractices. However,ifthereisadirect
conflict between existing practices and the content of this
manual, the precautions listed here take precedence.
Remember, it is your responsibility to install the product safely
and to know it well enough to be able to instruct a customer in
its safe use.
Safety is a matter of common sense...a matter of thinking be-
fore acting. Most dealers have a list of specific good safety
practices...follow them.
The precautions listed in this Installation Manual are intended as
supplemental to existing practices. However, if there is a direct
conflict between existing practices and the content of this
manual, the precautions listed here take precedence.

3
•Automatic 3-minute compressor lockout -After the com-
pressor cycles off, it will not restart for three minutes.
•Automatic 2nd stage electric heat - If the room tempera-
ture falls to 4°F below the set point temperature, the
reverse cycle heat is shut off and the electric strip heat is
turned on.
•Automatic freeze protection - Whenever power is sup-
plied to the unit and the master switch is in the ON posi-
tion, automatic freeze protection is active. If the unit
senses temperature below 40°F, the fan motor and elec-
tric strip heat are turned on. Freeze protection can be
turned off, if required.
•Random restart delay - To help eliminate power surges
after a power outage, the unit is equipped with a two to
four minute random restart delay feature. Whenever the
unit is plugged in with the master switch turned on and
the mode switch set in the cool or heat mode, a random
restart will occur. A random restart condition can be
avoided by setting the mode switch in the fan only or off
position before applying power to the unit.
•Fuse holder - On all 265 volt units, fuse holders are fac-
tory installed. Check for blown fuse if unit does not oper-
ate. Fuse holder is located behind the front. Replacement
fuses may be purchased from the Parts Department or
contact your sales representative for part numbers.
FUSE
HOLDERS
Control Panel
•Indication LEDs - The touch pad has LEDs that correspond
to fan operation and to indicate unit status. The LEDs
next to the selections OFF, COOL, and HEAT indicate which
operational mode is active. The LED located in the lower
left corner is a status LED. This LED indicates the status of
the unit. See Diagnostic Maintenance & Status Report sec-
tion for further details.
7 Button Touch Pad With Display
•Load shedding - When input terminals have been config-
ured for load shedding operations. If at any time a switch
is closed between the IN1 and COM or IN2 and COM termi-
nals as configured, the compressor and electric heater
will lockout until the switch is opened.
NOTE: ThePTACWireHarnessKit(PWHK01G70)isrequiredwhen
using or load shedding option.
•Transfer fan - A daughter board allows for an external
(transfer) fan connection. Auser-supplied relay is required
and, depending upon the type used, an approved external
transformer kit may be required for installation.
•Front mounting hole - A mounting hole location is pro-
vided to give the owner the option of securing the front to
the chassis. The mounting hole must be drilled at the
dimple indicating the correct location below a louver. The
owner must supply one 1/2 inch long #8 sheet metal screw
per unit. The screw must be removed before the front can
be removed.

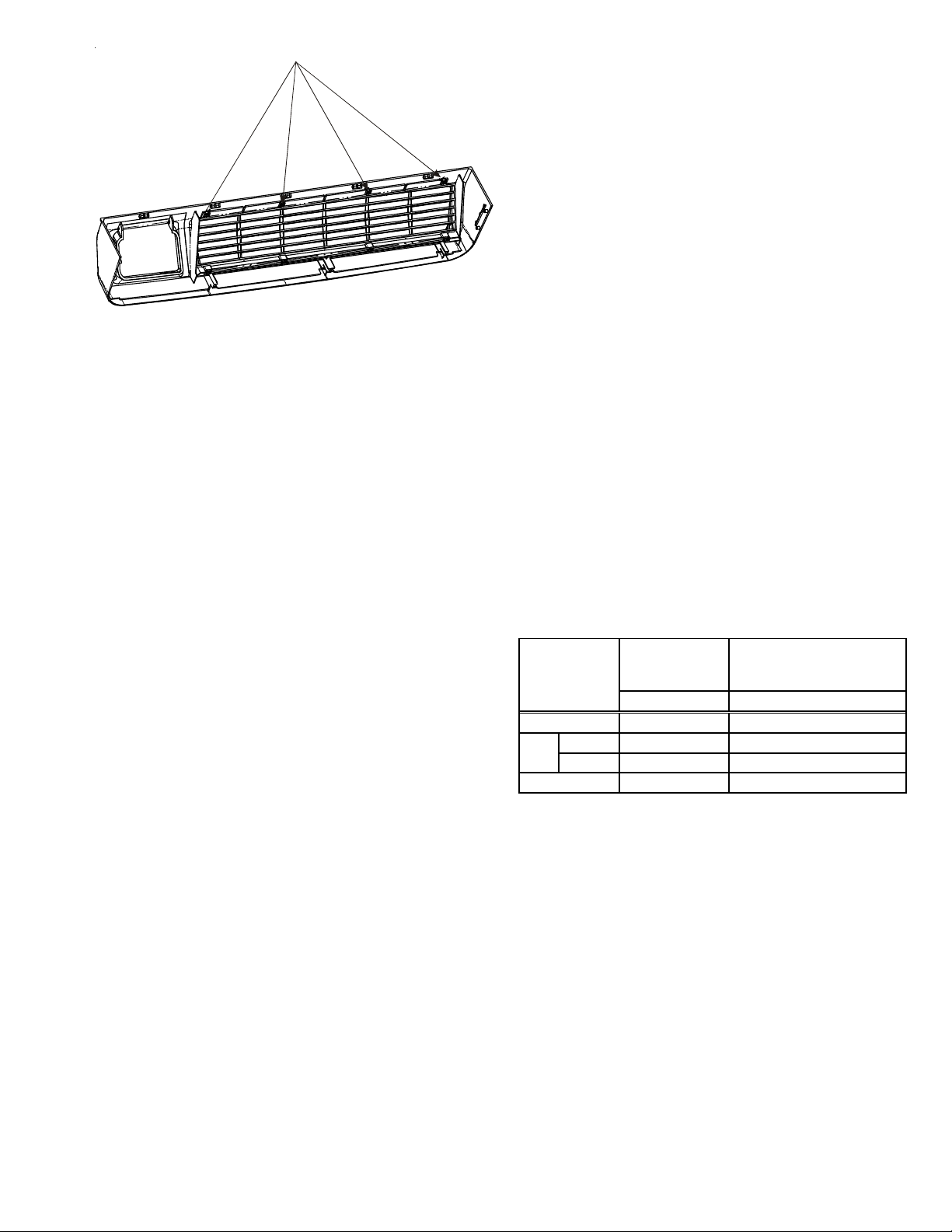

Front Mounting Screw accessed
through louvers.
Chassis Front

4
•Energy Management System Features
Temperature Setback - This option can save energy dol-
lars for unrented or unoccupied rooms by automatically
setting back the operational temperatures. This mode of
operation is selected through the configuration routine
(see Configuration Settings section). NOTE: Temperature
setback does not work with a wired remote thermostat.
Door Switch and Motion Sensor Low VoltageTerminals (IN1,
IN2, COM) - The door switch and motion sensor operate as
a unit, the terminals allow for wired connection of a door
sensor to the control board. The motion sensor interprets
any door movement as a signal of occupancy. If the switch
between IN* and COM is closed, the door control will in-
terpret the room door as closed. If the switch between
IN* and COM terminals is opened (or closed if unit is con-
figured for normally open) the control will interpret the
action as a signal of occupancy. If thirty minutes pass with-
out any door activity, Energy Management Temperature
setback activates.
Serial Port Interfaces - A serial port, located on the con-
trol board, provides easy access for two-way communica-
tions to the control board from an optional RF antennae
can be attached for wireless communications.
TRANSPORTATION DAMAGE
All units are securely packed in shipping containers tested
according to International Safe Transit Association specifica-
tions. The carton must be checked upon arrival for external
damage. If damage is found, a written request for inspection by
the carrier’s agent must be made immediately.
In the event of damage, the consignee must:
1. Make notation on delivery receipt of any visible damage to
shipment or container.
2. Notify carrier promptly and request an inspection.
3. In case of concealed damage, carrier should be notified as
soon as possible—preferably within 5 days.
4. File the claim with the following supporting documents
within the 6 month statute of limitations.
a. Original Bill of Lading, certified copy, or indemnity
bond.
b. Original paid freight bill or indemnity in lieu thereof.
c. Original invoice or certified copy thereof, showing
trade and other discounts or reductions.
d. Copy of the inspection report issued by carrier’s
representative at the time damage is reported to the
carrier.
The carrier is responsible for making prompt inspection of
damage and for a thorough investigation of each claim. The
distributor or manufacturer will not accept claims from dealers
for transportation damage.
UNIT ACCESSORIES
This unit is designed for through-the-wall installation in new or
existing buildings. To complete the installation of this PTAC, an
insulated wall sleeve and an outdoor grille (either the stamped
aluminum grille, the architectural grille or polymer grille) are
required.
The chassis and the cabinet front are shipped in one carton.
Optional accessories to complete a particular installation are
the following:
OPTIONAL ACCESSORIES
Power Switch Kit Wire Harness Kit
Wall Sleeve Kit Circuit Breaker Kit
Key Lock Kit Architectural Grille Kit
Drain Kit Remote Escutcheon Kit
Filter Kit External Transformer Kit
Subbase Kit Water or Steam Valve Kit
Hard Wire Kit Condensate Disposal Pump Kit
Main Duct Kit Remote Temperature Sensor Kit
Power Door Kit Wireless RF Antenna
Leveling Legs Kit Wireless RF Thermostat
Hydronic Heat Kit Wireless Motion Sensor
Stamped Grille Kit Wireless Door Switch
Curtain Guard Kit Extra Deep Sleeves
Polymer Grille Kit Wall Thermostat Kit
Extension Duct Kit Fuse Holder Kit
NOTE: Consult sales literature for the appropriate voltage and
amperage selections, if applicable. For additional details and
illustrations of the accessories, refer to the Architect’s and
Engineer’s Manual.

5
INSTALLATION INSTRUCTIONS
To ensure that the unit operates safely and efficiently, it must
beinstalled, operatedandmaintained accordingtotheseinstal-
lation and operating instructions and all local codes and ordi-
nances or, in their absence, with the latest edition of the
National Electric Code. The proper installation of this unit is
described in the following sections. Following the steps in the
order presented should ensure proper installation. Rated per-
formance is achieved after 72 hours of operation.
SLEEVE STIFFENER AND REAR CLOSURE PANEL
REMOVAL
Before the chassis can be installed in the wall sleeve, the sleeve
stiffener and the rear closure panel must be removed.
1. Remove the zigzag folded cardboard sleeve stiffener.
2. Remove the rear closure panel by folding the four flaps.
3. Grasping the top and bottom flanges of the rear closure
panel pull the entire panel out diagonally from one side.
DRAIN KIT INSTALLATION (OPTIONAL ACCESSORY)
During normal reverse cycle heating operation, condensate
water will drain out of the rear of the wall sleeve. If this water
isobjectionable,adrainkitshouldbeinstalled.Thedrainkithas
provisionsfordrainingthewaterfromeithertherightorleftside
of the sleeve externally or from the bottom of the sleeve
internally. The drain kit must be installed before the outdoor
grille is installed. Refer to the Installation Instructions supplied
with the drain kit for a complete description of the installation
procedure.
Sleeve
Stiffene
r
Wall Sleeve with Stiffener
Rear Closure
Panel
Flaps
Stiffener Removal
Rear Enclosure Panel Removal
SLEEVE INSTALLATION
In order for condensate water to drain properly inside the unit,
the sleeve must be installed properly:
Note: For external drain
• Level from right to left.
• A slight downward pitch from the indoor side to the out-
door side as shown below.
RefertotheInstallationInstructionssuppliedwiththePTACwall
sleeve for a complete description of the installation procedure.

6
Wall
Sleeve
Outside
Wall
OutsideInside Level
1/4 Bubble
Tilt To
Outside
Proper Sleeve Tilt
Note: For internal drain
• Level from side to side.
• Level from front to back.
Wall
Sleeve
Outside
Wall
OutsideInside Level
OUTDOOR GRILLE
An outside grille must be installed to direct air flow for proper
unit operation and also protect the outdoor coil. The grille must
be installed before installing the chassis. Refer to the Installa-
tion Instructions supplied with the outdoor grille kit for a
complete description of the installation procedure.
This model requires either a Stamped Grille Kit (Model SGK--B),
a Polymer Grille Kit (Model PGK) or an Architectural Grille Kit
(Model AGK--B). When replacing an old chassis with an existing
grille or using a specialized grille in a new installation, please
check with your sales representative to determine if the new
chassis should be used with the non-standard specialized grille.
An improper outdoor grille can decrease cooling or heating
capacity,increaseenergyusageandshortencompressorlife and
possibly void the warranty.
FRONT REMOVAL
1. Grasp the cabinet front.
Cabinet Front Removal View 1
2. Pull the bottom of the cabinet front away from the chassis
until the retaining clips disengage. NOTE: If front is se-
cured with a screw, remove front mounting screw, then
follow front removal procedure.
Cabinet Front Removal View 2
Front Mounting Screw accessed
through louvers.

7
Front Mounting Screw
3. Lift the cabinet front off the chassis. Reverse this procedure
to reinstall the cabinet front.
CHASSIS INSTALLATION
1. Remove the cabinet front from the chassis as described in
Front Removal.
2. Insert the chassis into the wall sleeve.
Chassis
Wall Sleeve
Outside
Wall
Slide Chassis In
Chassis Installation View 1
3. Slide the chassis into the wall sleeve until the chassis
flanges contact the front edge of the wall sleeve.
Chassis
Wall Sleeve
Outside
Wall
Screws
(3 on each
side of unit)
Chassis Installation View 2
4. Secure the chassis to the wall sleeve using three screws on
each side of the chassis to ensure a proper seal between
the chassis and the wall sleeve. The screws are supplied
in a plastic bag attached to the power cord.
IMPORTANT NOTES:
1. The unit is equipped with a rubber grommet mounted com-
pressor. These grommets are factory set and require no ad-
justment.
2. If a standard subbase is used, be sure the right hand subbase
cover is removed before the chassis is installed in the sleeve.
3. On 230V, 30A units installed with an existing subbase, use
the subbase cover extension kit.
4. Check the indoor and outdoor grilles for obstructions to air
flow. The unit must be located where curtains, furniture,
trees, or other objects do not block the air flow to and from
the unit. If air is obstructed and/or deflected back into the
unit, the air conditioner compressor may cycle on and off
rapidly. This could damage the compressor or possibly void
the warranty.
WIRING

8
Cord connection to a wall socket is not permitted for 265-volt
units. All 265-volt units must be hard wired using the hard wire
kit or make use of the plug-in receptacle in the standard
subbase.
230/208V and 115V units are equipped with LCDI or AFCI power
cordsandcanopentheelectricalcircuittotheunit. Intheevent
the unit does not operate, check the reset button located on or
near the head of the power cord as part of the normal trouble-
shooting procedure.
WARNING
THIS AIR CONDITIONER IS NOT MEANT TO PROVIDE UNATTENDED COOLING OR
LIFE SUPPORT FOR PERSONS OR ANIMALS WHO ARE UNABLE TO REACT TO
THE FAILURE OF THIS PRODUCT.
THE FAILURE OF AN UNATTENDED AIR CONDITIONER MAY RESULT IN EXTREME
HEAT IN THE CONDITIONED SPACE CAUSING OVERHEATING OR DEATH OF
PERSONS OR ANIMALS.
PRECAUTIONS MUST BE TAKEN TO WARN OFF OR GUARD AGAINST SUCH AN
OCCURRENCE.
PTAC WIRE HARNESS KIT (PWHK01G70)
See PTAC Wire Harness Kit Installation Instructions for proper
wire orientation and location for low voltage wiring.
HEATERLESS UNITS
If a heaterless unit is ordered, field provisions must be made for
adding supplemental heat. Refer to the Installation Instructions
supplied with the kit for a complete description of the installa-
tion procedures. All 208/230 volt heaterless units are shipped
with a 15 Amp power cord.
VOLTAGE MEASUREMENTS
Oncetheunitisproperlywired,measuretheunitsupplyvoltage.
Voltage must fall within the voltage utilization range given in
Table 2.
Unit Voltage
Rating Minimum Maximum
230/208 197 253
265 238 292
115 103.5 126.5
Operating Voltage
Voltage Utilization Range
Table 2 - Operating Voltage
OPERATING INSTRUCTIONS
USERS CONTROLS
A 7 button touch key pad, located behind the control door,
controls both temperature and operation mode. The key pads
can be used alone or in combination.
THERMOSTAT SETTING
7 BUTTON TOUCH PAD WITH DISPLAY
PressingtheCOOLthermostatcontrolandtheupordownarrows
will provide a cooler room temperature. Pressing the HEAT
thermostat control and the up or down arrow keys will provide
a warmer room temperature.
LCDI OR AFCI POWER CORD
230/208V and 115V units are equipped with LCDI or AFCI power
cordsandcanopentheelectricalcircuittotheunit. Intheevent
the unit does not operate, check the reset button located on or
near the head of the power cord as part of the normal trouble-
shooting procedure.
FAN SPEED
The fan speed touch key will deliver high, low or auto fan speed
to circulate room air. NOTE: The AUTO selection will not be
available if a fan speed is selected without COOL or Heat
selection.
Fan Operation HIGH or LOW with HEAT or COOL mode selected
- The selected fan speed shall run in the selected speed.
FanOperation AUTO with HEATorCOOL mode selected - The fan
will run in low and high speed. The changes in fan speed are
automatic.
DIAGNOSTIC LIGHT
The green diagnostic light located in the lower left hand corner
of the touchpad and indicates operation warnings. This light
usually indicates that either the filter or coils need cleaning.
Please refer to the Maintenance and Cleaning section for the
proper cleaning procedure. If this light is still on after cleaning,
please refer to the Diagnostic & Status Report section for
assistance.

9
Touch Pad With Display User Controls
ON OFF
MASTER SWITCH
IN1 COM IN2
AUXILIARY
CRGLW2
Y/W1 B GH
REMOTE THERMOSTAT
IAT
BLACK
Control Board User Inputs*
*NOTE: The PTAC Wire Harness Kit (PWHK01G70) is required
for the auxiliary or remote thermostat options.
ADDITIONAL CONTROL INPUTS
The control inputs shown above provide additional unit control
and features. To access these control inputs, the cabinet front
must be removed (see Front Removal).
MASTER SWITCH
The master switch disconnects power to all of the system
components. When this switch is in the off position, the
compressor, fan motor, reversing valve, and electric resistance
heater will all be de-energized.
REMOTE CONTROL INPUTS
The C, R, GL, W2, Y/W1, B/O, and GH terminals provide control
inputs for a “manufacturer-approved” remote wall mounted
thermostat. The “B” terminal can be configured to become “O”
ifneededseeConfigurationSettingsForremotecontrolthermo-
stat operation, refer to the Remote Thermostat Operation
section.
FRONT DESK CONTROL (IN1, IN2, COM)
The COM and IN2 or IN1 terminals provide control inputs for a
frontdeskswitch. Shortingacross theterminalswill disableunit
operation. The only control function which will remain active
when these terminals are shorted is freeze protection. Any
switch which will produce a short circuit across these two
terminals can be used as a front desk switch. The contact
resistance of the switch, when closed, must be less than 200
ohms for the front desk feature to operate properly. Table 3
showsthe maximum wire lengthand correspondinggage size for
installation of a front desk switch. The following figure shows a
wiring schematic for connecting the front desk switch to the
unit.
If the unit is configured for wired unrented setback energy
management (see Configuration Settings section u8 and u9). If
IN* and COM are shorted, the unit will go into setback tempera-
tures for cooling and heating as configured in c3 and c4 (see
Configuration Settings). Unit operation will be disabled. “Fd”
(seeDiagnosticCodes)willappearonthedisplay.Thisallowsthe
roomto quickly recover to acomfortabletemperature when the
room is occupied.
Maximum Wire
Len
g
th
WireSize
(AWG) Maximum Length Allowed
#24 400 ft
#22 600 ft
#20 900 ft
#18 1500 ft
#16 2000 ft
Table 3 - Maximum Wire Length for
Front Desk Switch
IN1 COM IN2
AUXILIARY
CRGL
W2 Y/W1 B GH
REMOTE THERMOSTAT
IAT
BLACK
FRONT
DESK
SWITCH
Front Desk Switch Wiring Schematic

10
No holes are permitted in chassis basepan or
wallsleeve when routing low voltage wire. Route the
low voltage wires through the indention on the front
of the basepan.
Low Voltage Wires Routing
VENT CONTROL - FOR STANDARD PTAC MODELS ONLY
The vent control allows outside air to be drawn into the
conditioned area. This outside air can provide ventilation when
the blower is operating, but it will increase the heating or
cooling load and operating costs.
To obtain access to the vent control:
1. Remove the cabinet front (see Front Removal).
2. Remove the shipping screw (if installed) from the vent door.
3. Remove the label (if present) from over the vent control
lever on the left side of the chassis. Remove the vent door
shipping screw.
Vent
Control
Lever
Vent
Control
Vent Door
Shipping Screw
Vent Control Lever
ForDigiAIR(FreshAirSolution)kitmodels,referto IO-900*.
4. Rotate the vent control lever to either open or close the
damper.
Vent
Closed
Vent
Open
Vent Door Lever Positions
Hydronic Heat Installations
To avoid the risk of freezing the steam or water coil during
prolonged shut down periods, the vent door must be left closed
when the outdoor temperature might fall below freezing.
AIR DISCHARGE GRILLE
The discharge grille can be adjusted to expel air at either a 16°
or 56° angle.
16°
Discharge
Air
56°
Discharge
Air
Discharge Grille Orientation Options
Usethefollowingproceduretochangetheangleofthedischarge
air flow:
1. Remove the front cabinet (see Front Removal).
2. Position the front so that the backside is accessible.
Discharge Air Flow
3. Remove the four (4) screws which secure the discharge air
grille to the cabinet front.

11
Location of 4 Screws
Discharge Air Flow Grille Removal
4. Rotate the grille 180° clockwise.
5. Reinstall the screws securing the discharge air grille to the
cabinet front. Reinstall the cabinet front on the unit.
REMOTE THERMOSTAT
To operate this unit with a “manufacturer-approved” remote
thermostat, configurethecontroltobe operated by the remote
thermostat. EnterconfigurationmodeC1andthenselectoption
Code L5 (see Configuration Settings in back of manual). When
intheremotemode,theunitwillonlyrespondtothethermostat
inputs (terminal strip positions GL (or GH), W2, Y/W1, and B*
shown in “Control Board User Inputs” illustration). NOTE: Once
configuration C1 with option code L5 has been selected, the
controltouchpadwillnolongeracceptinputsotherthanconfigu-
ration and diagnostics modes. The room occupant must operate
the unit at the remote mounted thermostat.
NOTE: Inremotemode,the3-minutecompressortimedelay,the
random restart feature and the freeze protection feature are all
active (see Unit Features section).
THERMOSTAT LOCATION
This unit is designed to be operated with remote wall mounted
thermostats. For further information on thermostats approved
for use with this unit, contact your sales representative.
For best performance results, the thermostat should be located
approximately five feet above the floor on a vibration free,
inside wall in an area with good air circulation.
Do not install the thermostat where it may be affected by the
following:
• Dead spots behind doors, in corners or under cabinets
• Hot or cold drafts from air ducts
• Radiant heat from the sun, appliances, or fireplaces
• Concealed pipes and chimneys
• Unheated (uncooled) areas behind the thermostat, such
as an outside walls
Consult the instruction sheet packaged with the thermostat for
further details on mounting and operation.
REMOTE THERMOSTAT OPERATION
Approvedthermostatsvaryslightlyinconstructionand,withfew
exceptions, are operated similarly. The following operational
descriptionpertainstoapprovednonprogrammablethermostats
that energize G in Heat and Cool mode.
HEAT/OFF/COOL Switch
• OFF - cooling and heating functions are defeated.
• HEAT - the selected room temperature is maintained by
cycling either in the heat pump mode or electric strip
heat. A PTH unit is switched from the heat pump mode to
electric strip heat when the coil temperature is 20°F or
when the heat pump cannot keep up with the heating load
and a two stage thermostat is used.
• COOL - the selected room temperature is maintained by
cycling the air conditioner.
Table 4 summarizes the thermostat input combinations and the
respective unit functions. The following wiring schematic illus-
trations show wiring schematics for heat pump and straight cool
units with electric resistance heat, respectively.
Heat Pump
Thermostat
Input
Electric Heat
Thermostat
Input
RTerminal to: RTerminal to:
NONE NONE
Stage 1 GL*, Y/W1, B**, O GL* Y/W1, B**, or GL*, W2, O
Stage 2 GL*, W2 n/a
GL*, Y/W1, B**, O GL*, Y/W1
Unit Function
*or GHdepending on speed required
**If configured, B and Ocan be used interchangeably.
OFF
COOL
HEAT
Table 4 - Remote Control Inputs
NOTE: The PTAC Wire Harness Kit (PWHK01G70) is required for
remote thermostat options.
ADDITIONAL NOTES:
1. For heat pump operation, a room thermostat with a B (heat-
ing change over) terminal or an O terminal (cooling change
over)is required.This willmean that some “auto changeover”
thermostats cannot be used, as many of them either do not
have a B terminal, or else energize the B terminal continu-
ously when in the “auto” position.
2. Additional wiring should be run for future changeover to Heat
NOTE: If configured, B and O input terminals can be used interchangeably.

12
Pump or thermostat options.
3. Run 6 to 8 wires during initial installation. Tape or cap off
any unused wires.
NOTE: Using a thermostat with an O terminal will require that
the 7 button with display control be configured (see Configura-
tion Settings).
IN1 COM IN2
AUXILIARY
CRGLW2
Y/W1 B GH
REMOTE THERMOSTAT
Control Board
Connections
Thermostat Connections
R
G*
W2
W1
Y
C
Wiring Schematic for Straight Cool Unit
*NOTE: For high speed fan operation, connect “G” to “GH”.
IN1 COM IN2
AUXILIARY
CRGL
W2 Y/W1 B GH
REMOTE THERMOSTAT
Control Board
Connections
Thermostat Connections
R
G*
W2
W1
Y
C
Wiring Schematic for Remote Heat Pump
*NOTE: For high speed fan operation, connect “G” to “GH”.
Table5 shows the maximum wirelength andcorresponding gage
size for installation of a remote thermostat.
Maximum Wire
Len
g
th
WireSize
(AWG) Maximum Length Allowed
#24 400 ft
#22 600 ft
#20 900 ft
#18 1500 ft
#16 2000 ft
Table 5 - Maximum Wire Length for Remote
Control Connection
MAINTENANCE AND CLEANING
WARNING
SOME LOCAL CONDITIONS AND ENVIRONMENTS CAN CAUSE FUNGI AND OTHER
MATERIAL TO GROW INSIDE THE PTAC UNIT. THIS MATERIAL WHEN DRIED,
AS WELL AS OTHER FOREIGN MATERIAL, SIMILAR TO DRYER LINT IN YOUR
CLOTHES DRYER, ARE FIRE HAZARDS. BE SURE TO THOROUGHLY CHECK AND
CLEAN THE UNIT'S COILS, BLOWER WHEEL AND BASEPAN PER THE
INSTRUCTIONS CONTAINED IN THIS MANUAL.
MONTHLY MAINTENANCE AND CLEANING
Intake Air Filters
To properly maintain the operational performance of your PTAC
unit, it is extremely important that the inlet air filters be
cleaned once per month or more often if operated in dusty or
dirty locations or conditions. The intake air filters are con-
structed of durable polypropylene. The “air intake” air filters
can be easily inserted into the cabinet front using the cabinet
filter guides. Before cleaning the intake filter, turn the unit off
by setting the mode switch to the OFF position. Filter should be
cleaned as required.
The following procedure is used to remove the intake filters:
1. Grasp each filter by its molded handle, located on the front
edge of the front, below the discharge grill.
2. Pull the filter straight up and remove.
3. Clean filter with vacuum or with running water.
Reverse this procedure to reinstall the filters.

13
Filters are removed by grasping
the filter’s top and gently pulling up
Front removal
is not necessary
to remove
the filters
Filter
Locations
Intake Filter Removal
Vent Screen
Beforecleaningtheventscreen,disconnectpowerto theunitby
unplugging the power cord at the wall outlet or subbase, or
disconnect power at the fuse box or circuit breaker. If unit is
operated with vent door closed, the vent screen does not need
to be cleaned.
1. Remove the cabinet front as described in Front Removal.
2. Remove the six screws securing the chassis to the wall sleeve.
3. Slide the chassis out of the wall sleeve far enough so that
the vent screen is accessible.
4. Clean the vent screen, slide the chassis back into the wall
sleeve, secure it in place with six screws and reinstall the
front cabinet.
Vent - (Left Side Unit)
Cabinet Front
The cabinet front and discharge air grille can be cleaned with a
waterdampenedcloth. Undernocircumstances shouldhydro-
carbon-basedcleaners(e.g.acetone,benzene,naphthagaso-
line, etc.) or ammonia based cleaners be used to clean the
front or air grilles. Use care when cleaning the control area.
YEARLY MAINTENANCE AND CLEANING
NOTE: Use a mild biodegradable detergent such as Simple
Green™when cleaning the unit. Special care must be taken to
protecttheunit’scontrolboardandotherelectricalcomponents
fromgettinganywateronthemwhilecleaning. Theuseofharsh
or caustic cleaning agents or materials such as bleach or coil
cleaners that are not designed for PTAC products will cause
damageordeteriorationofthealuminumfinorcoilmaterialand
is not recommended. Care must be taken not to bend the
aluminum fin stock.
Routine Scheduled Maintenance
To achieve continuing top performance and high efficiency,
establish a “once a year” cleaning/inspection schedule for the
unit. Take the unit out of the sleeve and thoroughly clean and
rinse. Be sure to include in the yearly cleaning the evaporator
coils, and condenser coils, basepan, and drain passages. Sched-
uled maintenance can be accomplished by either qualified local
maintenance staff or by an authorized servicer. They must
follow the instructions described in this manual.
Adverse Operating Conditions Maintenance
Units operating in dusty or corrosive locations; i.e. dusty con-
struction site or sea coast, must be cleaned more often. A
minimum of four (4) times a year will maintain proper opera-
tional conditions and protect unit components.
Wall Sleeve
Clean the wall sleeve while cleaning the unit. The caulking
around the sleeve should be checked to make sure that any
potential air and water openings around the sleeve are properly
sealed. Thewallsleeve’slevelshouldalsoberechecked. Proper
leveling for most installations are a ¼ bubble tilt to the outside
and level from right to left. Contact your sales person for
detailed maintenance or cleaning instructions.
Basepan and Condenser Coil
CAUTION
DO NOT USE COMMERCIAL GRADE COIL CLEANERS. SOME OF THESE
CLEANERS MAY CONTAIN ETHYLENE DIAMINE TETRACETIC ACID (EDTA)
WHICH CAN SHORTEN THE LIFE OF THE CONDENSER COIL.
Before cleaning the basepan and condenser coil, turn OFF unit
mode switch and disconnect power to the unit. To disconnect
power, either unplug the power cord at the wall outlet or
subbase, or disconnect power at the fuse box or circuit breaker.
1. Create a water-tight seal by tightly covering the entire

14
control panel area and fan motor with plastic. Creating
this seal prevents water from entering the control area or
the fan motor and damaging the unit.
2. Spray condenser coil and basepan down with water. Next
spray a mild biodegradable detergent such as Simple
Green™onto the condenser coil and basepan. Let set for
five (5) minutes.
3. Rinse condenser coil and basepan with water again.
NOTE: Ensure water pressure is no higher than that of an
ordinary garden hose and the water temperature no higher
than 120°F.
4. Tilt the non-compressor side of the unit up no higher than
45 degrees and allow water to drain out the other side of
the unit.
5. Remove excess water left in the basepan by wiping the
basepan with a dry cloth.
6. Remove the water-tight seal from the motor and control
panel area.
7. Reinstall unit back into wall sleeve.
8. Allow unit to dry for 24 hours before reapplying power.
When power is reapplied test unit for proper operation.
9. Place a non-acidic algaecide in the basepan to inhibit bac-
teria growth. Ensure the algaecide is compatible with wet
coil operation and is not corrosive to the coil.
CAUTION
HIGH PRESSURE AND HIGH TEMPERATURE CLEANING IS NOT RECOMMENDED.
DOING SO COULD DAMAGE THE ALUMINUM FIN STOCK AND ELECTRICAL
COMPONENTS.
Clearance Check
Clearances around the unit should also be checked to make sure
that the intake air and discharge air paths have not become
blocked or restricted. A minimum of eight inches clearance is
neededfrom unit to furniture , beds,or other objectsfor proper
operation. Restricted discharge or intake air will reduce the
unit’s operational performance. In severe airflow restrictions
damage can occur to unit components such as the compressor,
electric heater or fan motor.
OBTAINING SERVICE
In the event this unit requires repair or servicing beyond what is
covered in this manual, contact an authorized service organiza-
tion.
To obtain an authorized servicer, contact your sales representa-
tive or agency.
NORMAL OPERATING
SOUNDS AND CONDITIONS
Water trickling sounds
Water is picked up and distributed over the coil. This
improves the efficiency and helps with water removal.
Water dripping
Water will collect in the base pan during high humidity days.
This can cause overflow and drip from the outside of the unit.
Air sounds
The fan cycle switch sets the operational mode of the fan in
the ON position. The fan will run continuously whenever
power is applied in this mode. In the AUTO position, the fan
will cycle on and off with the compressor or electric heater.
Starting delay
You may notice a few minutes delay in the starting if you
try to restart the unit too soon after turning it off or if you
adjust the thermostat right after the compressor has shut
off. This is due to a built in delay to protect the compres-
sor.

15
CONFIGURATION SETTINGS
7 BUTTON TOUCH PAD WITH DISPLAY
The control can be configured to operate a wide range of
options. The options listed below with the * are the factory
default settings. If these are acceptable, then the unit does not
require any additional configuration and is fully operable. To
configure the unit, first select the configuration feature
code setting and then an option code to change from the
factory default setting.
To enter configuration feature mode:
1. Press and hold the up and down arrow keys at the
same time and press the OFF key twice within a
two (2) second time frame then release the . The
display will indicate = = if the security code (configuration
code uL) has been previously set. The display alternates
between = = and 00. Use the up and down arrow keys
to change 00 to the previously selected security code.
NOTE: The control will not proceed to the next step until
the correct code is entered. The security code step will be
skipped if no code has been set or if it has been set back to
00.
The display will indicate - -. Press the key one time.
The display will then alternate between C1 and 0.
To select a different configuration feature code, press the
HEAT key until the desired configuration comes
up. To scroll to a previously viewed configuration codes
press the COOL key.
Once you have scrolled to the correct feature, then to se-
lect the option code for your desired configuration, press
either the up or down key to scroll through the op-
tions of the selected feature code.
To exit configuration mode:
1. Press the OFF key. Configuration feature mode
will also exit if no keys are pressed for a period of two
(2) minutes.

16
CONFIGURATION SETTINGS CHART
*Indicates factory default
See manufacturer for additional configuration options.
Configuration
Code Configuration Feature Option Code Option
0 * Chassis Membrane *
L5 Wired Thermostat
rE Wireless Stat & 7-Button
L0 Locked Membrane
Au do not use
On do not use
bP Button present
bA* Revert to Cyclic
A Always run fan (even if Off)
Cdo not use
bC Revert to Continuous
C PTC (Standard Cooler)
H* PTH (Standard Heat Pump)
0 Service No Operation "Eo"
dC DRY (Dehumidification Cooler)
dH do not use
uC do not use
uH do not use
AC PMC (Cooler w/ Make-up Air)
AH PMH (Heat Pump w/ Make-up Air)
EC HEC (High Efficiency Cooler)
EH HEH (High Efficiency Heat Pump)
3C 32C (R-32 Cooler)
3H 32H (R-32 Heat Pump)
C4 Room I.D. Digit 1 & 2 00* - 99 00* - 99
C5 Room I.D. Digit 3 & 4 00* - 99 00* - 99
0* Off*
1On
18 18 Hour Automatic Entry
C8 Temp. Limiting Cool 60* - 80 60* - 80
C9 Temp. Limiting Heat 68 - 90, 80* 68 - 90, 80*
8* B*
0O
c3 Un-rent Cooling Temp. 45 - 95, 79* 45 - 95, 79*
c4 Un-rent Heating Temp. 45 - 95, 63* 45 - 95, 63*
0* Not Twinned*
5 Twinned
F* Fahrenheit Scale*
C Celsius Scale
L* On, Low Fan*
H On, High Fan
0Off
d6 Sensorless Un-Occ. Time 1 - 32, 18* 1 - 32, 18*
d7 1st Un-Occ. Set Back Temp. 1 - 16, 2* 1 - 16, 2*
d8 1st Un-Occ. Set Back Time .1, .5*, 1 - 24 .1 ,.5 ,1 - 24, .5*
d9 2nd Un-Occ. Set Back Temp. 1 - 16, 3* 1 - 16, 3*
dA 2nd Un-Occ. Set Back Time .5, 1* - 24 (d8) - 24, 1*
db 3rd Un-Occ. Set Back Temp. 1 - 16, 6* 1 - 16, 6*
dC 3rd Un-Occ. Set Back Time 1 - 24, 3* (dA) - 24, 3*
dd Cooling Capacity 5 - 24 5,000 - 24,000 BTU
dF Platform Group Code 00* - 99 00* - 99
dH Electric Heater Size 00*,15,20, 25, 35, 50 00*, 15, 20, 25, 35, & 50
dJ Operating Voltage 2, 3*, 4, 5 2, 3*, 4, 5
r4 Room Prefix 00* - 99 00* - 99
r5 Room Suffix 00* - 99 00* - 99
0* Dis-enabled*
78 - 99 78 - 99
C6 Wired Occupancy
C1 Interface
C2 ID Fan Operation
C3 Model Prefix
Cd English / Metric Temp
CE Freeze Protection
C0 T-stat B/O Term.
CA Wireless Twin Unit
u3 Heat Protection

17
Configuration
Code Configuration Feature Option Code Option
0Off
1* On only when ID fan runs
2 On when ID fan runs & room occupied
3 Runs continuously
4 On when room is occupied
E Economizer
EP Economizer with compressor assist
0Off
1* May be on anytime
2 Allowed on except in Off mode
3 Allowed on when indoor fan runs
4 Allowed on if room is occupied
5 Allowed on if room is not occupied
6 Allowed on when indoor humidity is high
0* Door Switch
1 Motion Sensor
2 Front Desk
3 Wired Un-rented Set Back
4 Emergency Hydronic
5 Load Shedding
6AlarmSensor
0* Door Switch
1 Motion Sensor
2 Front Desk
3 Wired Un-rented Set Back
4 Emergency Hydronic
5 Load Shedding
6AlarmSensor
0 Not used
15-80, 25* % RH above which kit may run
0 Not used
15-60, 25* % RH above which kit may run
0 No affect on indoor fan
1* Indoor fan forced to run with Kit
uL Config. Security Code 00* - 99 00* - 99
ub Indoor Humidity Activation
un Vent Dehumid Outdoor
Humidit
y
Level
uu Vent Dehumidification Kit
Fan Force
u9 Input Pins UN2 & COM
u8 Input Pins UN1 & COM
Smart Vent OperationP0
Vent Dehumid Make-up Air
Kit Operation
P2

18
DIAGNOSTIC MAINTENANCE
& STATUS REPORT
The Diagnostic Maintenance & Status Report provides detailed
information on PTAC control operation and operational status
includingpresentmodes, failures, airflow restriction warnings,
operating temperatures, and past failures. The lower right
hand dot on the center display flashes in this mode. In some
casesthe green LED located inthelower left hand corner ofthe
touchpad below the OFF key will also be lit. This Green LED
“StatusLight“onlyilluminatesifthereisanstatuscodethathas
beenactivatedandshouldbereviewed. Inmostcases,thislight
indicates that the indoor room filter is dirty should be cleaned
orreplaced. NOTE: Dirtyfilterscausetheunittoconsumemore
energy than normally needed to condition a room. Once the
filter has been cleaned or replaced, the LED should go out. If
the LED is still illuminated after the filter has been cleaned,
activate the Diagnostic and Status mode to view any active
codes. The unit may need additional cleaning or maintenance
of the evaporator or condenser coils. Please perform this step
before calling a servicer. A servicer should be called only if
cleaning the filter or coils does not clear the status code or
the code indicates that servicer should be called.
DIAGNOSTIC STATUS REPORT MODE.
To enter Diagnostic Status Report mode, press and hold the
up and down arrows and, while holding, quickly press
the COOL key twice.
ACTIVE FAILURES.
• If there are no active failures or lockouts, the display
will show a double dash, “- -”. If there is a code listed,
see the unit “Diagnostic Codes” chart for a list of defi-
nitions.
OPERATING TEMPERATURES.
• If not in Diagnostic Status Report Mode, enter as instructed
above and press the Fan Speed key.
• If already in Diagnostic Status Report mode, press the
Fan Speed key. The display will show the tem-
perature of the desired set point, SP; the temperature at
the wireless thermostat, rL; the indoor ambient tempera-
ture behind the filter, IA; the indoor coil temperature,
IC; the indoor discharge air temperature, Id; the outdoor
coil temperature, OC; the outdoor ambient temperature,
OA; and the spare probe temperature, IH. If any of the
probes are not populated the display will show the corre-
sponding failure code.
PAST FAILURE LOG
• If not in Diagnostic Status Report Mode, enter as instructed
above and press the Fan Speed key twice.
• If already in Diagnostic Status Report mode, press the
Fan Speed key. While the display is showing oper-
ating temperatures, the last 10 failure codes active or
past can be requested by pressing the Fan Speed
key again. The codes are displayed last entry first fol-
lowed subsequently by each preceding code.
Note that modes and are also displayed in the
normal control operation (see “Diagnostic Codes”
chart).
F1 Fd
To exit Diagnostic Status Report mode, press the OFF
key.

19
DIAGNOSTIC CODES
STATUS DISPLAY ERROR
LIGHT SUGGESTEDACTION
FP Freeze Protection Engaged. The room temperature measured bythewirelessremotethermostat orindoor ambient
thermistor active sensor falls below 40°F. YN
No Action required. This settingwill disengage whenthe
room temperature rises above 43°F.
Fd Front Desk switch is closed. All outputs are switched off. Y N Open front desk switch to allow occupant unit operation.
Eo Un-Configured Service Board -
All operation held awaitingconfiguration YY Enter Configuration Menu andset "C3" to "C" for coolers with electric heat or "H" for heat pumps.
EH Emergency Hydronic Engaged. EHH switch is closed.
Compressor is switched off. YN
Openfront emergency hydronic switch to allow occupant
unit operation.
LS Load Shedding Engaged. The LS switch is closed.
Compressor and Electric heat is switched off. YN Openloadsheddingswitch to allow occupant unit operation.
On Control is configured to respond to a wired thermostat. Y N No actionif a wiredthermostatis being used.
Otherwise, see Configuration Settings.
oP Open Door Lockout
(DS1 & DS2 open; wireless) YY Close Room Door. Unitwill not conditionspace with door open.
nP Window Switch Lockout -
(LS & INN open) YY Close Room Door or Window. Unitwillnotconditionspacewithdooror window open.
HP Heay Sentinel -
(WIAT> u3) YN
No Action required. This setting will disengage if the room
temperature falls.
Ur Un-Rented Status -
(
EHH& INN or wireless
)
Y N Front Desk needs to set to Rented mode (if applicable).
L6 Discharge AirToo Hot. N Y CleanFilter orRemove AirBlockage.
LC Outdoor Coil Thermistor temperature high. N y CleanCondenserCoils ,Check Fan forfault. Code will
reset after cleaning.
C2 Indoor Air Recirculation. Large delta between thermostat and
return. NY
CleanFilterorRemoveAirBlockage orCloseVentDoor
or Improveindoorto outdoor seal.
C5 Outdoor CoilThermistortemperaturetoo highforoutdoor
ambient temperature. N Y Checkfor BlockedOutdoor Air orCleanCoil.
H2 High Compressor Discharge Temperature Warning Y Y Check for fan and blower operation;
Checkindoorandoutdoor airflowisunobstructed
HA High DigiAir Ventilation Kit Compressor DischargeTemperature
Warning YYCheck Ventilation kit air flow for unobstruction; Check kit filter
FA Low DigiAir Ventilation Kit Compressor Suction Y Y Check Ventilation kit air flow for unobstruction;
Check kit filter; Check for Kit refrigeration loss
L7 HighTemperature Delta onVentilation KitCompressor Suction
to Discharge YYCheck Ventilation kit air flow for unobstruction; Checkkitfilte
r
C1 Indoor Coil is freezing up. Y Y Clean filter,Checkforfan andblower operation, Check for Refrigerantloss
or Restricted capillary tube.
C3 Indoor Coil is freezing up. Y Y Clean filter,Checkforfan andblower operation, Check for Refrigerantloss
or Restricted capillary tube.
C4 IndoorCoilfrozeup. Y Y Clean filter,Checkfor fanandbloweroperation, Check for Refrigerantloss
or Restricted capillary tube.
C6 PoorUnitPerformance. N Y Check for blower motor,compressor,
or electric heat operation.
C7 Indoor FreezingLockout (ICT - IAT >20) +10 Min N Y Clean filter,Check for fan andblower operation, Check for Refrigerantloss
or Restricted capillary tube.
AIRFLOW ALERTS MODES
CODE
REFRIGERATION ALERTS

20
STATUS DISPLAY ERROR
LIGHT SUGGESTEDACTION
Indoor Ambient Thermistor readsoutside the range -20°Fto
200°F &the wireless thermostat is not communicatingto the
unit control or
Indoor Ambient Thermistor (IAT) without a wireless remote
thermostat reads outside the range -20°F to 200°F.
F2 WirelessRemote Thermostat failure. N N Replace Wirless Thermostat
F3 Indoor Ambient Thermistor reads
outside the range -20°F to 200°F. Y N Replace black Indoor Ambient Thermistor.
F4 IndoorCoil Thermistor eitherabov orbelow operating
tolerances. N Y Replace Red Indoor Coil Thermistor.
F5 Wireless Thermostat failure. N Y Attempt to rebind Wireless Thermostat
or Replace Wireless Thermostat.
F6 Indoor Discgarge Thermistor either above
or below operating tolerances. N Y Replace Yellow Indoor Discharge Thermistor.
Fb Low Remote Battery Warning N Y Replace Batteries in Wireless Devices.
H1 HighVolatage Protection engaged.
Power Supply voltage is to high. Y N Check for incomingpower at correct voltage.
br Brown out Protectionengaged. Powerwas lost orvolatage
waslow. N N Check for incoming power at correct voltage.
FH Ventilation Kit Compressor Suction Thermistor reads outside
the range -10 oFto 190 oFY N Replace brown DigiAir Suction Thermistor
FC Ventilation Kit Compressor Discharge Thermistor reads outside
the range -40 oFto 257 oFY N Replace gray DigiAirDischarge Thermistor
Fh Outdoor Relative Humidity Sensor has failed; not reading
humidity level YN
Check humidity sensor connection to daughter board, and
replace humidity sensor if required.
Fo Outdoor Relative Humidity Sensor has failed; not reading
temperature level YN
Check humidity sensor connection to daughter board, and
replace humidity sensor if required.
Fr Indoor Relative Humidity Sensor has failed; not reading
humidity level, or humidity sensor not installed YN
Check humidity sensor connection to daughter board, and
replace humidity sensor if required.
F- Indoor Relative Humidity Sensor has failed; not reading
temperature level, or humidity sensor not installed YN
Check humidity sensor connection to daughter board, and
replace humidity sensor if required.
d4 DC motor control communication loss Y Y Check connection between main control and indoor and/or outdoor motor control daughter boards; Replace
control if required.
d5 Outdoor DC motor speed error Y Y Check connections between outdoor motor and motor control daughter board; Replace motor and/or control if
required.
d6 Indoor DC motor speed error Y Y Check connections between indoor motor and motor control daughter board; Replace motor and/or control if
required.
Flashing service LED; Main control failure (none) (Flashing) Replace main control board
EC Configuration Error Y Y Confirm configuration codes P3, P4, P5,& P6 are set
correctly
FAILURES
CODE
F1 YY
Replace black Indoor Ambient Thermistor or Wireless
Remote Thermostat
DIAGNOSTIC CODES
