Amate Audio X-15LTP User manual

XCELLENCE SERIES
X-15LTP
Pol. Ind. Norte - Perpinyà, 25
08226 TERRASSA (Barcelona-SPAIN)
Copyright © 2012 [email protected]
All rights reserved master-audio.com
Dec 12
User’s manual
ENGLISH
Safety Instructions
1. All safety instructions must be read before using this device.
2. The exclamation mark in the triangle indicates internal components which if
replaced can affect safety.
3. The lightning symbol within the triangle indicates the presence of dangerous
uninsulated voltages.
4. This device must not be exposed to rain or humidity. It must not be used for
example near swimming pools, fountains or any other place where it might be
affected by liquids.
5. Only clean the device with a dry cloth.
6. Do not situate the equipment where its ventilation system might be interfered with.
7. Do not install the device near heat sources such as radiators, heaters or other
heat-emitting elements.
8. The equipment must be repaired by qualified technical service personnel when:
A. The mains supply cable is damaged, or
B. Any object or liquid has damaged the device; or
C. The equipment does not function normally or correctly; or
D. The equipment has been exposed to the rain; or
E. The chassis is damaged
9. Disconnect the device in the case of electric storms or during long periods of
disuse.
10. Never hang the equipment by its handle.
11. Only use manufacturer recommended accessories.
CAUTION
RISK OF ELECTRIC SHOCK
DON’T OPEN
To reduce the risk of fire or electric shock do
not expose this equipment to rain or moisture
WARNING:
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 3
1. Introduction
1.1. General product information
Master Audio thank you for the trust placed in our Xcellence loudspeaker system.
The X15LTP incorporates the highest technology features that take this system to a
new level of sound performance.
More than 40 years’ experience in amplifier and acoustic cabinet design using the
highest technology and components come together to give you a product ideal for a
multitude of applications, from sound back-up systems for theatres, clubs or TV
channels to even corporative events or concert halls.
We suggest you read the following information with attention, assured that it will be of
maximum use in helping you to achieve the best results and optimum performance.
1.2. Features and appearance
X15LTP
- Two-way passive system.
- One 15” woofer in neodymium (4” voice coil).
- One 3” voice coil diameter, titanium diaphragm compression driver.
- 60º x 50º rotative horn.
- Internal crossover, which divides the corresponding frequencies to each transducer
with minimum losses.
- Birch plywood construction.
- Polyurea black textured paint finish.
- Frontal steel grille with acoustically transparent grey cloth.
2. X15LTP Systems. Features
The X15LTP cabinet is ideal for a multitude of applications. To optimise and align the
system we offer some customized DSP306/408 presets, to be played with our
HD3200 amplifier, making a system difficult to match.
The result is a clean, high quality sound whether for nearfield listening or at full power
in larger sites.

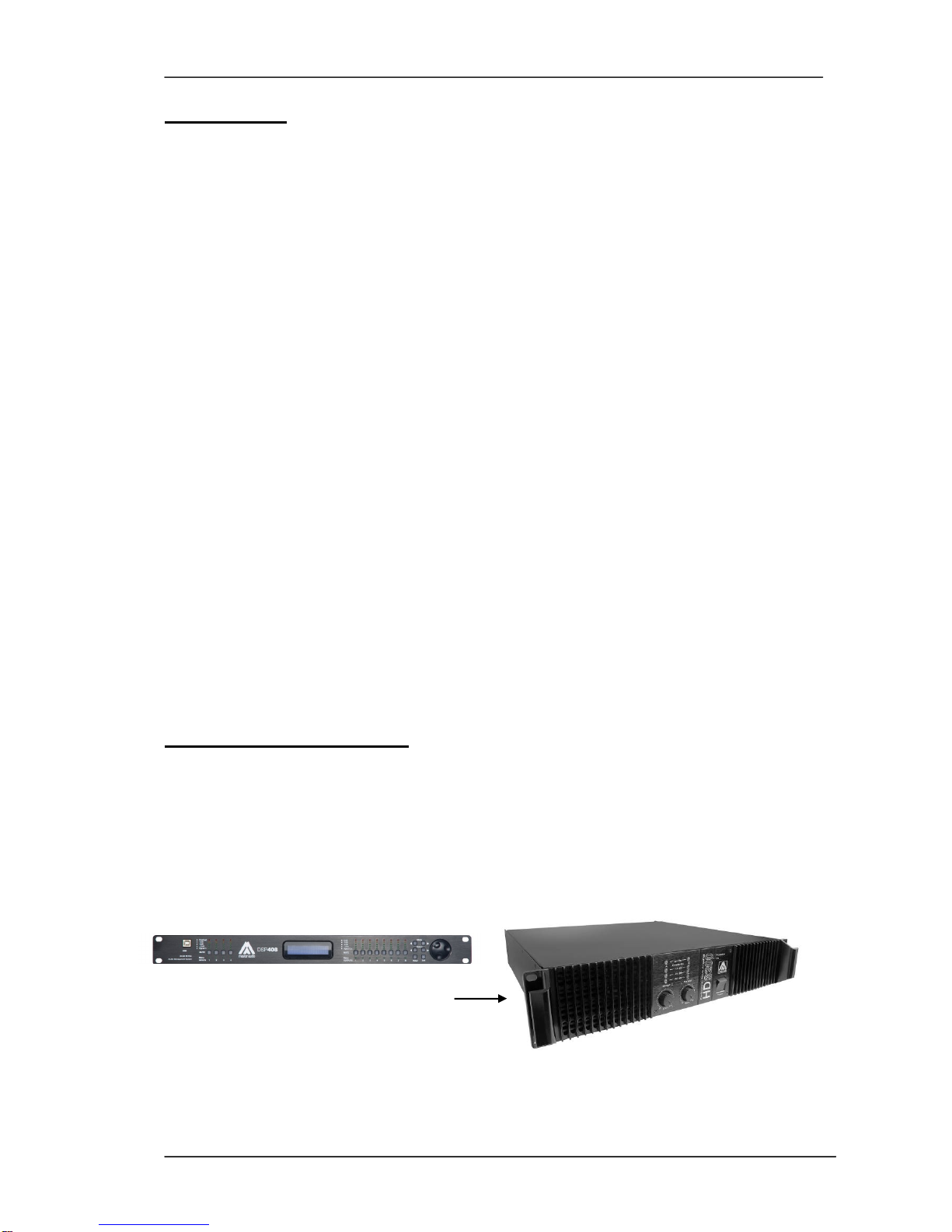

Fig.1. HD3200 amplifier and DSP306/408
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 4
The lower surface incorporates a pole mount socket for a standard 35mm tripod and
the top surface incorporates a M10 thread.
2.1. Technical description
The X15LTP cabinet comes with full range sound delivery thanks to its direct
radiation transducer and acoustic bass reflex cabinet. As a full range system, its
response is 50-18kHz (+/- 3dB) with a usable bandwidth between 42Hz-19kHz (-
10dB).
The X15LTP cabinets are connected using Speakon connectors.
It is built in birch plywood, which has a high resistance to vibrations and humidity with
black polyurea paint finish. The front face is protected by a 1.5 mm thick steel grille
with acoustically transparent grey cloth.
2.2. Connection Panel
Each unit contains a rear panel comprising:
A A

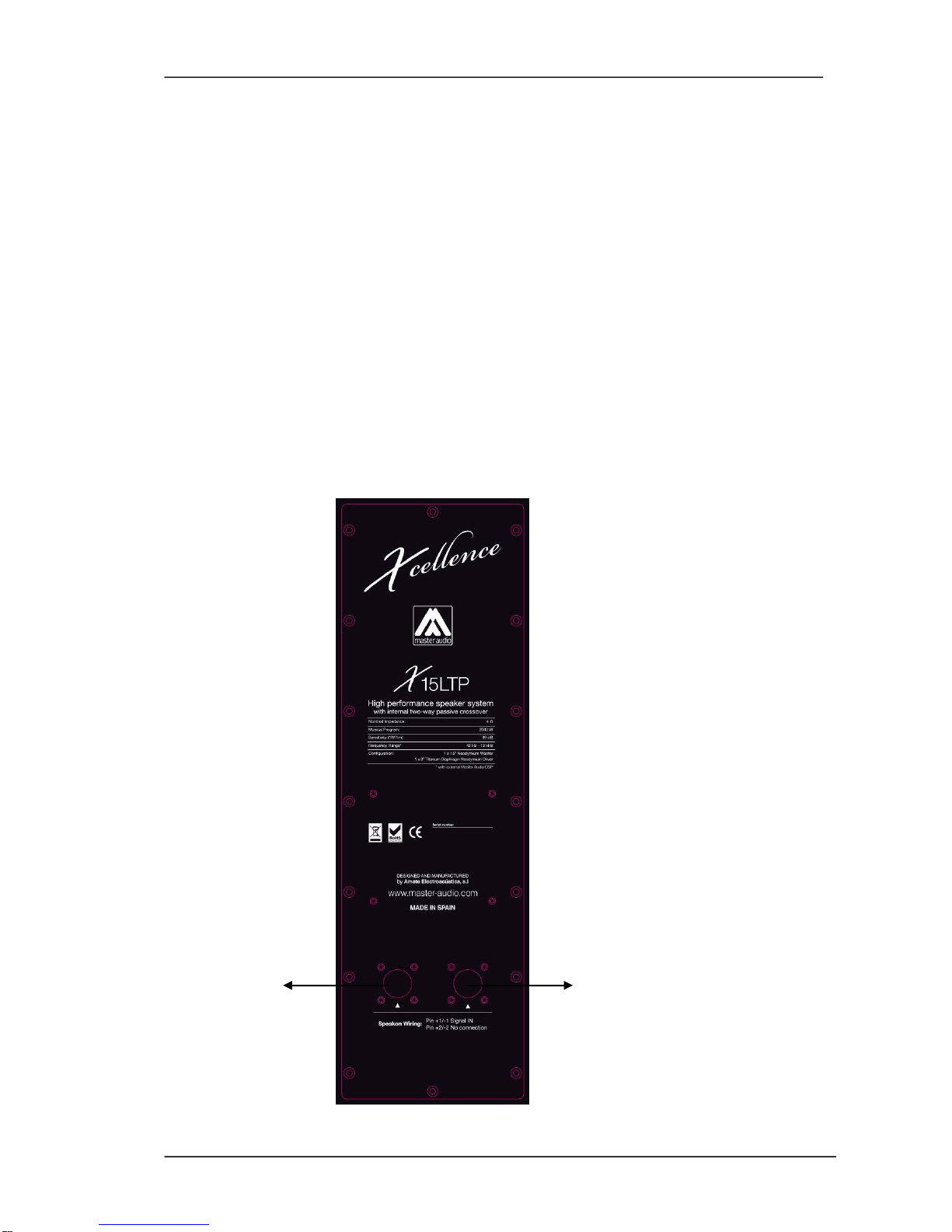

Fig.2. X15LTP connection panel
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 5
A) SPEAKON: The X15LTP uses two Speakon terminals. Each NL4 connector
includes:
PIN+1/-1: power signal from the amplifier.
WARNING: Respect the polarity +/-
PIN+2/-2: no connection
It is strongly recommended to use a multi-conductor high quality wire, non-
shielded. We recommend using a minimum section of 4mm2for the
conductors that will transport the power signal (+1/-1).
Avoid long wire distances as they induce to important power and quality losses.
3. Dimensions:
X15LTP has height 75 cm, width 47 cm, depth 50 cm

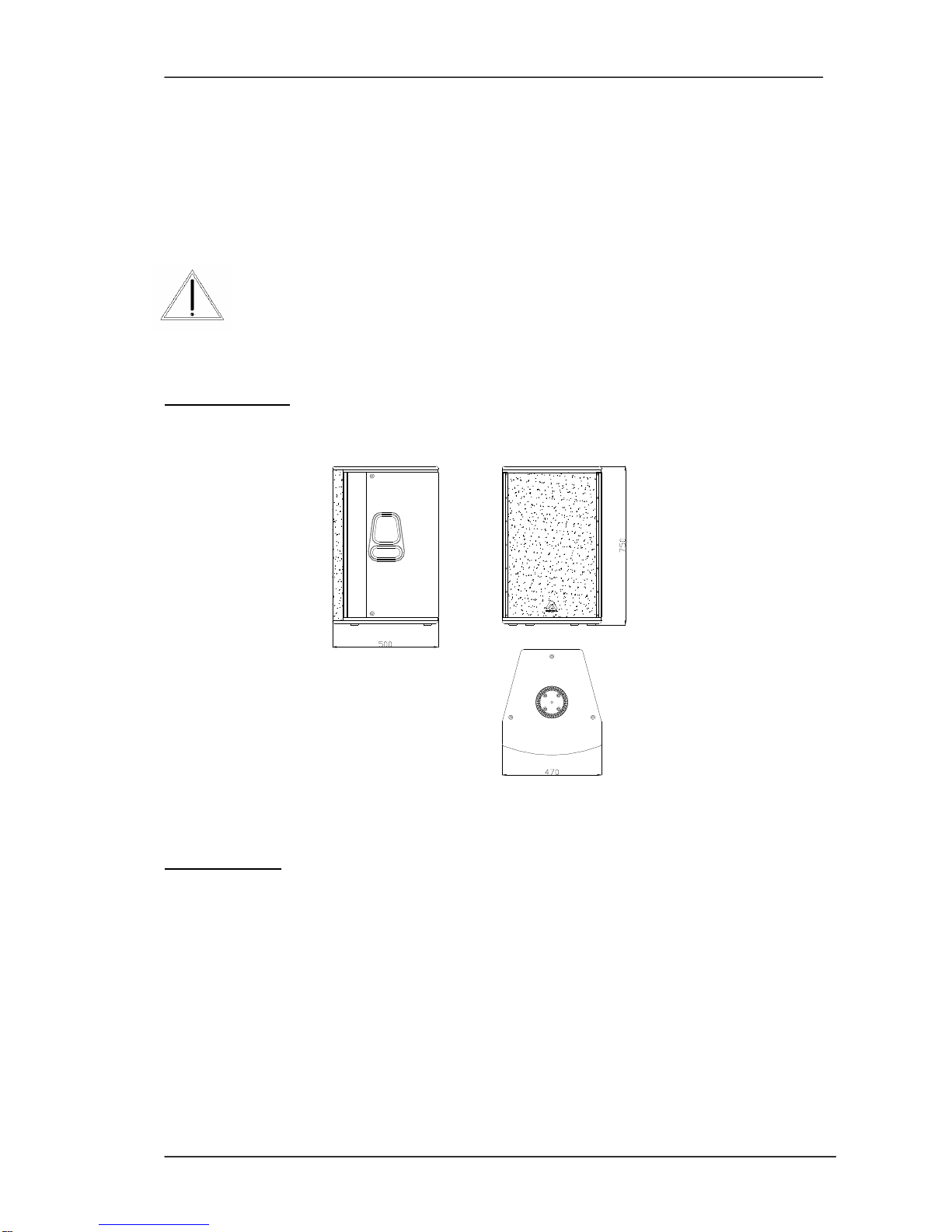

Fig.3. X15LTP cabinet. External dimensions
4. Connecting
4.1. Full Range Stereo configuration
Connect each output of the amplifier LEFT/RIGHT to each cabinet using two wires,
independently.
Use the dedicated presets on DSP306/408 to optimize the performance of the
system.
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 6
DSP
Fig.4. Full Range Stereo connection
5. Mounting and installation
Whenever possible, mount the Full Range units in a high position (between 2 and 3
meters above ground), angled towards the audience. If the units are mounted close to
the ground the back row listeners will receive low quality sound.
Fig.5. Orientation of Xcellence full range units (X15LTP)
The X15LTP incorporates a 35mm pole mount socket for standard tripod in the lower
side. To use the socket, unscrew the four bolts on the central face plate.
Fig.6. Top side (left) and socket for tripod (right)
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 7
Do not use the tripod on sloping surfaces nor mount the cabinets too high to avoid
total instability of the system.
The brand logo can be turned for use in the horizontal position.
6. Flying with ACRM10
The X15LTP provides M10 flying points. Their correct use will permit the flying in
horizontal or vertical position
Vertical Flying
Points 1. Use point 2 to get the desired inclination.
Horizontal Flying
Points 3. Use points 4 to get the desired inclination.
We offer as optional accessory the eyebolt rigging M10 (ACR M10).

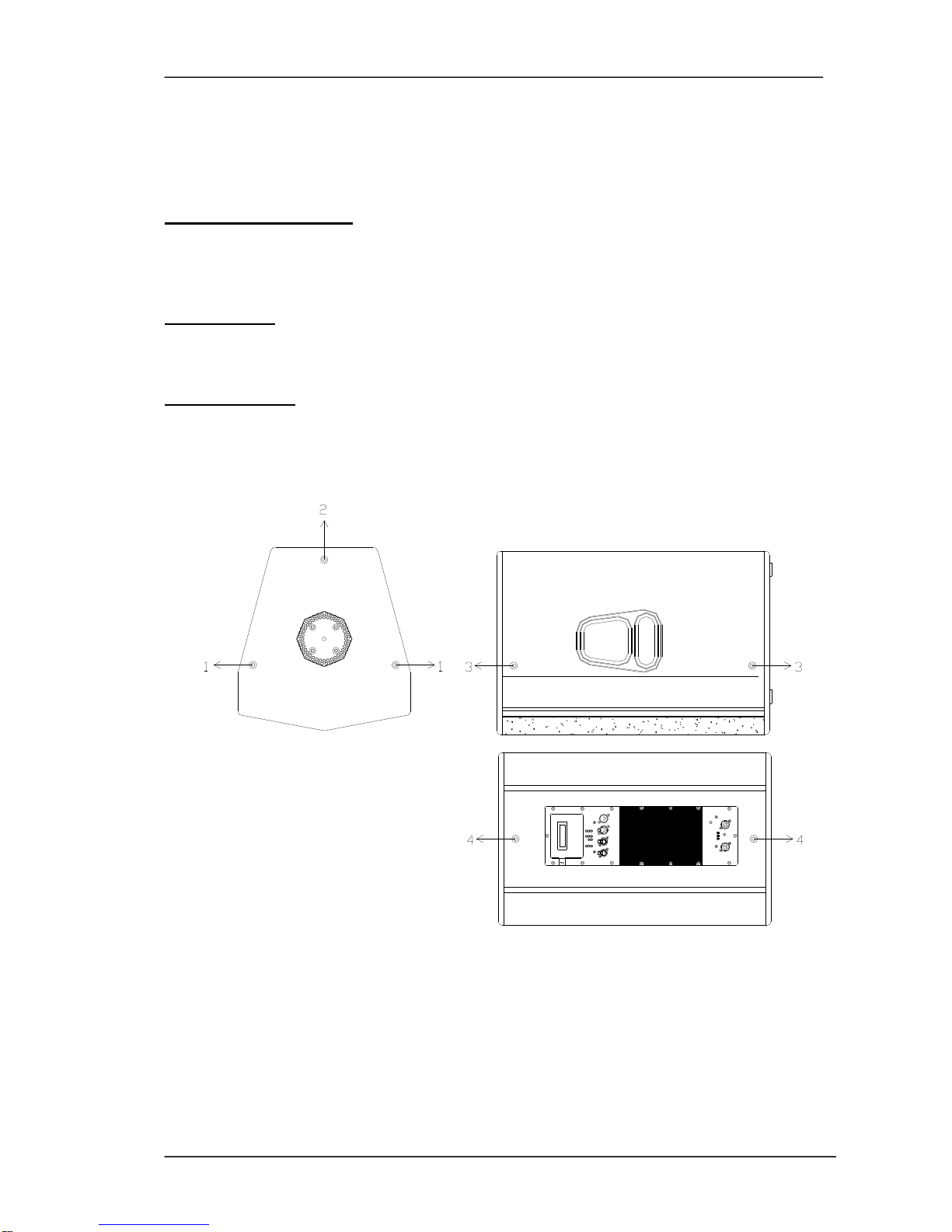

Fig.7. Flying points
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 8
7. Technical specifications
7.1. X15LTP specifications
Impedance 4
Sensitivity 1W/1m 99dB
Frequency response (-10 dB) 42Hz-19kHz
Power handling
R.M.S 1000W
Program 2000W
Nominal directivity (-6dB)
Horizontal 60º (rotative horn)
Vertical 50º
Components
LF 1x15" neodymium woofer (4” voice coil)
HF 1x neodymium driver, titanium diaphragm (3” voice coil)
Enclosure
Height 750mm
Width 470 mm
Depth 500 mm
Net weight 34.9Kg
Connections 2 x Speakon (IN/LINK)
Material Birch plywood, Steel frontal grille with grey acoustic cloth
Finish Polyurea black paint
Rigging In-built M10 points
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 9
8. APPENDIX
POWER LOSSES (%) AND DAMPING FACTOR, RELATED TO WIRE LENGTH
AND SECTION
(*) Referred to an amplifier with a Damping Factor of 200:1. Wire sections under
2.50 mm2are completely inadvisable.
For fixed installations with 4 Ohms load, it is better to have one wire for each speaker
system. It is not advisable to bridge one cabinet to another.
Wire
length
(m)
Section
(mm2)Resistance
(Ohms) Power losses
8Ohms 4Ohms 2Ohms Damping losses(*)
8 Ohms 4 Ohms
0.75 0.042 0.53% 1.05% 2.10% 98 49
1.50 0.025 0.31% 0.63% 1.25% 123 62
2.50 0.013 0.16% 0.33% 0.65% 151 75
14.00 0.008 0.10% 0.20% 0.40% 167 83
0.75 0.210 2.63% 5.25% 10.5% 32 16
1.50 0.125 1.56% 3.13% 6.25% 48 24
2.50 0.065 0.81% 1.63% 3.25% 76 38
54.00 0.040 0.50% 1.00% 2.00% 100 50
0.75 0.420 5.25% 10.50% 21.00% 17 9
1.75 0.250 3.13% 6.25% 12.50% 28 14
2.50 0.130 1.63% 3.25% 6.50% 47 24
10 4.00 0.080 1.00% 2.00% 4.00% 67 33
0.75 0.840 10.50% 21.00% 42.00% 9 5
1.50 0.500 6.25% 12.50% 25.00% 15 7
2.50 0.260 3.25% 6.50% 13.00% 27 13
20 4.00 0.160 2.00% 4.00% 8.00% 40 20
0.75 2.100 26.25% 52.50% --- 4 2
1.50 1.250 15.63% 31.25% 62.50% 6 3
2.50 0.650 8.13% 16.25% 32.50% 12 6
50 4.00 0.400 5.00% 10.00% 20.00% 18 9
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 10
PRESET1: FACTORY
Parameters Out 1/ LEFT_1 Out 2/RIGH_1 Out3/LEFT_2 Out 4/RIGH_2 Out 5/LEFT_3 Out 6/RIGH_3
Level 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB
POL++++++
Delay 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms
EQ1 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 53Hz 53Hz 53Hz 53Hz 53Hz 53Hz
BW/Q 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38
Level 6 dB 6 dB 6 dB 6 dB 6 dB 6 dB
EQ2 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 390Hz 390Hz 390Hz 390Hz 390Hz 390Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -3 dB -3 dB -3 dB -3 dB -3 dB -3 dB
EQ3 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz
BW/Q 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ4 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 800Hz 800Hz 800Hz 800Hz 800Hz 800Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -2 dB -2 dB -2 dB -2 dB -2 dB -2 dB
EQ5 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 1741Hz 1741Hz 1741Hz 1741Hz 1741Hz 1741Hz
BW/Q 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2
Level 3 dB 3 dB 3 dB 3 dB 3 dB 3 dB
EQ6 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz
BW/Q 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8
Level -1 dB -1 dB -1 dB -1 dB -1 dB -1 dB
EQ7 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz
BW/Q 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ8 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz
BW/Q 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8
Level 5 dB 5 dB 5 dB 5 dB 5 dB 5 dB
TYPL Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQL 35Hz 35Hz 35Hz 35Hz 35Hz 35Hz
SLPL 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
TYPH Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQH 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz
SLPH 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
THRESH 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu
ATTACK 4ms 4ms 4ms 4ms 4ms 4ms
RELEASE 32x 32x 32x 32x 32x 32x
IN1 0.00 OFF 0.00 OFF 0.00 OFF
IN2 OFF 0.00 OFF 0.00 OFF 0.00
IN3 OFF OFF OFF OFF OFF OFF
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 11
PRESET2: NEARFIELD
Parameters Out 1/ LEFT_1 Out 2/RIGH_1 Out3/LEFT_2 Out 4/RIGH_2 Out 5/LEFT_3 Out 6/RIGH_3
Level 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB
POL++++++
Delay 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms
EQ1 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 53Hz 53Hz 53Hz 53Hz 53Hz 53Hz
BW/Q 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38
Level 6 dB 6 dB 6 dB 6 dB 6 dB 6 dB
EQ2 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 390Hz 390Hz 390Hz 390Hz 390Hz 390Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -3 dB -3 dB -3 dB -3 dB -3 dB -3 dB
EQ3 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz
BW/Q 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ4 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 800Hz 800Hz 800Hz 800Hz 800Hz 800Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -2 dB -2 dB -2 dB -2 dB -2 dB -2 dB
EQ5 Bypass
Type
Freq
BW/Q
Level
EQ6 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz
BW/Q 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ7 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz
BW/Q 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ8 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz
BW/Q 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8
Level 5 dB 5 dB 5 dB 5 dB 5 dB 5 dB
TYPL Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQL 35Hz 35Hz 35Hz 35Hz 35Hz 35Hz
SLPL 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
TYPH Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQH 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz
SLPH 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
THRESH 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu
ATTACK 4ms 4ms 4ms 4ms 4ms 4ms
RELEASE 32x 32x 32x 32x 32x 32x
IN1 0.00 OFF 0.00 OFF 0.00 OFF
IN2 OFF 0.00 OFF 0.00 OFF 0.00
IN3 OFF OFF OFF OFF OFF OFF
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 12
PRESET3: LOUDNESS
Parameters Out 1/ LEFT_1 Out 2/RIGH_1 Out3/LEFT_2 Out 4/RIGH_2 Out 5/LEFT_3 Out 6/RIGH_3
Level 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB
POL++++++
Delay 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms
EQ1 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 53Hz 53Hz 53Hz 53Hz 53Hz 53Hz
BW/Q 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38
Level 6 dB 6 dB 6 dB 6 dB 6 dB 6 dB
EQ2 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 390Hz 390Hz 390Hz 390Hz 390Hz 390Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -3 dB -3 dB -3 dB -3 dB -3 dB -3 dB
EQ3 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz
BW/Q 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ4 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 800Hz 800Hz 800Hz 800Hz 800Hz 800Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -2 dB -2 dB -2 dB -2 dB -2 dB -2 dB
EQ5 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 1741Hz 1741Hz 1741Hz 1741Hz 1741Hz 1741Hz
BW/Q 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2
Level -3 dB -3 dB -3 dB -3 dB -3 dB -3 dB
EQ6 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz
BW/Q 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8
Level -7 dB -7 dB -7 dB -7 dB -7 dB -7 dB
EQ7 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz
BW/Q 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ8 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz
BW/Q 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8
Level 5 dB 5 dB 5 dB 5 dB 5 dB 5 dB
TYPL Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQL 35Hz 35Hz 35Hz 35Hz 35Hz 35Hz
SLPL 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
TYPH Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQH 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz
SLPH 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
THRESH 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu
ATTACK 4ms 4ms 4ms 4ms 4ms 4ms
RELEASE 32x 32x 32x 32x 32x 32x
IN1 0.00 OFF 0.00 OFF 0.00 OFF
IN2 OFF 0.00 OFF 0.00 OFF 0.00
IN3 OFF OFF OFF OFF OFF OFF
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 13
PRESET4: SPEECH
Parameters Out 1/ LEFT_1 Out 2/RIGH_1 Out3/LEFT_2 Out 4/RIGH_2 Out 5/LEFT_3 Out 6/RIGH_3
Level 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB
POL++++++
Delay 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms
EQ1 Bypass Off Off Off Off Off Off
Type HI-SHELF HI-SHELF HI-SHELF HI-SHELF HI-SHELF HI-SHELF
Freq 9000Hz 9000Hz 9000Hz 9000Hz 9000Hz 9000Hz
BW/Q 1,9 / 0,7 1,9 / 0,7 1,9 / 0,7 1,9 / 0,7 1,9 / 0,7 1,9 / 0,7
Level -6 dB -6 dB -6 dB -6 dB -6 dB -6 dB
EQ2 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 390Hz 390Hz 390Hz 390Hz 390Hz 390Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -3 dB -3 dB -3 dB -3 dB -3 dB -3 dB
EQ3 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz
BW/Q 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ4 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 800Hz 800Hz 800Hz 800Hz 800Hz 800Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -2 dB -2 dB -2 dB -2 dB -2 dB -2 dB
EQ5 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 1741Hz 1741Hz 1741Hz 1741Hz 1741Hz 1741Hz
BW/Q 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2
Level 3 dB 3 dB 3 dB 3 dB 3 dB 3 dB
EQ6 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz
BW/Q 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8
Level -1 dB -1 dB -1 dB -1 dB -1 dB -1 dB
EQ7 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz
BW/Q 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ8 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz
BW/Q 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8
Level 5 dB 5 dB 5 dB 5 dB 5 dB 5 dB
TYPL Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQL 35Hz 35Hz 35Hz 35Hz 35Hz 35Hz
SLPL 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
TYPH Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQH 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz
SLPH 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
THRESH 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu
ATTACK 4ms 4ms 4ms 4ms 4ms 4ms
RELEASE 32x 32x 32x 32x 32x 32x
IN1 0.00 OFF 0.00 OFF 0.00 OFF
IN2 OFF 0.00 OFF 0.00 OFF 0.00
IN3 OFF OFF OFF OFF OFF OFF
Master Audio
Xcellence Series X15LTP.Ver 1.0 Dec 12 14
PRESET5: XOVER
Parameters Out 1/ LEFT_1 Out 2/RIGH_1 Out3/LEFT_2 Out 4/RIGH_2 Out 5/LEFT_3 Out 6/RIGH_3
Level 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB
POL++++++
Delay 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms 0.0ms
EQ1 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 53Hz 53Hz 53Hz 53Hz 53Hz 53Hz
BW/Q 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38 0,6 / 2,38
Level 6 dB 6 dB 6 dB 6 dB 6 dB 6 dB
EQ2 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 390Hz 390Hz 390Hz 390Hz 390Hz 390Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -3 dB -3 dB -3 dB -3 dB -3 dB -3 dB
EQ3 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz 5310Hz
BW/Q 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38 0,60 / 2,38
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ4 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 800Hz 800Hz 800Hz 800Hz 800Hz 800Hz
BW/Q 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36 0,33 / 4,36
Level -2 dB -2 dB -2 dB -2 dB -2 dB -2 dB
EQ5 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 1741Hz 1741Hz 1741Hz 1741Hz 1741Hz 1741Hz
BW/Q 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2 0,20 / 7,2
Level 3 dB 3 dB 3 dB 3 dB 3 dB 3 dB
EQ6 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz 2340Hz
BW/Q 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8 0,3 /4,8
Level -1 dB -1 dB -1 dB -1 dB -1 dB -1 dB
EQ7 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz 3044 Hz
BW/Q 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8 0,3 / 4,8
Level -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB
EQ8 Bypass Off Off Off Off Off Off
Type PEQ PEQ PEQ PEQ PEQ PEQ
Freq 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz 13408Hz
BW/Q 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8 1,67 / 0,8
Level 5 dB 5 dB 5 dB 5 dB 5 dB 5 dB
TYPL Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQL 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz
SLPL 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
TYPH Butterworth Butterworth Butterworth Butterworth Butterworth Butterworth
FRQH 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz 20000Hz
SLPH 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct 24dB/oct
THRESH 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu 5,5dBu
ATTACK 4ms 4ms 4ms 4ms 4ms 4ms
RELEASE 32x 32x 32x 32x 32x 32x
IN1 0.00 OFF 0.00 OFF 0.00 OFF
IN2 OFF 0.00 OFF 0.00 OFF 0.00
IN3 OFF OFF OFF OFF OFF OFF

Other Amate Audio Speakers System manuals

Amate Audio LMS608 User manual

Amate Audio

Amate Audio LMS608 User manual

Amate Audio KEY Series User manual

Amate Audio

Amate Audio KEY Series User manual

Amate Audio X14T User manual

Amate Audio

Amate Audio X14T User manual

Amate Audio XCELLENCE XW118 User manual

Amate Audio

Amate Audio XCELLENCE XW118 User manual

Amate Audio xcellence X12CLD User manual

Amate Audio

Amate Audio xcellence X12CLD User manual

Amate Audio DSP608 User manual

Amate Audio

Amate Audio DSP608 User manual

Amate Audio X12CLA User manual

Amate Audio

Amate Audio X12CLA User manual

Amate Audio LMS206 User manual

Amate Audio

Amate Audio LMS206 User manual

Amate Audio DSP206 User manual

Amate Audio

Amate Audio DSP206 User manual

Amate Audio N26 User manual

Amate Audio

Amate Audio N26 User manual

Amate Audio Xcellence X102FD User manual

Amate Audio

Amate Audio Xcellence X102FD User manual

Popular Speakers System manuals by other brands

Leader LV 5838 instruction manual

Leader

Leader LV 5838 instruction manual

Peavey SP 15M Specifications

Peavey

Peavey SP 15M Specifications

Bose 901 owner's guide

Bose

Bose 901 owner's guide

AUDAC IMEO1 user manual

AUDAC

AUDAC IMEO1 user manual

QSC SC-323 user manual

QSC

QSC SC-323 user manual

Cavus CFHKCBAR Mounting instructions

Cavus

Cavus CFHKCBAR Mounting instructions

Altec Lansing VS2621 Brochure & specs

Altec Lansing

Altec Lansing VS2621 Brochure & specs

Technics Monitor 1 SB-M1 operating instructions

Technics

Technics Monitor 1 SB-M1 operating instructions

Sima XL-SP-8 user manual

Sima

Sima XL-SP-8 user manual

Turbosound TLX LIVERPOOL Series Rigging manual

Turbosound

Turbosound TLX LIVERPOOL Series Rigging manual

JBL Simply Cinema ESC550 Simple setup guide

JBL

JBL Simply Cinema ESC550 Simple setup guide

Sony SS-MB100H Connection guide

Sony

Sony SS-MB100H Connection guide

LEM titanium Series owner's manual

LEM

LEM titanium Series owner's manual

AUDIO TELEX 5065 Dimensions

AUDIO TELEX

AUDIO TELEX 5065 Dimensions

Speco SP-RK65CG/T owner's manual

Speco

Speco SP-RK65CG/T owner's manual

McIntosh MSS410 owner's manual

McIntosh

McIntosh MSS410 owner's manual

Aaron AP-4 Brochure & specs

Aaron

Aaron AP-4 Brochure & specs

Sonance HOME THEATER SPEAKERS instruction manual

Sonance

Sonance HOME THEATER SPEAKERS instruction manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
