AMAZON COMMERCIAL Entry B07RQWVPDT User manual

Door Knob
Perilla de Puerta
Bouton de Porte

Entry
B07RQWVPDT, B07RW99JF5, B07RV872LF
B07RQWW95Y
Privacy
B07RW99ZY5, B07RT32435
Passage
B07RV867NW, B07RWR3QMQ
English ..................................... 03
Español .................................... 13
Français ................................... 23

3
Contents:
Before getting started, ensure the package contains the
following components:
Welcome Guide •English
Entry
• One (1) Lock Body
One (1) Strike Plate•
One (1) Latch•
Two (2) Keys•
Two (2) Phillips head wood screws for latch plate•
Two (2) Phillips head wood screws for strike plate•
Two (2) Phillips head machine screws for attaching lock body
•
Privacy
• One (1) Lock Body
One (1) Strike Plate•
One (1) Latch•
One (1) Safety Key•
Two (2) Phillips head wood screws for latch plate•
Two (2) Phillips head wood screws for strike plate•
Two (2) Phillips head machine screws for attaching lock body
•
Passage
• One (1) Lock Body
One (1) Strike Plate•
One (1) Latch•
Two (2) Phillips head wood screws for latch plate•
Two (2) Phillips head wood screws for strike plate•
Two (2) Phillips head machine screws for attaching lock body•

IMPORTANT SAFEGUARDS
Read these instructions carefully and retain them for
future use. If this product is passed to a third party,
then these instructions must be included.
Before First Use
•Check for transport damage.
Risk of suffocation! Keep any packaging
materials away from children – these
materials are a potential source of danger,
e.g. suffocation.
DANGER
4
Recommended Tools:
• 1" (25 mm) Wood Drill Bit
• 2-1/18" (54 mm) Hole Saw
• Level
• Phillips Screwdriver
• Hammer
• Pencil
• Tape Measure
• Safety Glasses
• Tape
• Wood Chisel

Step 1:
MARK DOOR
5
•
•
Fold the template at the dotted line and tape the template
onto the interior side of the door.
Mark hole for the location for the dead bolt and latch.
It is recommended that you be at least 38" from
the floor.
Step 2:
DRILL HOLES
Drill a 2-1/18" (54 mm) holes through door face as marked
for the dead bolt.
Drill a 1" (25 mm) hole as marked for the latch.
NOTICE
DRILL THE 2-1/8” (54mm) HOLE FROM BOTH
SIDES TO AVOID SPLITTING WOOD.
NOTICE
•
•

6
Step 3:
INSTALL LATCH
Insert latch in hole keeping it parallel to face of door.
Outline face plate with pencil and remove latch.
Chisel 1/8" (3 mm) deep or until latch face is flush with door
edge.
B
D
•
•
•
Insert latch and tighten screws.
Make sure the latch is inserted with the word "TOP"
facing upward.
•
A
C
NOTICE
NOTICE LATCH BOLT BEVEL MUST BE FACING
THE SAME WAY THE DOOR CLOSES.
NOTICE

7
Step 4:
INSTALL STRIKER PLATE
•
•B. Measure one half of door thickness from door stop to mark
vertical center line of strike. Drill 1”(25.4mm) hole,
1/2" (12.7mm) deep at intersection of horizontal and vertical
center lines.
A. Close door to mark horizontal center line of strike.
•C. Chisel out door jamb 3/32" (2.4mm) deep or until strike plate
sits flush with door jamb.
•Tighten screws securely.
Step 4:
INSTALL STRIKE
CENTER
LINE
1"(25.4mm)
HOLE
1/2"(12.7mm)
DEEP
DOOR
STOP
A B
C

8
Step 5:
REMOVING INSIDE TRIM
•Insert tip of the knob removing tool into the hole on the bottom
of knob.
Remove knob and face plate
Pushing down on the locking pin, pull back on the knob,
remove the tool from hole and finish removing the knob.
•
Step 6:
ADJUSTMENT
•Adjust the lock assembly so the latch hole is in the center of
the hole in the edge of the door by turning the face plate
clockwise or counter-clockwise.
•Remove the lock assembly from the door.
Lock assembly
Latch hole

9
Step 7:
INSTALLING DOOR KNOB ASSEMBLY AND LATCH
•Insert latch into hole on edge of door.
•Push on the latch bolt so the bar prongs extend.
•Slide the lock assembly into the door hole and slide the latch
prongs into the lock body assembly.
Latch prongs must be installed correct for the
latch to work correctly.
NOTICE
LOCK
BODY
ASSEMBLY
LATCH

10

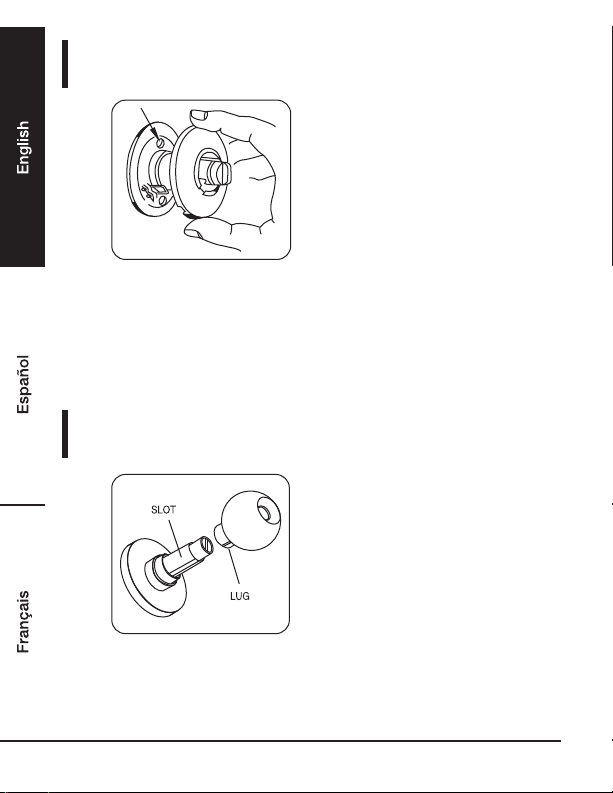

REPLACING KNOB
Step 9:
Step 8:
INSTALLING INSIDE FACE PLATE
•Lift up on the spring clip and remove the inner plate from
the inside face plate.
•Slide the inner plate back onto the knob assembly.
•Replace the round face plate.
•Screw the inner plate to the knob assembly using the two
machine screws supplied.
•Align lug on knob with narrow slot spindle and push knob
until retainer "clicks" into slot in knob.
