WARNINGS
A.1
7844336-00 07/20
subject to change without notice
A WARNINGS
A.1 PERSONAL PROTECTIVE EQUIPMENT
During normal crane operations the users must wear:
- helmet+ Wear a dust mask in the presence of dusts.
- safety gloves
- industrial footwear
- overalls secured using buttons and without loose or baggy parts.
IN ADDITION
+ Wear oil-proof gloves and safety goggles during maintenance tasks.
+ Wear ear protection if the noise level in the operating position exceeds 80 dB(A).
+ Wear a dust mask in the presence of dusts.
+ Wear a suitable mask in the presence of toxic fumes or poison gas.
Protective equipment
Standard protective equipment
during any crane operation
Additional protective equipment
during crane maintenance
Additional protective equipment
if the noise level exceeds 80 dB(A)
Additional protective equipment
in the presence of dusts
Additional protective equipment
in the presence of toxic fumes or poison gas

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.2
7844336-00 07/20
subject to change without notice
A.2 MECHANICAL HAZARDS
A.2.1 MECHANICAL RESISTANCE
The main hazards resulting from failure to follow the operating instructions described in the user
manual are listed below:
ENVIRONMENTAL TEMPERATURE RANGE
- Weakening of the crane structure
- Hydraulic oil viscosity too low/high
- Hydraulic oil overheating
- Weakening of plastic components
- Degradation of flexible hoses (-40°C ÷100°C)
MAXIMUM INCLINATION
- Crane rotation not possible
- Excessive pressure in slewing cylinders
- Excessive stress on rack - pinion wheel or thrust block - motor coupling
- Excessive stress on crane structure
- Loss of stability
MAXIMUM OIL FLOW RATE TO MAIN CONTROL VALVE
- Overloads on the structure caused by excessive speed of movement
- Excessive oil temperature
MAXIMUM WIND SPEED
- Excessive stress on crane structure
- Excessive oscillation of the load
- Loss of stability
PRECIPITATION
- Lightening, electric shock
- General malfunctioning of the electric system
USE IN EXPLOSIVE ENVIRONMENTS
- Flammable hydraulic fluid and plastic components
INSTALLATION ON RIGID BASE
- Excessive forces of inertia
USE IN MARINE ENVIRONMENT
- Corrosion of structural components: cylinder rods, pins, winch rope (offshore cranes)
- Excessive forces due to oscillation/inclination (ship-mounted cranes)
LIFTING COMPONENT
- Excessive forces if lifting components other than hook are used
IP PROTECTION LEVEL
- Electric system faults (safety and controls)

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.3
7844336-00 07/20
subject to change without notice
WARNINGS
- Do NOT use the crane if the operating conditions are incompatible with the instructions given in
this manual. Specifically, the user must contact the manufacturer of the crane in the event of
environmental temperatures outside the range indicated in this manual.
- Clear any snow or ice from the crane arms to prevent excessive stress caused by the extra weight
and to ensure that movement of telescopic components is not affected.
- Contact an authorised assistance centre before using or transporting the crane in a marine
environment.
- The lifting component to which the diagrams refer in this manual is the crane hook. If other lifting
components are to be used the user must contact an authorised assistance centre to obtain
dedicated load diagrams.
- Maintenance on the machine which requires welding or grinding is forbidden. Refer to an
authorised assistance centre if repairs or modifications to metalwork are required.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.4
7844336-00 07/20
subject to change without notice

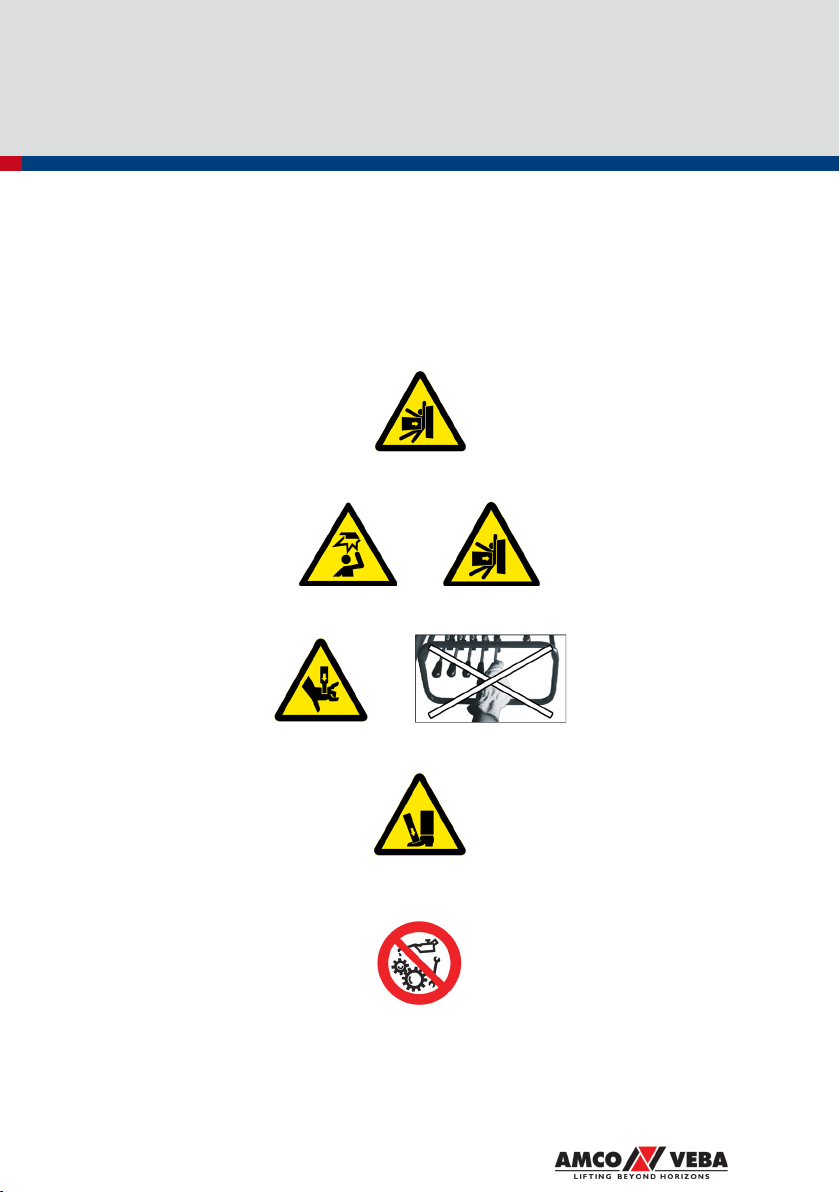

A.2.2 CRUSHING HAZARD
Crushing hazards derive from moving components on the crane:
•body crushing between the crane and vehicle
•upper limb crushing between base and crane booms
•lower limb crushing under the plate for the stabiliser cylinders
•limb crushing in openings
WARNINGS
- Keep all personnel away from the hydraulic stabiliser beams during opening, if present.
- Do NOT climb on to the crane base when the vehicle's engine is running.
- When handling the crane, avoid grasping the control levers: operate them only with the fingers.
- Do NOT place hands or feet under the stabiliser cylinder plate.
- Do NOT perform maintenance when the crane is moving or when the power take-off is enabled.
Do NOT touch the crane when it is moving.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.5
7844336-00 07/20
subject to change without notice
- Avoid hazardous situations in which the user, other personnel or passers-by may be crushed by
the crane, stabilisers or the load.
- Abide by safety distances indicated in EN 349 and make sure all others do the same.
A.2.3 CUTTING HAZARD
Residual hazard associated with movement of booms and any connecting rods. A residual cutting
hazard exists for the upper limbs between moving parts associated with the booms, base and
telescopic components.
WARNINGS
- When the crane is in operation do NOT place upper limbs between the boom joints, near
connecting rods or in the area where stabiliser rods are retracted into the base. Do NOT insert
fingers, feet or limbs inside openings on moving parts.
- Do NOT insert fingers inside unoccupied pin or securing component housings (in particular pin
housing for manual extensions).
- Do NOT stand between the base and booms during crane closing.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.6
7844336-00 07/20
subject to change without notice
A.2.4 DRAGGING OR ENTRAPMENT HAZARD
Residual hazard associated with failure to abide by safety distances in the crane operating area.
WARNINGS
- Do NOT insert fingers, feet or limbs inside openings on moving parts.
A.2.5 IMPACT HAZARD
Residual hazard associated with
•impact with the crane boom during opening/closing
•impact with the moving load
•impact with manual extensions
•impact caused by release of the load
WARNINGS
- Take care not to bump into moving parts on the crane. Specifically, do NOT bang your head on
the boom during working operations.
- Take great care not to bump into the suspended load. The load must always be moved under safe
conditions away from potential hazards and obstacles, as specified in this manual.
- Always check that the load lifting components (hook, shackle, slings, chains) are in perfect
condition. Do NOT exceed the maximum load indicated on the plate. Check that the load is
properly secured to prevent accidental falling. Do NOT stand under the load.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.7
7844336-00 07/20
subject to change without notice
A.2.6 OIL LEAK HAZARD
Hydraulic fluid leaks can cause burns, irritation to the skin and eyes and can even penetrate under
the skin.
These hazards are associated with incorrect tightening of couplings, rubbing of flexible hoses
against metal objects or components, excessive bending of hoses, incorrect disconnection of hoses
during maintenance, incorrect repairs, ageing, etc.
WARNINGS
- When the crane is new and used for the first time, small leaks of oil from the couplings may occur
due to the heat expansion caused by the high temperature of the hydraulic fluid. Tighten the
couplings using the torque settings suggested in the maintenance manual. Couplings may be
damaged if they are too tight.
- The crane is designed in such a way to prevent rubbing of hoses against moving parts. However,
the installation configuration may cause hoses to come into contact with other moving parts. If this
happens use additional sheaths to protect the hoses.
- If a hose becomes damaged switch OFF the machine immediately and identify the damaged area
using a piece of card or wood. Spurts of fluid from a very small hole are powerful enough to
penetrate the skin.
- Switch OFF the supply to the system and release the residual pressure from the hydraulic circuit
before disconnecting any hoses.
- When using blowtorches and other welding equipment for repairs (authorised assistance centres
only) switch OFF the pressure to the hydraulic system and work away from hoses and steel lines.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.8
7844336-00 07/20
subject to change without notice
A.3 ELECTRIC SHOCK HAZARD
A.3.1 CONTACT WITH LIVE COMPONENTS
There is an electric shock hazard for the user under the following conditions:
•if the crane comes into contact with electricity power lines
•if the crane is struck by lightning
WARNINGS
- The crane should only be operated at a distance D of at least 7 m from electricity power lines. The
crane can be used closer to electricity power lines if, following notification to the electricity supply
company, suitable protection is adopted to prevent operation too close to the lines and accidental
contact. The minimum operating distance must be calculated on the basis of maximum crane
boom extension towards the lines and maximum movement of the lines.
D>7m
- The crane should only be used near live power lines if:
•Safety distances are adhered to
•Live parts are covered or surrounded by guards
•Overhead power lines are switched OFF for the entire duration of work
PROCEDURE IN THE EVENT OF CONTACT WITH ELECTRICITY POWER LINES
Follow the procedure described below in the event that the crane touches a power line:
1. Keep calm
2. Do not leave the control position
3. Do NOT touch any metal parts on the machine
4. Warn people nearby not to approach the crane, vehicle, load or the person in the control position
5. Switch OFF the electricity power line.
6. Do NOT leave the driving cabin. If you must abandon your position, do NOT touch the crane and
the ground at the same time. Therefore, leave your position by jumping to the ground.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.9
7844336-00 07/20
subject to change without notice
A.3.2 STATIC ELECTRICITY
The crane can accumulate static electricity. This generally occurs when the material placed between
the stabiliser feet and the ground is an insulator e.g. wood, the crane is used near radio transmitters
or high frequency switching systems and when a storm is approaching.
•Static electricity can affect correct functioning of pacemakers.
WARNINGS
- Accumulation of static electricity is prevented by connecting the vehicle's chassis to earth using a
special device.
- People with pacemakers fitted are forbidden from approaching or using the crane.
A.4 HEAT HAZARDS
A.4.1 BURNS
These hazards are caused by:
•Contact with hot hoses, hot tanks and damage to hoses resulting in spurts of hot oil.
•Use in explosive environments
WARNINGS
- Do NOT touch any part of the hydraulic system when the temperature exceeds 50°C.
- Routinely check that the thermometer is functioning correctly. Refer to an authorised assistance
centre in the event of a fault.
- Environmental temperature can affect crane control capacity. Do NOT use the crane under
extreme environmental conditions (very hot, very cold, very high relative humidity).
- Do NOT use the machine in explosive environments.
A.5 NOISE HAZARDS
There are no significant noise hazards in that the crane does not include the power source.
WARNINGS
- Wear ear protection equipment if the noise level in the operating position exceeds 80 dB(A) as a
result of other machinery or equipment in use.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.10
7844336-00 07/20
subject to change without notice
A.6 VIBRATION HAZARDS
There are no significant vibration hazards in that a loader crane is used for short periods and
therefore there is no significant effect on the operator.
A.7 HAZARDS DUE TO TOXIC SUBSTANCES
These hazards are associated with:
•Inhalation of exhaust fumes or toxic substances caused by the working environment and/or the
substances moved.
•Incorrect handling or disposal of hydraulic oil.
•Incorrect handling or disposal of grease.
•Fire caused by highly flammable hydraulic fluid.
WARNINGS
TOXIC FUMES AND SUBSTANCES
Control positions must be located so that operators are not exposed to inhalation of exhaust fumes
and toxic substances caused by the working environment and/or the substances moved.
If the operator is exposed to exhaust fumes move the exhaust pipe outlet point further away from the
operating position (e.g. using removable flexible hosing).
Wear a mask if the crane is used in environments with toxic fumes or substances.
HYDRAULIC OIL AND INDUSTRIAL GREASE
These substances must be handled with care in a ventilated environment. Wear protective gloves
and goggles. They must be stored and moved in sealed containers to prevent leaks and accidental
contact with skin and eyes.
These substances are flammable. Keep all naked flames well away.
Store used oil and grease in sealed containers at a temperature less than 65 °C. Contact an
authorised waste management company to dispose of them.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.11
7844336-00 07/20
subject to change without notice
A.8 ERGONOMIC HAZARDS
A.8.1 MANUAL OPERATIONS
WARNINGS
- Do not place the body under excessive strain when operating the crane. If manual operations are
required (e.g. pivoting stabilizer legs, manual extensions, other lifting components) or the load
must be moved by hand do not lift a weight of more than 25 kg (20 kg for women).
A.8.2 VISIBILITY
WARNINGS
- When using the crane, the operator must have a perfect view of the entire range of machine use
as well as control, emergency and safety devices.
- An additional lighting system conforming to EN 1837 must be installed if the crane is used at night.
- A qualified assistant must help the operator if the latter does not have a clear view of the entire
range of machine use.
A.8.3 HUMAN ERROR
WARNINGS
- Personnel and assistants operating the crane must not be temporary staff. They must be at least
18 years old and physically fit enough to perform all tasks. The following aspects must be taken
into consideration:
Physical: sight and hearing; no fear of heights; not under the effects of alcohol, drugs or
prescription medicines
Psychological: conduct in stressful situations; mental balance; sense of responsibility
- Operators must be able to read and understand the language used to write the crane documents
and information plates.
- Operators must be able to understand and apply the information and prescriptions given in this
manual.
- Operators moving the vehicle on public roads must have the relevant authorisation and be aware
of local driving legislation.
- All those using the vehicle must receive adequate training (in accordance with ISO 9926-1) from
those responsible for installing the crane on delivery. Use by all other personnel is forbidden.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.12
7844336-00 07/20
subject to change without notice
A.9 UNEXPECTED START-UP AND SWITCH-OFF OF THE CRANE
Impact, crushing, load loss and stability loss hazards exist as a result of accidental crane start-up
and switch-off.
WARNINGS
- Before using the crane check that there is enough fuel and that the battery is in good condition.
- Those using the crane must be in full control of the machine with control and stop devices in easy
reach from the moment of start-up.
- Control and maintenance operations must be performed with the machine and engine switched
OFF, the brake ON and wheels blocked using special chocks
A.10 SAFETY DEVICE FAULTS
•Tampering with safety devices can cause excessive stress on the crane, loss of stability, impact,
falling loads, sudden release of the lifting components and manual extensions, accidents when
moving the vehicle, etc.
•Imperfect closure of the crane when moving the vehicle can cause serious damage due to impact
of protruding components against various objects (bridges, garages, other vehicles, etc.).
•Failure to apply decals to the machine may cause the operator not to take into consideration
hazards associated with normal crane use.
WARNINGS
- Do NOT remove, modify or disable safety devices be they mechanical (guards, locks, etc.) or
hydraulic (valves, seals). Failure to abide by this regulation shall cause the warranty to be
declared null and void.
- Make sure lifting components are not supporting a load and are resting on a suitable support
surface before disconnecting them.
- Do NOT tamper with or remove warning labels. Do NOT clean the stickers with solvents. Do NOT
use water or steam under pressure to clean the machine.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.13
7844336-00 07/20
subject to change without notice
A.11 COUPLING FAULTS
There is a serious risk of damage to property and injury to persons in the event of incorrect coupling
of mechanical and hydraulic components between the crane and vehicle, crane and lifting
components and between the lifting components themselves.
WARNINGS

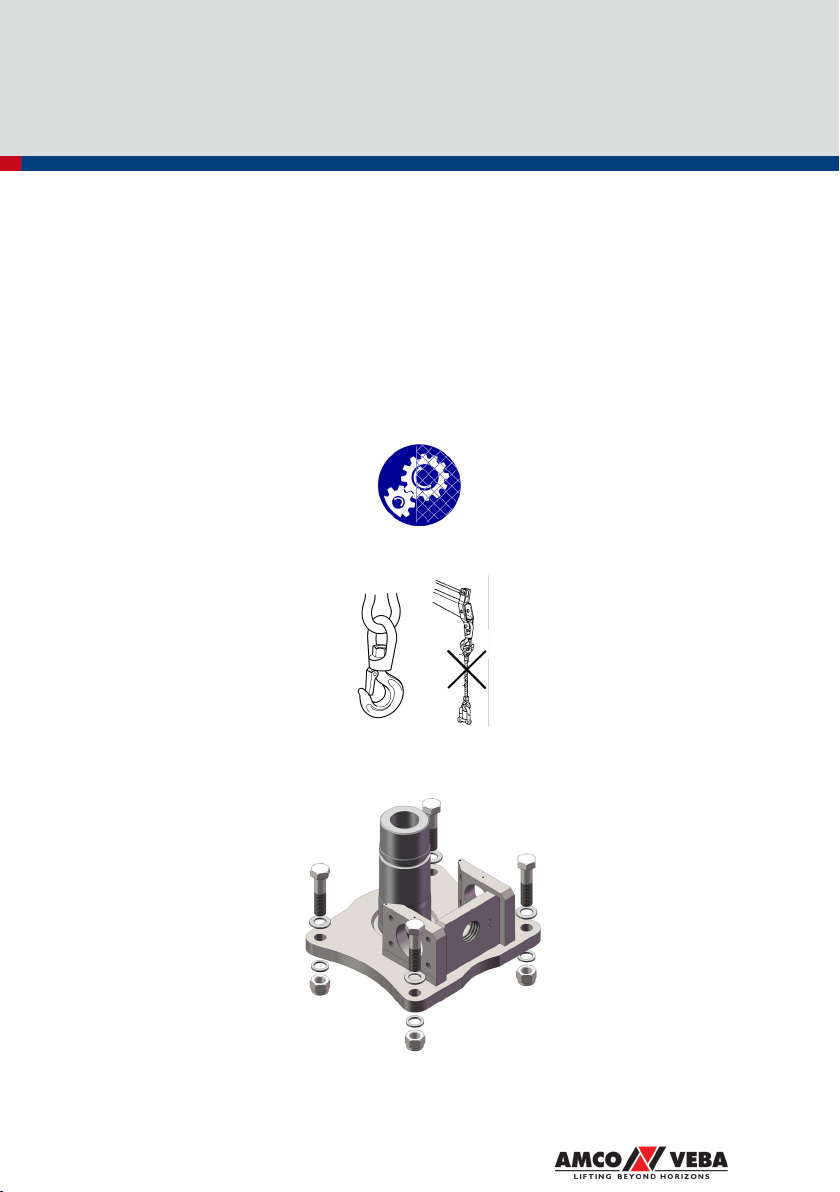

The following checks should always be made before using the crane:
- Visually check that the hydraulic system is functioning correctly and that there are no fluid leaks
between hoses and couplings.
- Visually check the integrity of the machine structure and hoses.
- Check that the load capacity of the lifting components is adequate.
- Check the integrity of the seals on the safety devices and valves.
- Check the efficiency of the safety devices.
- Check that hooks, shackles, slings, cables, chains and relevant safety devices are in perfect
condition.
- Check that the mounting bolts used to secure the crane to the vehicle are secured correctly and
that the crane is in the correct position relative to the frame of the vehicle.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.14
7844336-00 07/20
subject to change without notice
- Visually check the tightness of rotation cylinder securing screws and all nuts and bolts in general.
- Check that pins and screws used in the extensions and in other lifting tools are assembled and
secured correctly.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.15
7844336-00 07/20
subject to change without notice
A.12 HAZARDS DUE TO INCORRECT LIFTING OPERATIONS
Residual hazards exist as a result of incorrect lifting operations:
•Loss of stability
•Uncontrollable load, overload, exceeding the tip-up limit
•Uncontrollable speed of movements, oscillation of the load
•Unexpected or accidental movement of loads
•Unsuitable, worn or unsafe lifting devices/accessories
•Lifting of people
•Use during high winds
•Risk of damaging load support surfaces following movement
WARNINGS
The following movements and operations with the crane are strictly forbidden:
- Using the crane to drag, extract, remove, push or crush fixed or stuck objects.
- Dragging of loads on the ground, on guides, resting against a wall, etc.
- Brisk movements (sudden rotation, ascent, descent) causing significant load oscillation or
abnormal machine structure vibration.

USER MANUAL
801N PALM -802N PALM
WARNINGS
A.16
7844336-00 07/20
subject to change without notice
- Lifting of loads not supported by objects secured solidly to the base of the crane unless the
operator knows the precise size of the load being moved (e.g. forklift truck leaving an excessive
weight on the crane hook, lifting a floating weight, etc.).
- Movements very close to fixed (walls, trees, etc.) and mobile (cranes, forklift trucks, gantry cranes,
etc.) objects.
- Lifting of people.
- Using lifting components which are worn, not suitable for the load or without safety devices. Risk
of accidental loss/fall, slipping, excessive rotation or tipping of the load and uncontrollable
movements.
