Amd 4700s User manual

4700S 8-CORE

DESKTOP KIT

USER

MANUAL

This user guide contains the information you need when

installing and conﬁguring the AMD 4700S Desktop Kit.

CONTENTS

Additional Information.....................................................................................3

Package Contents.............................................................................................3

Specifications...................................................................................................4

Safety Information...........................................................................................4

Connectors Quick Guide Overview of Components.......................................6-11

Bios and Drivers.............................................................................................. 12

Warranty Information..................................................................................... 13

3 | AMD 4700S 8-CORE DESKTOP KIT USER MANUAL

ADDITIONAL INFORMATION

Refer to the following sources for additional information and for product and software updates:

• AMD website: www.amd.com/desktopkit

The AMD website provides updated information on AMD hardware and software products.

• Optional documentation: Your product package may include optional documentation, such as warranty ﬂyers, that may have been added by your dealer.

These documents are not part of the standard package.

PACKAGE CONTENTS

Your box includes an AMD 4700S Desktop Kit which consists of:

• MINI-ITX MOTHERBOARD

Desktop Kit includes the following which is already installed and/or mounted on the Motherboard:

– AMD PROCESSOR BUILT ON “ZEN 2” ARCHITECTURE

– 8GB OR 16GB MEMORY

– A THERMAL SOLUTION

• INSTALLATION INSTRUCTIONS

• 2-YEAR LIMITED HARDWARE WARRANTY

• 2x SATA CABLES

• I/O SHIELD

4 | AMD 4700S 8-CORE DESKTOP KIT USER MANUAL

CPU AMD 4700S 8-Core Processor “Zen 2” architecture

Memory 8GB or 16GB GDDR6

FCH AMD A77E Fusion Controller Hub

Super I/O ITE IT8772E

LAN Asix AX88179 Gigabit Ethernet controller

Audio codec* Realtek ALC897

BIOS ROM 16MB

Expansion slot 1x PCIe x16 slot, supports x4 signal

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

2x SATA 6Gb/s connectors

1x USB3.2 Gen1 5Gbps connector

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

1x System panel connector

1x Clear CMOS jumper

1x Dubug 80 port connectorx

Rear I/O

4x USB2.0 Type-A ports

3x USB3.2 Gen2 10Gbps Type-A ports

1x LAN (RJ45) port

1x USB3.2 Gen1 5Gbps Type-A ports

3x audio jacks

SPECIFICATIONS

5 | AMD 4700S 8-CORE DESKTOP KIT USER MANUAL

SAFETY INFORMATION

ELECTRICAL SAFETY

• To prevent electrical shock hazard, disconnect the power cable from

the electrical outlet before relocating the system.

• When adding or removing devices to or from the system, ensure that

the power cables for the devices are unplugged before the signal

cables are connected. If possible, disconnect all power cables from

the existing system before you add a device.

• Before connecting or removing signal cables from the Desktop Kit,

ensure that all power cables are unplugged.

• Seek professional assistance before using an adapter or extension

cord. These devices could interrupt the grounding circuit.

• Ensure that your power supply is set to the correct voltage in your

area. If you are not sure about the voltage of the electrical outlet you

are using, contact your local power company.

• If the power supply is broken, do not try to ﬁx it by yourself. Contact

a qualiﬁed service technician or your retailer.

OPERATION SAFETY

• Before installing the Desktop Kit and adding components, carefully

read all the manuals that came with the package.

• Before using the product, ensure all cables are correctly connected

and the power cables are not damaged. If you detect any damage,

contact your dealer immediately.

• To avoid short circuits, keep paper clips, screws, and staples away

from connectors, slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Do not place the

product in any area where it may be exposed to moisture.

• Place the product on a stable surface.

• If you encounter technical problems with the product, contact a

qualiﬁed service technician or your retailer.

• Your Desktop Kit should only be used in environments with ambient

temperatures between 0°C and 40°C.

6 | AMD 4700S 8-CORE DESKTOP KIT USER MANUAL

CONNECTORS QUICK GUIDE

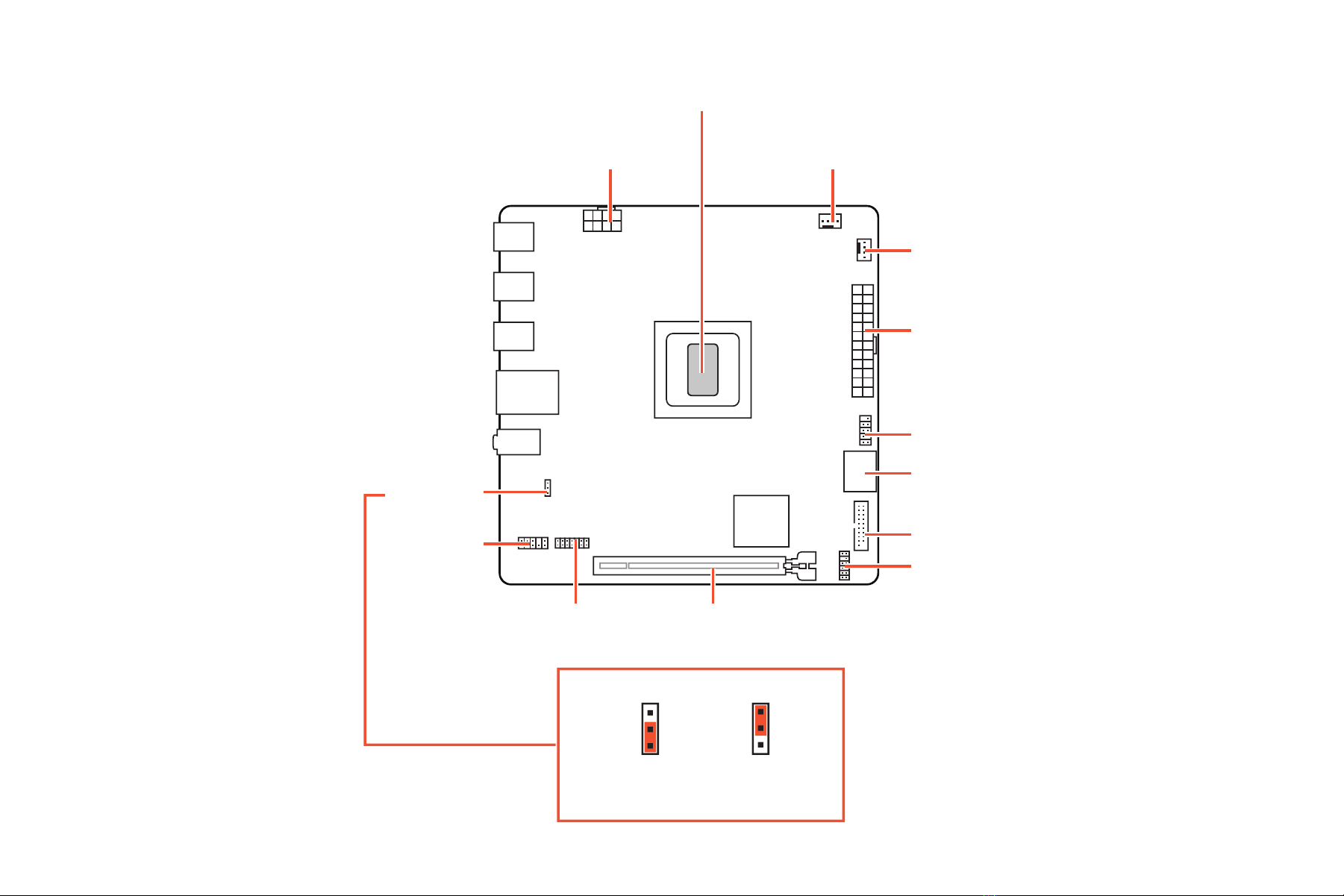

OVERVIEW OF COMPONENTS

AMD4700S Desktop Kit Quick Guide

Overview of Components

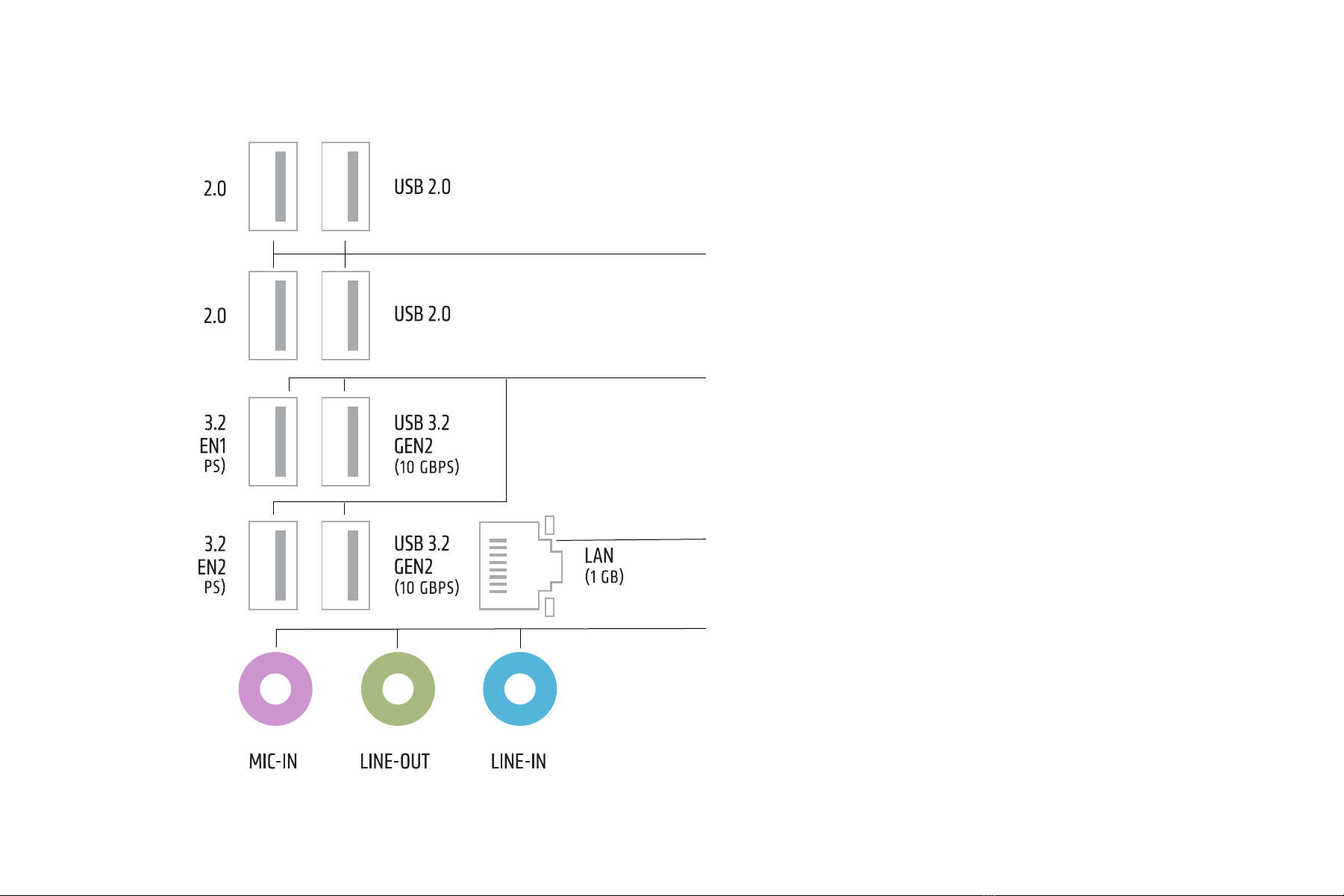

Rear I/O Panel

SYS_FAN

CPU_FAN

CPU

CLR_CMOS

F_AUDIO

ATX_PWR

CPU_PWR

F_PANEL

PCI_E

JSPI

SATA

JUSB

USB3.2 Gen2 10Gbps

USB3.2 Gen1 5Gbps

USB2.0

Mic-in

Line-in

Line-out

1G LAN

JTPM

Speciﬁcations

CPU AMD 4700S 8-Core processor

Memory 16G GDDR6 or 8G GDDR6

(Depend on BOM option)

FCH AMD A77E Fusion Controller Hub

Super I/O ITE IT8772E

LAN Asix AX88179 Gigabit Ethernet controller

Audio Codec Realtek ALC897

BIOS ROM 16MB

Expansion Slot 1x PCIe x16 slot, supports x4 signal

Internal

connectors

·1x 24-pin ATX main power connector

·1x 8-pin ATX 12V power connector

·2x SATA 6Gb/s connectors

·1x USB3.2 Gen1 5Gbps connector

·1x 4-pin CPU fan connector

·1x 4-pin system fan connector

·1x Front panel audio connector

·1x System panel connector

·1x Clear CMOS jumper

·1x Dubug 80 port connector

Rear I/O

·4x USB2.0 Type-A ports

·3x USB3.2 Gen2 10Gbps Type-A ports

·1x LAN (RJ45) port

·1x USB3.2 Gen1 5Gbps Type-A ports

·3x audio jacks

10 11

JUSB

1 FJUSB3 11 USB12P

2USB_SS_RX3N 12 USB12N

3USB_SS_RX3P 13 Ground

4 Ground 14 USB_SS_TX2P_R

5USB_SS_TX3N_R 15 USB_SS_TX2N_R

6USB_SS_TX3P_R 16 Ground

7 Ground 17 USB_SS_RX2P

8USB13N 18 USB_SS_RX2N

9USB13P 19 FJUSB3

10 NC 20 No Pin

210

F_AUDIO

MIC2 _L & F_MIC2_L

2 Ground

MIC2 _R & F_MIC2_R

4NC

LINE2_R & F_LINE2_R

6MIC_JD

7 HPON8No Pin

LINE2_L & F_LINE2_L

10 LINE2_JD

214

JTPM

1LPC_CLK0 2 3VSB

3A_RST# 4VCC3

5LAD06SERIRQ

7LAD18VCC5

9LAD210 No Pin

11 LAD3 12 Ground

13 LFRAME#14 Ground

10 9

F_PANEL

1 HDD LED+ 2 Power LED+

3 HDD LED- 4Power LED-

5 Reset switch -6Power switch+

7 Reset switch +8Power switch-

9NC10 No Pin

12 11

JSPI

1 +3.3V_SPI 2 +3.3V_SPI

3FCH_SPI_DATAIN 4FCH_SPI_DATAOUT

5FCH_SPI_CS#R6FCH_SPI_CLK

7 Ground 8 Ground

9FCH_PWRGD 10 No Pin

11 FCH_SPI_WP#R 12 SPI_HOLD#

Normal Clear CMOS

G52-XXXXXXX

7 | AMD 4700S 8-CORE DESKTOP KIT USER MANUAL
