USER'S MANUAL
Of
AMD 760G & AMD SB710
Based
M/B For Socket AM2/AM2+/AM3 Series
Quad Core
Processor
Trademark:
* Specifications and information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
NO. G03-PA76GM5-F
Rev
： 3.0
Release date: October, 2010

ii
Environmental Safety Instruction
zAvoid the dusty, humidity and temperature extremes. Do not place the product in any
area where it may become wet.
z0 to 40 centigrade is the suitable temperature. (The figure comes from the request of
the main chipset)
zGenerally speaking, dramatic changes in temperature may lead to contact malfunction
and crackles due to constant thermal expansion and contraction from the welding
spots’ that connect components and PCB. Computer should go through an adaptive
phase before it boots when it is moved from a cold environment to a warmer one to
avoid condensation phenomenon. These water drops attached on PCB or the surface
of the components can bring about phenomena as minor as computer instability
resulted from corrosion and oxidation from components and PCB or as major as short
circuit that can burn the components. Suggest starting the computer until the
temperature goes up.
zThe increasing temperature of the capacitor may decrease the life of computer. Using
the close case may decrease the life of other device because the higher temperature in
the inner of the case.
zAttention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize pollution
and ensure environment protection of mother earth, please recycle.

ii
CHAPTER 1 INTRODUCTION OF AMD 760 MOTHERBOARDS
1-1 FEATURES OF MOTHERBOARD................................................................1
1-1.1 SPECIAL FEATURES OF MOTHERBOARD .................................2
1-2 SPECIFICATION...........................................................................................3
1-3 ITEM CHECKLIST.........................................................................................3
1-4 LAYOUT DIAGRAM......................................................................................4
CHAPTER 2 HARDWARE INSTALLATION
2-1 CPU INSTALLATION ..................................................................................6
2-2 INSTALL MEMORY ......................................................................................7
2-3 EXPANSION SLOTS.....................................................................................8
CHAPTER 3 CONNCTORS, HEADERS & JUMPERS SETTING
3-1 CONNECTORS .............................................................................................9
3-2 HEADERS .....................................................................................................12
3-3 JUMPER SETTING .......................................................................................14
CHAPTER 4 USEFUL HELP
4-1 HOW TO UPDATE BIOS ..............................................................................15
4-2 TROUBLE SHOOTING .................................................................................15
APPENDIX 1................................................................................................................16
TABLE OF CONTENT

1
1
Chapter 1
Introduction of AMD 760G Motherboards
1-1 Features of motherboard
The AMD 760G chipset motherboard series are based on the latest AMD 760G
Chipset and the SB710 chipset which supports the following AM3 CPU under 95W:
Phenom II x 4; Phenom II x 3; Phenom II x2; Athlon II x4; Athlon II x3; Athlon II x2;
Sempron. Model PA76GM5-LF supports Socket AM2 CPU under 65W and Socket
AM2+ CPU under 95 W as well. With an integrated low-latency high-bandwidth DIMM
memory controller and a highly-scalable Hyper Transport technology-based system
bus up to HT 3.0. AMD 760G Platform Processor Chipset motherboard series deliver
the outstanding system performance and professional desktop platform solution.
The AMD760G Series motherboard PA76GM5-LF comes with an integrated DDRII
memory controller for dual channel DDRII 400/DDRII 533/DDRII 667/ DDRII
800/DDRII 1066 memory module with capacity expansible up to 8GB while the
motherboard PA76GM5D3-LF integrated with a DDRIII memory controller for dual
channel DDRIII 800/DDRIII 1066/ DDRIII 1333 memory module with capacity
expansible up to 8GB. These motherboards are embedded with SB710 chipset of
providing ULTRA ATA 133 connectors and Serial ATA2 with RAID 0, 1, 10, JBOD
functions which support up to two IDE and six Serial ATA2 devices to accelerate hard
disk drives and guarantee the data security without failure in advanced computing
performance.
The AMD760G motherboards provide PCI-E 10/100 LAN chip which supports
10/100Mbps data transfer rate. And the embedded ALC662 6-channel HD Audio
CODEC is fully compatible with Sound Blaster Pro standards that offer you with the
home cinema quality and satisfying software compatibility.
The AMD760G Series motherboards offer one PCI-Express 2.0x16 by16-lane
graphics slot of 8Gbyte/sec data transfer rate at each relative direction which gets 7
times of bandwidth more than AGP 8X and up to 16Gbyte/sec peak concurrent
bandwidth at full speed to guarantee the ultimate GPU computing performance. The
AMD760G motherboards also carry two 32-bit PCI slots guarantee the rich
connectivity for the I/O peripheral devices.
Embedded USB controllers as well as capability of expanding to 8 of USB2.0
functional ports delivering 480Mb/s bandwidth of rich connectivity, these
motherboards meet the future USB demands which are also equipped with hardware
monitor function on system to monitor and protect your system and maintain your
non-stop business computing.
Some special features--- CPU Thermal Throttling/CPU VID/ CPU Vcore Input & Output
OC-CON in this motherboard are designed for power user to use the over-clocking
function in more flexible ways. But please be caution that the over-clocking maybe

2
2
causes the fails in system reliabilities. This motherboard provides the guaranteed
performance and meets the demands of the next generation computing. But if you
insist to gain more system performance with variety possibilities of the components
you choose, please be careful and make sure to read the detailed descriptions of
these value added product features, please get them in the coming section.
1-1.1 Special Features of Motherboard
CPU Thermal Throttling Technology--- (The CPU Overheat Protection Technology)
To prevent the increasing heat from damage of CPU or accidental shutdown while at
high workload, the CPU Thermal Throttling Technology will force CPU to enter
partially idle mode from 87.5% to 12.5% according to preset CPU operating
temperature in BIOS (from 40 to 90 ). When the system senses the CPU℃℃
operating temperature reaching the preset value, the CPU operating bandwidth will be
decreased to the preset idle percentage to cool down the processor. When at
throttling mode the beeper sound can be optionally selected to indicate it is in working.
CPU VID--- (Shift to Higher Performance)
The CPU voltage can be adjusted for the precisely over-clocking of extra demanding
computing performance.
CPU Vcore Input & Output Solid Capacitors---High-polymer Solid Electrolysis
Aluminum Capacitors
The working temperature is from 55 degrees Centigrade below zero to 125 degrees
Centigrade, OC-CON capacitors possess superior physical characteristics that can be
while reducing the working temperature between 20 degrees Centigrade each time,
intact extension 10 times of effective product operation lives, at not rising degrees
Centigrade of working temperatures each time a relative one, life of product decline
10% only too.

3
3
1-2 Specification
Spec Description
Design zMicro u-ATX form factor; size:24.5cm*20.0cm
Chipset zAMD 760G North Bridge Chipset
zAMD SB710 South Bridge Chipset
CPU Socket
zSupport Socket AM2 CPU under 65W and Socket AM2+ CPU under 95W
(optional for Model PA76GM5-LF only)
zSupport Socket AM3 CPU under 95W: Phenom II x 4；Phenom II x 3；
Phenom II x2；Athlon II x4；Athlon II x3；Athlon II x2；Sempron
zSupport HT 3.0
Memory Socket
z240-pin DDRII Module slot x 2
zSupport 2pcs DDRII 400/DDRII 533/DDRII 667/DDRII 800/DDRII 1066
modules expandable to 8GB (optional for PA76GM5-LF Model）
z240-pin DDRIII Module slot x 2
zSupport 2pcs DDRIII 800/DDRIII 1066/DDRIII 1333 modules expandable to
8GB(optional for PA76GM5D3-LF Model）
zDual channel supported
Expansion Slot z1pcs PCI-Express 2.0 x16 by 16 lane
z2 pcs 32-bit PCI slots
Integrate IDE
and Serial ATA2
RAID
zOne IDE controllers support PCI Bus Mastering, ATA PIO/DMA and the
ULTRA DMA 33/66/100/133 functions that deliver the data transfer rate up to
133 MB/s for two IDE Devices and for six Serial ATA2 ports providing 300
MB/sec data transfer rate with RAID 0, 1, 10, JBOD functions
Gigabit LAN
zIntegrated PCI-E 10/100 LAN chip
zSupport Fast Ethernet LAN function of providing 10Mb/100Mbs data transfer
rate
6 CH-Audio zRealtek ALC662 HD Audio 6-channel Audio Codec integrated
zAudio driver and utility included
BIOS zAMI 8MB DIP Flash ROM BIOS
Multi I/O
zPS/2 keyboard and PS/2 mouse connectors
zDVI Connector x1
zVGA Connector x1
zUSB 2.0 port x4 and header x2
zRJ-45 LAN Connector x1
zAudio connector x1(Line-in, Line-out, MIC)
zHard disk driver connector x1/ SATA connector x 6
zSerial Port header x1
zCDIN header x1
zAudio header x1
1-3 Item Checklist
5AMD760G platform processor chipset based motherboard
5CD for motherboard utilities
5User’s manual
5I/O back panel shield
5Hard disk cable

4
4

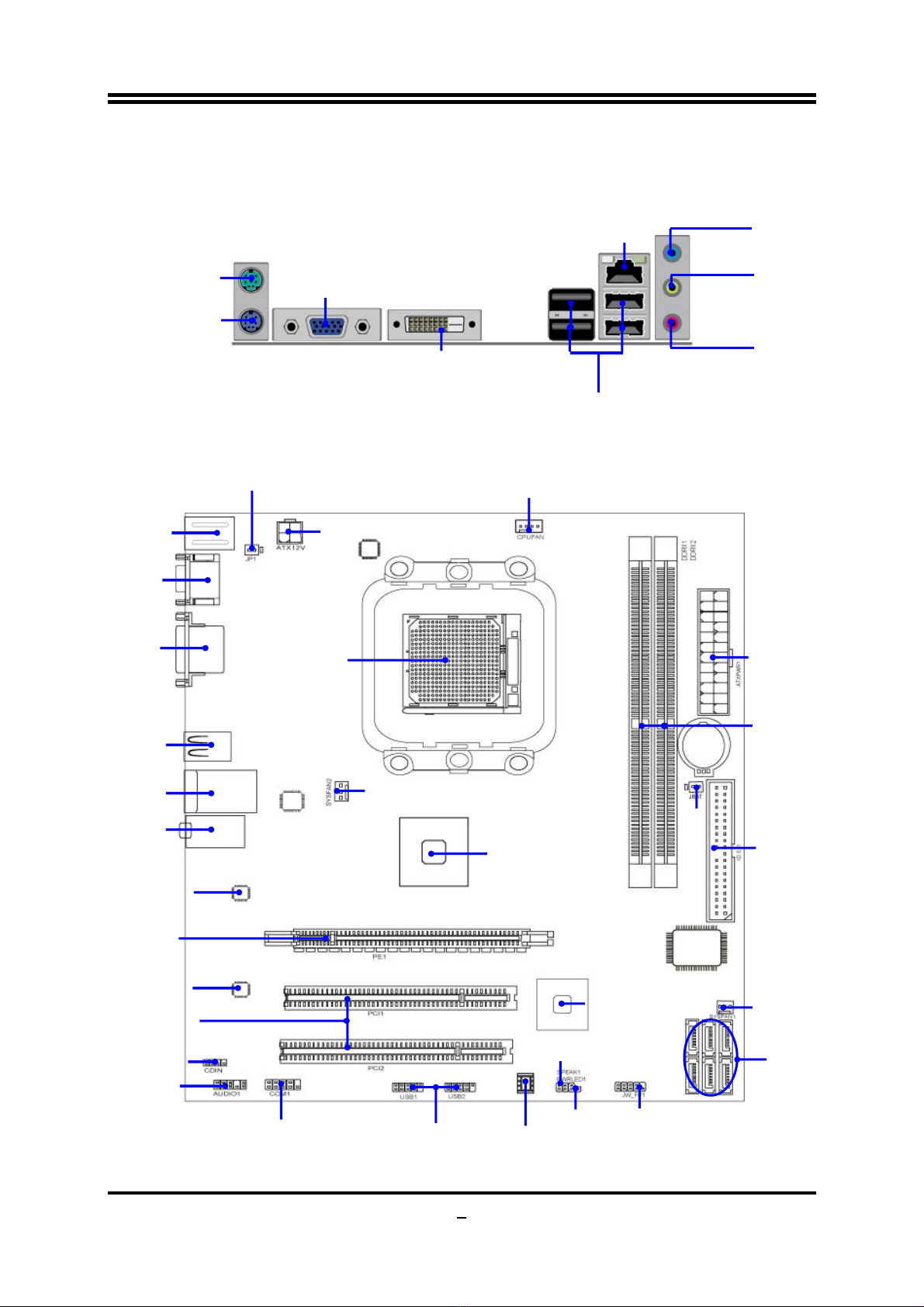

1-4 Layout Diagram
Rear I/O for AMD 760G
Diagram is for PA76GM5-LF
Realtek Megabi
t
LAN Chip
ATA 133 IDE
Conn. (IDE)
CPU Socket ATX Power Conn.
PCI Slots
PS2 KB
/MS Port ATX 12V Power Connecto
r
Realtek ALC662
Audio Decode
CDIN Header PWRLED1 Header
USB Heade
r
Front Panel
Audio Header
KB/USB Power On (JP1)
USB Connector
e
PS/2 Keyboard
Line-OUT
MIC-IN
CPU FAN
SYSFAN2
DVI
Connector
VGA Connector
Line-IN
RJ-45 LAN
COM1 Header
DVI Connector
USB
Connector
AMD SB710 Chipset
PS/2 Mouse
VGA
Connector
DDRII Slot x 2
8 MBit DIP
Flash ROM BIOS
Audio
Connecto
r
RJ-45 over
USB Connecto
r
Speak Heade
r
Front Panel Header
Serial-ATAII Connecto
r
s
SATA1, 2, 3,4,5,6
SYSFAN1
AMD 760G Chipset
JBAT
PCI Express
X 16 by 16-lane

5
5

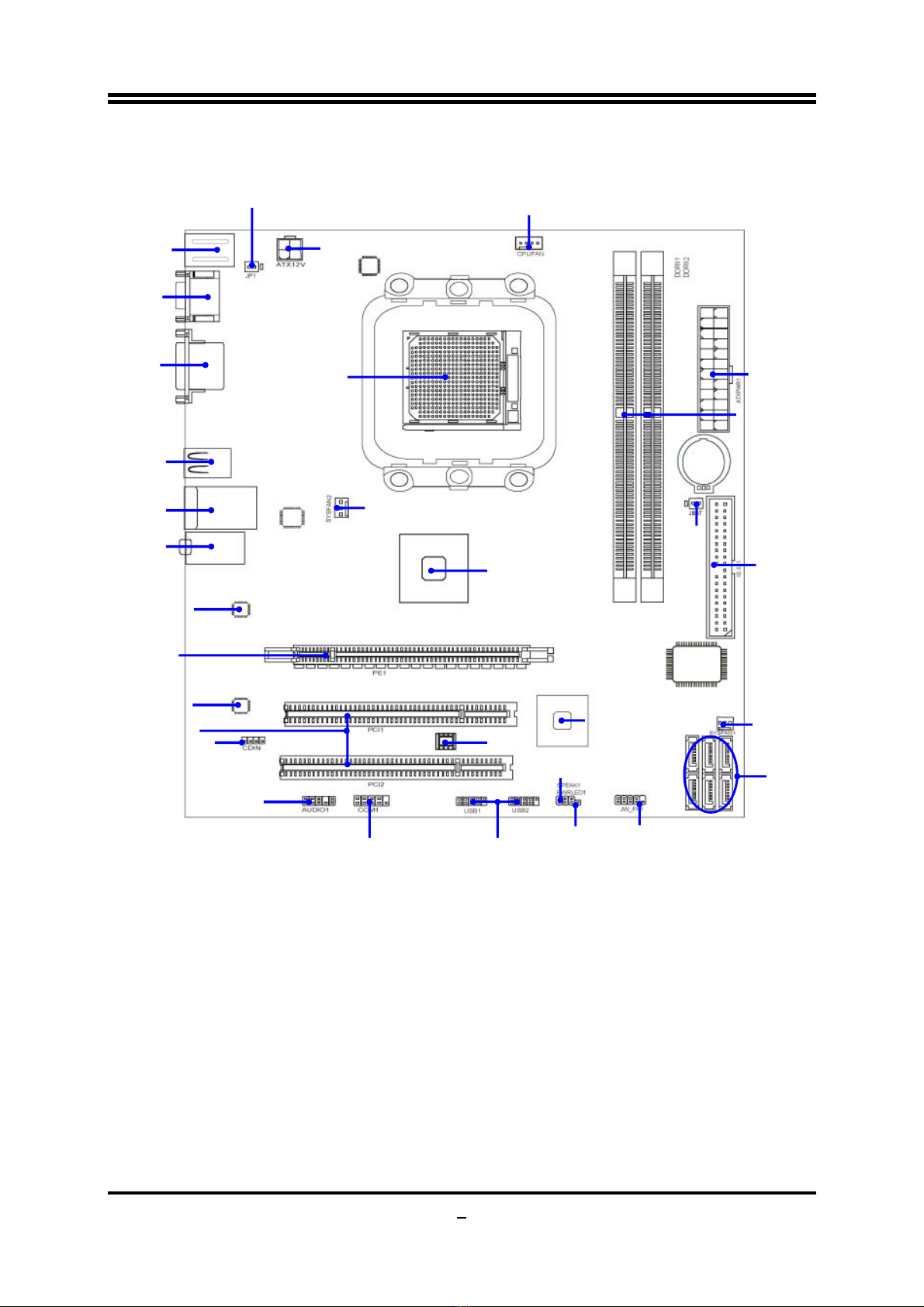

Diagram is for PA76GM5D3-LF
Realtek Megabi
t
LAN Chip
ATA 133 IDE
Conn. (IDE1)
CPU Socket ATX Power Conn.
PCI Slots
PS2 KB
/MS Port ATX 12V Power Connecto
r
Realtek ALC662
Audio Decode
CDIN Header
PWRLED1 Header
USB Heade
r
Front Panel
Audio Header
KB/USB Power On (JP1) CPU FAN
SYSFAN2
DVI
Connector
COM1 Header
USB
Connector
AMD SB710 Chipset
VGA
Connector
DDRIII Slot x 2
8 MBit DIP Flash ROM BIOS
Audio
Connecto
r
RJ-45 over
USB Connecto
r
Speak Heade
r
Front Panel Header
Serial-ATAII Connecto
r
s
SATA1, 2, 3,4,5,6
SYSFAN1
AMD 760G Chipset
JBAT
PCI Express
X 16 by 16-lane

6
6
Chapter 2
Hardware Installation
WARNING! Turn off your power when adding or removing expansion cards or
other system components. Failure to do so may cause severe
damage to both your motherboard and expansion cards.

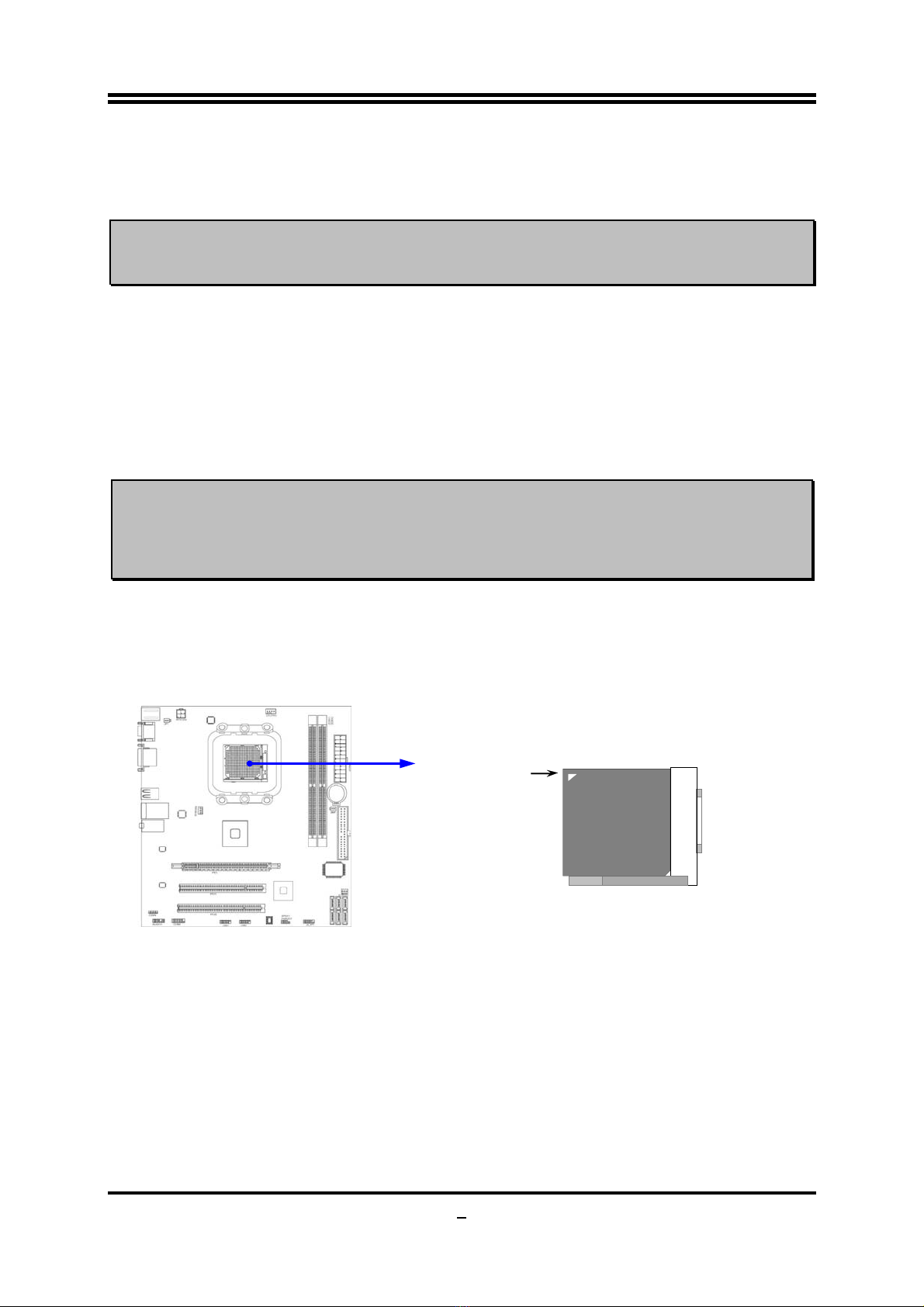

2-1 CPU Installation
The motherboard provides a socket AM2 surface mount, Zero Insertion Force (ZIF)
socket, referred to as the mPGA940 socket supports AMD AM2/AM2/AM3
processors.
The CPU that comes with the motherboard should have a cooling FAN attached to
prevent overheating. If this is not the case, then purchase a correct cooling FAN
before you turn on your system.
WARNING! Be sure that there is sufficient air circulation across the processor’s
heat sink and CPU cooling FAN is working correctly, otherwise it
may cause the processor and motherboard overheat and damage,
you may install an auxiliary cooling FAN, if necessary.
To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket
and open it by first pulling the level sideways away from the socket then upward to a
90-degree angle. Insert the CPU with the correct orientation as shown below. The
notched corner should point toward the end of the level. Because the CPU has a
corner pin for two of the four corners, the CPU will only fit in the orientation as shown.
CPU ZIF mPGAB Socket
Colden Arrow
Socket AM2
When you put the CPU into the ZIF socket, No force required to insert of the CPU, and
then press the level to locate position slightly without any extra force.

7
7

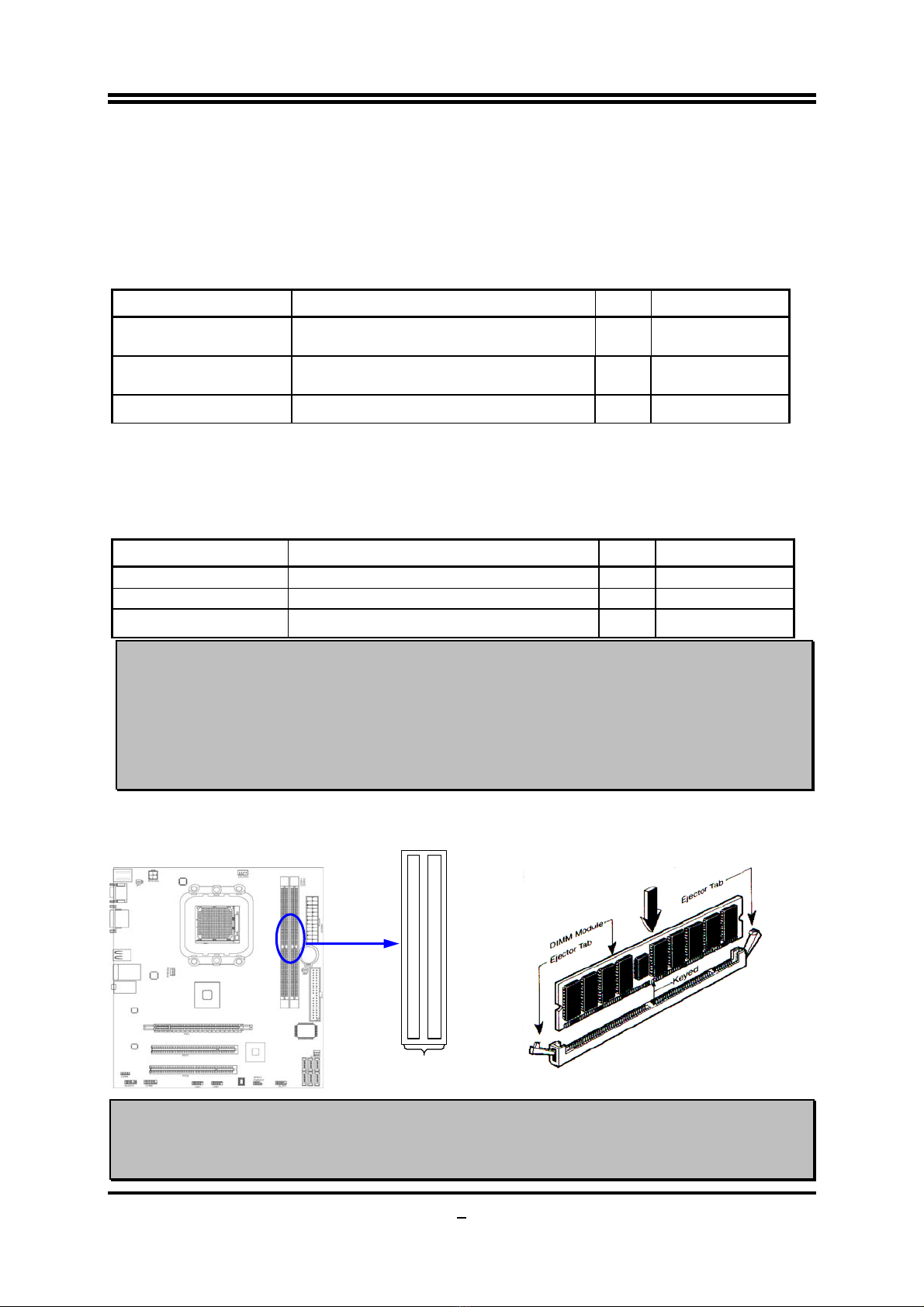

2-2 Install Memory
Model PA76GM5-LF provides two 240-pin DDRII DUAL INLINE MEMORY
MODULES (DIMM) socket for DDRII memory expansion to maximum memory
volume of 8GB DDRII SDRAM.
Valid Memory Configuration for PA76GM5-LF
Bank 240-Pin DIMM PCS Total Memory
Bank 0, 1(DDRII 1) DDRII 400/DDRII 533/DDRII 667/DDRII
800/DDRII 1066 X1 4GB
Bank 2, 3(DDRII 2) DDRII 400/DDRII 533/DDRII 667/DDRII
800/DDRII 1066 X1 4GB
Total Memory (Max.4GB)
2 8GB
Model PA76GM5D3-LF provides two 240-pin DDRIII DUAL INLINE MEMORY
MODULES (DIMM) socket for DDRIII memory expansion to maximum memory
volume of 8GB DDRIII SDRAM.
Valid Memory Configuration for PA76GM5D3-LF
Bank 240-Pin DIMM PCS Total Memory
Bank 0, 1 (DDRIII 1) DDRIII 800/DDRIII 1066/DDRIII 1333 X1 4GB
Bank 2, 3 (DDRIII 2) DDRIII 800/DDRIII 1066/DDRIII 1333 X1 4GB
Total Memory (Max.4GB)
2 8GB
Dual channel Limited!
1. Dual channel function only supports when 2 DDRII Modules plug in both DDRII 1 &
DDRII 2 for Model PA76GM5-LF or 2 DDRIII Modules plug in both DDRIII1 & DDRIII2
for Model PA76GM5D3-LF.
2. Memory modules must be of the same type, same size, and same frequency for dual
channel function.
Install DDRII modules of PA76GM5-LF or DDRIII modules of PA76GM5D3-LF to
your motherboard are not difficult, you can refer to figure below.
DIMM
2
(BANK2+BANK3)
DIMM 1(BANK0+BANK1)
Dual Channel
Su
pp
orted
NOTE! When you install DIMM module fully into the DIMM socket the eject
tab should be locked into the DIMM module very firmly and fit into its
indention on both sides.

8
8
2-3 Expansion Slots
The AMD760G Series motherboards offer one PCI-Express 2.0x16 by16-lane
graphics slot of 8Gbyte/sec data transfer rate at each relative direction which gets 7
times of bandwidth more than AGP 8X and up to 16Gbyte/sec peak concurrent
bandwidth at full speed to guarantee the ultimate GPU computing performance. The
AMD760G motherboards also carry two 32-bit PCI slots guarantee the rich
connectivity for the I/O peripheral devices.
32-bit PCI Slots
PCI-E x16 Slot by 16-lane

9
9
Chapter 3
Connectors, Headers & Jumper Setting
3-1 Connectors
(1) Power Connector (24-pin block): ATXPWR1
ATX Power Supply connector:
This is a new defined 24-pins
connector that usually comes
with ATX case. The ATX Power
Supply allows using soft power
on momentary switch that
connect from the front panel
switch to 2-pins Power On jumper
pole on the motherboard. When
the power switch on the back of
the ATX power supply turned on,
the full power will not come into
the system board until the front
panel switch is momentarily
pressed. Press this switch again will turn off the power to the system board.
** We recommend that you use an ATX 12V Specification 2.0-compliant power
supply unit (PSU) with a minimum of 350W power rating. This type has 24-pin
and 4-pin power plugs.
** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the
20-pin power plug can provide at least 15A on +12V and the power supply unit
has a minimum power rating of 350W. The system may become unstable or may
not boot up if the power is inadequate.
20-pinpowerplug 24-pinpowerplug

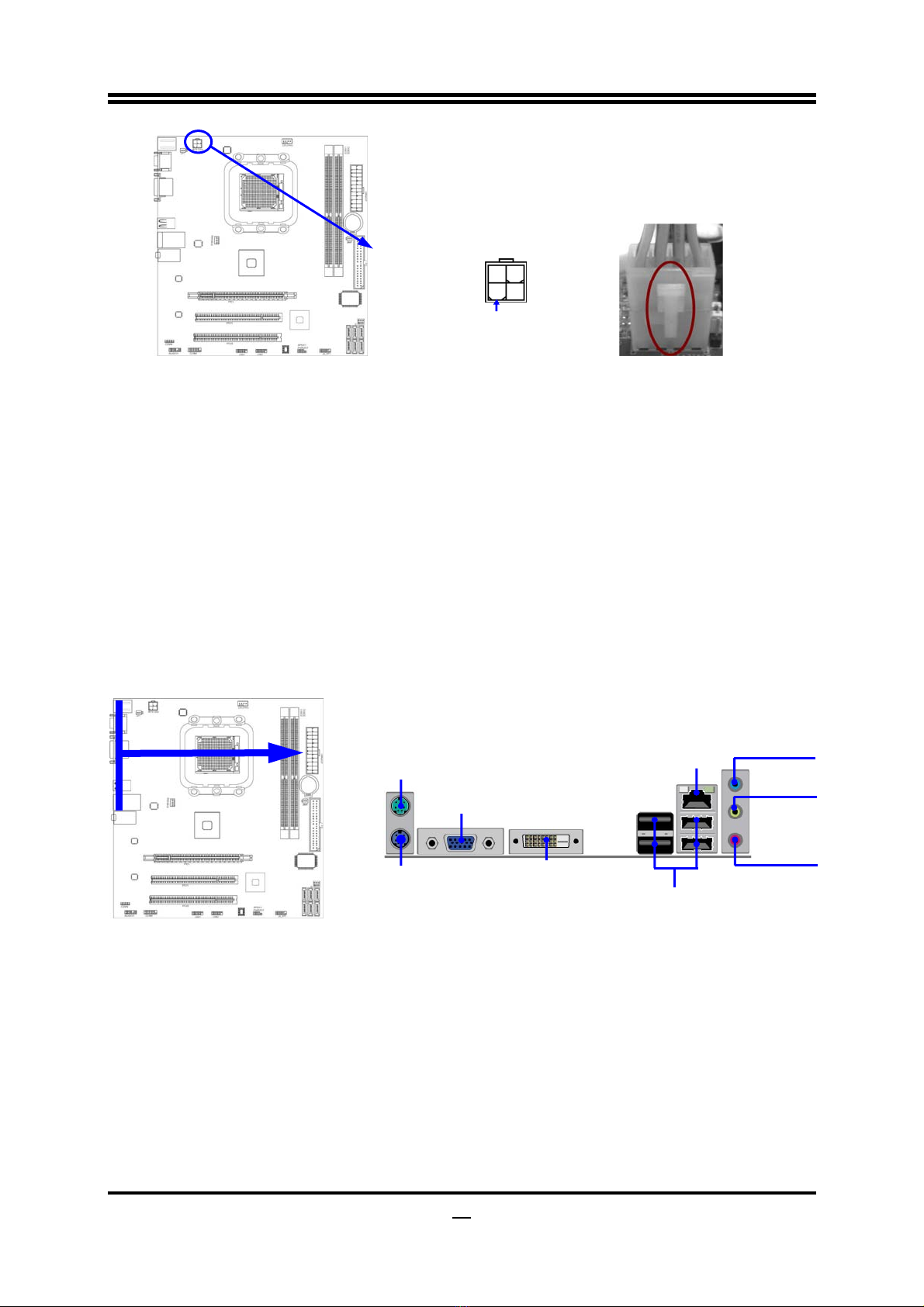

(2)ATX 12V Power Connector (4-pin block): ATX12V
This is a new defined 4-pins connector that usually comes with ATX Power
Supply. The ATX Power Supply which fully supports Socket AM2/AM2+/AM3
processor must including this connector for support extra 12V voltage to
maintain system power consumption. Without this connector might cause
system unstable because the power supply can not provide sufficient current for
system.
Pin 1
ROW1 ROW2
24-Pin
ROW1 ROW2
Pin 1
20-Pin
PIN ROW1 ROW2
1 3.3V 3.3V
2 3.3V -12V
3 GND GND
4 5V Soft Power On
5 GND GND
6 5V GND
7 GND GND
8 Power OK -5V
9 +5V (for Soft Logic) +5V
10 +12V +5V
11 +12V +5V
12 +3V GND

10
10
ATX12V
+12V
+12V
Pin1
3
2
4
GND
GND
(3) PS/2 Mouse & PS/2 Keyboard Connector: KB
The connectors are for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: CN5/ UL1 for USB
The connectors are 4-pin connector that connects USB devices to the system
board.
(5) LAN Port connector: UL1 for RJ-45 LAN
The connector is standard RJ45 connector for Network. It supports 10M/100Mbps
data transfer rate.
(6) Audio Line-In, Line-Out, MIC Connector: CN3
These Connectors are 3 Phone-Jack for LINE-OUT, LINE-IN, MIC audio
connections.
Line-in: (BLUE) Audio input to sound chip
Line-out: (GREEN) Audio output to speaker
MIC: (PINK) Microphone Connector
(7) Primary IDE Connector (40-pin block): IDE1
This connector supports the provided IDE hard disk ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to your hard
disk(s). If you install two hard disks, you must configure the second drive to Slave
mode by setting its jumpers accordingly. Please refer to the documentation of your
hard disk for the jumper settings.
USB Connector
PS/2 Keyboard
Line-OUT
MIC-IN
VGA Connector
Line-IN
RJ-45 LAN
DVI Connector
PS/2 Mouse

11
11

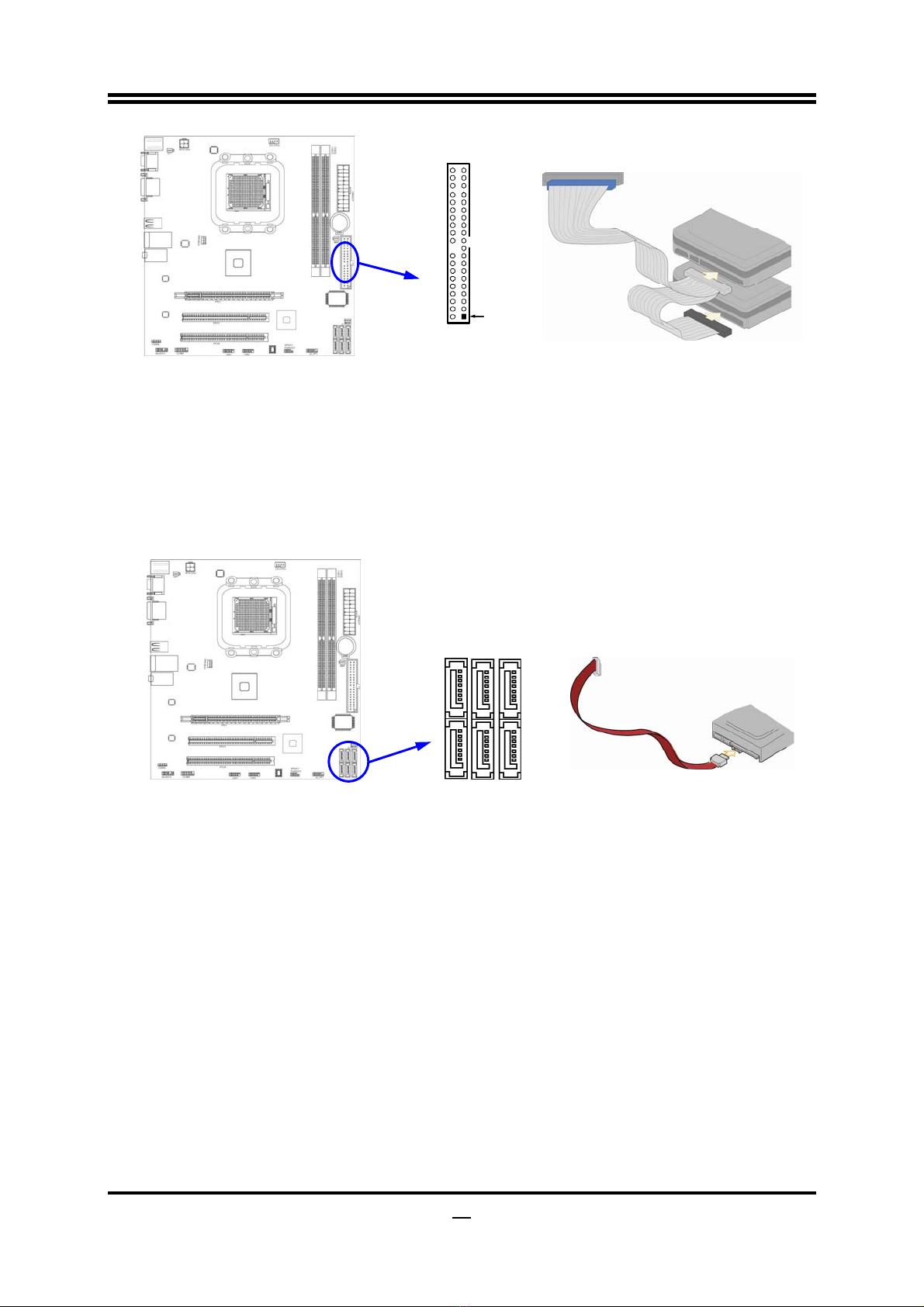

IDE1 Connector
Pin 1
IDE1
•Two hard disks can be connected to each connector. The first HDD is referred to
as the “Master” and the second HDD is referred to as the “Slave”.
•For performance issues, we strongly suggest you don’t install a CD-ROM or
DVD-ROM drive on the same IDE channel as a hard disk. Otherwise, the system
performance on this channel may drop.
(8) Serial-ATAII Port connector: SATA1,SATA 2,SATA3, SATA4, SATA5, SATA6
This connector supports the provided Serial ATA2 IDE hard disk cable to
connecting the motherboard with serial ATAII hard disk.
(9) D-Sub 15-pin Connector: VGA
VGA connector is the 15-pin D-subminiature female connector; it is for the display
devices, such as the CRT monitor, LCD monitor and so on.
(10) Digital Visual Interface: DVI
This interface standard designed to maximize the visual quality of digital display
devices such as flat panel LCD computer displays and digital projectors.

12
12
3-2 Headers

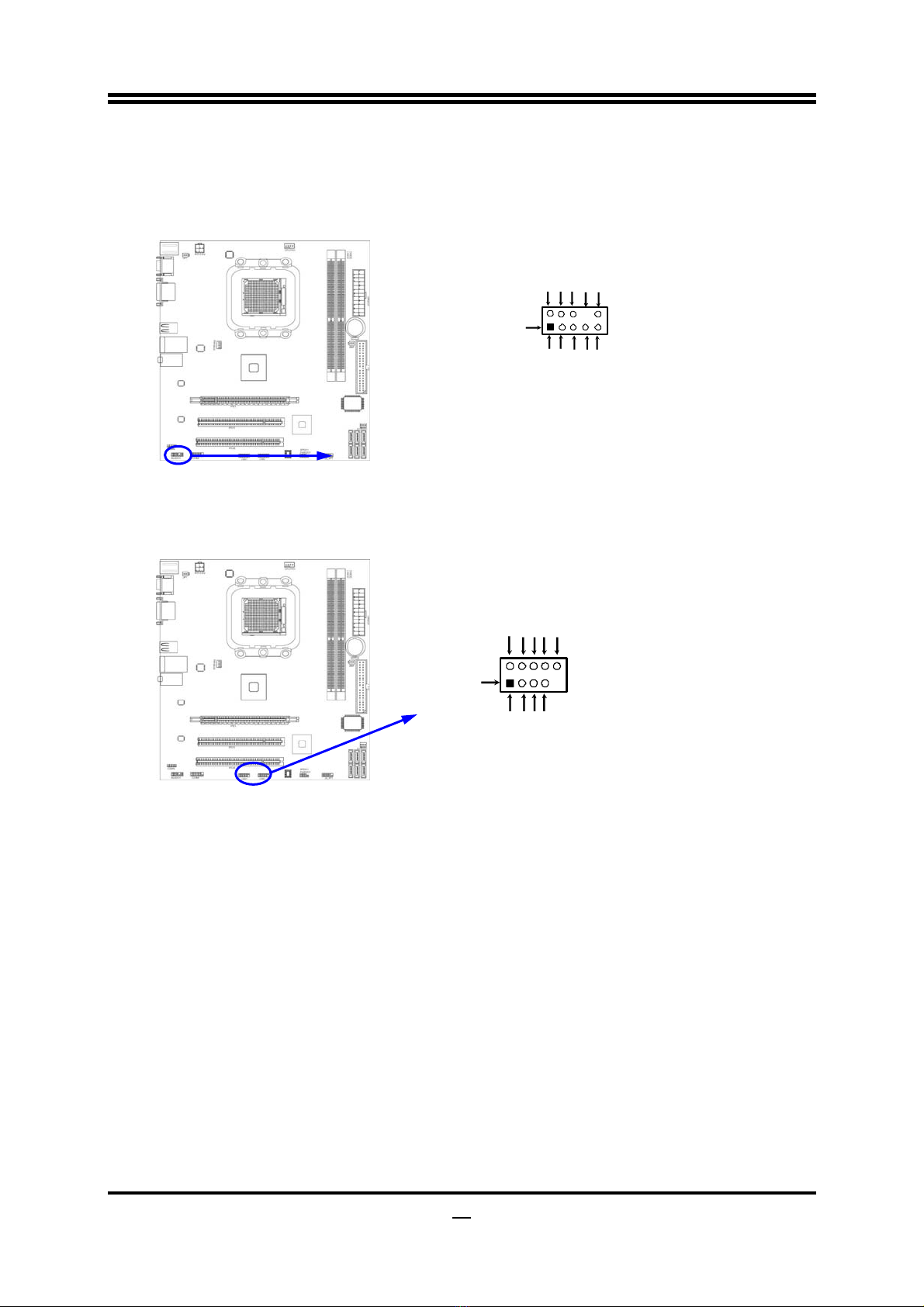

(1) Line-Out/MIC Header for Front Panel (9-pin): AUDIO1
These headers connect to Front Panel Line-out, MIC connector with cable.
Line-Out, MIC Headers
AUDIO
Pin 1
Lineout2-L Lineout2 -R
Sense-FB
Audio-GND
LINE2-JD
Audio-JD
2
9
10
KEY
MIC2-L
MIC2-JD
MIC2-R
(2) USB Port Headers (9-pin): USB1/USB2
These headers are used for connecting the additional USB port plug. By attaching
an option USB cable, your can be provided with two additional USB plugs affixed
to the back panel.
USB Port Headers
Pin1
VCC
-DATA
GND
+DATA
VCC
OC
-DATA
GND
+DATA
(3) Speaker connector: SPEAK1
This 4-pin connector connects to the case-mounted speaker. See the figure
below.
(4) Power LED: PWR LED/PWRLED1
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin.
(5) IDE Activity LED: HD LED
This connector connects to the hard disk activity indicator light on the case.
(6) Reset switch lead: RESET
This 2-pin connector connects to the case-mounted reset switch for rebooting your
computer without having to turn off your power switch. This is a preferred
method of rebooting in order to prolong the lift of the system’s power supply. See
the figure below.
(7) Power switch: PWR BTN
This 2-pin connector connects to the case-mounted power switch to power
ON/OFF the system.

13
13

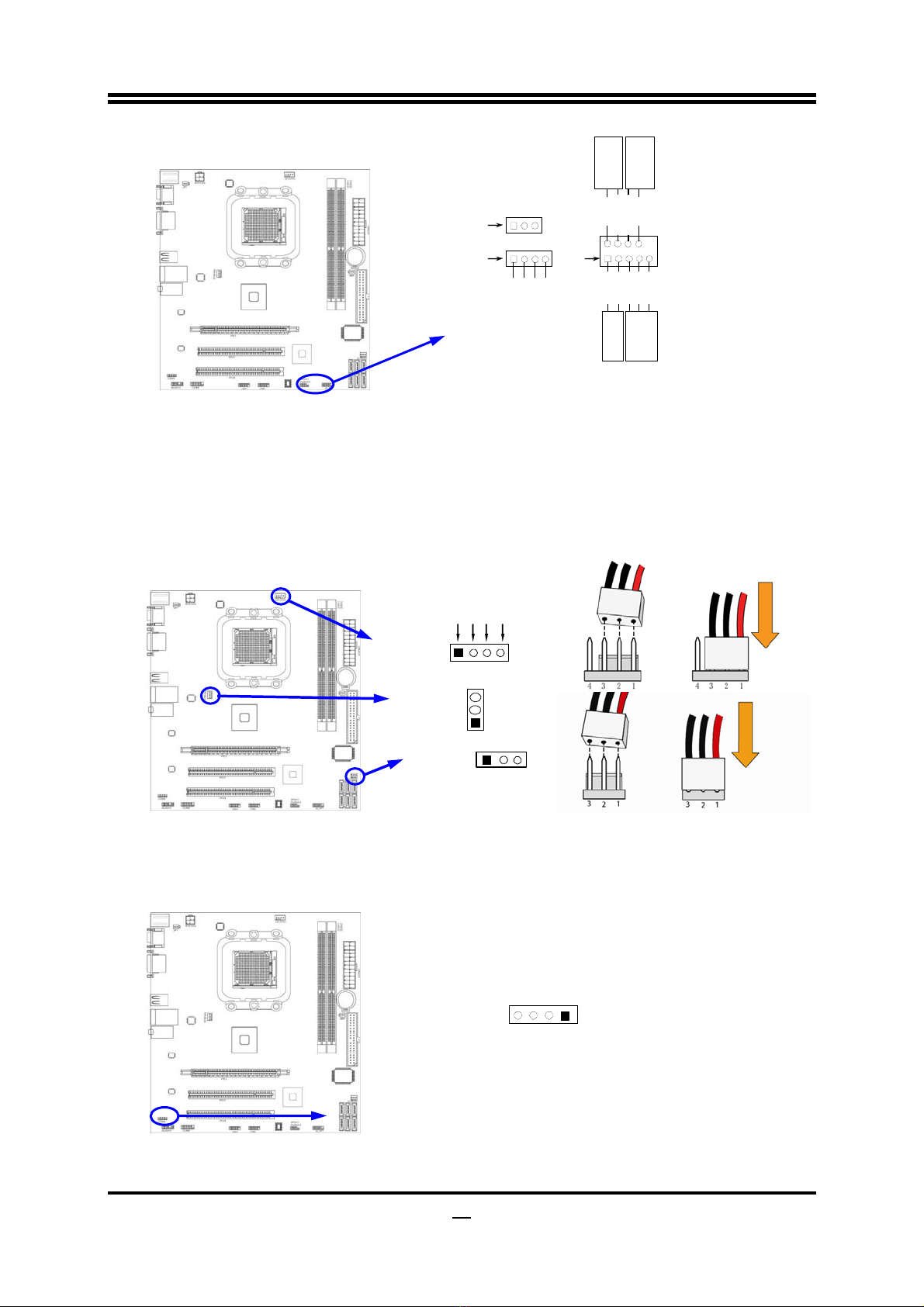

System Case Connections
HDLED
RESET
VCC5
GND
VCC5 PWR LED
PWRBTN
PWRBTN PWRLED
HDDLE
RSTSW
NC GND
JW FP
Pin 1
SPEAK1
SPKR
GND
NC
VCC5
Pin 1
PWRLED1
Pin 1
(8) FAN Power Headers: SYSFAN1 (3-pin), SYSFAN2 (3-pin), CPUFAN (4-pin)
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending
on the fan manufacturer, the wire and plug may be different. The red wire should
be positive, while the black should be ground. Connect the fan’s plug to the
board taking into consideration the polarity of connector.
FAN Power Headers
SYSFAN1
SYSFAN2
C
PUFAN
14
GND
+12V
FAN1IN
FAN1 OUT
1
3
13
(9) CD Audio-In Headers (4-pin): CDIN1
CDIN are the connectors for CD-Audio Input signal. Please connect it to
CD-ROM CD-Audio output connector.
CD Audio-In Headers
CDIN 4 1

14
14
(10) Serial COM Port header: COM1
COM1 is the 9-pin block pin-header.
Serial COM Port 9-pin Block
Pin1
3-3 Jumper Setting
(1) Keyboard/USB function Enabled/Disabled: JP1
Keyboard/Mouse & USB Power On Setting
2-3 Closed KB/USB Power ON Enabled
JP1
JP1
1-2 Closed KB/USB Power ON Disable (Default)
(2) CMOS RAM Clear (3-pin): JBAT
A battery must be used to retain the motherboard configuration in CMOS RAM
short 1-2 pins of JBAT to store the CMOS data.
To clear the CMOS, follow the procedure below:
1. Turn off the system and unplug the AC power
2. Remove ATX power cable from ATX power connector
3. Locate JBAT and short pins 2-3 for a few seconds
4. Return JBAT to its normal setting by shorting pins 1-2
5. Connect ATX power cable back to ATX power connector
Note: When should clear CMOS
1. Troubleshooting
2. Forget password
3. After over clocking system boot fail

15
15
CMOS RAM Clear Setting
2-3 Closed Clear CMOS
JBATJBAT
1-2 Closed Normal
Chapter 4
Useful Help
4-1 How to Update BIOS
Step1. Prepare a boot disc. (You may make one by click START click RUN type
SYS A: click OK)
Step2. Download upgrade tools and the latest BIOS files of the motherboard from
official website and then make a copy of it to your bootable floppy disk after
decompressing these files.
Step3. Insert the disk into A: start your computer and then type in “A:\xxxxxx.BAT”
(xxxxxxx being the file name of the latest BIOS)
Step4. Type Enter to update and flash the BIOS. The system will restart
automatically when BIOS is upgraded.
4-2 Trouble Shooting
Problem Solution
No power to the system to the all power light
don’t illuminate, fan inside power supply
doesn’t turn on.
1. Make sure power cable is security plugged in.
2. Replace cable. 3. Contact technical support.
System inoperative. Keyboard lights are on,
power indicator lights are lit, and hard drive
is spinning.
Using ever pressure on both ends of the DIMM,
press down firmly until the module snaps into
places.
System doesn’t boot from hard disk drive,
can be booted from optical drive. 1. Check cable running from disk to disk controller
board. .Make sure both ends are securely
plugged in, check the drive type in the standard
CMOS setup. 2. Backing up the hard drive is
extremely important. All hard disks are capable of
breaking down at any time.
System only boots from optical drive. Hard
disk can be read and applications can be
used but booting from hard disk is
impossible.
1. Back up date and applications files. 2.
Reformat the hard drive. Reinstall applications
and date using backup disks.
Screen message says “Invalid
Configuration” or “CMOS Failure” Review system‘s equipment .Make sure correct
information on is in setup.
Can not boot system after installing second
hard drive. 1. Set master /slave jumpers correctly. 2. Run SETUP program and select correct drive types.
Call the drive manufacture for compatibility with
other drives.

16
1
6
Appendix I
Subject 1: Regarding the Application of 3-Phase or 3+1 Phase
Power Supply Mold
As a result of the increasing power consumption demand from
many AMD CPUs in current market, we suggest not to use a CPU
that demands more than 65W power consumption at work for an
AMD CPU compliant board that comes with power supply design
as 3 phase or 3+1 phase mold and MOSFET design as working in
High SideX1 and Low SideX1 mold so as to avoid MOSFET getting
burned or other phenomena like a halted system or system
instability. So please take notice of the CPU you are using and make sure that it is one
that demand not more than 65 W to ensure long-term working order.
Note：
1. The relation between CPU Power Consumption Amount and Power Phase:
depending on difference in voltage rating, one-phase of power can provide
25~30W to the motherboard.

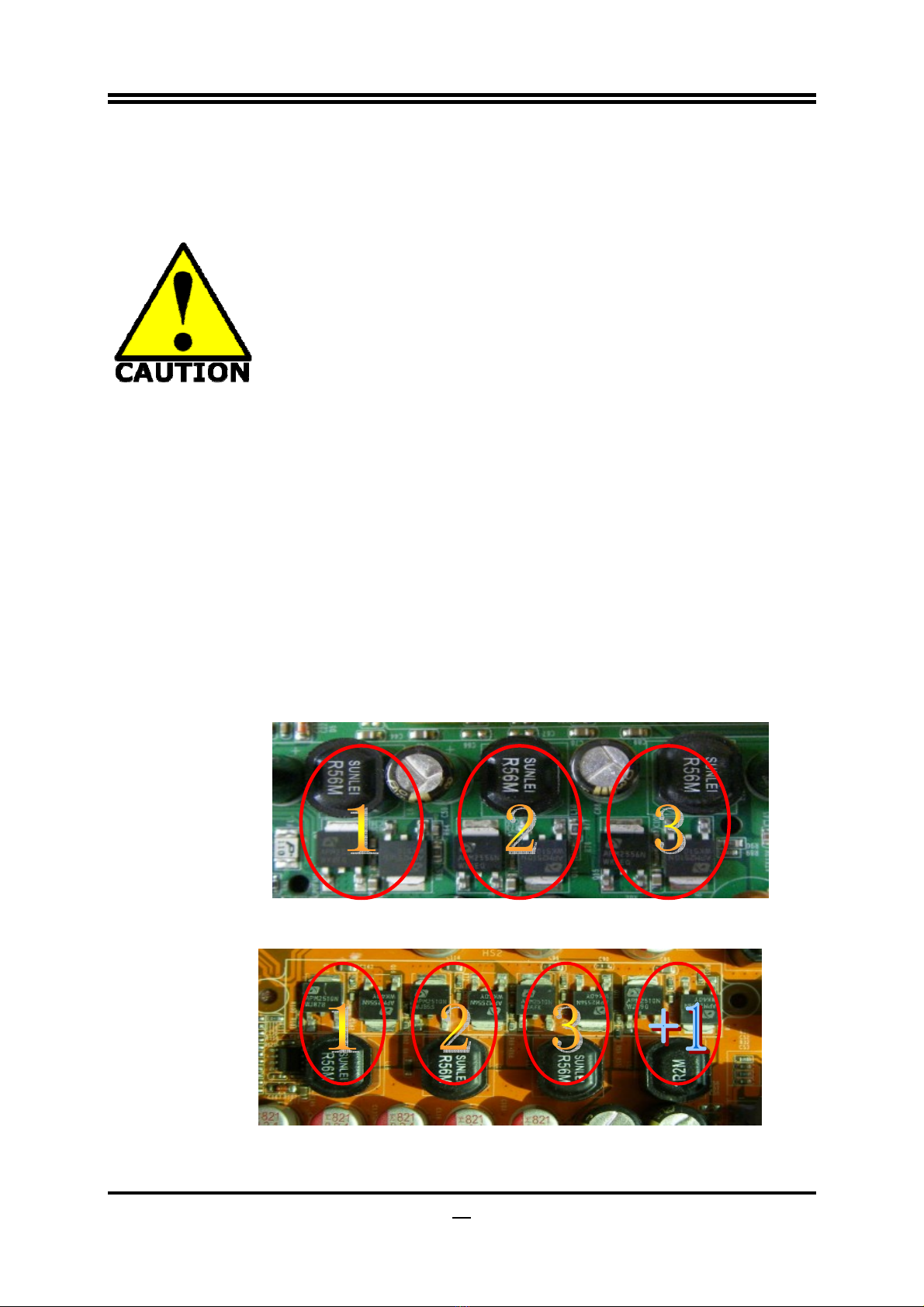

2. 3- Phase Power Supply Mold: motherboard with 3 inductances for CPU power
supply, and each inductance carries with it 2 MOSFET (6 MOSFETs in total)
(Figure1); 3+1–Phase Power Supply Mold: motherboard with 4 inductances for
CPU power supply, and each inductance carries with it 2 MOSFET (8 MOSFETs
in total) (Figure2).
Figure 1
Figure 2

17
1
7
Solution：
We recommend users choose motherboards with power design of 4-phase, 4+1
phase or more for CPUs that demand 89W or 95W power consumption.
We recommend users choose motherboards with power design of 5-phase, 5+1
phase or more for CPUs that demand 125W or 140W power consumption.
Subject 2: Suggestion on choosing electric fan
Both the amount of electric current to MOSFET and the heat
produced from the motherboard go up as AMD’s CPU power
consumption increases. In this case we recommend users select a
CPU fan with air outlet towards MOSFET so that CPU fan can carry
away heat produced by MOSFET, for better heat dissipation effects.
At the same time we suggest using well-ventilated cases to maintain temperature as
38 approximately inside℃. (38 is re℃commended by CPU manufactures)
Figure 1---- CPU Fan can not blow off the heat produced by MOSFET. We suggest
not to using fans of this kind.
Figure 2---- CPU Fan can blow off the heat produced by MOSFET. We suggest using
fans of this kind.
Cool air flowing in
Hot air flowing out
Cool air flowing in
Hot air flowing out
