AMD IB550F User manual

IB550F
AMD Geode LX
3.5-inch Disk Size SBC
USER’S MANUAL
Version 1.1

ii IB550F User’s Manual
Acknowledgments
Award is a registered trademark of Award Software International, Inc.
PS/2 is a trademark of International Business Machines Corporation.
AMD, AMD Geode, and combinations thereof, are trademarks of
Advanced Micro Devices, Inc.
Microsoft Windows is a registered trademark of Microsoft Corporation.
All other product names or trademarks are properties of their respective
owners.

IB550F User’s Manual iii
Table of Contents
Introduction...................................................... 1
Product Description....................................................................1
Checklist ....................................................................................2
Specifications .............................................................................3
Board Dimensions ......................................................................4
Installations...................................................... 5
Installing the Memory.................................................................6
Setting the Jumpers ....................................................................7
Connectors on IB550F..............................................................11
BIOS Setup.......................................................21
Drivers Installation......................................37
Entertainment Encryption/Decryption Controller Driver............38
VGA Drivers Installation..........................................................40
Audio Driver Installation ..........................................................43
Silicon Image Sil3512ECTU Driver Installation ........................46
Appendix...........................................................49
A. I/O Port Address Map..........................................................49
B. Interrupt Request Lines (IRQ)..............................................51
C. Watchdog Timer Configuration............................................52

iv IB550F User’s Manual
This page is intentionally left blank.

INTRODUCTION
IB550F User’s Manual 1
Introduction
Product Description
The IB550F 3.5-inch disk size SBC incorporates the AMD Geode LX
processor with speeds of 433MHz (LX700) or 500MHz (LX800). It
comes with one DDR SO-DIMM socket that has a capacity of 1GB
system memory. The board supports one 10/100Mbps Ethernet, using a
Realtek RTL8100C controller. A 2D graphics controller comes
integrated on the board that supports CRT and TFT LCD displays. Useful
interface includes four USB 2.0 ports, 4 COM ports, and one PCI-104
expansion slot. IB550F also support 2 SATA ports.
IB550F FEATURES:
-Embedded AMD Geode LX processor, 433MHz (LX700) /
500MHz (LX800)
-DDR SO-DIMM x 1, Max. 1GB
-Realtek RTL8100C 10/100Mbps Ethernet
-Integrated LX800/LX700 2D VGA controller, supports CRT
and TFT LCD display
-4 x USB 2.0, 4 x COM, CF socket, Watchdog timer, Digital I/O
-2 x SATA, PCI-104 expansion
-Dimensions: 145mm x 102mm (5.7” x 4”)

INTRODUCTION
2 IB550F User’s Manual
Checklist
Your IB550F package should include the items listed below.
•The IB550F AMD Geode LX 3.5-inch Disk Size SBC
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
•Heatsink for AMD Geode LX processor
•Options:
•IB61 cable kit (SATA, COM, PS/2, LPT, USB, Audio, Power
cable)

INTRODUCTION
IB550F User’s Manual 3
Specifications
[
Product Name
IB550F/ IB550F-24
Form Factor
3.5”
CPU Type
AMD Geode (BGU481)
CPU Speed
AMD LX800 500MHz / 128KB L2 cache/ SC (3.8W)
BIOS
Award BIOS
Chipset
AMD CS5536 I/O companion multi-function chipset
Memory
DDR SO-DIMM x1 (w/o ECC), Max.1GB , Single channel
Graphic
LX800 built-in high performance 2D graphic controller
Supports TFT LCD & CRT display
LVDS
18-bit one channels LVDS interface w/DF13 socket x1 [Default]
24-bit one channel LVDS interface w/DF13 socket x1 [IB550F-24]
LAN
Realtek 8100C-LF 10/100M PCI LAN x1
USB (Universal
Serial Bus)
CS5536 built-in USB2.0 controller, support 4ports
Serial ATA Ports
PCI to SATA controller [SiI3512ECTU], supports 2ports
Parallel IDE
CS5536 built-in one channel UDMA100 IDE
- Compact Flash (type II) connector x1
Audio
Realtek ALC203 AC97 audio codec,
Supports 2-CH Line-Out, Line-In & MIC
LPC I/O
Winbond W83627HF + Fintek 81216AD
COM1 (RS232/422/485), COM2~4(RS232) , KB/Mouse, Parallel,
IrDA, Hardware monitor (3 thermal inputs, 4 voltage monitor inputs,
VID0-4)
Digital IO
4 in & 4 out
Keyboard/Mouse
Connector
Mini DIN connector x1
Expansion Slots
PCI-104 x1
Compact Flash Socket x1
Edge Connector
DB-9 connector x1 for COM1 (RS232/422/485)
6-pins Mini-DIN connector x1 for PS/2 KB & Mouse
Dual USB stack connector x1 for USB 1, 2
DB-15 connector x1 for CRT
RJ-45 connector x1 for LAN
On Board
Header/Connector
2x5 pins header x3 for COM2/3/4 (RS232 only)
2x4 pins header x1 for USB 3,4
2x13 pins header x1 for LPT port
2x6 pins header x1 for Audio
2x22 pins header x1 for TFT LCD panel
4-pin header x1 for IrDA
4-pin power connector x 1 for SATA HDD
Watchdog Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
Power Connector
+12V DC-in
RoHS
Yes
Board Size
102mm x 145mm

INTRODUCTION
4 IB550F User’s Manual
Board Dimensions

INSTALLATIONS
IB550F User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the IB550F in order to set up a workable system. The
topics covered are:
Installing the Memory..........................................................................6
Setting the Jumpers..............................................................................7
Connectors on IB550F.......................................................................11

INSTALLATIONS
6 IB550F User’s Manual
Installing the Memory
The IB550F board supports one SODIMM DDR memory socket for a
maximum total memory. The memory module capacities supported are
128MB, 256MB, 512MB and 1GB.
Installing and Removing Memory Modules
To install the DDR modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR module so that the keys of the DDR module align with
those on the memory slot. Insert the module into the socket at a slight
angle (approximately 30 degrees). Note that the socket and module are
both keyed, which means that the module can be installed only in one
direction.
2. To seat the memory module into the socket, apply firm and even
pressure to each end of the module until you feel it slip down into the
socket.
3. With the module properly seated in the socket, rotate the module
downward. Continue pressing downward until the clips at each end
lock into position.
4. To remove the DDR module, press the clips with both hands.

INSTALLATIONS
IB550F User’s Manual 7
Setting the Jumpers
Jumpers are used on IB550F to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IB550F and their respective functions.
Jumper Locations on IB550F...............................................................8
JP1: LVDS VDD Select (5V / 3.3V)....................................................9
JP2: CF Connector master/Slave Setting..............................................9
JP3: Clear CMOS Setting ....................................................................9
JP4, JP5, JP6: RS232/422/485 (COM1) Selection..............................10

INSTALLATIONS
8 IB550F User’s Manual
Jumper Locations on IB550F
Jumper Locations on IB550F...................................................... Page
JP1: LVDS VDD Select (5V / 3.3V) ................................................... 9
JP2: CF Connector master/Slave Setting.............................................. 9
JP3: Clear CMOS Setting ....................................................................9
JP4, JP5, JP6: RS232/422/485 (COM1) Selection.............................. 10

INSTALLATIONS
IB550F User’s Manual 9

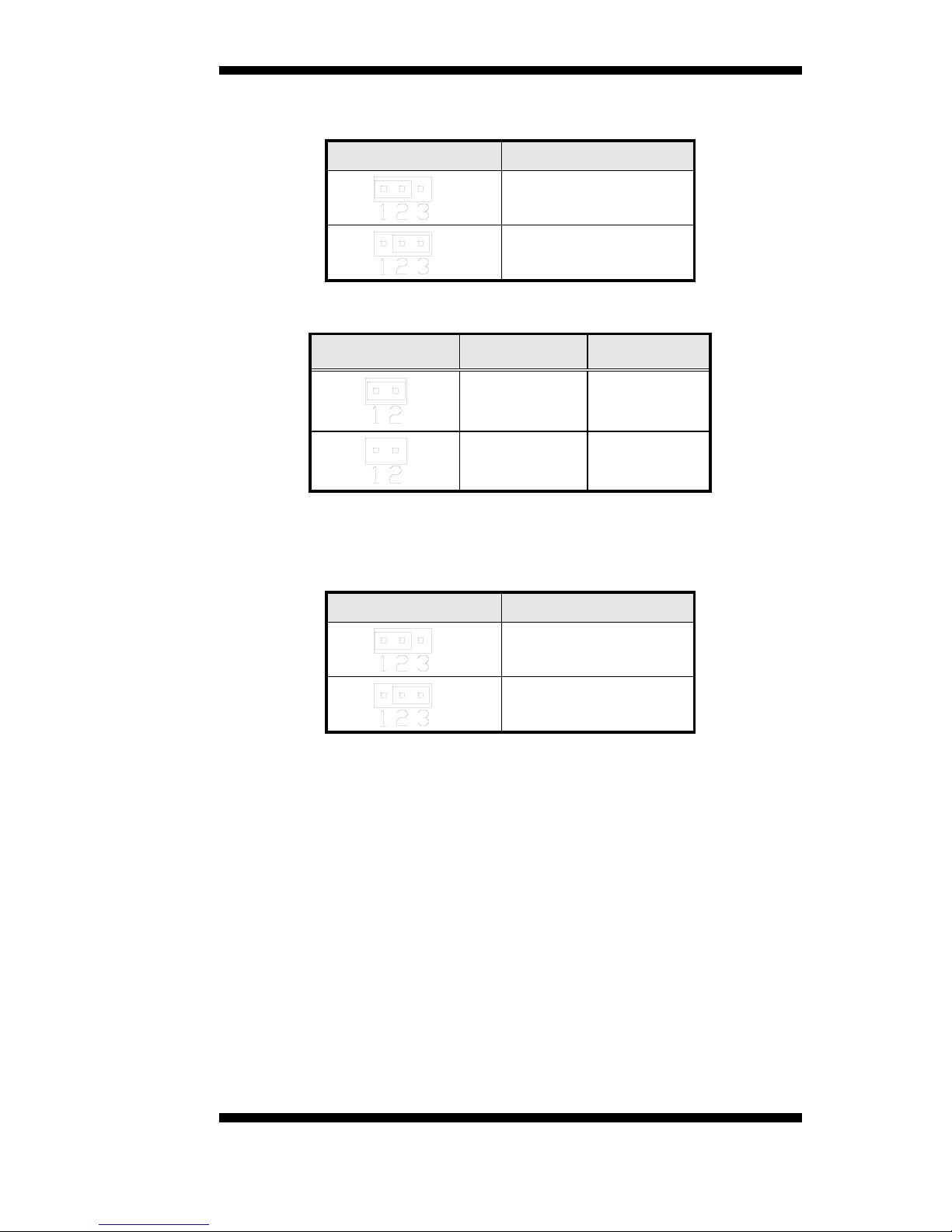

JP1: LVDS VDD Select (5V / 3.3V)
JP1
VDD Setting
3.3V
5V
JP2: CF Connector master/Slave Setting
JP2 Setting Function
Short/Closed Master
Open Slave
JP3: Clear CMOS Setting
Use JP3 to clear the CMOS contents. Note that the power connector
should be disconnected from the board before clearing CMOS.
JP3
Function
Normal (default)
Clear CMOS

INSTALLATIONS
10 IB550F User’s Manual
JP4, JP5, JP6: RS232/422/485 (COM1) Selection
COM1 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM1
selection.
COM1
Function
RS-232 RS-422 RS-485
Jumper
Setting
(pin closed)
JP4:
1-2
JP5:
3-5 & 4-6
JP6:
3-5 & 4-6
JP4:
3-4
JP5:
1-3 & 2-4
JP6:
1-3 & 2-4
JP4:
5-6
JP5:
1-3 & 2-4
JP6:
1-3 & 2-4

INSTALLATIONS
IB550F User’s Manual 11
Connectors on IB550F
The connectors on IB550F allow you to connect external devices such as
keyboard, hard disk drives, printers, etc. The following table lists the
connectors on IB550F and their respective functions.
Connector Locations on IB550F........................................................12
CN1: Compact Flash Card Socket......................................................13
CN3: RJ45 Connector........................................................................13
CN4: PS/2 Keyboard and Mouse Connector ......................................13
CN5: VGA CRT Connector...............................................................13
CN6, J7, J12, J13: Serial Ports...........................................................14
J1: Digital 4-in 4-out Connector.........................................................14
J2: External Audio Connector............................................................15
J3: Power DC-In................................................................................15
J4: LVDS Connectors........................................................................15
J5: IrDA Connector ...........................................................................15
J6: TFT Panel Connector (when board supports 24-bit) .....................16
J6: TFT Panel Connector (when board supports 18-bit) .....................17
CN10, J8: USB Connectors...............................................................17
J9: PCI-104 Connector ......................................................................18
PCI-104 Bus Signal Assignments.......................................................18
J10: Parallel Port Connector ..............................................................19
J11: Reset Switch ..............................................................................19
SODIMM1: SODIMM Socket...........................................................19

INSTALLATIONS
12 IB550F User’s Manual
Connector Locations on IB550F
Connector Locations on IB550F ................................................................. Page
Connector Locations on IB550F..........................................................................12
CN1: Compact Flash Card Socket.......................................................................13
CN3: RJ45 Connector..........................................................................................13
CN4: PS/2 Keyboard and Mouse Connector .......................................................13
CN5: VGA CRT Connector.................................................................................13
CN6, J7, J12, J13: Serial Ports............................................................................14
J1: Digital 4-in 4-out Connector ..........................................................................14
J2: External Audio Connector..............................................................................15
J3: Power DC-In...................................................................................................15
J4: LVDS Connectors ..........................................................................................15
J5: IrDA Connector..............................................................................................15
J6: TFT Panel Connector (when board supports 24-bit).....................................16
J6: TFT Panel Connector (when board supports 18-bit).....................................17
CN10, J8: USB Connectors .................................................................................17
J9: PCI-104 Connector.........................................................................................18
PCI-104 Bus Signal Assignments........................................................................18
J10: Parallel Port Connector ................................................................................19
J11: Reset Switch.................................................................................................19
SODIMM1: SODIMM Socket.............................................................................19

INSTALLATIONS
IB550F User’s Manual 13
CN1: Compact Flash Card Socket
CN3: RJ45 Connector
Pin #
Signal Name
1
TD+
2
TD-
3
RD+
4
RJ45-4A
5
RJ45-5A
6
RD-
7
RJ45-7A
8
RJ45-8A
CN4: PS/2 Keyboard and Mouse Connector
CN4 uses a Y-cable with dual D-connectors for a PS/2 keyboard and a
PS/2 mouse.
Pin #
Signal Name
1
Keyboard Data
2
Mouse Data
3
Ground
4
Vcc
5
Keyboard Clock
6
Mouse Clock
CN5: VGA CRT Connector
[
Signal Name
Pin
Pin
Signal Name
Red
1
2
Green
Blue
3
4
NC
GND
5
6
GND
GND
7
8
GND
Vcc
9
10
GND
N.C.
11
12
DDCDA
HSYNC
13
14
VSYNC
DDCCLK
15

INSTALLATIONS
14 IB550F User’s Manual
CN6, J7, J12, J13: Serial Ports
[
Pin #
Signal Name
RS-232
RS-422
RS-485
1
DCD
TX-
DATA-
2
RX
TX+
DATA+
3
TX
RX+
NC
4
DTR
RX-
NC
5
GND
GND
GND
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
10
NC
NC
NC
J7/J12/J13
Pin #
Signal Name (RS-232)
1
DCD, Data carrier detect
2
RXD, Receive data
3
TXD, Transmit data
4
DTR, Data terminal ready
5
Ground
6
DSR, Data set ready
7
RTS, Request to send
8
CTS, Clear to send
9
RI, Ring indicator
10
No Connect.
CN6 is configurable as RS-232/ RS-422/485 with jumpers JP4/JP5/JP6.
J7 (COM2) /J12 (COM3) /J13 (COM4) is fixed as RS-232.
J1: Digital 4-in 4-out Connector
Signal Name
Pin #
Pin #
Signal Name
Ground
1
2
Vcc
Out3
3
4
Out1
Out2
5
6
Out0
IN3
7
8
IN1
IN2
9
10
IN0

INSTALLATIONS
IB550F User’s Manual 15
J2: External Audio Connector
J2 is a 12-pin header that is used to connect to the optional audio cable
card that integrates jacks for Line In, Line Out and Mic.
Signal Name
Pin #
Pin #
Signal Name
LINEOUT R
1
2
LINEOUT L
Ground
3
4
Ground
LINEIN_R
5
6
LINEIN L
Ground
7
8
Ground
Mic-In
9
10
VREFOUT
Ground
11
12
Protect pin
J3: Power DC-In
Pin #
Signal Name
1
DC In (12V only)
2
Ground
J4: LVDS Connectors
Signal Name
Pin #
Pin #
Signal Name
TX0-
2
1
TX0+
Ground
4
3
Ground
TX1-
6
5
TX1+
5V/3.3V
8
7
Ground
TX3-
10
9
TX3+
TX2-
12
11
TX2+
Ground
14
13
Ground
TXC-
16
15
TXC+
5V/3.3V
18
17
ENABKL
+12V
20
19
+12V
*Depends on JP1 setting (1-2 for 3.3V/default, 2-3 for 5V).
J5: IrDA Connector
J5 is used for an optional IrDA connector for wireless communication.
Pin #
Signal Name
1
+5V
2
Ir RX
3
Ground
4
Ir TX

INSTALLATIONS
16 IB550F User’s Manual
J6: TFT Panel Connector (when board supports 24-bit)
Here is the pin definition of J6 when it supports for 24-bit TFT flat panel
LCD displays.
Signal Name
Pin #
Pin #
Signal Name
+12V
1
2
+12V
Ground
3
4
Ground
5V/3.3V
5
6
5V/3.3V
N.C.
7
8
Ground
R0
9
10
R1
R2
11
12
R3
R4
13
14
R5
R6
15
16
R7
G0
17
18
G1
G2
19
20
G3
G4
21
22
G5
G6
23
24
G7
B0
25
26
B1
B2
27
28
B3
B4
29
30
B5
B6
31
32
B7
Ground
33
34
Ground
SHFCLK
35
36
FLM(VSYNC)
DISPENA(MDE)
37
38
LP(HSYNC)
Ground
39
40
ENABKL
Ground
41
42
N.C.
ENAVDD
43
44
5V/3.3V
*Depends on JP1 setting (1-2 for 3.3V / default, 2-3 for 5V).
