AMD Hudson D1 User manual

TECHNICAL M A NUAL
Of
AMD Hudson D1 Chipset
Based
for AMD Brazos APU Mini-ITX M/B
NO. G03-NL240ITX-F
Revision: 1.0
Release date: 2015-05-11
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

i
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

ii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION .......................................................................................iv
ITEM CHECKLIST .....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION .........................................................................................................2
1-3 LAYOUT DIAGRAM ....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING .....................................................................................................8
2-2 CONNECTORS AND HEADERS................................................................................11
2-2-1 CONNECTORS .............................................................................................11
2-2-2 HEADERS .....................................................................................................15
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP .....................................................................................................21
3-2 BIOS MENU SCREEN ................................................................................................22
3-3 FUNCTION KEYS .......................................................................................................22
3-4 GETTING HELP ..........................................................................................................23
3-5 MEMU BARS...............................................................................................................23
3-6 MAIN MENU ................................................................................................................24
3-7 ADVANCED MENU.....................................................................................................25
3-8 CHIPSET MENU..........................................................................................................30
3-9 BOOT MENU...............................................................................................................33
3-10 SECURITY MENU .......................................................................................................35
3-11 SAVE & EXIT MENU...................................................................................................36
TABLE OF CONTENT

iii
Environmental Safety Instruction
 Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
 0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
 Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
 The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
 Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition May 11th, 2015
Item Checklist
 Motherboard
 DVD for motherboard utilities
 User’s Manual
 Cable(s)
 I/O Back panel shield

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
 AMD Hudson D1 Chipset and AMD E240 1.5GHz APU, low power consumption
but high performance
 Support DirectX 11 3D Graphics Acceleration
 Support 1 * 1066MHz DDRIII SO-DIMM, max up to 4GB
 Onboard 1* full-size Mini-SATA connector
 Onboard 1* half-size Mini-PCIE connector
 Support CPU Smart FAN
 Support Watchdog Timer Technology
 Support 1 * SIM card socket for 3G/LTE communication module expansion
 Support Windows8 OS

2
1-2 Specification
Spec Description
Design  Mini-ITX form factor ;
 PCB size: 17.0 x 17.0 cm
Embedded CPU
 AMD Brazos E-240 1.5GHz APU
Chipset  Hudson D1 Chipset
Memory Slot  1* DDRIII SO-DIMM slot
 Support DDRIII 1066MHz DDRIII SO-DIMM; Max up to 4GB
Expansion Slot
 1 * full-size Mini-SATAII slot
 1 * halt-size Mini-PCIE slot
 1* SIM card slot
LAN Chip
 Integrated with Realtek RTL8111G PCI-E Gigabit LAN
chip
 Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip  Realtek ALC887 HD Audio Codec integrated
 Audio driver and utility included
BIOS  16M Flash ROM
Multi I/O
Rear Panel I/O:
 2* 12V DC power out jack
 1* PS/2 keyboard & mouse Combo port
 4* USB 2.0/1.1 port
 1 * Parallel port
 1* Mini-DIN UART-TX port
 1* RJ-11 port
 1 * COM1 serial port
 1 * VGA port
 1* RJ-45 port
 1* Line-in connector
 1* Line-out connector
 1* MIC connector

3
Internal I/O Connectors& Headers:
 1 *24-pin main power connector
 1 *4-pin ATX12V internal power connector
 1 *4-pin SATA power-out connector
 2* SATA II 3G/s Connector
 1 * Front panel audio header
 2 * 9-Pin USB 2.0/1.1 header for 4* USB 2.0/1.1 ports
 1 * COM2 serial port header
 1 * Front panel header
 1 * Power LED header & 1* Speaker header
 1* GPIO header
 1 *12-pin VGA header
 1 * LVDS header
 1* LVDS inverter header
 1*CPU fan header & 1*System fan header
1-3 Layout Diagram
Rear IO Diagram
Parallel
Port
Line-in Port
Line-out Port
MIC Port
RJ-45 LAN Port
USB 2.0 Ports
VGA Port
COM1 Port
RJ-
11 Port
Mini-DIN UART-TX
Port
PS/2 KB & MS Port
USB 2.0
Ports
DC 12V Power-out Jack
(DC_JACK2) DC 12V Power-out Jack
(DC_JACK1)

4
Motherboard Internal Diagram—Front Side
ATX12V
Power connector
DDRIII SODIMM Slot
AMD CPU
AMD Hudson D1 Chipset
SYSFAN1 Header
Front Panel
Audio Header
Front Panel Header
Full-size
Mini-SATA Slot
COM2
Serial Port Header
SATAII Port
(SATA1/2)
SATA Hard Disk
Power-Out Connector
USB 2.0 Headers
Half-size
Mini-PCIE Slot
VGA Port Header
LVDS Header
GPIO
Header
ATX Power
Connector
LVDS Inverter
Power LED Header
Speaker Header
Rear I/O
(Refer to
Page-3)
CPUFAN1 Header

5
Motherboard Internal Diagram—Back Side
SIM Card Slot

6
Motherboard Jumper Position
Jumper
Jumper Name Description
JP1 KB/MS/USB Power on Function Select 3-pin Block
JP4 LVDS VCC 3.3V/5V/12V Select 4-pin Block
JP3 INVERTER Back Light VCC 3.3V/5V/12V Select 4-pin Block
JP8 COM1 Port Pin9 Function Select 4-Pin Block
JP7 COM2 Header Pin9 Function Select 4-Pin Block
JBAT1 CMOS RAM Clear Function Setting 3-pin Block
JP5 UART2 on COM2 Header & PS_COM Port Select 3-pin Block
JBAT1
JP5
JP1
JP3
JP4
JP8
JP7

7
Connectors
Connector Name
USB2_PS2 Top: PS/2 Keyboard & Mouse Combo Port
Middle & Bottom: USB 2.0 Port
PARALLE1 Parallel Port
PS_COM Mini-DIN UART-TX Port
DC_JACK2/DCJACK1 DC 12V Power-out Jack
RJ11 RJ11 Port
VC1 Top: COM1 Serial Port
Bottom: VGA Port
UL1 Top: RJ-45 LAN Connector
Middle & Bottom: USB 2.0 Port
CN2 Audio Connector: Line-in; Line-out; MIC
ATXPWR1 Main Power Connector
ATX12V1 Internal 12V Power Connector
SATA1/SATA2 SATAII Port
SATA_PWR SATA HDD Power out Connector
Headers
Header Name Description
AUDIO1 Front Panel Audio Header 9-pin Block
USB1/USB2 USB 2.0 Port Header x2 9-pin Block
COM2 Serial Port Header 9-pin Block
JW_FP1 Front Panel Header 9-pin Block
PWRLED1 Power LED Header 3-pin Block
SPEAK1 Speaker Header 4-pin Block
GPIO1 GPIO Header 10-pin Block
VGA1 VGA Header 12-pin Block
LVDS2 LVDS Header 30-pin Block
INVERTER1 LVDS Inverter Header 6-pin Block
CPUFAN1/ SYSFAN1 FAN Header x2 3-pin Block

8
Chapter 2
Hardware Installation
2-1 Jumper Setting
JP1 (3-pin): KB/MS/USB Power on Function Select
2-3 Closed: KB/MS/USB Power on Enabled.
JP1
1-2 Closed: KB/MS/USB Power on Disable(Default);
3 1
1
3
JP4 (4-pin): LVDS VCC 3.3V/5V/12V Select
JP4
1 3 5
4
6
2
6
4
2
5
3
1
6
4
2
5 3 1
2-4 Closed: LVDS
VCC= +3.3V;
3-4 Closed: LVDS
VCC= +5V;
6-4 Closed: LVDS
VCC= +12V.

9

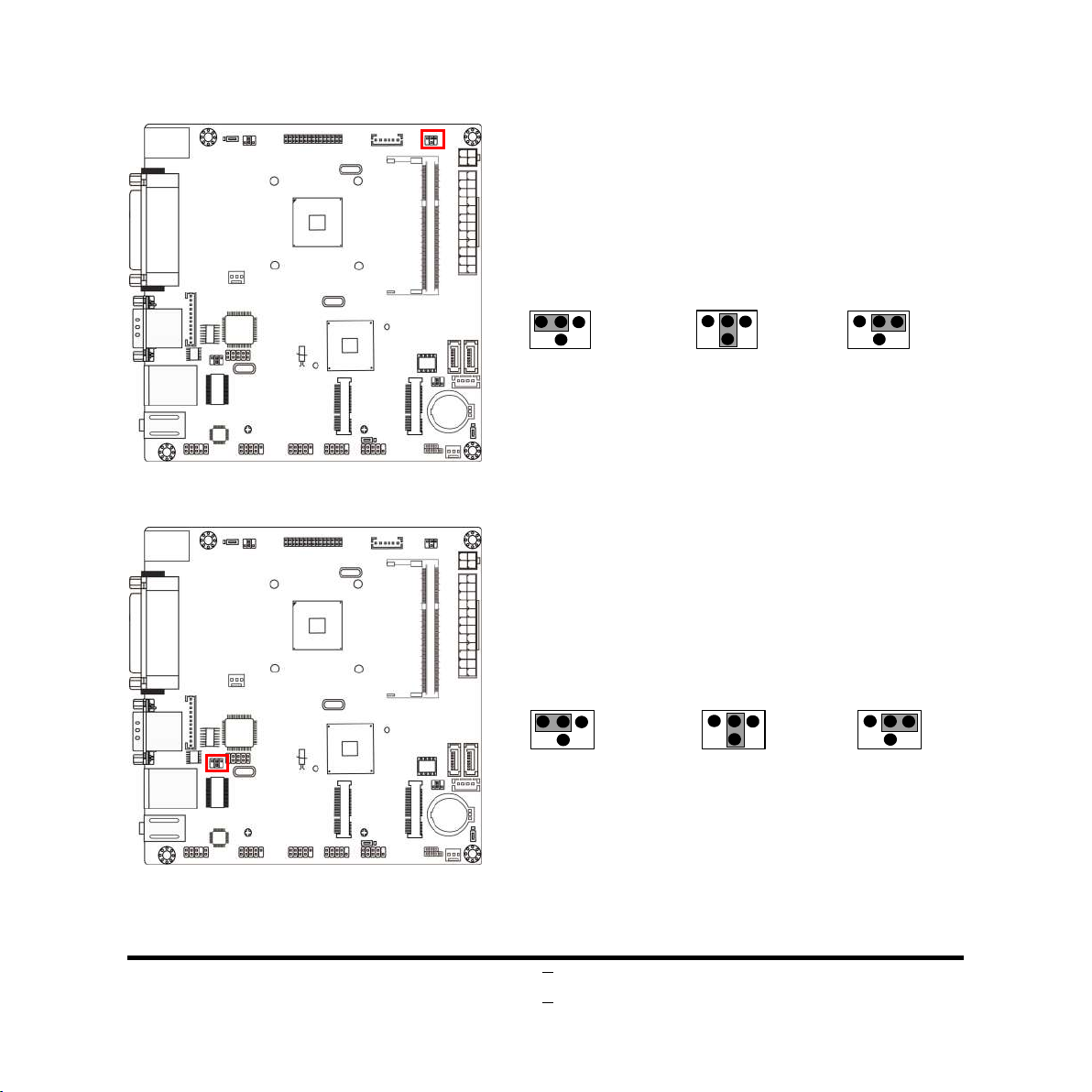

JP3 (4-pin): INVERTER Back Light VCC 3.3V/5V /12V Select
JP3
6 4 2
3
1
5
1 3
5
2
4
6
1
3
5
2 4 6
2-4 Closed:
Inverter Backlight
VCC= +3.3V;
3-4 Closed:
Inverter Backlight
VCC= +5V;
4-6 Closed:
Inverter Backlight
VCC= +12V.
JP8 (4-pin): COM1 Port Pin9 Function Select
JP8
4-6 Closed:
Pin9=+12V.
6 4 2
3-4 Closed:
Pin9=RI;
2-4 Closed:
Pin9=+5V;
3
1
5
1 3
5
2 4
6
1 3
5
2 4 6

10
JP7 (4-pin): COM2 Header Pin9 Function Select
JP7
4-6 Closed:
Pin9=+12V.
1 3 5
3-4 Closed:
Pin9=RI;
2-4 Closed:
Pin9=+5V;
4
6
2
6
4
2
5 3
1
6
4
2
5 3
1
JBAT1 (3-pin): CMOS RAM Clear Function Setting
CMOS Clear Setting
2-3 Closed：Clear CMOS.
JBAT1
1-2 Closed：Normal；
1
3
1
3

11
JP5 (3-pin): UART2 on COM2 Header & PS_COM Port Select
JP5
1-2 Close: UART2 on COM2;
1
1
3
3
2-3 Close: UART2 on PS_COM.
*Note ： UART2 can be either distributed to COM2 header or PS_COM port; i.e. only
one of them can function at a time, selectable through the above Jumper settings.
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear IO Diagram Connectors
Parallel
Port
Line-in Port
Line-out Port
MIC Port
RJ-45 LAN Port
USB 2.0 Ports
VGA Port
COM1 Port
RJ-
11 Port
Mini-DIN UART-
TX Port
PS/2 KB & MS Port
USB 2.0
Ports
DC 12V Power-out Jack
(DC_JACK2) DC 12V Power-out Jack
(DC_JACK1)

12
Icon Name Function
PS/2
Keyboard & Mouse
Combo Port For user to connect PS/2 keyboard or PS/2
mouse device to the board.
USB 2.0 Port To
connect USB keyboard, mouse or other
devices compatible with USB specification.
Parallel Port
Also called
LPT connector. Mostly for user to
connect printer or scanner with parallel
interface.
DC 12V Power-out
Connector
For user to connect compatible power
adapter to provide power supply out.
Mini-DIN UART-TX Port Data output port for UART_TX signals.
RJ-11 Port GPIO signal control port.
Serial Port
Mainly for user to connect external MODEM
or other devices that supports
Serial Communications Interface.
VGA Port To connect display device that support
VGA specification.
RJ-45 Port This connector is standard RJ-45
LAN jack
for Network connection.
3-jack
Audio Connectors
BLUE : Line-in Connector
GREEN: Line-out Connector
PINK : MIC Connector

13
(2) ATXPWR1(24-pin block): Main Power Connector
PIN ROW1 ROW2
1 +3.3V +3.3V
2 +3.3V -12V
3 GND GND
4 +5V Soft Power on
5 GND GND
6 +5V GND
7 GND GND
8 Power OK -5V
9 +5V Stand by +5V
10 +12V +5V
11 +12V +5V
12 +3.3V GND
24-pin Main Power Connector
Row2
Pin1
Row1
Pin12
(3) ATX12V1 (4-pin block): 12V Internal Power Connector
Pin1
Pin No. Definition
1 GND
2 GND
3 +12V
4 +12V

14
(4) SATA1/SATA2(7-pin block):SATAII Port connector
These connectors are high-speed SATAII ports that support 3 GB/s transfer rate.
Pin No. Defnition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
(5) SATA_PWR(4-pin): SATA Hard Disk Power-out Connector
+5V
GND
GND
+12V
Pin 1
Warning: Make sure that Pin-1 of compatible SATA Power connector is inserted into corresponding
Pin-1 of SATA_PWR to avoid possible damage to the board and hard disk driver!

15
2-2-2 Headers
(1) AUDIO1(9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
Line-Out, MIC Header
Pin 1
MIC2-L
LINE OUT-L
MIC2-R
LINE OUT-R
NC
GND
NC
NC
NC
2
(2) USB1/ USB2 (9-pin): USB 2.0 Port Headers
Pin 1
VCC
-DATA
GND
+DATA
VCC
NC
-DATA
GND
+DATA
2
