7ZMMC Motherboard
Table Of Content
FEATURE SUMMARY........................................................................................................................................1
7ZMMC MOTHERBOARD LAYOUT...............................................................................................................2
CPU SPEED SETUP.............................................................................................................................................3
SW1: CPU SPEED SETUP ....................................................................................................................................3
CONNECTORS.....................................................................................................................................................4
ATX POWER........................................................................................................................................................4
COM A / VGA / LPT PORT.................................................................................................................................4
FLOPPY CONNECTOR ...........................................................................................................................................4
GAME & AUDIO PORT .........................................................................................................................................4
IDE1 (PRIMARY), IDE2 (SECONDARY) CONNECTOR ..........................................................................................5
J2: SYSEM FAN....................................................................................................................................................5
J3: CPU FAN.......................................................................................................................................................5
J7: AUX_IN........................................................................................................................................................5
J8 TEL: THE CONNECTOR IS FOR MODEM WITH INTERNAL VOICE CONNECTOR...................................................6
J9: CD AUDIO LINE IN........................................................................................................................................6
J12: WAKE ON LAN ...........................................................................................................................................6
J13: RING POWER ON (INTERNAL MODEM CARD WAKE UP)..............................................................................6
JP6: POWER FAN.................................................................................................................................................7
JP8 / LED1: STR LED CONNECTOR & DIMM LED..........................................................................................7
PS/2 KEYBOARD & PS/2 MOUSE PORT...............................................................................................................7
USB 1: REAR USB PORT ....................................................................................................................................7
USB 2: FRONT USB CONNECTOR.......................................................................................................................8
PANELAND JUMPER DEFINITION................................................................................................................9
BAT1: BATTERY..................................................................................................................................................9
J11: 2X11 PINS FRONT PANEL .............................................................................................................................9
J16 /J17/J18: CNR (PRIMARY OR SECONDARY) SELECT [OPTIONAL] (CNR

COMMUNICATION AND
NETWORKING RISER) ........................................................................................................................................10
MEMORY INSTALLATION.............................................................................................................................12
BIOS SETUP........................................................................................................................................................13
THE MAIN MENU...............................................................................................................................................14
STANDARD CMOS SETUP .................................................................................................................................15
BIOS FEATURES SETUP.....................................................................................................................................17
CHIPSET FEATURES SETUP.................................................................................................................................18
POWER MANAGEMENT SETUP ...........................................................................................................................20
PNP/PCI CONFIGURATIONS ..............................................................................................................................22
LOAD BIOS DEFAULTS......................................................................................................................................23
LOAD SETUP DEFAULTS.....................................................................................................................................24
INTEGRATED PERIPHERALS................................................................................................................................25
HARDWARE MONITOR .......................................................................................................................................27
SET SUPERVISOR / USER PASSWORD..................................................................................................................28
IDE HDD AUTO DETECTION...........................................................................................................................29
SAVE & EXIT SETUP ..........................................................................................................................................30
EXIT WITHOUT SAVING .....................................................................................................................................31
APPENDIX: ACRONYMS.................................................................................................................................32

7ZMMC Motherboard
1
Feature Summary
Form Factor 24.4 cm x 22.2 cm Micro ATX size form factor, 4 layers
PCB.
CPU AMD AthlonTM/DuronTM (K7) Socket A Processor
256K/64K L2 cache on die
Supports 600MHz ~ 1,2 GHz
Chipset Pro Savage KM133, consisting of:
VT8365 Memory/AGP/PCI Controller (PAC)
VT82C686B PCI Super-I/O Integrated Peripheral
Controller (PSIPC)
Clock
Generator
ICS 9248BF-141
100/102/104/106/108/110/112/133 MHz system bus speeds
Memory 2 168-pin DIMM sockets
Supports PC-100/133 and VCM SDRAM
Supports up to 1.0GB DRAM
Supports only 3.3V SDRAM DIMM
I/O Control VT82C686B
Slots 1 AGP slot supports 4X mode & AGP 2.0 compliant
3 PCI slots supports 33MHz & PCI 2.2 compliant
1 CNR (Communication and Networking Riser) slot
(Not support LAN)
On-Board IDE 2 IDE bus master (UDMA 33/ATA 66/ATA 100) IDE ports
for up to 4 ATAPI devices
Supports PIO mode 3, 4 (UDMA 33/ATA 66/ATA 100)
IDE & ATAPI CD-ROM
On-Board
Peripherals
1 floppy port supports 2 FDD with 360K, 720K, 1.2M,
1.44M and 2.88M bytes
1 parallel port supports Normal/EPP/ECP mode
1 serial port (COM A)
2 USB ports / 2 USB ports (optional)
Hardware
Monitor
CPU/System fan revolution detection
CPU/Power/System fan control
System voltage detection
CPU/System temperature detection
PS/2
Connector PS/2 Keyboard interface and PS/2 Mouse interface
On-Board
VGA
Build S3 Savage4 (86C370) in VT8365
Support shared memory architecture
On-Board
Sound
Creative CT5880 sound (Optional)
AC’97 CODEC
Line In / Line Out / Mic In / AUX In / CD In / TEL / SPDIF
(Optional) / Game Port / Four Speaker (Optional)
BIOS Licensed AMI BIOS, 2M bit flash ROM
Additional
Features
Support Wake-On-LAN (WOL)
Support Internal / External Modem Ring On
Support USB KB/MS Wake up from S3-S5
Includes 3 fan power connectors
Poly fuse for keyboard over-current protection
Support STR (Suspend-To-RAM) function

7ZMMC Motherboard
2
7ZMMC Motherboard Layout
7ZMMC
PCI1
PCI2
Socket A CPU
VT82C
686B
VT8365
GAME & AUDIO VGA COM A
LPT
PS/2
BIOS
J3
J8
J7
J9
BAT1
J2
FLOPPY
IDE1
IDE2
AGP 1
JP6
SW1
J11
LED1
J13
J12
JP4
USB1
JP8
CNR
PCI3
CODEC
J18
USB2
DIMM1
DIMM2
JP7
J16
J17
A
TX POWER
JP3
JP9
Creative
CT5880

7ZMMC Motherboard
3
CPU Speed Setup
The system bus speed is selectable at 100MHz. The user can select the system bus speed by DIP switch SW1.
SW1: CPU Speed Setup
SW1: O: ON, X: OFF
FSB 1 23 4
95 O O X O
100XOXX
102 0 0 X X
103 X O X O
107 O X O 0
110 0 X 0 X
113 X X O O
115 X X X 0
133 X X X X
AMD CPU Heat Sink Installation:
Beware: Please check that the heat sink is in good contact with the CPU before you turn on your system.
The poor contact will cause over heat, and might cause damage to your processor.

Connectors
4
Connectors

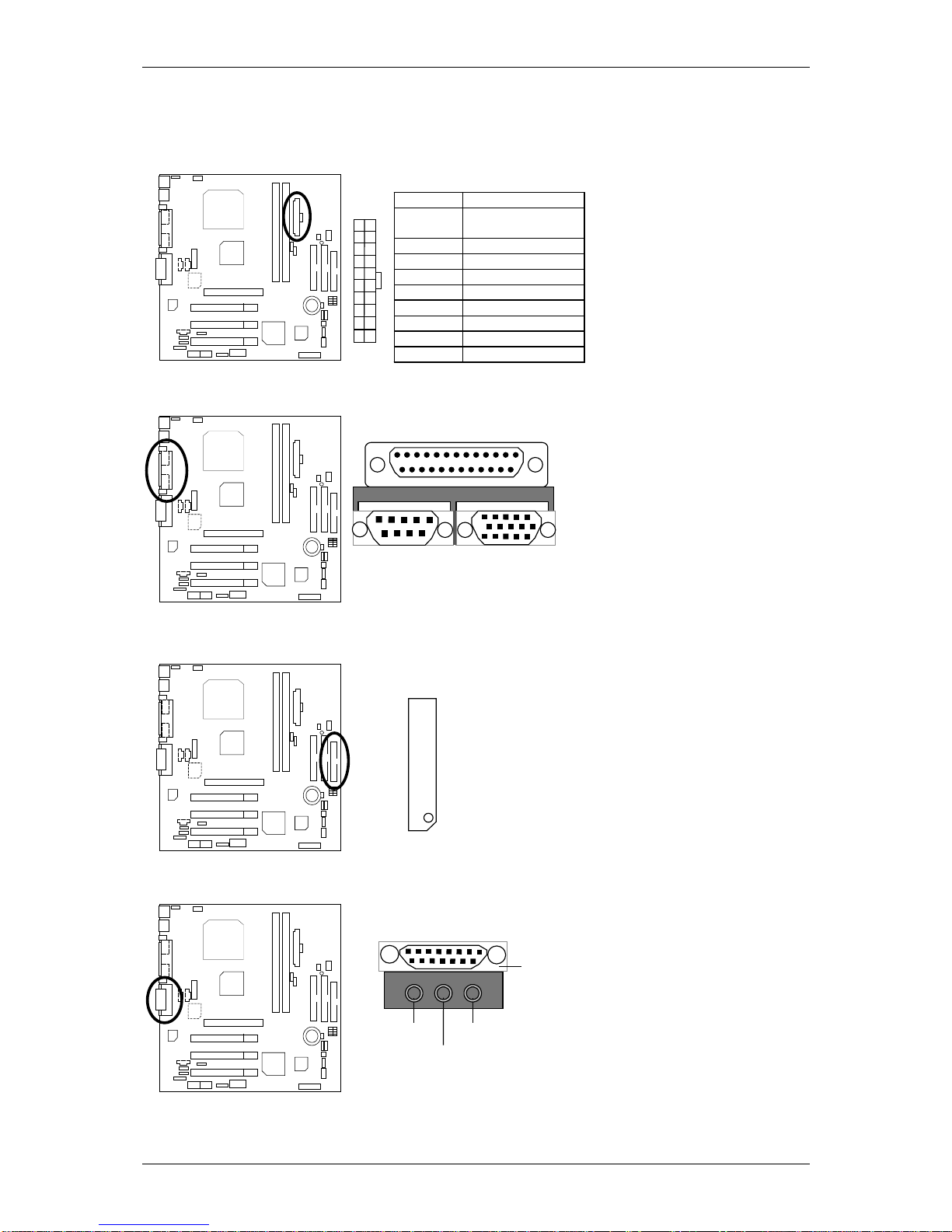

ATX Power
Pin No. Definition
3,5,7,13,
15-17 GND
1,2,11 3.3V
4,6,19,20 VCC
10 +12V
12 -12V
18 -5V
8 Power Good
9 5V SB stand by+5V
14 PS-ON(Soft On/Off)
2010
11
1
COM A / VGA / LPT Port
COM A
LPT Port
VGA
Floppy Connector
Red Line
FDD1
Game & Audio Port
MIC In
Game
Port
Line In/Line Out 2
Line Out 1

7ZMMC Motherboard
5

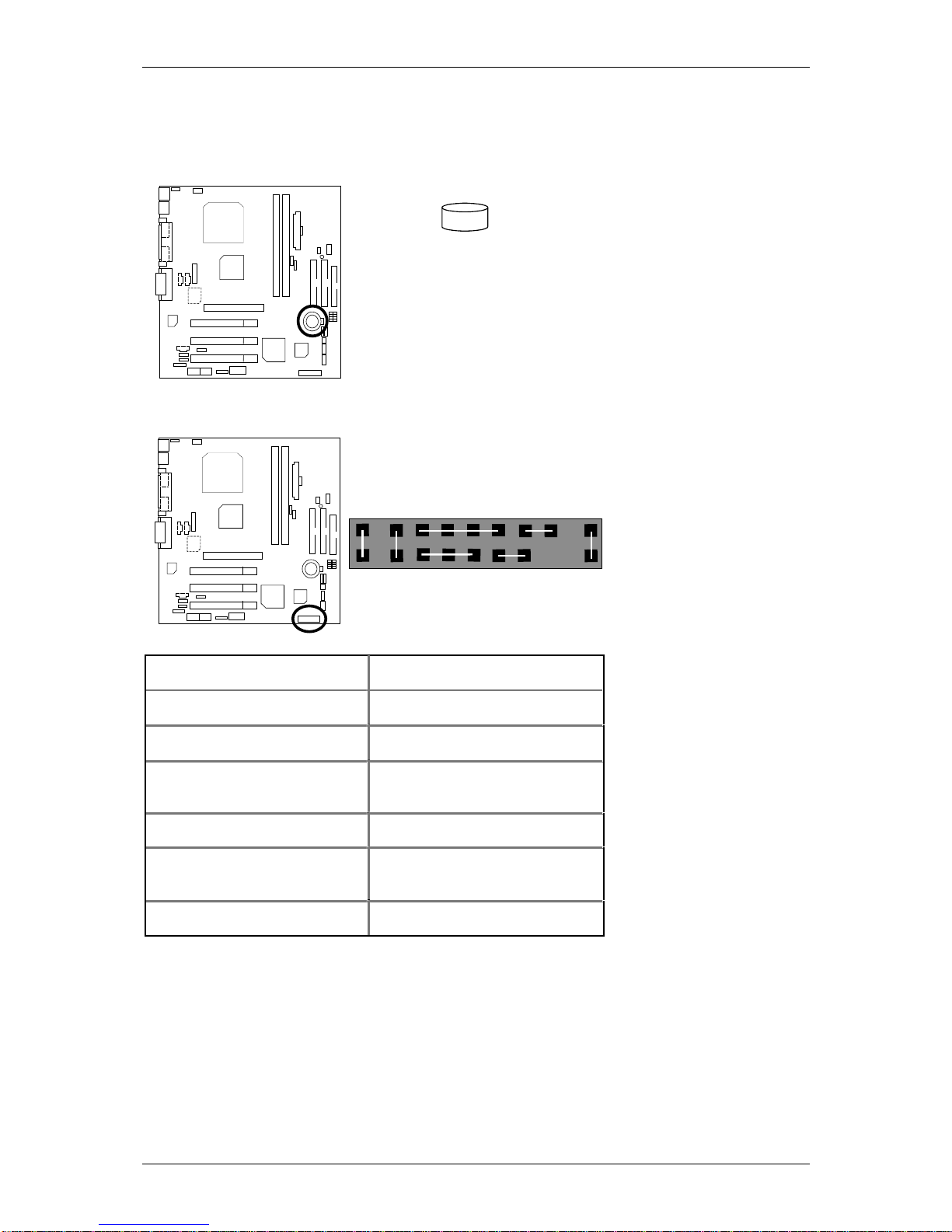

IDE1 (Primary), IDE2 (Secondary) Connector
IDE 2 IDE 1
Red Line

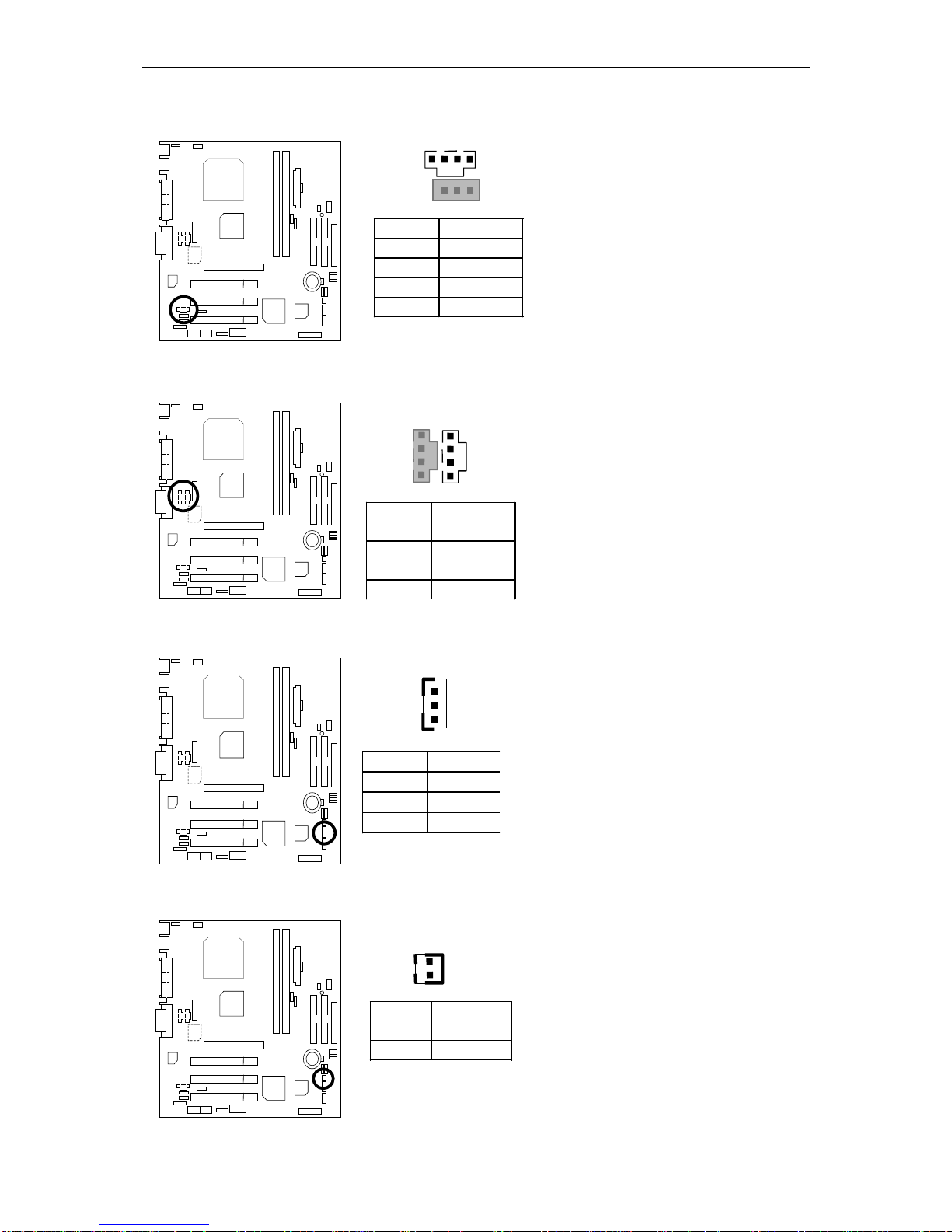

J2: Sysem Fan
Pin No. Definition
1 Control
2 +12V
3 SENSE
1
J3: CPU Fan
Pin No. Definition
1 Control
2 +12V
3 SENSE
1
J7: AUX_IN
Pin No. Definition
1 AUX-L
2 GND
3 GND
4 AUX-R
1

Connectors
6
J8 TEL: The connector is for Modem with internal voice connector
Pin No. Definition
1 Signal-In
2 GND
3 GND
4 Signal-Out
1
J9: CD Audio Line In
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
1
J12: Wake On LAN
Pin No. Definition
1 +5V SB
2 GND
3 Signal
1
J13: Ring Power On (Internal Modem Card Wake Up)
Pin No. Definition
1 Signal
2 GND
1
