1-1 Feature of Motherboard
 AMD Hudson D1 Chipset and AMD E240 1.5GHz APU, low power consumption
but high performance
 Support 1 * DDRIII SO-DIMM 800/1066 MHz up to 8GB
 Support DirectX 11 3D Graphics Acceleration
 Onboard 1* Mini PCI-E connector
 Onboard 1 *M-SATA connector
 Supports ACPI S3 Function
 Support CPU Smart FAN
 Support Watchdog Timer Technology
 Support Windows8 OS
 Support Thunder Protection Function
 Compliance with EuP Standard
 Support Power Onboard
 Support Slim Fan design

2
1-2 Specification
Spec Description
Design  Mini-ITX form factor ;
 PCB size: 17.0 x 17.0 cm
Embedded CPU
 AMD Brazos E-240 1.5GHz APU
Chipset  Hudson D1 Chipset
Memory Slot
 1* DDRIII SO-DIMM slot
 Support DDRIII 800/1066 MHz DDRIII SO-DIMM
expandable to 8GB
Expansion Slot  1 * halt-size Mini-PCIE slot
 1 * full-size Mini-SATAII slot
LAN Chip
 Integrated with Realtek RTL8111F PCI-E Gigabit LAN chip
 Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip  Realtek ALC887 HD Audio Codec integrated
 Audio driver and utility included
BIOS  16M Flash ROM
Multi I/O
Rear Panel I/O:
 1* 12V DC in main power connector
 1* Power LED & 1* HDD LED
 1* Power button
 4* USB 2.0/1.1 port
 1 * VGA port
 1* RJ-45 port
 1* Line-out connector
Internal I/O Connectors& Headers:
 1 *4-pin 12V internal power connector
 1 *4-pin SATA power connector
 2* SATA II 3G/s Connector
 1 * Front panel audio header

3
 1 * Parallel header
 2 * COM header
 1 * 9-Pin USB 2.0/1.1 header for two USB 2.0/1.1 ports
 1 * Front panel header
 1*PS2 KB/MS header
 1 *12-pin VGA header
 1 * LVDS header
 1* LVDS inverter header
 1*CPU fan header
 1*Chassis fan header
 2*System fan header
1-3 Layout Diagram
Rear IO Diagram
VGA Port
Line-OUT
DC12V
Power-in
Connector
USB 2.0 Ports
RJ-45 LAN Port
USB 2.0 Ports
Power On Switch

4
Motherboard Internal Diagram
ATX12V
Power connector
DDRIII SODIMM Slot
VGA Port
AMD CPU
AMD Hudson D1 Chipset
SYSFAN2 Header
Front Panel
Audio Header
Front Panel Header
DC12V
Power-in
Connector
M-SATA
Connector
Power on
Switch
LVDS Inverter
USB 2.0 Ports
RJ-45 LAN Port
Line-Out
Connector
Parallel Port Header
Serial Port Headers
SATAII Port
(SATA1/2)
SATA Hard Disk
Power-Out Connector
CHAFAN1 Header
USB 2.0 Headers
Mini-PCIE
Connector
VGA Port Header
USB 2.0 Ports
LVDS Header
CPUFAN Header
SYSFAN1 Header
PS/2 KB & MS Header

5
Motherboard Jumper Position
Jumper
Jumper Name Description
JBAT CMOS RAM Clear Function Setting 3-pin Block
JP1 USB Power on Function Select 3-pin Block
JP2 INVERTER1 Back Light VCC 3.3V/5V/12V Select 4-pin Block
JP3 LVDS1 VCC 3.3V/5V/12V Select 4-pin Block
JCOMP1 COM1 Header Pin9 Function Select 6-Pin Block
JBAT
JP1
JCOMP1
JP2
JP3

6
Connectors
Connector Name
DC12V2 DC 12V Power–in Connector
ATX12V1 ATX 12V Power Connector
SATA1/SATA2 SATAII Connector x2
PWOUT1 SATA HDD Power out Connector
USB1/USB2 USB 2.0 Port Connector x4
VGA Video Graphic Attach Connector
LAN1 RJ-45 LAN Connector
HOUT1 Audio Line Out Connector
MINI_CARD Half-size Mini-PCIE Connector
MSATA Full-size Mini-SATA Connector
Headers
Header Name Description
JAUDIO1 Front Panel Audio Header 9-pin Block
PARALLEL Parallel Port Header 25-pin Block
COM1/2 Serial Port Header x2 9-pin Block
F_USB1/ F_USB2 USB 2.0 Port Header 9-pin Block
JW_FP1 Front Panel Header(PWR
LED/ HD
LED/Power Button /Reset)
9-pin Block
PS2_CON1 PS2 Keyboard & Mouse Header 6-pin Block
VGA1 VGA Header 12-pin Block
LVDS LVDS Header 30-pin Block
INVERTER LVDS Inverter 6-pin Block
CPUFAN1/ SYSFAN1/
SYSFAN2/CHAFAN1
FAN Header x4 3-pin Block

7
Chapter 2
Hardware Installation
2-1 Jumper Setting
(1) JBAT (3-pin): CMOS RAM Clear Function Setting
CMOS Clear Setting
2-3 Closed：Clear CMOS
JBAT
1-2 Closed：Normal；
3
1
3
1
(2) JP1 (3-pin): USB Power on Function Select
2-3 Closed: USB Power on Enabled.
JP1
1-2 Closed: USB Power on Disable;
3 1
1
3

8

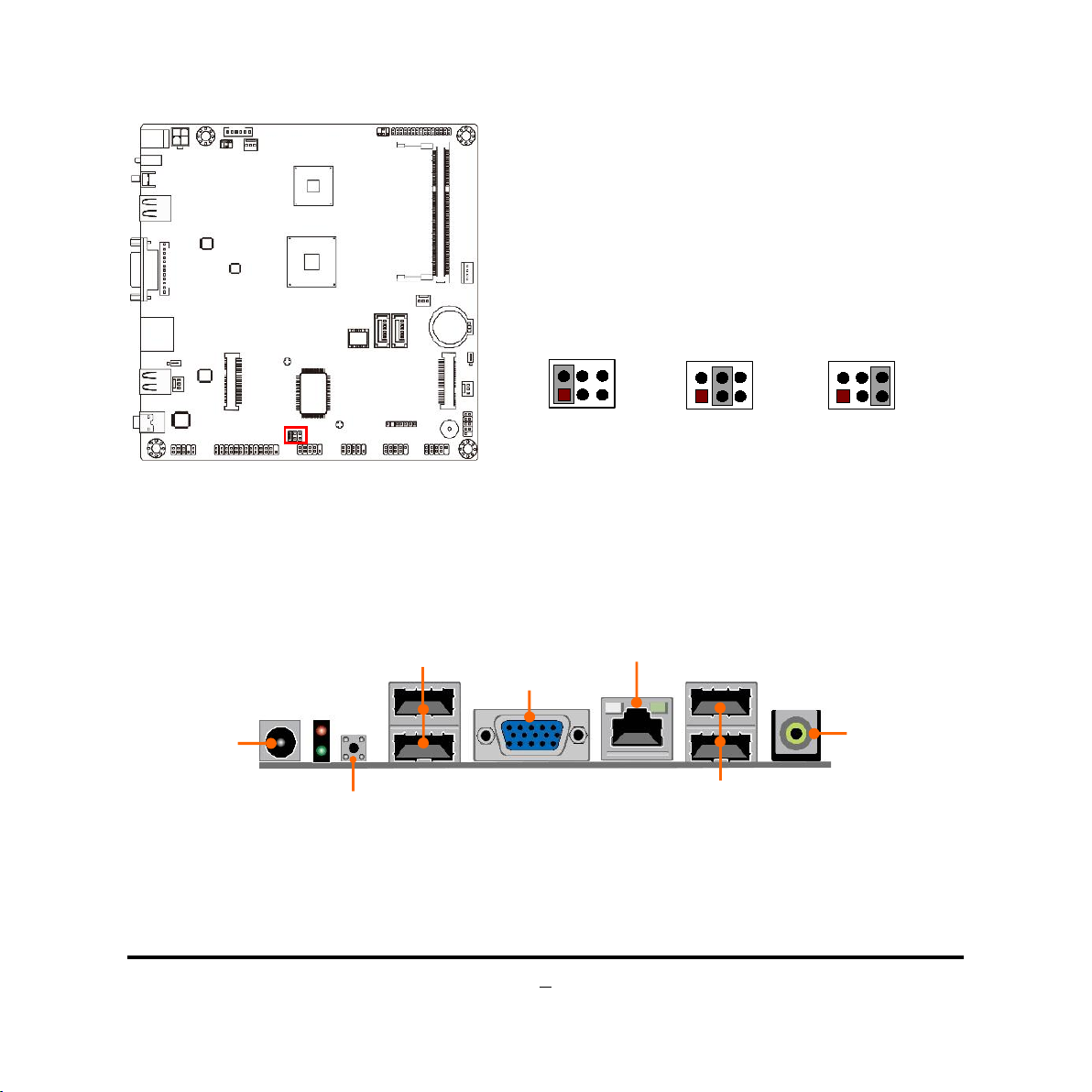

(3) JP2 (4-pin): INVERTER1 Back Light VCC 3.3V/5V /12V Select
JP1
6 4 2
3
1
5
1 3
5
2 4
6
1 3
5
2 4 6
2-4 Closed:
Inverter Backlight
VCC= 3.3V;
3-4 Closed:
Inverter Backlight
VCC= 5V;
4-6 Closed:
Inverter Backlight
VCC= 12V.
(4) JP3 (4-pin): LVDS1 VCC 3.3V/5V/12V Select
JP3
1 3 5
4
6
2
6 4
2
5 3
1
6
4
2
5 3 1
2-4 Closed: LVDS
VCC= 3.3V
3-4 Closed: LVDS
VCC= 5V.
6-4 Closed: LVDS
VCC= 12V;

9
(5) JCOMP1 (6-pin): COM1 Header Pin9 Function Select
3-4 Closed : +12V;
JCOMP1
1-2 Closed: RS232;
5-6 Closed : +5V.
1
1
1
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear IO Diagram Connectors
VGA Port
Line-OUT
DC12V
Power-in
Connector
USB 2.0 Ports
RJ-45 LAN Port
USB 2.0 Ports
Power On Switch

10
(2) ATX12V1 (4-pin block): 12V Internal Power Connector
Pin1
Pin No. Definition
1 GND
2 GND
3 +12V
4 +12V
(3) SATA1/SATA2(7-pin block):SATAII Port connector
These connectors are high-speed SATAII ports that support 3 GB/s transfer rate.
Pin No. Defnition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND

11
(4) PWOUT1(4-pin): SATA Hard Disk Power-out Connector
Pin 1
+12V
GND
GND
+5V
2-2-2 Headers
(1) JAUDIO1(9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
Pin 1
LINEOUT2-L
LINEOUT2-R
SENSE-FB
AUDIO-GND
LINE2-JD
AUDIO-JD
2
KEY
MIC2-L
MIC2-JD
MIC2-R

12
(2) PARALLEL (25-pin): Parallel Port Header
Pin 1
Parallel Port Header
Pin 14
Pin NO. Pin Definition Pin NO. Pin Definition
Pin 1 STB- Pin 14 AFD-
Pin 2 PRD0 Pin 15 ERR-
Pin 3 PRD1 Pin 16 INIT-
Pin 4 PRD2 Pin 17 SLIN-
Pin 5 PRD3 Pin 18 GND
Pin 6 PRD4 Pin 19 GND
Pin 7 PRD5 Pin 20 GND
Pin 8 PRD6 Pin 21 GND
Pin 9 PRD7 Pin 22 GND
Pin 10 ACK- Pin 23 GND
Pin 11 BUSY Pin 24 GND
Pin 12 PE Pin 25 GND
Pin 13 SLCT

13
(3) COM1/COM2 (9-Pin): Serial Port Headers
Serial Port Header
DCD
Pin1
Pin6
SIN
SOUT
DTR GND
DSR
RTS CTS
RI
(4) F_USB1/F_USB2 (9-pin): USB 2.0 Port Headers
Pin 1
VCC
-DATA
GND
+DATA
VCC
NC
-DATA
GND
+DATA
2

14
(5) JW-FP1 (9-pin): Front Panel Header
Pin 1
GND
GND
HDDLED+
HDDLED-
RSTSW
VCC5
PWRLED+
PWRLED -
PWRBTN
(6) PS2_CON1 (6-pin): PS/2 Keyboard & Mouse Header
GND
KB_CLK
KB_DATA
Pin1
MS_DATA
VCC
MS_CLK

15
(7) VGA1 (12-pin): VGA Header
Pin 1
Pin No. Definition
1 VCC5(Reserved)
2 VGA_VSYNC
3 VGA_HSYNC
4 GND_RED
5 RED_VGA
6 GND_GRN
7 GRN_VGA
8 GND_BLUE
9 BLUE_VGA
10 GND
11 DDC_DATA
12 DDC_CLK
(8) INVERTER1 (6-Pin): LVDS1 Inverter Header
Pin1
1
INVERTER
Pin No. Definition
1 BKLT_PWR1
2 BKLT_PWR2
3 BKLT_EN
4 BKLT_PWM
5 GND1
6 GND2
