AMD 740G User manual

USER'S MANUAL
Of
AMD 740G/760G + AMD SB710
Based
M/B for AM3 Series Quad Core
Processor
Trademark:
* Specifications and information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
NO. G03-MA3740GSM-LF
Rev
： 3.0
Release date: August, 2010

ii
Environmental Safety Instruction
zAvoid the dusty, humidity and temperature extremes. Do not place the product in any
area where it may become wet.
z0 to 40 centigrade is the suitable temperature. (The figure comes from the request of
the main chipset)
zGenerally speaking, dramatic changes in temperature may lead to contact malfunction
and crackles due to constant thermal expansion and contraction from the welding
spots’ that connect components and PCB. Computer should go through an adaptive
phase before it boots when it is moved from a cold environment to a warmer one to
avoid condensation phenomenon. These water drops attached on PCB or the surface
of the components can bring about phenomena as minor as computer instability
resulted from corrosion and oxidation from components and PCB or as major as short
circuit that can burn the components. Suggest starting the computer until the
temperature goes up.
zThe increasing temperature of the capacitor may decrease the life of computer. Using
the close case may decrease the life of other device because the higher temperature in
the inner of the case.
zAttention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize pollution
and ensure environment protection of mother earth, please recycle.

ii
CHAPTER 1 INTRODUCTION OF AMD740G/AMD 760G MOTHERBOARDS
1-1 FEATURES OF MOTHERBOARD................................................................1
1-1.1 SPECIAL FEATURES OF MOTHERBOARD .................................2
1-2 SPECIFICATION...........................................................................................3
1-3 ITEM CHECKLIST.........................................................................................3
1-4 LAYOUT DIAGRAM......................................................................................4
CHAPTER 2 HARDWARE INSTALLATION
2-1 CPU INSTALLATION ..................................................................................6
2-2 INSTALL MEMORY ......................................................................................7
2-3 EXPANSION SLOTS.....................................................................................8
CHAPTER 3 CONNCTORS, HEADERS & JUMPERS SETTING
3-1 CONNECTORS .............................................................................................9
3-2 HEADERS .....................................................................................................12
3-3 JUMPER SETTING .......................................................................................14
CHAPTER 4 USEFUL HELP
4-1 HOW TO UPDATE BIOS ..............................................................................16
4-2 TROUBLE SHOOTING .................................................................................16
APPENDIX 1................................................................................................................17
TABLE OF CONTENT

1
1
Chapter 1
Introduction of AMD740G/AMD 760G Motherboards
1-1 Features of motherboard
This motherboard series are based on the latest AMD 740G (MA3-740GSM and
MA3-740GSMD2) or AMD 760G (MA3-760GSMD2G) chipset and SB710 chipset
which supports the following AM3 CPU under the 95W range: Phenom II x 6； Phenom
II x 4； Phenom II x 3； Phenom II x2； Athlon II x4； Athlon II x3； Athlon II x2； Sempron
CPU. MA3-740GSMD2 and MA3-760GSMD2G support AM2 CPU udder 65W and
AM2+ CPU under 95W as well. With an integrated low-latency high-bandwidth DIMM
memory controller and a highly-scalable Hyper Transport technology-based system
bus, these motherboard series deliver the outstanding system performance and
professional desktop platform solution.
MA3-740GSM comes with an integrated DDRIII memory controller for dual channel
DDRIII 800/DDRIII1066/DDRIII 1333/ DDRIII 1600 memory module with capacity
expansible up to 8GB, while model MA3-740GSMD2 and MA3-760GSMD2G are
integrated with DDRII memory controller for dual channel DDRII 400/DDRII 533/
DDRII 667/DDRII 800 memory module with capacity expansible up to 8GB. These
motherboard models are embedded with SB710 chipset of providing ULTRA ATA 133
connectors and Serial ATA2 with RAID 0, 1, 10, JBOD functions which support up to
one IDE and two Serial ATA2 devices to accelerate hard disk drives and guarantee
the data security without failure in advanced computing performance.
As for integrated LAN chip, AMD740G series motherboards provide PCI-E Megabit
LAN chip which supports 10/100Mbps data transfer rate while AMD 760G series
motherboards provide PCI-E gigabit LAN chip which supports 10/100/1000Mbps data
transfer rate. All these motherboard models are embedded ALC662 6-channel HD
Audio CODEC which is fully compatible with Sound Blaster Pro standards that offer
you with the home cinema quality and satisfying software compatibility.
The AMD740G/AMD 760G Series motherboards offer one PCI-Express x16 graphics
slot. This PCI-Express x16 by16 lane slot deliver up to 8Gbyte/sec data transfer rate
at each relative direction. The AMD740G/AMD 760G also carry one 32-bit PCI slot
guarantee the rich connectivity for the I/O peripheral devices.
Embedded USB controllers as well as capability of expanding to 6 of USB2.0
functional ports delivering 480Mb/s bandwidth of rich connectivity, these
motherboards meet the future USB demands which are also equipped with hardware
monitor function on system to monitor and protect your system and maintain your
non-stop business computing.
Some special features--- CPU Thermal Throttling/CPU VID/CPU Vcore OC-CON in this
motherboard are designed for power user to use the over-clocking function in more
flexible ways. But please be caution that the over-clocking maybe causes the fails in

2
2
system reliabilities. This motherboard provides the guaranteed performance and
meets the demands of the next generation computing. But if you insist to gain more
system performance with variety possibilities of the components you choose, please
be careful and make sure to read the detailed descriptions of these value added
product features, please get them in the coming section.
1-1.1 Special Features of Motherboard
CPU Thermal Throttling Technology--- (The CPU Overheat Protection Technology)
To prevent the increasing heat from damage of CPU or accidental shutdown while at
high workload, the CPU Thermal Throttling Technology will force CPU to enter
partially idle mode from 87.5% to 12.5% according to preset CPU operating
temperature in BIOS (from 40℃to 90℃). When the system senses the CPU
operating temperature reaching the preset value, the CPU operating bandwidth will be
decreased to the preset idle percentage to cool down the processor. When at
throttling mode the beeper sound can be optionally selected to indicate it is in working.
CPU VID--- (Shift to Higher Performance)
The CPU voltage can be adjusted for the precisely over-clocking of extra demanding
computing performance.
CPU Vcore Input/Output Solid Capacitors (High-polymer Solid Electrolysis
Aluminum Capacitors)
CPU Vcore Input and Output adopt OC-CON solid capacitors. The working
temperature is from 55 degrees Centigrade below zero to 125 degrees Centigrade,
Solid capacitors possess superior physical characteristics that can be while reducing
the working temperature between 20 degrees Centigrade each time, intact extension
10 times of effective product operation lives, at not rising degrees Centigrade of
working temperatures each time a relative one, life of product decline 10% only too.

3
3
1-2 Specification
Spec Description
Design zPCB size:22.5cm*17.1cm (MA3-740GSMD2 and MA3-740GSM);
22.5cm*17.6cm (MA3-760GSMD2G)
Chipset zAMD 740G or AMD 760G North Bridge Chipset
zAMD SB710 South Bridge Chipset
CPU Socket
zSupport Socket AM3 CPU under the 95W: Phenom II x 6； Phenom II x
4；Phenom II x 3；Phenom II x2；Athlon II x4；Athlon II x3；Athlon II
x2；Sempron CPU
zSupport AM2 CPU under 65W and AM2+ CPU under 95W (optional
for Model MA3-740GD2 and MA3-760GSMD2G only)
* For more CPU support information please visit our official website.
Memory Socket
z240-pin DDRIII module slot x 2 support 2pcs DRIII 800/DDRIII
1066/DDRIII 1333/DDRIII 1600 modules expandable to 8GB(optional
for MA3-740GSM model only)
z240-pin DDRII Module slot x 2 support 2pcs DDRII 400/DDRII
533/DDRII 667/DDRII 800 modules expandable to 8GB (optional for
Model MA3-740GD2 and MA3-760GSMD2G only)
zDual channel supported
Expansion Slot
z1 pcs PCI-Express x16 by 16 lane
z1pcs 32-bit PCI slot
Integrate IDE and
Serial ATA2 RAID
zOne IDE controllers support PCI Bus Mastering, ATA PIO/DMA and
the ULTRA DMA 33/66/100/133 functions that deliver the data
transfer rate up to 133 MB/s for one IDE Devices and for two Serial
ATA2 ports providing 300 MB/sec data transfer rate with RAID 0, 1,
10, JBOD functions
Integrated LAN Chip
zPCI-E Megabit LAN chip(MA3-740GSMD2 and MA3-740GSM).
zPCI-E Gigabit LAN chip (MA3-760GSMD2G)
zSupport Fast Ethernet LAN function of providing 10/100Mbps
(MA3-740GSMD2 and MA3-740GSM) or 10 / 100 / 1000 Mbps
(MA3-760GSMD2G) data transfer rate
6 CH-Audio zRealtek ALC662 HD Audio 6-channel Audio Codec integrated
zAudio driver and utility included
BIOS zAMI 8MB SPI Flash ROM BIOS
Multi I/O
zPS/2 keyboard and PS/2 mouse connectors
zVGA Connector x1
zUSB 2.0 port x4 and header x1
zRJ-45 LAN Connector x1
zAudio connector x1
zHard disk driver connector x1/ SATA connector x 2
zSerial Port header x1
zHDMI-SPDIF header x1
1-3 Item Checklist
5AMD740G/760G Platform Processor Chipset based motherboard
5DVD for motherboard utilities
5User’s Manual
5SATA Cable
5Back Shied

4
4
1-4 Layout Diagram
Rear I/O Diagram
Motherboard Internal Diagram is for Model MA3-740GSM
Realtek Megabi
t
LAN Chip
Front Panel Header
ATA 133 IDE
Conn. (IDE1)
CPU Socket ATX Powe
r
Conn.
PCI Slot
PS2 KB/MS Port
RJ-45 over USB
Connecto
r
DDRIII Slot x 2
ATX 12V Power Connecto
r
Realtek ALC662
Audio Decode Power Led
USB Heade
r
AMD 740G Chipset
Front Panel
Audio Header
USB Connector
PS/2 Keyboard
Line-OUT
MIC-IN
CPUFAN
SYSFAN1
PCI Express x16
@16-lane
VGA Connector
Line-IN
RJ-45 LAN
Serial-ATAII Connecto
r
s
SATA1, 2
Speake
r
COM Header
USB Connector
AMD SB710 Chipset
JBAT1
PS/2 Mouse
VGA
Connector
HDMI-SPDIF
Audio
Connecto
r

5
5
Motherboard Internal Diagram is for Model MA3-740GSMD2 and MA3-760GSMD2G
NOTE! As the internal motherboard diagram shows, MA3-740GSMD2 and
MA3-760GSMD2G share much of the specification, except that MA3-740GSMD2
series are based on AMD 740G+SB 710 chipset and integrated with Realtek megabit
LAN chip while MA3-760GSMD2G series are based on AMD 760G+SB710 chipset
and integrated with Realtek gigabit t LAN chip. Please refer to the model you
purchased for respective specification.
Realtek
megabit/gigabit
LAN Chip
Front Panel Header
ATA 133 IDE
Conn. (IDE1)
CPU Socket ATX Powe
r
Conn.
PCI Slot
PS2 KB/MS Port
RJ-45 over USB
Connecto
r
DDRII Slot x 2
ATX 12V Power Connecto
r
Realtek ALC662
Audio Decode Power Led
USB Heade
r
AMD 740G or AMD
760G Chi
p
set
Front Panel
Audio Header
CPUFAN
SYSFAN1
PCI Express x16
@16-lane
Serial-ATAII Connecto
r
s
SATA1, 2
Speake
r
COM Header
USB Connector
AMD SB710 Chipset
JBAT1
VGA
Connector
HDMI-SPDIF
Audio
Connecto
r

6
6
Chapter 2
Hardware Installation
WARNING! Turn off your power when adding or removing expansion cards or
other system components. Failure to do so may cause severe
damage to both your motherboard and expansion cards.
2-1 CPU Installation
This motherboard provides a surface mount, Zero Insertion Force (ZIF) socket,
referred to as the mPGA940 socket supports AMD AM3 processors.
The CPU that comes with the motherboard should have a cooling FAN attached to
prevent overheating. If this is not the case, then purchase a correct cooling FAN
before you turn on your system.
WARNING! Be sure that there is sufficient air circulation across the processor’s
heat sink and CPU cooling FAN is working correctly, otherwise it
may cause the processor and motherboard overheat and damage,
you may install an auxiliary cooling FAN, if necessary.
To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket
and open it by first pulling the level sideways away from the socket then upward to a
90-degree angle. Insert the CPU with the correct orientation as shown below. The
notched corner should point toward the end of the level. Because the CPU has a
corner pin for two of the four corners, the CPU will only fit in the orientation as shown.
CPU ZIF mPGAB Socket
Colden Arrow
Socket AM2
When you put the CPU into the ZIF socket, No force required to insert of the CPU, and
then press the level to locate position slightly without any extra force.

7
7
2-2 Install Memory
MA3-740GSM motherboard series provide two 240-pin DDRIII DUAL INLINE
MEMORY MODULES (DIMM) socket for DDRIII memory expansion to maximum
memory volume of 8 GB.
Valid Memory Configurations for MA3-740GSM
Bank 240-Pin DIMM PCS Maximum Capacity
DDRIII1 DDRIII800/DDRIII1066/DDRIII1333/DDRIII1600 X1 4GB
DDRIII2 DDRIII800/DDRIII1066/DDRIII1333/DDRIII1600 X1 4GB
Total System Memory (Max .4GB) 2 8GB
MA3-740GSMD2 and MA3-760GSMD2G motherboard series provide two 240-pin
DDRII DUAL INLINE MEMORY MODULES (DIMM) socket for DDRII memory
expansion to maximum memory volume of 8 GB.
Valid Memory Configurations for Model MA3-740GSMD2 and MA3-760GDMD2G
Bank 240-Pin DIMM PCS Maximum Capacity
DIMM1 DDRII 400/DDRII 533/DDRII 667/ DDRII 800 X1 4GB
DIMM2 DDRII 400/DDRII 533/DDRII 667/ DDRII 800 X1 4GB
Total System Memory (Max .4GB) 2 8GB
Dual channel Limited!
1. Dual channel function only supports when 2 DDRIII Modules plug in either both DDRIII1
& DDRIII2 for MA3-740GSM; or 2 DDRII Modules plug in either both DDRII1 & DDRII2
for MA3-740GSMD2 or MA3-760GSMD2G.
2. Memory modules must be of the same type, same size, and same frequency for dual
channel function.
Install memory modules to your motherboard are not difficult, you can refer to figure
below.
Dual Channel
NOTE! When you install DIMM module fully into the DIMM socket the eject tab
should be locked into the DIMM module very firmly and fit into its indention on both
sides.

8
8
2-3 Expansion Slots
The AMD740G/760G Series motherboards offer one PCI-Express x16 graphics slot.
This PCI-Express x16 by lane slot delivers up to 8Gbyte/sec data transfer rate at each
relative direction. The AMD740G/760G motherboards also carry one 32-bit PCI slot
guarantee the rich connectivity for the I/O peripheral devices.
32-bit PCI Slot
PCI-E x16 Slot by 16-lane

9
9
Chapter 3
Connectors, Headers &Jumper Setting
3-1 Connectors
(1) Power Connector (24-pin block): ATXPWR1
ATX Power Supply connector:
This is a new defined 24-pins
connector that usually comes
with ATX case. The ATX Power
Supply allows using soft power
on momentary switch that
connect from the front panel
switch to 2-pins Power On jumper
pole on the motherboard. When
the power switch on the back of
the ATX power supply turned on,
the full power will not come into
the system board until the front
panel switch is momentarily
pressed. Press this switch again will turn off the power to the system board.
** We recommend that you use an ATX 12V Specification 2.0-compliant power
supply unit (PSU) with a minimum of 350W power rating. This type has 24-pin
and 4-pin power plugs.
** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the
20-pin power plug can provide at least 15A on +12V and the power supply unit
has a minimum power rating of 350W. The system may become unstable or may
not boot up if the power is inadequate.
** Please refer to Figure 1 for 20-pin power plug connection. Power plug and
motherboard power connectors has adopted key design to avoid installation
mistake through connection can be made easily if in the proper direction. If the
installation direction is incorrect and you make the connection by force both the
board and the power supply can be burned. Please see to it that the direction is
correct during installation.
Figure 1: 20-pin power plug Figure2: 24-pin power plug
Pin 1
ROW1 ROW2
24-Pin
ROW1 ROW2
Pin 1
20-Pin
PIN ROW1 ROW2
1 3.3V 3.3V
2 3.3V -12V
3 GND GND
4 5V Soft Power On
5 GND GND
6 5V GND
7 GND GND
8 Power OK -5V
9 +5V (for Soft Logic) +5V
10 +12V +5V
11 +12V +5V
12 +3V GND

10
10
(2) ATX 12V Power Connector (4-pin block): ATX12V
This is a new defined 4-pins connector that usually comes with ATX Power
Supply. The ATX Power Supply which fully supports AMD AM3 processor must
including this connector for support extra 12V voltage to maintain system power
consumption. Without this connector might cause system unstable because the
power supply can not provide sufficient current for system.
ATX12V
+12V +12V
Pin1
3
2
4
GND
GND
(3) PS/2 Mouse & PS/2 Keyboard Connector: KB
The connectors are for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: CN5/ UL1 for USB
The connectors are 4-pin connector that connects USB devices to the system
board.
(5) LAN Port connector: UL1 for RJ-45 LAN
The connector is standard RJ45 connector for Network. It supports 10M/100Mb
data transfer rate.
(6) Audio Line-In, Line-Out, MIC Connector: CN3
These Connectors are 3 Phone-Jack for LINE-OUT, LINE-IN, and MIC audio
connections.
Line-in: (BLUE) Audio input to sound chip
Line-out: (GREEN) Audio output to speaker
MIC: (PINK) Microphone Connector
USB Connector
PS/2 Keyboard
Line-OUT
MIC-IN
VGA Connector Line-IN
RJ-45 LAN
PS/2 Mouse

11
11

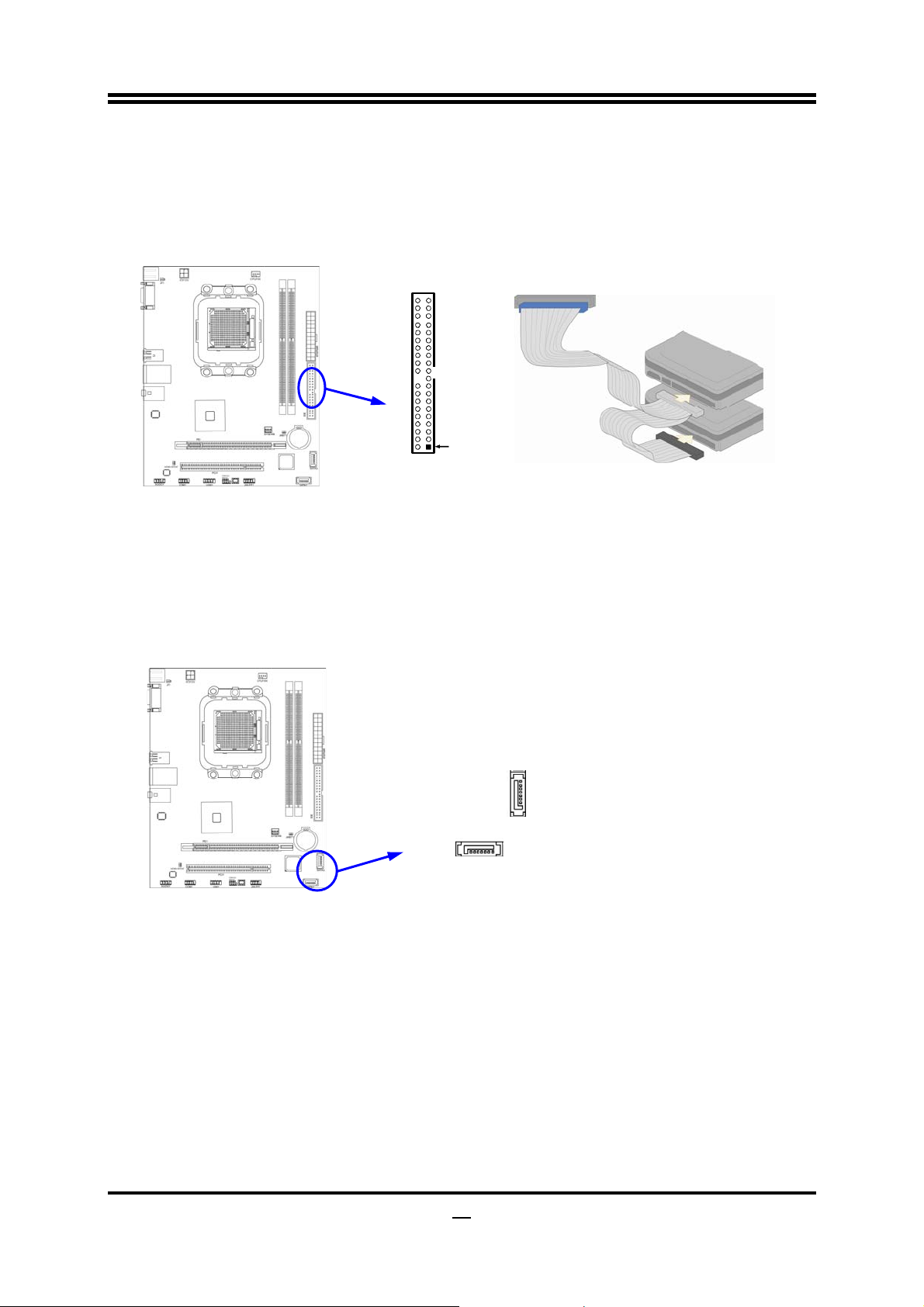

(7) Primary IDE Connector (40-pin block): IDE1
This connector supports the provided IDE hard disk ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to your hard
disk(s). If you install two hard disks, you must configure the second drive to Slave
mode by setting its jumpers accordingly. Please refer to the documentation of your
hard disk for the jumper settings.
IDE Connector
Pin 1
IDE1
•Two hard disks can be connected to each connector. The first HDD is referred to
as the “Master” and the second HDD is referred to as the “Slave”.
•For performance issues, we strongly suggest you don’t install a CD-ROM or
DVD-ROM drive on the same IDE channel as a hard disk. Otherwise, the system
performance on this channel may drop.
(8) Serial-ATAII Port connector: SATA1, SATA 2
This connector supports the provided Serial ATA2 IDE hard disk cable to
connecting the motherboard with serial ATAII hard disk.
Serial-ATA2 Port Connector
SAT
A
2
SAT
A
1
(9) D-Sub 15-pin Connector: VGA
VGA connector is the 15-pin D-subminiature female connector; it is for the
display devices, such as the CRT monitor, LCD monitor and so on.

12
12
3-2 Headers
(1) Line-Out/MIC Header for Front Panel (9-pin): AUDIO1
These headers connect to Front Panel Line-out, MIC connector with cable.
Line-Out, MIC Headers
AUDIO
Pin 1
Lineout2-L Lineout2-R
Sense-FB
Audio-GND
LINE2-JD
Audio-JD
2
9
10
KEY
MIC2-L
MIC2-JD
MIC2-R
(2) USB Port Headers (9-pin): USB1
This header is used for connecting the additional USB port plug. By attaching an
option USB cable, your can be provided with two additional USB plugs affixed to
the back panel.
USB Port Headers
Pin1
VCC
-DATA
GND
+DATA
VCC
OC
-DATA
GND
+DATA
(3) Speaker connector: SPEAK1
This 4-pin connector connects to the case-mounted speaker. See the figure
below.
(4) Power LED: PWR LED/PWRLED1
The Power LED is light on while the system power is on. Connect the Power
LED from the system case to this pin.
(5) IDE Activity LED: HD LED
This connector connects to the hard disk activity indicator light on the case.
(6) Reset switch lead: RESET
This 2-pin connector connects to the case-mounted reset switch for rebooting
your computer without having to turn off your power switch. This is a preferred
method of rebooting in order to prolong the lift of the system’s power supply.
See the figure below.
(7) Power switch: PWR BTN
This 2-pin connector connects to the case-mounted power switch to power
ON/OFF the system.

13
13
(8) FAN Power Headers: SYSFAN1 (3-pin), CPUFAN (4-pin)
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending
on the fan manufacturer, the wire and plug may be different. The red wire should
be positive, while the black should be ground. Connect the fan’s plug to the
board taking into consideration the polarity of connector.
FAN Power Headers
SYSFAN1
CPUFAN
14
13
(9) Serial COM Port header: COM1
COM1 is the 9-pin block pin-header.
Serial COM Port 9-pin Block
Pin1
(10) HDMI-SPDIF Out header: HDMI_SPDIF
The SPDIF output is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby digital decoder. Use this feature only
when your stereo system has digital input function. Some of the VGA Card need
connect SPDIF-IN Connector，so its HDMI Port can make sounds .
SystemCaseConnections
HDLED
RESET
VCC5
GND
VCC5 PWR LED
PWRBTN
PWRBTN
PWRLED
HDDLE
RSTSW
NC GND
JW FP1
Pin 1
SPEAK1
SPKR
GND
NC
VCC5
Pin 1
PWRLED1
Pin 1

14
14
HDMI_SPDIF Header
1
GND
2
HDMI_SPDIF_OUT
3-3 Jumper Setting
(1) Keyboard/USB function Enabled/Disabled: JP1
Ke
y
board/Mouse & USB Power On Settin
g
2-3 Closed KB/USB Power ON Enabled
JP1
JP1
1-2 Closed KB/USB Power ON Disable (Default)
(2) CMOS RAM Clear (2-pin): JBAT1
A battery must be used to retain the motherboard configuration in CMOS RAM,
short 1-2 pins of JBAT to clear the CMOS data.
To clear the CMOS, follow the procedure below:
1. Turn off the system and unplug the AC power
2. Remove ATX power cable from ATX power connector
3. Locate JBAT and short pins 1-2 for a few seconds, if shorted with the jump cap,
short for a few seconds then pull out the hat.
4. Connect ATX power cable back to ATX power connector
Note: When should clear CMOS
1. Troubleshooting
2. Forget password
3. After over clocking system boot fail

15
15
CMOS Clear Setting
1-2 Short：CMOS Clear
JBAT
1-2 Open：Normal
NOTE! Pictures of motherboard in this manual are for illustration and
description reference only. Please refer to the model you purchased
for actual specification.

16
1
6
Chapter 4
Useful Help
4-1 How to Update BIOS
Step1. Prepare a boot disc. (You may make one by click START click RUN type
SYS A: click OK)
Step2. Download upgrade tools and the latest BIOS files of the motherboard from
official website and then make a copy of it to your bootable floppy disk after
decompressing these files
Step3. Insert the disk into A: start your computer and then type in “A:\xxxxxx.BAT”
(xxxxxxx being the file name of the latest BIOS)
Step4. Type Enter to update and flash the BIOS. The system will restart
automatically when BIOS is upgraded.
4-2 Trouble Shooting
Problem Solution
No power to the system to the all
power light don’t illuminate, fan inside
power supply doesn’t turn on.
1. Make sure power cable is security
plugged in. 2. Replace cable. 3.
Contact technical support.
System inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drive is spinning.
Using ever pressure on both ends of
the DIMM, press down firmly until the
module snaps into places.
System doesn’t boot from hard disk
drive, can be booted from optical drive. 1. Check cable running from disk to disk controller board. .Make sure both
ends are securely plugged in, check
the drive type in the standard CMOS
setup. 2. Backing up the hard drive is
extremely important .All hard disks are
capable of breaking down at any time.
System only boots from optical
drive .Hard disk can be read and
applications can be used but booting
from hard disk is impossible.
1. Back up date and applications files.
2. Reformat the hard drive. Reinstall
applications and date using backup
disks.
Screen message says “Invalid
Configuration” or “CMOS Failure” Review system‘s equipment. Make sure correct information on is in setup.
Can not boot system after installing
second hard drive. 1. Set master /slave jumpers correctly. 2. Run SETUP program and select
correct drive types. Call the drive
manufacture for compatibility with
other drives.

17
1
7
Appendix I
Subject 1: Regarding the Application of 3-Phase or 3+1 Phase
Power Supply Mold
As a result of the increasing power consumption demand from
many AMD CPUs in current market, we suggest not to use a CPU
that demands more than 65W power consumption at work for an
AMD CPU compliant board that comes with power supply design
as 3 phase or 3+1 phase mold and MOSFET design as working in
High SideX1 and Low SideX1 mold so as to avoid MOSFET getting
burned or other phenomena like a halted system or system
instability. So please take notice of the CPU you are using and make sure that it is one
that demand not more than 65 W to ensure long-term working order.
Note：
1. The relation between CPU Power Consumption Amount and Power Phase:
depending on difference in voltage rating, one-phase of power can provide
25~30W to the motherboard.
2. 3- Phase Power Supply Mold: motherboard with 3 inductances for CPU power
supply, and each inductance carries with it 2 MOSFET (6 MOSFETs in total)
(Figure1);3+1–Phase Power Supply Mold: motherboard with 4 inductances for
CPU power supply, and each inductance carries with it 2 MOSFET (8 MOSFETs
in total) (Figure2)
Figure 1
Figure 2
