AD-360X2 Phase 7
Parts Manual
011404MGOLDSTEIN/gbennett ADC Part No. 450257

Retain This Manual In A Safe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following FOR YOUR SAFETY caution must e posted near the dryer in a prominent location.
We have tr ed to make th s manual as complete as poss ble and hope you w ll f nd t useful. ADC reserves the r ght to make
changes from t me to t me, w thout not ce or obl gat on, n pr ces, spec f cat ons, colors, and mater al, and to change or
d scont nue models.
Important
For your convenience, log the following information
DATE OF PURCHASE ____________________________ MODEL NO. __________________________________________
RESELLERS NAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obta ned from your reseller or the ADC factory. When order ng replacement parts from the factory,
you can FAX your order to ADC at [phone] or telephone your order d rectly to the ADC Parts Department at
[phone]. Please spec fy the dryer model number and serial number n add t on to the description and part number, so
that your order s processed accurately and promptly.
The llustrat ons on the follow ng pages may not dep ct your part cular dryer exactly. The llustrat ons are a compos te of the
var ous dryer models. Be sure to check the descr pt ons of the parts thoroughly before order ng.
AD-360X2 Phase 7
IMPORTANT NOTE TO PURCHASER
Information m st be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions m st be posted in a
prominent location near the dryer.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or liquids
in the vicinity of this or any other
appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser dessence
ni dautres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de yout autre appareil.

For Detailed Information See The Table Of Contents On Next Page.
Quick Reference Diagram

Table of Contents
Front Panel Assembly ............................................................................................................................. 3
Right Coin Computer Panel Type II......................................................................................................... 4
Left Coin Computer Panel Type II .......................................................................................................... 5
Coin Chute Assembly ............................................................................................................................. 6
Coin Box/Vault Assembly (Left and Right ............................................................................................... 7
Main Door Steel Assembly .............................................................................................................. 8, 9
Main Door Switch Assembly ................................................................................................................. 10
Basket (Tumbler /Support Assemblies ................................................................................................... 11
Top Locking Lint Basket Assembly ....................................................................................................... 12
Bottom Locking Lint Basket Assembly .................................................................................................. 13
Separator Assembly .............................................................................................................................. 14
Rotational Sensor/Sail Switch and Teflon® Backup Washer Plate ........................................................... 15
Lint Coop and Adjustment Wheel Bracket Assembly ............................................................................. 16
Left Rear Wheel Bracket (3-Bolt ......................................................................................................... 17
Right Rear Wheel Bracket (3-Bolt ....................................................................................................... 18
Microprocessor Temperature Sensor Bracket Assembly ........................................................................ 19
Top Burner Box Assembly .............................................................................................................. 20, 21
Bottom Burner Box Assembly ......................................................................................................... 22, 23
Blower Motor Assembly ....................................................................................................................... 24
Rear Electrical Panel ............................................................................................................................. 25
Drive Motor/Motor Mount Assemblies .................................................................................................. 26
Exhaust Duct Assembly ......................................................................................................................... 27
Rear Back Guard Assembly .................................................................................................................. 28
Wrapper Gasket ................................................................................................................................... 29

3
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty.Description
1 884117 1 White Right Hand Coin ront Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
884118 1 Bisque Right Hand Coin ront Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
884119 1 Stainless Steel Right Hand Coin ront Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
2 881987 2 riction Door Latch Kit
(includes illus. nos. 2 and 3)
3 154215 4 5/32 x 1/4 Rivet
4 -------- 1 Top Hinge Block Assembly
(refer to Main Door Steel Assembly on page 12 and 13)
5 -------- 1 Main Door Switch
(refer to Main Door Switch Assembly on page 14)
6 -------- 1 Bottom Hinge Block Assembly
(refer to Main Door Steel Assembly on page 12 and 13)
7 354267 2 Arrow Backup Plate
8 150517 10 #10-16 x 1-1/2 Hex Head TEK Screw
9 882798 1 Black Kick Plate
10 150311 2 #10-16 x 3/4 Hex Head TEK Crimptite Screw
11 150309 8 #10-16 x 1/2 Hex Head TEK Crimptite Screw

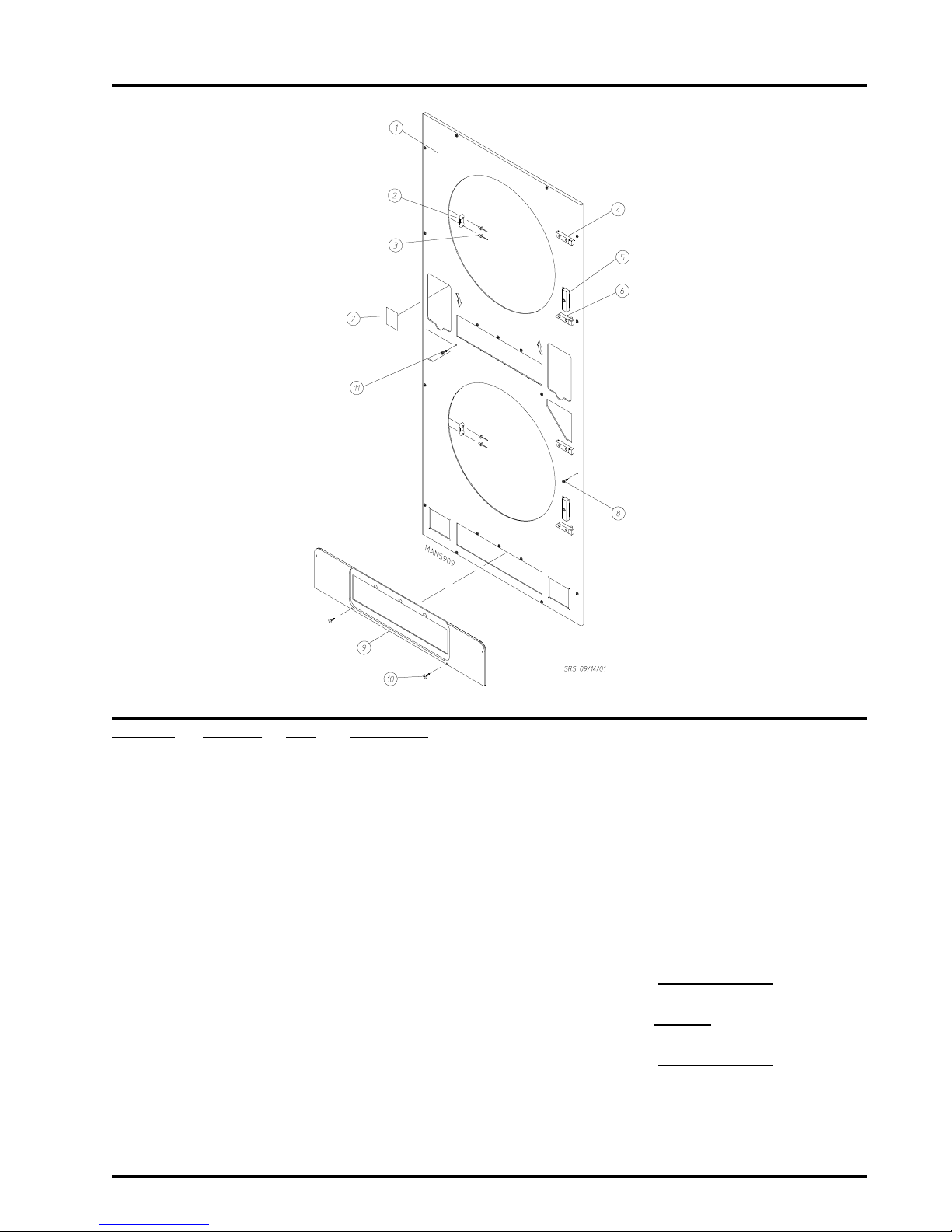

Coin Front Panel Assembly

4
American Dryer Corporation 88 C rrant Road / Fall River, MA 02720-4781
Non-Coin Front Panel Assembly

5
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty.Description
1 884120 1 White Right Hand ront Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
884121 1 Bisque Right Hand ront Panel Assembly
(includes illus. nos. 1, 2, 3, and 7)
2 881987 2 riction Door Latch Kit
(includes illus. nos. 2 and 3)
3 154215 4 5/32 x 1/4 Rivet
4 -------- 1 Top Hinge Block Assembly
(refer to Main Door Steel Assembly on page 12 and 13)
5 -------- 1 Main Door Switch
(refer to Main Door Switch Assembly on page 14)
6 -------- 1 Bottom Hinge Block Assembly
(refer to Main Door Steel Assembly on page 12 and 13)
7 354267 2 Arrow Backup Plate
8 150517 10 #10-16 x 1-1/2 Hex Head TEK Screw
9 882798 1 Black Kick Plate
10 150311 2 #10-16 x 3/4 Hex Head TEK Crimptite Screw
11 150309 8 #10-16 x 1/2 Hex Head TEK Crimptite Screw
Non-Coin Front Panel Assembly

6
American Dryer Corporation 88 C rrant Road / Fall River, MA 02720-4781

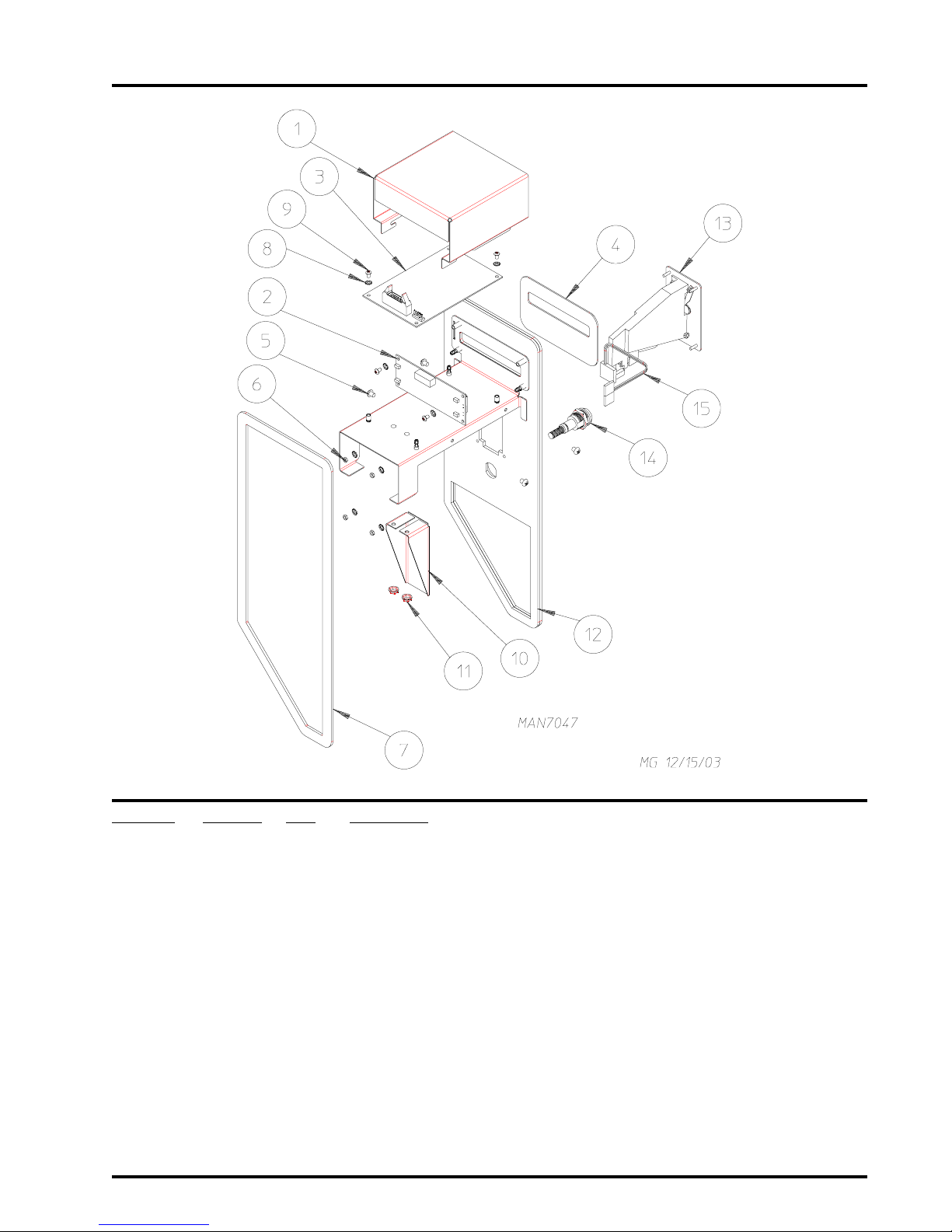

Right Coin Computer Panel Assembly
Illus. No. Part No. Qty.Description
1 354293 1 Computer Cover
2 137270 1 16 x 1 Large Character Display
3 887007 1 Phase 7 Coin Board (prior to ebruary 1, 2004)
887011 1 Phase 7 Coin Board (as of ebruary 1, 2004)
4 112575 1 Phase 7 Keypad
5 150201 4 #10-32 x 1/4 Phillips Pan Head Tap Screw
6 152102 4 M3 Metric Hex Nut
7 117603 1 1/8 x 9/16 Noise Suppressor Tape
8 153010 8 #6 Internal/External Star Washer
9 150005 4 #6-32 x 1/4 Phillips Round Head Machine Screw
10 354192 1 Optic Switch Protector
11 151001 2 #8-32 Pal Nut
12 852317 1 Phase 7 25¢ Coin Acceptor Assembly
13 182621 1 Control Panel Lock Assembly
14 860078 1 Phase 7 Coin Control Panel (panel only)
15 883774 1 Hanke Phase 7 Optic Switch Assembly

7
Telephone: [phone] Fax: [phone]
Left Coin Computer Panel Assembly
Illus. No. Part No. Qty.Description
1 354293 1 Computer Cover
2 137270 1 16 x 1 Large Character Display
3 887007 1 Phase 7 Coin Board (prior to ebruary 1, 2004)
887011 1 Phase 7 Coin Board (as of ebruary 1, 2004)
4 112575 1 Phase 7 Keypad
5 150201 4 #10-32 x 1/4 Phillips Pan Head Tap Screw
6 152102 4 M3 Metric Hex Nut
7 117603 1 1/8 x 9/16 Noise Suppressor Tape
8 153010 1 #6 Internal/External Star Washer
9 150005 4 #6-32 x 1/4 Phillips Round Head Machine Screw
10 354192 1 Optic Switch Protector
11 151001 2 #8-32 Pal Nut
12 860080 1 Phase 7 Coin Control Panel (panel only)
13 852317 1 Phase 7 25¢ Coin Acceptor Assembly
14 182621 1 Control Panel Lock Assembly
15 883774 1 Hanke Phase 7 Optic Switch Assembly

American Dryer Corporation 88 C rrant Road / Fall River, MA 02720-4781

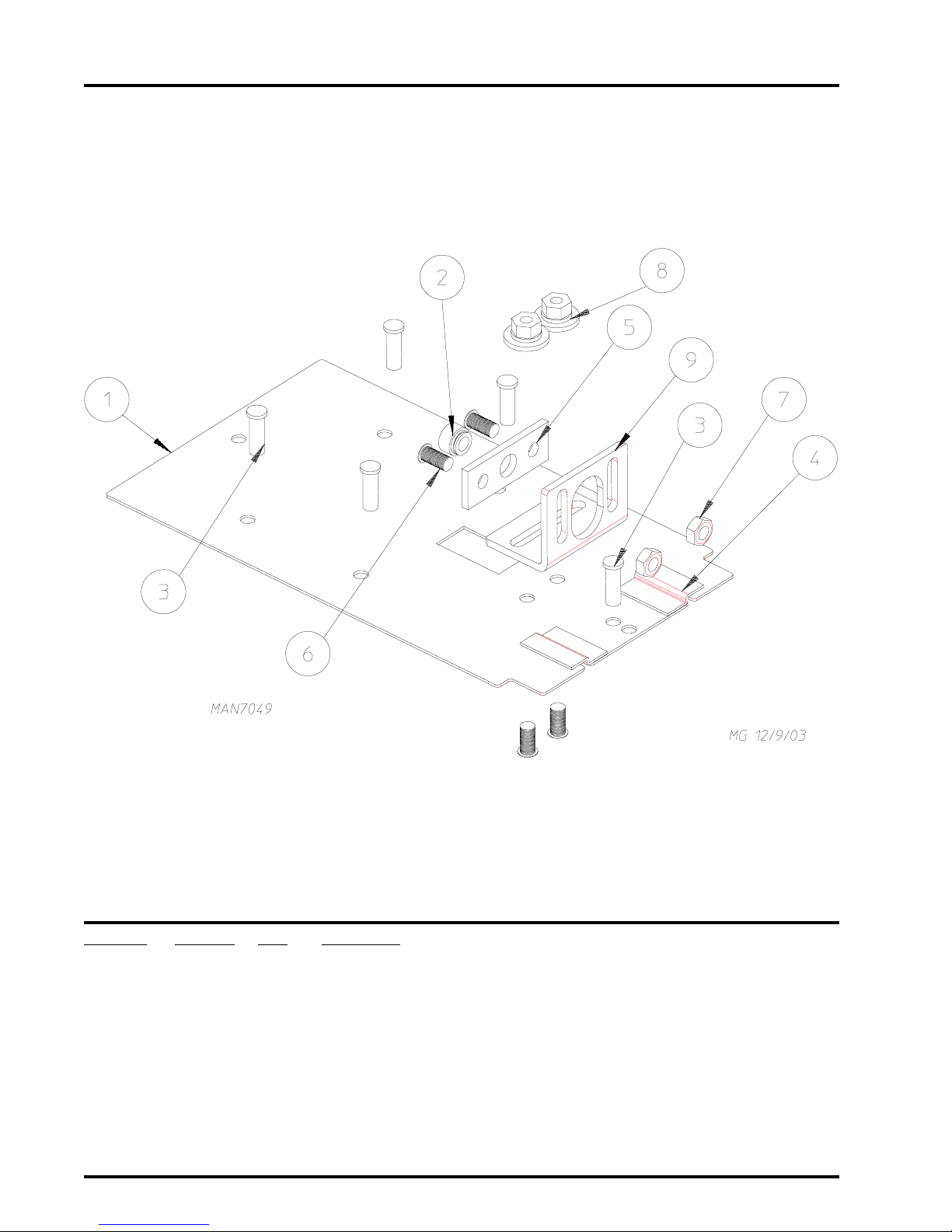

Non-Coin Computer Panel Assembly
Illus. No. Part No. Qty.Description
1 354293 1 Computer Cover
2 137270 2 16 x 1 Large Character Display
3 887007 1 Phase 7 Coin Board (prior to ebruary 1, 2004)
887011 1 Phase 7 Coin Board (as of ebruary 1, 2004)
4 112575 1 Phase 7 Keypad
5 150201 4 #10-32 x 1/4 Phillips Pan Head Tap Screw
6 150005 4 #6-32 x 1/4 Phillips Round Head Machine Screw
7 153010 4 #6 Internal/External Star Washer
8 117603 1 1/8 x 9/16 Noise Suppressor Tape
9 182621 1 Control Panel Lock Assembly
10 860096 1 Phase 7.3 Non-Coin Computer Panel

9
Telephone: [phone] Fax: [phone]
Coin Chute Assembly
Illus. No. Part No. Qty.Description
1 884113 1 Coin Chute Assembly Complete
(includes illus. nos. 1 through 5)
2 882937 1 Control Panel Lock Plate
3 354046 1 Easy Card Lock Bracket
4 152002 2 1/4-20 Hex Nut
5 152014 2 1/4-20 ree Spin Wash Nut

10
American Dryer Corporation 88 C rrant Road / Fall River, MA 02720-4781
Easy Debit Card Coin Chute Assembly
Illus. No. Part No. Qty.Description
1 354114 1 Coin Chute Plate
2 153599 1 5/16-18 Clinch Nut
3 153557 5 1/4" x 3/4" Clinch Stud
4 354176 2 Control Panel Slide Clip
5 354181 1 Control Panel Lock Plate
6 153526 4 1/4" x 1/2" Clinch Stud
7 152002 2 1/4-20 Hex Nut
8 152014 2 1/4-20 ree Spin Wash Nut
9 354046 1 Easy Card Lock Bracket
884124 1 Easy Debit Card Coin Chute Assembly

11
Telephone: [phone] Fax: [phone]

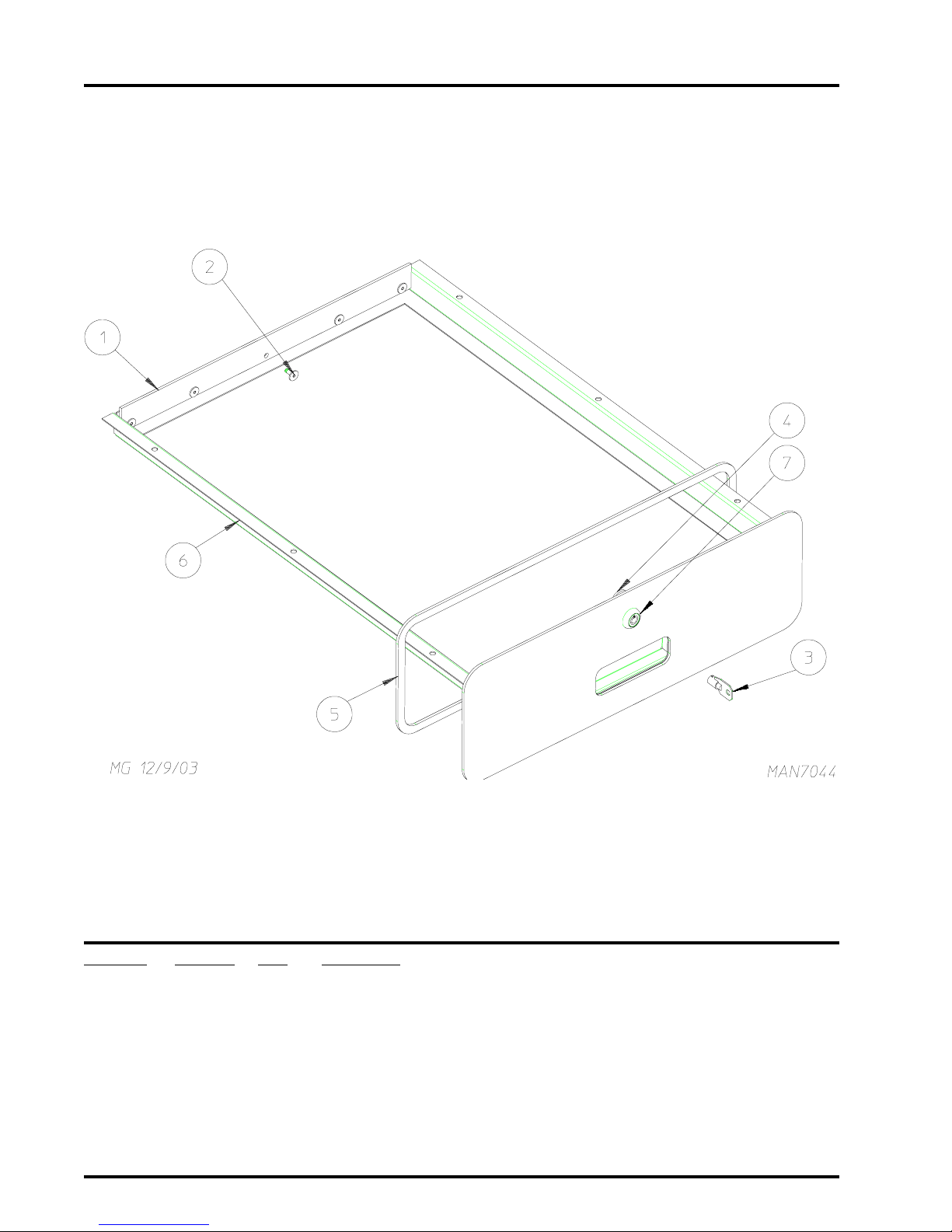

Coin Box/Vault Assembly (Left and Right)
Illus. No. Part No. Qty.Description
1 882740 1 Black Left/Right Coin Box ace Plate ONLY
882745 1 Left Coin Box with Black ace Plate (less lock)
2 882672 1 Coin Box Lock Kit (includes 2 locks keyed alike)
3 160136* 1 Coin Box Lock Key ONLY
4 882742 1 Black Left Coin Vault ONLY
5 882740 1 Black Left/Right Coin Box ace Plate ONLY
882746 1 Right Coin Box with Black ace Plate (less lock)
6 882741 1 Black Right Coin Vault ONLY
* Specify key number when ordering.

12
American Dryer Corporation 88 C rrant Road / Fall River, MA 02720-4781
Main Door Steel Assembly

13
Telephone: [phone] Fax: [phone]

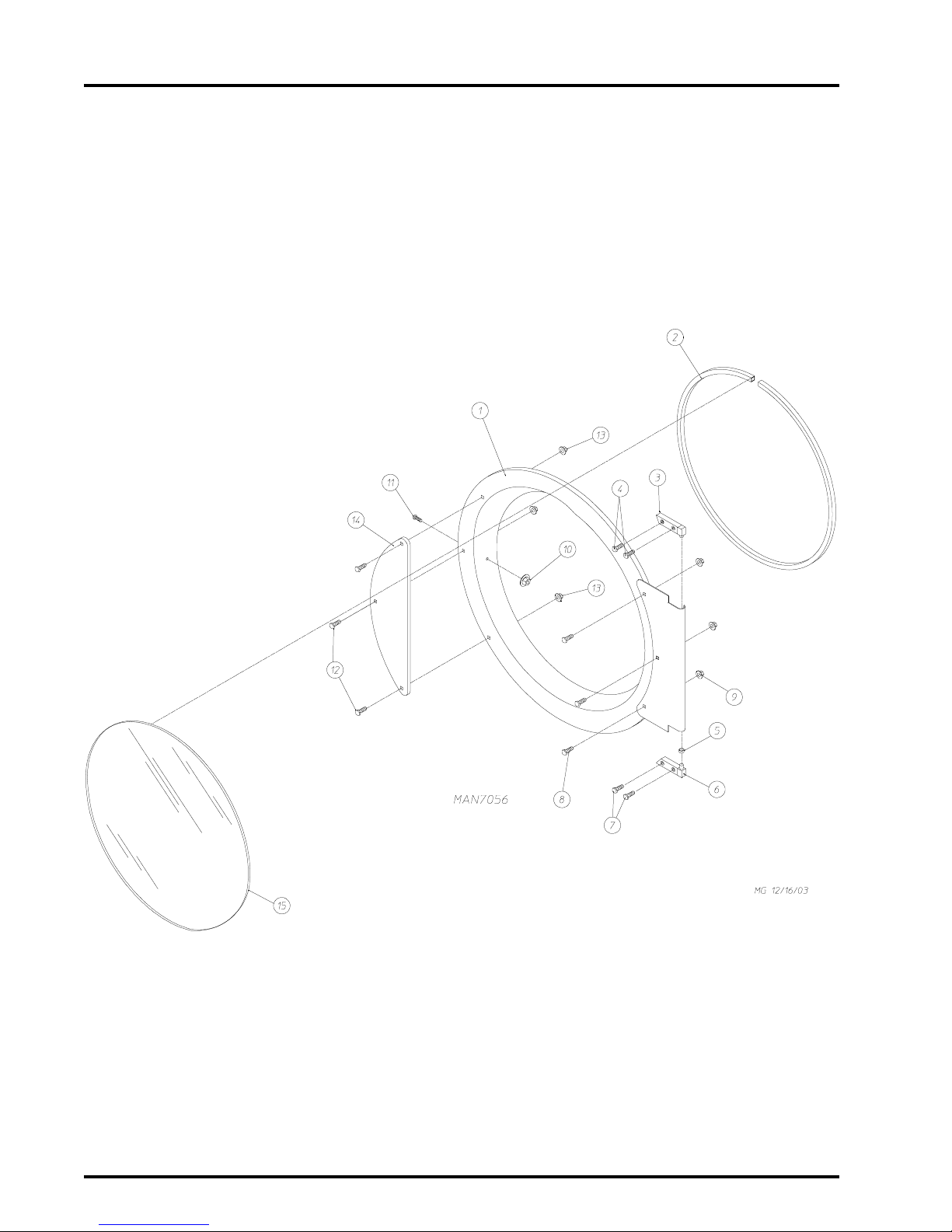

Main Door Steel Assembly
Illus. No. Part No. Qty.Description
1 881150 1 Black Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
881207 1 Stainless Steel Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
2 102354 1 Door Gasket
170730 1 Clear Glass Adhesive (10.3 oz. cartridge)
170731 Black Glass Adhesive (10.3 oz. cartridge)
3 881152 1 Black Top Hinge Block Assembly
(includes illus. nos. 3 and 4)
881208 1 Stainless Steel Top Hinge Block Assembly
4 150445 2 1/4-20 x 3/4 Black Cap Head Setscrew
5 153031 1 1/4 Nylon Washer
6 881151 1 Black Bottom Hinge Block Assembly
(includes illus. nos. 5, 6, and 7)
881209 1 Stainless Steel Bottom Hinge Block Assembly
7 150445 2 1/4-20 x 3/4 Black Cap Head Setscrew
150443 2 1/4-20 x 3/4 Stainless Steel Cap Head Setscrew
8 150683 3 1/4-20 x 5/8 Black Carriage Bolt
150682 3 1/4-20 x 5/8 Stainless Steel Carriage Bolt
(for models with stainless steel doors)
9 152014 3 1/4-20 ree Spin Wash Nut
10 151010 1 #10-32 Black Hex Acorn Nut
151009 1 #10-32 Stainless Steel Hex Acorn Nut
11 150120 1 Door Latch Screw
12 150683 3 1/4-20 x 5/8 Black Carriage Bolt
150682 3 1/4-20 x 5/8 Stainless Steel Carriage Bolt
(for models with stainless steel doors)
13 152014 3 1/4-20 ree Spin Wash Nut
14 881210 1 Black Main Door Handle ONLY
170333 1 Stainless Steel Main Handle ONLY
15 102211 1 Door Glass

14
American Dryer Corporation 88 C rrant Road / Fall River, MA 02720-4781
Main Door Switch Assembly
Illus. No. Part No. Qty.Description
1 153566 2 #6-32 x 7/8 Clinch Stud
2 152013 2 #6-32 Hex Nut
3 153010 2 #6 Internal/External Star Washer
4 137005 1 Door Switch
5 122636 2 lag Terminal
6 881211 1 Black Main Door Switch Housing ONLY
353209 1 Stainless Steel Main Door Switch Housing ONLY
881153 1 Black Main Door Switch Housing Complete
(includes illus. nos. 1, 2, 3, 4, and 6)
800474 1 Stainless Steel Main Door Switch Housing Complete
(includes illus. nos. 1, 2, 3, 4, and 6)
7 150301 2 #8-18 x 7/16 Phillips Pan Head TEK Screw

15
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty.Description
1 154210 40 5/32 x 3/16 Pop Rivet
2 354217 1 Spacer Plate
3 153048 1 Inner riction Teflon® Pad
4 116332 1 94 x 2-1/2 x 1/8 elt Collar
5 882765 1 One Arm Basket (tumbler) Support Assembly
(includes illus. nos. 2, 3, and 5)
6 882766 1 Basket (tumbler) Assembly or One Arm Basket (tumbler) Support
(includes illus. nos. 1, 4, and 9)
882990 1 One Arm Basket (tumbler) and Support Assembly Complete
(includes illus. nos. 1 through 7 and 9)
7 154210 6 5/32 x 3/16 Pop Rivet
8 100191 1 12 Rib 105 Long (J) High Temperature Belt
9 115907 1 Inner Ring elt Collar
401010 1 #847 Adhesive or elt Collar (5 oz. tube)
Basket (Tumbler)/Support Assemblies

16
American Dryer Corporation 88 C rrant Road / Fall River, MA 02720-4781
Top Locking Lint Basket Assembly
Illus. No. Part No. Qty.Description
1 115904 1 Lint Basket elt
2 154210 5 5/32 x 3/16 Pop Rivet
3 160140 1 Key ONLY or XX4451
4 160066 1 1/16" Offset x 1-1/8" Long Cam
5 117605 4 1/4 x 3/8 Neoprene Sponge Tape (sold by the foot)
6 882787 1 Top Locking Lint Basket with Lock (white)
(includes illus. nos. 1 through 7)
7 160038 1 Lint Basket Lock with Cam (no key)
160050 1 Lint Basket Lock (no cam and key) or Stainless Steel ONLY

17
Telephone: [phone] Fax: [phone]
Bottom Locking Lint Basket Assembly
Illus. No. Part No. Qty.Description
1 115904 1 Lint Basket elt
2 154210 5 5/32 x 3/16 Pop Rivet
3 160140 1 Key ONLY or XX4451
4 160066 1 1/16" Offset x 1-1/8" Long Cam
5 117604 4 1/8 x 3/8 Neoprene Sponge Tape (sold by the foot)
6 882797 1 Bottom Locking Lint Basket Assembly with Lock (black)
(includes illus. nos. 1 through 7)
7 160038 1 Lint Basket Lock with Cam (no key)

1
American Dryer Corporation 88 C rrant Road / Fall River, MA 02720-4781
Top Lint Basket Assembly
Illus. No. Part No. Qty.Description
1 115904 1 Lint Basket elt
2 154210 5 5/32 x 3/16 Pop Rivet
3 117604 4 1/4 x 3/8 Neoprene Sponge Tape (sold by the foot)
4 884123 1 White Lint Basket Assembly (includes illus. nos. 1 through 4)
