American Dryer DR-N User manual

DR Series
PUSH BUTTON & AUTOMATIC STEEL HAND & HAIR DRYER TECHNICAL SPECIFICATIONS
DR-TN Series
White, Automatic
DR-N, DR-NH Series
White, Push Button DR-TNSS Series
Stainless Steel,
Automatic
DR-NSS, DR-NHSS
Stainless Steel,
Push Button
DR-TNSSR Series
Stainless Steel,
Automatic, Recessed
The DR series push button and automatic hand and hair dryers offer exceptional construction, durabil-
ity and performance. Our best selling series comes standard with a 10-year limited warranty. Options
include a stainless steel cover with satin finish, a fixed nozzle and recessed mounting.
FEATURES/MATERIALS:
• Cover
One piece industrial drawn 16 gauge rein-
forced steel or 18 gage reinforced type 304
stainless steel satin finish.
• Finish
Electrostatically applied white enamel or
stainless steel satin finish. Resistant to chip-
ping and cleaning agents.
• Tamper-Resistant
One tamper-resistant screw and a 3” steel
latch, lock cover securely to base. Air intake
vents, internal shield and side mounted
heating element are for additional safety.
•Nozzle & Push Button
Chrome plated zinc die castings. 360˚ revolving
nozzle is standard. A fixed nozzle is optional on
all models.
•Nameplate
Indented and uses universal graphics.
MECHANISM:
•Motor
Instant starting, maintenance-free, brushless motor. 1/10
HP, 3200 RPM, with self lubricating bearings. Protected by
an automatic resetting circuit breaker. Our motor requires
no fuses, oiling or brush replacement - 100% mainte-
nance-free. Has considerably more life and quieter opera-
tion than competition using brush type motors.
•Timer
Push button models use a heavy duty cam-operated timer.
Sealed for protection and has positive stop action. Turn on
with a light touch. Turns off automatically.
•Automatic Sensor
Automatic models are activated by a 100% solid state
infrared sensor, which automatically turns dryer on and
off. Only runs, when hands are below nozzle, for a maxi-
mum of 80 seconds. Sanitary and energy efficient. Has
over 10 times more life than competitor’s using mechani-
cal relay switching.
•Heating Element
Side mounted for safety and runs in black heat range for
longer life. Element is not accessible through nozzle and is
protected by an automatic resetting circuit breaker (ther-
mostat). It produces an air temperature of 130-145˚F at
a 72˚F ambient room temperature.
OPTIONS: Stainless Steel Cover is available on all models by designating (SS) after model number. * 50 Hz for export only.
Fixed Nozzle is an option on all models by designating (F) after model number.
Recess Mounted is available on all models by designating (R) after model number or order kit separately (specify color).
PUSH BUTTON HAND DRYING PUSH BUTTON HAIR DRYING AUTOMATIC HAND DRYING ELECTRICAL RATINGS
Drying Drying Drying
Model Cycle Model Cycle Model Cycle Volts Amps Watts Hertz
DR10N 40 sec DR10NH 80 sec DR10TN Automatic 110-120 15 1725 60
DR20N 30 sec DR20NH 80 sec DR20TN Automatic 110-120 20 2300 60
DR30N 30 sec DR30NH 80 sec DR30TN Automatic 208-240 10 2300 60
DR50N 30 sec DR50NH 80 sec DR50TN Automatic 220-240 10 2300 50*

American Dryer • 12932 Farmington Road • Livonia • MI • 48150 •U.S.A. • www.americandryer.com
phone [phone] • toll free [phone] U.S. only • fax [phone]
© 1999-2006 American Dryer, Inc. All rights reserved. Specifications subject to change without notice. Revised August 2005
Architect’s Specifications
Warranty
10-year limited warranty includes same day factory repair
or part replacement. Sensor 3 years. See owner’s manual
for details.
The dryer shall be manufactured by American Dryer to
include a 16 gauge reinforced steel cover with a white
enamel finish or 18 gage reinforced stainless steel cover
with satin finish. Recessed units will include a 16 gauge
steel wall mounting box. Motor shall be a shaded pole,
maintenance-free, brushless type. Motor requires no
brushes, oiling or fuses. This motor shall be thermally over-
load protected, 1/10 HP, 3200 RPM. Dryer shall deliver 160
CFM at 5500 LFM. Push button dryers shall be activated
by a cam-operated mechanical timer.
Cover shall be attached with one tamper-resistant bolt and
a 3” steel latch which locks it securely to base. Tamper-
resistant air intake vents, internal shield and side mounted
heating element are for additional safety. Heating ele-
ment is protected by an automatic resetting circuit breaker.
Nozzle and push button shall be zinc die castings with a
chrome plated finish. Nozzle shall revolve 360˚ unless
specified as fixed position. UL and C-UL listed. Made in the
U.S.A.
Operating Costs
The only operating cost for the DR series hand dryer is
electricity. Based on a cost of $0.10 per KWH:
Cost per 1,000 hand dryings
DR series = $1.92
Paper Towels = $20.56
(Refer to recessed instructions for recessed mounting)
WARNING: DISCONNECT POWER BEFORE INSTALLING
1. To remove cover, remove special Allen screw using wrench
supplied. Place a hand on each side of cover and pull bottom
toward you about 1/4 inch, then push cover up toward top of
dryer, releasing cover from mounting plate latch. Lift cover off
mounting plate by pulling forward at the bottom and upward at
the same time. DO NOT FORCE COVER OFF.
2. Dryers should be placed at least 2 feet (61cm) apart and at
least 12” (30cm) from washbasin. Do not install dryers over
washbasin. Hold the backplate to the wall at the suggested
mounting height. Measure from bottom edge of backplate to the
floor.
3. Mark the locations of the four mounting holes and the con-
duit entrance location on the wall. (The conduit entrance is the
proper hole diameter for 1/2 inch (13mm) conduit.)
4. Fasten the backplate to the wall where previously marked.
RECOMMENDATION:
Wood wall - No. 16 (M8) wood screws, 2 3/4”(70mm) long
Cement or brick - 1/4” (M6) stud expansion bolts, 3” (76mm)
long
Hollow wall - 1/4” (M6) toggle bolts, length depends on wall
thickness
5. Run service wire to dryer location and connect to terminal
block. IMPORTANT: All units must be supplied with a 3 wire
service. Use No. 12 wire or larger as required by local electrical
code. The ground wire must be connected to the dryer back-
plate. Unit must be installed by a qualified licensed electrician.
Do not connect any unit to a branch circuit over 20 amps.
Dryers located in shower rooms or other wet locations should be
equipped with ground fault interrupter(s).
6. Carefully replace the cover using tamper-proof bolts sup-
plied.
Installation (Surface Mount)
Mounting Heights:
Suggested mounting heights from floor to bottom of dryer:
MEN WOMEN CHILDREN HANDICAPPED
“DR-N” Hand Dryer... 42” (107cm) 40” (102cm) 30-40” (76-102cm) 34” (86cm)
“DR-NH” Hair Dryer... 72” (183cm) 68” (173cm) 46-68” (117-173cm) 52” (132cm)
Dimensions: WIDTH HEIGHT DEPTH NET WEIGHT
Surface Mounted 11” 9-1/4” 6-5/8” 16 lbs. (7kg)
Recessed Mounted 14-1/8” 14-1/8” 3-3/8” 23 lbs. (10kg)

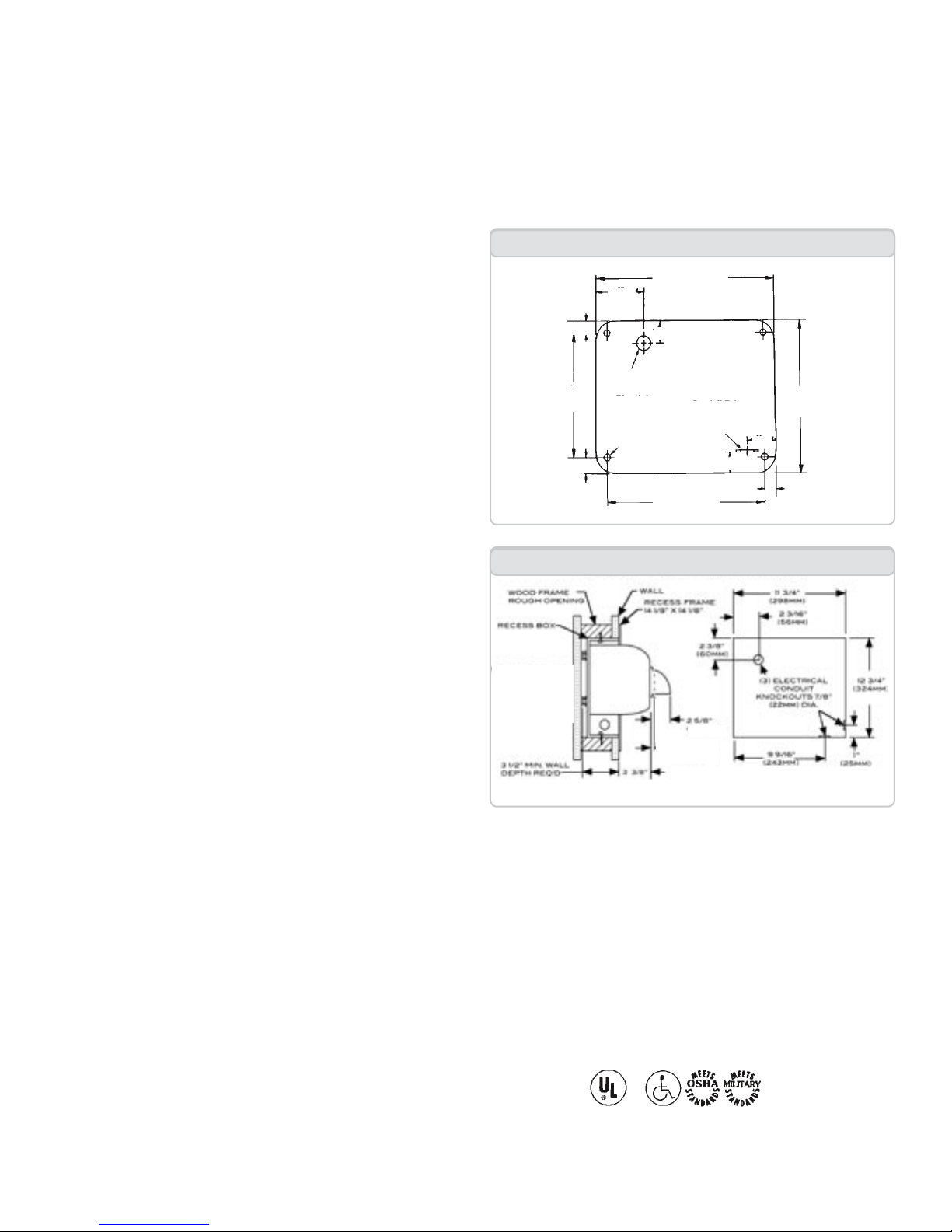

DR Series Surface Mounted
9 1/16
(230 mm)
9 1/2
(241 mm)
5/8
(17 mm)
10 13/16
(274 mm)
7 7/16
(189 mm)
1 5/16 (33 mm)
5/8 (17 mm)
7/8 (22mm) DIA. IN-WALL
CONDUIT ENTRANCE
1 (25 mm)
(4) MTG HOLES
5/16 DIA. (8 mm)
2 3/4
(70 mm)
1 1/4
(32 mm)
5/8
7/8 (22mm) DIA. SURFACE
CONDUIT ENTRANCE
DR Series Recess Mounted
ROUGH
OPENING
11 3/4” W (30cm)
X
12 3/4” H 932cm)
US
C
