AE-G12N MEAT GRINDER OPERATING INSTRUCTIONS
American Eagle®AE-G12N meat grinders are part of our comprehensive line of
heavy-duty, high-quality machines. Their exceptional reliability and attractive,
compact designs make them ideal for open kitchens and front-end meat
operations. These machines make grinding even the toughest meat easy.
They’re perfect for hunters, butchers, and other foodservice professionals.
FEATURES
* ENERGY-EFFICIENT MOTOR WITH PRECISION GEAR DRIVE
* FORWARD/REVERSE SWITCH WITH RESET BUTTON
* COMPACT SIZE WITH NO SHARP CORNERS OR SEAMS
* CONFORMS TO ALL SAFETY & HYGIENE STANDARDS
* DESIGNED FOR EASY MAINTENANCE
* EXPANDABLE RANGE OF FOOD PROCESSING ATTACHMENTS
AMERICAN EAGLE FOOD MACHINERY, INC.
3557 South Halsted Street, Chicago, Illinois 60609-1606
Tel: [phone] · Fax: [phone] · Customer Service: 888-390-0800 · Order Hotline: [phone]
Email: [email protected] http://www.americaneaglemachine.com

Operation
IMPORTANT: Before plugging in your unit, be sure your machine’s electrical specifications, printed on the unit’s nameplate, match
those of your local power.
1. Remove the grinder head and wash parts thoroughly. Assemble grinder piece-by-piece onto hub.
Use diagram included in these instructions. Do NOT attach the meat grinder head pre-assembled!
1. Before grinding, manually tighten the thumb screw clockwise until secure. Do NOT use a tool or over-tighten!
2. Prepare meat for grinding by removing all skin and bones. Then cut the meat into appropriate-sized pieces for grinding.
3. Feed meat into the grinding chamber with the special meat pusher that was included with your machine. Never use fingers,
hands, or any other objects!
4. Equipped with enough grease for several years of usage. DO NOT FILL! If needed use lithium general purpose type grease.
5. After use, disconnect the power from the unit. Remove and disassemble the grinder head. Wash thoroughly to prevent
contamination. Store grinder head and motor unit separately.
6. If motor quits, use reset button to reinstate the power.
7. To release spiral propeller blockage, use the reverse/forward switch.
Specifications
Model Productivity Blade Speed Motor Voltage Dimensions (in) Weight
AE-G12N 220Lbs/Hour 170 rpm 1 HP 115V/60Hz/1Ph 77 Lbs (66 net)
Troubleshooting
Note: During grinding, meat should discharge from the grinder smoothly. If the discharge is not smooth, or if it is in the
form of paste, the following causes and remedies should be considered:
Optional Plate Sizes
AE-G12/08-02 1/16” (2mm)
AE-G12/08-04 5/32” (4mm)
AE-G12/08-10 3/8” (10mm)
AE-G12/08-12 1/2” (12mm)
AE-G12/08-14 9/16” (14mm)
AE-G12/08-16 5/8” (16mm)
AE-G12/08-18 11/16” (18mm)
AE-G12/08-00 3-Hole Plate
Standard Accessories
Stainless steel cutter
Stainless steel 1/4” (6mm) plate
Stainless steel 5/16” (8mm) plate
Plastic Meat Pusher
Sausage Stuffing Funnel
*AE-G12NH adjustable stainless
steel meat grinder head can be
attached to any universal #12 hub.
AE-G12NH*
Overview

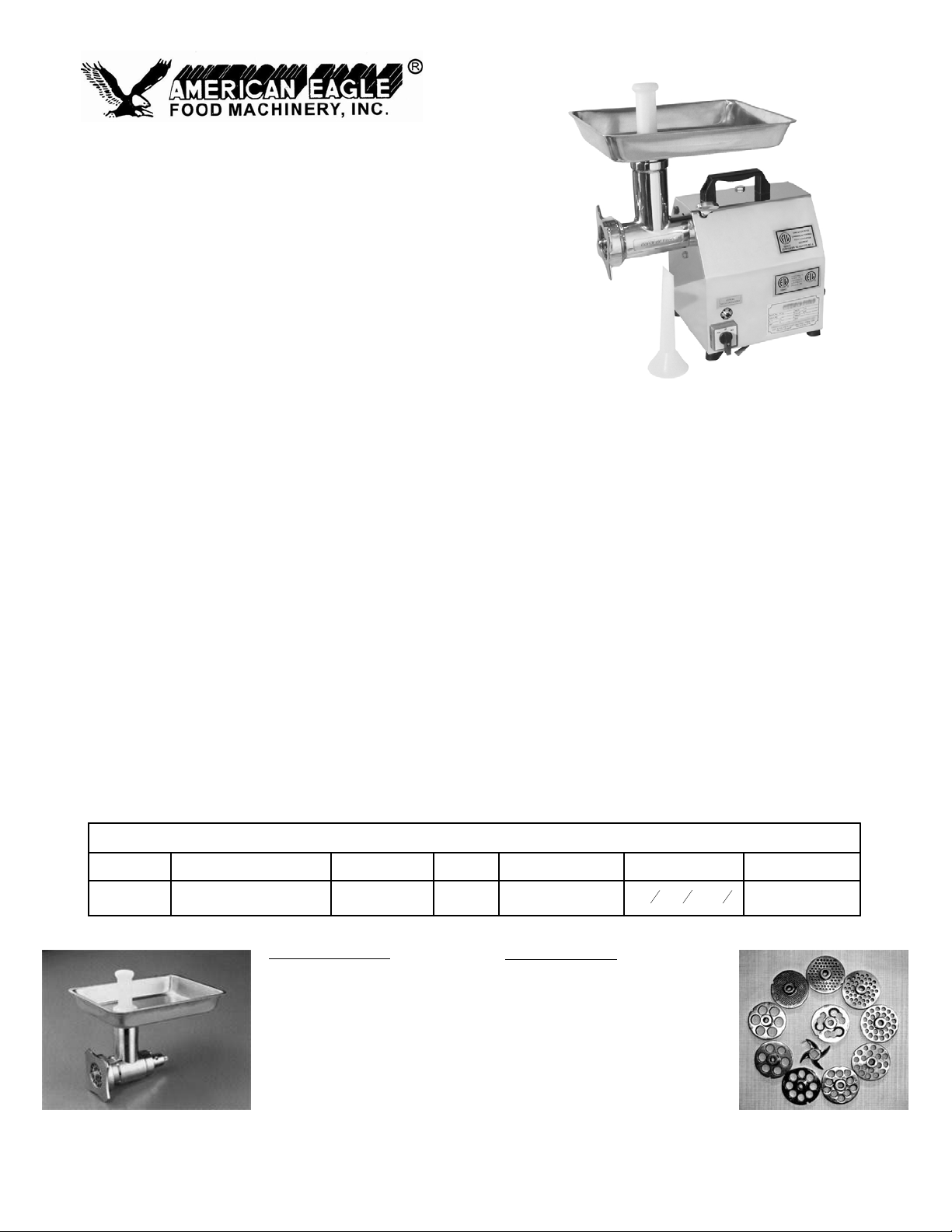

American Eagle AE-G12N Meat Grinders are intended for heavy
duty work in commercial food processing applications. Their
exceptional reliability and attractive, compact design make them
ideal for a variety of foodservice applications.
Features
* Powerful, energy-efficient one hp motor
* Precision gear drive for years of trouble-free service
* Complete stainless steel unit conforms to all safety standards
* Easy to remove attachments and grinder head
* Additional tenderizer and shredder attachments available
AMERICAN EAGLE FOOD MACHINERY, INC.
3557 South Halsted Street, Chicago, Illinois 60609-1606
Tel: [phone] · Fax: [phone] · Customer Service: 888-390-0800 · Order Hotline: [phone]
Email: [e-mail] http://www.americaneaglemachine.com
AE-G12N Meat Grinder
3
2
4
1
2
116x9x16
POSSIBLE CAUSES REMEDY
Coupling ring too tight Loosen and hand-tighten only until snug. Don’t over-tighten
Discharge plate is blocked Remove discharge plate and clean, then re-install
Blade edges have dulled May be sharpened, recommend replacing
Overloading and motor stopped Switch off and press reset button. Don’t overload

AMERICAN EAGLE FOOD MACHINERY, INC.
3557 South Halsted Street, Chicago, Illinois 60609-1606
Tel: [phone] · Fax: [phone] · Customer Service: 888-390-0800 · Order Hotline: [phone]
Email: [e-mail] http://www.americaneaglemachine.com
Part No. Description Part No. Description
AE-G12N/01 Complete Motor AE-G12N/31 Ball Bearing(#6205Z)
AE-G12N/02 Nut AE-G12N/32 Worm Shaft
AE-G12N/03 Worm AE-G12N/33 Key 6 X 5 X 4
AE-G12N/04 Oil Seal 18x30x8 AE-G12N/34 Worm Gear
AE-G12N/05 Screw (3pcs) M8x25 AE-G12N/35 Spacer
AE-G12N/06 Key 3 X 3 X 8 AE-G12N/36 Ball Bearing(#6203Z)
AE-G12N/07 Coupling Cover Nut AE-G12N/37 C-Type Snap Ring
AE-G12N/08 Pressure Plate AE-G12N/38 Gear Box
AE-G12N/09 SS Cutter (1pc) AE-G12N/39 Cover
AE-G12N/10 Holder AE-G12N/40 Bottom Plate
AE-G12N/11 Spiral Propeller AE-G12N/41 Rubber Legs (4pcs)
AE-G12N/12 Plunger AE-G12N/42 Cap Screw (4pcs) M6x15
AE-G12N/13 Teflon Washer AE-G12N/43 Sausage Stuffing Funnel
AE-G12N/14 Key ф3.50 AE-G12N/44 Meat Pusher
AE-G12N/15 T-Shaped Chamber AE-G12N/45 Circuit Breaker For Electronic Switch
AE-G12N/16 Pin ф8SS AE-G12N/46 Forward & Reverse Switch
AE-G12N/17 Oil Bearing (2pcs) AE-G12N/47 Cap Screws (4pcs) M3x12
AE-G12N/18 Screws (3pcs) M8x25 AE-G12N/48A Capacitor-300uf
AE-G12N/19 Housing AE-G12N/48B Capacitor-40uf
AE-G12N/20 Feeder Pan AE-G12N/49 O-Ring
AE-G12N/21 Screw Driver 8mm AE-G12N/50 Turning Handle
AE-G12N/22 Screw(2pcs) M8x30 AE-G12N/51 Specification Plate
AE-G12N/23 Handle AE-G12N/52 Fixed Plate
AE-G12N/24 Oil Taper M12x14 AE-G12N/53 Cable Tie
AE-G12N/25 Thumb Screw AE-G12N/54 Power Cord Set & Plug
AE-G12N/26 Screws (3pcs) M8x35 AE-G12N/55 Centrifugal Governor Plate
AE-G12N/27 Attachment Hub AE-G12N/56 Cap Screws
AE-G12N/28 Oil Seal 30x45x8 AE-G12N/57 Cap Screws
AE-G12N/29 Shaft-Hub AE-G12N/58 Centrifugal Governor
AE-G12N/30 Spring Cylinder Pin 8X30 AE-G12N/59 Electronic Starter
AE-G12N Meat Grinder
New wiring diagram for electronic starter
Applies to Serial # 12N0708001 and after
Parts List
AE-G12N Meat Grinder
Parts List & Assembly Diagram

Meat Grinder
Warranty Information & Record
LIMITED WARRANTY
FOR MODELS # AE-G12N, AE-G12NM, AE-G22N, AE-G22NM
Parts: 1 Year · Labor: 90 Days
All equipment, which is sold under American Eagle Food Machinery, Inc. (AEFM) trademark and used for commercial purposes, is
warranted against defects in materials and workmanship. This warranty is in lieu of all other warranties, express or implied. AEFM, Inc.
expressly disclaims any implied warranty of merchantability or expressed or implied warranty of fitness for a particular purpose.
The liability of AEFM, Inc. is expressly limited to repairing equipment that proves to be defective in materials or workmanship within the
warranty period stated below. AEFM, Inc. expressly excludes liability for incidental or consequential damages to purchaser/owner or
any third party, including but not limited to and without limitation damages arising from personal injuries, lost profits, loss of business
opportunity, loss of property, economic losses or statutory or exemplary damages whether through negligence, strict liability or
otherwise.
This warranty is given solely to the original purchaser/user of the product. No warranty is given or implied to subsequent transferees.
This is the sole Warranty Agreement between AEFM, Inc. and the Purchaser/User. No other agreements are implied, authorized, or
assumed, whether by AEFM, Inc. or any third party.
This warranty is not effective if damage occurs because of accident, carelessness, improper installation, lack of proper setup,
supervision when required, or if the equipment is installed or operated in any manner contrary to the installation and operating
instructions. In these cases, repairs will be made at a reasonable cost. Work performed by unauthorized personnel or unauthorized
service agencies voids this warranty.
This warranty shall not take effect until and unless a properly completed and signed warranty registration form has been received by
AEFM, Inc. within thirty (30) days from the date of installation.
This warranty is expressly conditional upon AEFM, Inc. being notified in writing of any defects in materials or workmanship within thirty
(30) days of occurrence and said occurrence being within warranted time period.
WARRANTY EXCLUSIONS (Items not covered under warranty)
AEFM, Inc. expressly excludes the following items from warranty coverage:
Meat grinder knives, stone, knobs, worm gears, or miscellaneous expendable supply items subject to normal wear-and-tear
Items damaged due to improper use
Mixer accessories and/or motor hub attachments
Periodic required maintenance including but not limited to: lubrication and replacement of worn supply items
Equipment damaged by shipper or freight forwarding company (receiver is advised to file freight claims in timely manner or
refuse damaged articles)
Other adjustments required due to installation, setup, or normal wear of machine
LIMITED ON-SITE WARRANTY: On-site warranty is only offered on items 110 lbs. or more, at a location that is within a 50 mile radius
of a certified AEFM, Inc. technician. Please refer to our product specification charts for weights and measures. For machines greater
than 65 pounds and less than 110 pounds, the machine must be taken or shipped, transportation charges prepaid, to AEFM, Inc.
headquarters in Chicago, Illinois. Labor and parts charges will apply if the machine is out of warranty coverage.
MACHINE PARTS: AEFM, Inc. warrants to the original purchaser/user of that the product will be free from defects in material or
workmanship for a period of one (1) year from the date of acquisition if installed and operated according to our instructions, OR
eighteen (18) months from the date of shipment from our factory to our dealer, whichever expires first.
LABOR: AEFM, Inc. will, during its normal business hours, or through an authorized service representative, repair or replace all parts
found to be defective under this warranty without charge for labor for a period of ninety (90) days from the date of acquisition.
