1.0 Introduction
This user manual is designed for American Industrial Systems, Inc. Marine Rugged Display Computer.
Included is a comprehensive overview of the Marine Rugged Display Computer systems designed by
American Industrial Systems.
All rights are reserved. None of this document shall be duplicated, stored in a retrieval system, or
transmitted by all means, electronic, mechanical, photocopying, recording, or otherwise, without the
prior written permission of American Industrial Systems, Inc. No copyright or patent liability is assumed
with respect to the use of the information included herein. Although every precaution has been taken in
the preparation of this documentation, neither responsibility is assumed for errors or omissions by the
publisher and the author, nor is any liability assumed for damages caused by the use of the information
included herein.
The information in this documentation is subject to change without prior notice and does not stand for a
commitment on the part of American Industrial Systems, Inc.
The information included in this manual may be subject to technical changes especially due to constant
product upgrades.
The attached documentation does not involve any guarantee on the part of American Industrial Systems,
Inc. regarding technical processes described in the manual or any product characteristics specified in the
manual. American Industrial Systems, Inc. does not accept any liability for any printing errors or other
inaccuracies in the manual unless it can be proven that American Industrial Systems, Inc. is aware of such
errors or inaccuracies or that American Industrial Systems, Inc. overlooks these as a result of gross
negligence and American Industrial Systems, Inc. has failed to get rid of these errors or inaccuracies for
this reason.
American Industrial Systems, Inc. clearly informs the users that this manual only encloses a general
description of technical processes and instructions which may not be applicable in every single case. In
cases of doubt, please contact American Industrial Systems.
This manual is protected by copyright. All rights are reserved by American Industrial Systems, Inc. Copies
of all or part of this manual or translations into different languages may only be made with the prior
written consent. American Industrial Systems, Inc. points out that the information included in this manual is
constantly being updated in line with the technical changes and improvements made by American
Industrial Systems, Inc. to the products and thus this manual only reflects the technical status of the
products at the time of printing.
© 2013 by American Industrial Systems, Inc.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 6
2.0 Important Safety Instructions
This chapter also includes information on approval and interference inhibition of your unit. Please abide
by the warnings and instructions on the unit and in the manual. Please read these instructions carefully
before using the product and save it for later reference.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Clean the product with a damp soft
cloth. Do not use liquid or aerosol cleaners as it may cause permanent damage to the screen.
Do not use this product near water.
Do not place this product on an unstable cart, stand, or table. The product may fall, causing
serious damage to the product.
This product should be operated from the type of power indicated on the marking label. If you are
not sure of the type of power available, consult your dealer or local power company.
This product is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin.
This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet.
(For AC version only) Do not defeat the purpose of the grounding-type plug.
Do not allow anything to rest on the power cord.
Do not locate this product where persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric shock.
Never spill liquid of any kind on the product.
Do not attempt to service this product yourself, as opening or removing covers may expose you to
dangerous voltage points or other risks and will void the warranty. Refer all servicing to qualified
service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel under
the following conditions:
When the power cord or plug is damaged or frayed. If liquid has been spilled into the
product.
If the product has been exposed to rain or water.
If the product does not operate normally when the operating instructions are followed.
Adjust only those controls that are covered by the operating instructions since improper
adjustment of other controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal operation.
If the product has been dropped or the cabinet has been damaged.
If the product exhibits a distinct change in performance, indicating a need for service.
The Marine Rugged Display Computer, Display system was built and tested by American Industrial
Systems, Inc. in accordance to prescribed safety conditions, and in a safe condition.
In order to retain this condition and maintain safe operation, the users must abide by the instructions and
warnings
The electrical installations in the room must not violate the requirements of the local (country-specific)
regulations.
The unit must be used in accordance with these instructions.
Pay close attention that there are no cables, especially power cables, in areas where ambulatory traffic
may interfere.
Only use the power cord supplied with the package. Don't use injured or damaged power cords.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 7
2.1 Suggestions for DC power connection
The DC power source should be able to be switched off and on via an isolating switch. The unit is only
completely disconnected from the DC main power source, when the DC power cord is disconnected
either from the power source or the unit. Therefore, the DC power cord and its connectors must always
remain within reach.
2.2 Suggestions for AC power connection via external AC/DC adapter
The main power cable of the optional external AC/DC adapter serves as disconnecting device. For this
reason the outlet of the AC power source must be located near the device and be within reach.
Never place the unit under direct sunlight, near heat sources or in a humid place. Make sure the unit
has proper ventilation.
All plugs on the connection cables must be screwed or locked to the housing.

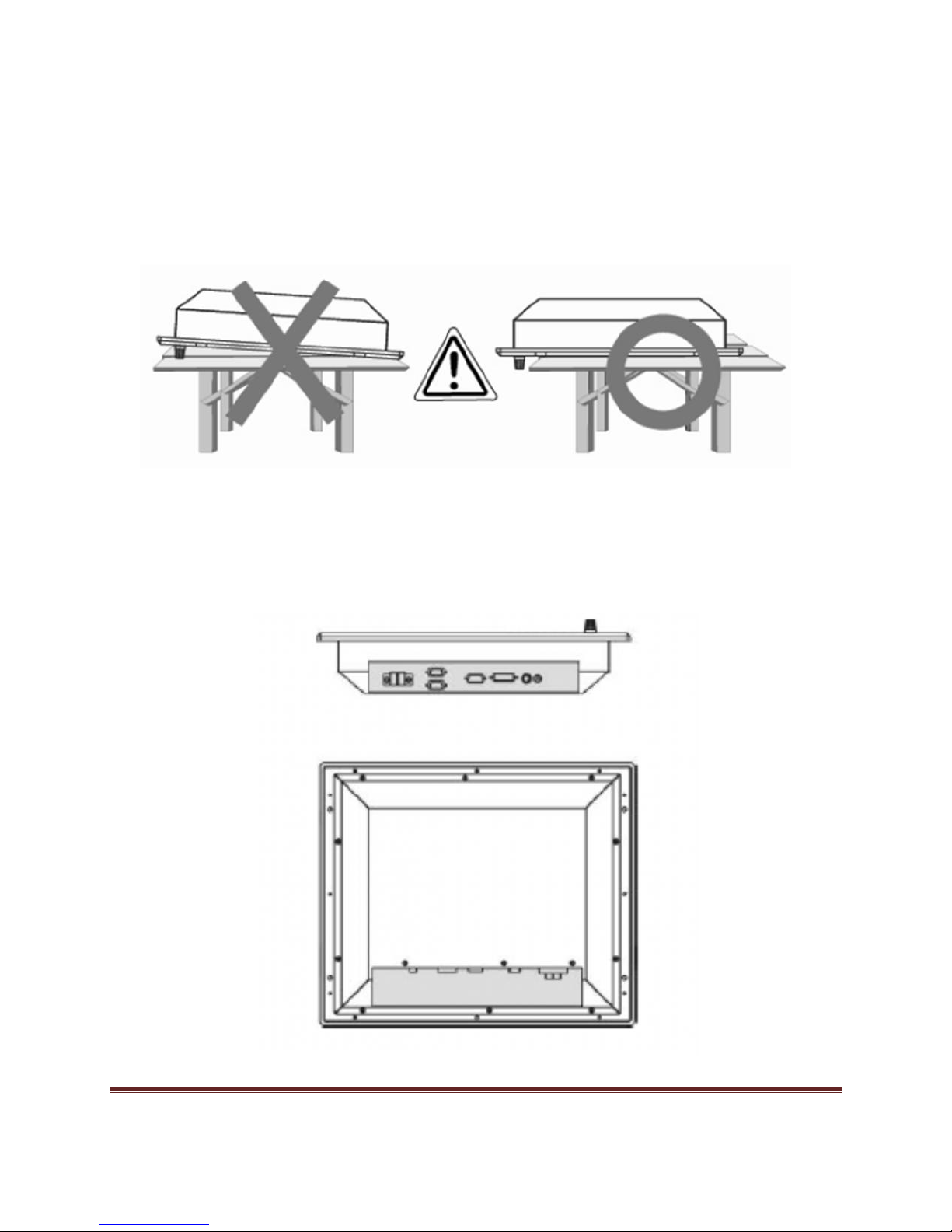

The Marine Rugged Display Computer, designed to be used in upright position with the I/O
interfaces downwards.
The unit generates heat under natural operation therefore it should be properly ventilated. Never
cover up the air intake and exhaust openings of the unit. Do not impede the fins of the heat sink.
Repairs may only be operated by specialists or technicians qualified and authorized by American
Industrial Systems, Inc.
Maintenance or repair on the open unit may only be operated by specialists or technicians qualified and
authorized by American Industrial Systems, Inc. who are familiar with the related hazards.
When accessing the internal components, users must switch off the unit and disconnect it from the
power source.
Only original accessories (or suggested optional parts) approved and supplied by American Industrial
Systems, Inc. can be used.
Assumption of safe operation is no longer possible:
-If the unit has obvious damage or
-If the unit no longer functions accordingly.
Under such cases the unit must be shut down and secured against any unintended operation.
2.3 Electrostatic Discharge (ESD)
A sudden discharge of electrostatic electricity can damage electrostatic-sensitive devices or circuit.
Adequate packaging and grounding techniques are essential fundamentals to avoid damage. The
following precautions should be always taken:
1. Deliver printed circuit boards in electrostatic-safe containers such as cartons, boxes or anti-static
bags.
2. Keep electrostatic-sensitive parts in their containers until they reach an electrostatic-free station.
3. Follow adequate grounding when sensitive PCB’s, components, or assemblies are in close vicinity
of the unit.
4. Store electrostatic-sensitive PCB's in a protective packaging such as insulating foam.
2.4 Grounding Methods
Protect against electrostatic damage of the unit by taking the following preventative measures:
1. Cover workstations with approved anti-electrostatic material.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 8
2. In order to guarantee that the operator is grounded, provide a wrist strap connected to the working
bench.
3. Properly ground tools and equipment.
4. For extra protection use anti-electrostatic mats, heel straps, or air ionizers.
5. Handle electrostatic-sensitive components, PCB's, and assemblies with care nearby the case or the
edge of the board.
6. Prevent contact with pins, leads, or circuitry.
7. Switch off power and input signals before plugging and removing connectors or testing equipment.
8. Keep the work area free from non-conductive materials such as ordinary plastic assembly aids and
Styrofoam.
9. Use field service tools with conductivity, such as screwdrivers, pliers, and vacuum cleaners.
10. Always put drives, PCB’s, and the like with the component-side down on the working bench.
2.5 FCC Statement
This equipment has been tested and found to comply with the requisites for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection from
harmful interference when the equipment is operated in commercial environments. This equipment
generates, uses, and radiates radio frequency energy, and if it is not installed and used in accordance with
the instruction manual it may cause harmful interference to radiofrequency communications. Operation of
this equipment in residential areas may cause harmful interference in which case the operator will be
required to correct the interference at his or her own expense.
2.6 Electromagnetic Capability
The Marine Rugged Display Computer has been designed for industrial use. The most recent version of the
EMC guidelines (EMC Directive 2004/108/EC) are applied. If the users modify and/or add to the
equipment (e.g. installation of add-on cards), then the prerequisites for the CE conformity declaration
(safety requirements) may no longer be applicable.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 9
2.7 Important LCD Information

American Industrial Systems – Marine Rugged Display Computer User Guide Page 10
3.0 Packaging List
Item
Description
Note
1 User Manual
1 CD for Touchscreen Drivers & Tools
1 Power Cord

American Industrial Systems – Marine Rugged Display Computer User Guide Page 11
4.0 Product Description
4.1 General Information
AIS naval rugged display systems and marine panel computers with rugged touch screen interface,
comply with marine equipment standards IEC 60945, DNV 2.4, and IACS-E10 (international standard for
maritime navigation and radio communications equipment and systems), needed to withstand harsh
maritime environment requiring low EMI or long-term vibration resilience for use in the Combat
Information Center (CIC) on board surface ships, combat ships, submarines or military vessels. These
marine panel computers are specifically designed to fully operate under harsh maritime conditions; and
suitable for bridge control display, navigation, monitoring and ship automation applications. AIS naval
rugged display systems are DNV certified for a range of extreme conditions including temperature,
humidity, vibration, EMC compatibility and enclosures; with environmental ratings for enclosures based
on NEMA 4, 4X, IP65 ratings for degree of protection against falling dirt, rain, windblown dust,
splashing water, hose-directed water, and corrosion. These navy PC computers also offer a range of
industrial features such as optional optical bonding, wide view angles, and full range dimming. The
touchscreen panel is fully integrated with the computer to reduce system integration costs and minimize
required footprint. Full support is provided for wide range of panel resolutions in order to meet specific
requirements of many different marine applications. AIS professional high quality design provides marine
users with reliable, cost-efficient, and ready to run solutions. AIS COTS rugged marine display computers
are offered in screen sizes 10.4”, 12.1”, 15”, 17”, 19” and 24”.
4.2 Features
Maritime Environment Standard: Tested to DNV standard methodology for a range of extreme
conditions including temperature, humidity, vibration, EMC compatibility and enclosures.
IEC60945: Tested to IEC60945 standard methodology for maritime navigation and radio
communication equipment and systems, including radio and navigational equipment used onboard.
IACS-E10: Tested to IACS-E10 standard procedure for electronically controlled equipment and
instrumentation, as well as marine display monitors.
Full-Range Durable Displays
oHigh quality branding TFT LCD displays with high resolution and wide temperature
range panels.
Hyper Dimming
oOur displays use hyper dimming technology that can control backlight brightness linearly
from nearly 0% to 100% by a dimming knob
Touchscreen/Anti-reflection Protection Glass
IP65 OSD (On Screen Display) Front Panel Design
Anti-shock and Vibration

American Industrial Systems – Marine Rugged Display Computer User Guide Page 12
5.0 Basic Construction

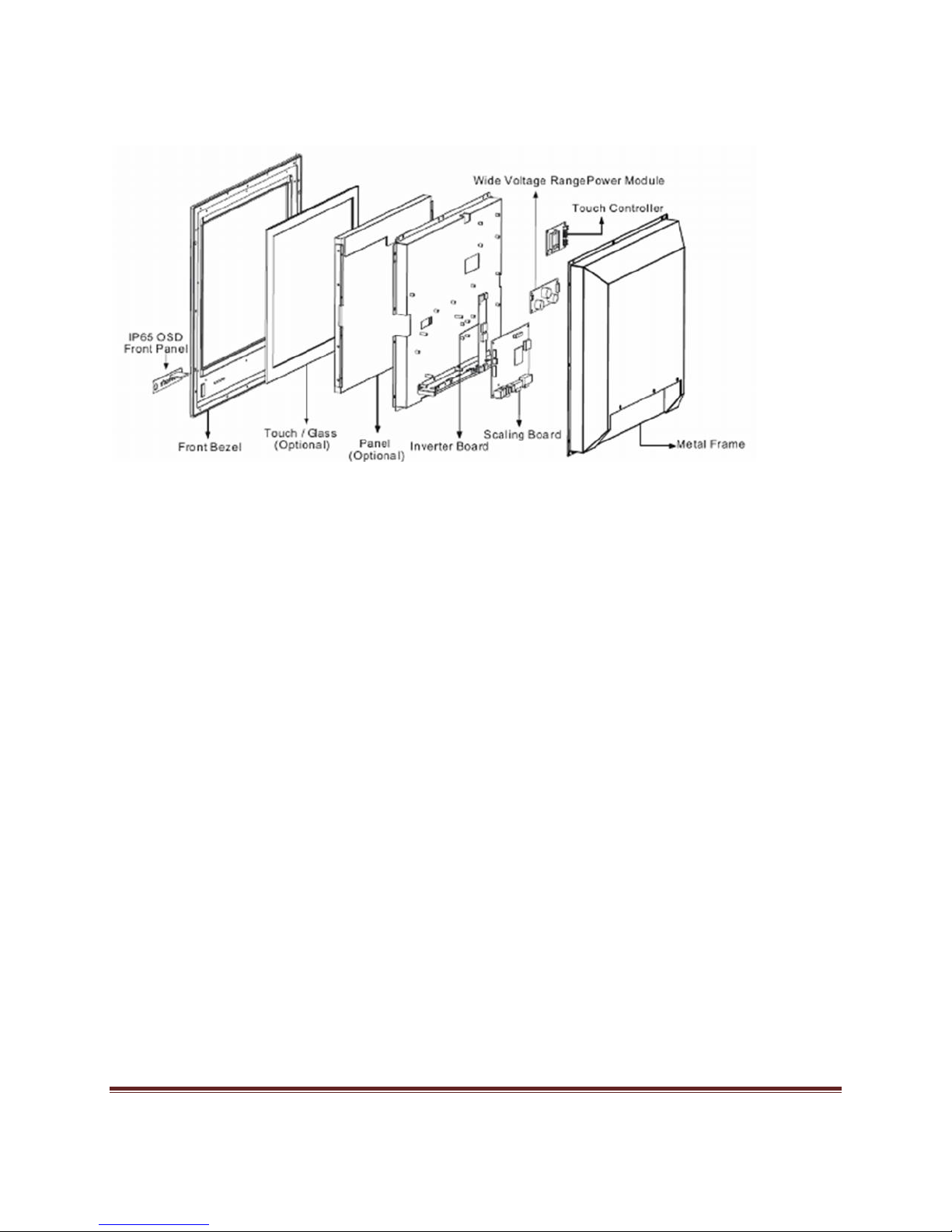

The state of the art modulated technology can integrate all marine display components flexibly.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 13
6.0 Touch Screen Solution

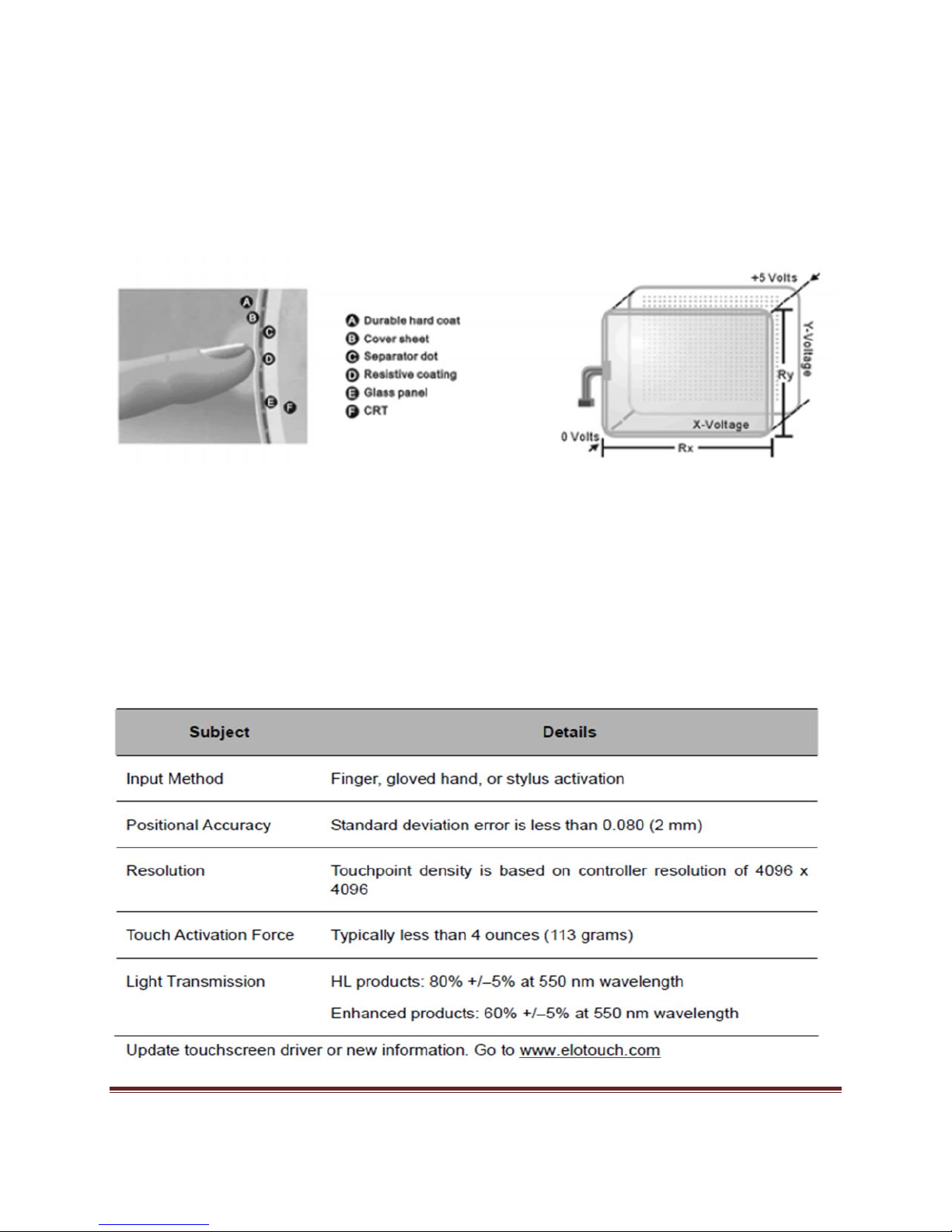

6.1 Introduction to Five-Wire Resistive Touch Screen
The five-wire resistive touchscreens use a glass panel with a uniform resistive coating. A thick polyester
coversheet is tightly suspended over the top of the glass, separated by small, transparent insulating dots.
The coversheet has a hard, durable coating on the outer side and a conductive coating on the inner side.
When the screen is touched, the conductive coating makes electrical contact with the coating on the glass.
The voltages produced are the analog representation of the position touched. The controller digitizes these
voltages and transmits them to the computer for processing. The five-wire technology utilizes the bottom
substrate for both X and Y-axis measurements. The flexible coversheet acts only as a voltage-measuring
probe. This means the touchscreen will continue working properly even with non-uniformity in the cover
sheet's conductive coating. The result is an accurate, durable and reliable touchscreen that offers drift free
operation. The touchscreens are sealed against contamination and moisture. The coversheet is sealed to
the glass substrate with an industrial grade caulk. This prevents wicking of fluid between the coversheet
and glass. Also, the touchscreens are not air vented, thereby preventing fluid ingress through an air vent.
Brief Specifications:

American Industrial Systems – Marine Rugged Display Computer User Guide Page 14
7.0 Installation
7.1 General Installation
The Marine Rugged Display Computer can be applied to several different installation methods. These
include, but not limited to: panel (flush) mounting, bracket mounting, ceiling / wall mounting etc. Panel
(flush) mounting is normally used for a ship's wheelhouse use, it's easy to follow the following few steps
to fix the display product in the customer's fixture.

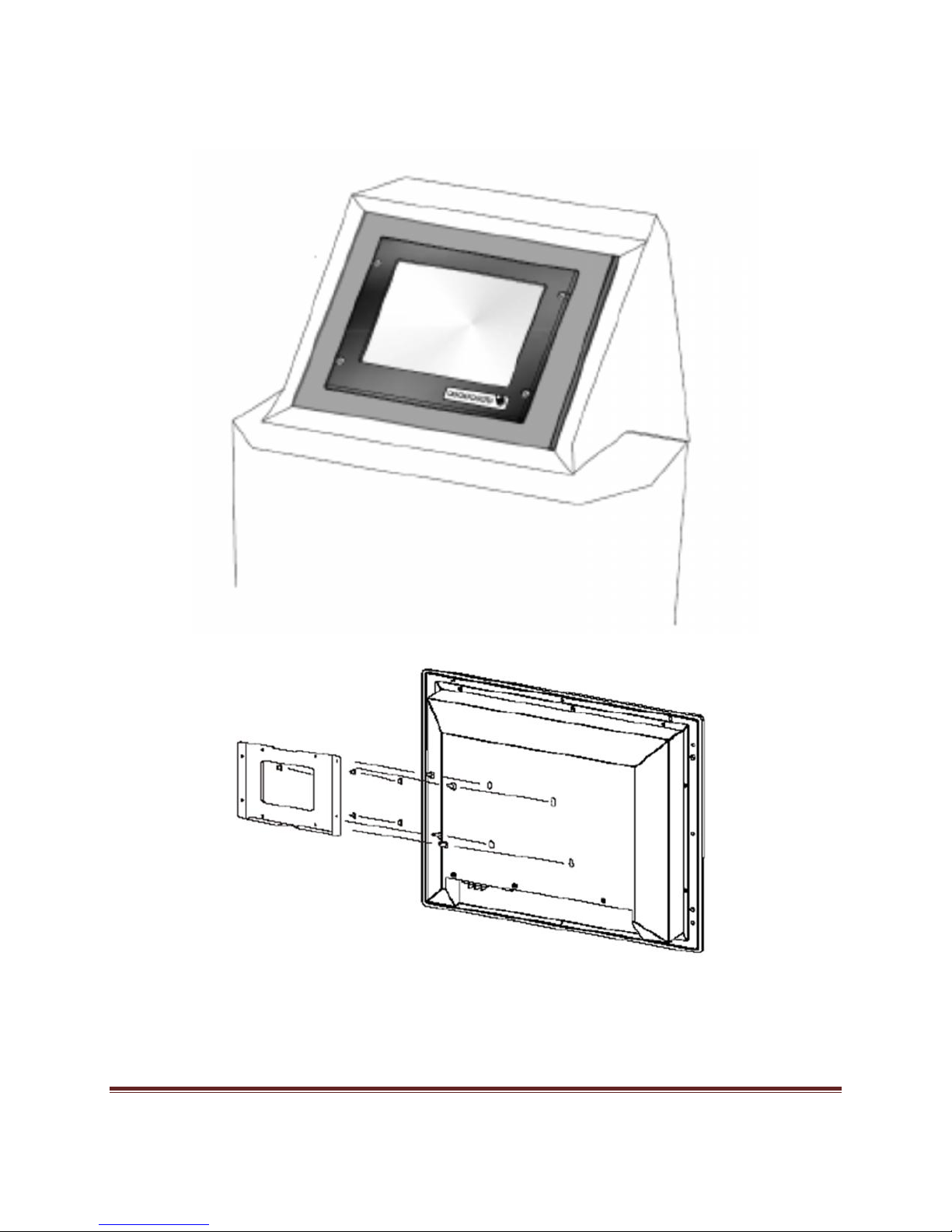

Check the mechanical and mounting concepts below first. The fixture cut-out dimension and mounting
holes are based on the drawing.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 15
Step 1. Put the marine product on the fixture (console) from the front, and screw in the four M6 x 30 mm
black bolts with nuts.
Step 2. Use M4x 15mm bolts to drill through the fixture into the mounting holes on the rear side of the
IP65 front bezel. (The quantity of mounting screws is based the size of your specific monitor) .

American Industrial Systems – Marine Rugged Display Computer User Guide Page 16
Step 3. Check the finished mounting concept. (DNV certification approved)
** Please Note: The VESA and wall mount with the mounting kit is available by special request.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 17
7.2 VESA Wall Mount Installation
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which
defines a physical mounting interface for flat panel monitors. It also corresponds with the standards of flat
panel monitor mounting devices, such as walls and table arms. The VESA mounting interface is located
on the back of your monitor.
To mount the monitor on an UL-listed certified swing arm or other mounting fixture, follow the
instructions included with the mounting fixture to be used.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 18
7.3 Important Installation Precautions
7.3.1 Brightness Control Knob Precaution
The dimming brightness control knob may be damaged by incorrect placement. Please make sure to
correctly install the monitor in order to protect the knob.
7.3.2 Cable Connection Precaution
Make sure to use qualified shielded signal cables to connect the Marine products. These cables include
the RGB, DVI, RS232, LAN, and USB cables, and should be connected as marked below. For DC power
connection, please make sure the power cable is tightly connected by the two screws of the terminal block.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 19
8.0 LCD Display Operation
8.1 Input/output Signals Overview
The Marine Rugged Display Computer is designed with versatile video input / output functions. 10.4 inch
to 24 inch displays can use VGA, DVI, S-Video and Composite inputs. These displays can also support
PIP (picture in picture) multi-scan function fulfilling the maritime multi-function demand.
**Please Note: Some connectors are optional depending on the customer’s demands.
Power input (DC Version / AC Version)
Default DC terminal block power source input’s compact design meets the maritime industry requisites.
The terminal block is to be secured so that the cable does not disconnect from the terminal.
AC Standard 90V to 265V power input is also available for AC version options. Use standard power
cords to connect to the AC power inlet.
RS232 serial port for touch and remote control connection
Connect Standard D-SUB 9pin connector from your system to the monitor to control the touchscreen. Be
sure the appropriate touch driver is installed.
The other function for the remote control should depend on your own application software built into the
RS232 command code. This function makes it easy to control the LCD monitor through own PC via
RS232 port connection.
VGA port connection
Use the D-SUB 15-pin (Male) VGA signal cable to the VGA connector at the rear of the PC system, and
plug the other end to the TFT LCD display. Fasten the cable connectors with screws.

American Industrial Systems – Marine Rugged Display Computer User Guide Page 20
8.2 OSD User Controls
The compact OSD in the front of the display is a user-friendly interface used to toggle between different
display functions as well as a dimming VR knob. The on-screen display (OSD) contains several functions
that will let the user adjust or set up the display to their preferred setting. It also supplies special Hot Keys
such as clicking two keys together for easy image flipping and auto color balance adjustment.
