American Standard 6590 Series User manual

BEFORE YOU BEGIN
SAVE FOR FUTURE USE
7301778-100 Rev. B 8/18
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
Product names listed herein are trademarks of AS America Inc.
© AS America Inc. 2018
NOTES:
• Pictures may not exactly define contour of china and components.
• Observe all local plumbing and building codes.
• Refer to local codes and manufacturer’s instructions for flush valve requirements.
• Carefully inspect the new urinal for damage.
• Fixture dimensions are nominal and conform to tolerances by ASME Standard A112.19.2.
• Site preparation may require additional tools and hardware.
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is
installed properly, please read these instructions carefully before you begin. (Certain installations may require professional
help.) Also be sure your installation conforms to local codes.
!

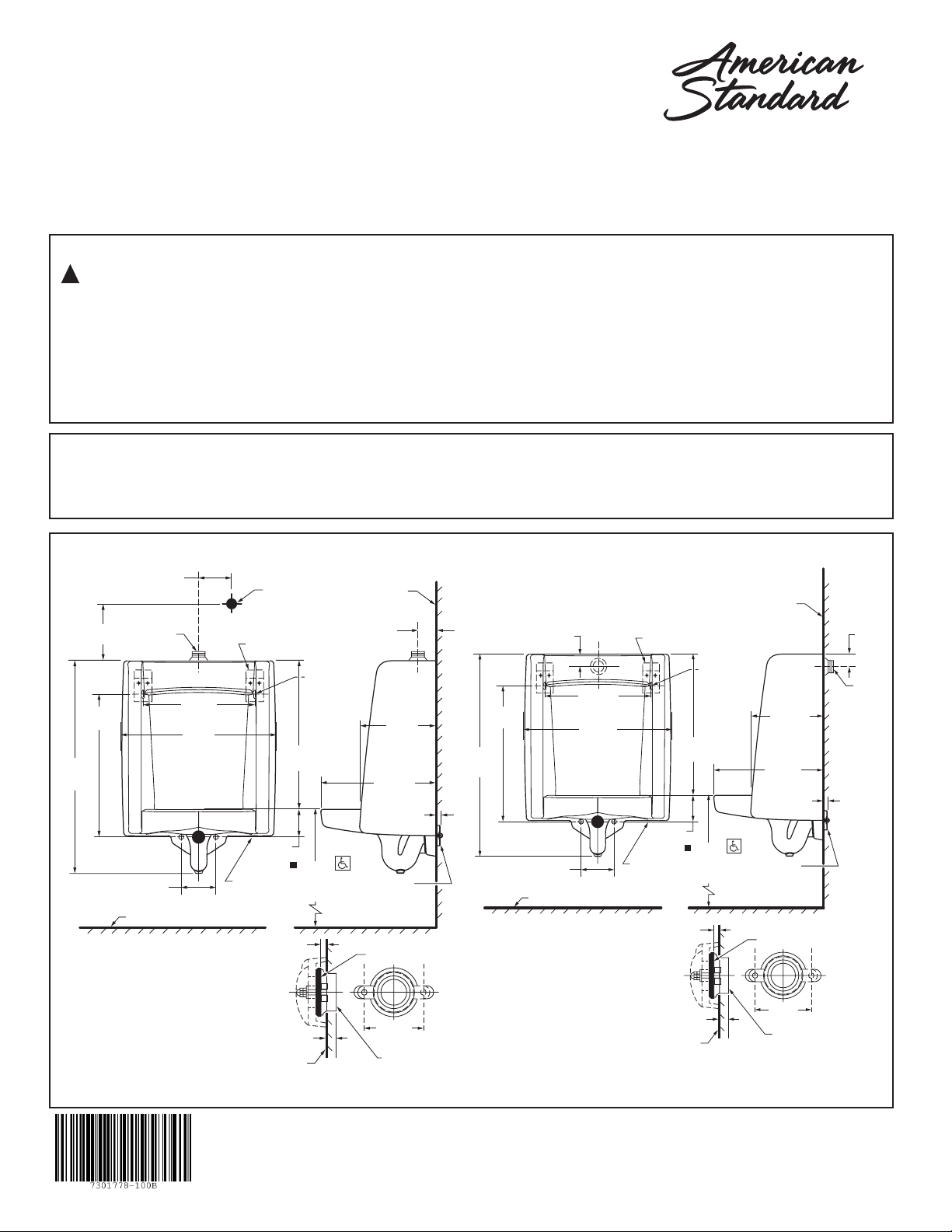

6590 & 6515 SERIES
Top Spud Back Spud
WASHBROOK URINAL
INSTALLATION INSTRUCTIONS
13mm
(1/2")
102mm
(4")
GASKET
2" N.P. T.
INSIDE THREADS
DETAIL OF OUTLET CONNECTION

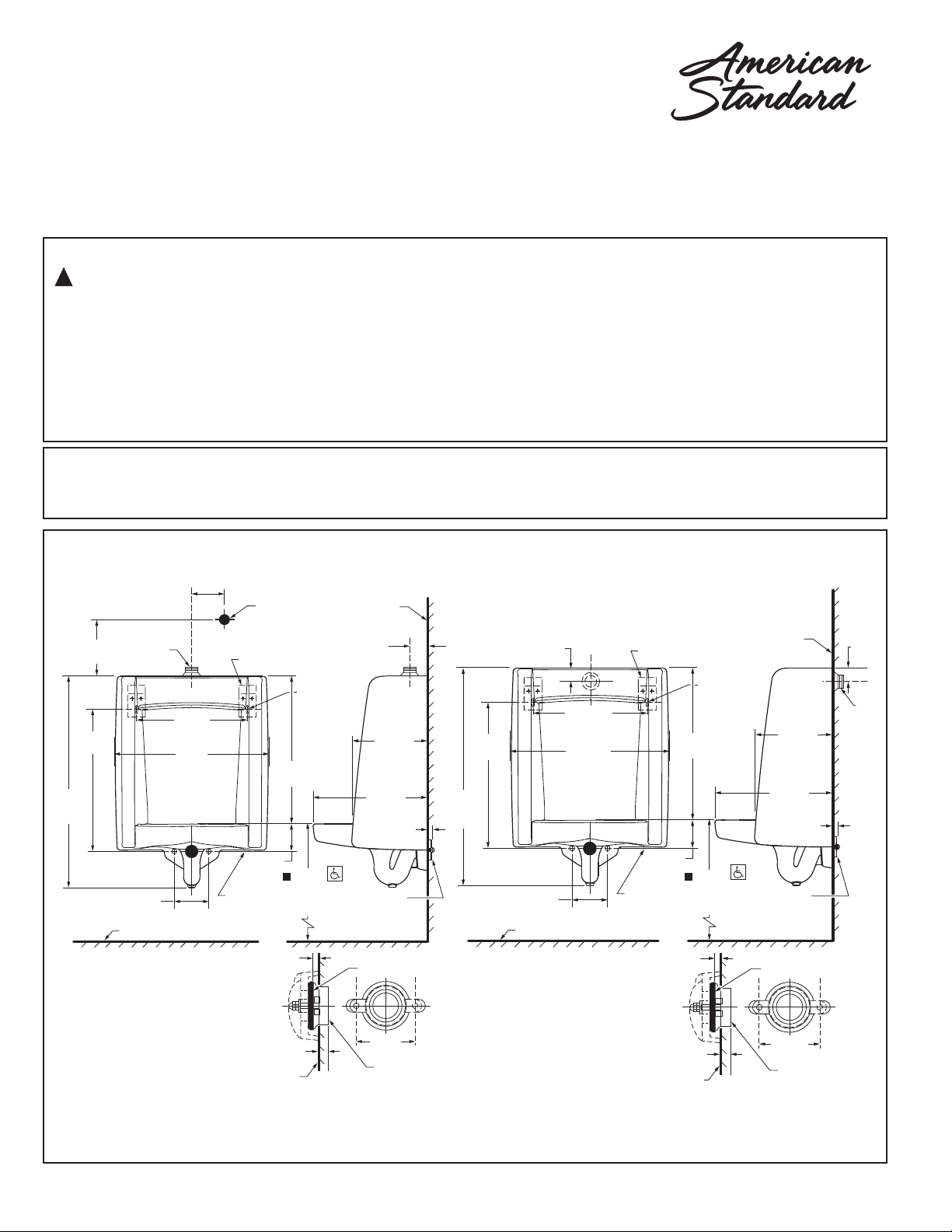

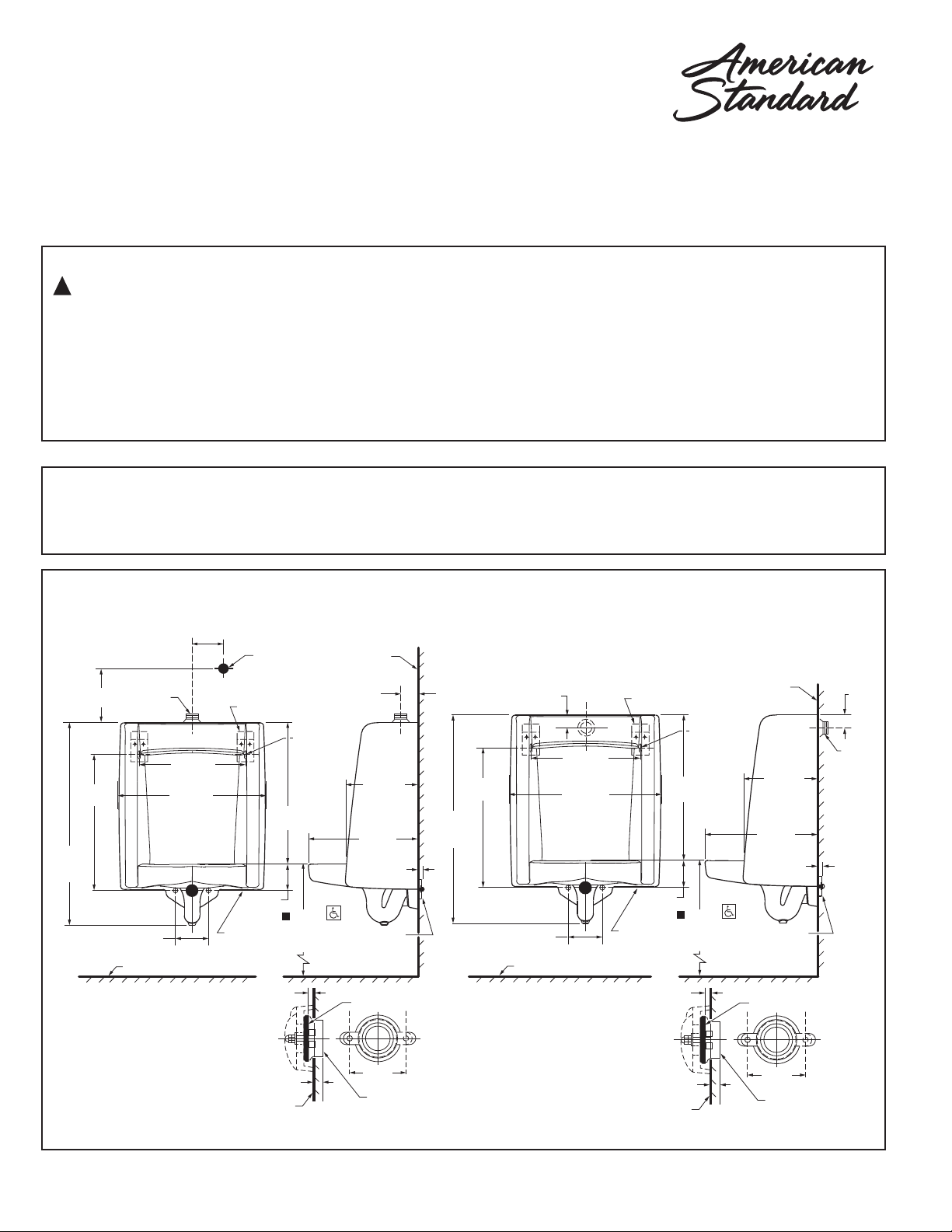

FINISHED WALL
13mm
(1/2")
121mm
(4-3/4")
3/4"
SPUD
3/4" S.P. S.
OR 3/4" C.W.T.
SUPPLY TO
FLUSH VALV E
445mm
(17-1/2")
664mm
(26-1/8")
REF.
464mm
(18-1/4")
292mm
(11-1/2")
83mm
(3-1/4")
102mm
(4")
480mm
(18-7/8")
343mm
(13-1/2")
C/L OF
OUTLET
K2 HANGERS
8mm x 25mm
(5/16" x 1")
SLOT
64mm
(2-1/2")
235mm
(9-1/4")
360mm
(14-1/8")
2" N.P. T.
FEMALE OUTLET
CONNECTION
13mm
(1/2")
FINISHED FLOOR
FINISHED
WALL
432mm
(17") MAX
610mm (24")
OPTIONAL
51mm
(2")
13mm
(1/2")
102mm
(4")
GASKET
2" N.P. T.
INSIDE THREADS
DETAIL OF OUTLET CONNECTION
FINISHED WALL
13mm
(1/2")
445mm
(17-1/2")
664mm
(26-1/8")
REF.
464mm
(18-1/4")
83mm
(3-1/4")
102mm
(4")
480mm
(18-7/8")
343mm
(13-1/2")
C/L OF
OUTLET
K2 HANGERS
8mm x 25mm
(5/16" x 1")
SLOT
235mm
(9-1/4")
360mm
(14-1/8")
2" N.P. T.
FEMALE OUTLET
CONNECTION
13mm
(1/2")
FINISHED FLOOR
FINISHED
WALL
432mm
(17") MAX
610mm (24")
OPTIONAL
3/4"
SPUD
51mm
(2")
RECOMMENDED TOOLS AND MATERIALS
Safety Glasses Tape Measure Adjustable Wrench Pencil Hole Cutting Equipment
Thread Sealant 1/4" Ratchet Blade Screwdriver Levels

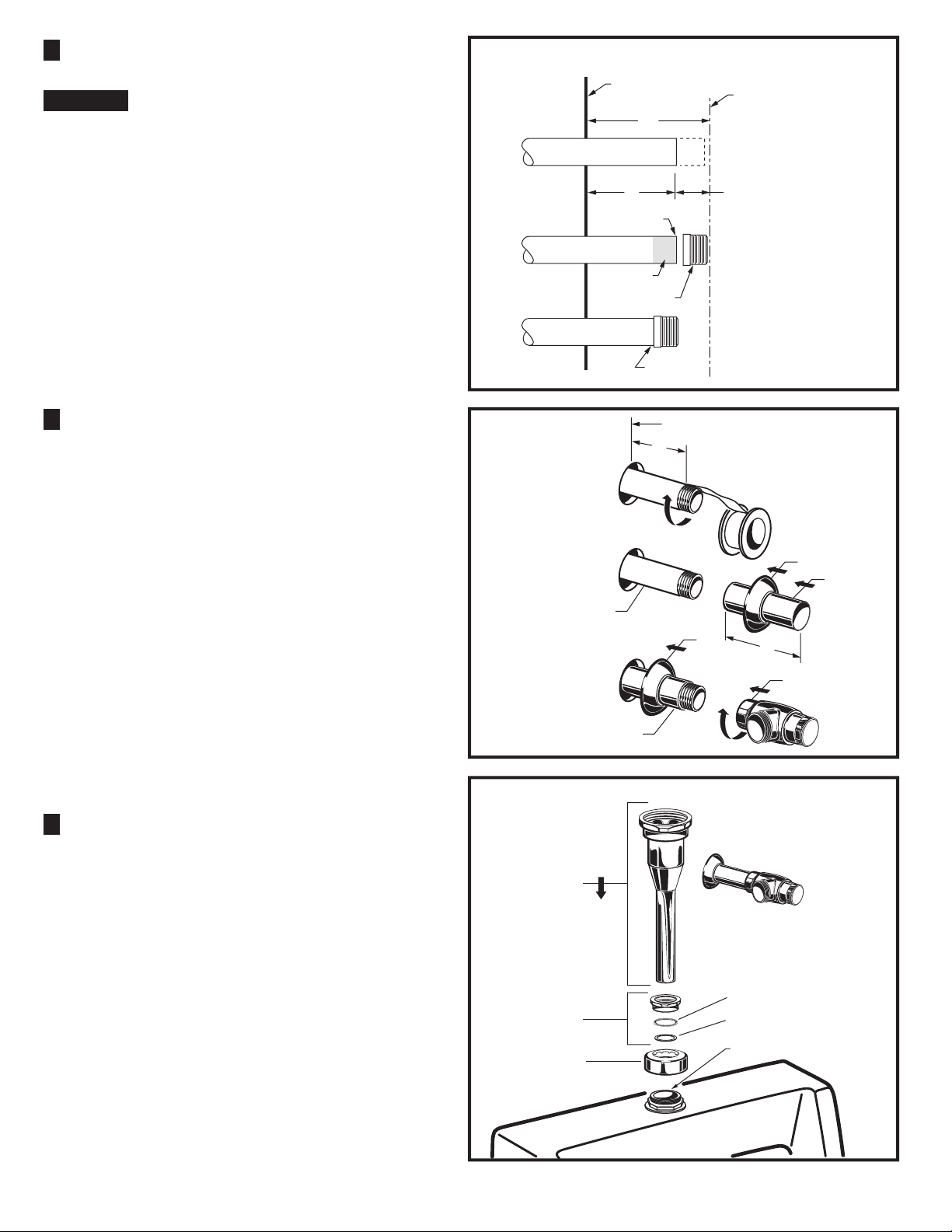

a. Turn the water supply OFF.
b. Install or relocate the supply tubing and waste pipe as necessary to conform to the roughing in dimensions.
c. Install the shut off valve.
d. Install adequate support framing for the wall hangers as needed.
e. Determine the position of the waste pipe nipple. When establishing the nipple length, take into account the
length of the urinal outlet spud and the distance the female collar will thread onto the waste pipe nipple.
NOTE: Add a little extra length to the nipple to allow for gasket space.
PREPARATION
7301778-100 Rev. B 8/18
- 2 -
1

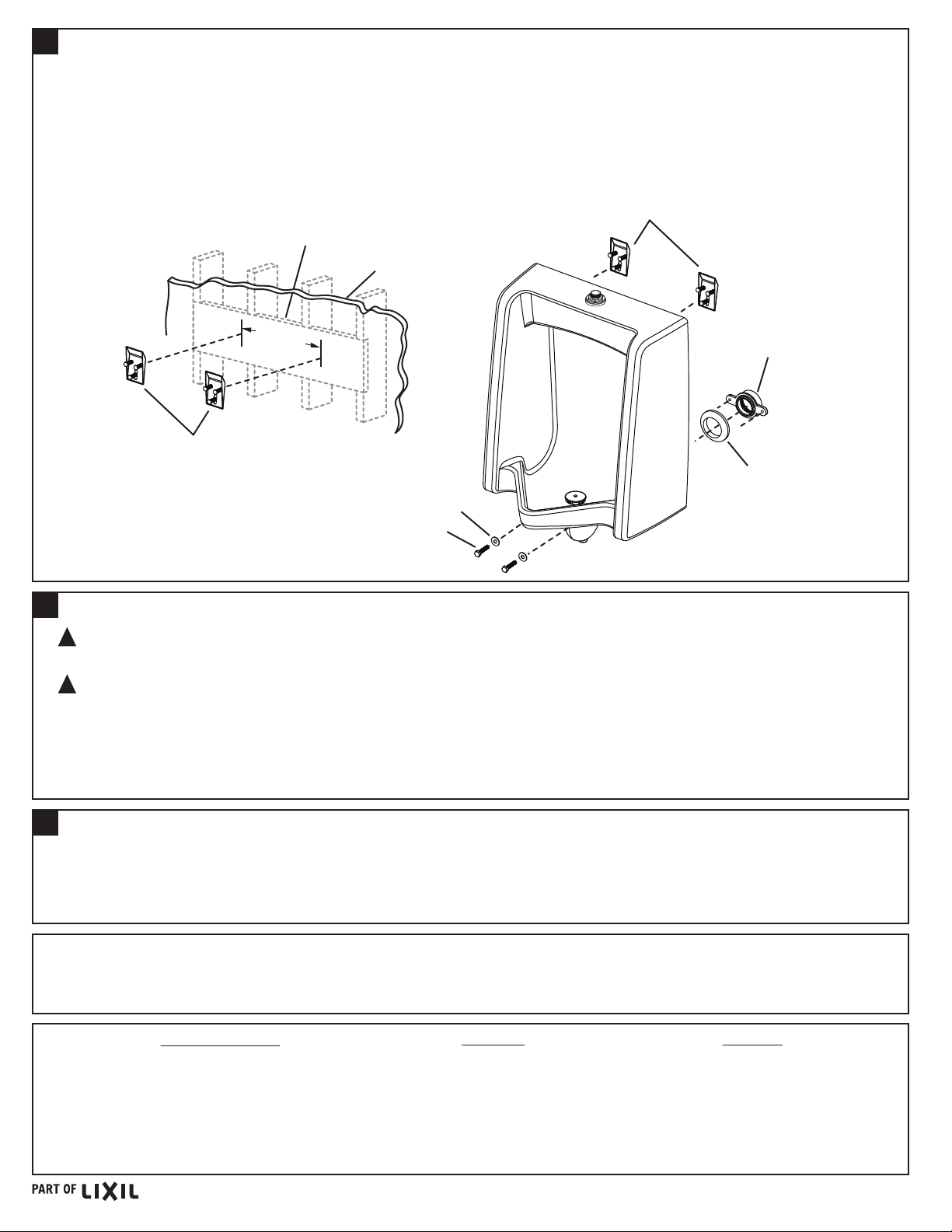

a. Install the wall hangers according to the roughing in illustration.
b. Apply thread sealant tape to the pipe threads and install the female collar to the waste pipe.
c. Place the gasket onto the female collar with the beveled surface facing away from the collar.
d. Carefully position the urinal on the wall hangers.
e. Secure the urinal to the female collar using the screws and washers provided.
INSTALL THE URINAL
2
CAUTION: RISK OF PERSONAL INJURY OR PRODUCT DAMAGE. HANDLE WITH CARE.
VITREOUS CHINA CAN BREAK OR CHIP IF THE PRODUCT IS HANDLED CARELESSLY.
!
CAUTION: RISK OF PRODUCT DAMAGE. DO NOT OVERTIGHTEN THE BOLTS.
!

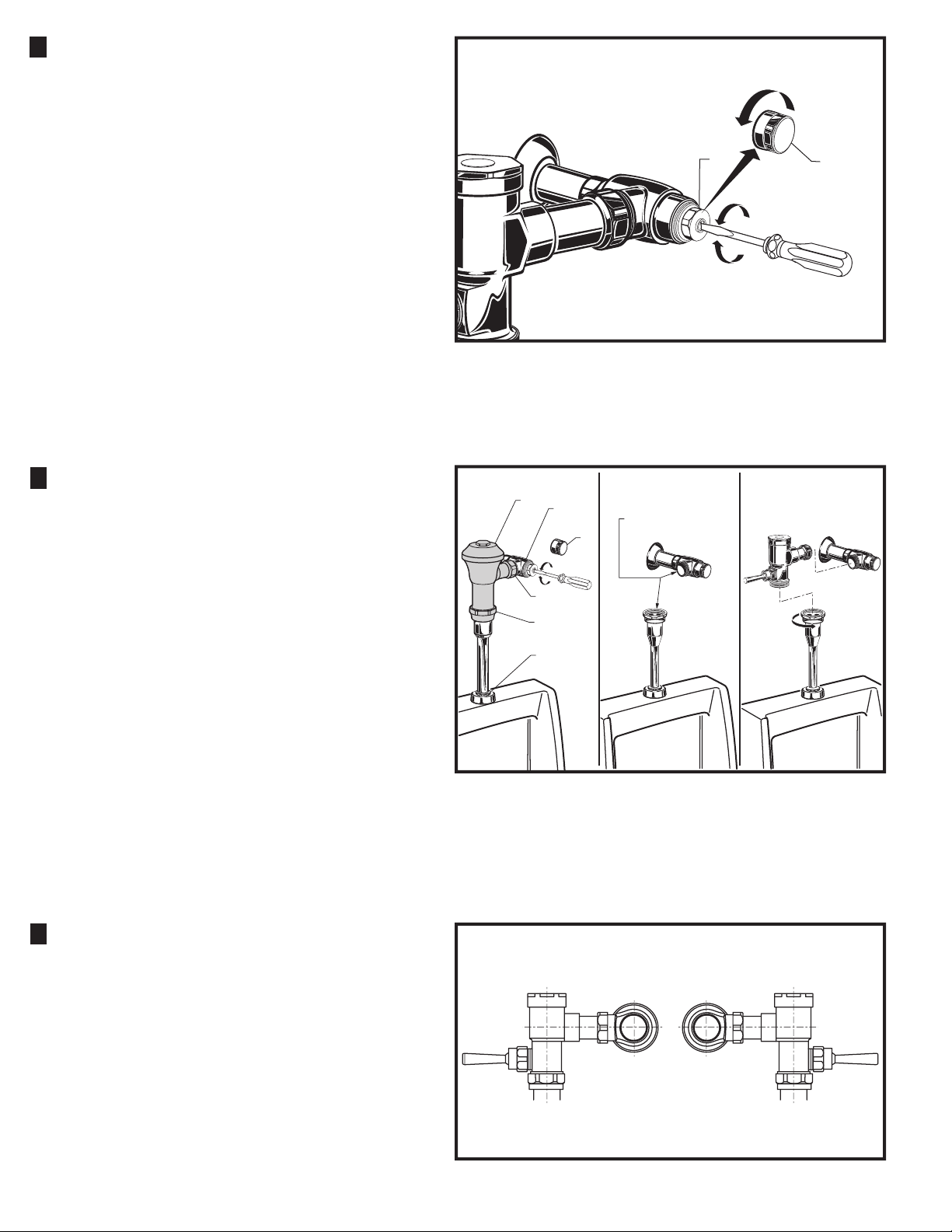

a. Install the flush valve according to the manufacturer’s instructions.
b. Connect the water supply and complete the waste pipe connections.
c. Turn on the water supply.
d. Flush and check the entire installation for leaks.
COMPLETE THE INSTALLATION
3
Wash with mild soapy water and rinse thoroughly. Dry with a soft cloth. Avoid detergents, disinfectants or cleaning
products in aerosol cans as they may damage fittings.
CARE & CLEANING
Wall Hangers
Support
Installed Wall Hangers
Wall
343mm
(13-1/2") Female Collar
Gasket
Screw
Washer
In the United States:
American Standard Brands
1 Centennial Ave.
Piscataway, New Jersey 08854
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: [phone]
www.americanstandard.com
In Canada:
AS Canada, ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: [phone]
www.americanstandard.ca
In Mexico:
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
www.americanstandard.com.mx

ANTES DE COMENZAR
GUARDE ESTAS INSTRUCCIONES PARA UN USO FUTURO
7301778-100SP Rev. B 8/18
Los nombres de productos que aparecen en este documento son marcas comerciales de AS America, Inc.
© AS America Inc. 2018
NOTAS:
• Es posible que las imágenes no definan con exactitud el contorno de la cerámica y los componentes.
• Cumpla todas las normas locales de plomería y construcción.
• Consulte los códigos locales y las instrucciones del fabricante para conocer los requisitos de la válvula de descarga.
• Inspeccione con cuidado el nuevo mingitorio para ver si tiene daños.
• Las dimensiones del accesorio son nominales y cumplen con las tolerancias establecidas por la norma ASME A112.19.2.
• La preparación del sitio puede requerir herramientas y accesorios adicionales.
Gracias por elegir American Standard - el parámetro de primera calidad por más de 100 años. Para asegurarse de que el
producto esté instalado correctamente, por favor lea estas instrucciones cuidadosamente antes de comenzar. (Ciertas
instalaciones pueden requerir ayuda profesional.) Asegúrese de que su instalación cumpla con los códigos locales.
!
SERIE 6590 & 6515
Acople superior Acople posterior
MINGITORIO WASHBROOK
INSTRUCCIONES DE INSTALACIÓN
51 mm
(2")
13 mm
(1/2")
102 mm
(4")
EMPAQUE
2" N.P.T.
ROSCAS INTERIORES
DETALLE DE LA CONEXIÓN DE SALIDA
PARED ACABADA
13 mm
(1/2")
445 mm
(17-1/2")
664 mm
(26-1/8")
REF.
464 mm
(18-1/4")
83 mm
(3-1/4")
102 mm
(4")
480 mm
(18-7/8")
343 mm
(13-1/2")
L/C DE
SALIDA
GANCHOS K2
8 mm x 25 mm
(5/16" x 1")
RANURA
235 mm
(9-1/4")
360 mm
(14-1/8")
2" N.P.T.
SALIDA HEMBRA
CONEXIÓN
13 mm
(1/2")
SUELO ACABADO
PARED
ACABADA
432mm
(17") MÁX.
610mm (24")
OPCIONAL
3/4"
ACOPLE
51 mm
(2")
13 mm
(1/2")
102 mm
(4")
EMPAQUE
2" N.P.T.
ROSCAS INTERIORES
DETALLE DE LA CONEXIÓN DE SALIDA
PARED ACABADA
13 mm
(1/2")
121 mm
(4-3/4")
3/4"
ACOPLE
3/4" S.P.S.
ó 3/4" C.W.T.
SUMINISTRO
A VÁLVULA DE
DESCARGA
445 mm
(17-1/2")
664 mm
(26-1/8")
REF.
464 mm
(18-1/4")
292 mm
(11-1/2")
83 mm
(3-1/4")
102 mm
(4")
480 mm
(18-7/8")
343 mm
(13-1/2")
L/C DE
SALIDA
GANCHOS K2
8 mm x 25 mm
(5/16" x 1")
RANURA
64 mm
(2-1/2")
235 mm
(9-1/4")
360 mm
(14-1/8")
2" N.P.T.
SALIDA HEMBRA
CONEXIÓN
13 mm
(1/2")
SUELO ACABADO
PARED
ACABADA
432mm
(17") MÁX.
610mm (24")
OPCIONAL
PRECAUCIÓN: EL PRODUCTO ES FRÁGIL. ¡MANIPÚLELO CON CUIDADO PARA NO ROMPERLO Y EVITAR
POSIBLES LESIONES!
HERRAMIENTAS Y MATERIALES RECOMENDADOS
Lentes de seguridad Cinta métrica Llave ajustable Lápiz Equipo para cortar orificios
Sellador para roscas Trinquete de 1/4" Destornillador plano Niveles

a. Cierre el suministro de agua.
b. Instale o reubique la tubería de suministro y el tubo de desagüe conforme sea necesario para cumplir con las
dimensiones calculadas.
c. Instale la válvula de cierre.
d. Instale el marco de soporte adecuado para los ganchos de pared según sea necesario.
e. Determine la posición de la boquilla del tubo de desagüe. Cuando establezca la longitud de la boquilla, tome en cuenta
la longitud del acople de la salida del mingitorio y la distancia en que se enroscará el aro hembra sobre la boquilla del
tubo de desagüe.
NOTA: Agregue un poco más de longitud en la boquilla para permitir que el empaque tenga espacio.
PREPARACIÓN
7301778-100SP Rev. B 8/18
- 2 -

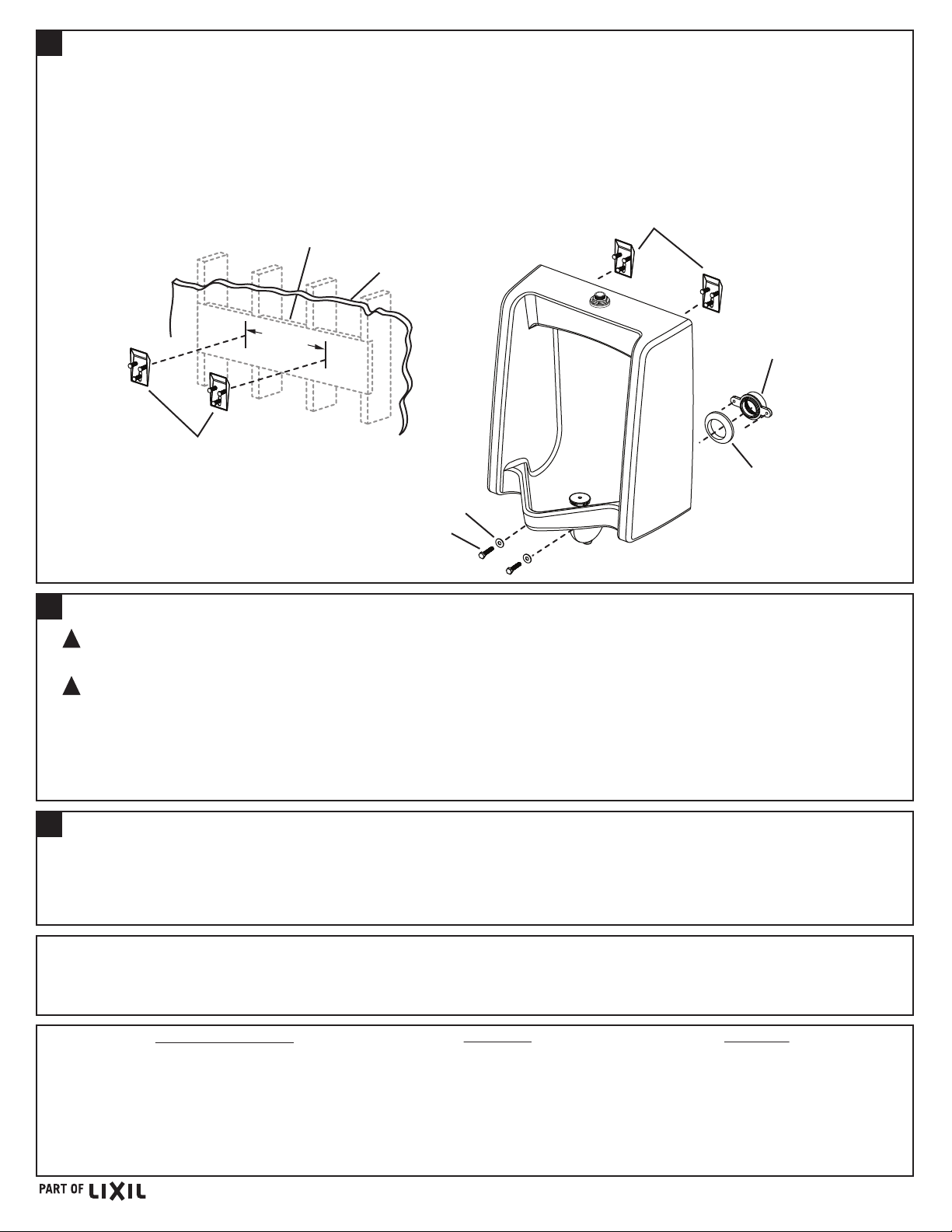

1
a. Instale los ganchos de pared de acuerdo con los cálculos de la ilustración.
b. Aplique cinta selladora para roscas en las roscas de los tubos e instale el aro hembra en el tubo de desagüe.
c. Coloque el empaque en el aro hembra con la superficie biselada al contrario del aro.
d. Coloque con cuidado el mingitorio en los ganchos de pared.
e. Asegure el mingitorio en el aro hembra con los tornillos y las arandelas provistos.
INSTALE EL MINGITORIO
2
PRECAUCIÓN: RIESGO DE LESIÓN PERSONAL O DAÑO DEL PRODUCTO. MANEJE CON CUIDADO.
LA PORCELANA VÍTREA SE PUEDE ROMPER O DESPOSTILLAR SI EL PRODUCTO SE MANEJA SIN CUIDADO.
!
PRECAUCIÓN: RIESGO DE DAÑO DEL PRODUCTO. NO APRIETE DE MÁS LOS PERNOS.
!
a. Instale la válvula de descarga de acuerdo con las instrucciones del fabricante.
b. Conecte el suministro de agua y complete las conexiones del tubo de desagüe.
c. Abra el suministro de agua.
d. Descargue y revise toda la instalación para ver si tiene fugas.
COMPLETE LA INSTALACIÓN
3
Lave con agua y jabón suave y enjuague bien. Seque con un paño suave. Evite los detergentes, desinfectantes y
productos de limpieza en latas de aerosol porque pueden dañar los accesorios.
CUIDADO Y LIMPIEZA
Ganchos de pared
Soporte Ganchos de pared instalados
Pared
343 mm
(13-1/2") Aro hembra
Empaque
Tornillo
Arandela
En los Estados Unidos:
American Standard Brands,
1 Centennial Ave.
Piscataway, New Jersey 08854
Atención: Director de servicio al cliente
Para los residentes en Estados Unidos,
la información de la garantía
puede obtenerse también llamando al siguiente
número sin cargo: [phone]
www.americanstandard.com
En Canadá:
AS Canada, ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Número sin cargo: [phone]
www.americanstandard.ca
En México:
American Standard B&K México,
S. de R.L. de C.V.
Vía Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. México
Número sin cargo: 01-800-839-1200
www.americanstandard.com.mx

AVANT DE COMMENCER....
CONSERVER POUR USAGE ULTÉRIEUR
7301778-100FR Rev. B 8/18
AVERTISSEMENT: CE PRODUIT EST FRAGILE. POUR ÉVITER LES BRIS ET DES BLESSURES, MANIPULER AVEC SOIN!
Les noms des produits mentionnés dans le présent document sont des marques de commerce de AS America, Inc.
©AS America, Inc. 2018
NOTES:
• Les dessins peuvent ne pas correspondre exactement aux contours de l'appareil ou des composants.
• Respecter tous les codes locaux de plomberie et du bâtiment.
• Se reporter aux codes locaux et aux instructions du fabricant pour les exigences relatives à la valve de chasse.
• Inspecter avec soin le nouvel urinoir afin de déceler tout dommage.
• Les dimensions du robinet sont nominales et sont conformes aux seuils de tolérance établis d'après les
normes ASME A112.19.2.
• La préparation du site peut nécessiter des outils et de la quincaillerie supplémentaires.
Nous vous remercions d'avoir choisi American Standard - synonyme de qualité supérieure depuis plus de 100 ans. Pour être
sûr que ce produit soit bien installé, veuillez lire attentivement ces instructions avant de commencer. (Certaines installations
peuvent requérir une aide professionnelle.) Assurez-vous également que votre installation soit conforme aux codes locaux.
!
SÉRIES 6590 & 6515
Alímentation Par Le Haut Alímentation Par L’arriére
URINOIR WASHBROOK
INSTRUCTIONS D'INSTALLATION
51 mm
(2 po)
13 mm
(1/2 po)
102 mm
(4 po)
JOINT DE
CAOUTCHOUC
2 po N.P.T.
FILETS INTÉRIEURS
DÉTAILS DE LA CONNEXION DE SORTIE
MUR FINI
13 mm
(1/2 po)
445 mm
(17 1/2 po)
664 mm
(26 1/8 po)
RÉF.
464 mm
(18 1/4 po)
83 mm
(3 1/4 po)
102 mm
(4 po)
480 mm
(18 7/8 po)
343 mm
(13 1/2 po)
L/C DU
DRAIN
ÉTRIERS K2
8 mm x 25 mm
(5/16 po X 1 po)
FENTE
235 mm
(9 1/4 po)
360 mm
(14 1/8 po)
2 po N.P.T.
RACCORD
SORTIE
FEMELLE
13 mm
(1/2 po)
PLANCHER FINI
PLANCHER
FINI
3/4 po
RACCORD
51 mm
(2 po)
13 mm
(1/2 po)
102 mm
(4 po)
JOINT DE
CAOUTCHOUC
2 po N.P.T.
FILETS INTÉRIEURS
DÉTAILS DE LA CONNEXION DE SORTIE
MUR FINI
13 mm
(1/2 po)
121 mm
(4 3/4 po)
3/4 po
RACCORD
3/4 po S.P.S.
ou 3/4 po C.W.T.
TUYAU À LA
VALVE DE CHASSE
445 mm
(17 1/2 po)
664 mm
(26 1/8 po)
RÉF.
464 mm
(18 1/4 po)
292 mm
(11 1/2 po)
83 mm
(3 1/4 po)
102 mm
(4 po)
480 mm
(18 7/8 po)
343 mm
(13 1/2 po)
L/C DU
DRAIN
ÉTRIERS K2
8 mm x 25 mm
(5/16 po x 1 po)
FENTE
64 mm
(2 1/2 po)
235 mm
(9 1/4 po)
360 mm
(14 1/8 po)
2 po N.P.T.
RACCORD
SORTIE
FEMELLE
13 mm
(1/2 po)
PLANCHER FINI
MUR
FINI
432 mm
(17 po) MAX
610 mm (24 po)
EN OPTION
OUTILS ET MATÉRIAUX RECOMMANDÉS
Lunettes de sécurité Ruban à mesurer Clé universelle Crayon Équipement pour la découpe de trous
Scellant pour filet Cliquet 1/4 po Tournevis à lame Niveaux
432 mm
(17 po) MAX
610 mm (24 po)
EN OPTION

a. Couper l'alimentation en eau.
b. Poser ou relocaliser la conduite d'alimentation et le tuyau de drain au besoin afin de se conformer aux dimensions de l'installation
brute.
c. Poser la vanne d'arrêt.
d. Poser un cadre de soutien adéquat pour les étriers muraux le cas échéant.
e. Déterminer la position du mamelon du tuyau de drain.Au moment de déterminer la longueur du mamelon, prendre en considération
la longueur de la tête de la sortie de l'urinoir et la distance du filet du collier femelle sur le mamelon du tuyau de drain.
REMARQUE: Ajouter une longueur supplémentaire au mamelon pour laisser l'espace pour le joint.
PRÉPARATION
7301778-100FR Rev. B 8/18
- 2 -
1
a. Poser les étriers muraux selon la disposition des tuyaux dans l'illustration.
b. Appliquer du ruban scellant sur les filets du conduit et poser le collier femelle sur le tuyau de drain.
c. Placer le joint sur le collier femelle avec la surface biseautée faisant face à l'opposé du collier.
d. Placer avec soin l'urinoir dans les étriers muraux.
e. Fixer l'urinoir au collier femelle en utilisant les vis et les rondelles fournies.
INSTALLER L'URINOIR
2
AVERTISSEMENT: RISQUE DE BLESSURES CORPORELLES OU DES DOMMAGES AU PRODUIT. MANIPULER AVEC SOIN.
LA PORCELAINE VITRIFIÉE PEUT CASSER OU S'ÉCAILLER SI LE PRODUIT N'EST PAS MANIPULÉ AVEC SOIN.
!
AVERTISSEMENT: RISQUE DE DOMMAGES AU PRODUIT. ÉVITER DE TROP SERRER LES BOULONS.
!
a. Poser la valve de chasse selon les instructions du fabricant.
b. Raccorder l'alimentation en eau et finaliser le raccordement du tuyau de drain.
c. Ouvrir l’alimentation en eau.
d. Rincer et vérifier l'ensemble de l'installation afin de déceler toute fuite.
TERMINER L'INSTALLATION
3
Laver avec de l'eau savonneuse et rincer à fond. Essuyer avec un chiffon doux. Éviter les détergents, les désinfectants ou les
produits de nettoyage en aérosol puisqu'ils peuvent endommager les raccords.
ENTRETIEN ET NETTOYAGE
Étriers muraux
Support
Étriers muraux posés
Mur
343 mm
(13 1/2 po) Collier femelle
Joint
Vis
Rondelle
Aux États-Unis:
Marques American Standard
1 Centennial Ave.
Piscataway, New Jersey 08854
À l'attention de: Directeur du service à la clientèle
Les résidents des États-Unis peuvent aussi obtenir
de l'information sur la garantie en composant
le numéro sans frais suivant: [phone]
www.americanstandard.com
Au Canada:
AS Canada ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Numéro sans frais: [phone]
www.americanstandard.ca
Au Mexique:
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos n° 330
Col. Santa Clara
Ecatepec 55540 Edo. Mexique
Numéro sans frais: 01-800-839-1200
www.americanstandard.com.mx

Installation Instructions
Installation Instructions
Ultima™Manual
Urinal Flush Valve, Piston-Type
3/4" Top Spud, 0.125 GPF
M965020 Rev.2.1 (5/19)
MODEL NUMBERS
6045.013
Certified to comply with:
• ASSE 1037
• ADA Compliant
© 2019 AS America, Inc.
NOTE TO INSTALLER: Please give this manual to the customer after installation.NOTE TO INSTALLER: Please give this manual to the customer after installation.
To learn more about American Standard Selectronic®Products visit our website at: www.americanstandard-us.com
or e-mail us at: CR[email protected]
For Parts, Service, Warranty or other Assistance,
please call (844) CRT-TEAM / [phone] (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-306-1093)
OPERATING PRESSURE:
• 25 psi (flowing) - 80 psi (static)
FLOW REQUIREMENT:
• 10gpm (37.9 L/min).

1
1
2
3
4
5
6
7
8
9
5. Sweat Solder Adapter
6. Cover Tube
7. Wall Escutcheon
8. Supply Stop
9. Installation Instructions
1. Flush Valve Assembly
2. Down Tube and Vacuum Breaker
3. Spud Coupling Nut and Washers
4. Spud Flange
All American Standard Products Are Water Tested At Our Factory.
Some Residual Water May Remain In The Valve During Shipping.
Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years.To ensure that your
installation proceeds smoothly--please read these instructions carefully before you begin.

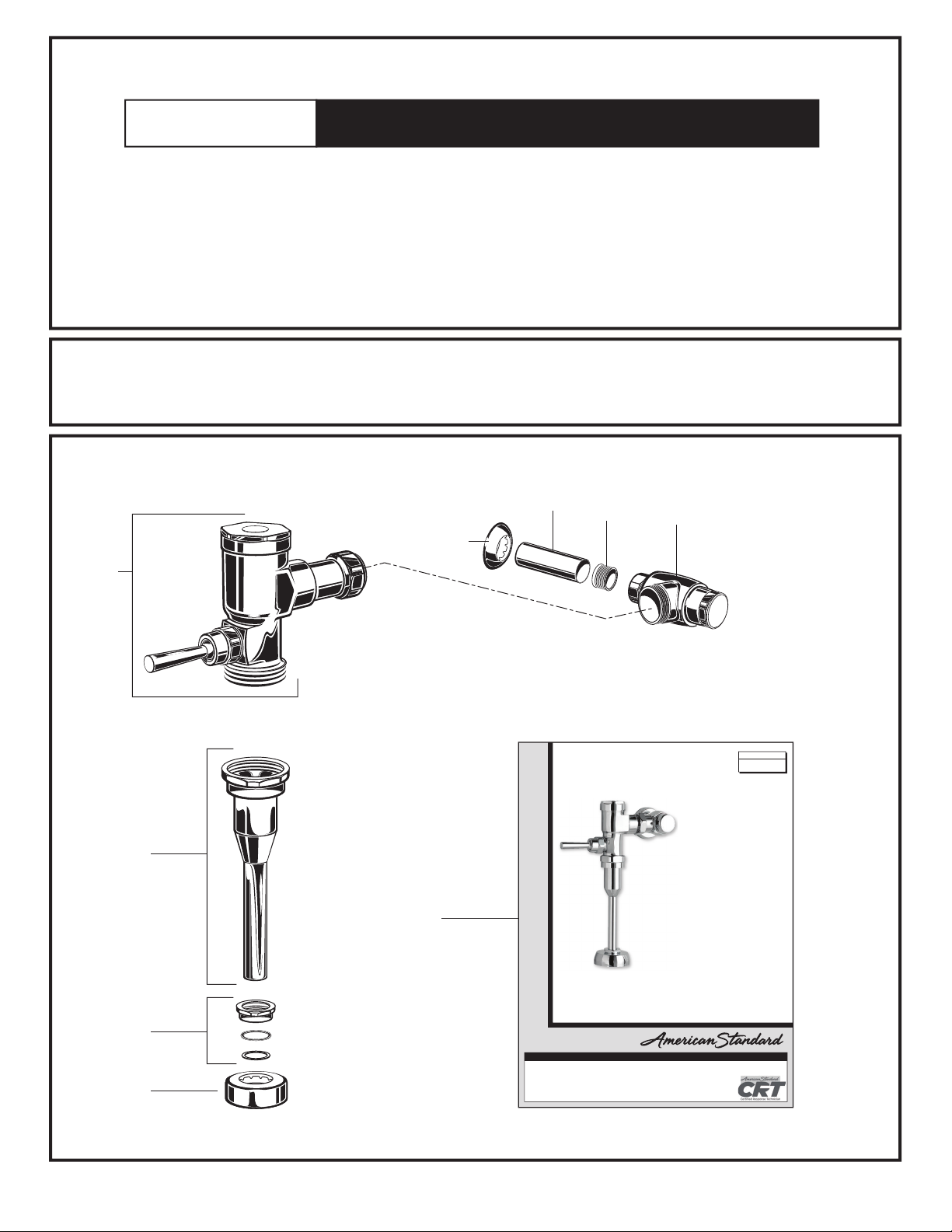

UNPACKING
Remove the Flush Valve items from the carton. The illustration below shows all items after
they have been removed from the carton. Some items may be packaged partially assembled to
other items.
CARE INSTRUCTIONS:
M965020 Rev.2.1 (5/19)
DO: CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
Installation Instructions
Installation Instructions
Ultima™Manual
M965020 Rev. 2.0 (1/19)
MODEL NUMBERS
6045.013
Certified to comply with:
• ASSE 1037
• ADA Compliant
© 2019 AS America, Inc.
Urinal Flush Valve, Piston-Type
NOTE TO INSTALLER: Please give this manual to the customer after installation.NOTE TO INSTALLER: Please give this manual to the customer after installation.
To learn more about American Standard Selectronic®Products visit our website at: www.americanstandard-us.com
or e-mail us at: [e-mail]
For Parts, Service, Warranty or other Assistance,
please call (844) CRT-TEAM / [phone] (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-306-1093)
OPERATING PRESSURE:
• 25 psi (flowing) - 80 psi (static)
FLOW REQUIREMENT:
• 10gpm (37.9 L/min).

RECOMMENDED TOOLS; Fig. 2 Fig. 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Teflon Tape
Flat Blade Screwdriver (For adjusting Supply Stop)
Adjustable Wrench
Tape Measure
Hacksaw
Tubing Cutter
File
For Sweat Connection; Solder and Torch
2.5mm Hex Wrench
1.5mm Hex Wrench
123
4
5
6
7910
8
PRIOR TO INSTALLATION
Note: Prior to installing the Selectronic™Flush Valve
the following items must be installed.
1. Urinal
2. Drain line
3. Water supply line
• Flush all water lines prior to operation (See Step 5). Dirt
and debris can cause flush valve to run continuously.
• With the exception of Supply Stop Inlet, DO NOT use
pipe sealant or plumbing grease on any valve component
or coupling!
• Protect the chrome or special finish on the Flushometer.
DO NOT USE toothed tools on finished surfaces to install
or service these valves. Also see “Care and Cleaning”
section of this manual.
• This product contains mechanical and/or electrical
components that are subject to normal wear. These
components should be checked on a regular basis and
replaced as needed to maintain the valve’s performance.
IMPORTANT:
• All plumbing must be installed in accordance with
applicable codes and regulations.
• The use of water hammer arrestors is strongly
recommended for commercial applications. All piping
behind the walls should be properly secured and
fastened.
• Water supply lines must be sized to provide an
adequate volume of water for each fixture.
2
Fig. 1

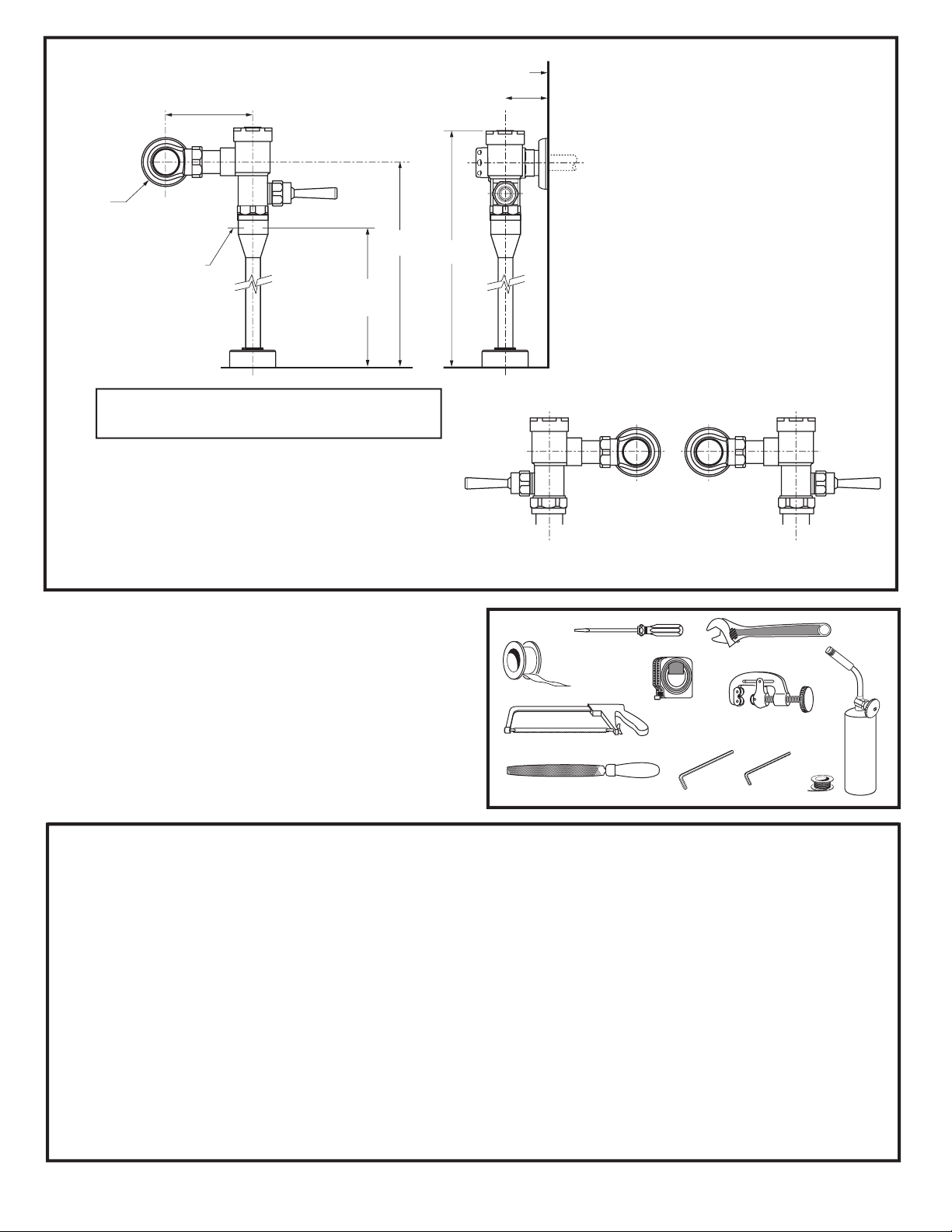

Roughing-in Dimensions GENERAL DESCRIPTION:
10'
Exposed Flushometer
for 3/4" Top Spud Fixtures
MANUAL FLUSH VALVE, .125 GPF
-C-L-
152mm
(6)
(Min.)
M965020 Rev.2.1 (5/19)
*Note: The Critical Line (-C-L-) on Vacuum Breaker
must typically be 6"(152mm) minumim above fixture.
Consult Codes for details.
*CRITICAL
LEVEL
SUPPLY
DN 19mm
(3/4" I.P.S. For 3/4" Top Spud)
108mm-133mm
(4-1/4" to 5-1/4")
295mm
(11-1/2")
FINISHED WALL
3/4" VACUUKM
BREAKER SHOWN
135mm
(13-1/2")
38mm-127mm
(1-1/2-5")
-C-L-
Exclusive, self cleaning piston-operated
flush valve.
OPERATING PRESSURE:
Overall Range: 20-125 psi **
Recommended: 20 psi (flowing)-
80 psi (static)
FLOW REQUIREMENT:
10gpm (37.9 L/min).
**Water pressure over 80 psi is not
recommended with most
plumbing fixtures
See (Section 8) for converting Flush
Valve to Left Hand Installation.
Right or Left Hand Installation

1
1
2
3
4
5
1
4
2
3
Fig. 4
Fig. 5
1. Measure from finished wall to first thread of Adapter
or threaded supply pipe (dimension “X”). Cut COVER
TUBE (1) to length (X). Apply Teflon Tape to the
threaded end of the Adapter or supply pipe. Fig. 4a.
2. Push the COVER TUBE (1) into the WALL
ESCUTCHEON (2). Slide both onto the SUPPLY PIPE
(3). Fig. 4b.
3. Push the COVER TUBE (1) in to expose the threads
of the supply pipe. Fig. 4c. With a wrench thread the
SUPPLY STOP (4) onto the SUPPLY PIPE (3). Align
and tighten. Fig. 4c.
4. Pull COVER TUBE (1) against SUPPLY STOP (4)
and push WALL ESCUTCHEON (2) against finished
wall.
3
INSTALL COVER TUBE, WALL
ESCUTCHEON and SUPPLY STOP;
Fig. 4
2
TEFLON TAPE
FINISHED WALL
3/4" TOP SPUD
INSTALL SWEAT SOLDER
ADAPTER; Fig. 3
CAUTION Turn water supplies off
before beginning
Note: Install Optional Sweat Solder Adapter
(Supplied) for copper pipe supply line. Fig. 3.
1. Measure the distance (A) from the finished wall to the
center of the inlet spud on the fixture.
2. Cut the supply pipe 1-1/4" (A-B=C) shorter then the
measurement taken in Step 1. File any rough edges off
the end of the supply pipe.
3. Clean the end of the supply pipe. Push the threaded
Adapter on until it is seated against the internal stop.
Sweat the Adapter to the pipe.
1
CENTER LINE OF
FIXTURE SPUD
FINISHED WALL
FILE EDGES
SOLDER
ADAPTER
Fig.3 Fig.3a
ADAPTER
32mm
(1-1/4)
A
(A-B)= B
C
X
X
CLEAN

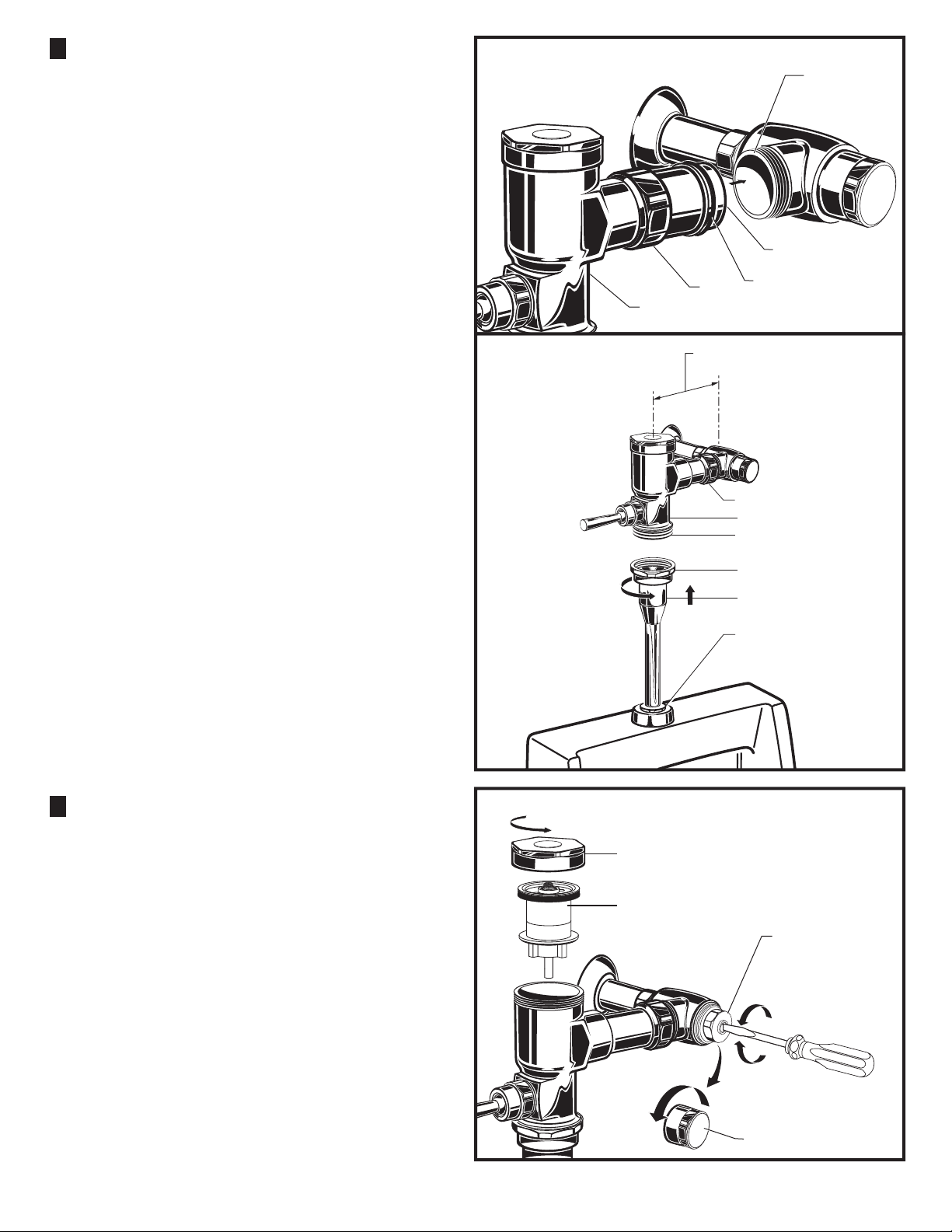

1. Place the SPUD FLANGE (1) over the spud on the
Fixture.
2. Thread SPUD COUPLING NUT (2) onto Spud. Make
sure SEAL WASHER (3) and FRICTION WASHER (4)
are installed. Do not tighten fully.
3. Insert the DOWN TUBE (5) into the SPUD
COUPLING NUT (2) and push it down.
Note: If cutting Down Tube (5) to size, note that
Critical Line (C/L) on Vacuum Breaker must
typically be 6"(152mm) minumim above fixture.
Consult Code for details.
INSTALL DOWN TUBE AND
VACUUM BREAKER; Fig. 5
3
Fig. 4a
Fig. 4b
Fig. 4c
2
M965020 Rev.2.1 (5/19)

4
7
9
6
2
5
8
Fig. 6b
Fig. 7
1. Remove COVER (1) from SUPPLY STOP (2). Make
sure supply stop is closed.
2. Remove FLUSH VALVE CAP (3). Pull out PISTON (4).
Replace FLUSH VALVE CAP (3) and tighten.
2. With a flat blade screwdriver open SUPPLY STOP (2).
to flush line of any debris or sediment.
4. Close SUPPLY STOP (2). Remove FLUSH VALVE
CAP (3). Replace PISTON (4). Replace FLUSH VALVE
CAP (3) and tighten.
FLUSH OUT SUPPLY LINES; Fig. 7
5
INSTALL FLUSH VALVE;
Fig. 6a & 6b
4
M965020 Rev.2.1 (5/19)
3
2
5
1
4
Fig. 6a
REMOVE COVER
2
1
CLOCKWISE
CLOSES CONTROL STOP
COUNTER-CLOCKWISE
OPENS CONTROL STOP
3
4
121mm, 13mm
(4-3/4)( 1/2)
+
–
+
–
1. As shown in Fig. 6a, insert the side INLET FLANGE (1)
on the FLUSH VALVE (2) into the SUPPLY STOP (3).
Lubricate the INLET FLANGE O-RING (4) with water if
necessary. Lightly tighten COUPLING NUT (5). Fig. 6a.
Important: Do not use lubricants (other than water)
or any type of thread sealing paste or tape.
2. Align the FLUSH VALVE (2) (Fig. 6b) directly above
the DOWN TUBE (7) and VACUUM BREAKER
COUPLING NUT (6).
Note: There is a 13mm, ( 1/2) tolerance for the
121mm (4-3/4) dimension. Fig. 6b.
3. Pull the DOWN TUBE (7) up to meet the threaded
FLUSH VALVE CONNECTION (8) and hand tighten
the VACUUM BREAKER COUPLING NUT (6). Align all
components of the flush valve assembly. Fig. 6b.
4. Lightly tighten the COUPLING NUT (5) connection
first, then the VACUUM BREAKER COUPLING NUT
(6) and finally the SPUD COUPLING NUT (9). Once
alligned correctly, use a wrench to tighten couplings to
make water tight connections. Fig. 6b.
+
–
+
–

5
1. Remove COVER (1) from SUPPLY STOP (2) if
installed. Fig. 9.
2. Turn water supply off. Fig. 9.
3. Loosen SPUD COUPLING NUT (3). Unthread
COUPLING NUT (4) and VACUUM BREAKER
COUPLING NUT (5). Remove FLUSH VALVE (6).
Fig. 9a.
4. Clean all threaded connections before installing the
new flush valve. Fig. 9a.
5. Refer to Sections 4,5 and 6 to complete the retrofit
installation. Fig. 9b.
Note: In most Retrofits the wall escutcheon, supply stop,
cover tube and vacuum breaker do not have to be replaced.
If these items do need replacement they must be purchased
separately or order the complete flush valve assembly from
American Standard.
HOW TO RETROFIT OUR VALVE;
Fig. 9
7
(Replaces Industry Standard Manual and
Electronic Valves)
CLEAN
CONNECTIONS
2
Fig. 9 Fig. 9a Fig. 9b
1
4
5
3
6
IMPORTANT: To avoid overflowing, the SUPPLY STOP
(3) must never be opened to the point where the flow
from the valve exceeds the flow capacity of the
fixture. The fixture and drain must be able to handle a
continuous flow in case of a flush valve failure.
Valve is designed to provide stated flush volume with
a 10 GPM flow rate.
1. Remove COVER (2) from SUPPLY STOP (3).Turn on
water supply 1/4 turn to 1/2 turn(CCW) and test for leaks.
Note: Unit may flush for approximately 5 to 10 sec.
when water is first turned on.
2. Actuate the FLUSH VALVE by pulling handle down.
3. Adjust SUPPLY STOP (3) after each flush until the
stated flush volume is achieved, no splashing occurs and
the fixture is properly cleansed.
4. When adjustment is complete, replace COVER (2)
and tighten to ensure vandal-resistance.
ADJUST SUPPLY STOP; Fig. 8
6
M965020 Rev.2.1 (5/19)
Fig. 8
2
REMOVE COVER
CLOCKWISE CLOSES
CONTROL STOP
COUNTER-CLOCKWISE
OPENS CONTROL STOP
3
Fig. 10
3
1. The FLUSH VALVE can be installed either as a right
or left hand installation.
2. Orientate the FLUSH VALVE as shown in Fig. 10 to
desired position for a left or right hand installation.
4 LEFT OR RIGHT HAND
INSTALLATION; Fig. 10
8
Right or Left Hand Installation
Left Hand Right Hand
