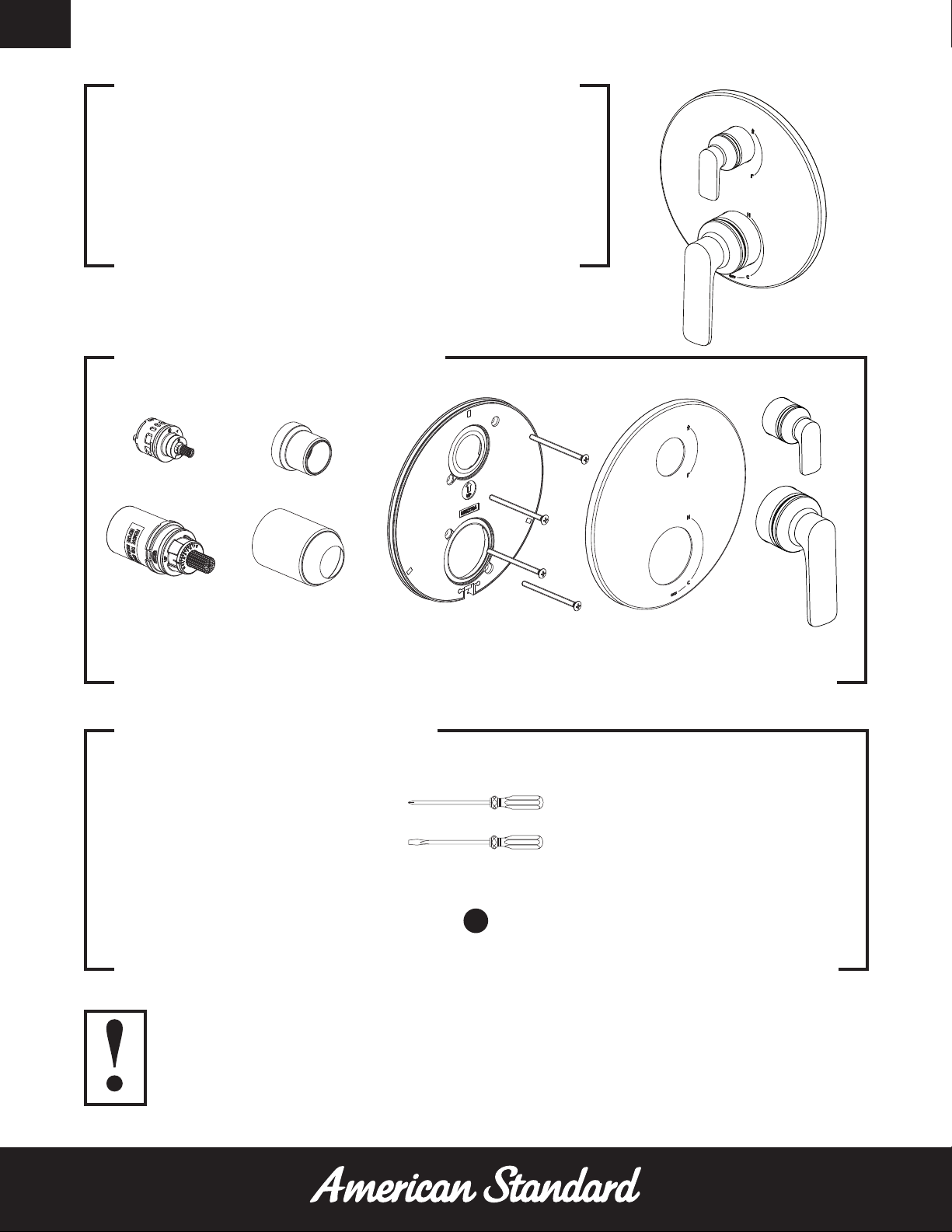

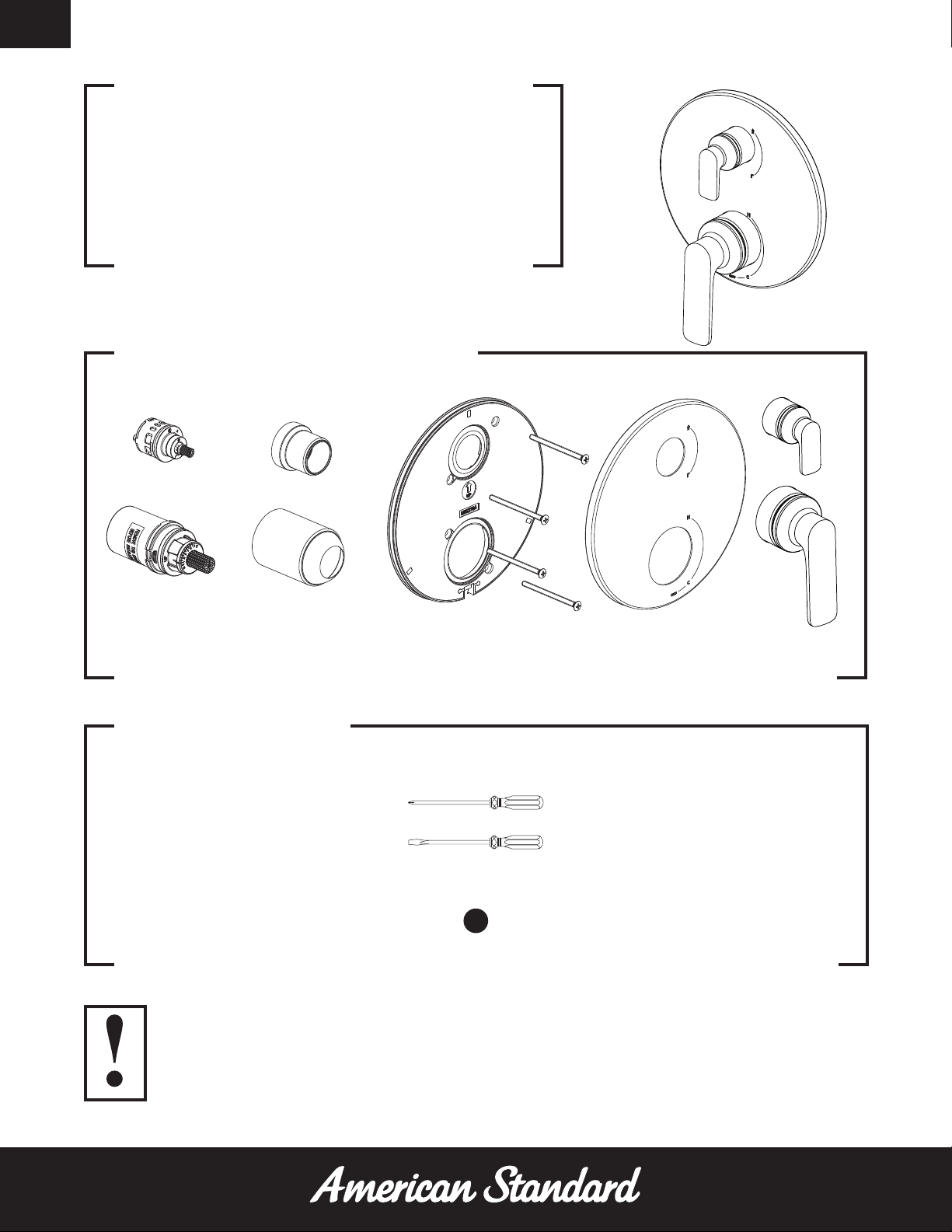

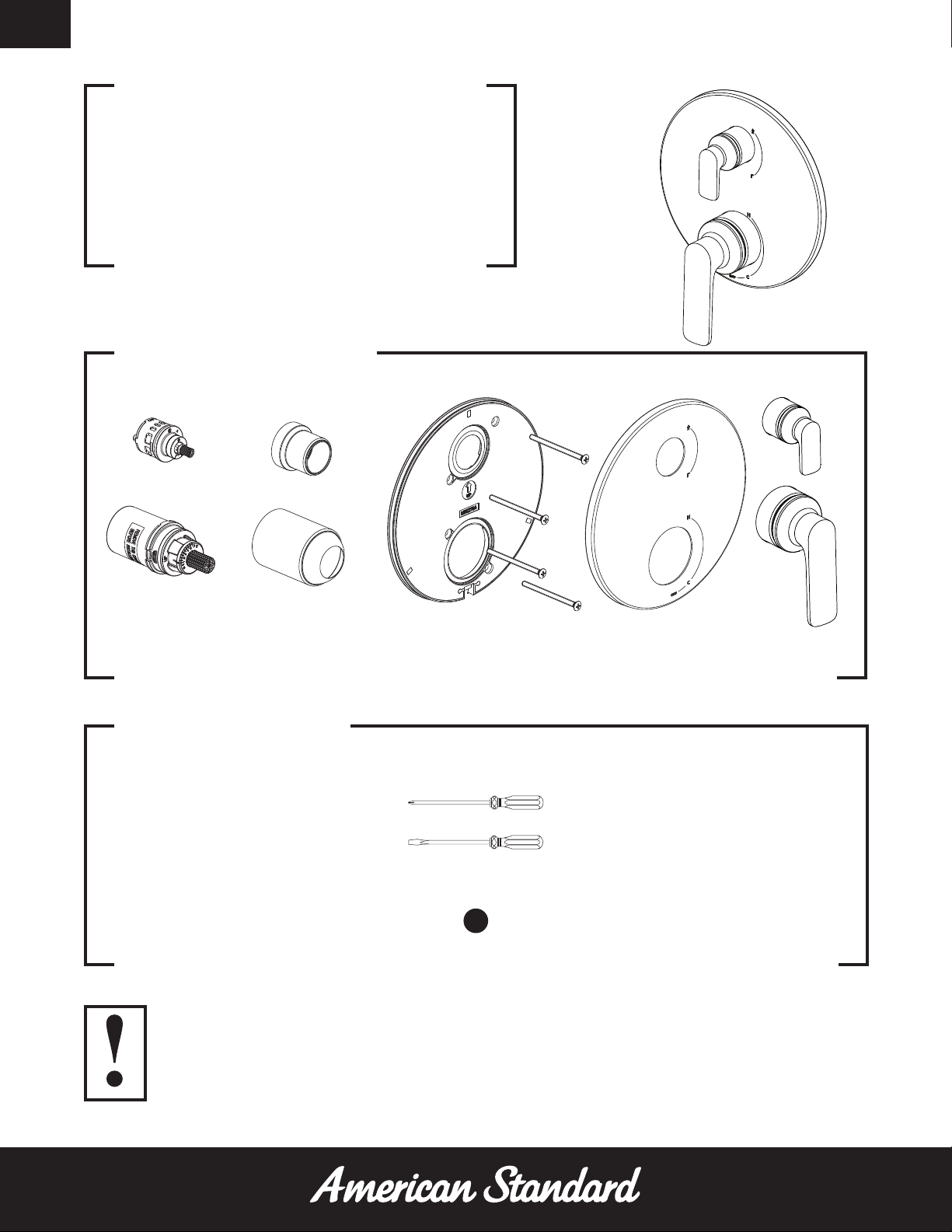

INSIDE THE BOX
RECOMMENDED TOOLS
Installation steps will indicate which tools should be used with asscociated letter
Phillips & Flat Blade
Screwdirver
Diverter &
Cartridge
A
BEFORE INSTALLING YOUR TRIM
Turn off hot and cold water supplies before beginning.
Image shown may vary from product purchased.
OWNERS MANUAL
Aspirations™Flash™2-Handle
Integrated Diverter Pressure
Balance Valve Trim
TU0 61740
Cartridge
Sleeves
EscutcheonMounting Plate
& Screws
Handles
For use with shower heads rated at 4.9 L/min (1.3 gpm) or higher

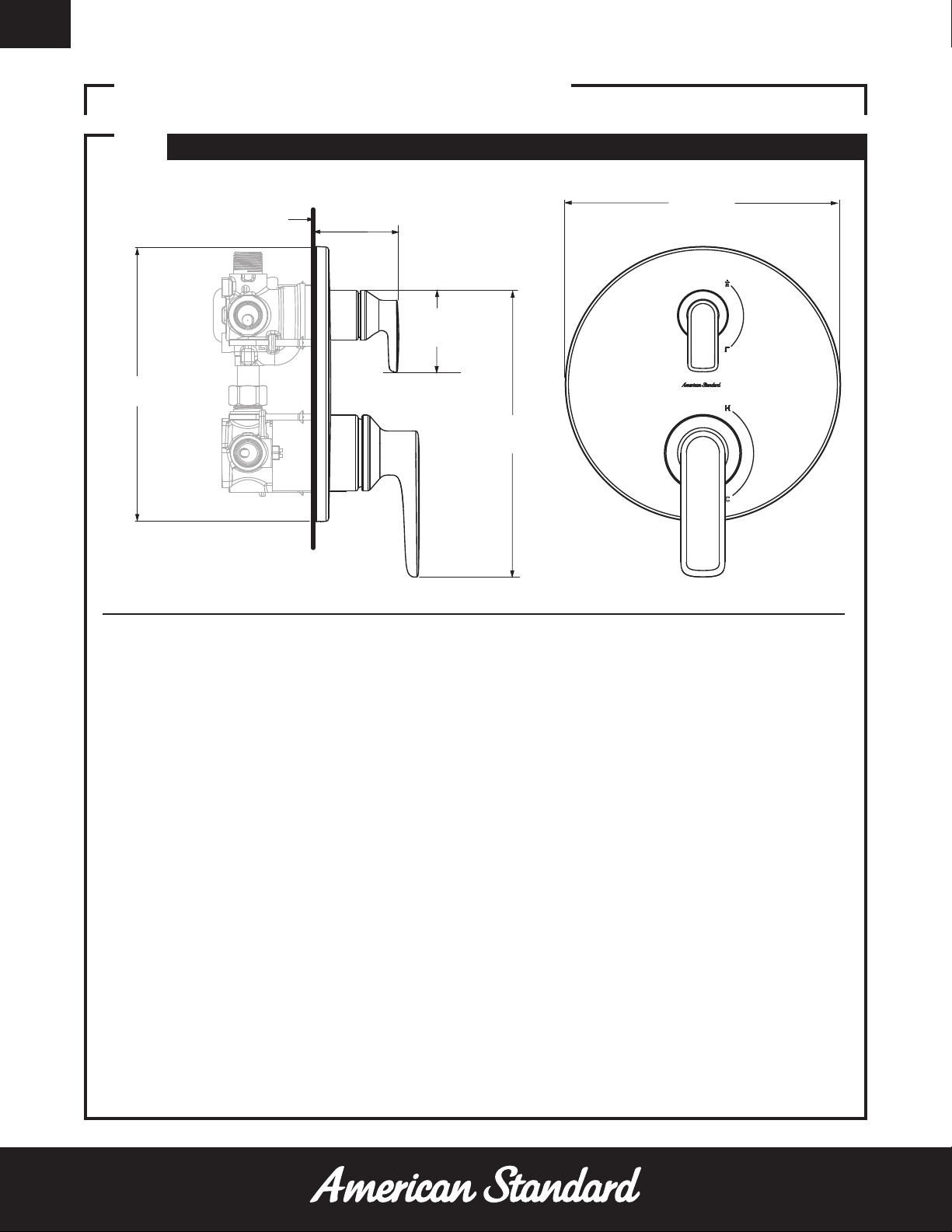

1A ROUGH-IN DIMENSIONS
INSTALLATION INSTRUCTIONS
2-3/8"
(60 mm)
7-7/8"
(199 mm)
2-11/32"
(59 mm)
8-3/16"
(208 mm)
Ø7-7/8"
(Ø199 mm)
FINISHED
WALL
CARE INSTRUCTIONS:
• To keep your new faucet looking new, please
follow these simple care instructions:
DO:
– Simply rinse the faucet clean with clear
water.
– Dry the faucet with a soft cotton cloth.
DO NOT:
– Do not use any abrasive cleaners, cloths, or
paper towels.
– Do not use any cleaning agents containing
acids, polish abrasives, or harsh cleaners or
soaps.
• Regular and routine cleaning will reduce the
need for heavy cleaning and polishing.
If heavy cleaning is required, the following
procedures are recommended:
• Remove as much surface dirt and film using clear
water and soft cotton cloth (as described above).
– Use any of the following to remove tough surface
film and build-up:
– Mild liquid detergents
– Clear ammonia free liquid glass cleaners
– Non-acidic, non-abrasive gentle liquid or fully
dissolved powder cleansers mixed according to
manufacturers directions
– Non-abrasive liquid polishers
• Once clean, rinse faucet again with clear water to
thoroughly remove cleaner or polish and blot dry
with a soft cotton cloth.
Failure to follow these care instructions may
damage the Faucet’s finish.

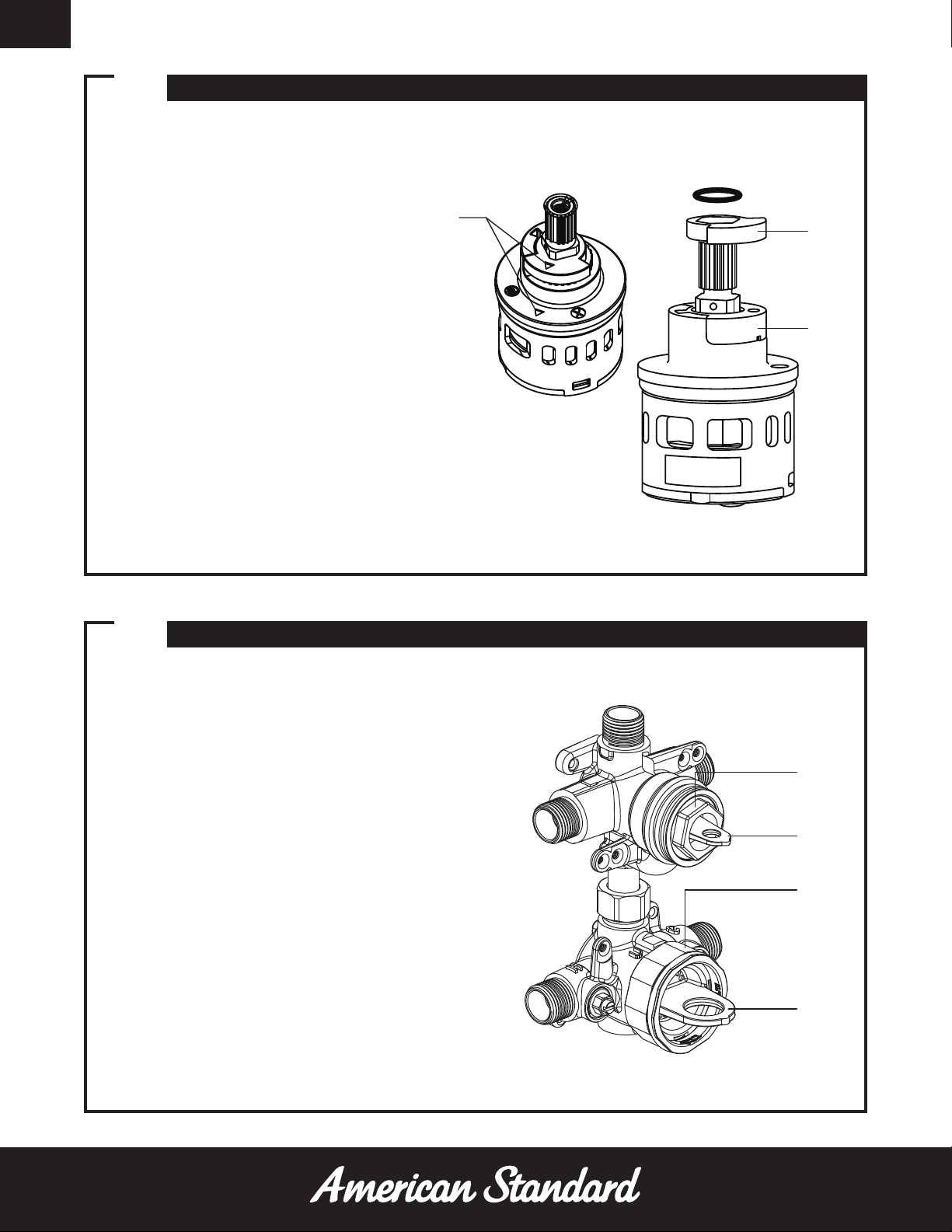

1CONVERT BETWEEN 2 AND 3 WAY
• The diverter is configured for the 3-way
option by default.
• To switch to 2-way, pull off 3-way RING (1)
and replace with 2-way RING (2).
NOTE: Ensure the ARROWS (3) are aligned. 1
2
3
2INSTALL CARTRIDGES
1
3
2
4
• Unthread BONNET NUT (1).
• Replace FLUSH PLUG (2) with the pressure balancing
cartridge and reinstall BONNET NUT (1).
• Unthread CAP (3).
• Replace FLUSH PLUG (4) with the diverter cartridge
and reinstall CAP (3).
NOTE: Ensure that the four plaster guard legs have
been sawed for thin wall application.

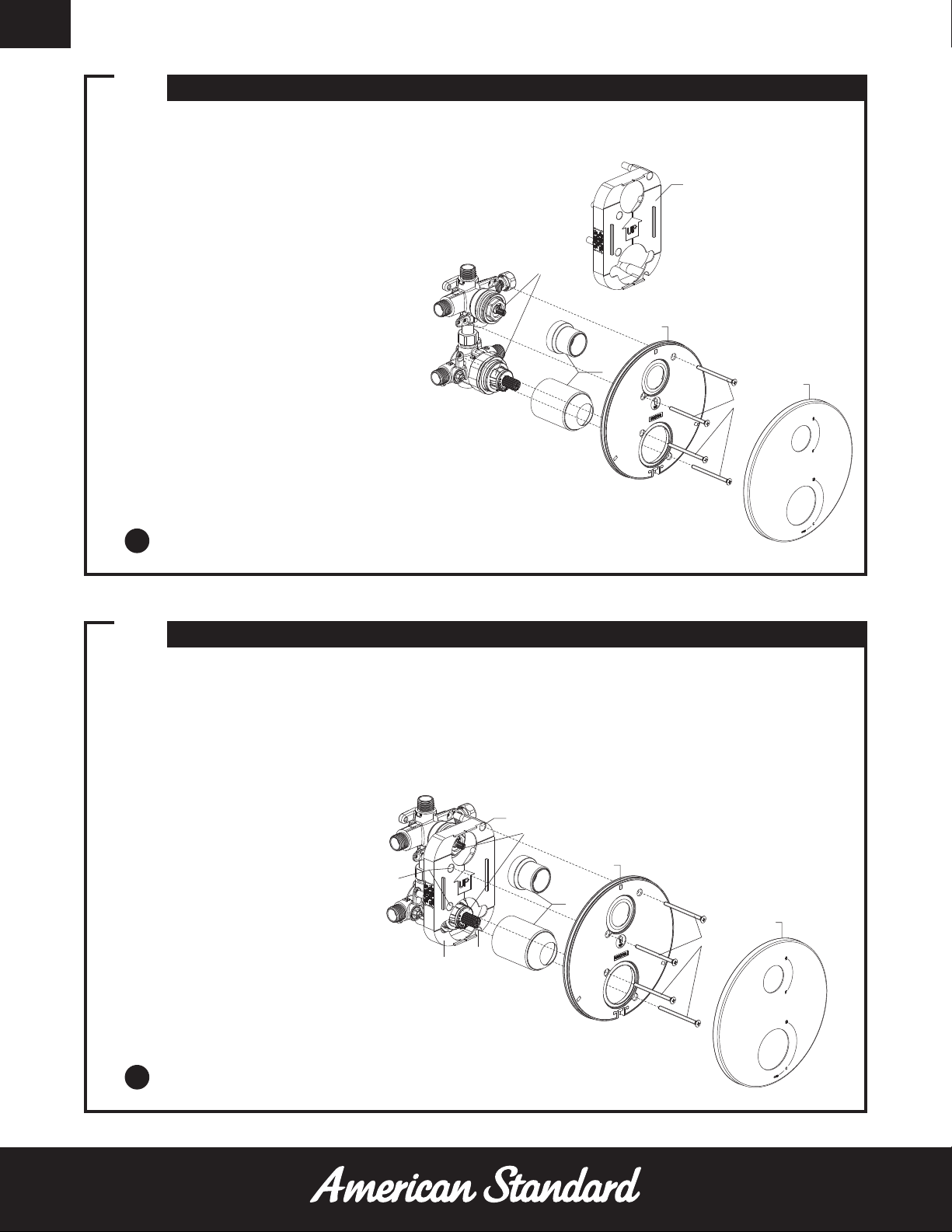

3TRIM INSTALLATION
NOTE: Must have RU520 installed before
beginning.
• Remove PLASTER GUARD (1).
• Push two CARTRIDGE SLEEVES (3) over
the cartridges on VALVE BODY (4).
• Insert four SCREWS (5) through MOUNTING
PLATE (2) and thread in to VALVE BODY (4)
where indicated by a dashed line.
• Push ESCUTCHEON (6) on to MOUNTING
PLATE (2) until they are secured with the
snap fitting. 3
4
6
2
5
1
4TRIM INSTALLATION FOR THIN WALL
• Push two CARTRIDGE SLEEVES (3) over the cartridges on VALVE BODY (4).
• Remove the four PLASTER GUARD SCREWS (1).
• Insert four SCREWS (5) through MOUNTING PLATE (2),and PLASTER GUARD (7) and thread in to the
VALVE BODY (4) where indicated by a dashed line.
• Push ESCUTCHEON (6) on to
MOUNTING PLATE (2) until they
are secured with the snap fitting.
3
4
6
2
5
1
1
7
1
A
A

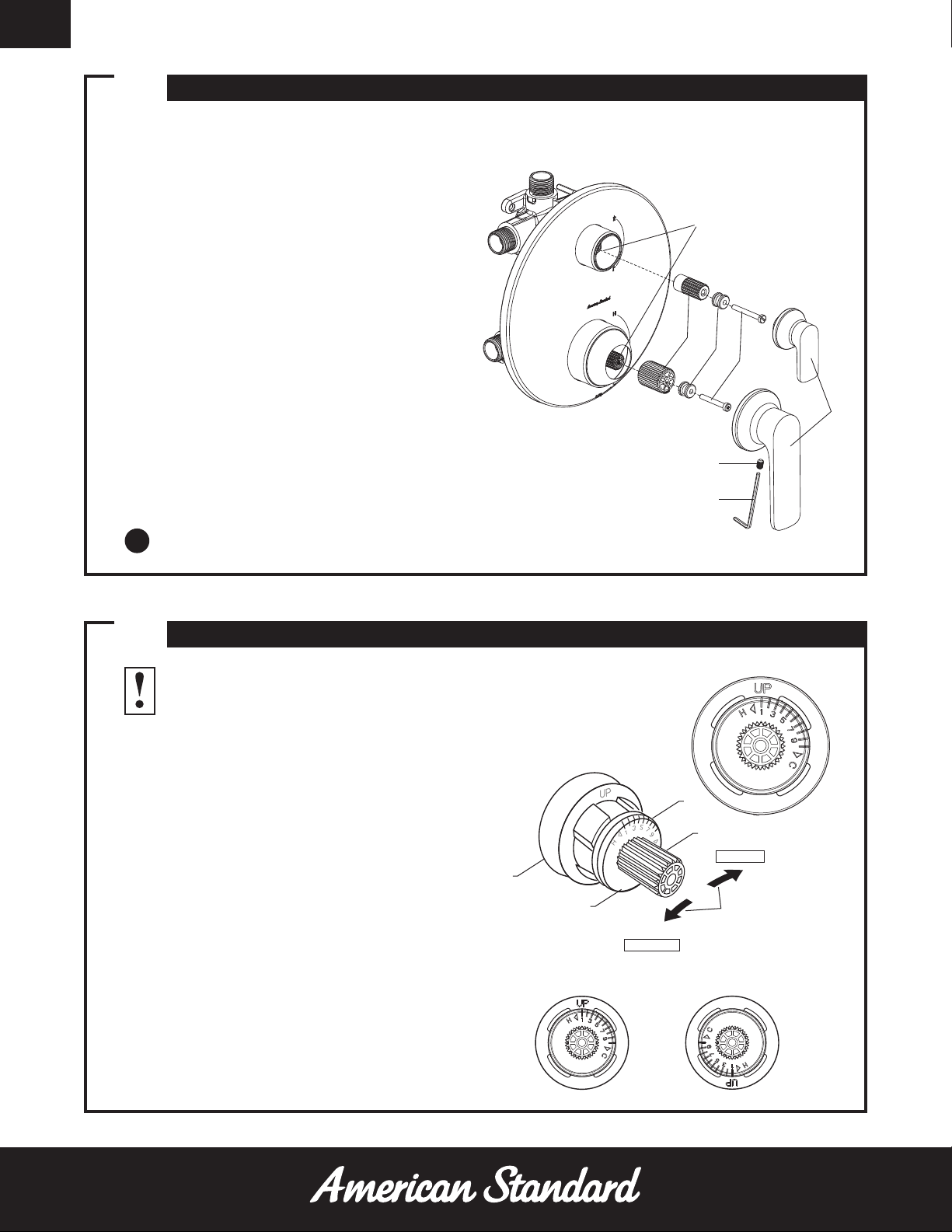

5HANDLE INSTALLATION
• Push the two HANDLE ADAPTERS (1) on to
VALVE STEMS (4) and secure with SPACERS (2)
and HANDLE SCREWS (3).
• Push the two HANDLES (5) over HANDLE
ADAPTERS (1).
• Secure the two HANDLES (5) with SET SCREWS
(6) and the provided HEX WRENCH (7).
6
7
4
3
1
5
2

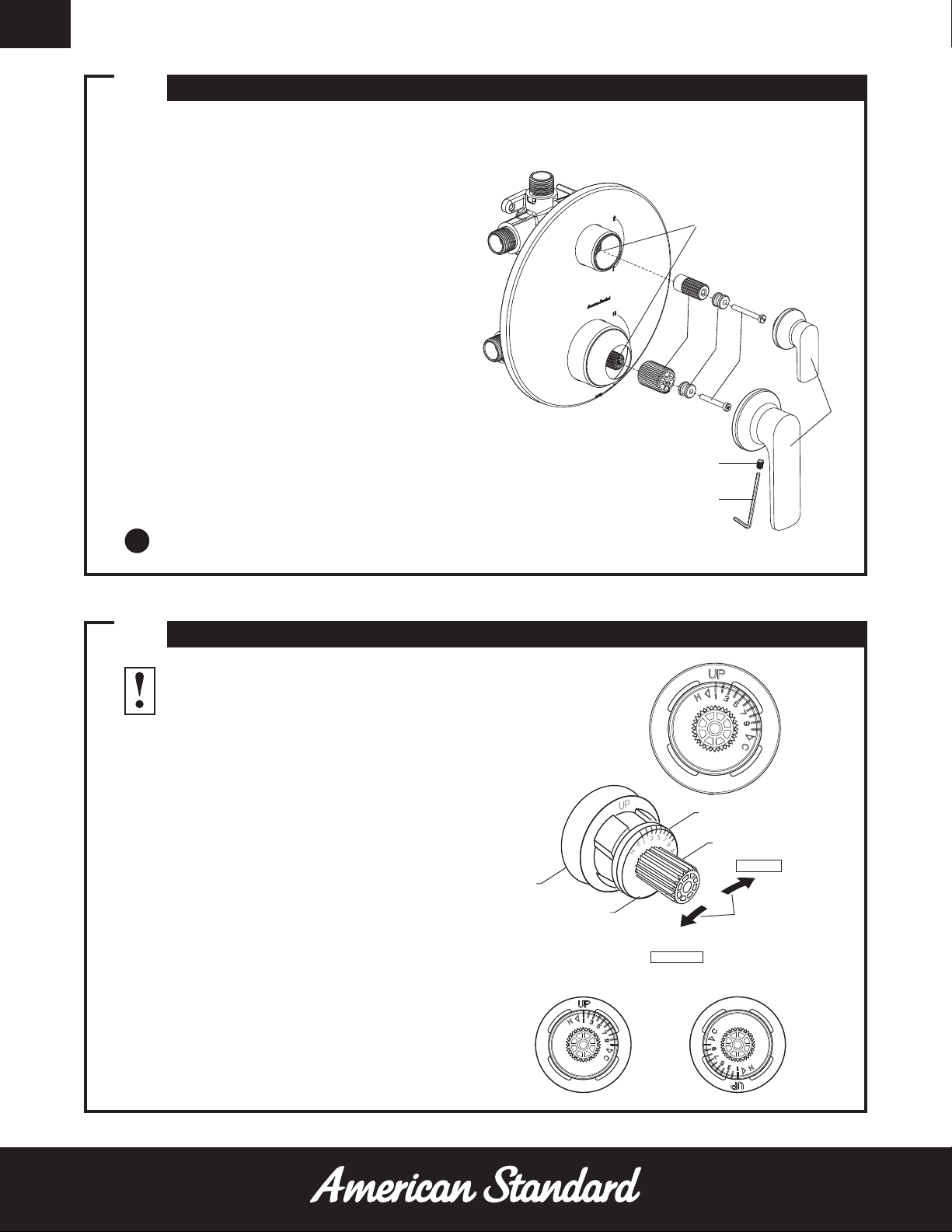

6SERVICE
ADJUST HOT LIMIT STOP:
• By restricting HANDLE rotation and limiting the
amount of hot water allowed to mix with the cold,
the HOT LIMIT SAFETY STOP (1) reduces risk of
accidental scalding. To set the maximum hot water
temperature of your faucet valve, adjust the setting
on the HOT LIMIT SAFETY STOP (1).
• Turn CARTRIDGE STEM (2) to the OFF position
(coldest setting) before making adjustment to HOT
LIMIT STOP (1). Pull forward and rotate
counterclockwise one number to limit hot water
temperature. Use NUMBERS (5) on CARTRIDGE
(4) on HOT LIMIT STOP (1) for indication.
COLDER
(Larger Numbers)
1 2 3 4 5 6 7 8 9 10
HOTTER
(Smaller Numbers)
1 2 3 4 5 6 7 8 9 10
3
4
1
5
2
Turn off hot and cold water
supplies before beginning.
Standard Back to Back
A

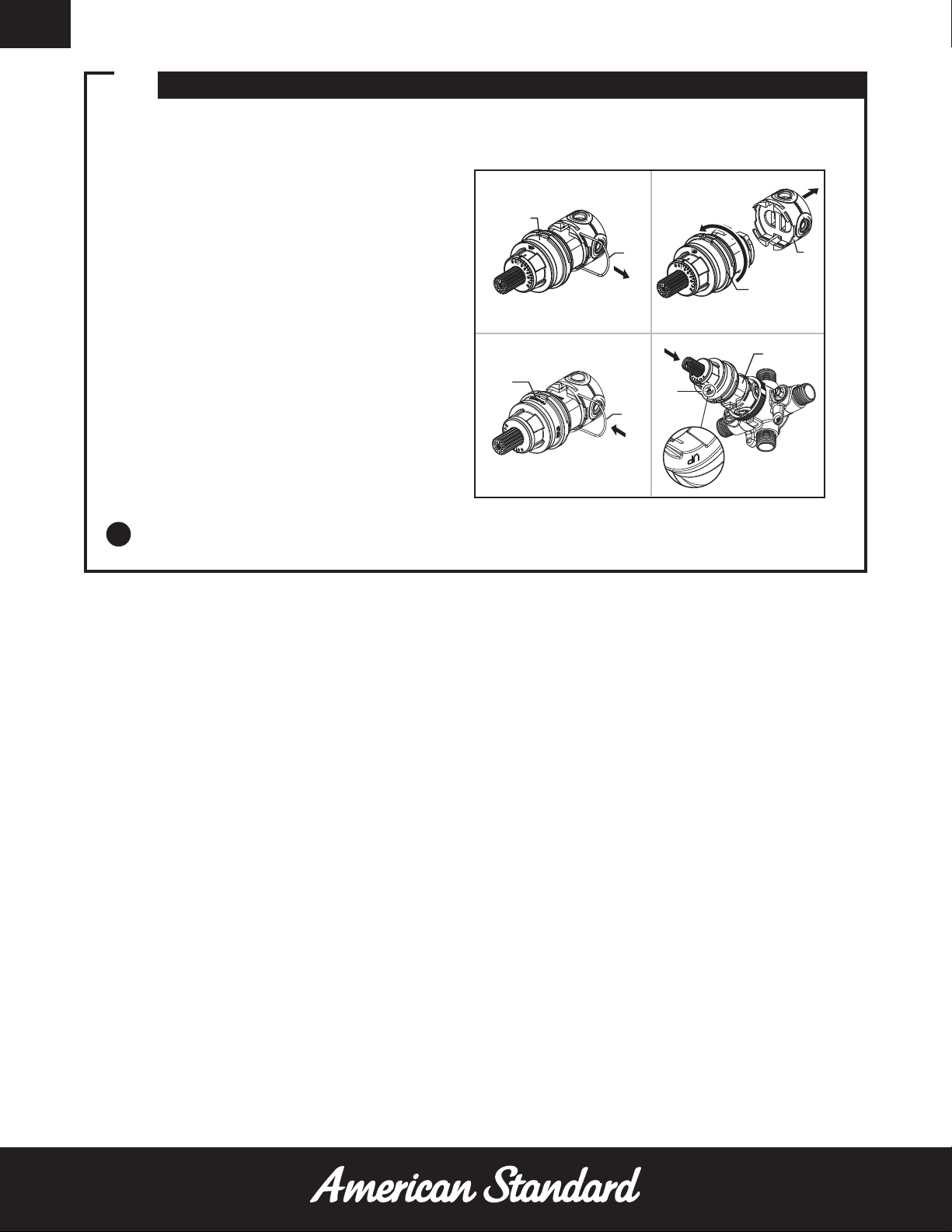

7SERVICE
BACK TO BACK INSTALLATION:
• Remove CARTRIDGE (B) as detailed in steps
above.
• Remove Pin (A) from Cartridge (B) by pulling.
• Separate Manifold (C) from Cartridge (B) by
pulling.
• Rotate Cartridge (B) 180 degrees and reinstall
Manifold (C) with Pin (A).
• The “up” text (D) should now be facing
downward during installation of the
cartridge (B).
A
B
A
B
C
180º
B
A
B
D
1 2
3 4
BACK TO BACK INSTALLATION

WARRANTY
FAUCET LIMITED LIFETIME FUNCTION AND FINISH WARRANTY
FOR RESIDENTIAL INSTALLATIONS: AS America, Inc. (“American Standard®”) warrants this product to
be free from defects in materials or workmanship for as long as the original consumer purchaser owns this
product. Proof of purchase (original sales receipt) from the original consumer purchaser must be made
available to American Standard for all warranty claims. This warranty is non-transferable. It does not apply in
the event of product damage due to the use of other than genuine American Standard replacement parts,
installation error, abuse, misuse or improper care and maintenance (whether performed by a plumber,
contractor, service provider or member of the purchaser’s household). The warranty excludes damage
due to aggressive air or water conditions, or harsh or abrasive cleaners and/or materials.
FOR COMMERCIAL INSTALLATIONS: For all industrial, commercial and business usage the warranty
period is five years, from date of purchase and except for duration, all other aforementioned warranty terms
apply. For both Residential and Commercial warranties, batteries are not included in the warranty.
FOR ELECTRONIC FAUCETS, VALVES AND CONTROLS: American Standard warrants its electronic faucets,
valves and controls to be free from manufacturing defects in material and workmanship under normal use
for five (5) years from the date of purchase by or for the original consumer owner. American Standard will
provide free of charge, at it’s sole option, replacement part(s) or product (or if no longer available, a
comparable product) to replace those which have proven defective in materials or workmanship.
This warranty does not cover labor charges incurred and/or damage sustained in installation, repair or
replacement, nor incidental or consequential damages. This warranty is effective for all faucets sold after
March 1, 2018.
THIS WARRANTY IS EXCLUSIVELY IN LIEU OF ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
This warranty gives the original consumer purchaser of an American Standard faucet specific legal rights
which may vary from state to state or from province to province. In some states or provinces the exclusion or
limitation of incidental or consequential damages is not allowed, so those exclusions may not apply to you.
UNITED STATES
American Standard Brands
30 Knightsbridge Road, Suite 301
Piscataway, NJ 08854
Attention: Director of Customer Care
For residents of the United States,
warrantyinformation may also be obtained
by calling the following toll free number:
[phone]
www.americanstandard.com
PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION PROCESS AND SAVE THIS WARRANTY INFORMATION
IMPORTANT: Registration of the faucet must be completed for this warranty to become effective. Your registration will make it easier
to contact you in the event of a product recall.*
INSTRUCTIONS: Register your faucet at www.americanstandard.com. Please save your proof of purchase (sale receipt).
If you need assistance or do not have access to our website, please contact American Standard Customer Care at: [phone].
An American Standard representative will assist in completing the warranty registration.
*In California, your warranty rights remain intact even if you do not complete the registration process.
THIS WARRANTY IS NOT TRANSFERABLE FROM ORIGINAL CONSUMER PURCHASER.
CANADA
LIXIL Canada, Inc.
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: [phone]
www.americanstandard.ca
MEXICO
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
www.americanstandard.com.mx

M985156 EN (9/22)
TELL US WHAT YOU THINK!
Please leave us a product review or story
at americanstandard.com/reviews
Register your warranty and sign up for an idea-filled
newsletter at americanstandard.com/warranty.
Find installation videos at
youtube.com/americanstandard.
Happy I purchased this faucet
