American Standard CHAMPION 2002 Assembly instructions

SAVE FOR FUTURE USE
730529-100 Rev. U
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2011
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver Adjustable Wrench Sealant
Hacksaw Wax Ring/Gasket Flexible Supply Tube 1/2" Deep Well Nut Driver or
Closet Bolts Tape Measure Carpenters Level Deep Well Socket Wrench
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
1
Recommended fitting type for back-to-back installations.
Depending upon your plumbing and venting conditions, the flow from
the Champion in a back-to-back installation may create a vacuum on
the system and draw water from the opposing bowl. The National
Standards Plumbing Code prohibits the use of a cross fitting for
drainage as throw over is possible. The code does approve a
directional "Y" style fitting with proper venting to direct the water
downward and away from the other toilet.
NOTE: BACK-TO-BACK INSTALLATION
Doral Classic™Champion®4 2-piece Toilets
Models - 2058, 2074, 2076, 2473
Doral Classic™Champion®4 2-piece Toilets
Models - 2367, 2368, 2369, 2443
Oakmont™Champion®4 2-piece Toilets
Models - 2625, 2627, 2738
Townsend™Champion®4 2-piece Toilets
Models - 2733, 2735
Champion®42-piece Toilets
Models - 2002, 2018, 2023, 2414, 2585,
2792, 2586, 2793, 3186, 3404
INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years.To ensure this
product is installed properly, please read these instructions carefully before you begin. (Certain installations
may require professional help.) Also be sure your installation conforms to local codes.
REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
!

3
CLOSET FLANGE
CLOSET BOLTS
A
WAX RING
SEALANT
4
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and install wax
ring evenly around waste flange, with tapered end of ring facing
toilet. Apply a thin bead of sealant around toilet base.
730529-100 Rev. U
- 2 -
2
FINISHED WALL
19mm ± 6mm
(1 ± 1/4")
419mm
(16-1/2")
FINISHED
FLOOR
305mm
(12")
772mm
(30-3/8")
83mm
(3-1/4")
A
470mm
(18-1/2")
C
B
16mm
(5/8")
E
D
SUPPLY
AS
REQ'D
F
152mm
(6")
254mm
(10")
356mm
(14")
FINISHED WALL
19mm ± 6mm
(1 ± 1/4")
387mm
(15-1/4")
FINISHED
FLOOR
305mm
(12")
772mm
(30-3/8")
721mm
(28-3/8")
83mm
(3-1/4")
A
470mm
(18-1/2")
419mm
(16-1/2")
C
B
16mm
(5/8")
E
D
SUPPLY
AS
REQ'D
F
152mm
(6")
254mm
(10")
356mm
(14")
*
721mm
(28-3/8")
*
*
419mm
(16-1/2")
*
*ROUND FRONT
MODELS
NOTE: DRAWINGS ARE FOR DIMENSIONAL PURPOSES ONLY. THEY ARE NOT EXACT REPRESENTATIONS.
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90°, and slide into
place 6" (152 mm) apart and parallel to wall.
ROUGHING-IN DIMENSIONS: Right Height™Elongated Two Piece Toilet
Right Height™Round Front Two Piece Toilet
ROUGHING-IN DIMENSIONS: Normal Height Elongated Two Piece Toilet
Normal Height Round Front Two Piece Toilet
MODEL ABCDE F
DIMENSIONS
235mm (9-1/4) 264mm (10-3/8) 362mm (14-1/4) 464mm (18-1/4) 825mm (32-1/2) 254mm (10)
2018, 2023, 2585, 2792 235mm (9-1/4) 264mm (10-3/8) 362mm (14-1/4) 464mm (18-1/4) 797mm (31-3/8) 254mm (10)
2058 216mm (8-1/2) 264mm (10-3/8) 362mm (14-1/4) 479mm (18-7/8) 873mm (34-3/8) 254mm (10)
2074, 2076 216mm (8-1/2) 264mm (10-3/8) 362mm (14-1/4) 479mm (18-7/8) 851mm (33-1/2) 254mm (10)
2367 216mm (8-1/2) 264mm (10-3/8) 362mm (14-1/4) 492mm (19-3/8) 872mm (34-5/16) 254mm (10)
2368, 2369 216mm (8-1/2) 264mm (10-3/8) 362mm (14-1/4) 492mm (19-3/8) 844mm (33-1/4) 254mm (10)
2625, 2627 216mm (8-1/2) 273mm (10-3/4) 381mm (15) 492mm (19-3/8) 844mm (33-1/4) 286mm (11-1/4)
2738 216mm (8-1/2) 275mm (10-13/16) 384mm (15-1/8) 492mm (19-3/8) 872mm (34-5/16) 295mm (11-5/8)
2733, 2735 216mm (8-1/2) 267mm (10-1/2) 379mm (14-7/8) 479mm (18-7/8) 873mm (34-3/8) 284mm (11-3/16)
5
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet
on closet flange so bolts project through
mounting holes.
b. Loosely install retainer washers and nuts.
Side of washers marked "THIS SIDE UP"
must face up!
CLOSET
BOLT
NUT
TAPERED
WASHER
FLANGE
MANIFOLD INSIDE WATERWAY – DO NOT REMOVE
2002, 2414, 2586,
2793, 3186, 3404

730529-100 Rev. U
- 3 -
9a Before continuing, determine the type of water supply connection you have from the chart below and use the appropriate assembly parts
required to properly reconnect the water supply. DO NOT use plumber's putty to seal these fittings.
CAUTION: DO NOT USE
CONE WASHER WITH
PLASTIC SUPPLY LINE.
CAUTION: Overtightening of
LOCK NUT or COUPLING NUT
could result in breakage and
potential flooding.
These parts must be used as illustrated
to insure water-tight connection. Use of
existing coupling nut may result in water
leakage. Water supply tube or pipe
must extend at least 1/2" inside
threaded shank of valve (does not apply
to flanged tubing).
Use existing
coupling nut
and washer.
Use existing spiral cone
washer. Fluidmaster
cone washer may not
seal completely on
spiral type supply line.
Captive cone
washers already
included. No
additional washers
needed.
METAL/COPPER
FLARED TUBING
METAL FLANGED
TUBING
METAL SPIRAL
TUBING
VINYL/BRAIDED
CONNECTOR
LOCK NUTLOCK NUT LOCK NUT LOCK NUT
COUPLING
NUT
COUPLING
NUT
EXISTING
COUPLING
NUT
COUPLING
NUT
WATER
SHUT-OFF
WATER
SHUT-OFF
WATER
SHUT-OFF
WATER
SHUT-OFF
CONE
WASHER
EXISTING
CONE
WASHER
EXISTING
WASHER
8INSTALL TOILET SEAT Install toilet seat in accordance with manufacturer's directions.
!WARNING: Do not use plumber’s putty, pipe dope, or any other sealant on the water supply
connection to this tank. If the connection leaks after hand tightening, replace the supply line.
If the connection continues to leak with the new supply line, replace the fill valve.
Warranty is void if any type of sealant is used on the water supply connection.
6
INSTALL TOILET
a. Position toilet squarely to wall and, with a rocking motion,
press bowl down fully on wax ring and flange. Alternately
tighten nuts until toilet is firmly seated on floor.
CAUTION:
DO NOT OVERTIGHTEN NUTS
OR BASE MAY BE DAMAGED!
b. Install caps on washers.
(If necessary, cut bolt height to size before installing caps.)
c. Smooth off the bead of sealant around base.
Remove excess sealant.
!
CLOSET BOLT
NUT
WASHER
BOLT CAP
INSTALL TANK
Recommended tool: Deep socket tool included in tank kit.
a. Install large rubber gasket over threaded outlet on bottom of tank and
lower tank onto bowl so that tapered end of gasket fits evenly into
bowl water inlet opening, and tank mounting bolts go through
mounting holes. Secure with metal washer/nuts. Use the included
deep socket tool to help get nuts started on bolts.
b. With tank parallel to wall, alternately tighten hex nuts keeping tank
even and level until tank contacts both front and rear bowl mounting
ribs. Do not tighten any further.
CAUTION:
7
DO NOT OVERTIGHTEN NUTS MORE THAN REQUIRED FOR A SNUG FIT!
DO NOT SPIN BOLTS INSIDE TANK WITH A SCREWDRIVER
CLOSET FLANGE
!
WASHER/NUT
DEEP SOCKET
TOOL
SCREWDRIVER
RUBBER
GASKET
TANK MTG.
BOLTS PRE-
INSTALLED
WASHER/NUT
SCREWDRIVER
DEEP
SOCKET
TOOL
MTG.
RIBS

730529-100 Rev. U
- 4 -
109b
ADJUSTMENTS
a. Adjust water level. Water level should be adjusted to level indicated in
tank by adjusting float cup. See Step 11 for water level adjustment method.
IMPORTANT:
b. If bowl fails to siphon, an adjustment may be required with the lift chain.
Simply remove the bead chain from the retainment clip (see Fig. 10A)
and take up slack on the chain, and reinsert on lift rod. Make sure the chain
is not too taught.
With correct washers in
place (see Step 9a),
tighten COUPLING NUT
1/4 turn beyond hand tight.
DO NOT OVERTIGHTEN.
11
1. Turn off water supply and flush toilet to empty tank.
2. Disconnect chain from trip lever by removing hair pin cotter
and clevis pin.
3. Parially lift and support piston bottom with one hand.
4. Remove thumbscrew by turning counter-clockwise.
5. Remove piston top and gasket.
6. Replace gasket with new gasket.
7. Reverse procedure, turn thumbscrew until 2 clicks are felt.
TROUBLE SHOOTING FLUSH VALVE
SEAL REPLACEMENT:
NOTE: DO NOT ADD ANY FOREIGN MATERIALS TO THE SEALING SURFACE.

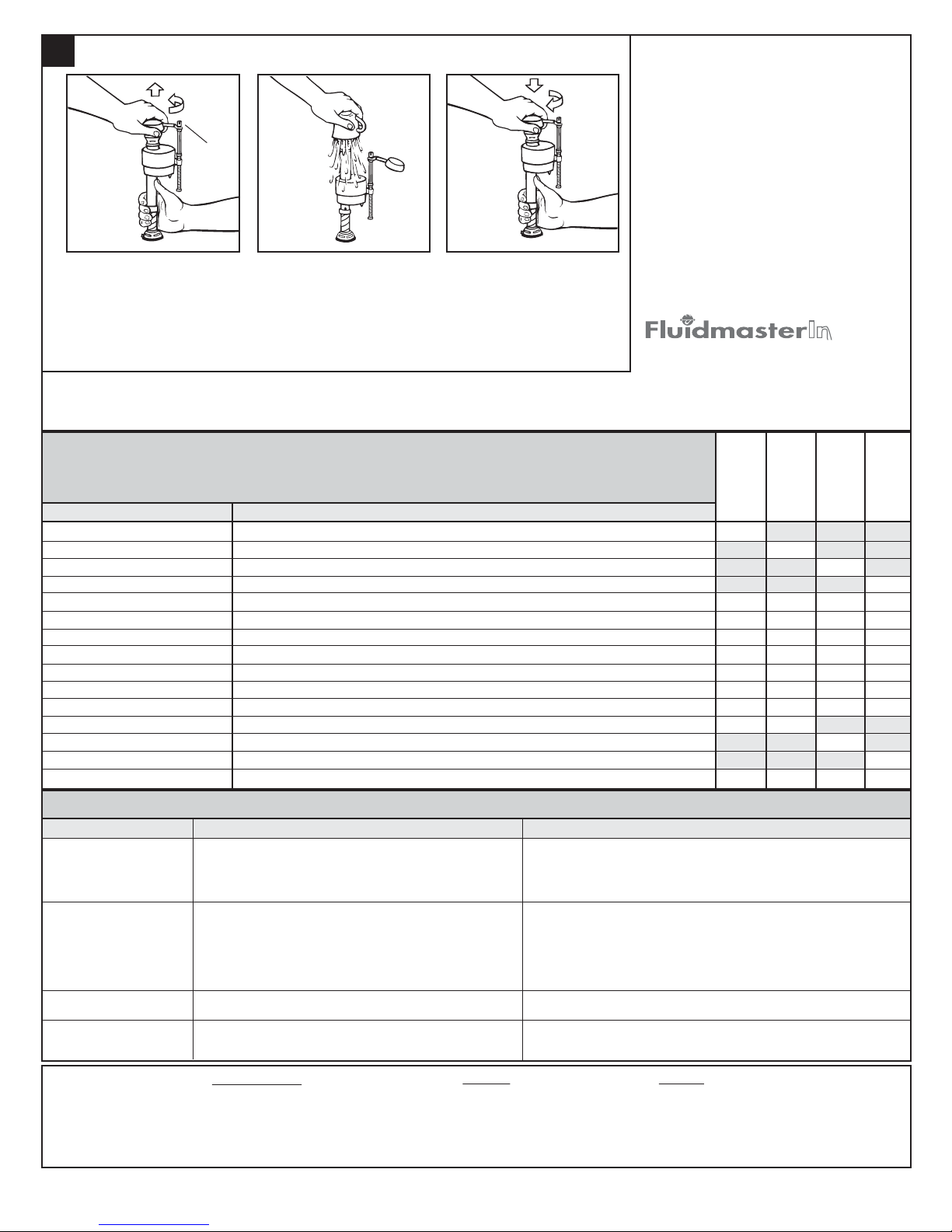

13 13a REFILL TUBE REPLACEMENT :
12
When cleaning your toilet, wash it with mild, soapy water, rinse
thoroughly with clear water and dry with a soft cloth.
WARNING: Do not use in-tank cleaners. These products
can seriously damage fittings in the tank. This damage can
cause leakage and property damage.
American Standard shall not be responsible or liable for
any damage caused by the use of in-tank cleaners.
CARE AND CLEANING
!
Turn on water supply.
Submerge the FLOAT
CUP under the water for
30 seconds. Adjust the
water to desired level by
turning WATER LEVEL
ADJUSTMENT ROD
and moving FLOAT
CUP up or down.
Diagram 1
TA N K
LEVER
REFILL
TUBE
TOP ARM NIPPLE
PARTS FOR WATER
CONNECTION
(SEE STEP 9)
CONE WASHER
VALVE
BODY
THREADED
SHANK
SHANK
WASHER
COUPLING NUT
(HAND TIGHT ONLY)
FILL
VALVE
FLOAT
CUP
CRITICAL LEVEL
MARK ("C.L.")
MUST BE
1" ABOVE
OVERFLOW PIPE
ADJUSTABLE
HEIGHT
LOCK NUT
Fig. 10A
WATER LEVEL
ADJUSTMENT
ROD
Locate bottom portion of
hose clip to vent tube at
location as shown.
THUMBSCREW
PISTON TOP
PISTON BOTTOM
GASKET
HAIR PIN
COTTER

730529-100 Rev. U
- 5 -
Does not flush
Poor or sluggish flush
Toilet leaks
Toilet does not shut off
a. Water supply valve closed.
b. Supply line blocked.
c. Flush valve chain too loose or disconnected.
d. Sand or debris lodged in water control.
a. Bowl water level too low.
b. Supply valve partly closed.
c. Partially clogged trapway and/or drain pipe and/or vent.
d. Supply pressure too low.
e. Flush valve chain too tight, holding flush valve open.
a. Poor supply line connection.
b. Poor bowl to tank/floor connection.
a. Flush valve seal leaking or deformed.
b. Sand or debris lodged in water control.
a. Open valve and allow water to fill tank.
b. Shut off water supply, disconnect supply line and inspect all
gaskets and washers. Reassemble. Also, see Fluidmaster
maintenance. (see Step 14)
c. Readjust chain length as required.
d. Shut off water supply. Remove cap and clean as per Step 14.
a. Check that refill tube is connected to water control and
inserted into tank overflow without being kinked or damaged.
(see Step 13a)
b. Open supply valve fully. Be sure that proper supply tube size
is used.
c. Remove obstruction. Consult a plumber if necessary.
d. Normal supply pressure must be at least 20 psi.
e. Readjust chain length as needed. Review Step 10.
a. Review Step 9 of installation procedure.
b. Review Step 4 through 7 of installation procedure.
a. Clean debris from seal surface. Replace flush valve seal as
needed. (see Step 13)
b. Shut off water supply. Remove cap and clean as per Step 14.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
REPAIR PARTS LIST
Repair parts are determined by toilet tank number which can be found marked inside tank.
NOTE: "XXX" represents color or trim finish options. Specify when ordering.
PART NO.
4266 Tank
With
735128 Cover
4266 RH Tank
With
735128 Cover
4272 Tank
With
735109 Cover
4281 Tank
With
735113 Cover
DESCRIPTION
Champion®4 LH Trip Lever
Champion®4 RH Trip Lever
Champion®4 LH Trip Lever
Champion®4 LH Trip Lever
Bolt Cap Kit (Incl. 2 Covers & Washers)
Champion®4 Fluidmaster 400a Valve
Champion®4 Flush Valve Seal Kit
Champion®4 Flush Valve Assembly
Champion®4 Clevis Pin Assembly
Champion®4 PVC Refill Tube
Champion®4 Tank To Bowl Coupling Kit #241
Champion®4 Tank Cover
Champion®4 Tank Cover
Champion®4 Tank Cover
Clip for Refill Tube
738995-XXX0A
738997-XXX0A
738835-XXX0A
738837-XXX0A
034783-XXX0A
738565-424-0070A
7301111-0070A
3174.002-0070A
738985-0070A
738570-1010A
738756-0070A
735128-400-XXX
735109-400-XXX
735113-400-XXX
072989-0070A
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
14
• Make sure water supply is off.
Remove valve TOP by lifting
arm and rotating top and arm
1/8 turn counterclockwise,
pressing down slightly on cap.
IMPORTANT: Always clear
sand and rust from system.
• While holding a
container over the
uncapped VALVE to
prevent splashing, turn
water supply on and
off a few times. Leave
water supply off.
• Replace TOP by engaging
lugs and rotating 1/8 turn
clockwise. MAKE CERTAIN
TIP IS TURNED TO THE
LOCKED POSITION. VALVE
MAY NOT TURN ON IF TOP
IS NOT FULLY TURNED TO
THE LOCKED POSITION.
For troubleshooting information please contact:
TROUBLESHOOTING
IF FILL VALVE SHUTS OFF BUT CONTINUES TO
LEAK SLOWLY, repeat Step 14.
IF FILL VALVE TURNS OFF AND ON DURING
PERIODS OF NON-USE, it is a signal you are
wasting water because:
• The end of the refill tube is inserted into overflow
pipe, below water level in tank. Attach refill tube to
overflow pipe using "S" clip provided.
• The flush valve is leaking because it's worn, dirty
or misaligned.
IF FILL VALVE WON'T TURN ON OR SHUT OFF
or REFILL OF TANK WATER IS SLOW after valve
has been in use for some time, Fluidmaster Model
242 Replacement Seal may be needed.
Go to our website at www.fluidmaster.com for
more solutions to toilet problems.
© 2001 Fluidmaster, Inc.
® Registered trademark of Fluidmaster, Inc.
Always use quality Fluidmaster repair parts when maintaining your Fluidmaster products. Fluidmaster
shall not be responsible or liable for any damages caused by products used with Fluidmaster valves that
were not manufactured by Fluidmaster, Inc.
30800 Rancho Viejo Road
San Juan Capistrano, CA 92675
[phone] [phone]
www.fluidmaster.com
LIFT ARM
FIRST
In the United States:
American Standard Brands
P.O. Box 6820
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: [phone]
www.americanstandard.com
In Canada:
AS Canada, ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: [phone]
www.americanstandard.ca
In Mexico:
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
www.americanstandard.com.mx
