AmeriGlide HERCULES II 600 Series User manual

P/N: 610-00018 RevC 11819
This manual has been provided to assist you with lift installation and operation.
For further assistance please contact your authorized AmeriGlide dealer or
AmeriGlide’s Technical Support Department.
Tel: [phone]
Fax: [phone]
Owners Manual
HERCULES II 600
Vertical Platform Lift
Dealer:
Serial No:
MODELS:
AMGHERC600-4
AMGHERC600-6

2 // 12 Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
P/N: 610-00018 RevC 11819
CONTENTS
Dealer Information______________________ 3
Owner Purchase Information ____________ 3
Speci󲡴cations___________________________ 4
Code and Site Requirements____________ 5
Operation ______________________________ 5
Safety __________________________________ 5
Troubleshooting and Manual Override___ 7
Maintenance ___________________________ 8
Warranty _______________________________ 9
Your new Hercules Vertical Platform
Lift has been engineered to provide
you with safe and convenient access to
your home. Designed to work indoors
or out, its small footprint works where
ramps or stair lifts won’t, enabling
you to move easily from one level to
another with your mobility device.
It’s easy to operate and virtually
maintenance-free to offer you many
years of reliable use.
IMPORTANT: Read and understand
this Owner’s Manual in its entirety
before attempting to operate the
equipment. Follow all operating
procedures to avoid possible injury
and/or property damage.
INDICATIONS OF USE STATEMENT
The Hercules II 600 vertical platform lift assists with the transfer of patients or
mobility impaired persons, up and down between levels of a residential or private
facility.

3 // 12
Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
P/N: 610-00018 RevC 11819
OWNER PURCHASE INFORMATION
DEALER INFORMATION
If you have questions concerning the operation or maintenance of your Residential Platform
Lift, please contact your dealer.
Dealer: __________________________________________________
Address:_________________________________________________
__________________________________________________________
Telephone: ______________________________________________
E-mail: __________________________________________________
OWNER PURCHASE INFORMATION
If service or warranty work is needed, your Dealer will need the information below to receive
factory information or order parts for your Platform Lift.
Date purchased: ________________________________________
RPL Serial Number: _____________________________________

Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
4 // 12
P/N: 610-00018 RevC 11819
SPECIFICATIONS
Payload Capacity 600 lb
Height RPL 400 - 53"| RPL 600 - 77"
Drive Belt driven Acme screw / 90 VDC 1
/
3 HP motor.
Optional 24 VDC battery powered unit
Power Supply 120 VAC - 15 A grounded circuit
Control Circuit 24 VAC (Low Voltage Controls)
Standard Platform 36"x 48"with 36"high guard panels & automatic folding ramp
Footprint 50"x 70"
Speed 10 FPM
Safety Design ASME A18.1, Section 5 - Private Residence Vertical Platform Lifts
Standards:
ETL Listed 3148125 CSA B44.1 / ASME A17.5 - Elevator & Escalator Equipment
Controls Rocker switch with emergency stop (Optional Key Switch)
Manual Lowering Provided
Safety Features Safety pan, 󲡴nal limit, Acme safety nut with monitor and non-skid surface
Warranty 1-Year parts

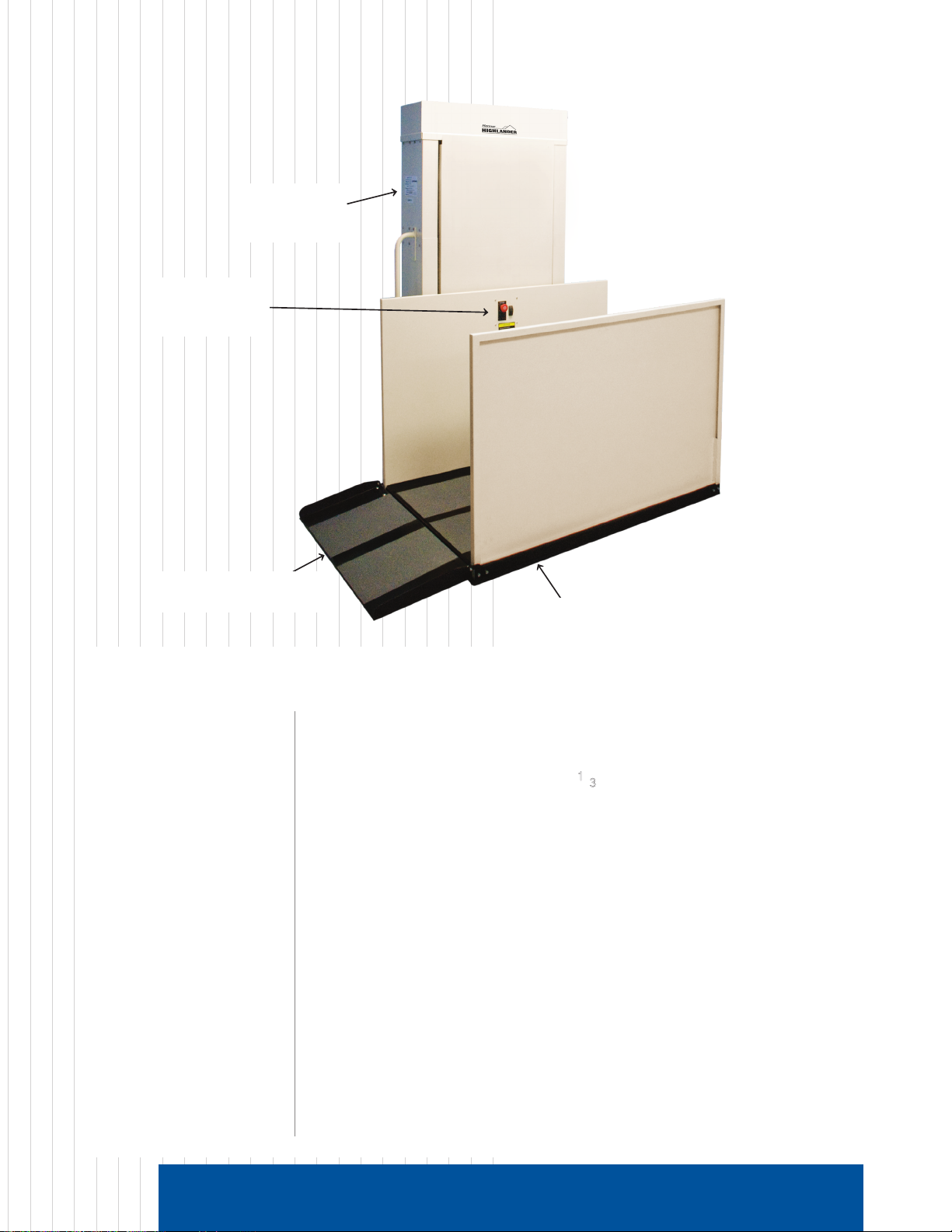

Optional Battery Power
Controls
Data / Serial Tag
Folding Ramp
Safety Sensors
Optional Key Switch
Control
Optional Wireless
Control

5 // 12
Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
P/N: 610-00018 RevC 11819
CODE AND SITE REQUIREMENTS
Code Requirements
This platform lift is designed to meet ASME A18.1 section 5 and CSA B44 / ASME A17.5 with
the addition of certain options. Code requirements for vertical platform lifts vary depending
on location. Your installer is responsible for contacting your local code enforcement o󲡶ce to
determine all applicable regulations prior to installing vertical platform lifts.
Site Requirements
The lift requires a 120 VAC 15 AMP grounded circuit. Outdoor installations require a GFI
protected circuit. Lift must be installed on a 4"thick, level 3,500 PSI reinforced concrete slab.
The footprint requires 50" x 70"area (this includes the folding access ramp).
OPERATION
Up or Down Direction Button
The limit switches will stop the lift platform level with the upper landing. At the bottom, the
access ramp unfolds and rests on the ground.
Emergency Stop
Press the Emergency Stop button. This will prevent the lift from running in either direction. To
operate the lift normally, pull the switch back out.
NOTE: The sensor pan beneath the platform is designed to stop the lift when it hits an object
underneath it.You can verify the operation of the sensor pan by starting the lift at the top
landing. Press up on the sensor pan. While holding the pan in this location, press the down
switch on the platform. The lift should not run. Check all sides and middle of the safety pan.
SAFETY
IMPORTANT: Read all instructions in this Owner’s Manual before operating the lift.
CAUTION: Center weight on lift’s platform. Lock brakes before operating lift when using
with a wheelchair or scooter. Do not use lift if you suspect damage or wear.

6 // 12 Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
P/N: 610-00018 RevC 11819
• This RPL meets ASME A18.1 safety standards. However, ensure that you and
those servicing this product follow all safety procedures.
• Do not disable any safety equipment or switches supplied with this lift.
• Lock wheelchair brakes before operating lift.
• Stay away from all drive train components while the lift is operating.
• Do not exceed the maximum payload capacity of 600 lb.
• Do not ride on the lift until it is anchored in place.
• It is recommended that a gate or door be installed at the upper landing.
• This product is designed only for lifting people and mobility devices. Do not use
for any other purpose.
• Ensure that this lift is always disconnected from the electrical source before
servicing.
• Loose clothing or jewelry should never be worn by a person working on the lift.
• The lift requires a 120 VAC 15 AMP grounded, dedicated electrical outlet within
6'of the lift. Plug the lift directly.
All electrical must meet NFPA70 (National Electrical Code)
Smooth vertical fascia is a requirement by ASME A18.1 safety standard.
Warning
Moving components can cut and crush. Do NOT operate the lift if you or anyone else is
in close proximity to any drive components. Be aware that loose clothing or jewelry may
catch on moving parts.
The area between the 󲡵oor where the lift is mounted and the top landing must be
covered by a smooth vertical fascia to eliminate pinch points between the platform and
landing.

7 // 12
Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
P/N: 610-00018 RevC 11819
TROUBLESHOOTING & MANUAL OVERRIDE
Troubleshooting
In case of power failure, this lift is equipped with a Manual Override Crank that
permits it to be raised or lowered by hand. Before using, check to ensure that the
manual system is required.
Before using the Manual Override Crank, try trouble-shooting by verifying the
following:
• Check that the Emergency Stop Switch is pulled out.
• Check that the electrical cord is plugged into the electrical outlet.
• Check that the building’s circuit breaker has not tripped.
• Try to run the lift by pushing both the up and down buttons.
Manual Over-Ride Procedure
If, after Troubleshooting as above, the lift still will not run, complete the following
steps:
Step 1
Unplug the lift from the
electrical outlet. Push in the
Emergency Stop Button.
WARNING: Do not service
or operate the Manual
Override Crank while
the lift is connected to
electricity.
Step 2
Loosen the screws and
remove the top cap at the
top of the tower.
Step 3
Insert the manual hand
crank onto the upper nut on
the top of the drive screw.
Rotate the crank to raise or
lower the platform.
WARNING: Never operate
the lift while the Manual
Override Crank is inserted
into the lift.
For your safety, if you have any questions, please contact your installer, or the
Technical Service Department at 1-866-378-6648.

8 // 12 Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
P/N: 610-00018 RevC 11819
MAINTENANCE
• Clean the lift panels, with a mild cleanser. Dry thoroughly.
• Do NOT use abrasive cleansers or materials.
• Apply a liberal coat of car wax on the steel panels. This is especially important if
your platform lift is used outside.
• Touch up any scratches immediately to maintain the attractive, rush-free
appearance.
PROFESSIONAL SERVICE
We recommend that the mechanical and electrical equipment be regularly inspected and
maintained by a certi󲡴ed technician for safety.

9 // 12
Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
P/N: 610-00018 RevC 11819TEC 2007 P/N: CSVF-000017 Rev A | Eective August 1, 2017
Hercules II RPL– ONE YEAR WARRANTY CERTIFICATE
LIMITED WARRANTY CERTIFICATE
Products Covered: HERCULES II
PLEASE FILL OUT ALL FIELDS AND RETURN WITHIN TEN (10) DAYS OF PRODUCT INSTALLATION.
Mail to AmeriGlide, 2075 47th Street, Sarasota, FL 34234. AmeriGlide warrants to the original purchaser of a Hercules Residenal
Vercal Plaorm Li (RPL) manufactured by us to be free from defects in material, mechanical and electrical components (parts) for a
period of one (1) year, provided that the products have been installed, maintained and operated properly according to the AmeriGlide
Installaon and Owner’s Manuals.
EXCEPTIONS TO THIS LIMITED WARRANTY ARE: PLEASE READ CAREFULLY
•AmeriGlide RPL’s installed outdoors must include the Premium
Protecon Package to maintain 1-year warranty;
otherwise warranty is limited to six months.
•Parts used that are not approved by AmeriGlide.
•Baeries are limited to one (1) year with a AmeriGlide supplied/
approved charger. •Labor fees for installaon work, repair or service calls are not covered
•Damage resulng from improper installaon or operaon •Outdoor installaon within 1 mile of a coastline reduces warranty
to 90 days and expressly excludes rust aer 30 days. Warranty is
extended to 1 year with Premium Protecon Opon.
•Negligence, alteraons, abuse or misuse of the equipment
•Fire, ood, acts of God •Due to the nature of steel construcon being permanently placed
in an outdoor environment and its inherent unpredictability, minor
paint defects and cosmec rust are not covered aer 30 days by
AmeriGlide’s Limited Warranty.
• Shipping damage
This warranty starts on the date of inial product installaon (not to exceed 90 days from the date of manufacture), provided the warranty
cercate is completely lled out and returned to AmeriGlide within ten (10) days of installaon. AmeriGlide and its dealers shall not be liable for any
consequenal, special or incidental damages arising out of the purchase or use of the unit or resulng from the breach of this Limited Warranty, or any
implied warranty. The limit of liability of AmeriGlide and its dealer hereunder shall be the unit’s purchase price. Some states do not allow limitaons on how
long an implied warranty lasts or the exclusion or limitaon of incidental or consequenal damages, or legal remedies, so these above limitaons may not
apply to you. All warranty claims must be reported to the dealer from whom the li was purchased as they have responsibility for handling your warranty
claim. The dealer is to contact the Technical Services Department of AmeriGlide and provide the serial number of the product along with a descripon and
evidence of the defect(s) supporng a warranty claim. Dealers may charge for labor, service, travel, or other associated costs to make
repairs, and such charges are not covered by this Limited Warranty. It is permissible to have any repairs or replacement work done as a result of any
defects in material and workmanship by someone other than the Dealer under this Limited Warranty. However, the Limited Warranty does not cover any
charges or expenses assessed by any such other person or company performing such repairs or replacement work. All parts used to replace defecve ma-
terials must be genuine AmeriGlide parts to be covered by this Limited Warranty. This Limited Warranty gives you specic legal rights, and you may ha
ve other rights which vary from state to state. AmeriGlide will not be charged for labor, consequenal damage or repair expenses. AmeriGlide will not,
under any circumstances, be liable for the loss of the use of its products or loss of me. Defecve parts must be returned, if requested, prepaid, to
AmeriGlide for inspecon prior to credit or replacement. At AmeriGlide’s discreon, any part found to have been modied, over-stressed, damaged by
accident, or misused is not covered by this warranty. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, INCLUDING ALL
IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND THERE ARE NO WARRANTIES THAT EXTEND
BEYOND THE DESCRIPTION OF THE LIMITED WARRANTY DESCRIBED HEREIN.
PRODUCT INFORMATION PURCHASER INFORMATION
Model: Name:
Premium Protecon Package: qYes qNo Mailing Address:
Serial Number: Installaon Address (if dierent):
Date of Installaon:
Type of Installaon: qIndoor q Outdoor Phone: Email:
Type of Installaon q Residenal qCommercial
DEALER / INSTALLER INFORMATION ADDITIONAL INFORMATION
Company Name: How did you hear about AmeriGlide?
Installer Name: qDealer qInternet qMagazine q Friend / Family q Other
Address:
I selected AmeriGlide due to its (select all that apply):
Phone: qStyle qDealer q Own Other AmeriGlide Products
Email: qEase of Use q Recommendaon q Price / Value q Key Features

10 // 12 Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
P/N: 610-00018 RevC 11819
NOTES:

11 // 12
Hercules II 600 Vertical Platform Lift Owner's Manual | www.Ameriglide.com | 866-378-6648
P/N: 610-00018 RevC 11819
NOTES:

P/N: 610-00018 RevC 11819
