AMG4743
-
SF
Instruction Manual
4 Video Transmit Unit with Bi
-
directional Data Channel
The
AMG4743
-
SF
is a standalone zero channel video transmit unit designed to transmit 4 video
signals and transmit and receive 1 data signal over one singlemode
fibre.
The
AMG4743
-
SF
is designed to be powered using an
AMG2003
standalone power supply.
The
AMG4743
-
SF
is designed to operate with
AMG4744
-
SF
or rackmount equivalent
AMG4744R
-
SF
zero channel video receive unit in a point to point configuration.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
2
of
8
AMG4743
-
SF
Instruction
Sheet
D16752
-
02.doc
Co
ntents
Introduction
3
Unit Functional Schematic
................................
................................
................................
..................
3
Optical Connection
................................
................................
................................
.............................
3
Connections
4
Video Input Connections
................................
................................
................................
....................
4
Optical Connections
................................
................................
................................
...........................
4
Power Connection
................................
................................
................................
..............................
4
Data and Audio Channel Connections
................................
................................
...............................
4
Data and Audio Channel Configuration
5
Data and Audio Channel Configuration
................................
................................
..............................
5
Data Interface Connections Channel A
................................
................................
..............................
5
Data Channel A Configuration
................................
................................
................................
............
5
Front Panel Indicators
6
Power LED
................................
................................
................................
................................
..........
6
Video Input LED’s
................................
................................
................................
...............................
6
Fibre Optic LED’s
................................
................................
................................
...............................
6
Low Speed Data LEDs
................................
................................
................................
.......................
6
Physical Information
7
Dimension
s
................................
................................
................................
................................
.........
7
Mounting Details
................................
................................
................................
................................
.
7
Removal / replacement from / to the Case
................................
................................
.........................
7
Safety
7
Maintenance and Repair
7

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is
assumed by AMG for its use.
Page
3
of
8
AMG4743
-
SF
Instruction
Sheet
D16752
-
02.doc
In
troduction
Unit Functional Schematic
The
AMG4743
-
SF
transmits up to 4 video
and 1 data signals to the
AMG4744
-
SF
.
It also receives 1 data signal transmitted
from the
AMG4744
-
SF
.
Optical Connection
The
AMG4743
-
SF
is connected as illustrated below wh
en used with an
AMG4744
-
SF
receive unit
acting as a point to point system.

AMG Systems Ltd. reserves the right to make changes to this
document withou
t notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
4
of
8
AMG4743
-
SF
Instruction
Sheet
D16752
-
02.doc
Connections
Video Input Connections
No. of channels
................................
....
4
Connector
................................
............
75 ohm BNC Socket.
Input Impedance
................................
..
75 ohm terminated.
Input Level
................................
...........
1 volt p
-
p nominal
Frequency Response
...........................
10Hz to
7MHz.
Optical Connections
PRIMARY OPTO OUT
Connector
................................
............
LC/PC
Optical Fibre
................................
........
One fibre
-
Singlemode
Primary Optical Launch Power
............
-
5dBm
Wavelength
................................
..........
1550nm
Primary Optical Sensitivity
...................
-
22dBm
Wavelength
................................
..........
1310nm
Power Connection
Connector Type
................................
...
2.1mm screw lo
ck long power jack
–
centre positive
Connector Partno.
................................
Switchcraft S761K, AMG G16125
-
00
Supply Voltage
................................
.....
13.5 to 18.0 Volts DC.
Maximum Power
................................
.
5 Watts
Data and Audio Channel Connections
DATA CHANNEL A
Data Channel A
................................
...
1 channel
Data Connector
................................
....
RJ45
Channel
A Interface
On Board Data Interface
–
RS232, RS422 or RS485. Selected by slide switch
above RJ45 connector.
RS485
–
switch position
-
high (closest to BNC connections)
RS422
–
switch position
–
middle
RS232
–
switch position
–
low (furthest from BNC c
onnections)
DATA CHANNEL B
Data Channel B
................................
...
Not Present

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
5
of
8
AMG4743
-
SF
Instruction
Sheet
D16752
-
02.doc
Data and Audio Channel Configuration
Data and Audio Channel Configuration
The
AMG4743
-
SF
and rackmount equivalent
AMG4743R
-
SF
sends and receives data to/from
Channel A. Channel B is not available. C
hannel A is a single data interface selectable by the user with
the slide switch on the rear panel.
Data Interface Connections Channel A
Channel A
RJ45 Pin
No.
RS485
[switch high]
RS422
[switch mi
d]
RS232
[switch low]
Cat 5/6 Cable
Colour Code T568B
1
IN + (A)
GND
White/orange
2
IN
-
(B)
IN
Orange
3
White/green
4
Blue
5
White/blue
6
Green
7
IN/OUT + (A)
OUT + (A)
N/A
White/brown
8
IN/OUT
-
(B)
OUT
-
(B)
OUT
Brown
Note: (A) or (B) in brackets in
above table refers to RS485 / RS422 data specification, not Channel A,
Channel B.
Data Channel A Configuration
Channel A is always present and allows for a RS232, RS422 (full duplex, four wire) or RS485 (half
duplex, two wire) interface depending on th
e position of the switch located above the RJ45 connector.
The switch signifies the presence of the X16004 Low Speed Data/Audio Interface Board. If there are
LED's present on the RJ45 connector then an X16003 Ethernet Interface Board is fitted.
The data i
nput for both the RS485 and the RS422 modes detects a tri
-
state input condition by
monitoring the differential voltage level across the input. A differential level below 600mV positive or
negative will be detected as a tri
-
state condition. A level above 60
0mV positive or negative will be
detected as a logic 1 or logic zero respectively. It is important therefore to terminate the RS485 bus or
the RS422 input bus using 120Ωif a pre
-
bias is present on the RS485 or RS422 bus.
A large number of third party eq
uipment manufacturers apply a pre
-
bias on their RS485 bus. This pre
-
bias is applied by pulling one arm of the RS485 bus high (+5 volts) and the other arm low (0 volts)
using high value resistors within the third party equipment. In order to ensure that the
AMG equipment
detects a tri
-
state condition, then these resistors should have a value above 5kΩ. If the third party
bias resistors are less the 750Ωthe bus can be double or triple terminated as required to ensure that a
tri
-
state level is detected.
Not
e: The Data Channel A is shipped from the factory set up for RS485 operation unless otherwise
requested.

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by
AMG for its use.
Page
6
of
8
AMG4743
-
SF
In
struction
Sheet
D16752
-
02.doc
Front Panel Indicators
Power LED
Power
................................
...................
Green
-
unit powered
Off
-
no power applied to unit
Video Input LED’s
Video Present CH1
-
4
...........................
Green
-
video s
ignal present on input BNC
R/G
-
channel present but no video on I/P BNC
Fibre Optic LED’s
Primary Opto Sync TX
.........................
Green
-
optical channel transmitting
Off
-
optical channel not transmitting
Primary Opto Sync RX
.........................
Green
-
optical channel receiving
Org
-
optical channel receiving but not sync.
Off
-
optical channel not transmitting
Low Speed Data LEDs
Channel A
Data Present TX (RS485 or RS422)
...
Green
-
logic zero (+V,
-
V) present on IN+, IN
-
Red
-
logic one (
-
V,V+) present on IN+, IN
-
Off
-
tri
-
st
ate off or no connection on IN+, IN
-
Data Present TX (RS232)
....................
Green
-
logic zero (+V) present on input IN+
Red
-
logic transitions present on input IN+
Off
-
logic one (
-
V) present on input IN+
This represents the data signals being transmitted on the
optical fibre
Data Present RX (RS485 or RS422)
...
Green
-
logic zero (+V,
-
V) present on OUT+, OUT
-
Red
-
logic one (
-
V,+V) present on OUT+, OUT
-
Off
-
tri
-
state off or no connection on OUT+, OUT
-
Data Present RX (RS232)
...................
Green
-
logic zero (+V) present on
OUT+
Red
-
logic transitions present on OUT+
Off
-
logic one (
-
V) present on OUT+
This represents the data signals being received on the optical fibre

AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Page
7
of
8
AMG4743
-
SF
Instruction
Sheet
D16752
-
02.doc
Physical Information
Dimensions
Height
................................
..................
112mm
Width
................................
...................
170mm (excluding connectors)
Depth
................................
...................
70mm
Weig
ht
................................
.................
750grams
Mounting Details

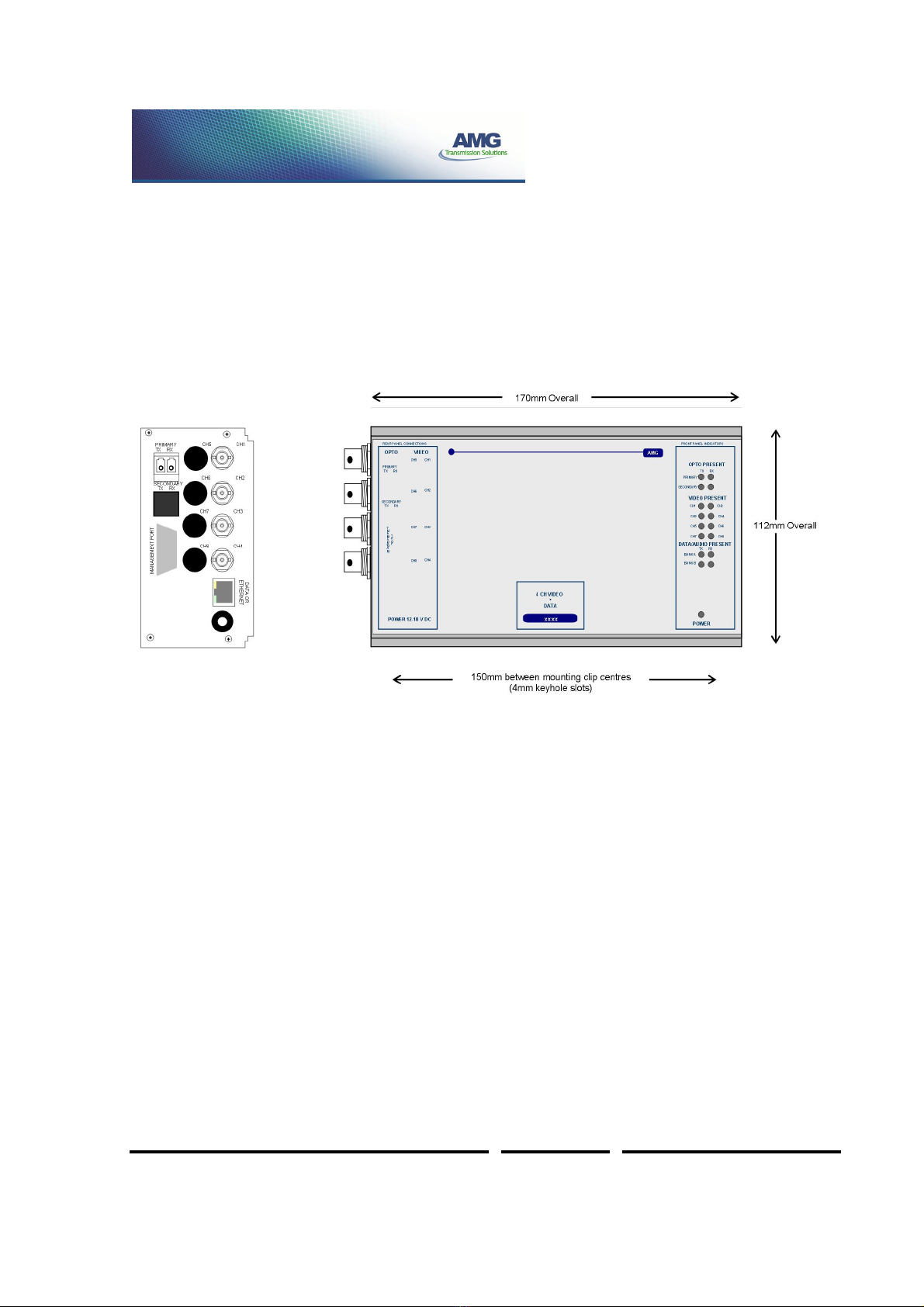

The AMG unit is supplied with a clip
-
on mounting bracket which should be attached to a panel or wall
using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the
mounting bracket, and is then h
eld firmly in position.
Removal / replacement from / to the Case
Note:
-
The AMG unit PCB's are static sensitive. Handle with proper care and use normal electrostatic
discharge (ESD) procedures. Use properly grounded protection (for example, wrist straps
) when
handling the PCB.
To remove units from the case to access the data expansion boards and the daughter boards, remove
the 2 or 4 fixing screws on the rear panel and slide the PCB's out of the case.
Ensure that the fibres do not snag or get trapped.
To replace the PCB's into the case, slide the PCB's gently into the case aligning the boards with the
appropriate slots. Ensure that the fibre do not snag or get trapped.
Safety
AMG Optical Fibre Products use Class 1 laser systems in accordance with
EN 60825
-
2:2000.
It is always advisable to follow good practice when working with optical fibre systems. This includes:

Do not stare with unprotected eyes or with any unapproved collimating device at fibre
ends or connector faces, or point them at other
people.

Use only approved filtered or attenuating viewing aids
For other safety issues and advice on good practice associated with optical fibre systems, please see
EN 60825
-
2:2000 or your local safety officer.
Maintenance and Repair
There are no user
serviceable parts within AMG products. See unit data sheet for full specification.
In case of problem or failure, please call your local support centre or contact:
AMG Systems Ltd.
at
3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18
8QB, UK.
Phone
[phone]
Technical Support
[phone]
Email
[e-mail]
